Article-No.:
50121
URail
Power supply
Smart Home Zigbee 3.0
Middle
227x196mm max. 300W White
227x196mm max. 300W White
- URail middle feeder incl. assembly instructions
- Can be used as middle or end power feed
- Both outputs are controlled together

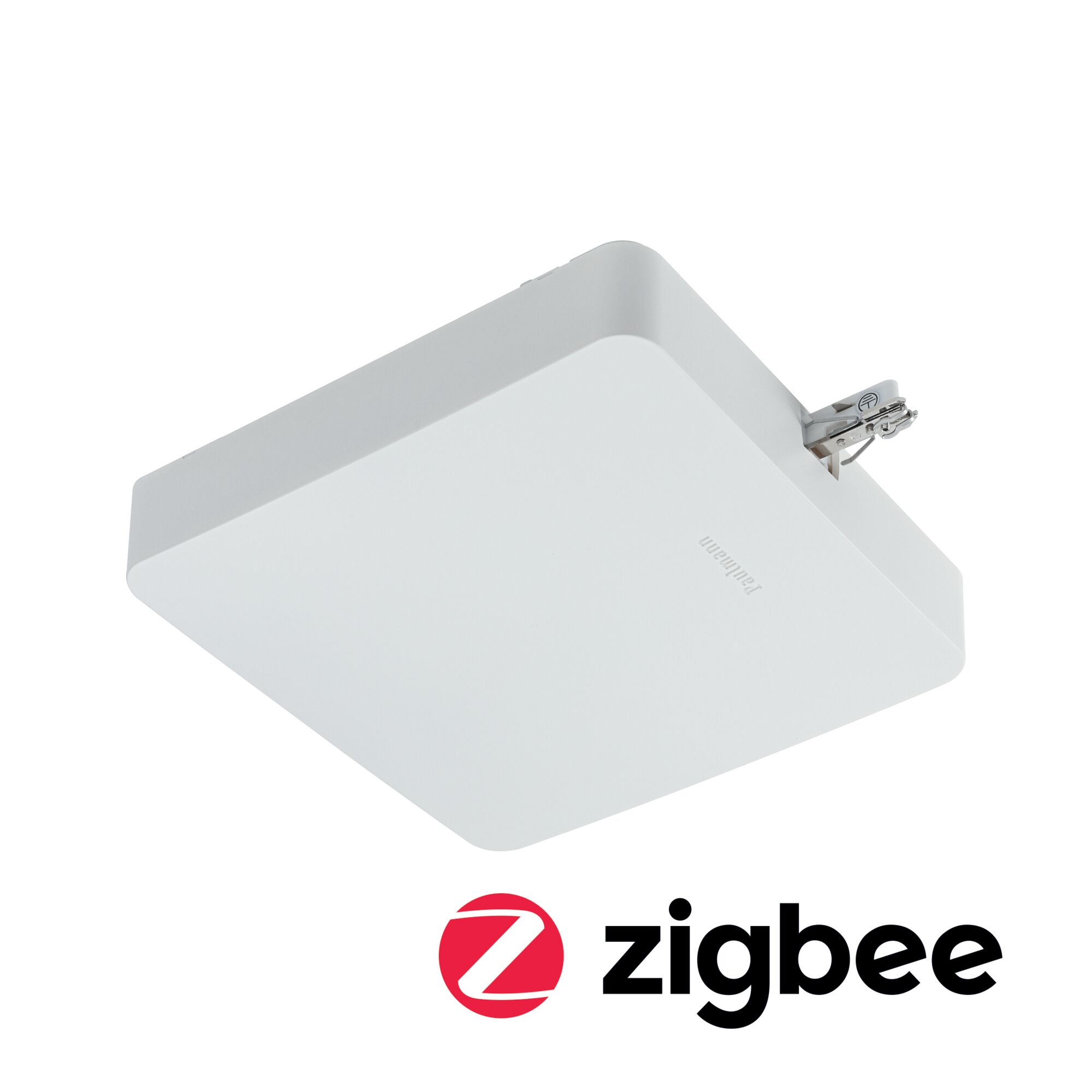

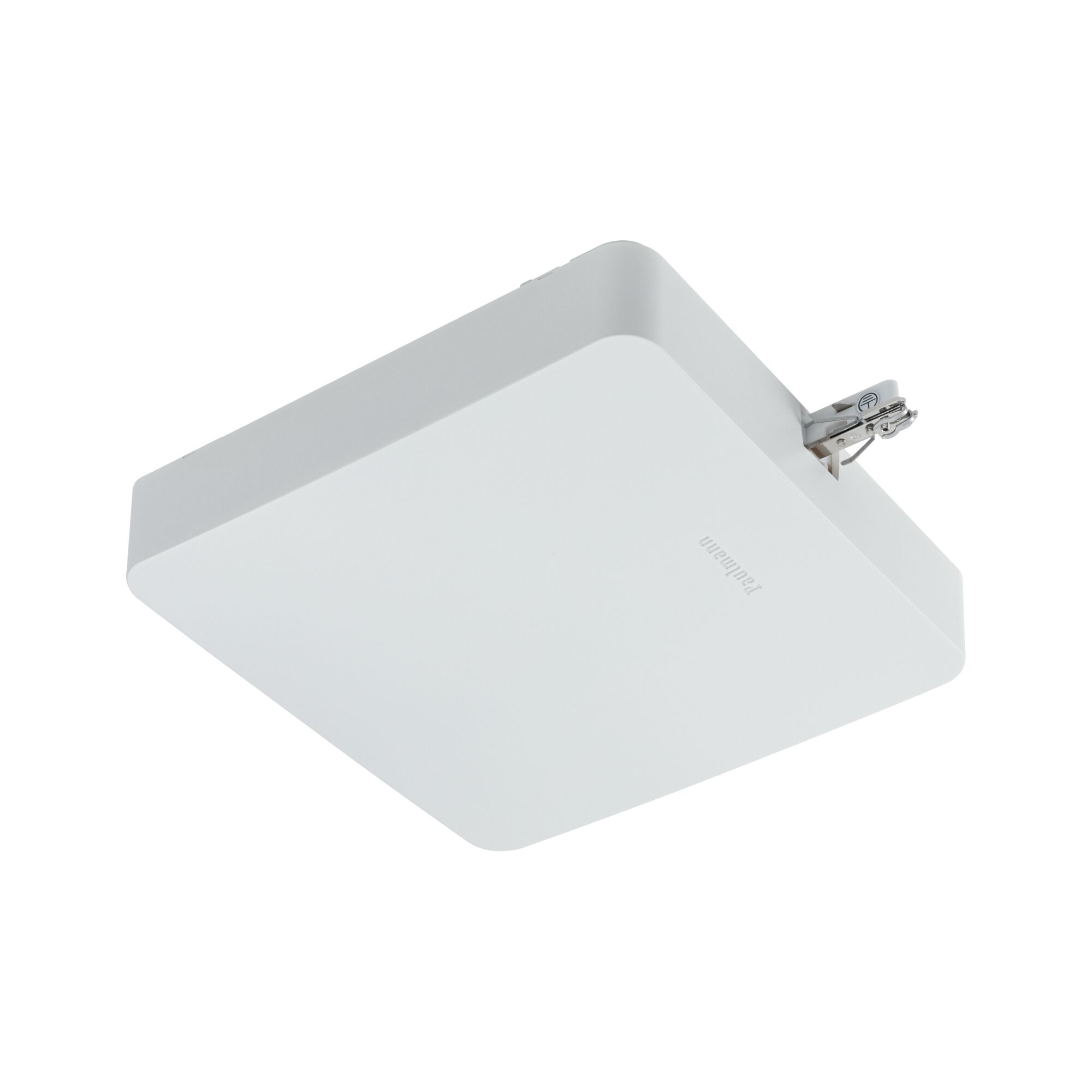

URail Power supply Smart Home Zigbee 3.0 Middle 227x196mm max. 300W White

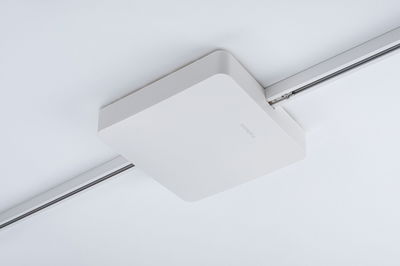

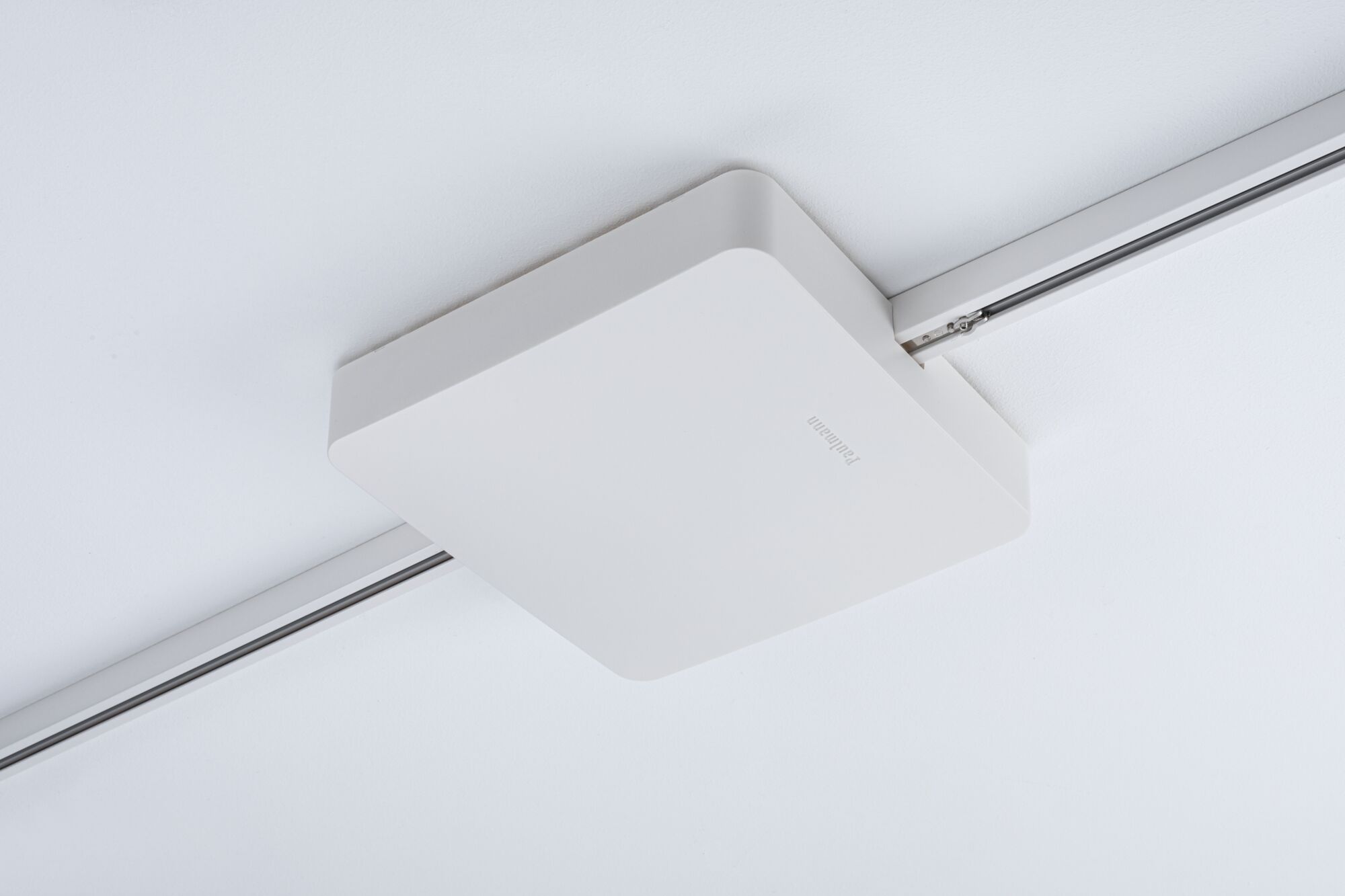

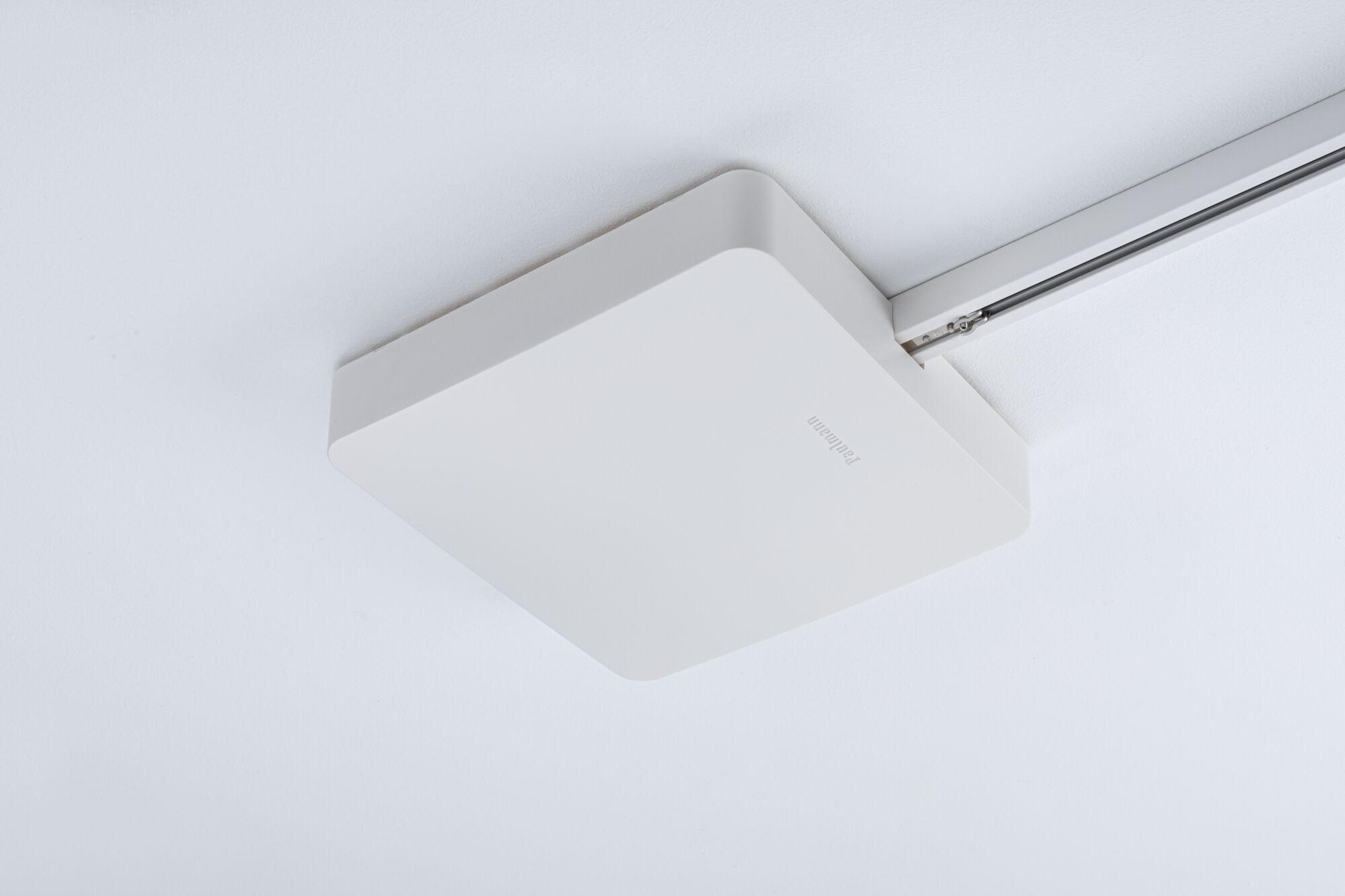

The URail Smart Home middle feed in White is mounted directly above the power connection and is Zigbee 3.0-compatible. It can be used to dim and switch the entire URail system on/off. In combination with the corresponding URail components, you can create your own individual lighting system with a total output of up to 1,000Â watt.
- URail middle feeder incl. assembly instructions
- Can be used as middle or end power feed
- Both outputs are controlled together
- 1-rail connector is fixed
- Convenient combination of power supply and Zigbee controller
- End caps to close off the rail ends are included in the scope of delivery
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch
- For 230 V direct connection
- Remember: Order the connectors at the same time!
- If used as midpoint infeed, an additional direct connector is required
| Dimension | |
|---|---|

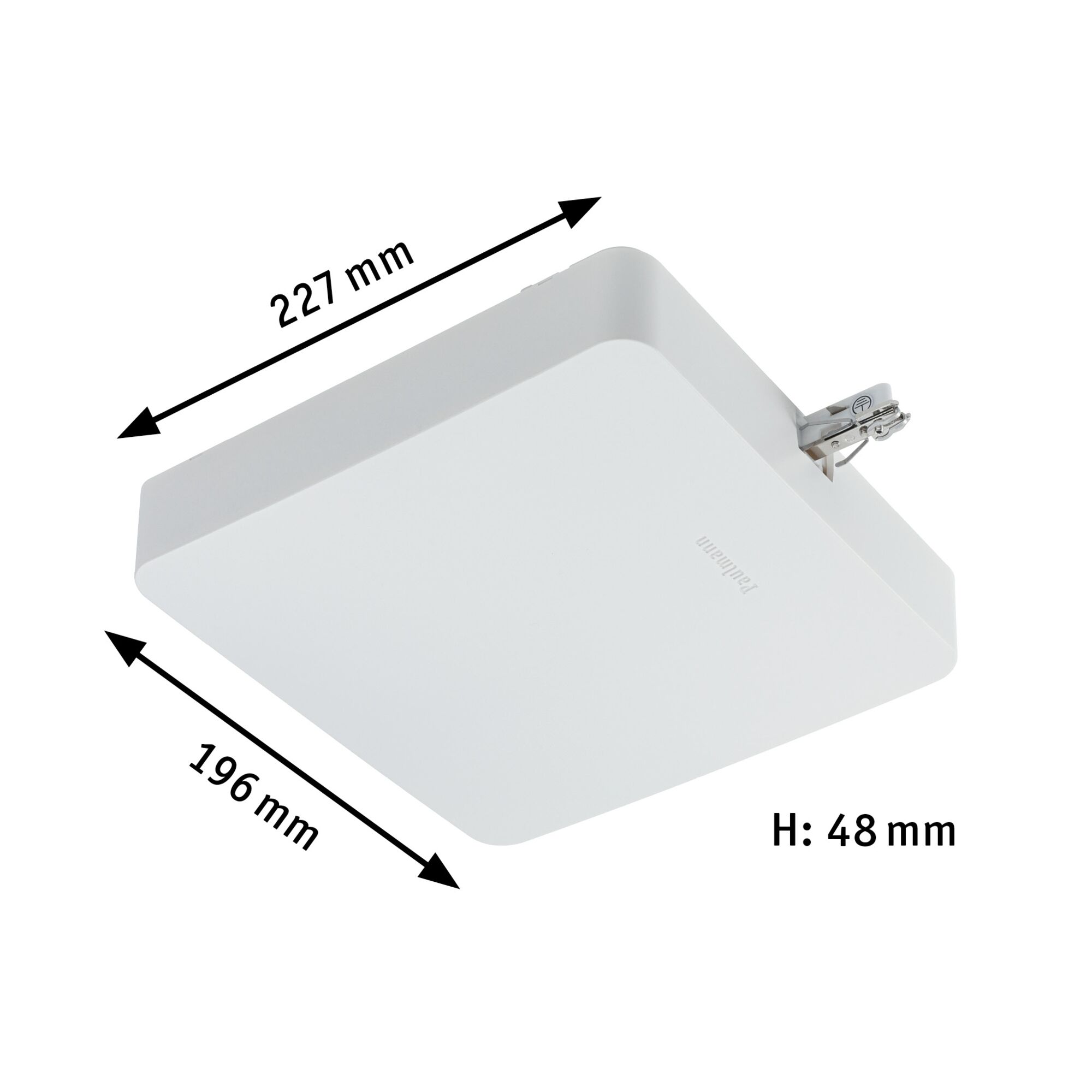

| Dimensions (Height x Width x Depth) | H: 48 x B: 227 x T: 196 mm |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann SmartHome Zigbee Gent2 501.40 |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Compatible Smart Home technology | Zigbee |
| Technique | Accessories without bulbs |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | no |
| Total Width | 227 mm |
| Maximum wattage range | max. 300 W |
| protection class | protection class I |
| Replacable | 7 not concerned. |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee_inside (not certified) |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
