Article-No.:
50120
URail
Power supply
Smart Home Zigbee 3.0
Middle
227x196mm max. 300W Chrome matt
227x196mm max. 300W Chrome matt
- URail middle feeder incl. assembly instructions
- Can be used as middle or end power feed
- Both outputs are controlled together

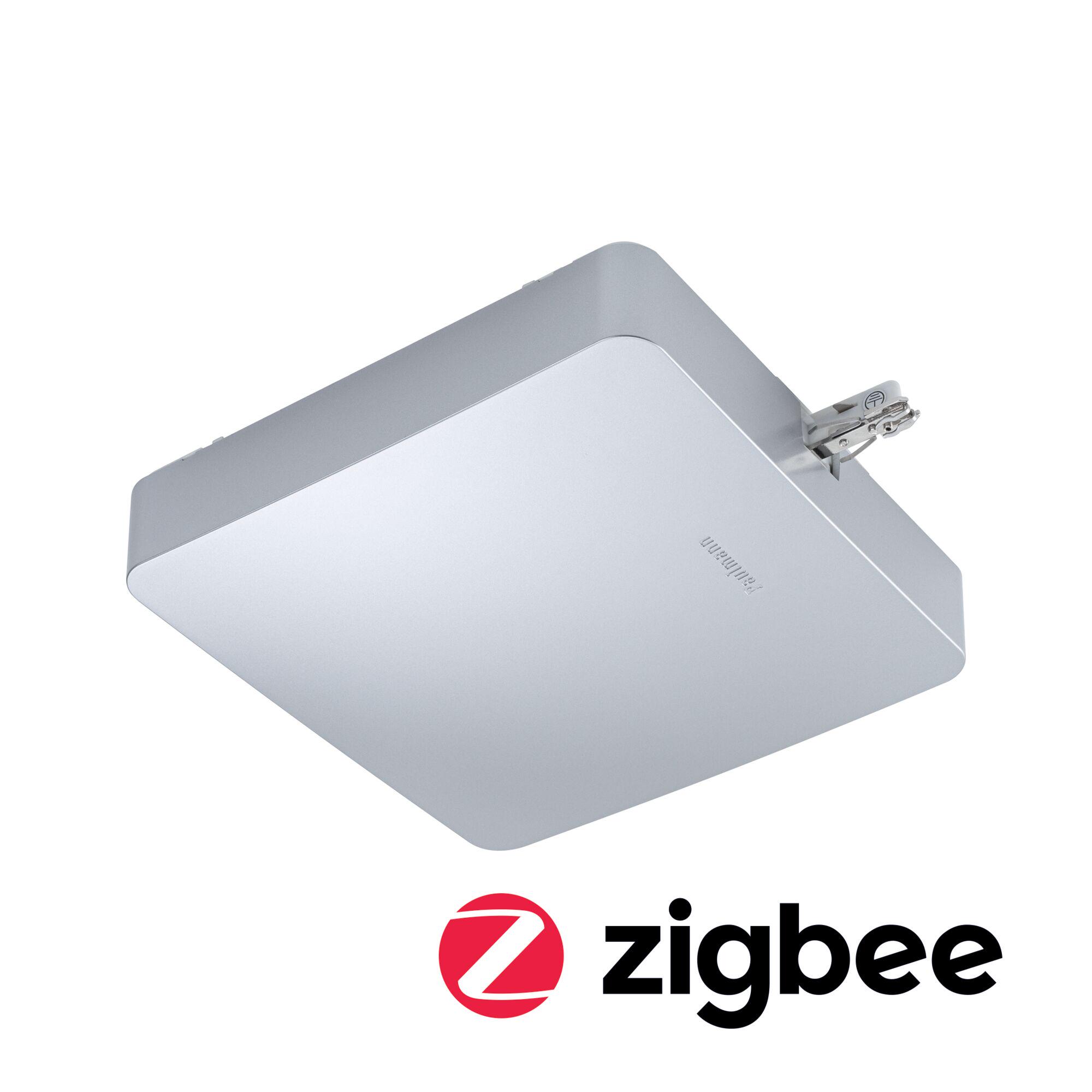

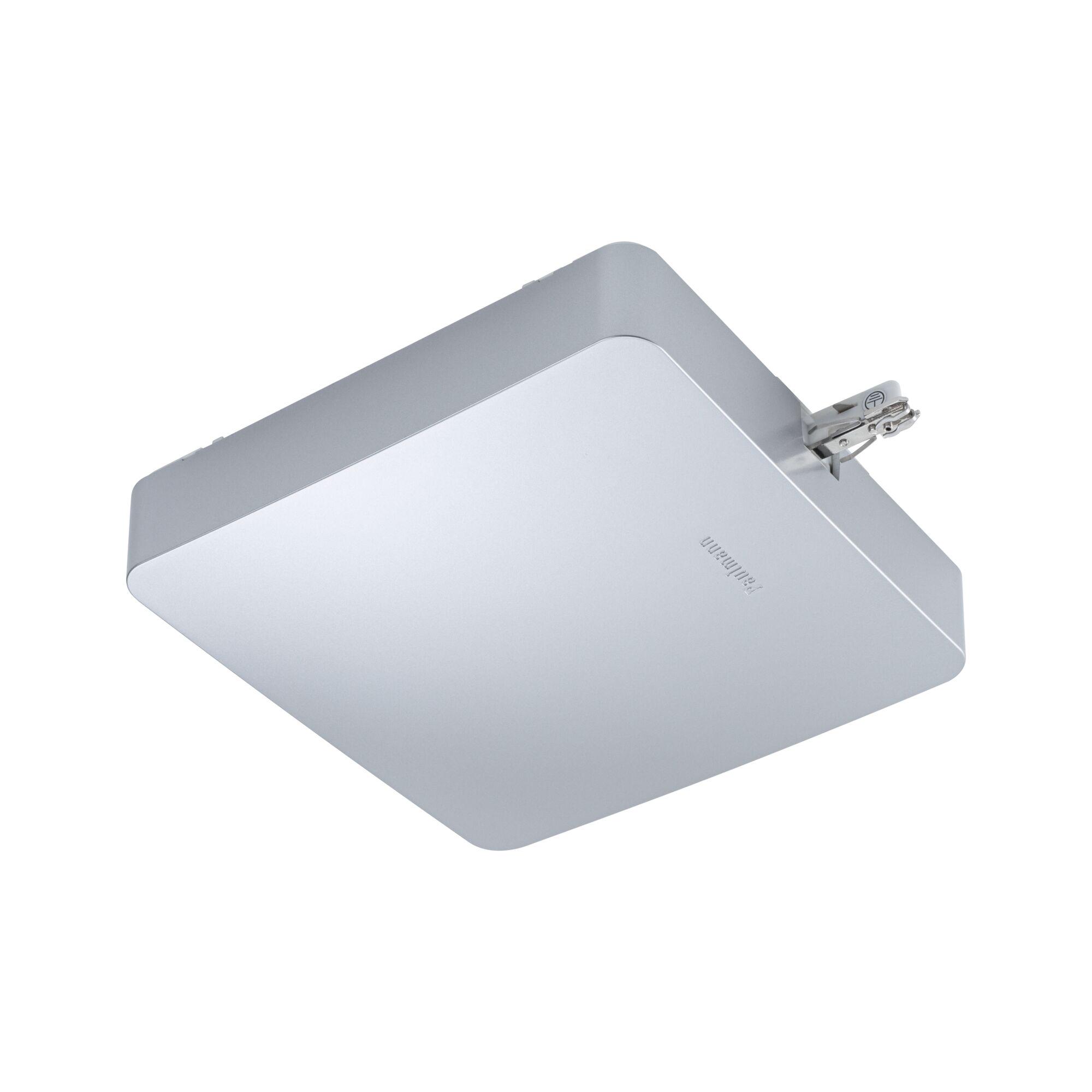

URail Power supply Smart Home Zigbee 3.0 Middle 227x196mm max. 300W Chrome matt

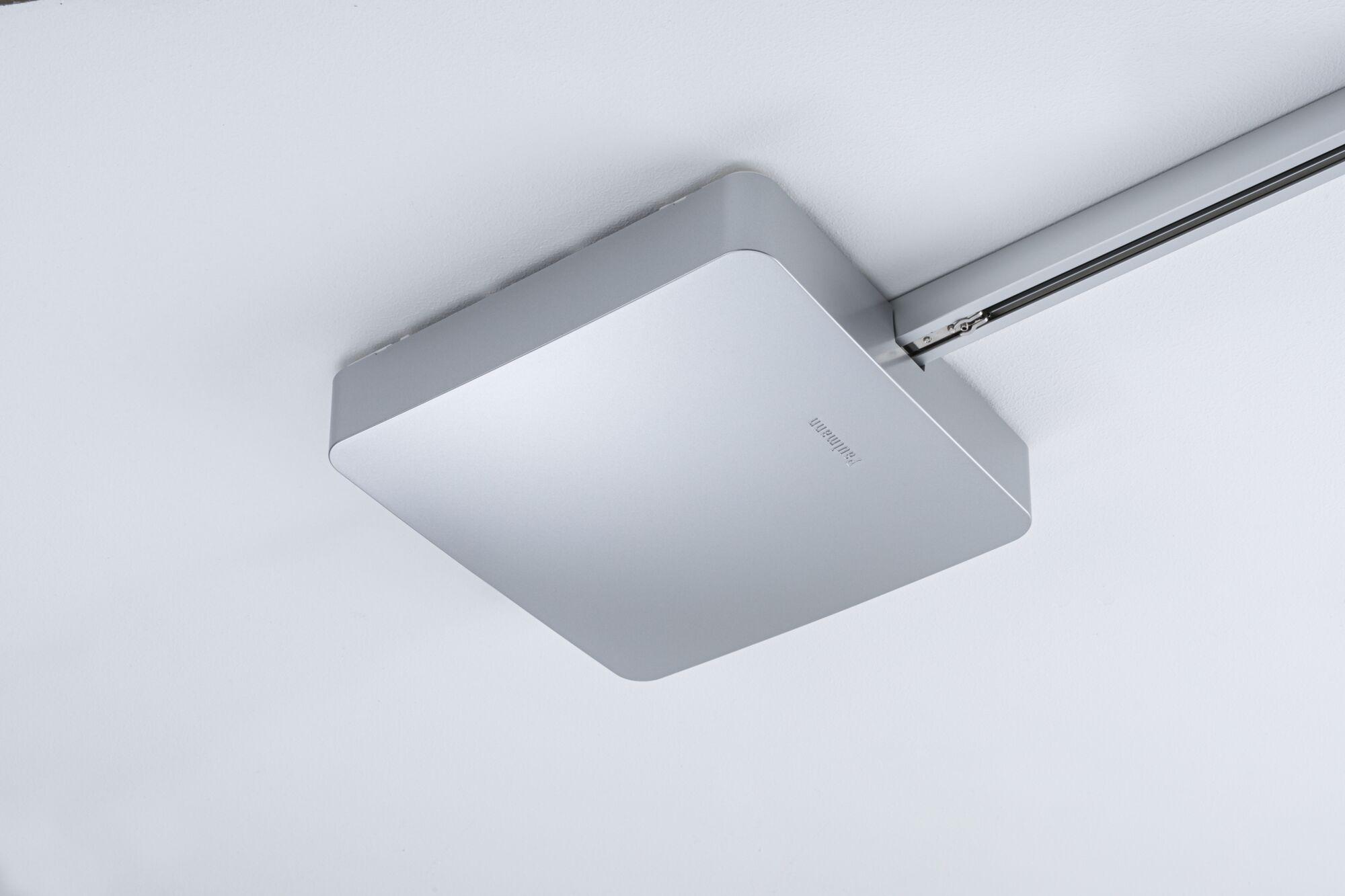

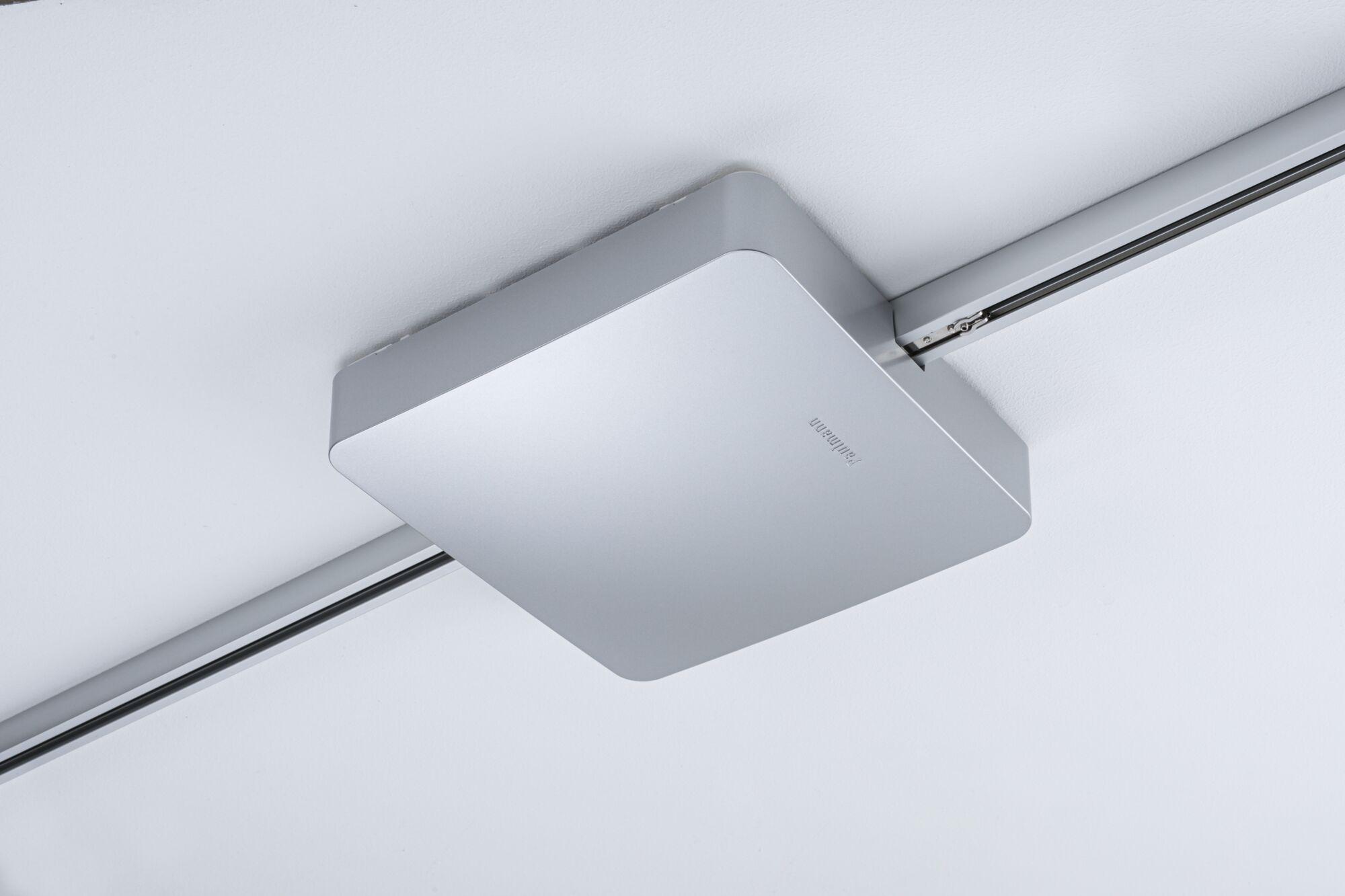

The 230-volt middle feed in Chrome matt, with an integrated ZigBee control device, can be used to switch or dim the entire system. The middle feed is placed directly over the power connection. It is one of numerous modular parts from the URail series. A separate ZigBee hub also lets you control the system via the voice assistant. Now you can create your very own personal 230-volt URail rail system in combination with other system components. The system is designed for a max. total output of 300Â watts and for the use of LED lamps, luminaires with energy-saving lamps, and halogen lamps.
- URail middle feeder incl. assembly instructions
- Can be used as middle or end power feed
- Both outputs are controlled together
- 1-rail connector is fixed
- Convenient combination of power supply and Zigbee controller
- End caps to close off the rail ends are included in the scope of delivery
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch
- For 230 V direct connection
- Remember: Order the connectors at the same time!
- If used as midpoint infeed, an additional direct connector is required
| Dimension | |
|---|---|

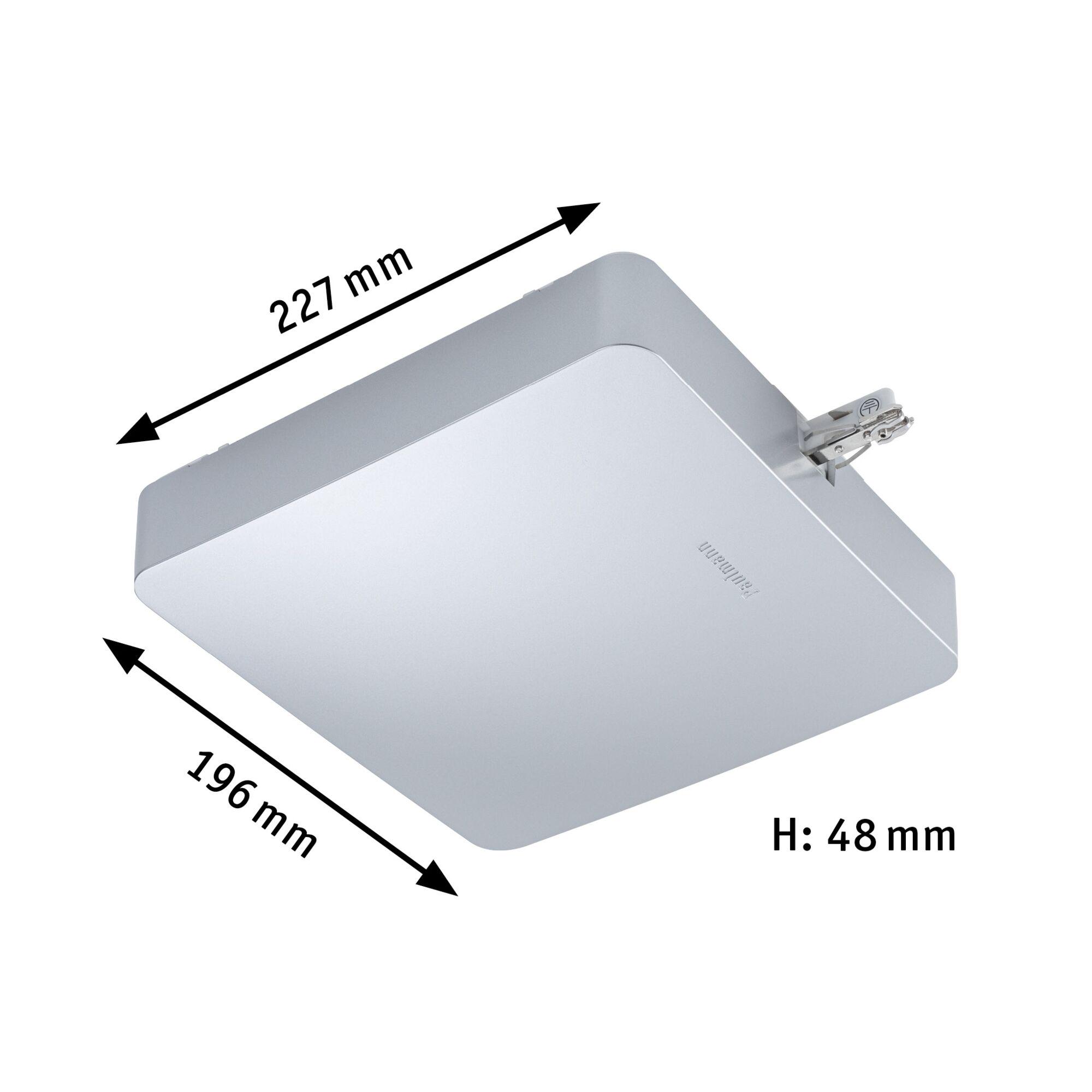

| Dimensions (Height x Width x Depth) | H: 48 x B: 227 x T: 196 mm |
| Design and Material | |
|---|---|
| Colour | Chrome matt |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann SmartHome Zigbee Gent2 501.40 |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Compatible Smart Home technology | Zigbee |
| Technique | Accessories without bulbs |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | no |
| Total Width | 227 mm |
| Maximum wattage range | max. 300 W |
| protection class | protection class I |
| Replacable | 7 not concerned. |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee_inside (not certified) |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
