Article-No.:
95671
URail
Power supply
Cable
1m max. 100W Signal white
1m max. 100W Signal white
- URail power infeed incl. assembly instructions
- Convenient combination of power supply and Zigbee controller
- Usable with smart home gateways that have a Zigbee interface

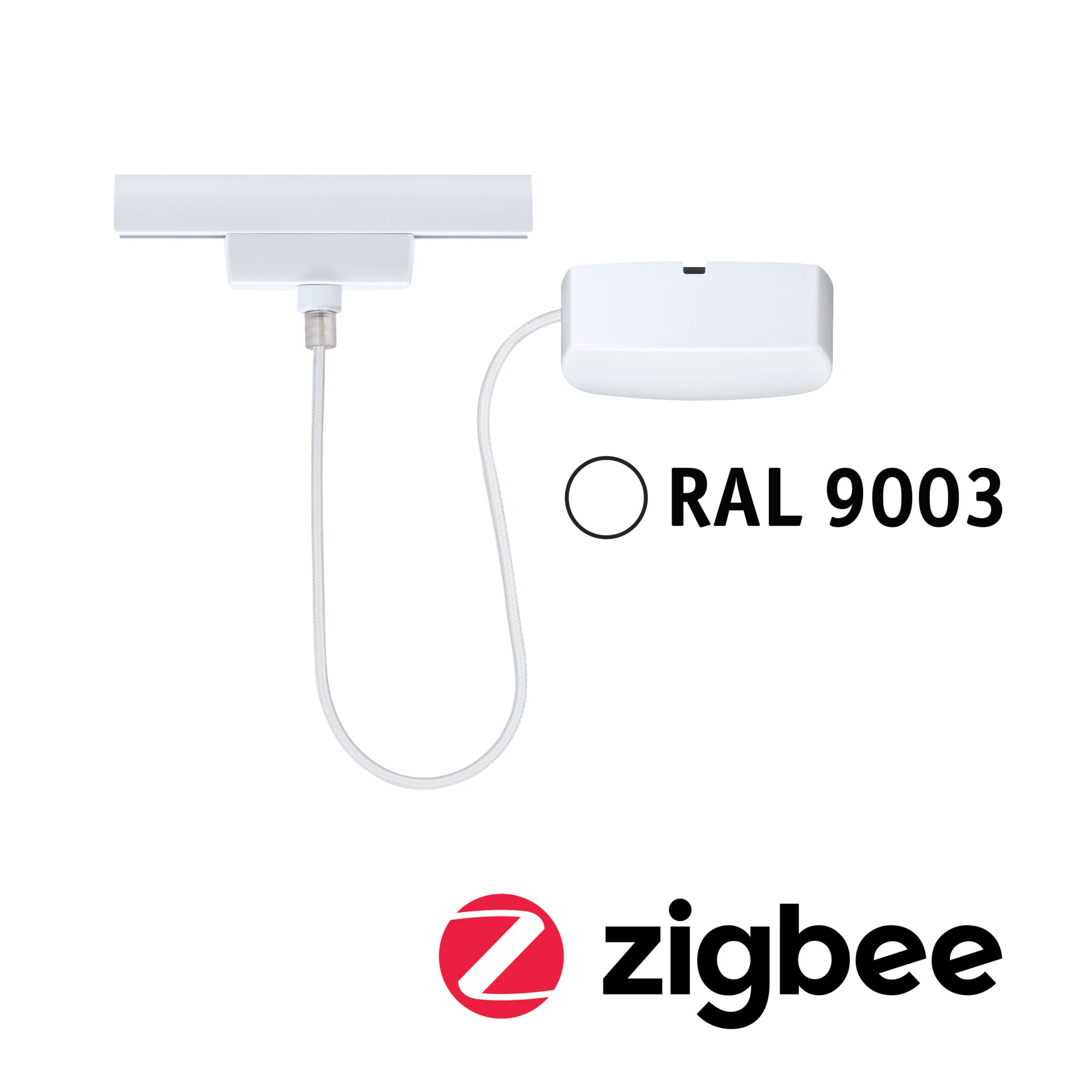

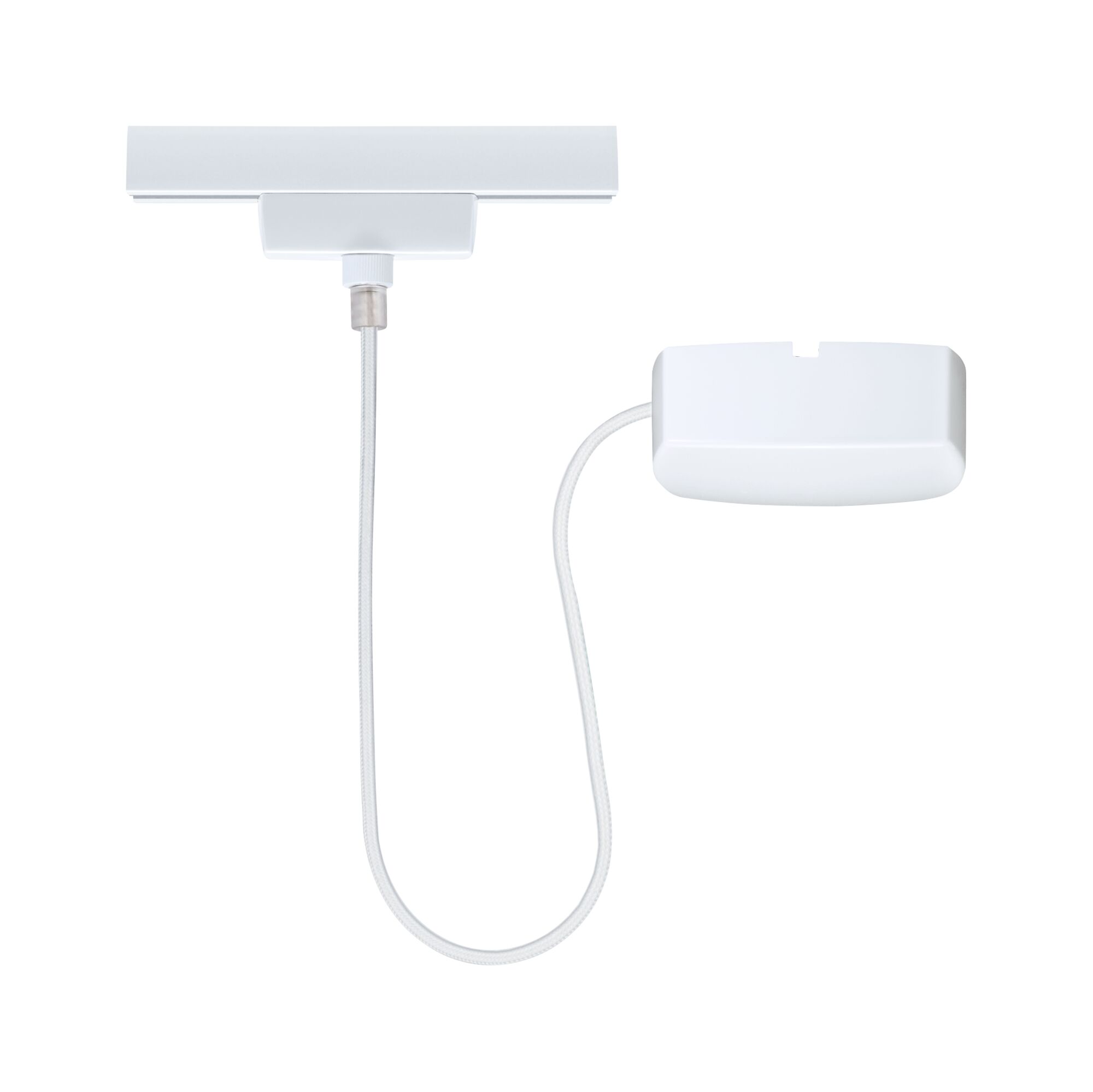

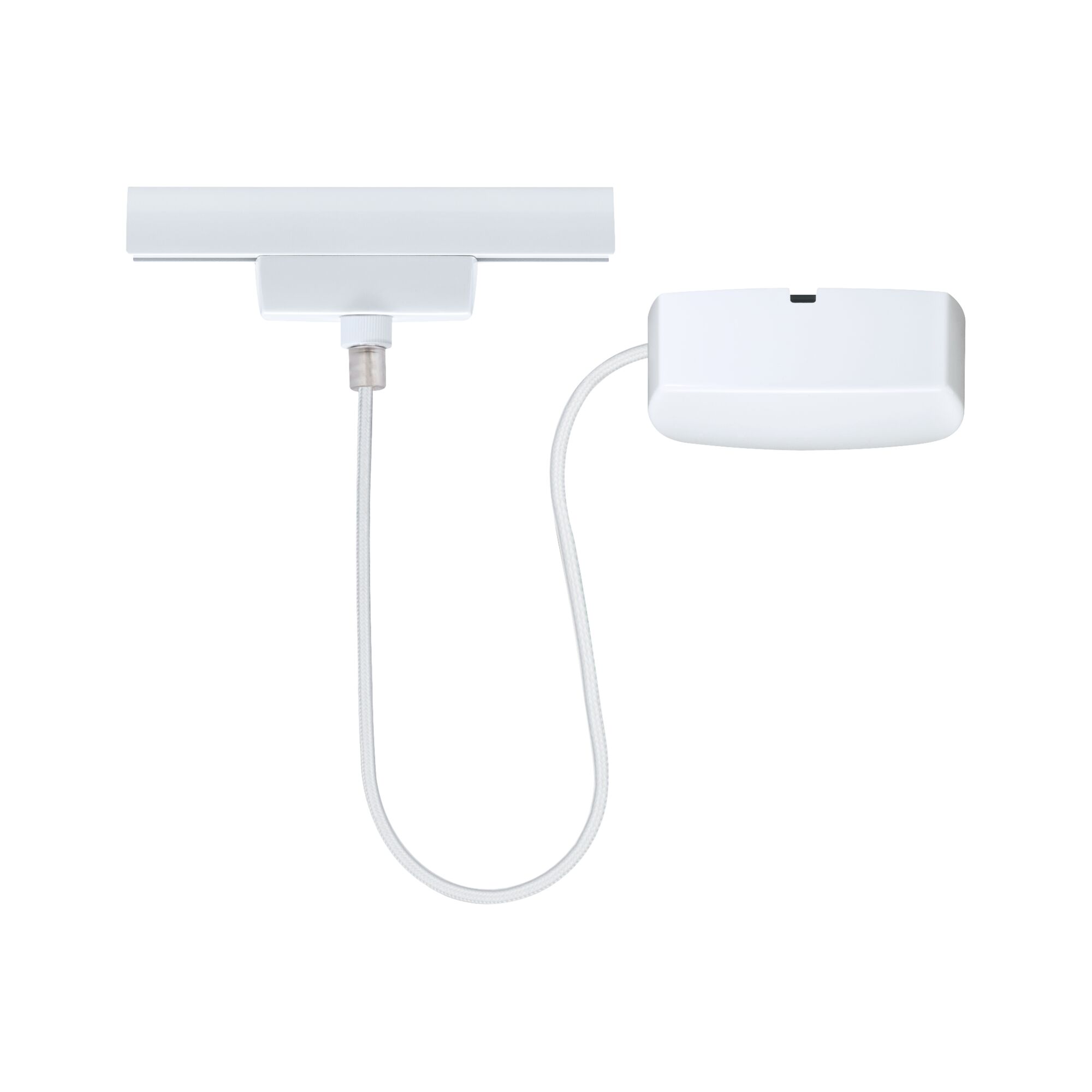

URail Power supply Cable 1m max. 100W Signal white
This 230-volt cable feed in ${colour} with integrated Zigbee 3.0 controller switches off or dims the entire URail system. The feed offers a high degree of flexibility, as the track system does not necessarily have to run along the feed point. The cable can be integrated into the rail at any point. This cable feed is one of many system components in the URail range. Now you can create your very own personal 230-volt URail rail system in combination with other system components. PLEASE NOTE: This product is not compatible with all fixed LEDs and LED lamps. Please refer to the technical data for the dimmer compatibility of the luminaires/lamps.

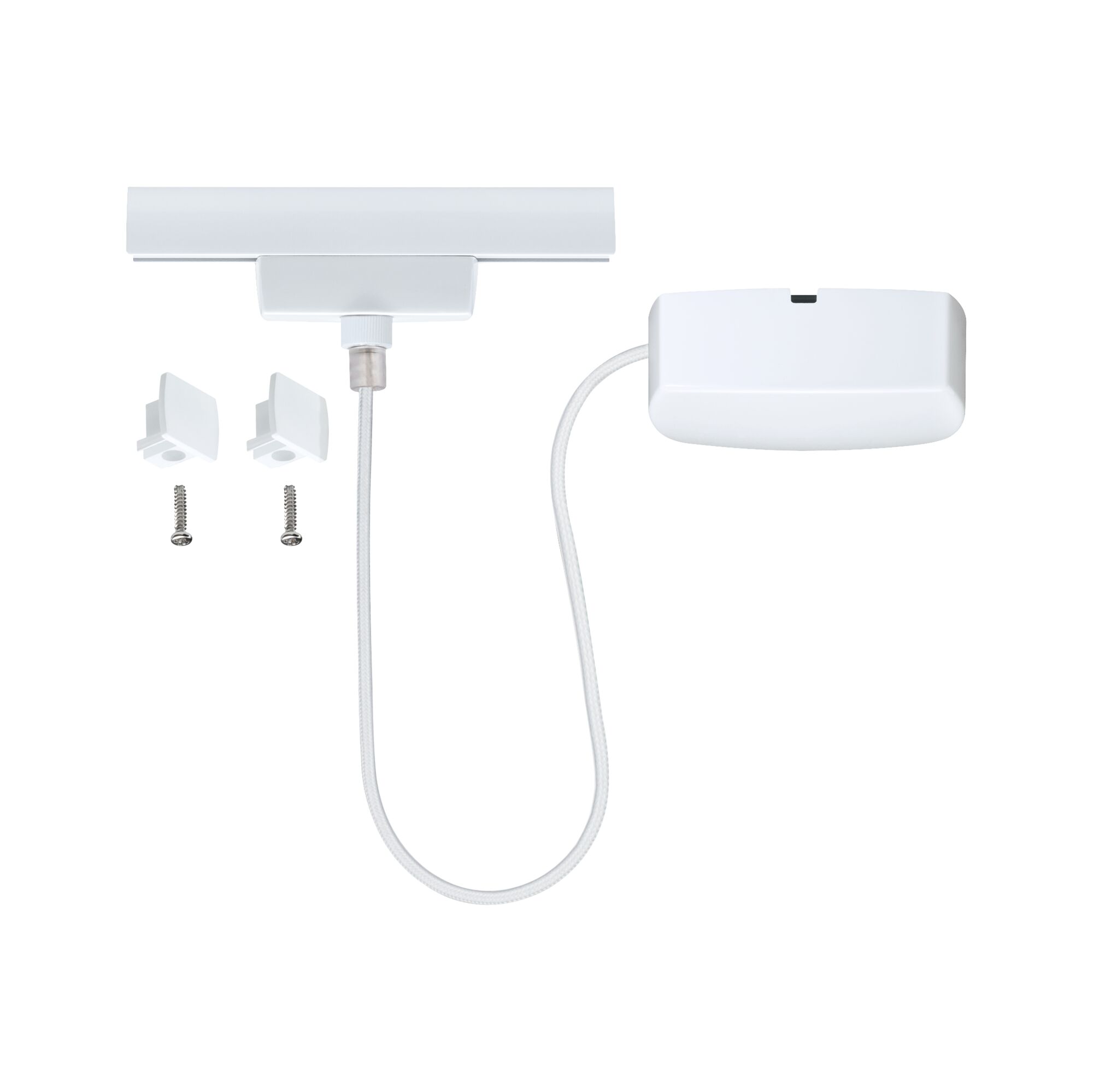

- URail power infeed incl. assembly instructions
- Convenient combination of power supply and Zigbee controller
- Usable with smart home gateways that have a Zigbee interface
- Can still be switched on and off with the light switch
- For 230 V direct connection
- Can be controlled with the Smart Home Zigbee remote control
- Remember: Order the connectors at the same time!
| Dimension | |
|---|---|

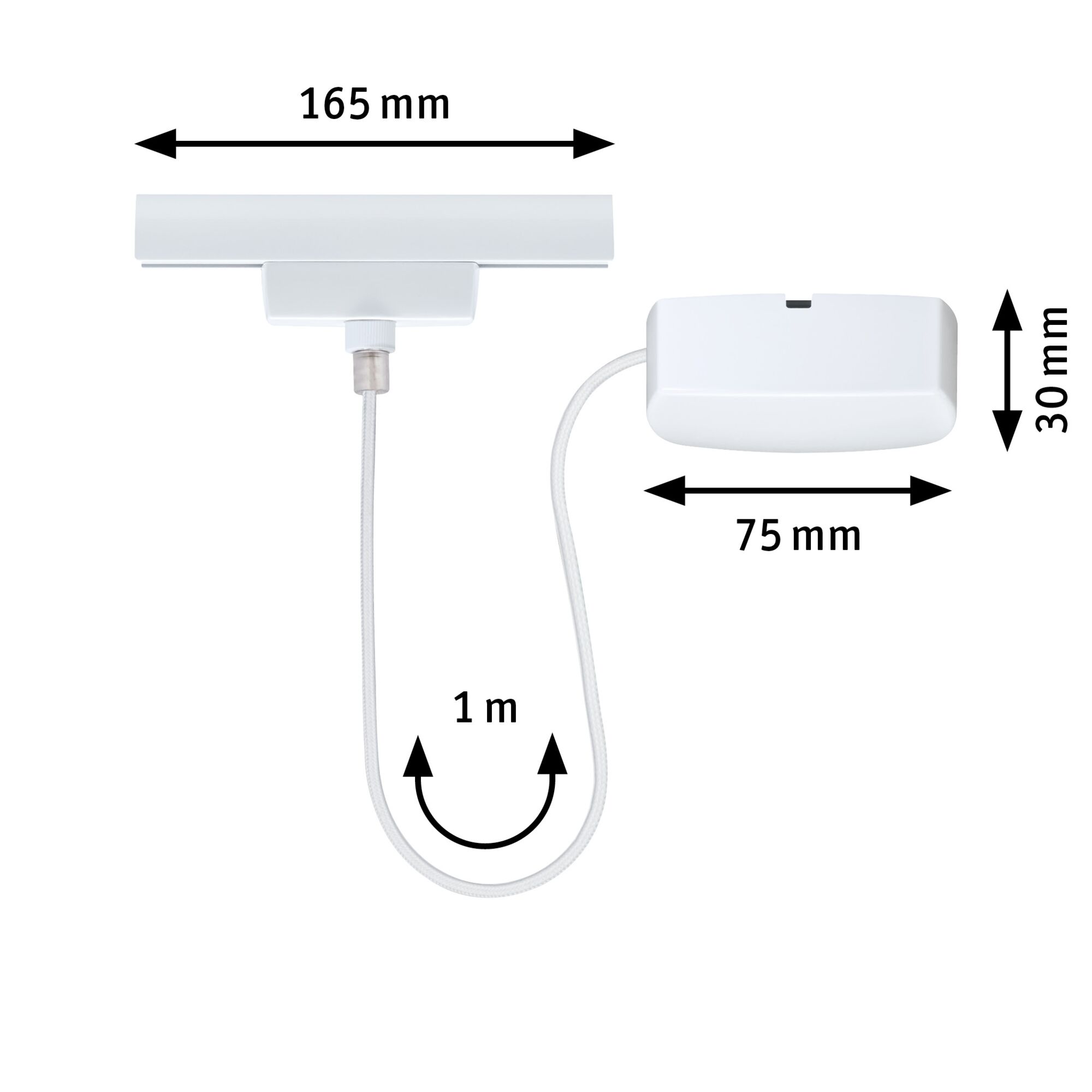

| Dimensions (Height x Width x Depth) | H: 30 x B: 165 x mm |
| Ø | 80 mm |
| Length | 1 m |
| Design and Material | |
|---|---|
| Textile cable | Textile cable |
| Colour | Signal white |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann SmartHome ZB Basic Remote Control 501.41, Paulmann SmartHome Zigbee Gent2 501.40, Paulmann SmartHome ZB Smart Switch 501.34 |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Compatible Smart Home technology | Zigbee |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | no |
| Total Width | 165 mm |
| Maximum wattage range | max. 100 W |
| protection class | protection class I |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
