Article-No.:
96912
URailPendants
DecoSystems Basic
E14 max. 20W dimmable 230V Black matt
E14 max. 20W dimmable 230V Black matt
- The Basic Pendant and Basic Spot can be equipped with a DecoSystems shade of your choice and an E14 illuminant.
- The DecoSystems spots and pendants are versatile and decorative
- Freely selectable lamps

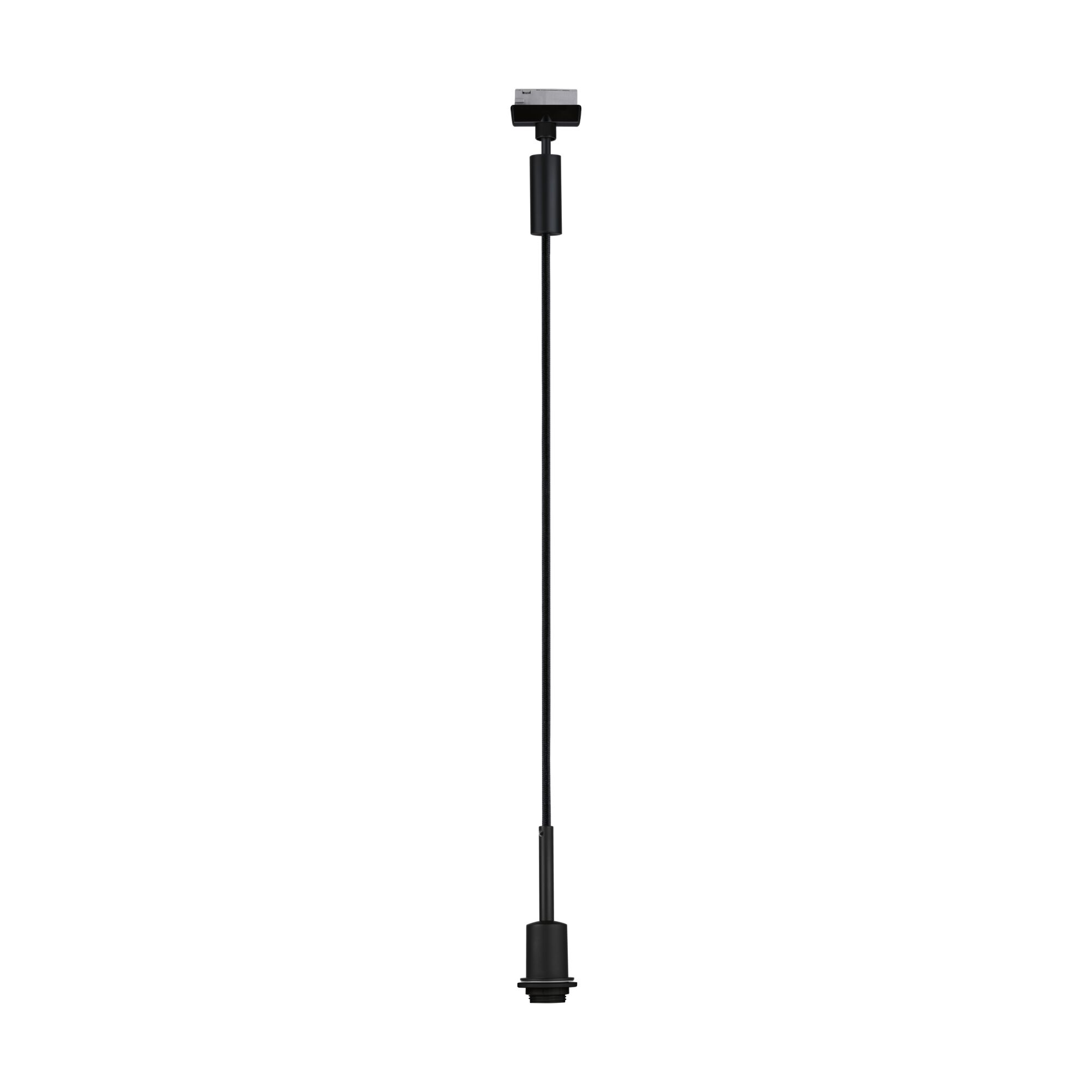

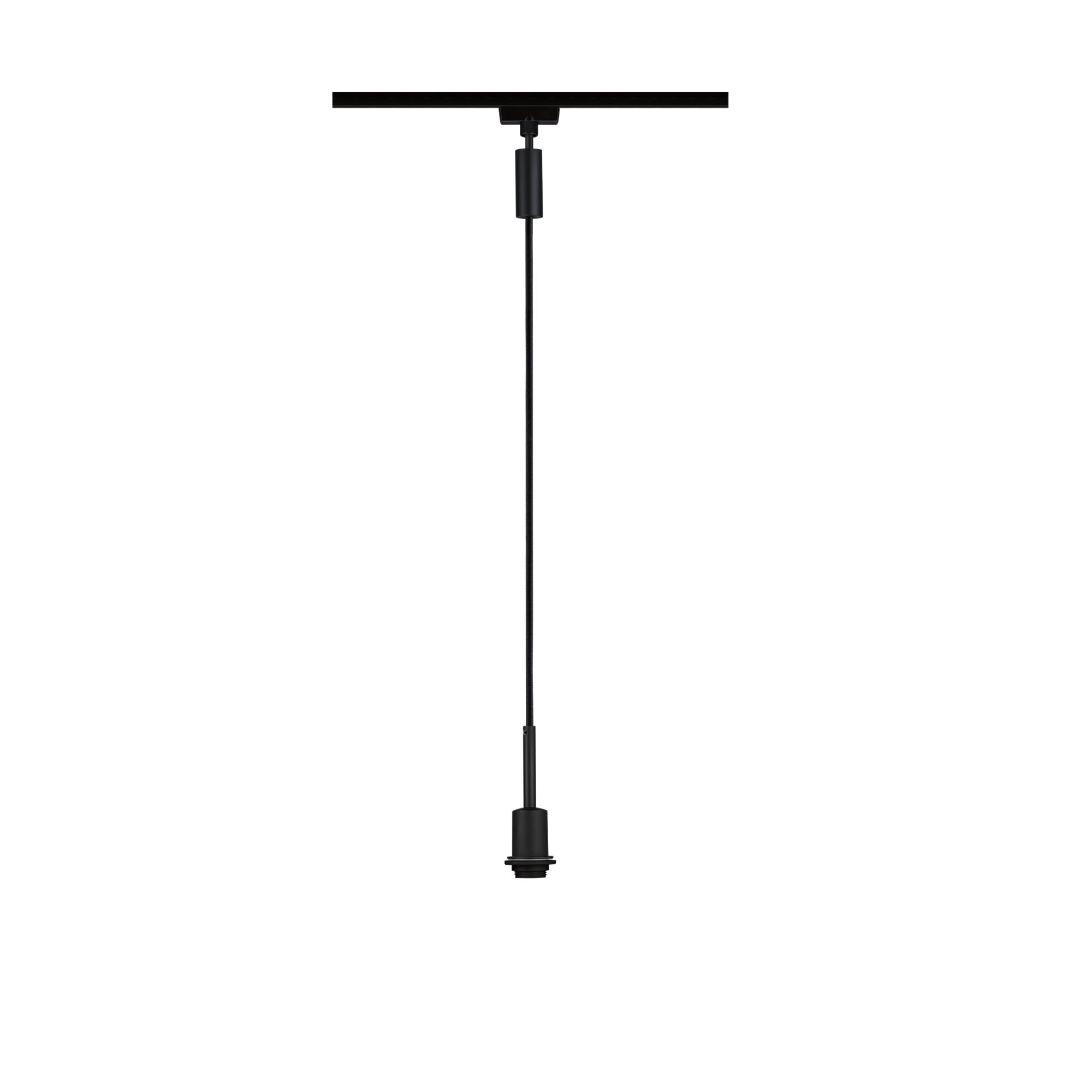

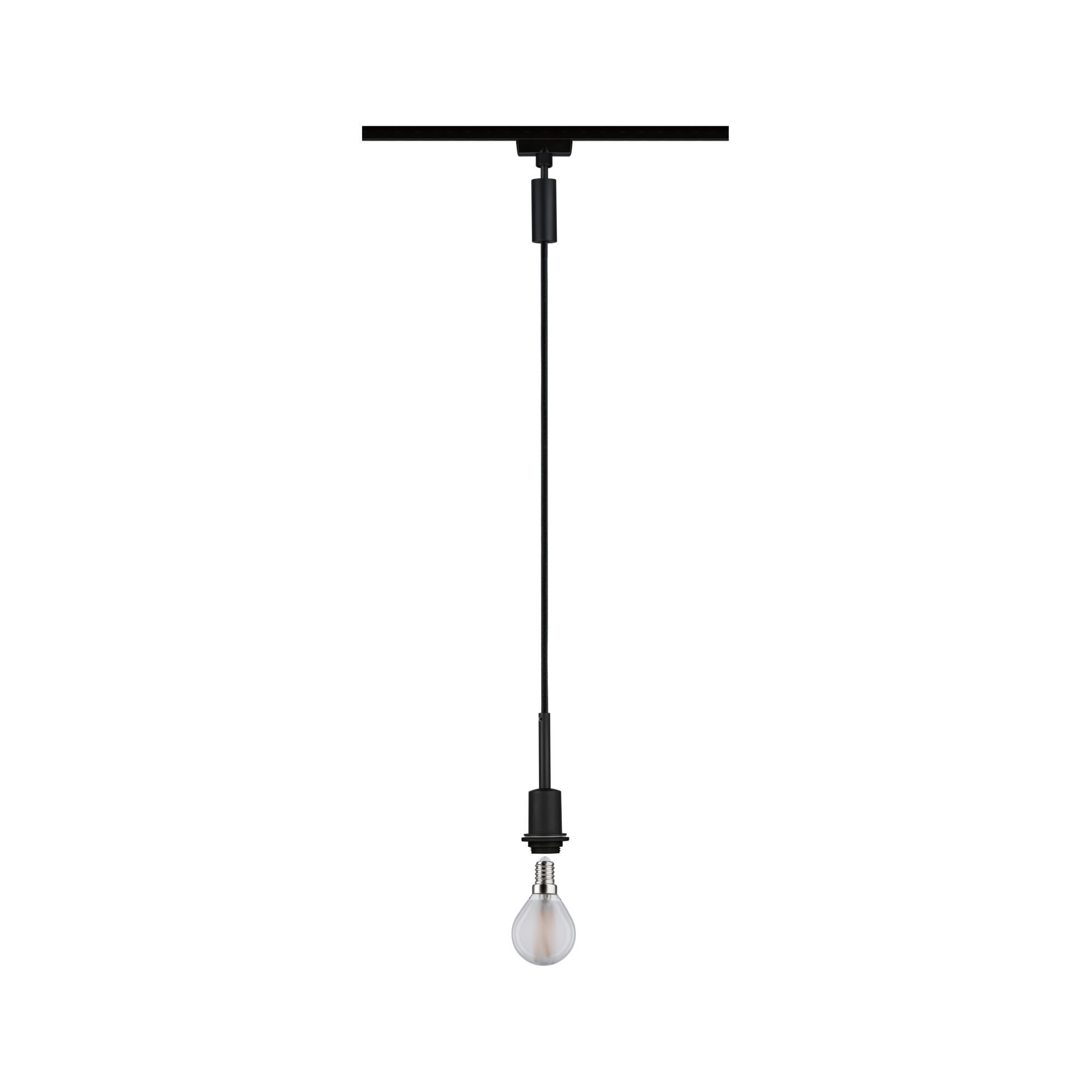

URail Pendants DecoSystems Basic E14 max. 20W dimmable 230V Black matt

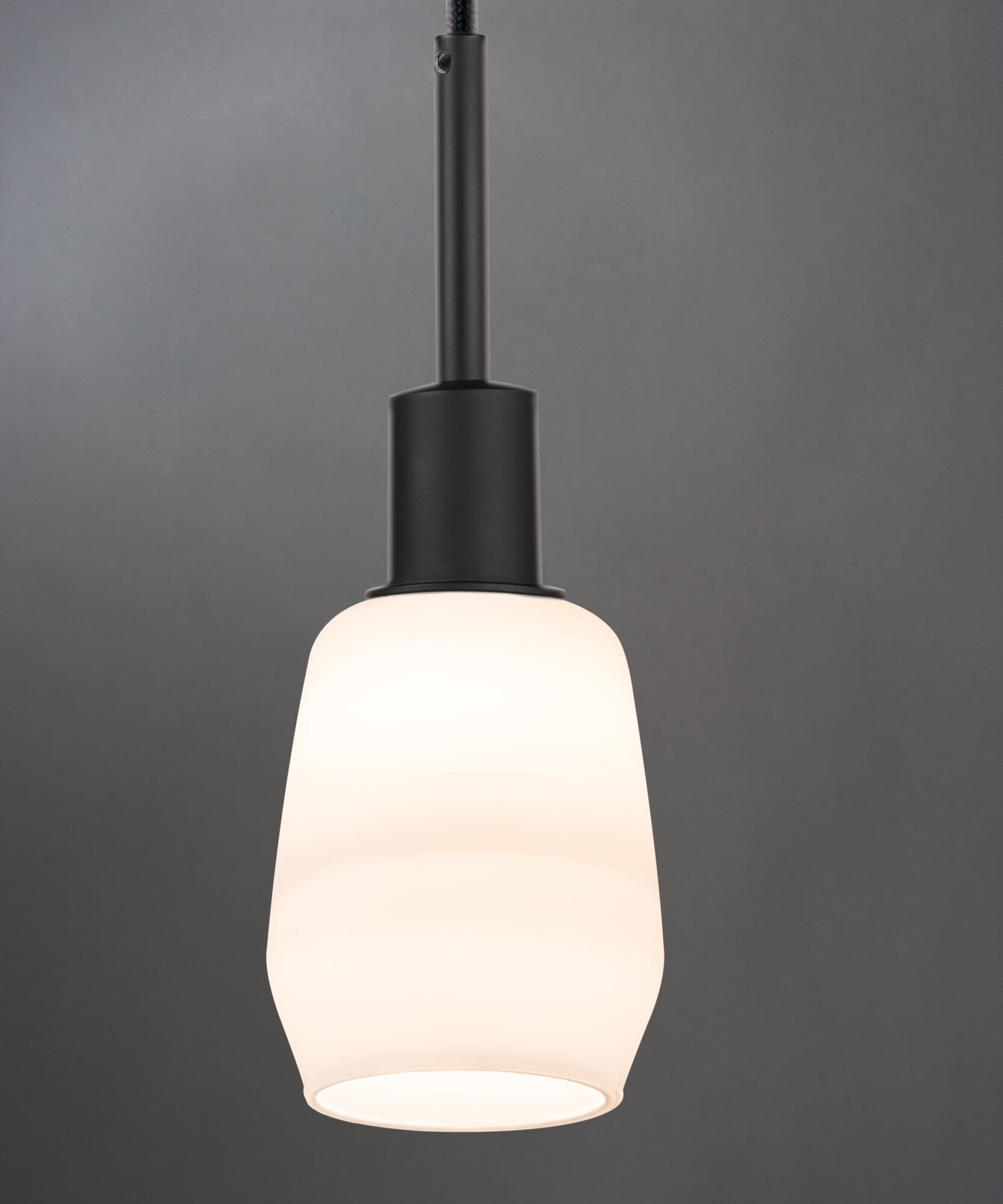

The black URail rail pendant -DecoSystems- offers you full flexibility in selecting the lampshade and the lamp. It can be equipped with a DecoSystems shade of your choice and an E14 lamp. Shortening is very easy: open the box with a screwdriver, unscrew the luster terminal inside, loosen the cables and cut them. Continue to remove insulation from the cable (there are 2 cables indoors, i.e. conductor L and neutral conductor N). Crimp a wire end sleeve onto L and N using crimping pliers, then reinsert both cables into the lustre terminal and tighten. Press the cover box back together and screw it shut. You're done!
- The Basic Pendant and Basic Spot can be equipped with a DecoSystems shade of your choice and an E14 illuminant.
- The DecoSystems spots and pendants are versatile and decorative
- Freely selectable lamps
- Surface/color: Black matt
- URail system lamp

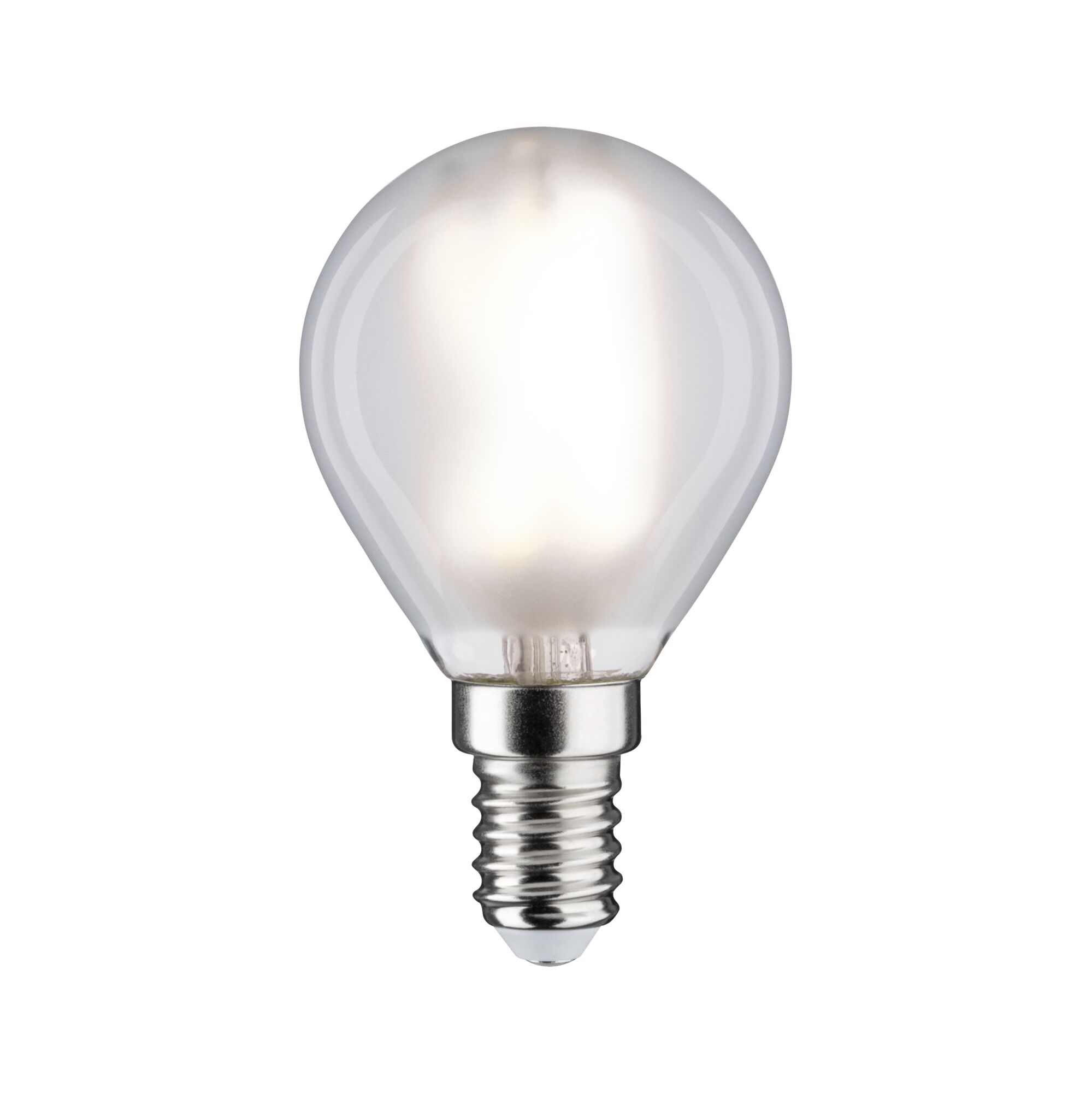

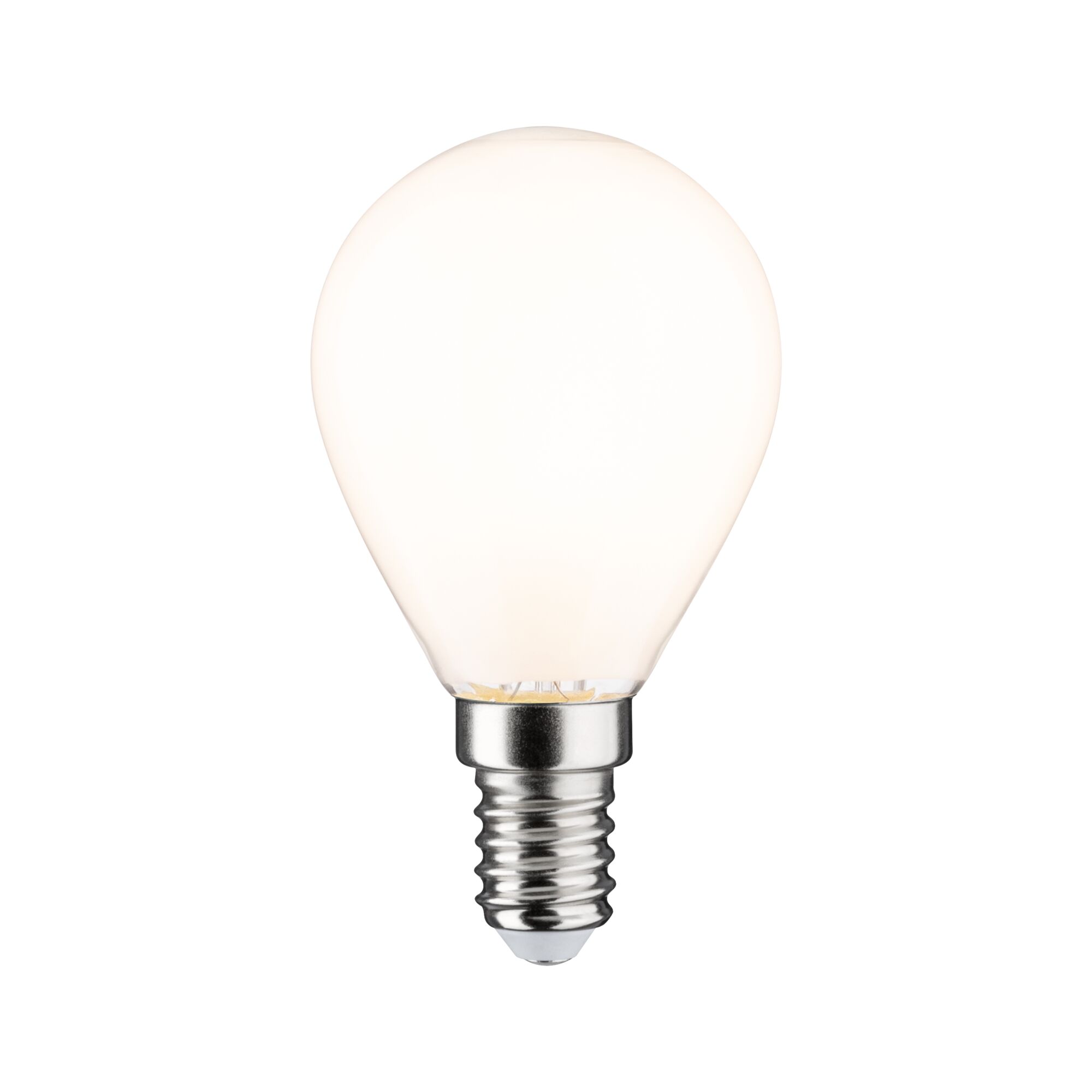

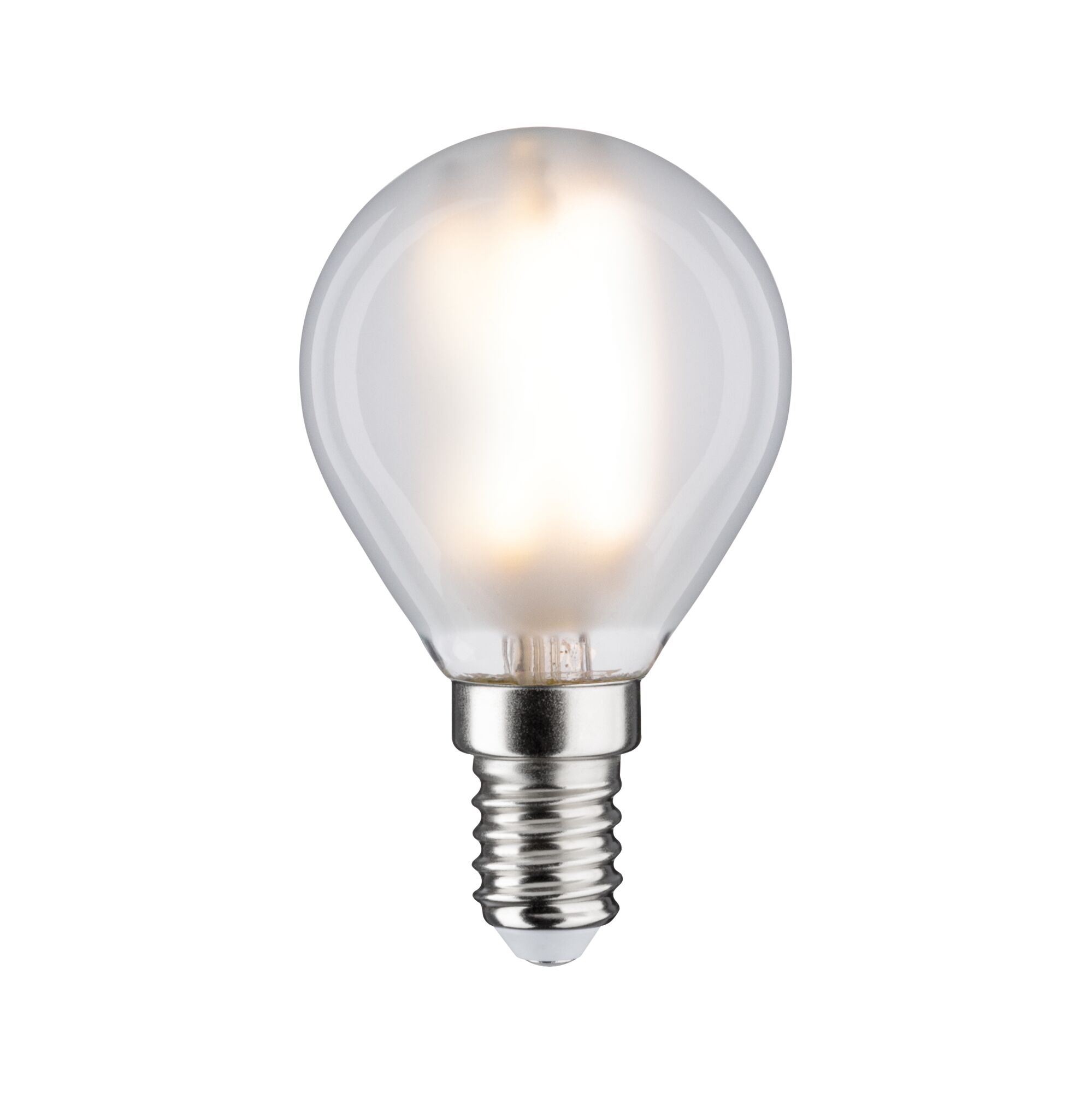

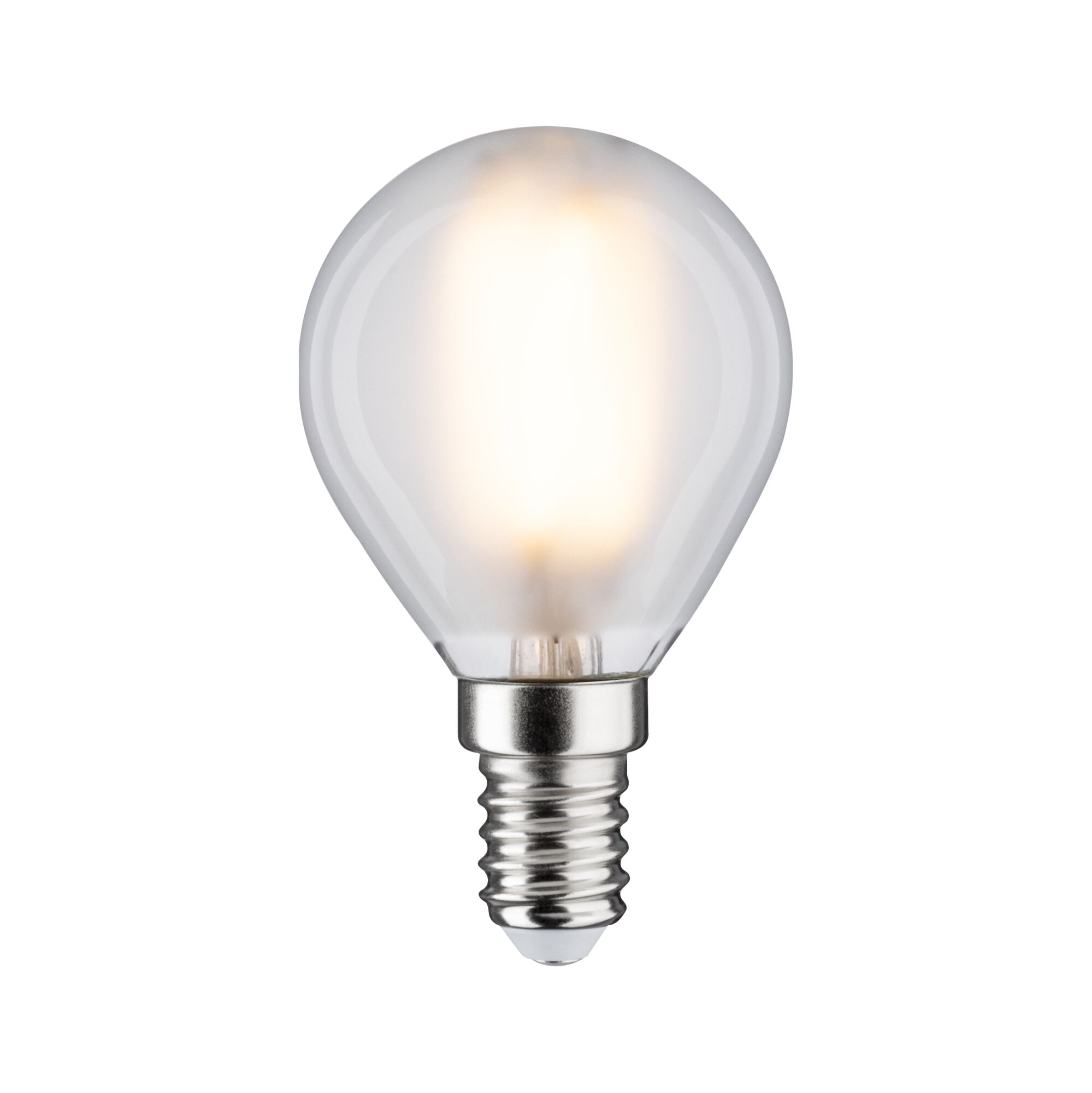

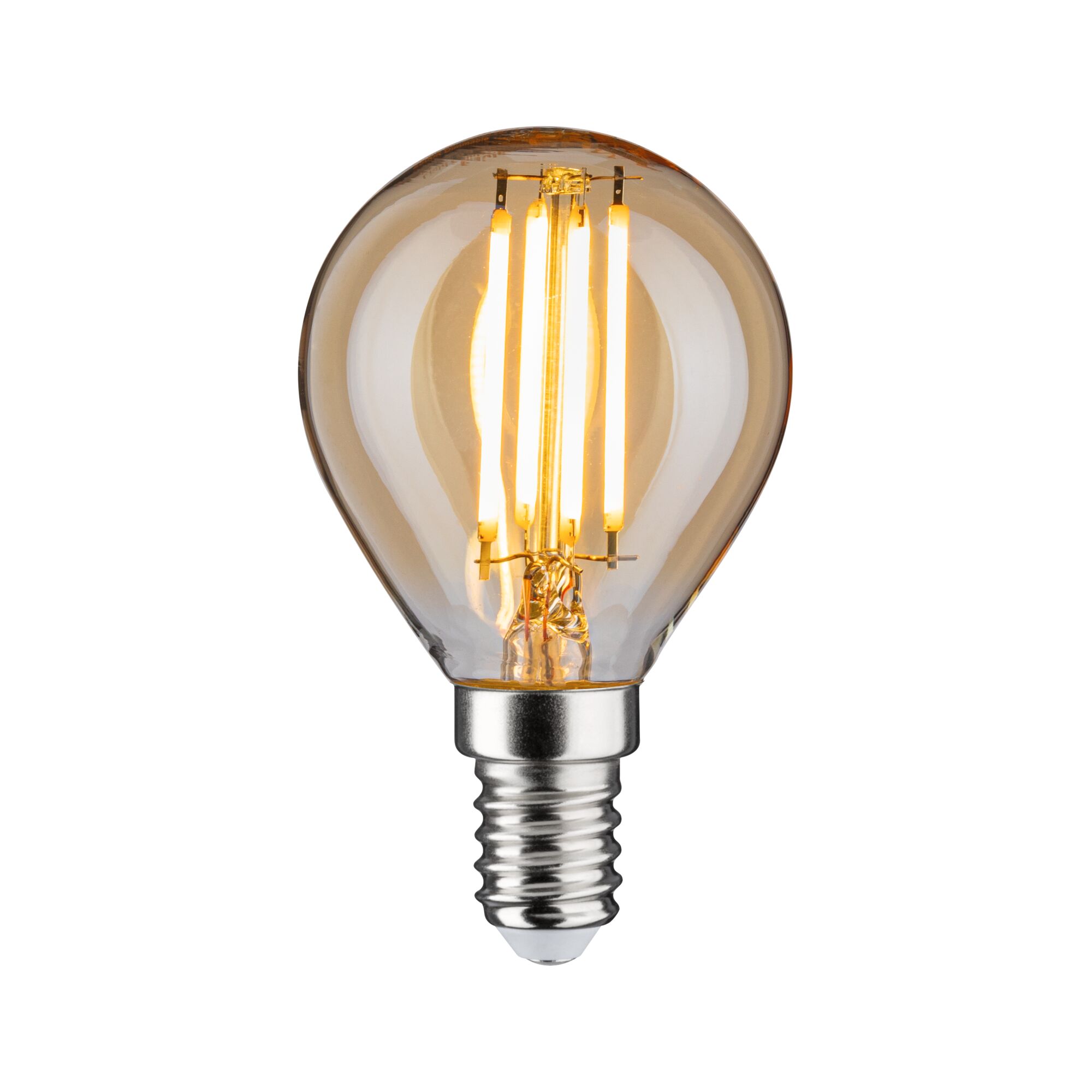

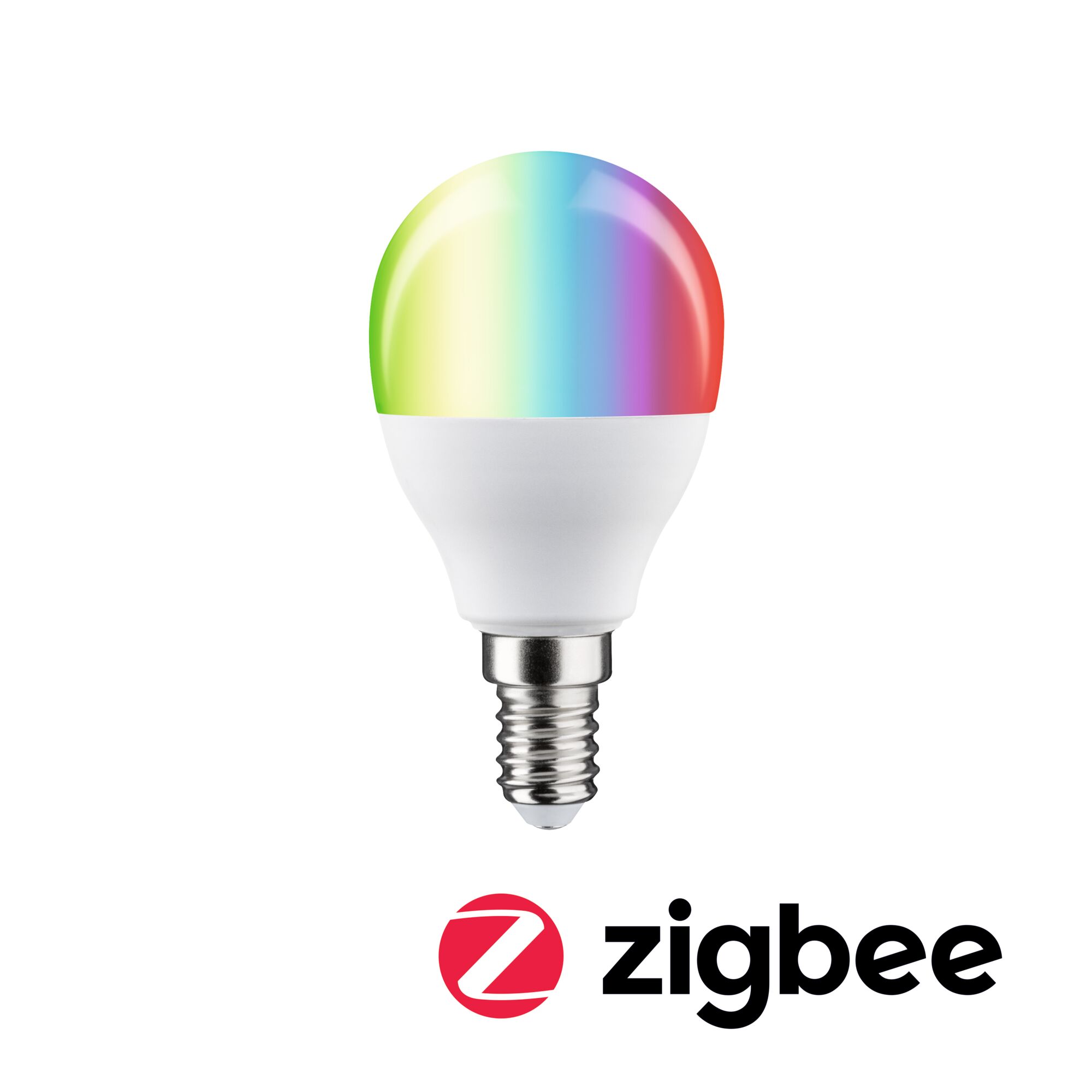

- Don’t forget: Include a suitable lamp in your order!
- LED equipment conserves up to 80% in comparison to conventional light bulbs
- Sweeping diffusion of light for ideal room illumination

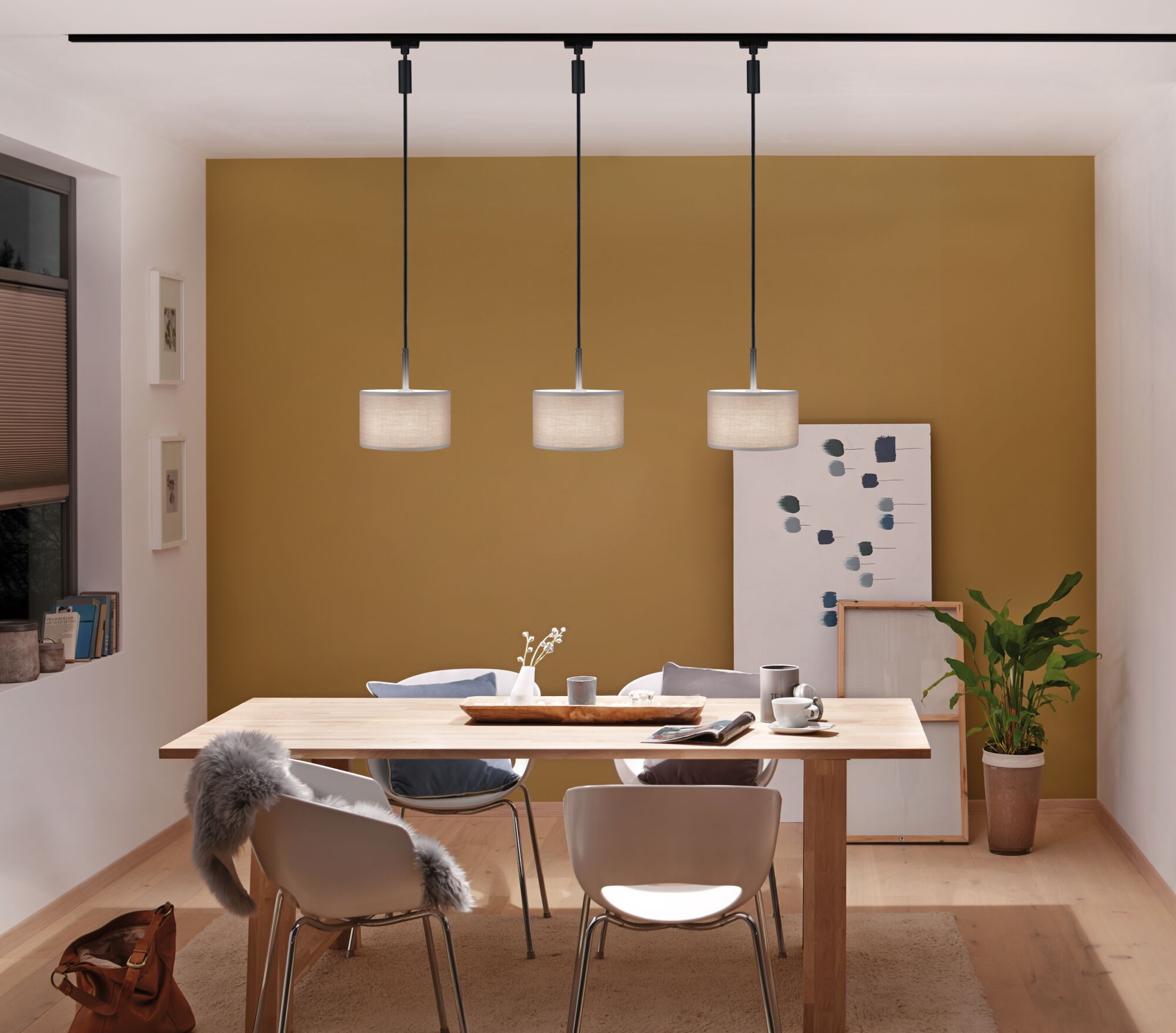

- Using additional luminaires from the URail range, you can create your very own individual rail system with a total output of up to 1,000 watt

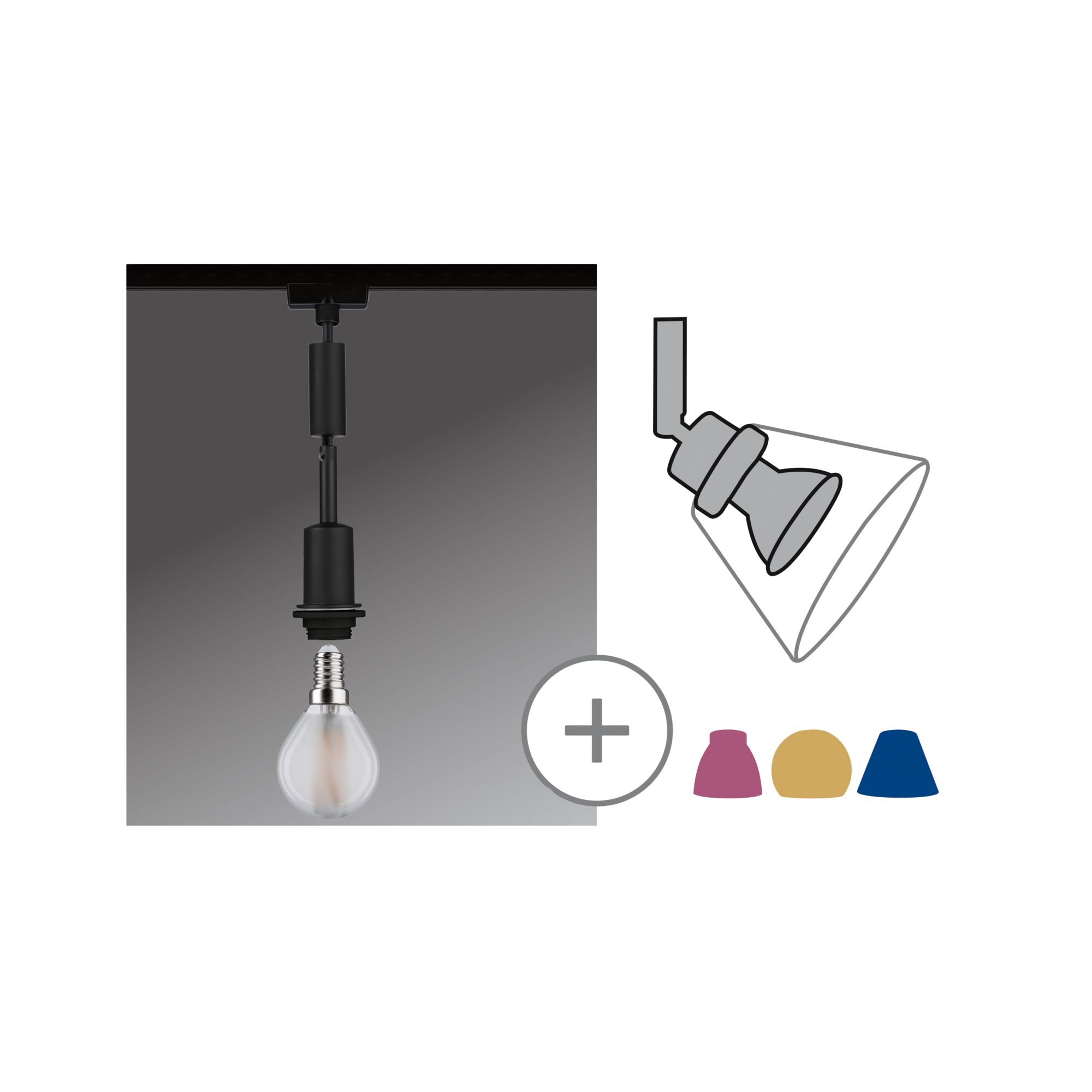

- The URail DecoSystems offers you full flexibility in selecting the lampshade and the illuminant
| Dimension | |
|---|---|

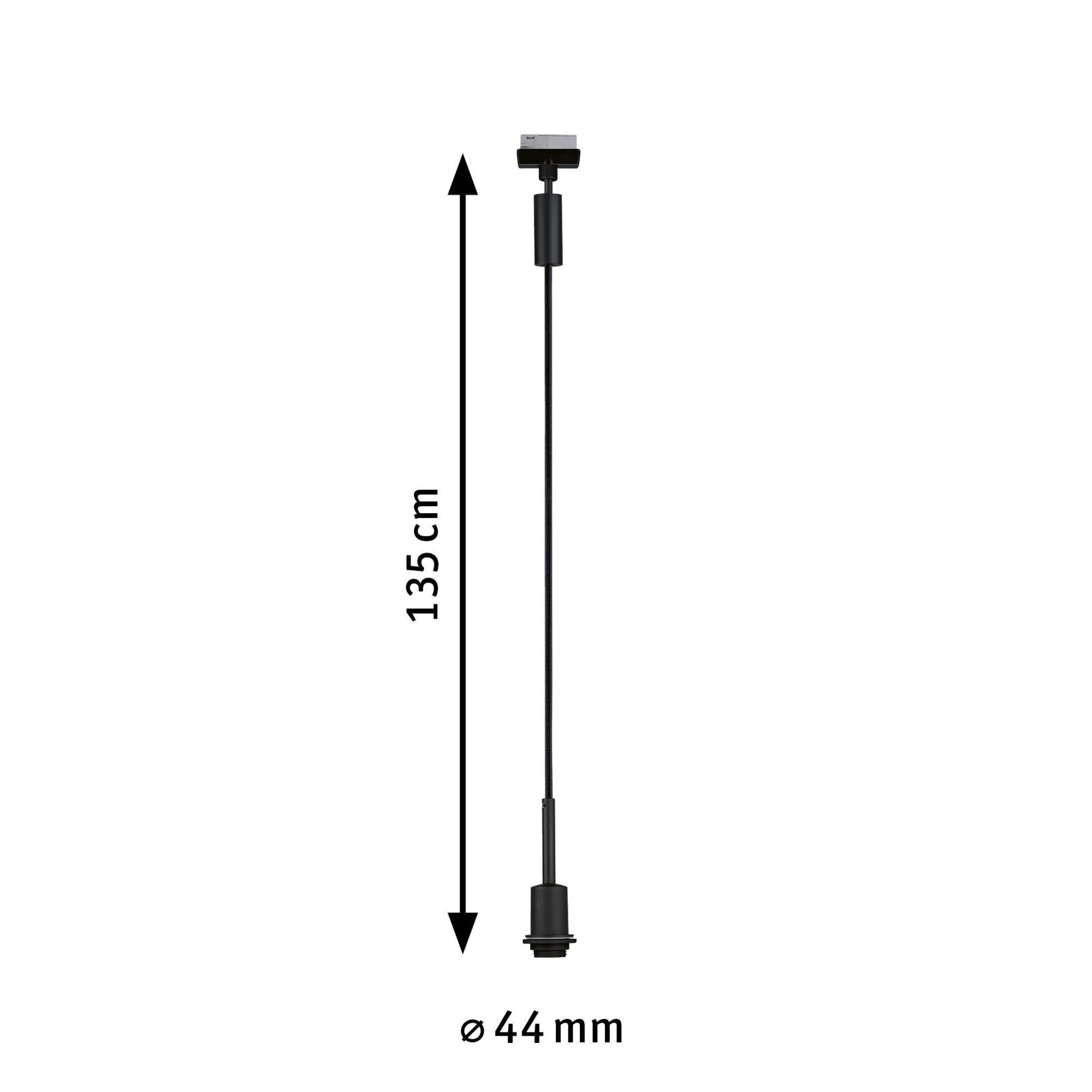

| Dimensions (Height x Width x Depth) | H: 1320 mm |
| Ø | 44 mm |
| Pendulum length range | 135 cm |
| Design and Material | |
|---|---|
| Textile cable | Textile cable |
| Colour | Black matt |
| Material | Metal, Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Lamp Features | |
|---|---|
| Technique | Lamp without bulb |
| Socket | E14 |
| Dimmable | The luminaire is dimmable, and the dimming capability depends on the type of lamp used. |
| Inclusive lamp | no |
| Adjustability | adjustable |
| Maximum wattage range | max. 20 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser. |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
