Article-No.:
96958
URailPendants
Catalejo
GU10 max. 10W dimmable 230V Chrome matt/White
GU10 max. 10W dimmable 230V Chrome matt/White
- URail system lamp
- Pendant length individually adjustable
- Suitable only for URail rails
URail Pendants Catalejo GU10 max. 10W dimmable 230V Chrome matt/White
The Catalejo URail pendant in Chrome matt, White is height-adjustable and ideal for direct illumination of objects and tables. The simple elegance of the pendant suits every living style. It offers complete freedom in the choice of lamp and is compatible with most of the URail products. In combination with the corresponding URail components, you can create your own individual lighting system with a total output of up to 1,000 watt. Shortening is very easy: open the box with a screwdriver, unscrew the luster terminal inside, loosen the cables and cut them. Continue to remove insulation from the cable (there are 2 cables indoors, i.e. conductor L and neutral conductor N). Crimp a wire end sleeve onto L and N using crimping pliers, then reinsert both cables into the lustre terminal and tighten. Press the cover box back together and screw it shut. You're done!
- URail system lamp
- Pendant length individually adjustable
- Suitable only for URail rails

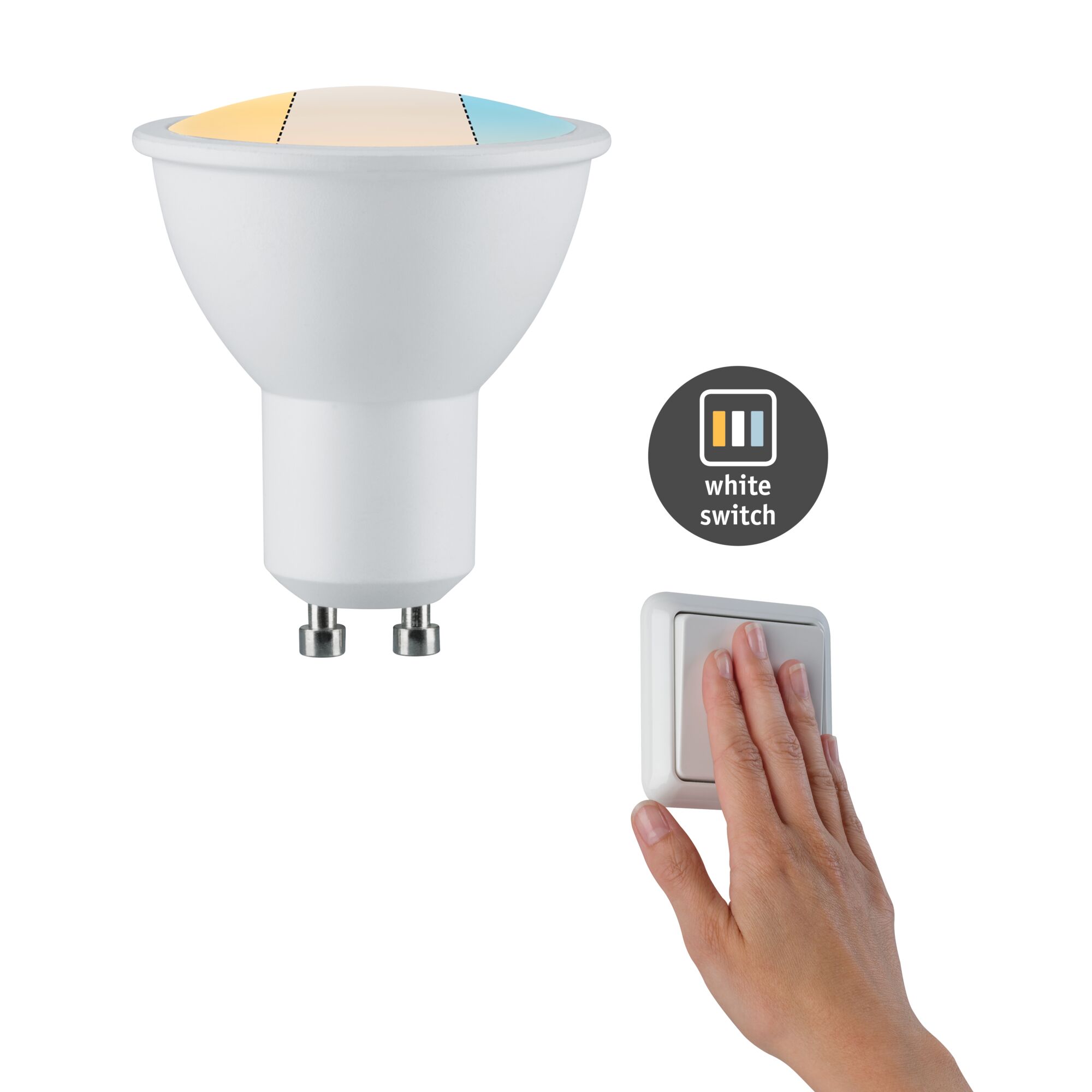

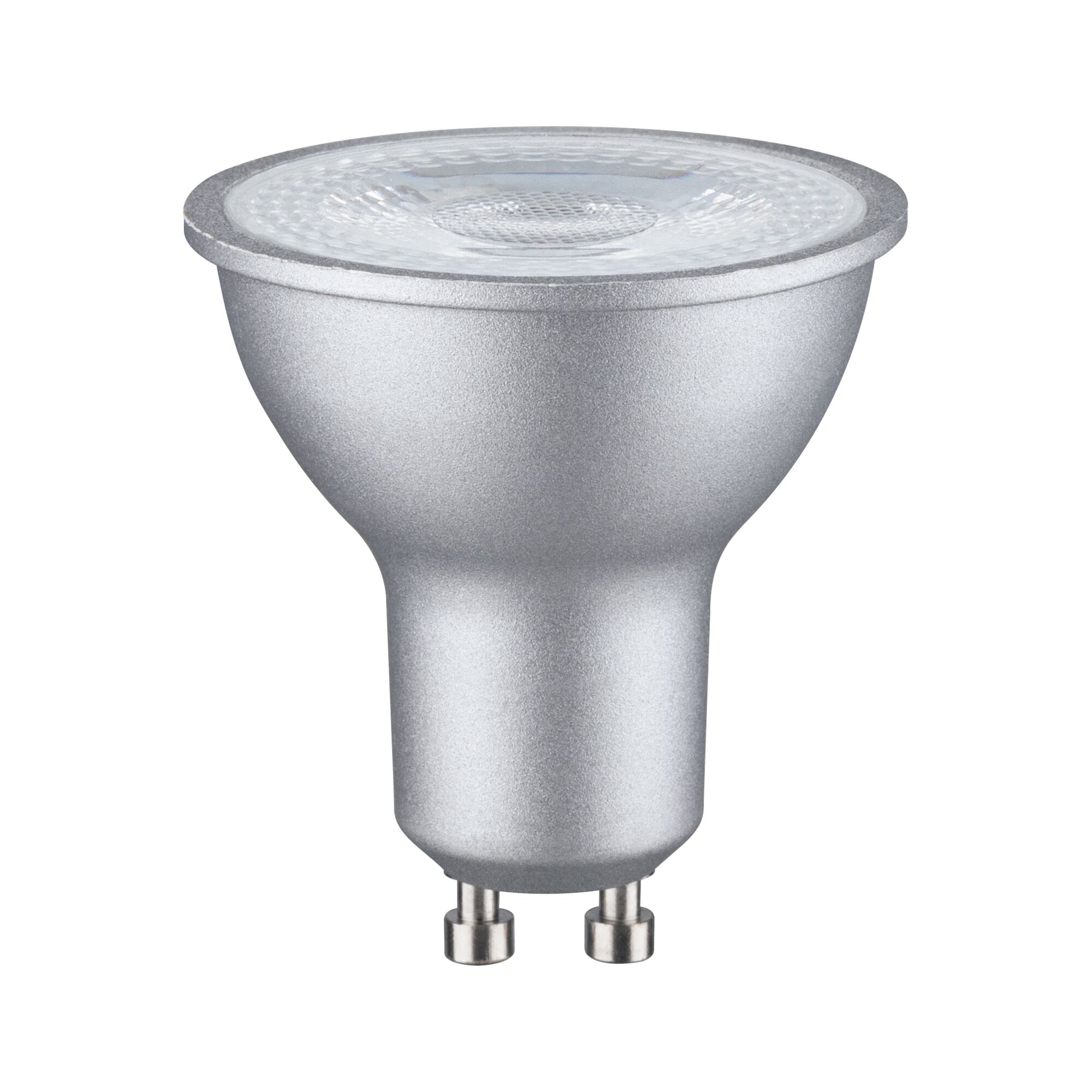

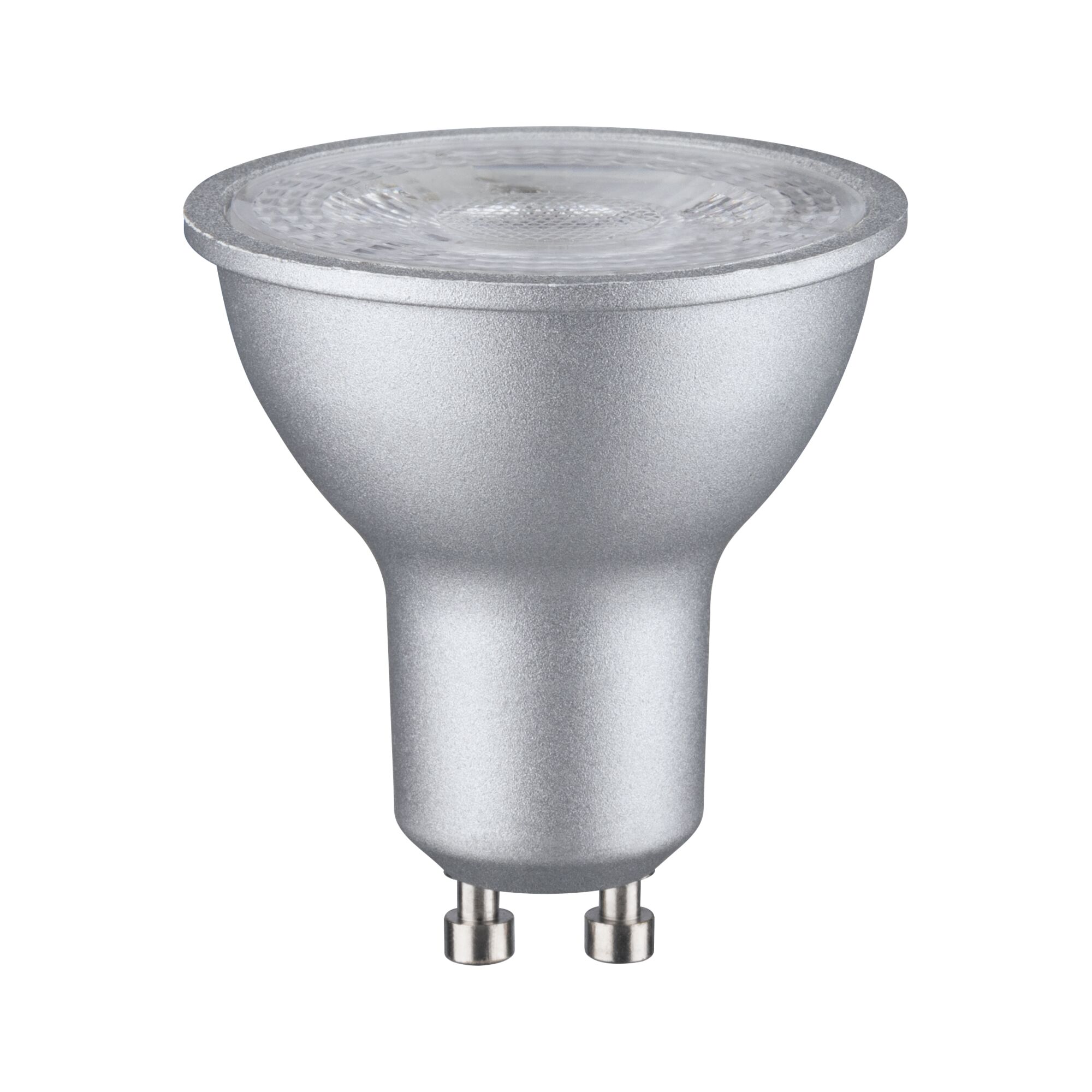

- Don’t forget: Order your matching lamp (GU10)!
Dimension | |
---|---|
Dimensions (Height x Width x Depth) | H: 383 mm |
Ø | 65 mm |
Form | cylindrical |
Pendulum length range | 160 cm |
Design and Material | |
---|---|
Colour | White, Chrome matt |
Material | Metal |
Installation | |
---|---|
Installation site (recommendation) | Ceiling mounting |
Service life | |
---|---|
Lifetime | 30000 h |
Lamp Features | |
---|---|
Technique | Lamp without bulb |
Socket | GU10 |
Inclusive lamp | no |
Adjustability | adjustable |
Dimmable | The luminaire is dimmable, and the dimming capability depends on the type of lamp used. |
Maximum wattage range | max. 10 W |
protection class | protection class II |
Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser. |
Accessories | |
---|---|
Radio control included | no |
Labelling | |
---|---|
WEEE-Reg.-No | DE 39236390 |
