Article-No.:
95655
URailPendant adapters
Universal
max. 50W 230V Signal white
max. 50W 230V Signal white
- Delivery without pendant or lamp
- Maximum load 3 kg
- For cables with a diameter of up to 7 mm

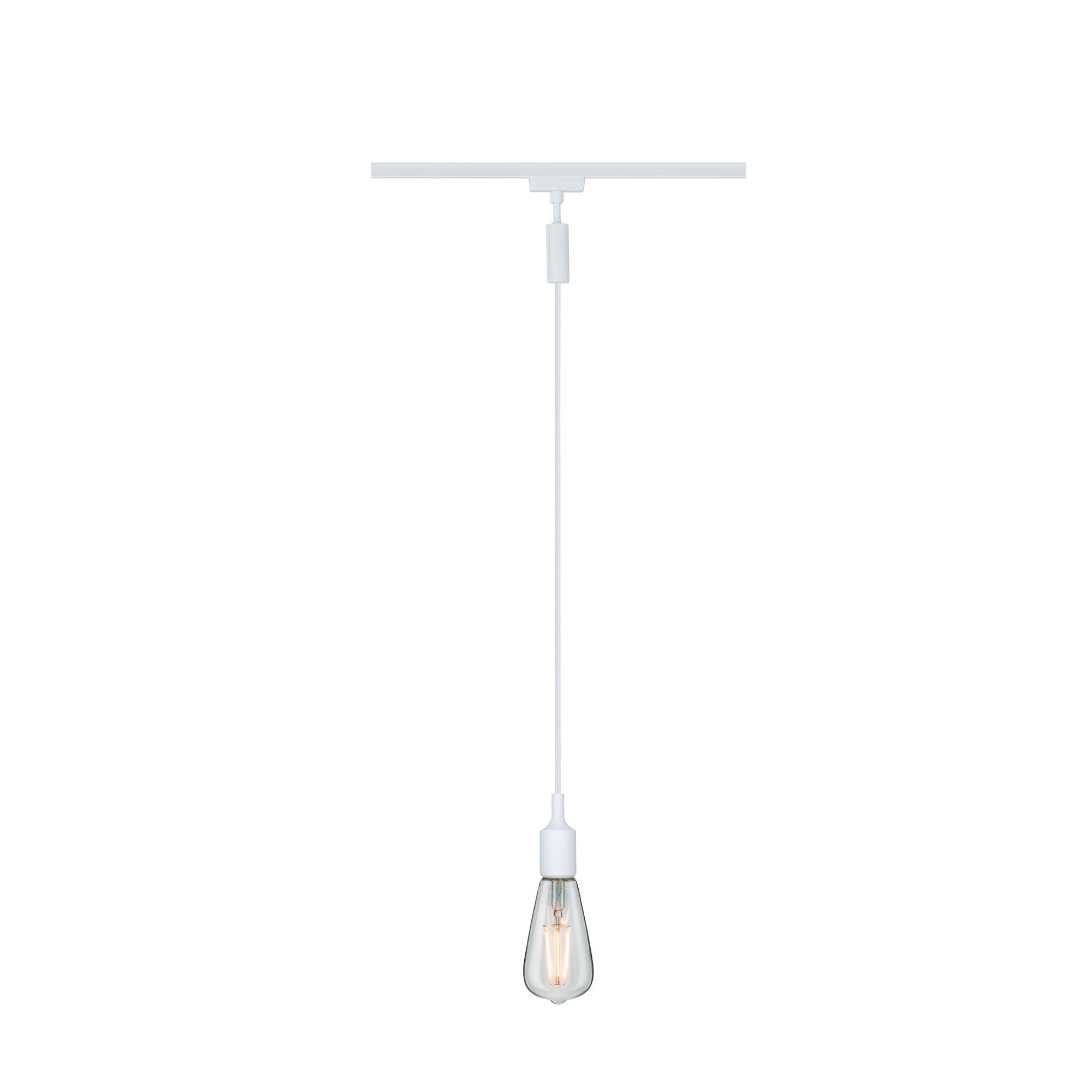

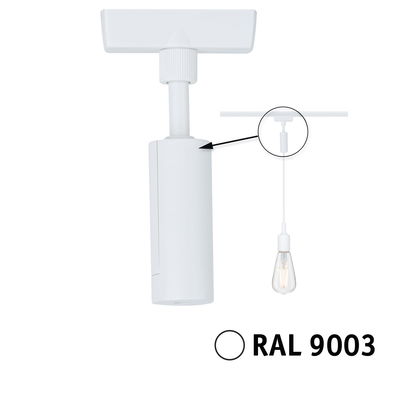

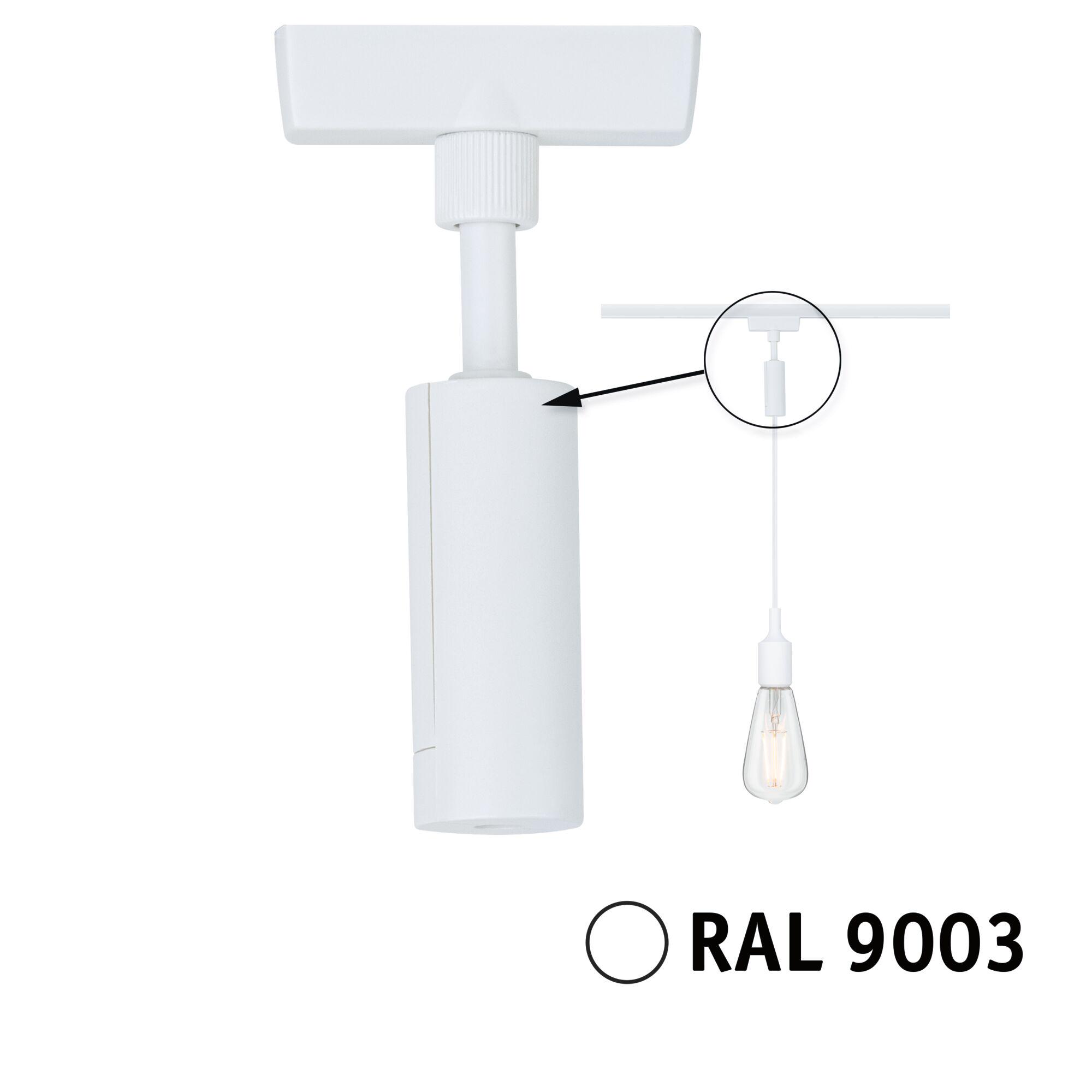

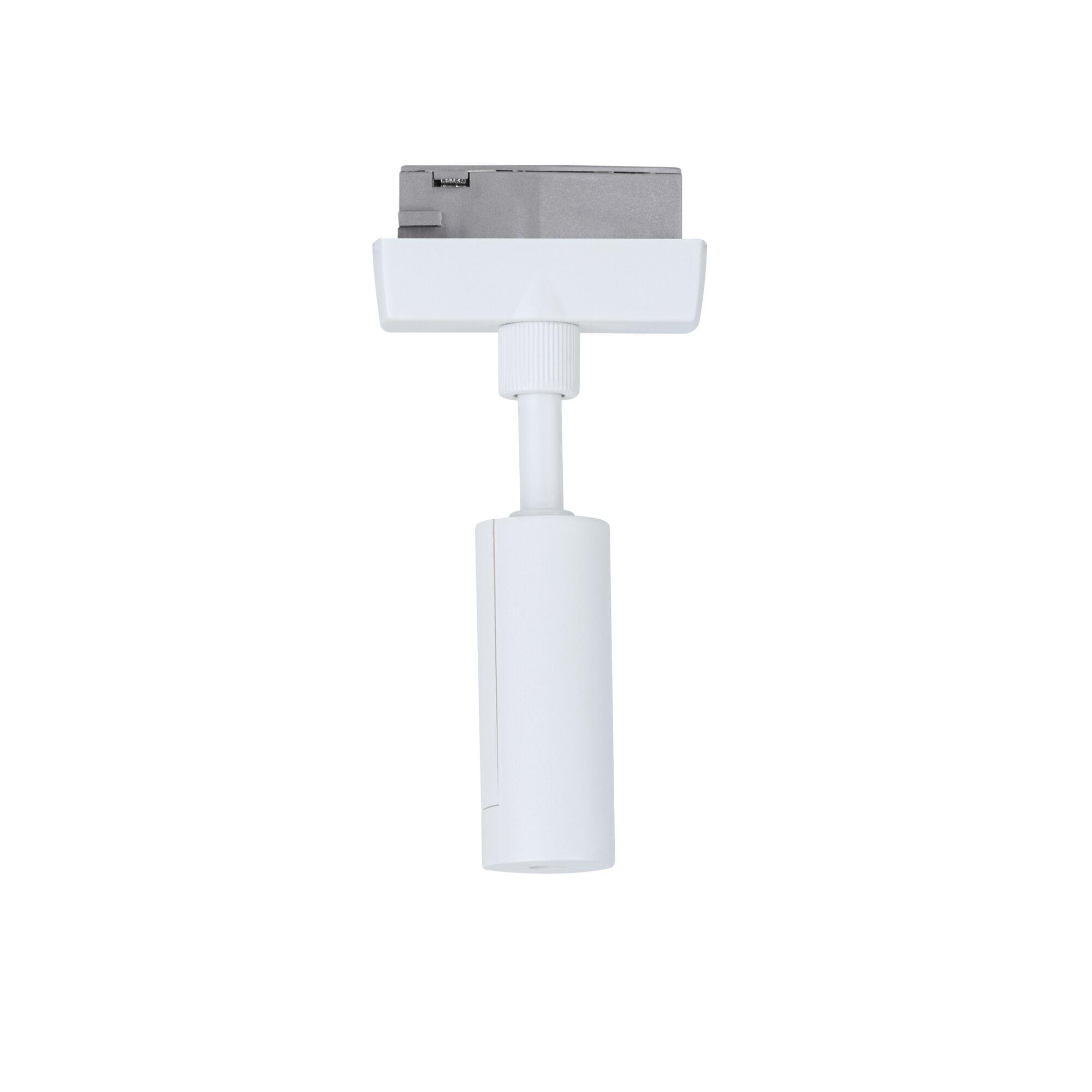

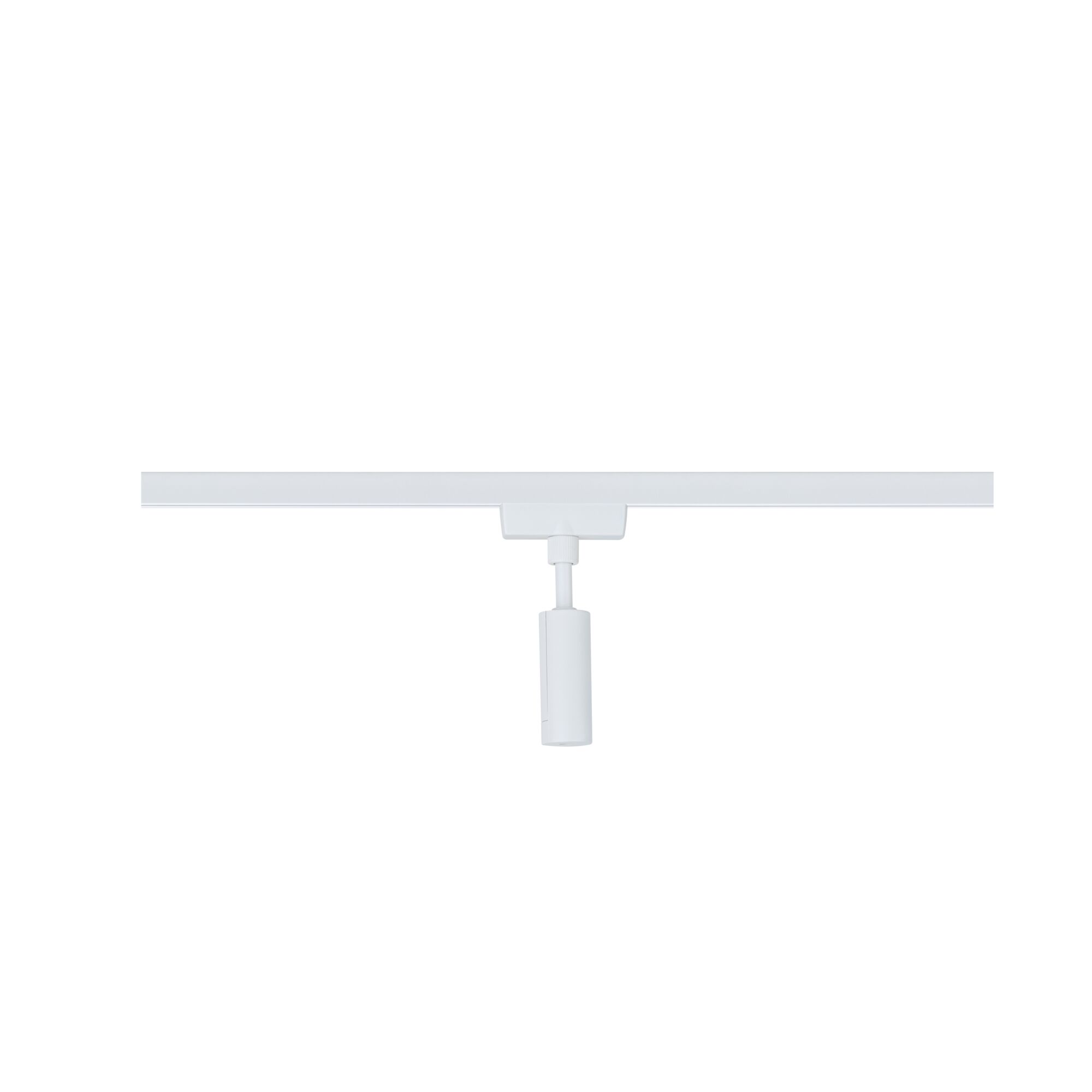

URail Pendant adapters Universal max. 50W 230V Signal white
The URail universal pendant adapter in Signal white enables integration of our living room luminaires or pendant luminaires in the URail system. Pendant luminaires with multiple cables leading to the ceiling are not a problem either. For this, we recommend simply using the corresponding number of adapters. Shortening is very easy: open the box with a screwdriver, unscrew the luster terminal inside, loosen the cables and cut them. Continue to remove insulation from the cable (there are 2 cables indoors, i.e. conductor L and neutral conductor N). Crimp a wire end sleeve onto L and N using crimping pliers, then reinsert both cables into the lustre terminal and tighten. Press the cover box back together and screw it shut. You're done!
- Delivery without pendant or lamp
- Maximum load 3 kg
- For cables with a diameter of up to 7 mm
- URail pendant adapter incl. assembly instructions
| Dimension | |
|---|---|

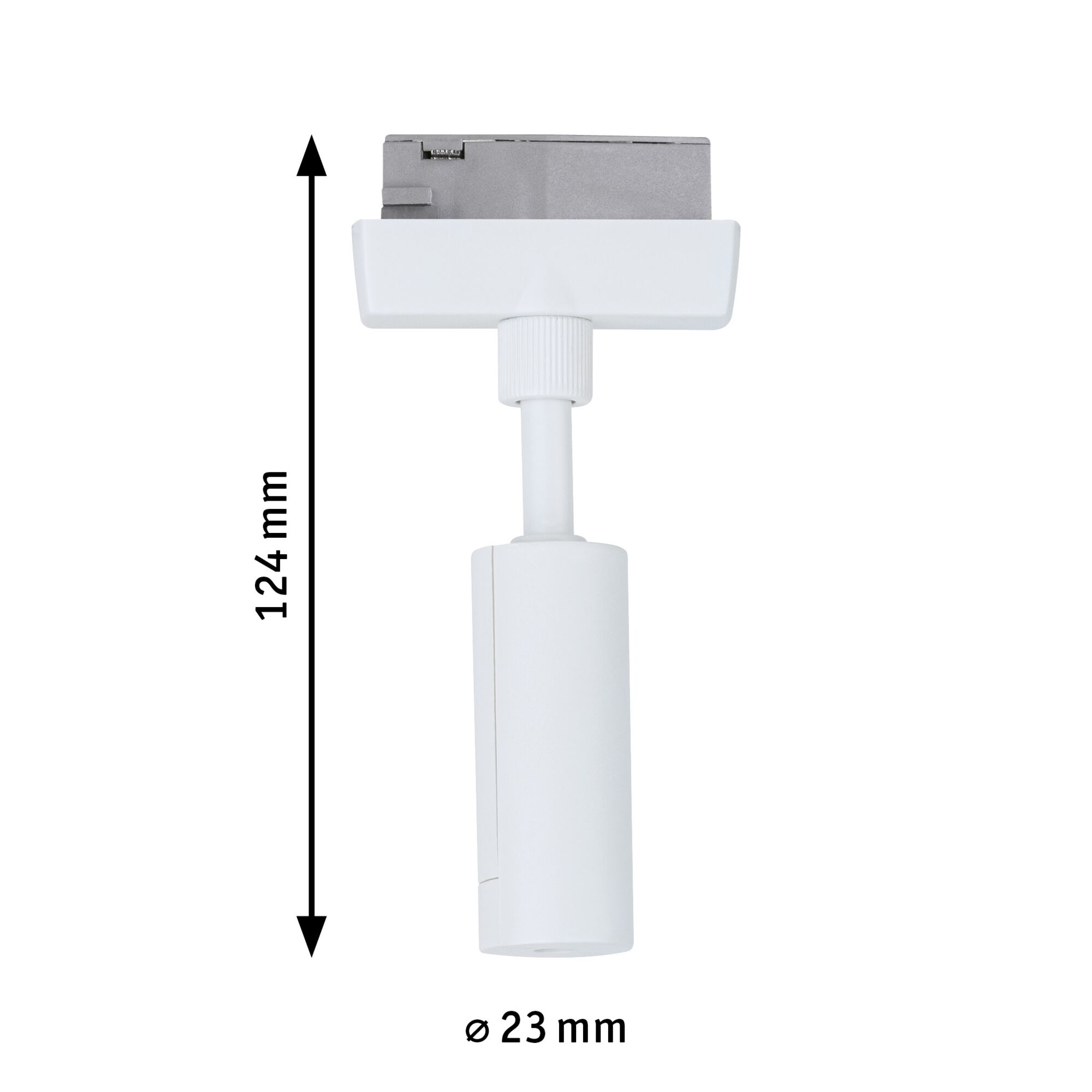

| Dimensions (Height x Width x Depth) | H: 124 x B: 57,5 mm |
| Diameter | 23 mm |
| Design and Material | |
|---|---|
| Colour | Signal white |
| Material | Metal, Plastic |
| Lamp Features | |
|---|---|
| Technique | Accessories without bulbs |
| Inclusive lamp | no |
| Adjustability | adjustable |
| Lamp property | Ohne Leuchtmittel |
| Maximum wattage range | max. 50 W |
| IP protection | IP20 |
| protection class | Protection class II |
| Replacable | 7 not concerned. |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
