Article-No.:
95136
URail
Connector
Line connector
70x15mm max. 1000W Silver
70x15mm max. 1000W Silver
- URail line connector incl. assembly instructions
- Internal, therefore not visible
- Suited for all rail colours

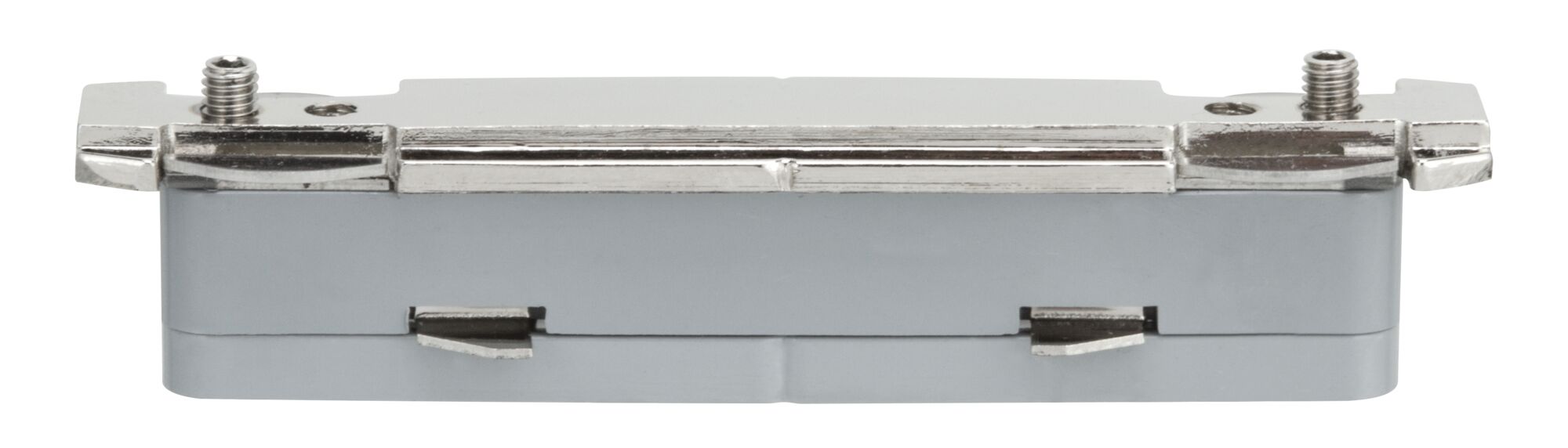

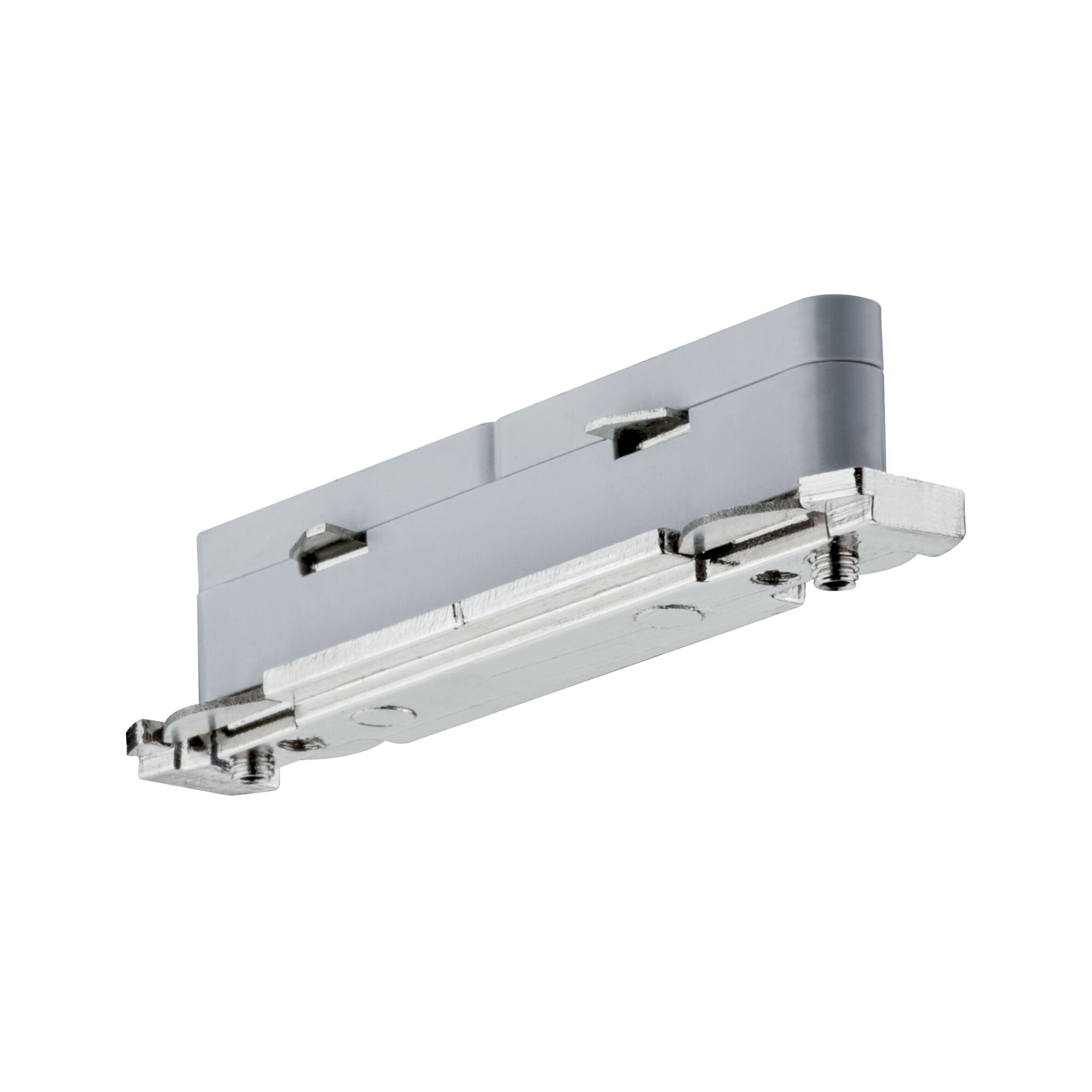

URail Connector Line connector 70x15mm max. 1000W Silver

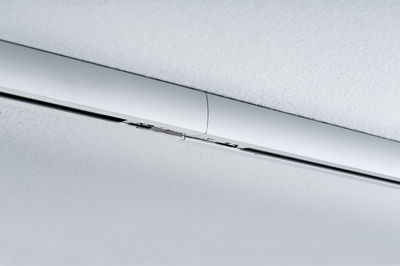

This internal line connector is one of many system parts from the URail series. After installation it is concealed from sight in the rails so that it is suitable for all colour variants. Used together with additional components, it allows you to design your own ideal personal 230 volt URail rail system. The system is designed for a total output of 1,000 W and for the operation of LED lights, lights with energy-saving light bulbs (Energy Saver) and halogen lights.
- URail line connector incl. assembly instructions
- Internal, therefore not visible
- Suited for all rail colours
| Dimension | |
|---|---|

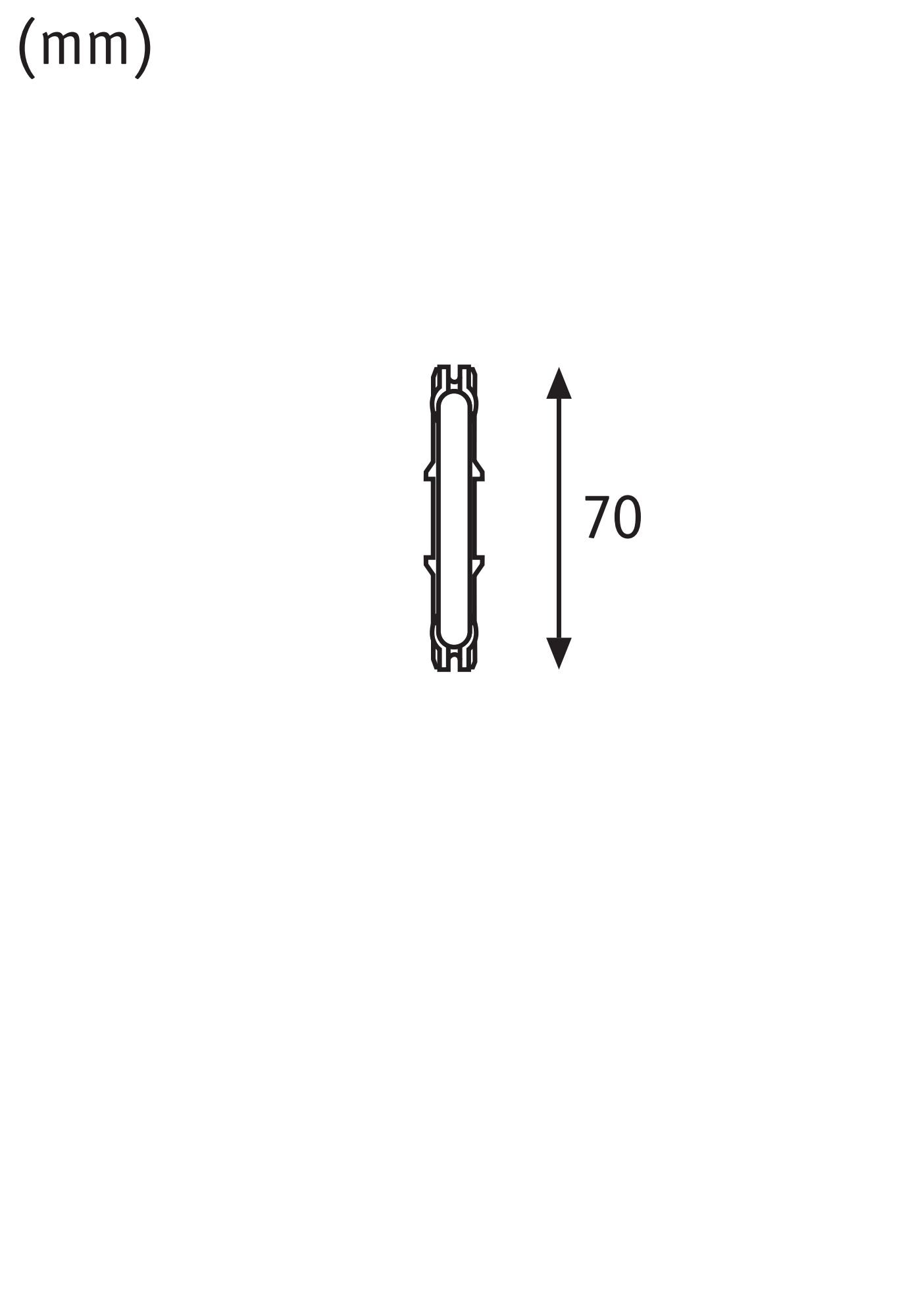

| Dimensions (Height x Width x Depth) | H: 15 x B: 70 x T: 11 mm |
| Net weight | 36 g |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Metal, Plastic |
| Installation | |
|---|---|
| Mounting location | Ceiling |
| Lamp Features | |
|---|---|
| Inclusive lamp | no |
| light source property | Without light source |
| Technique | Accessories without bulbs |
| Adjustability | fixed |
| Maximum wattage range | max. 1000 W |
| Protection class | Protection class I |
| Replacable | 7 not concerned. |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| 850°C test | 850°C test |
| WEEE-Reg.-No | DE 39236390 |
