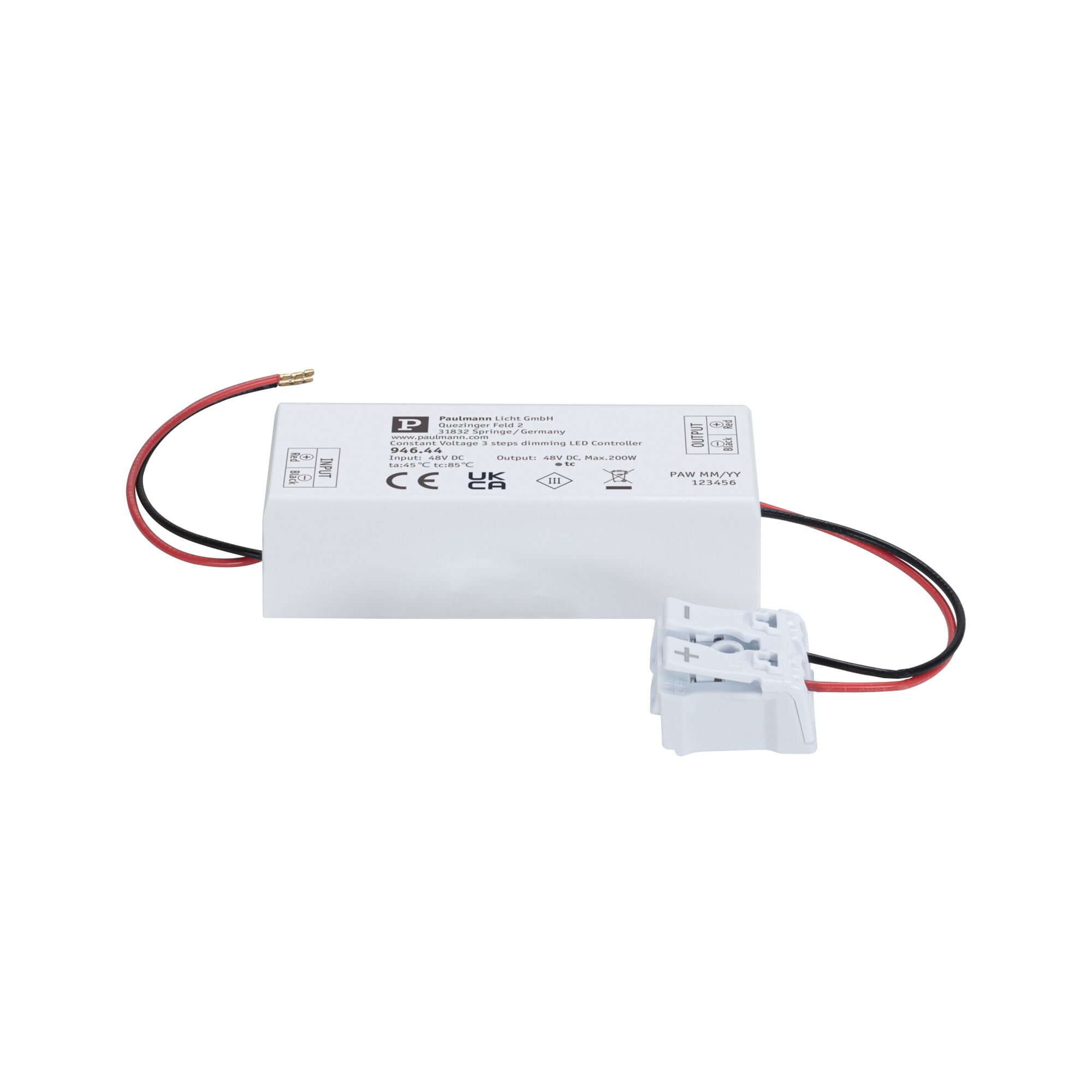

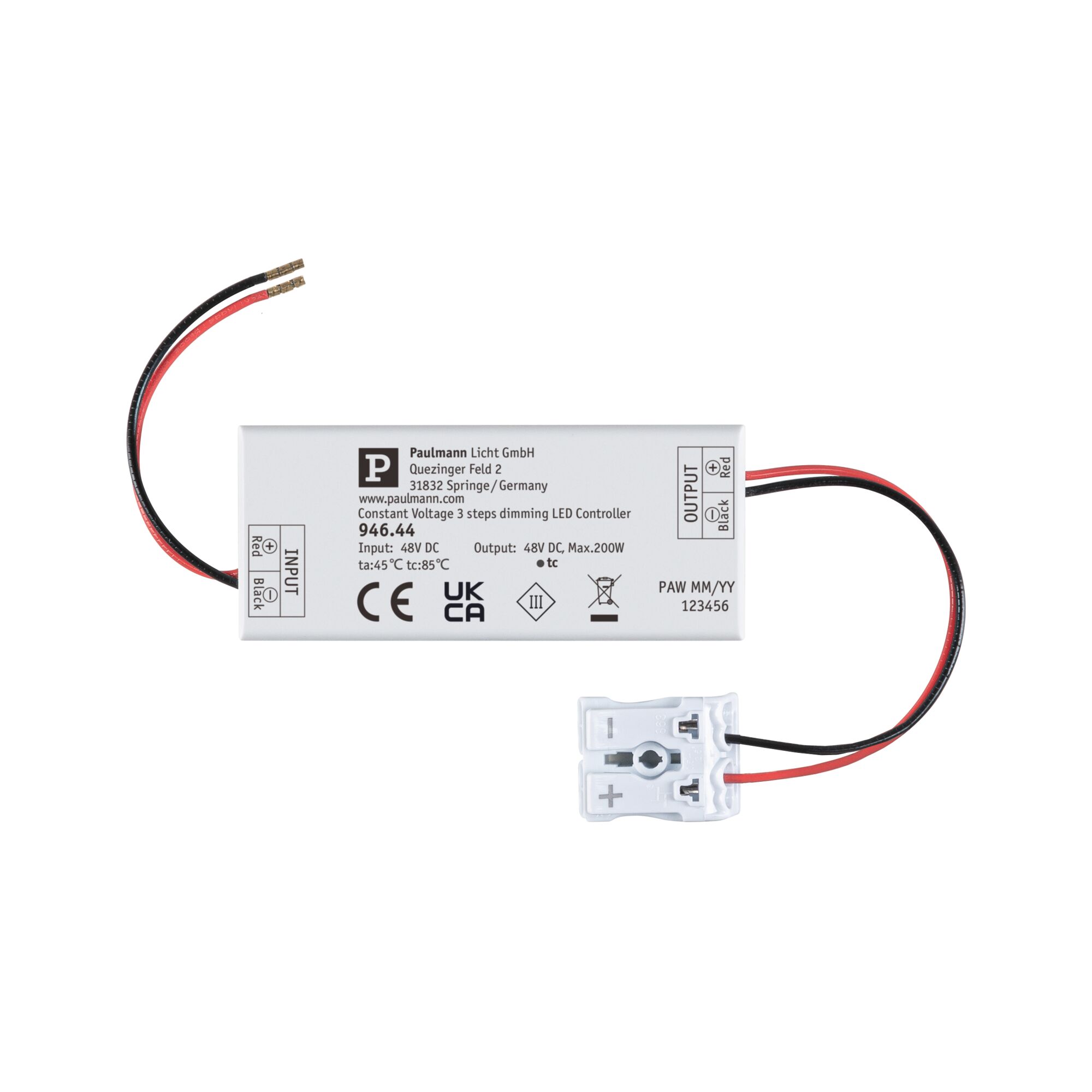

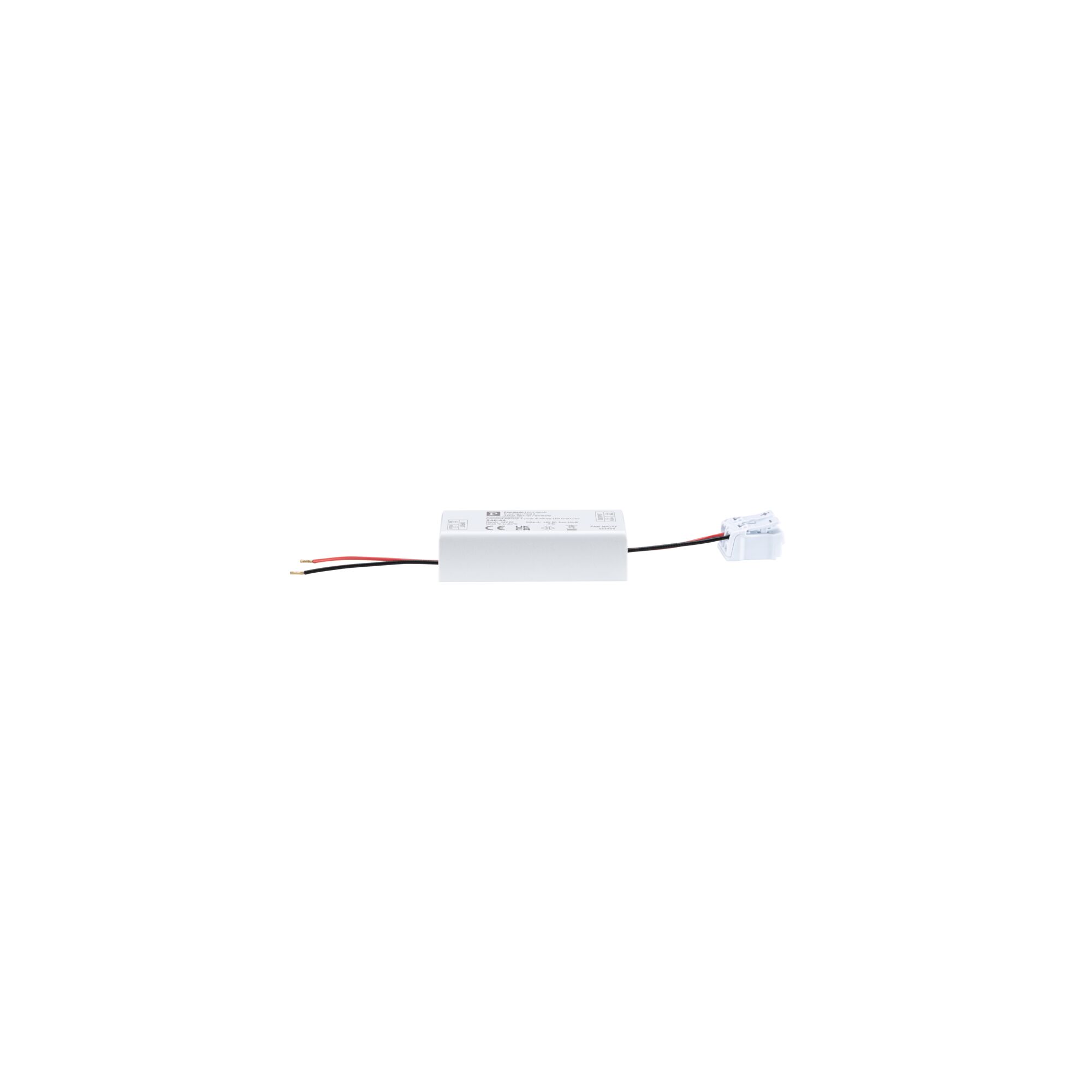

ULine Accessories 3-Step-Dimmer max. 200W 48V 80x35mm White

This dimmer is designed to control the dimming level of the luminaires in the ULine belt system in three steps. The brightness can be set to 100%, 50%, and 10% via a simple commercial light switch – allowing you to adjust custom lighting scenarios to any situation. The integrated Memory function triggers the use of the most recently selected dimming level when the light is switched on. Quick connectors make the connection of the dimmer with the cable feed for the belt easy and uncomplicated. The 3-step dimmer offers a service life of 50,000h for reliable long-term performance.
  • ULine belt-system accessories incl. installation instructions
  • Dimmer for the ULine belt system
  • Brightness settings in 3 increments: 100%, 50%, and 10%
  • Dimmable in 3 stages with standard light switch
  • The memory function saves the last level used until the next time it is switched on
  • Easy connection with the cable feed for the belt
  • Long service life of 50,000 h

Dimension
Dimensions (Height x Width x Depth)H: 21,5 x B: 80 x T: 35 mm
Design and Material
ColourWhite
MaterialPlastic
Service life
Lifetime50000 h
Lamp Features
TechniqueAccessories without bulbs
Dimdimmable in 3 steps with normal light switch
Inclusive lampno
Lamp propertyOhne Leuchtmittel
DimmableYes
Maximum wattage rangemax. 200 W
IP protectionIP20
protection classProtection class III
Replacable7 not concerned.
Voltage48 V
Voltage typeDC
Accessories
Radio control includedno
Labelling
WEEE-Reg.-NoDE 39236390
