Article-No.:
5141
Smart Home ZigbeeSetSmart Home Zigbee 3.0

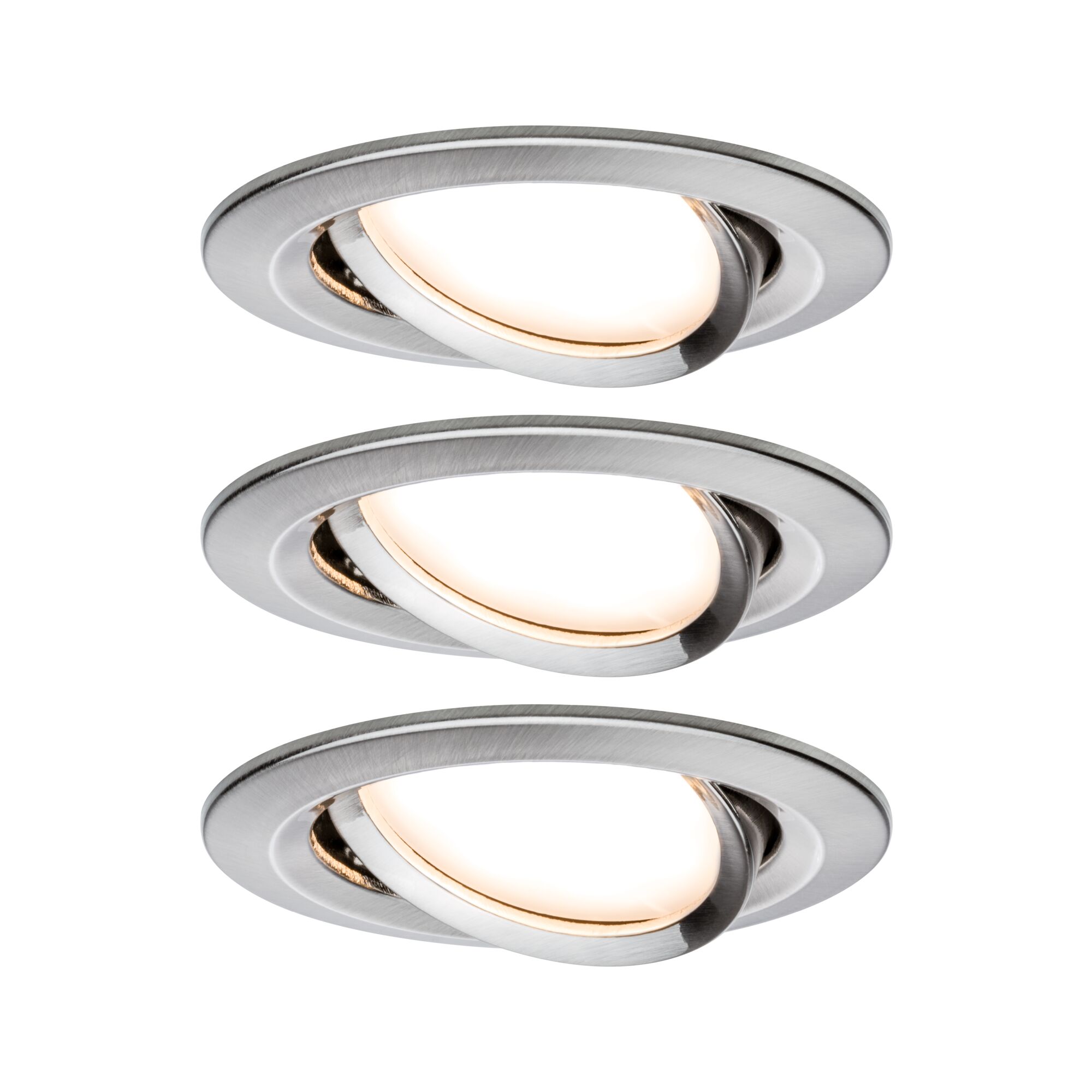

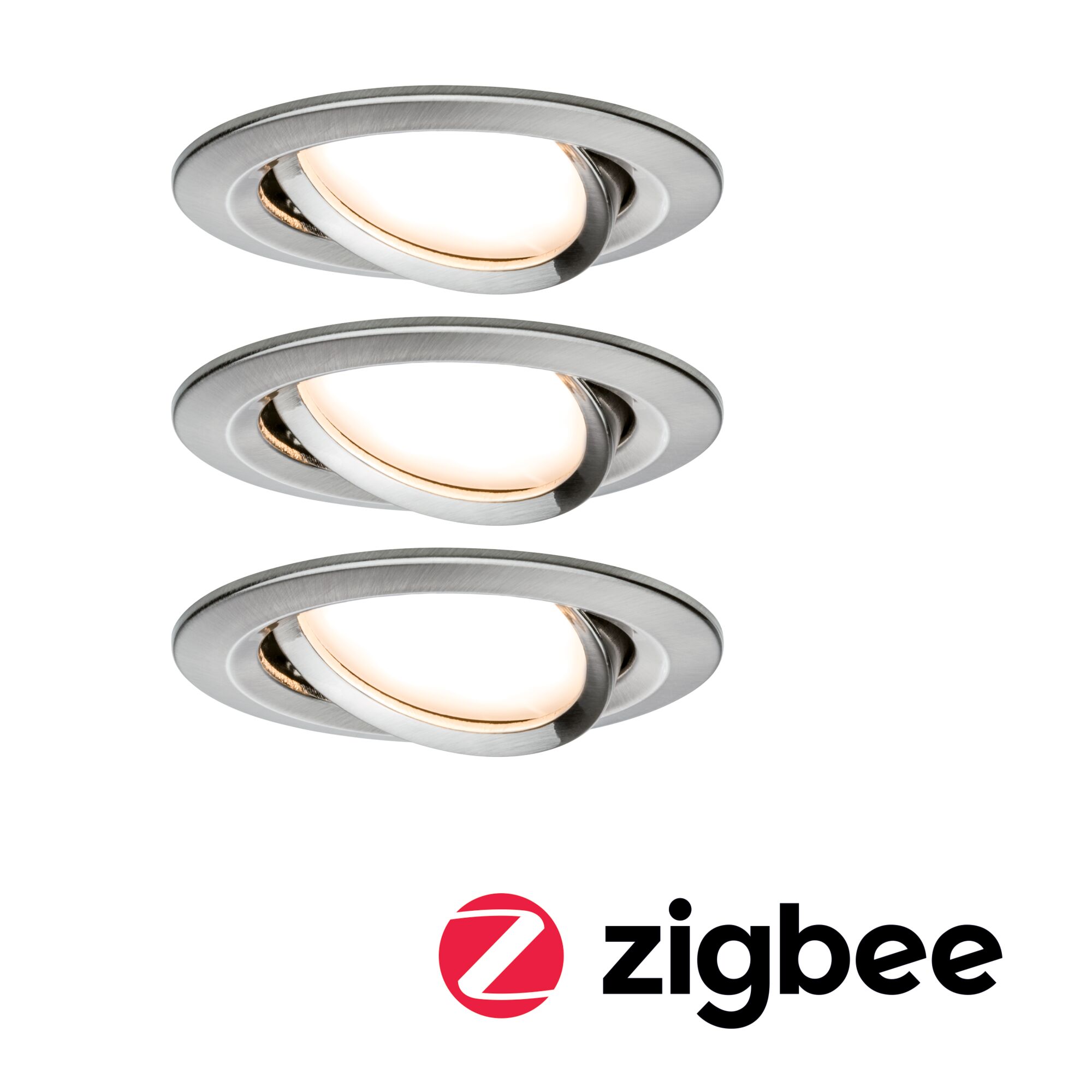

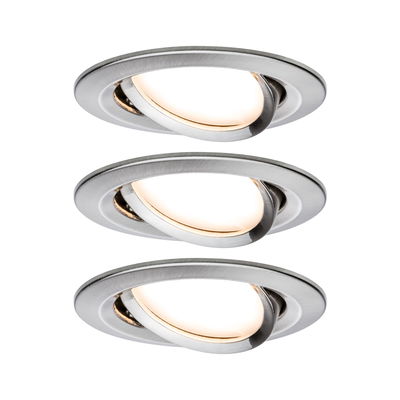

LED Recessed luminaire Nova Coin + Zigbee Cephei
swivelling round 84mm 50° Coin 3x6W 3x470lm 230V 2700K brushed iron
swivelling round 84mm 50° Coin 3x6W 3x470lm 230V 2700K brushed iron

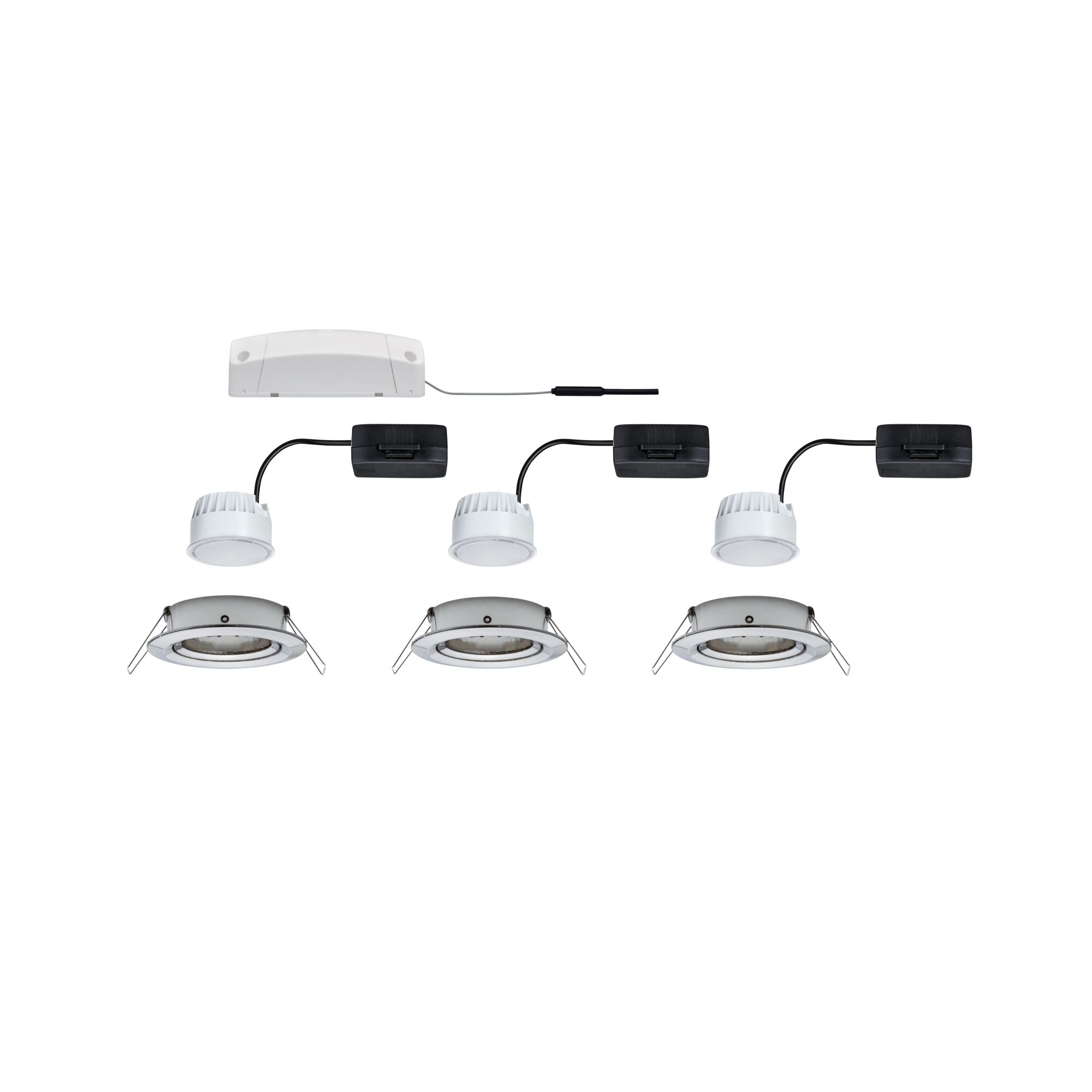

- Bundle includes 1x 50043 and 1x 93447
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
Smart Home Zigbee Set Smart Home Zigbee 3.0 LED Recessed luminaire Nova Coin + Zigbee Cephei swivelling round 84mm 50° Coin 3x6W 3x470lm 230V 2700K brushed iron
The set comprising three black Nova recessed spotlights and a Cephei switch controller offers smart lighting in an attractive design with high energy efficiency. The minimalistic look of the swivelling recessed spotlights is undisturbed by snap rings: As the lamp is inserted from behind, no snap rings are necessary. Thanks to the 230 V direct connection, the luminaires can easily be interlinked without any restrictions. With the Cephei switch controller you can switch the recessed spotlights on and off. It is simply fitted between the 230 V connection and the luminaire. The controller is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol that interlinks devices from different manufacturers. This allows not only the centralised control of lighting; shutters, heating and alarm systems, for example, can also be integrated.
- Bundle includes 1x 50043 and 1x 93447
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch
- Set of 3 luminaires incl. LED module
- Color temperatur: 2700K - Warm white
- Very flat – can also be mounted in small cavities of only 30 mm depth
- Mesh-capable: range increases from product to product
- For 230 V direct connection
| Dimension | |
|---|---|
| Depth of hollow wall | 30 mm, 30 mm |
| Total Mounting depth | 45 mm |
| Dimensions (Height x Width x Depth) | H: 28 mm |
| Ø | 84 mm |
| Mounting hole | 84 mm |
| Form | round |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | Brushed iron |
| Material | Aluminium |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 100 ° |
| Usable luminous flux | 470 lm |
| color temp | 2700 K |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| Socket | Coin |
| Dimmable | No |
| Inclusive lamp | yes |
| Incandescent Equivalent | 40 W |
| Number of component parts | 3x |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee_inside (not certified) |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
Downloads
- Controller
- LED Recessed luminaire
