Article-No.:
5146
Smart Home ZigbeeSetSmart Home Zigbee 3.0
LED Recessed luminaire Cole + Zigbee Coin
IP44 round 88mm 3x6W 3x470lm 230V dimmable 2700K black matt/gold
IP44 round 88mm 3x6W 3x470lm 230V dimmable 2700K black matt/gold
- Set includes 1x 93073 and 1x 93395
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control

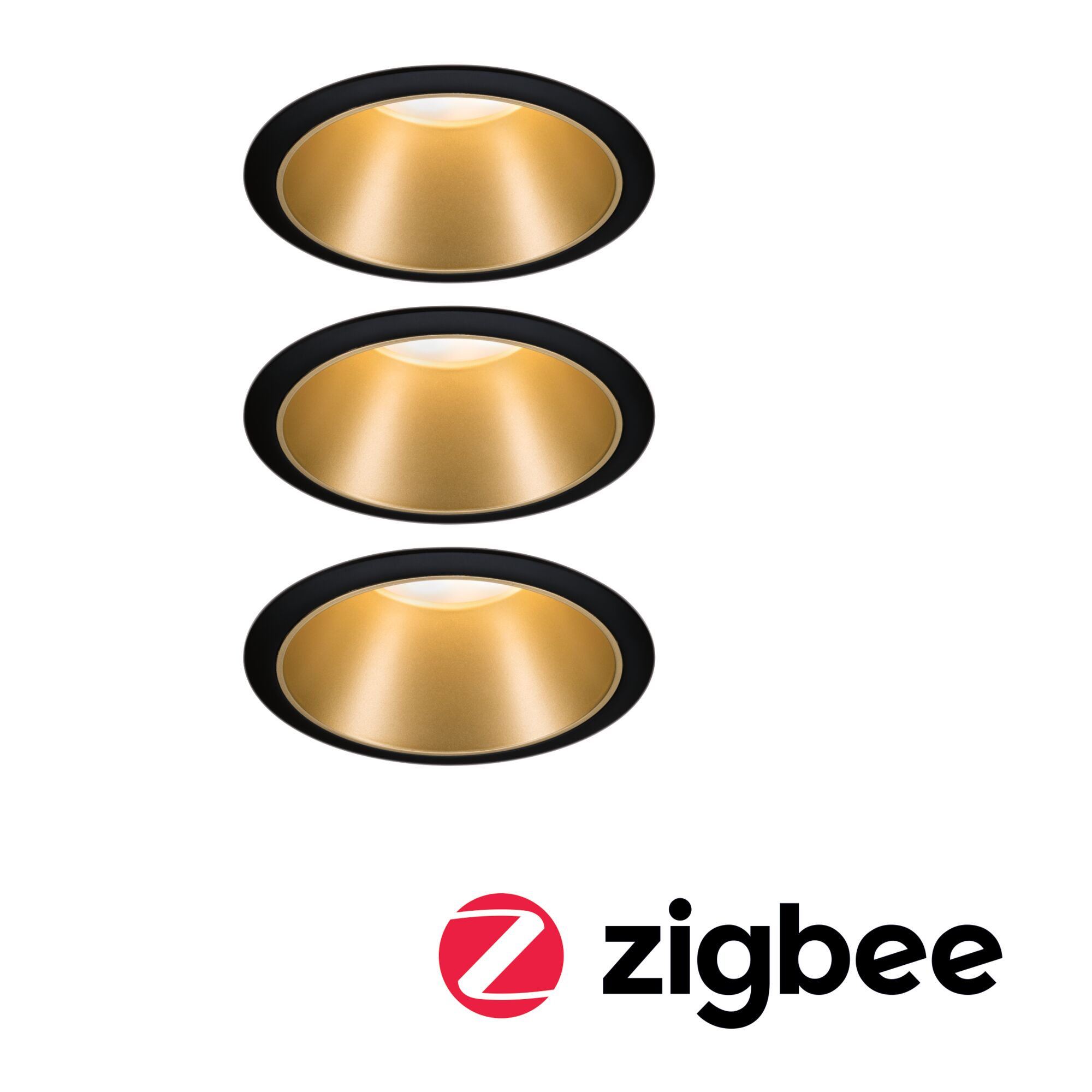

Smart Home Zigbee Set Smart Home Zigbee 3.0 LED Recessed luminaire Cole + Zigbee Coin IP44 round 88mm 3x6W 3x470lm 230V dimmable 2700K black matt/gold

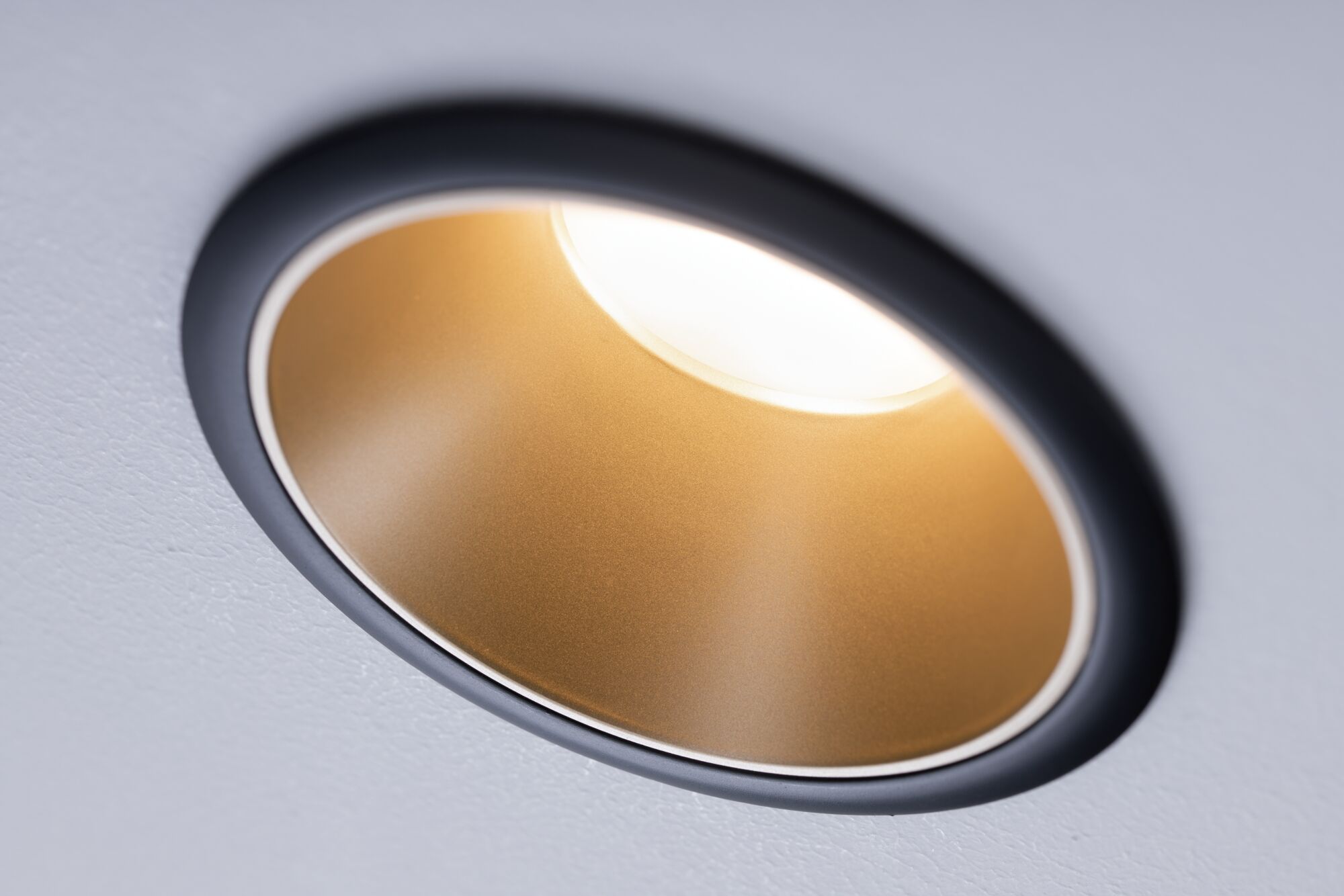

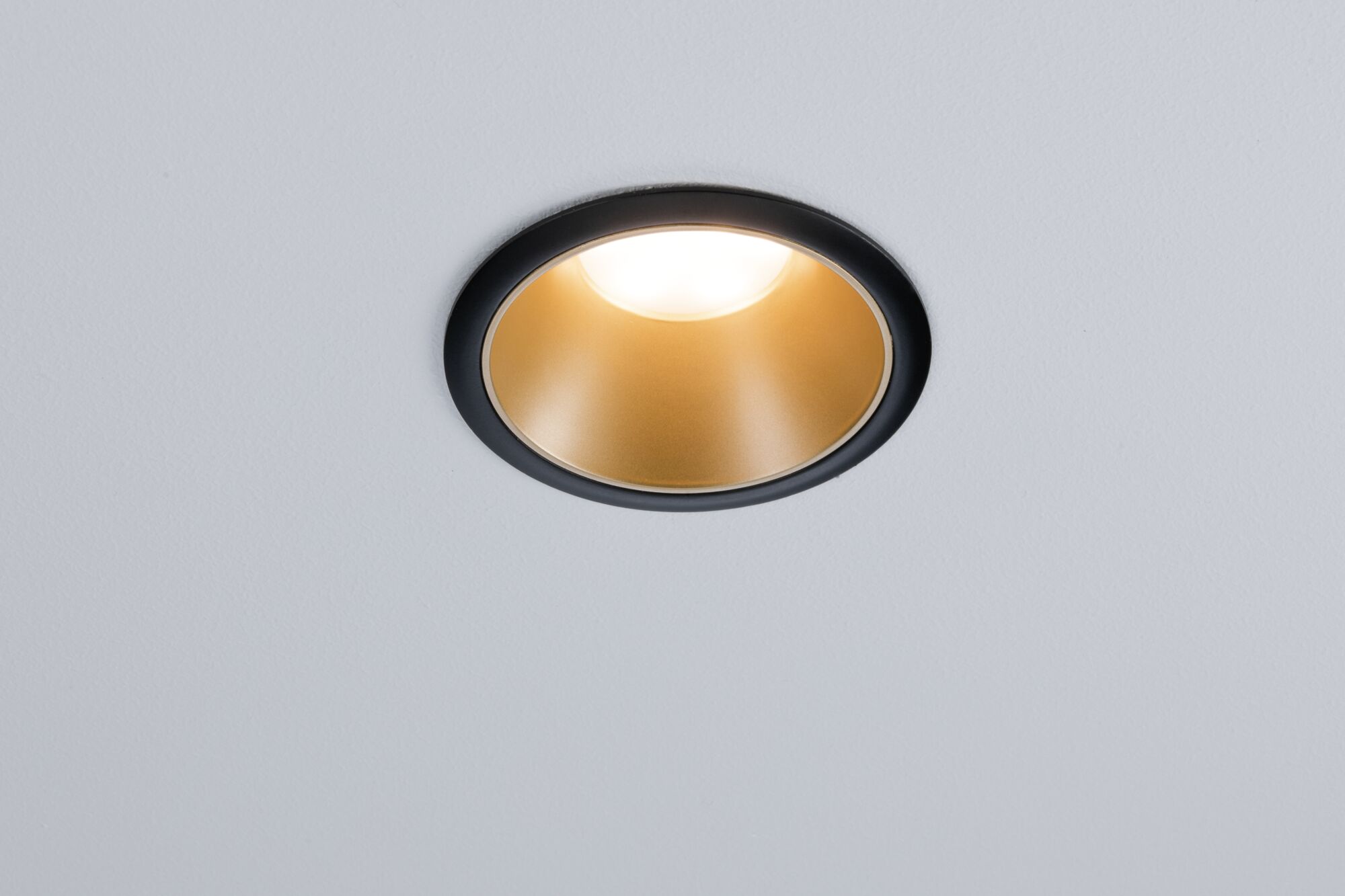

Love at second glance! The set comprises 3-piece set recessed luminaire Cole in black/gold and three smart LED modules. The recessed luminaires blend almost seamlessly into the ceiling thanks to the recessed lamp sockets and create soft, glare-free illumination. Once you see it, you won’t want to look away With the innovative coins, a smart lighting installation can be realised. The luminaires are Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol that interlinks devices from different manufacturers. This allows not only the centralised control of lighting; shutters, heating and alarm systems, for example, can also be integrated.
- Set includes 1x 93073 and 1x 93395
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control

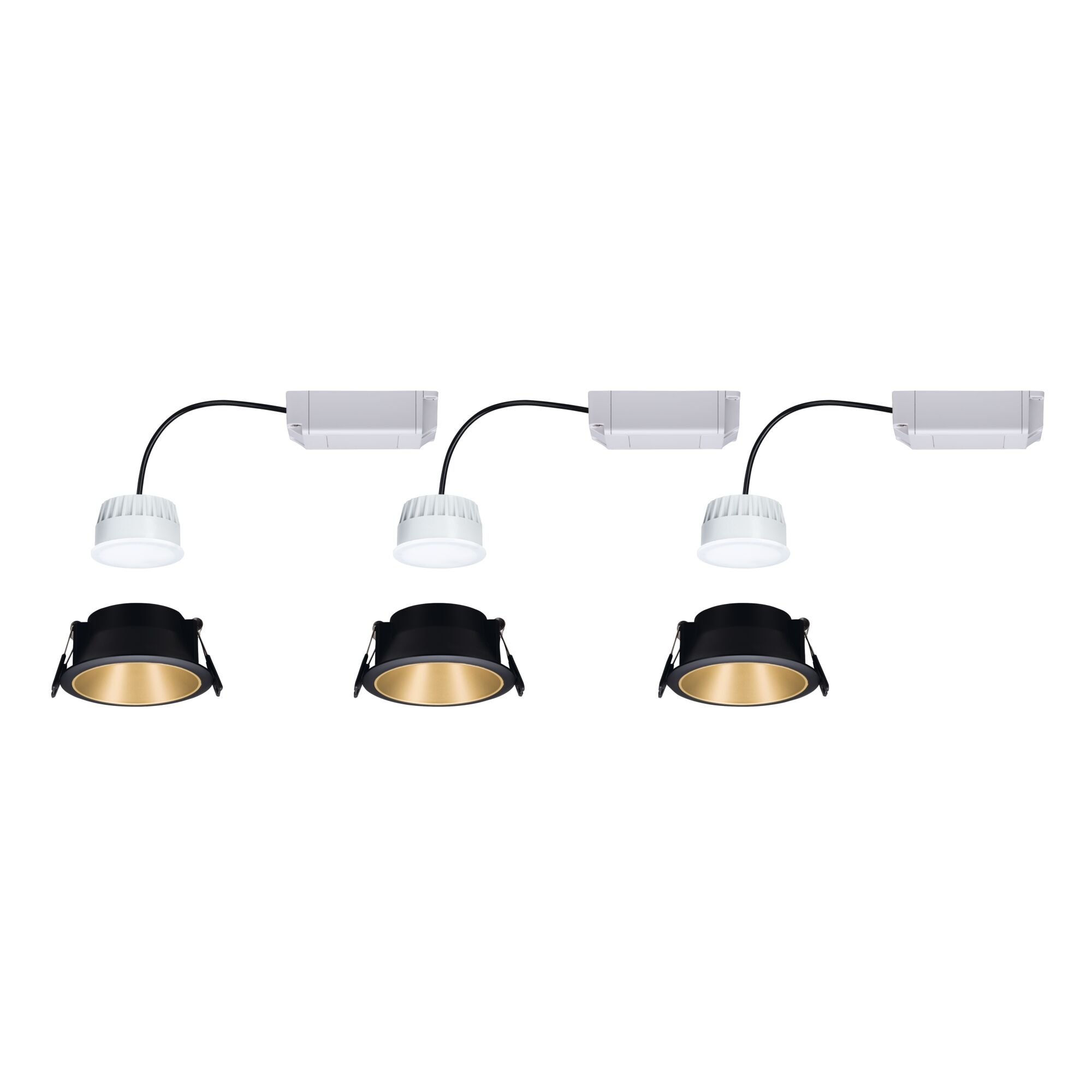

- Set of 3 luminaires incl. LED module
- For 230 V direct connection
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 35 mm |
| Diameter | 88 mm |
| Built-in diameter | 80 mm |
| Mounting depth | 110 mm |
| Depth of hollow wall | 95 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Gold, Black matt |
| Material | Plastic, Aluminium |
| Stainless | stainless alu |
| Energy consumption | |
|---|---|
| Energy efficiency | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lamp lumen maintenance factor 6000h | 80 % |
| luminous flux at the end of lamplife | 70 % |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 470 lm |
| Color rendering index | > 85 Ra |
| Beam angle | 100 ° |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 41 W |
| IP protection | IP23 ceiling mounting |
| Protection class | Protection class II |
| Base/Socket | GU10 |
| Technique | LED |
| Component parts | 6 W |
| Number of component parts | 3x |
| Compatible Smart Home technology | Zigbee |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 7 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee_inside (not certified) |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
Downloads
Flyer and Safety instructions
Safety instructionsTipps und Infos zu EinbaustrahlernDownlights504100353_fr_Paulmann_EBL504200353_nl_Paulmann_EBL

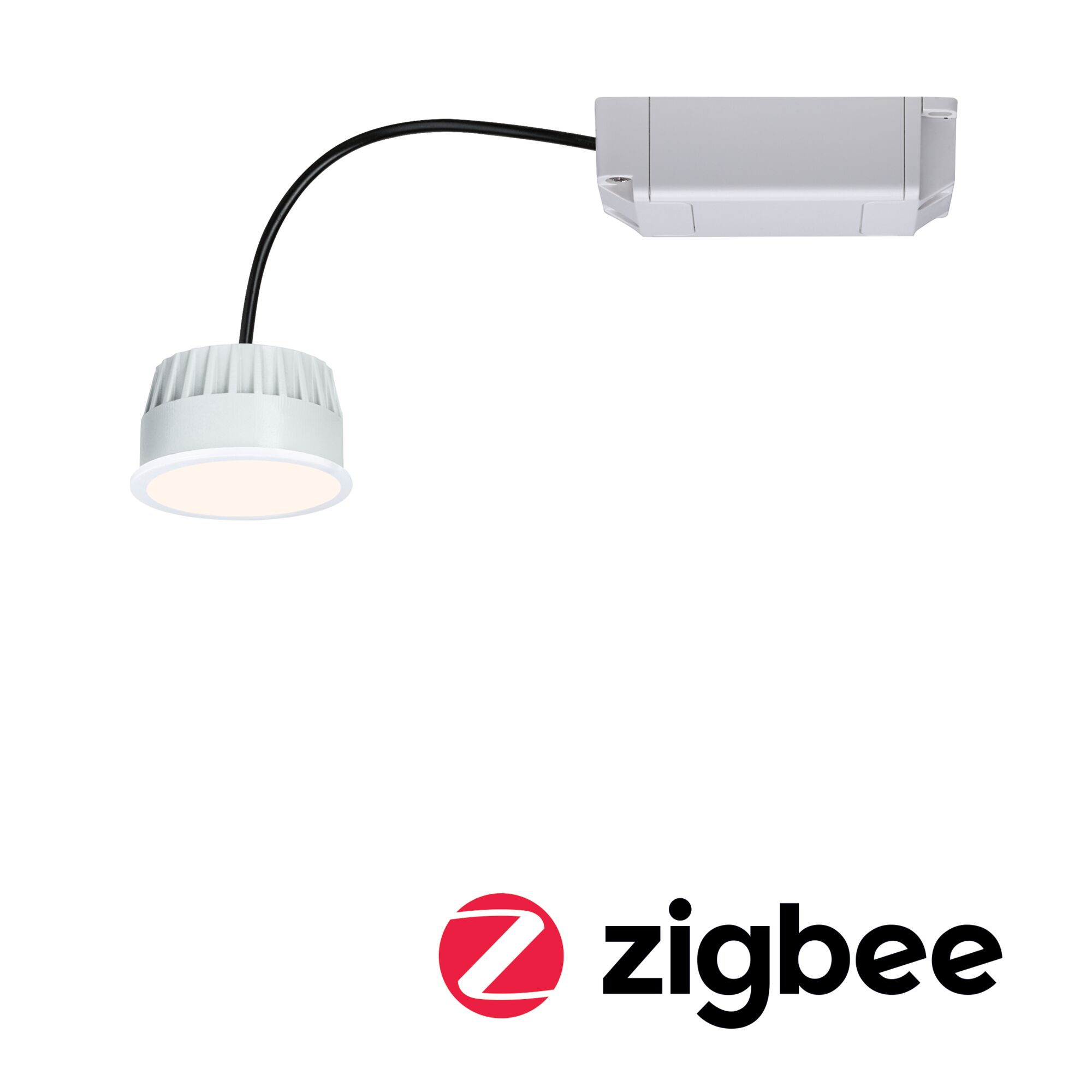

- LED Module recessed luminaire
