Article-No.:
78973
SimpLED
LED Strip
Warm white Complete Set
7,5m coated 20W 300lm/m 60 LEDs/m 3000K 24VA
7,5m coated 20W 300lm/m 60 LEDs/m 3000K 24VA

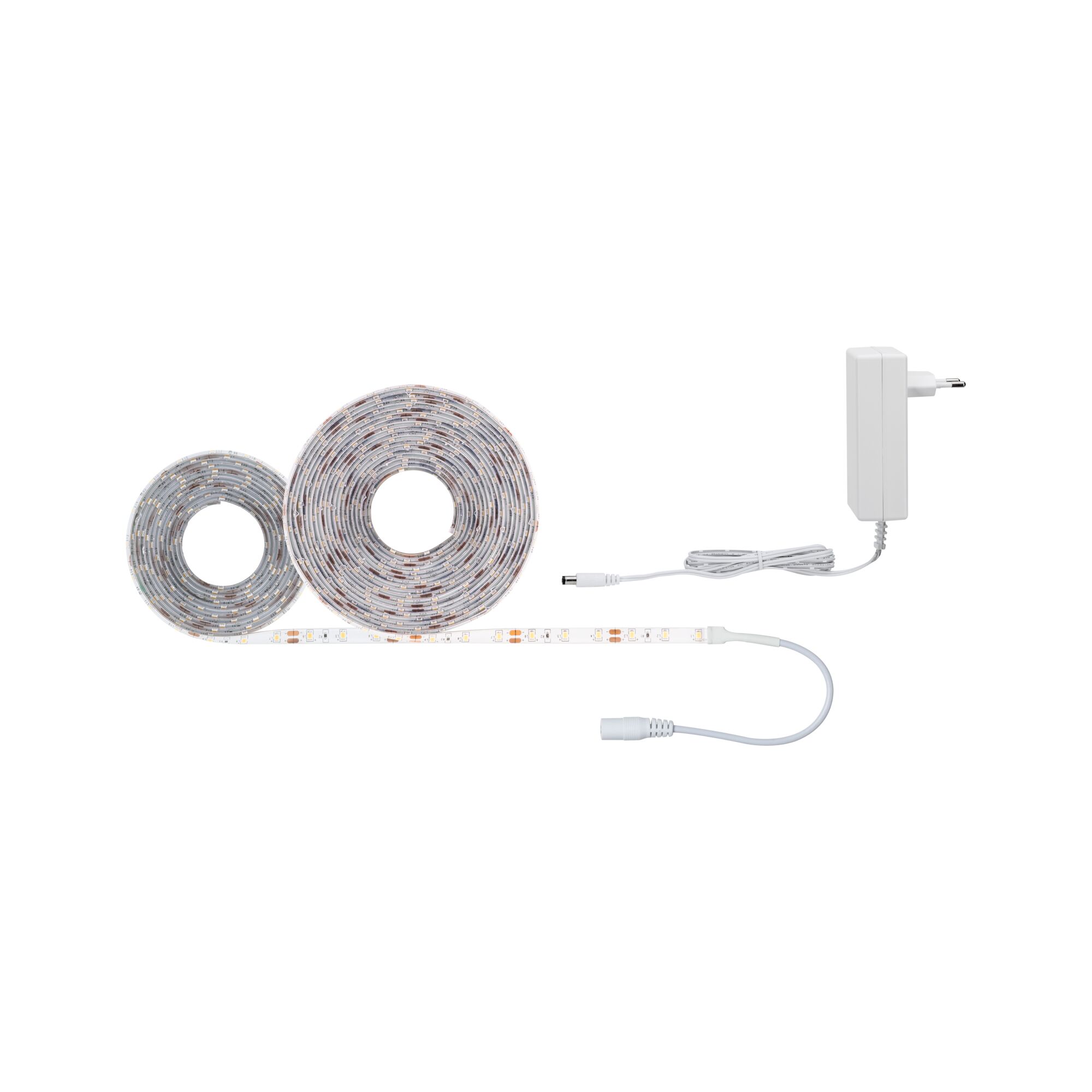

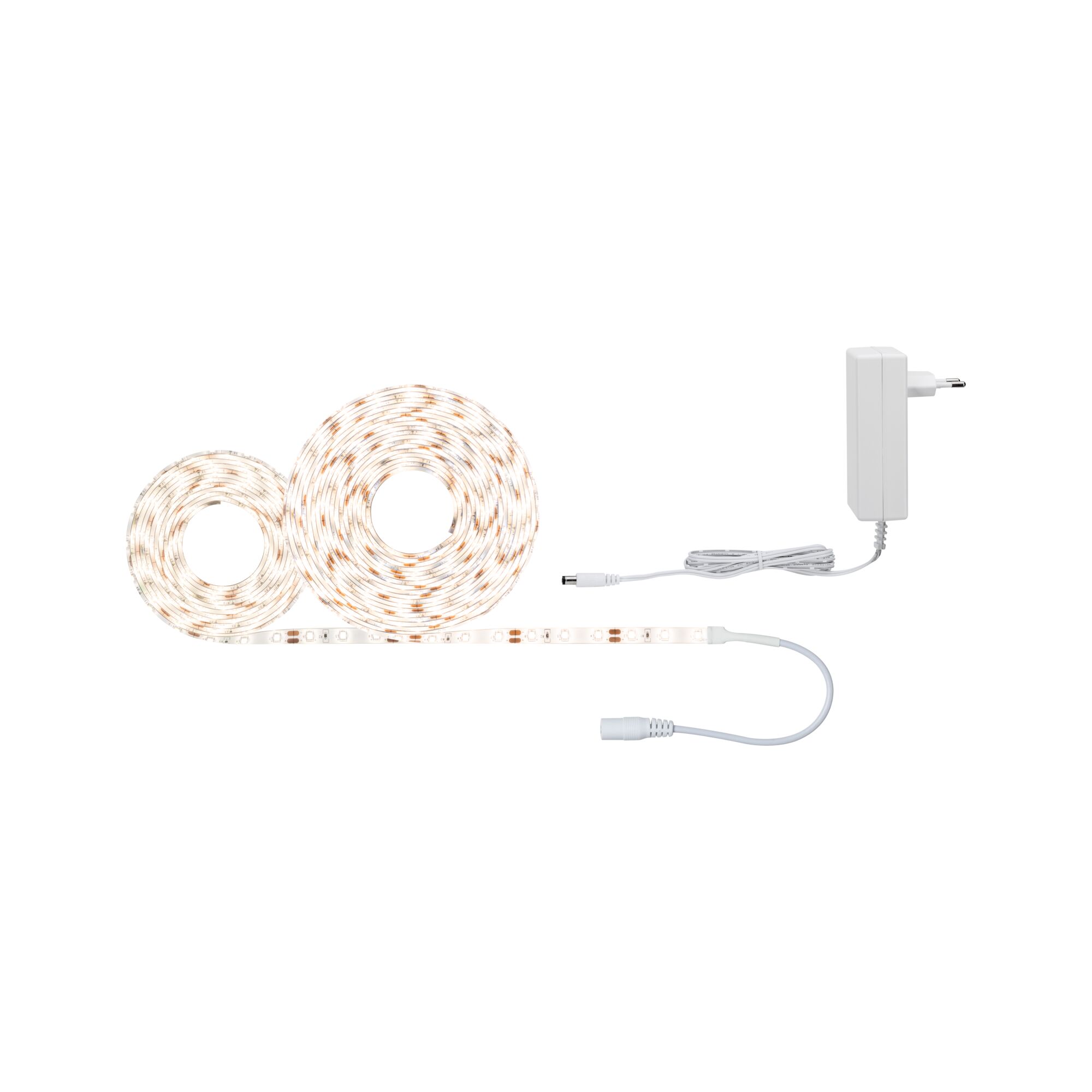

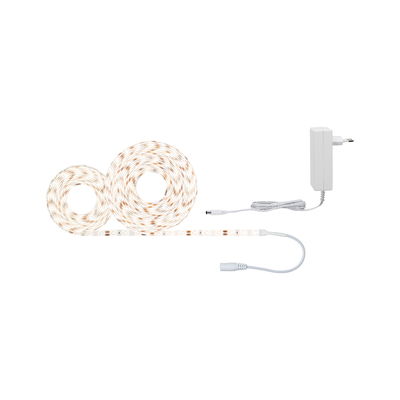

- Ready-to-use set including 230/12V power supply with power cable and plug

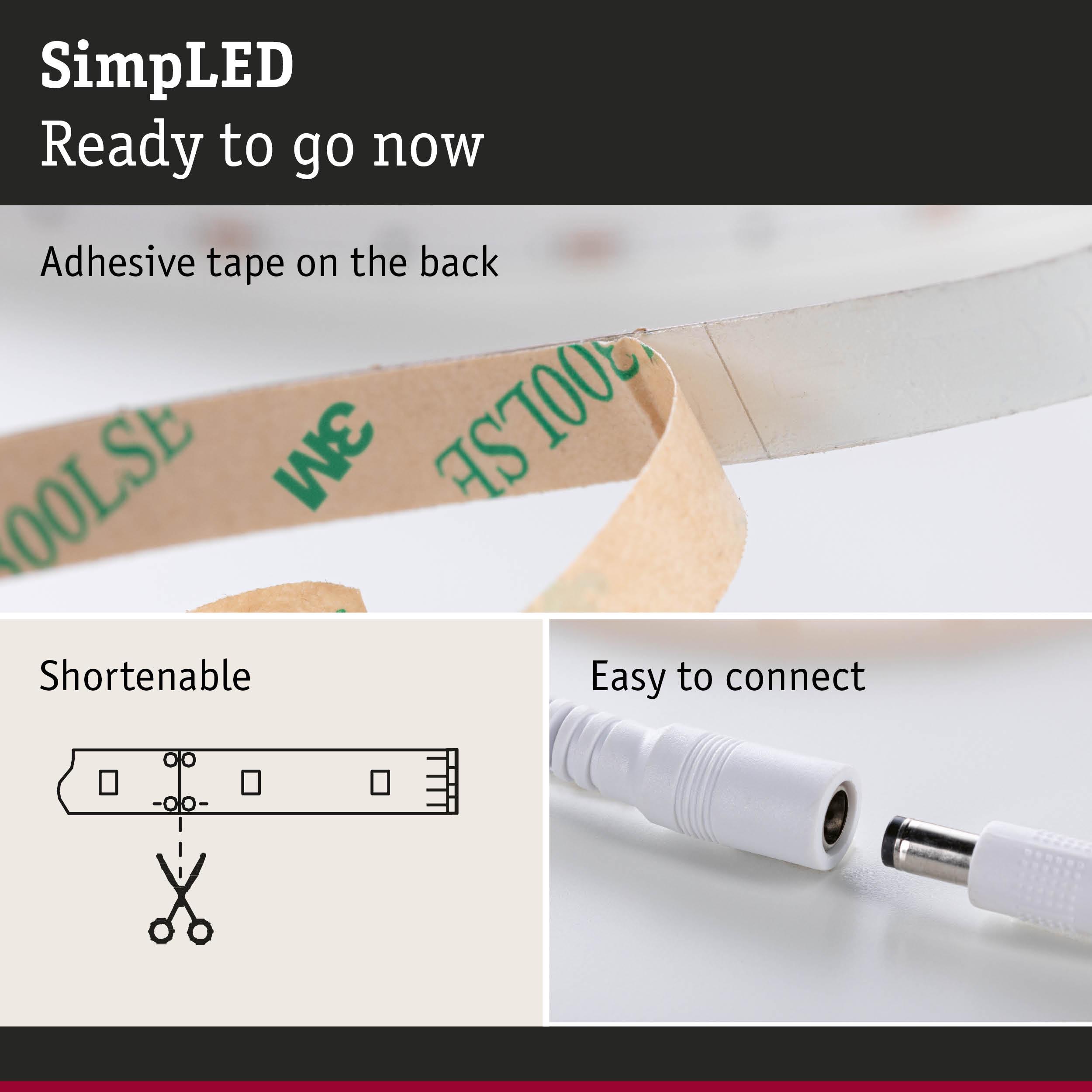

- Rear self-adhesive for simple installation
- Flexible material for installation on flat or arched base surfaces

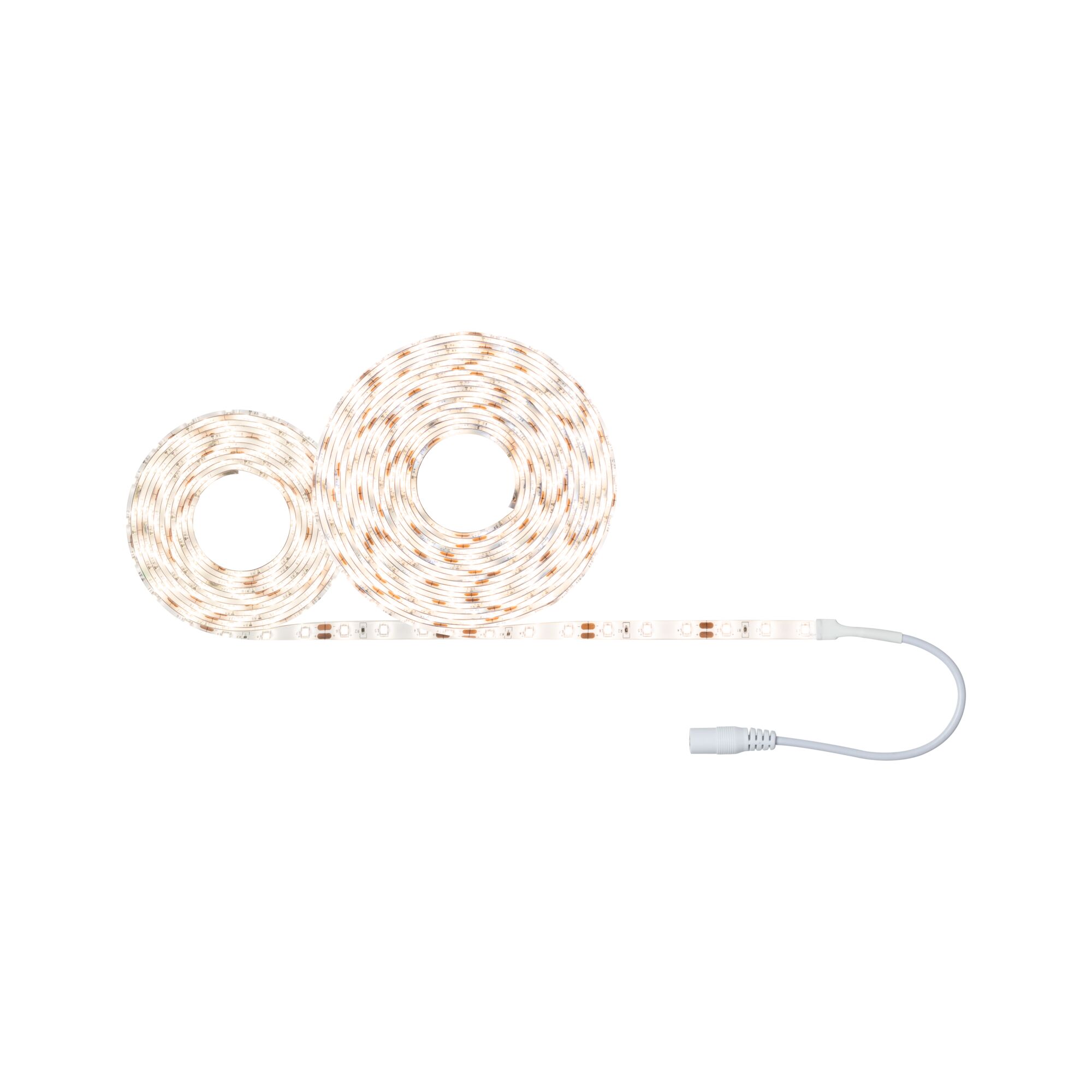

SimpLED LED Strip Warm white Complete Set 7,5m coated 20W 300lm/m 60 LEDs/m 3000K 24VA

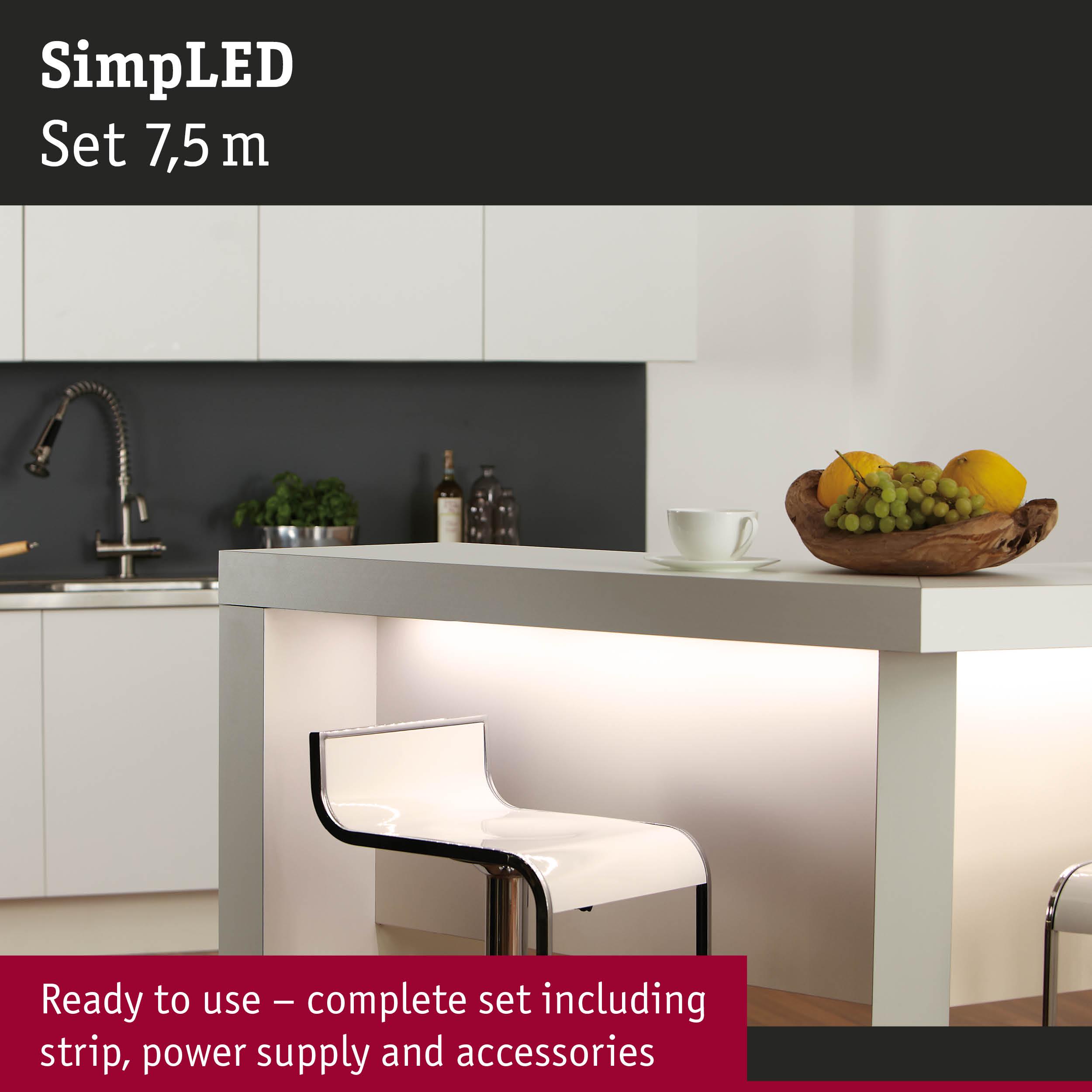

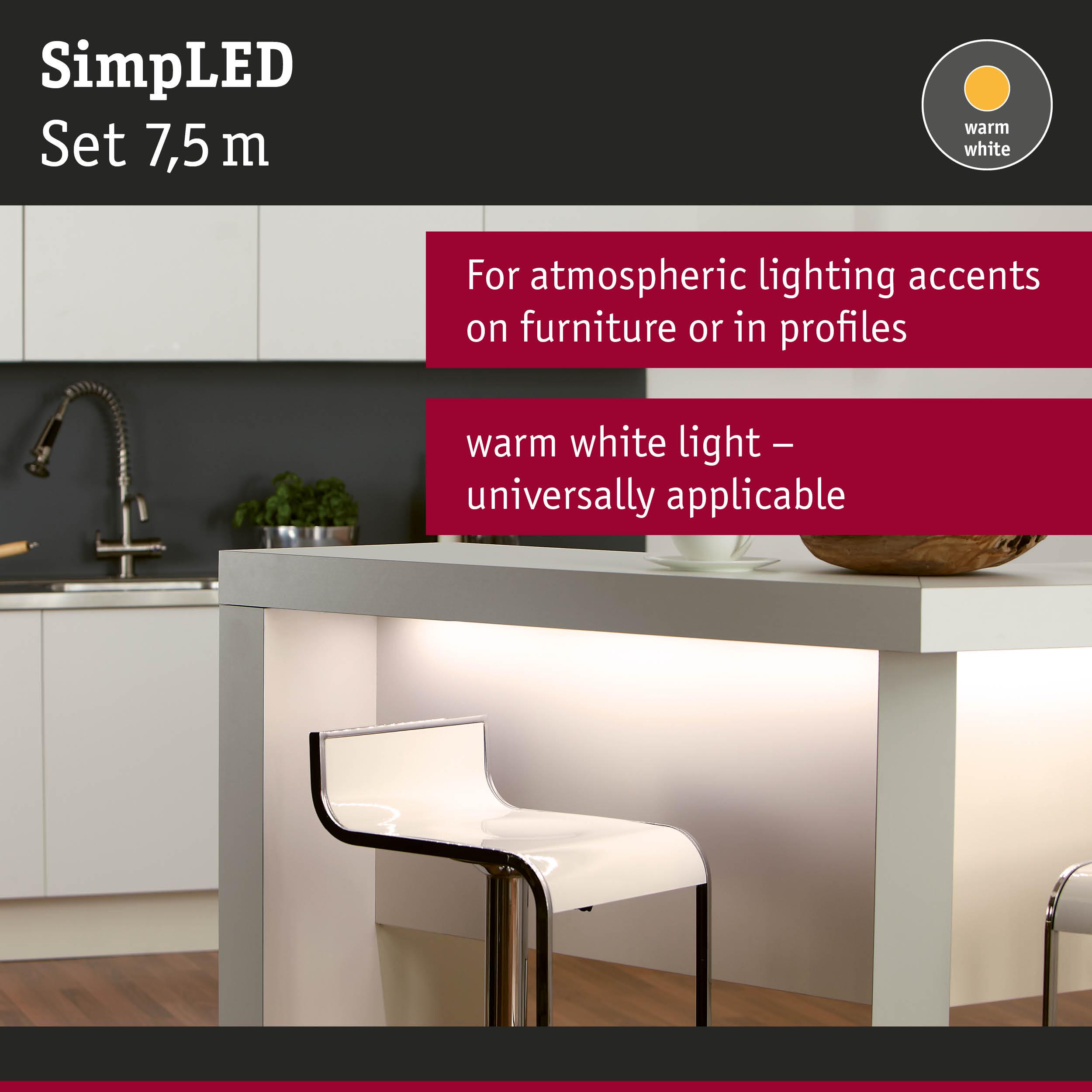

Cut the SimpLED strip to the required length, stick it in place and plug it in: that is how easy it is to create atmospheric lighting accents on furniture or in profiles. The flexible material adapts itself to the most varied surfaces. The coating provides protection from dust and splashing water, so that it can easily be used beside sinks and wash hand basins.
- Ready-to-use set including 230/12V power supply with power cable and plug
- Rear self-adhesive for simple installation
- Flexible material for installation on flat or arched base surfaces
- Can be shortened as needed (at marked points)
- Coating protects against splashing water and dust
- Color temperatur: 3000K - Warm white
- Cannot be extended
- Cannot be combined with YourLED and MaxLED strips
- Simple plug-in system for easy installation
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 x T: 8 mm |
| Length | 7,5 m |
| Shortenability Strips | 50 mm |
| net weight | 301 g |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Metal, Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Transformator plug | Transformator plug |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 1950 lm |
| Color rendering index | > 80 Ra |
| Colour temperature | Warm white, 3000 K |
| Luminous flux LED module | 2250 lm |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 20 W |
| light source property | Light source integrated (non-replacable) |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | No |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Number of LED's per meter | 60 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 23 W |
| Voltage | 230/12 V |
| Transformer | |
|---|---|
| Transformer power range | 24 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
