Article-No.:
78906
SimpLEDLED Strip
Outdoor Complete Set
5m coated IP65 20W 420lm/m 40 LEDs/m 3000K 24VA
5m coated IP65 20W 420lm/m 40 LEDs/m 3000K 24VA

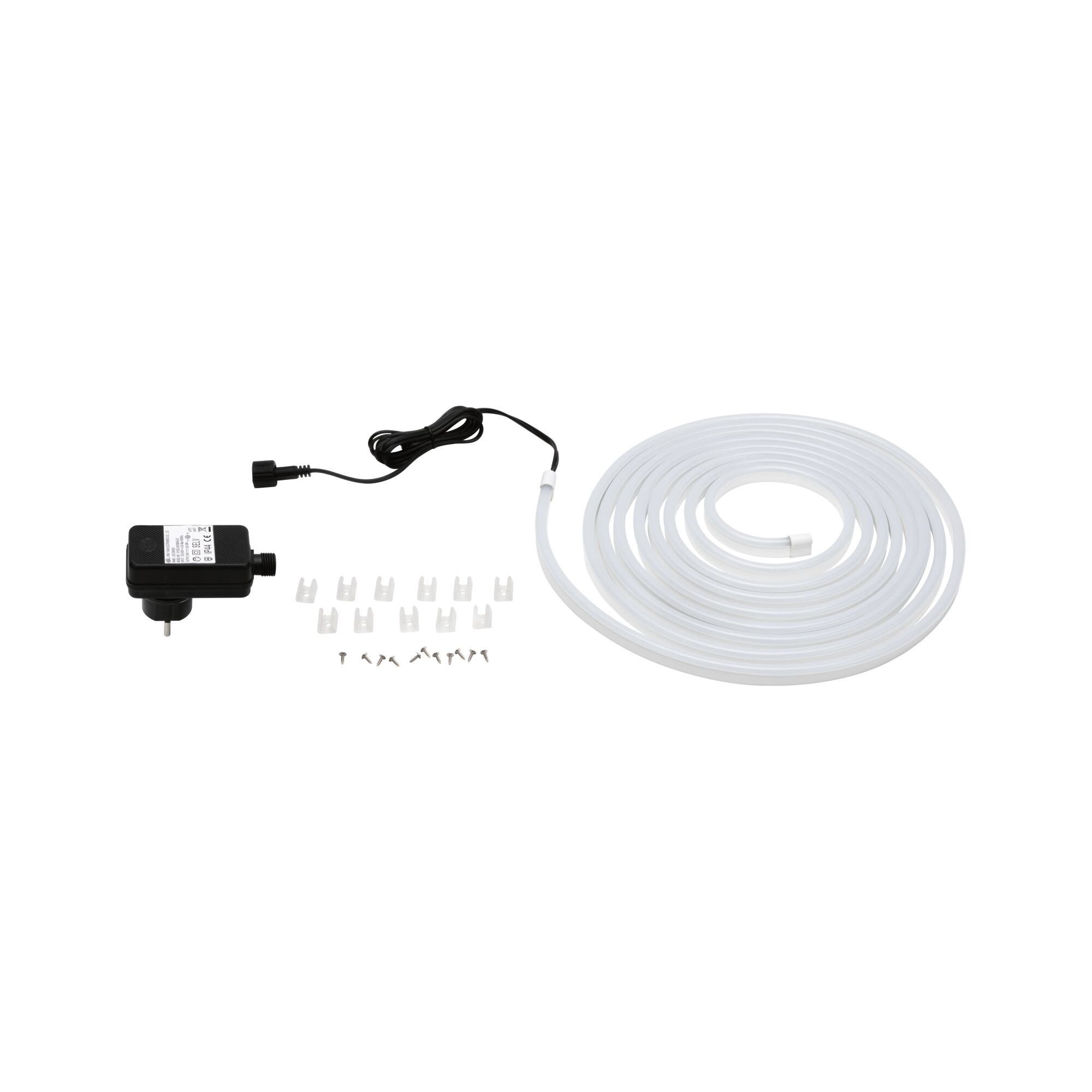

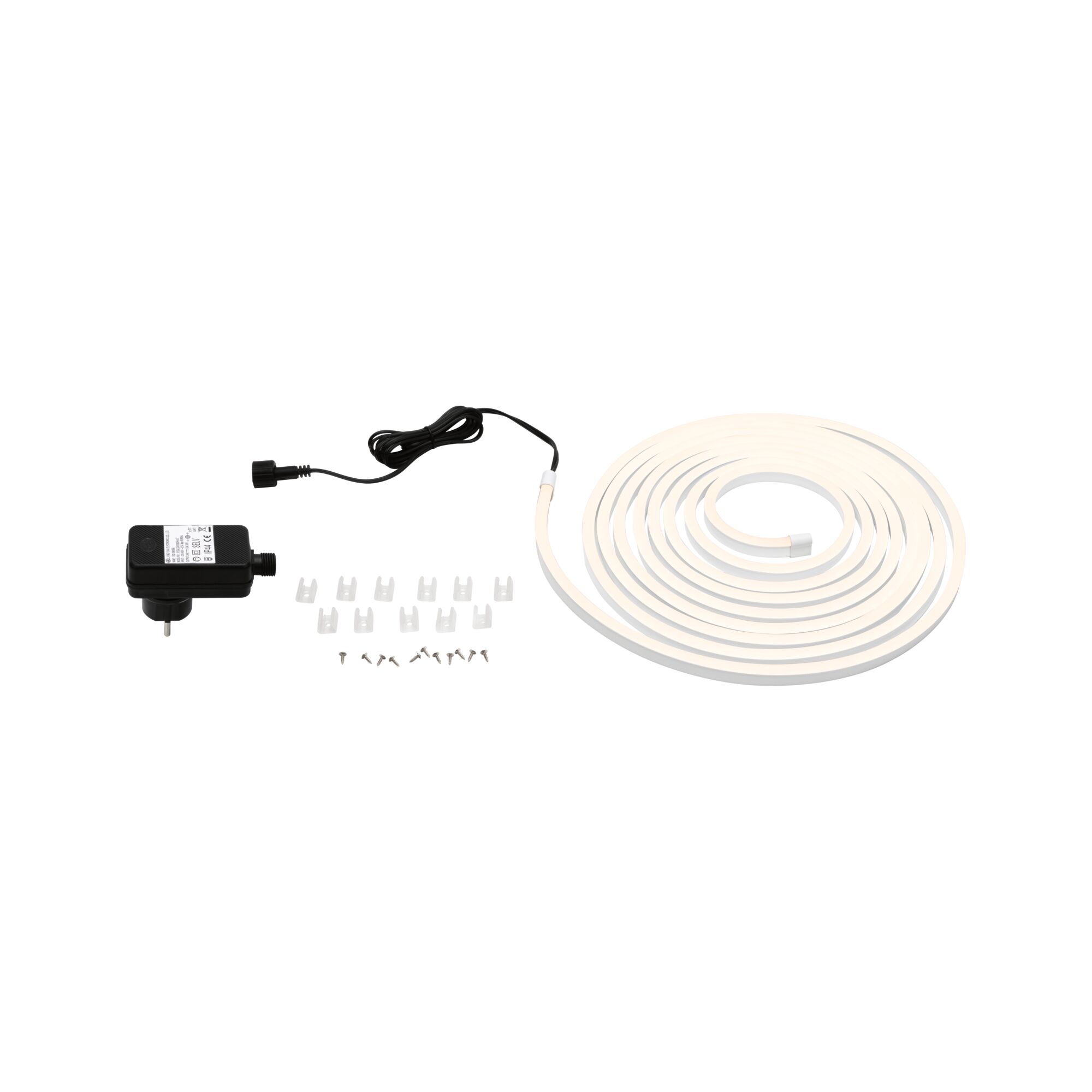

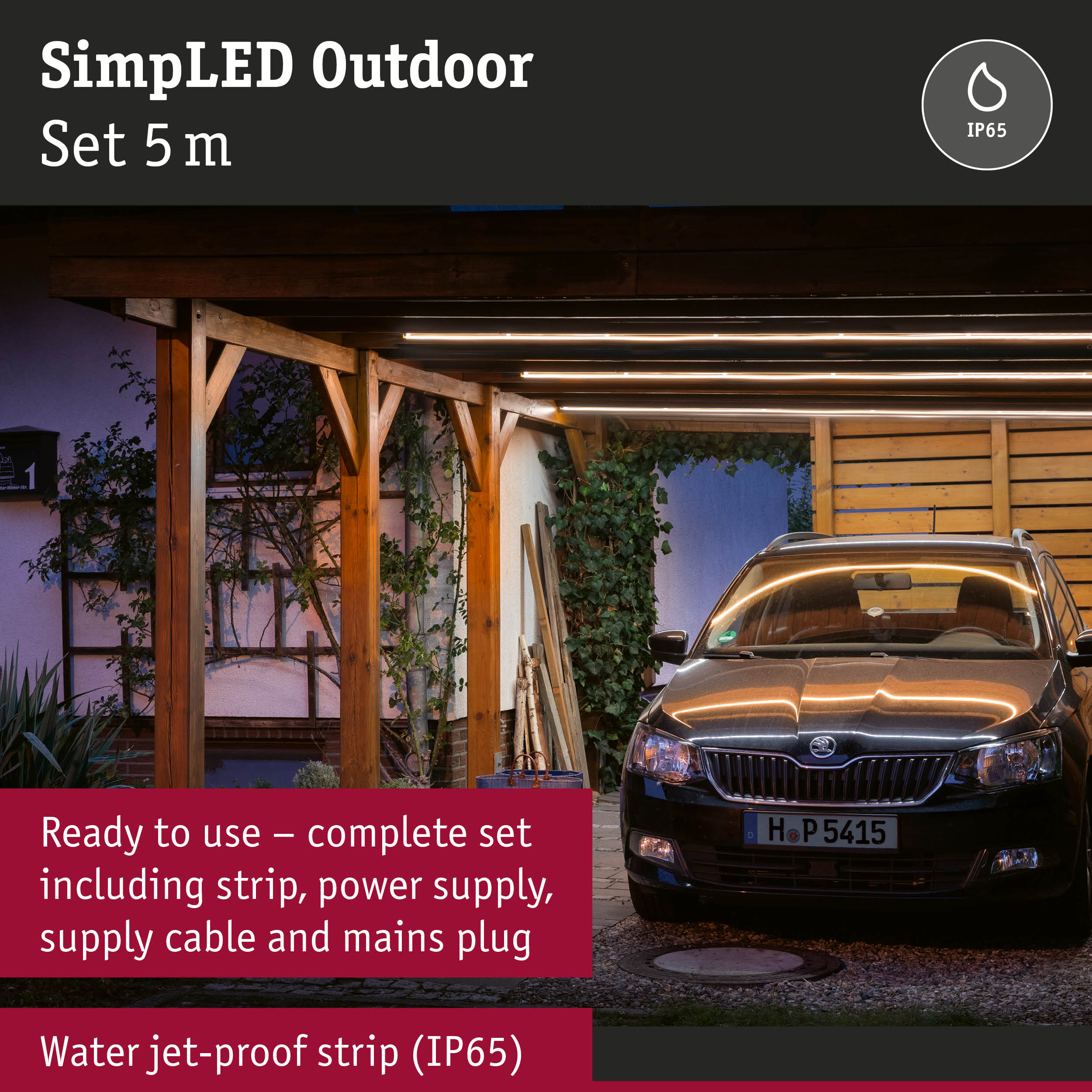

- Ready-to-use set including 230/24V power supply with power cable and plug
- Color temperatur: 3000K - Warm white
- IP protection: IP65 – water jet-protected
SimpLED LED Strip Outdoor Complete Set 5m coated IP65 20W 420lm/m 40 LEDs/m 3000K 24VA

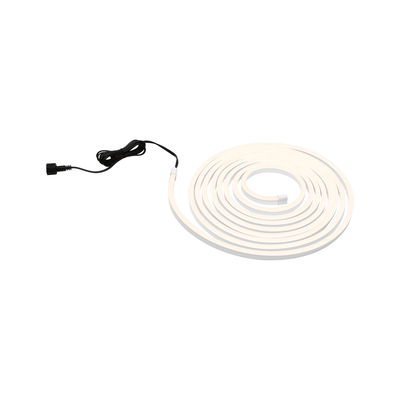

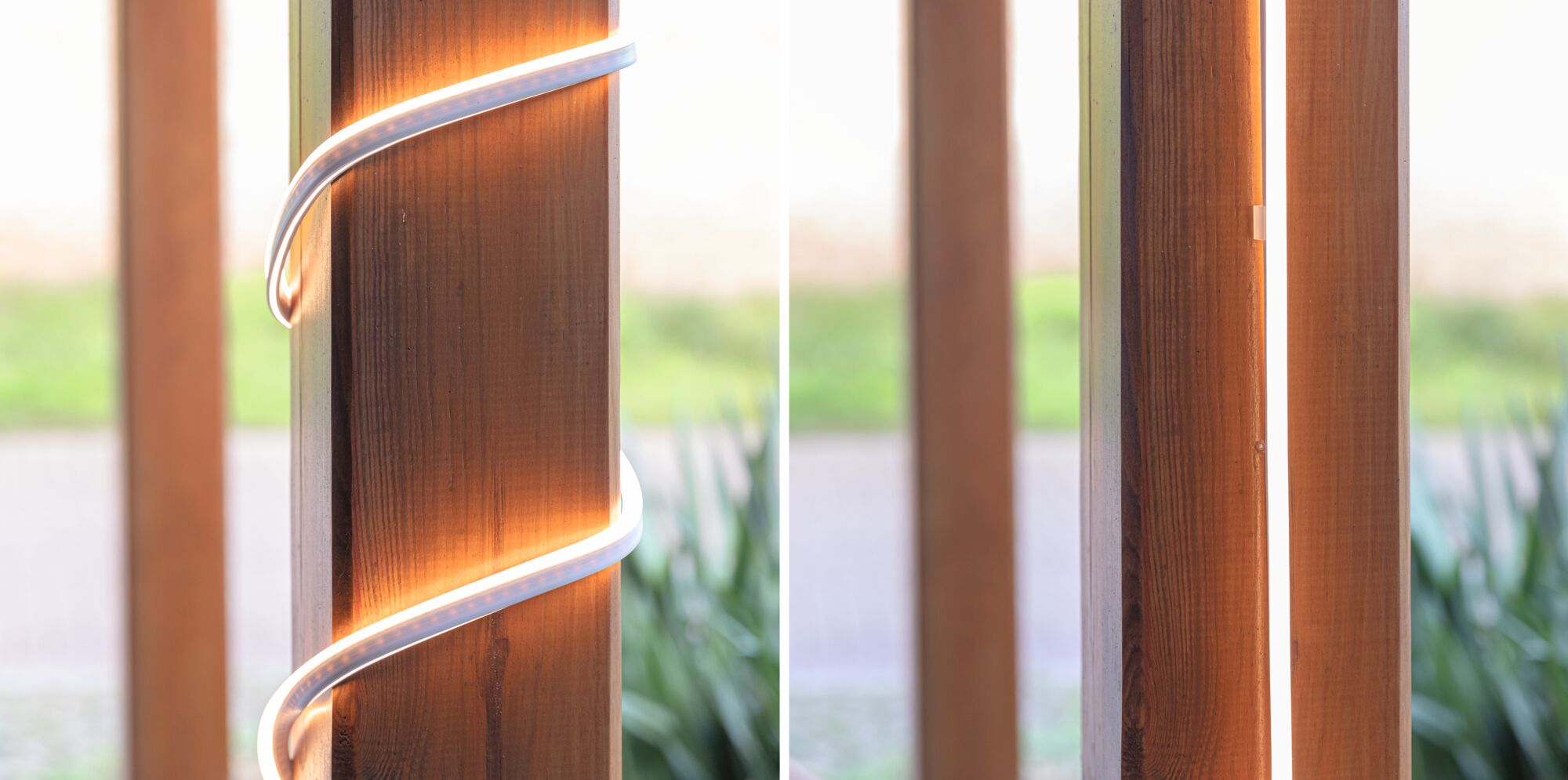

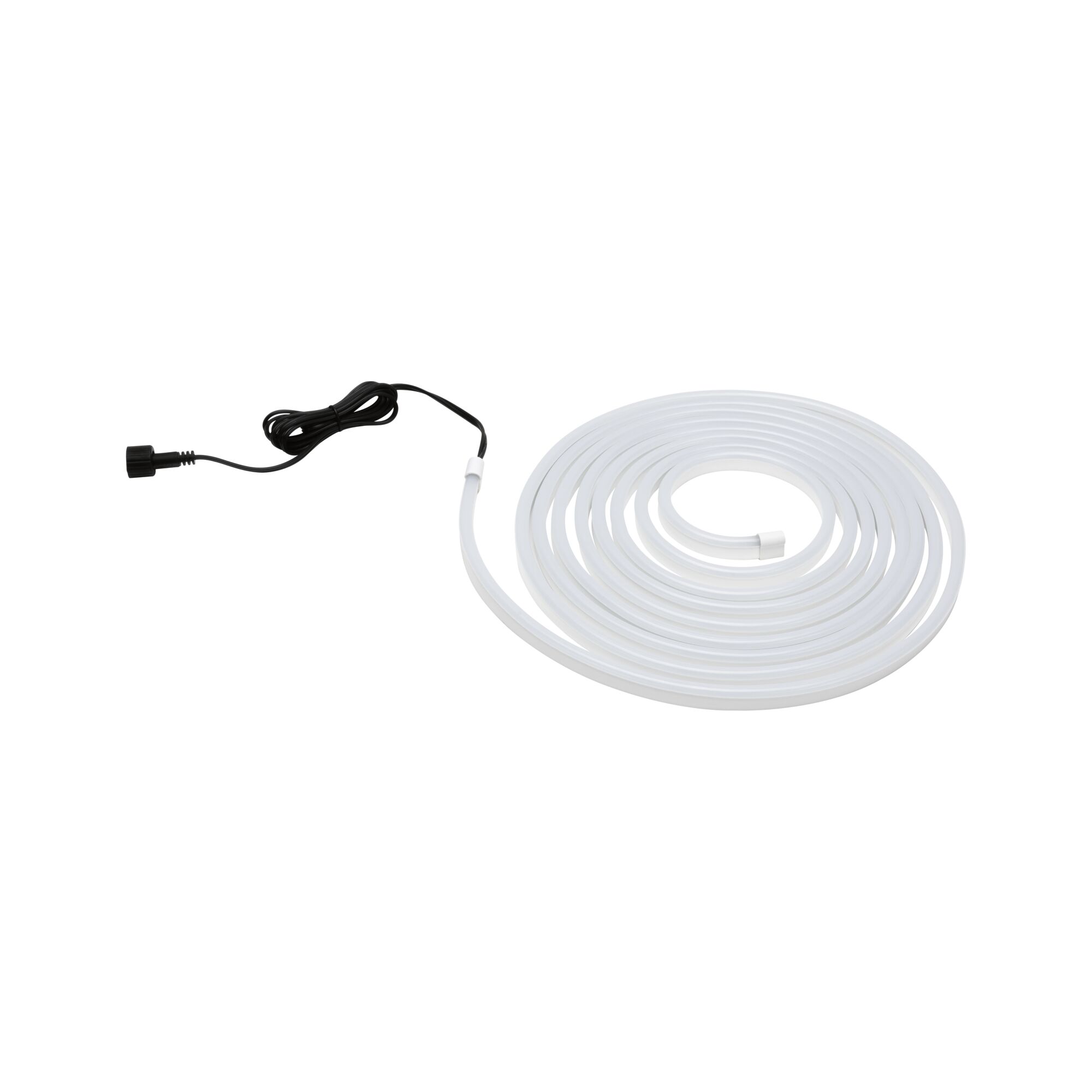

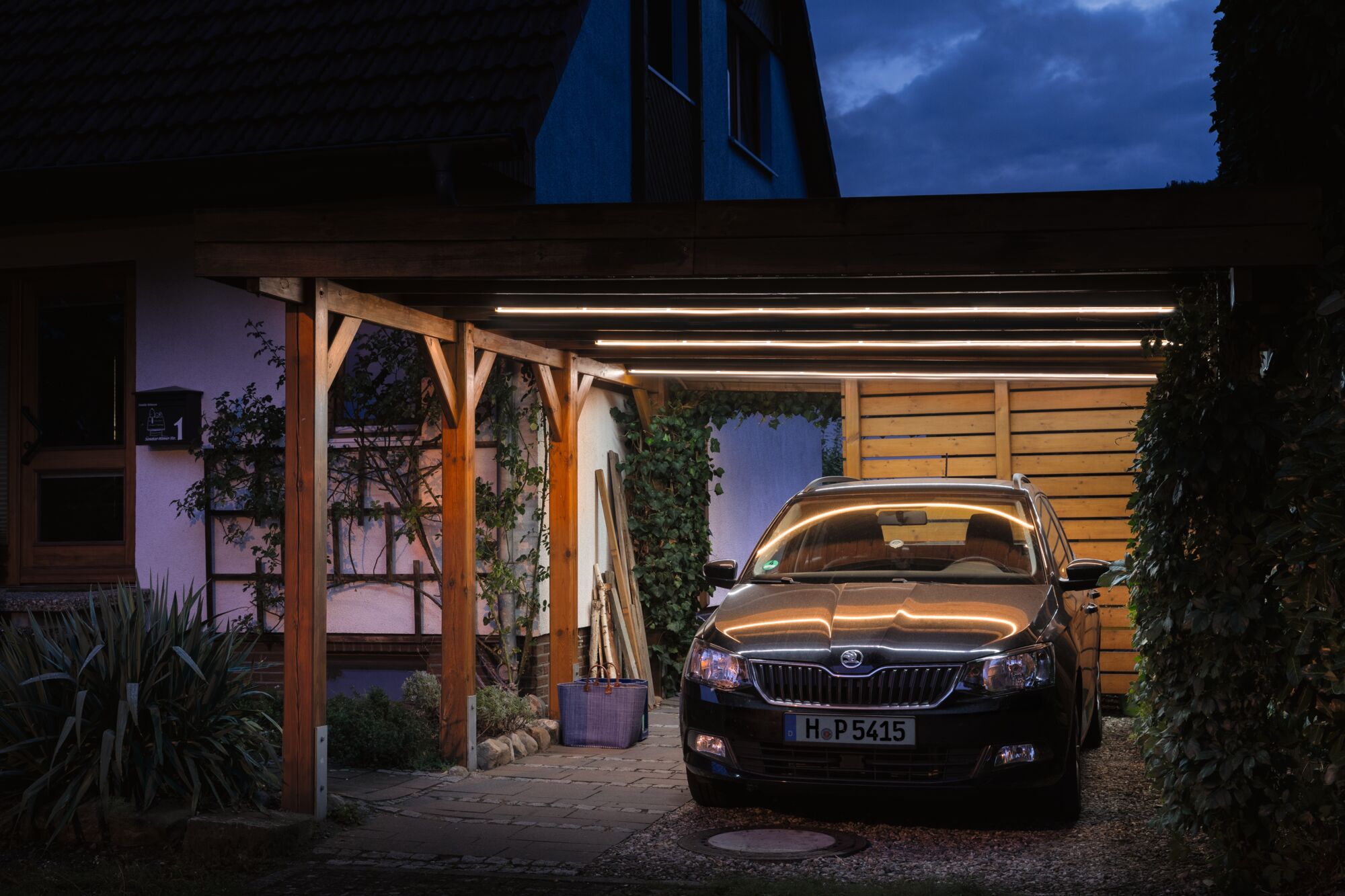

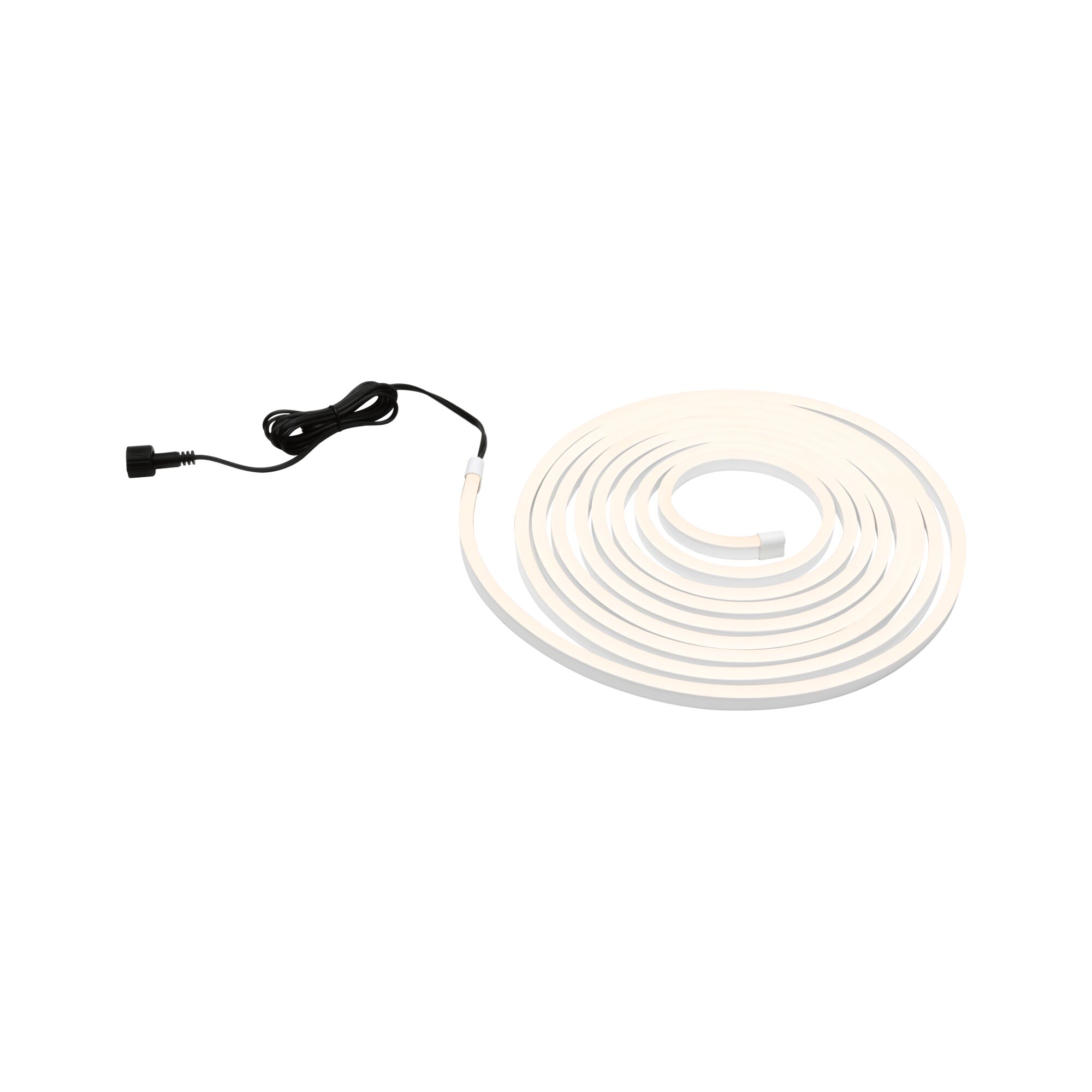

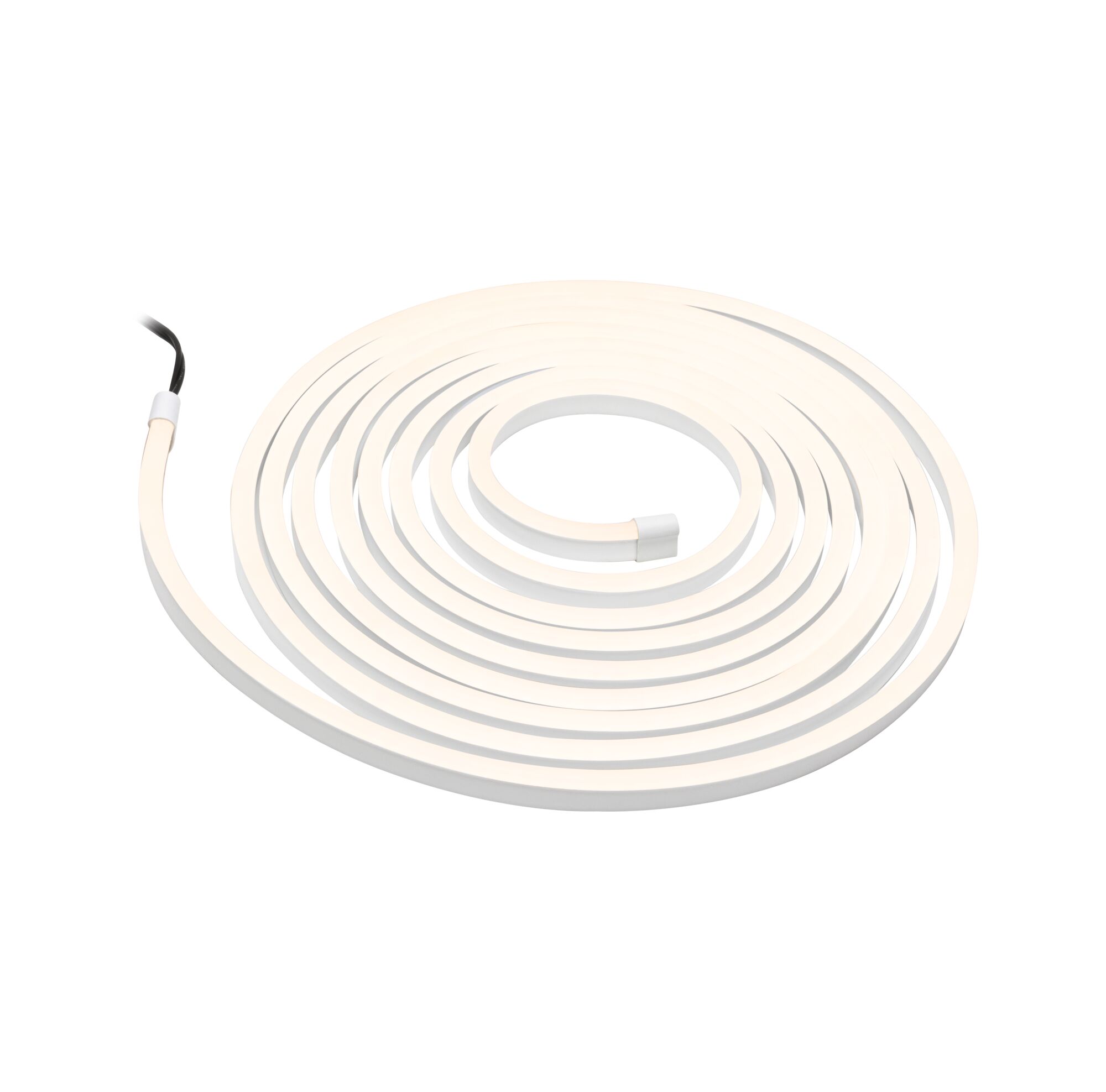

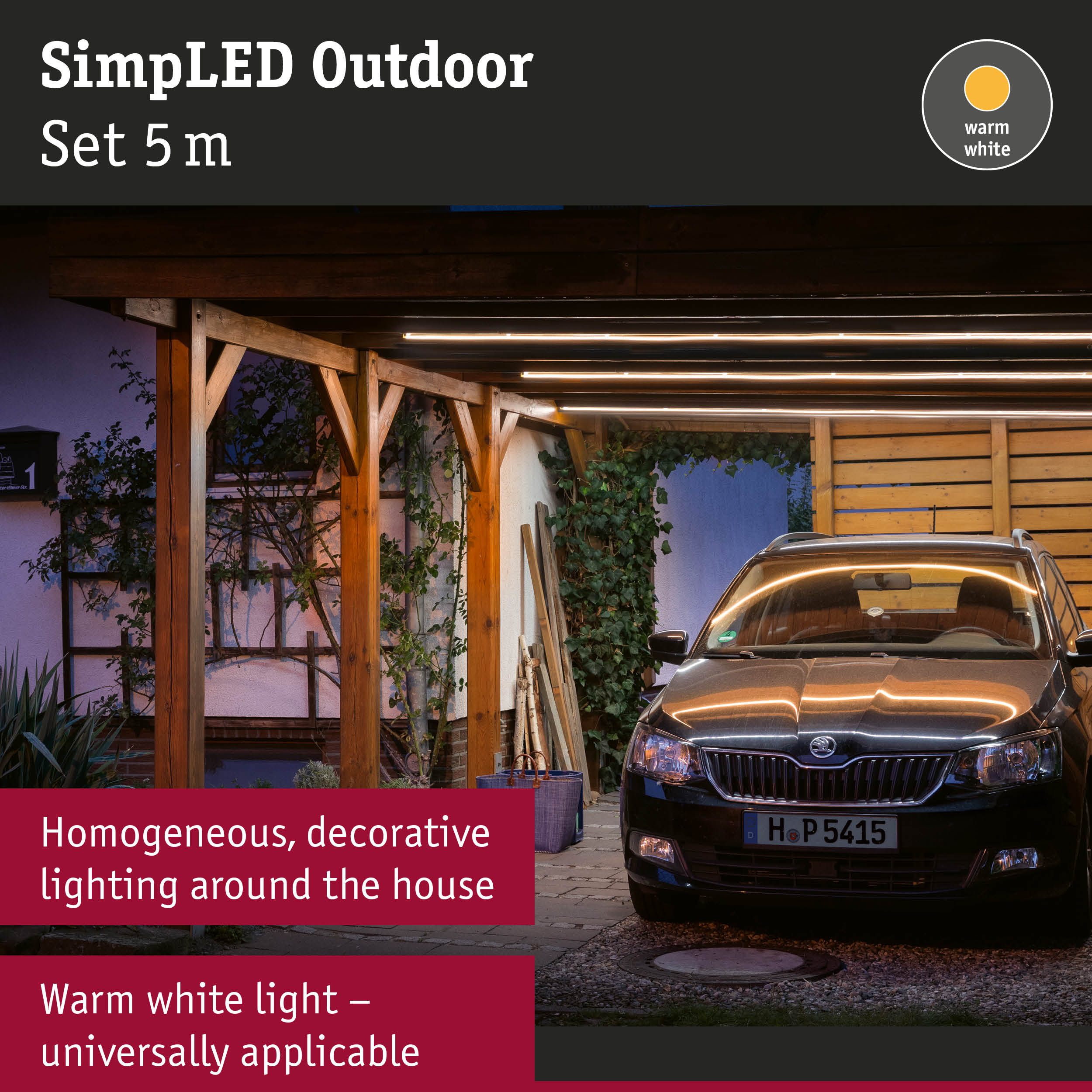

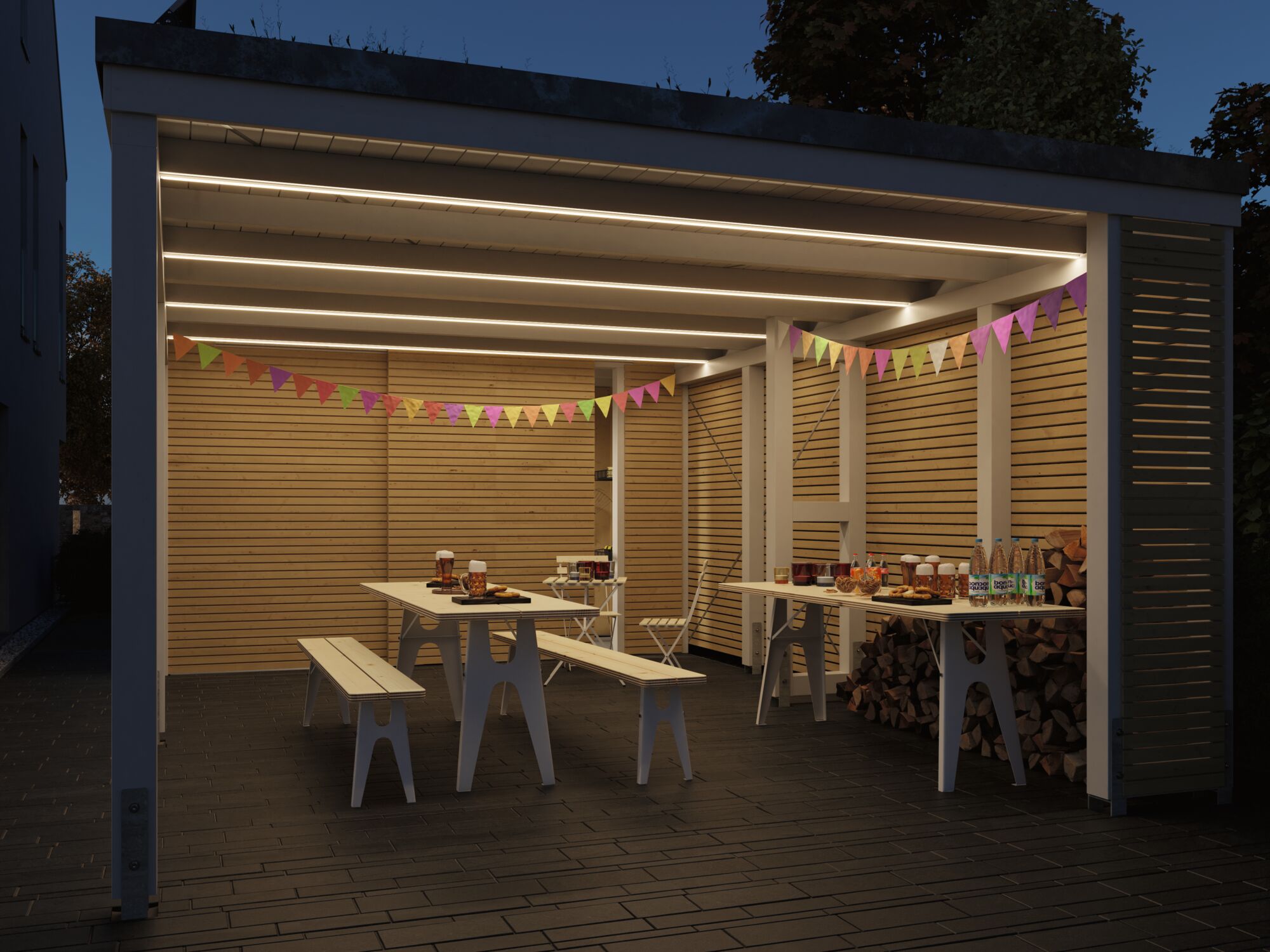

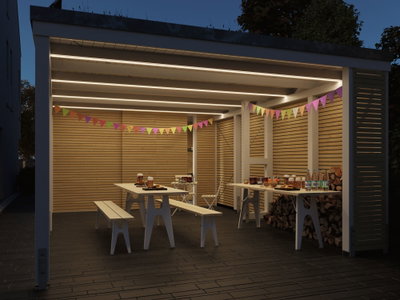

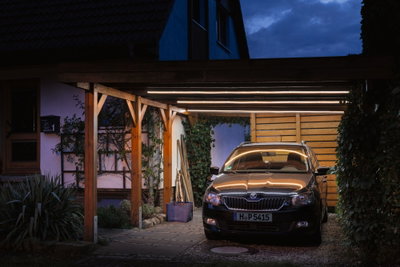

The warm white SimpLED outdoor strip with a length of 5m provides uniform, decorative light around the home. It generates a flexibly placeable line of light without visible LED dots. The ready-to-plug complete set is suitable for lighting of carports, roof overhangs or patios, etc. Thanks to the high number of LEDs and the robust silicone coating, the strip creates a continuous line of light. The coating protects against dust and splash water.

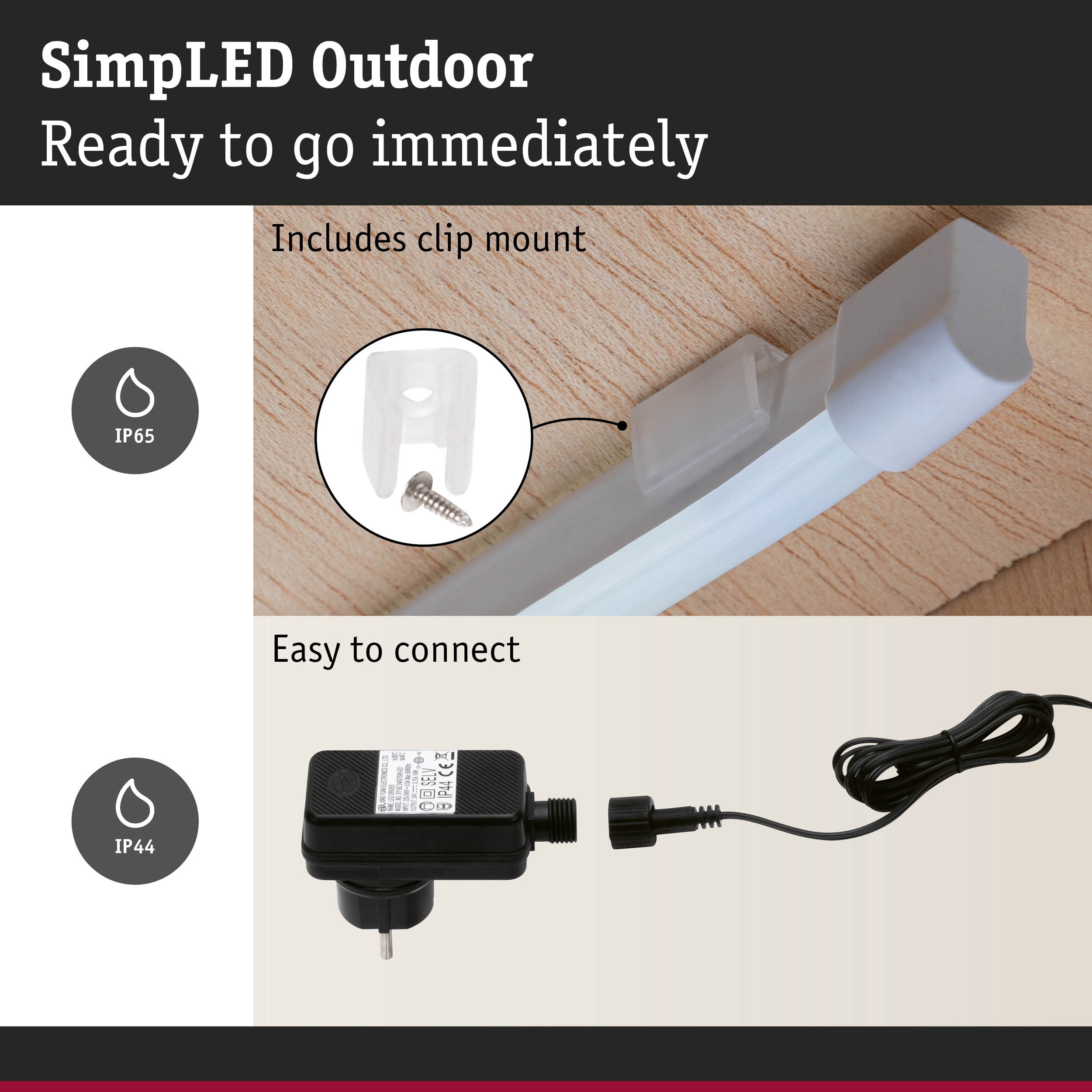

- Ready-to-use set including 230/24V power supply with power cable and plug
- Color temperatur: 3000K - Warm white
- IP protection: IP65 – water jet-protected

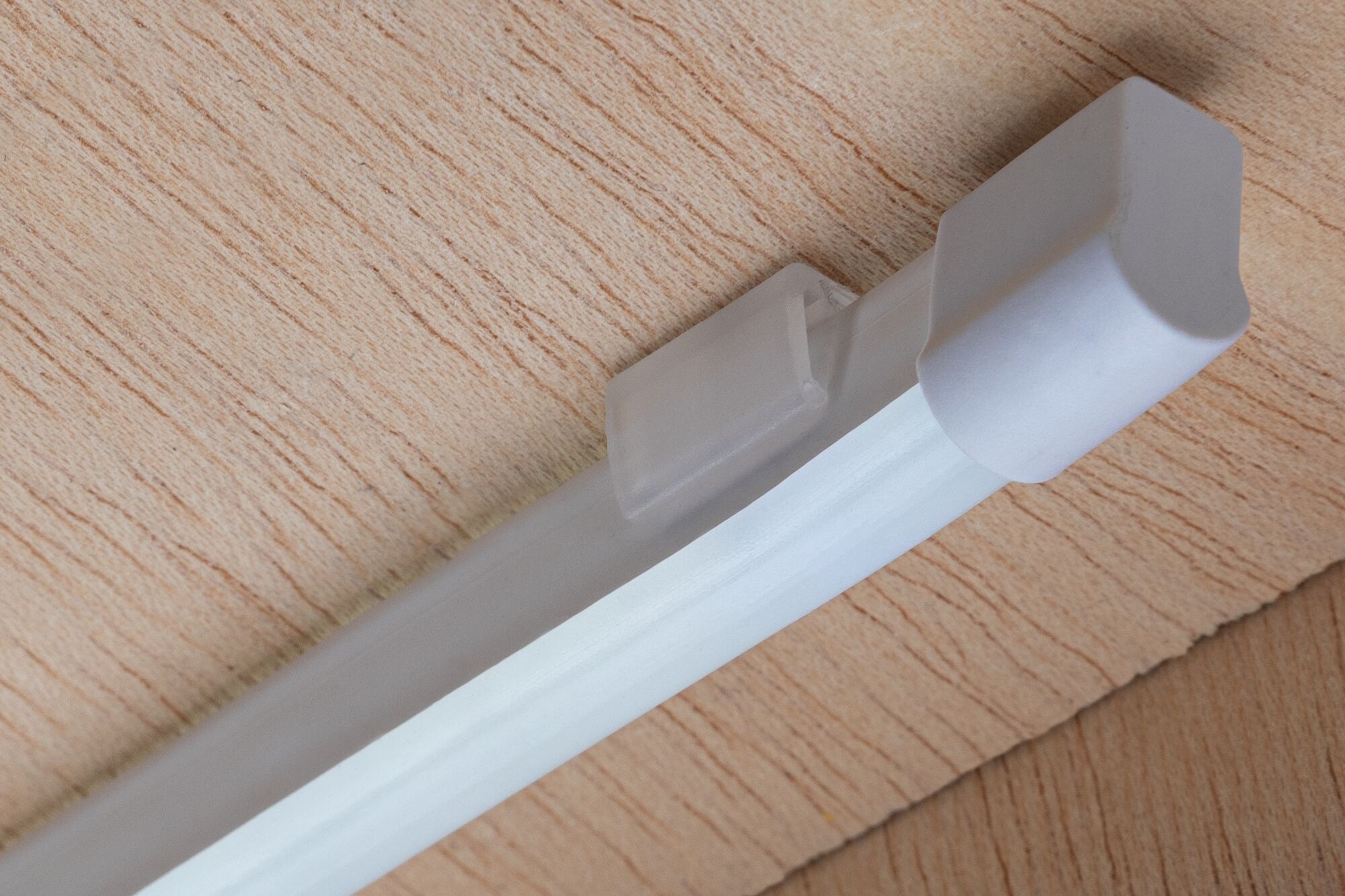

- Flexible material for installation on flat or arched base surfaces
- Simple plug-in system for easy installation
- Cannot be extended
- Cannot be combined with YourLED and MaxLED strips
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 15,5 x T: 8,5 mm |
| Length | 5 m |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Recycled material included | no |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Contour Plug (Typ C-CEE 7/17) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 3000 K |
| Nominal luminous flux | 1000 lm |
| Luminous flux LED module | 2100 lm |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 131 W |
| IP protection | IP65 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 20 W |
| Number of component parts | 1x |
| Number of LED's per meter | 40 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 24 W |
| Adjustability | fixed |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| apparent power | 40 VA |
| Transformer power range | 24 VA |

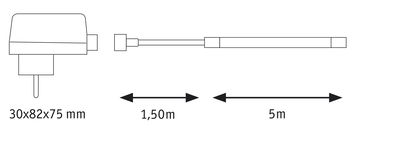

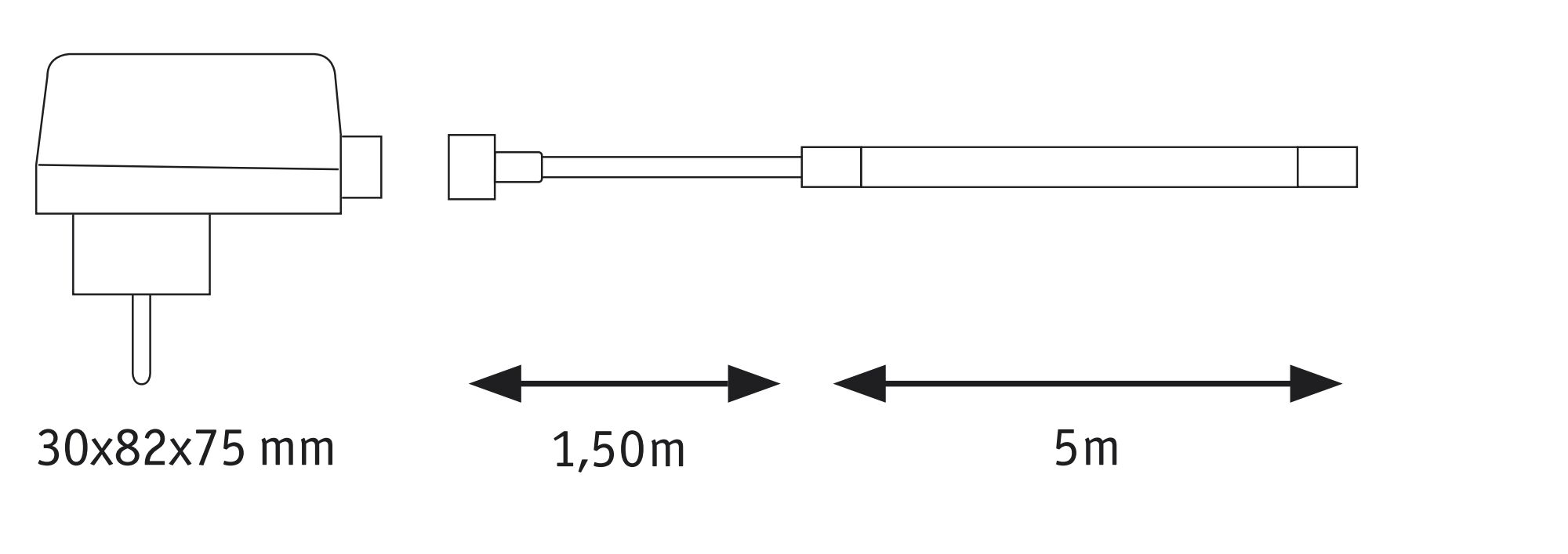

| Transformer height | 105 mm |
| Transformer width | 50 mm |
| Transformer depth | 75 mm |
| Accessories | |
|---|---|
| Radio control included | no |
