Article-No.:
79569
SimpLEDLED Strip
Full-Line COB Complete Set
5m 14,5W 140lm/m 840 LEDs/m RGB 24VA
5m 14,5W 140lm/m 840 LEDs/m RGB 24VA

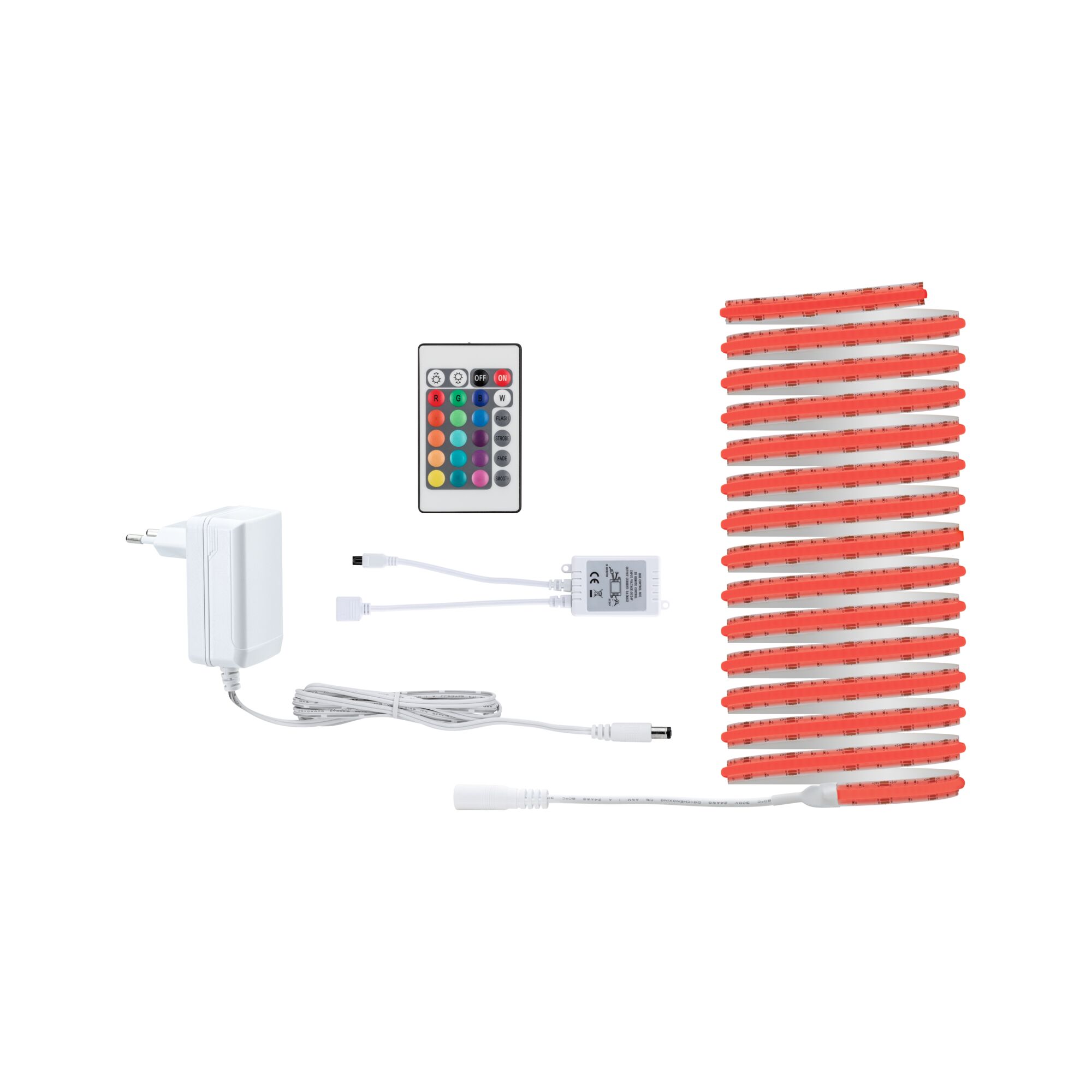

- Ready-to-use set including 230/12V power supply with power cable and plug

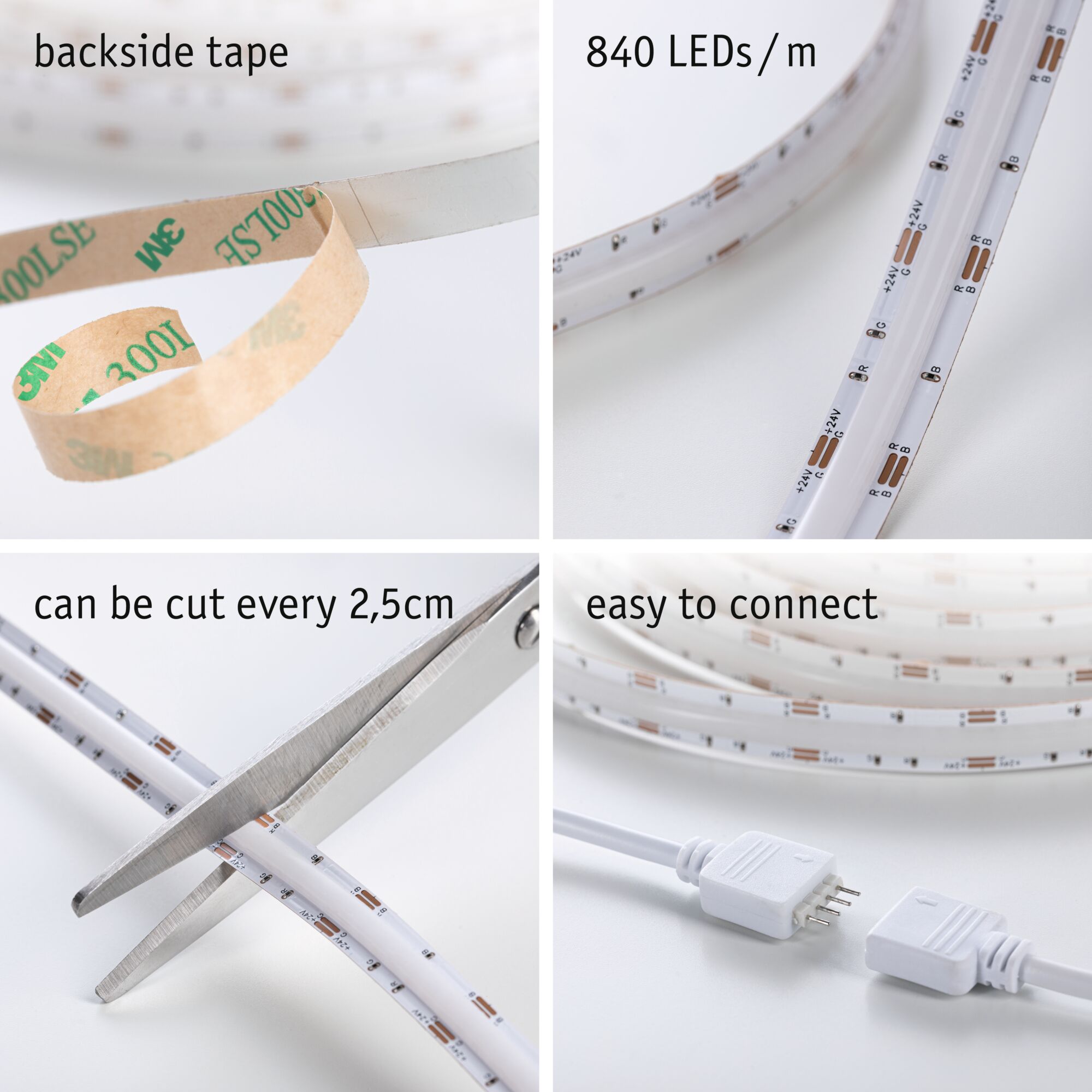

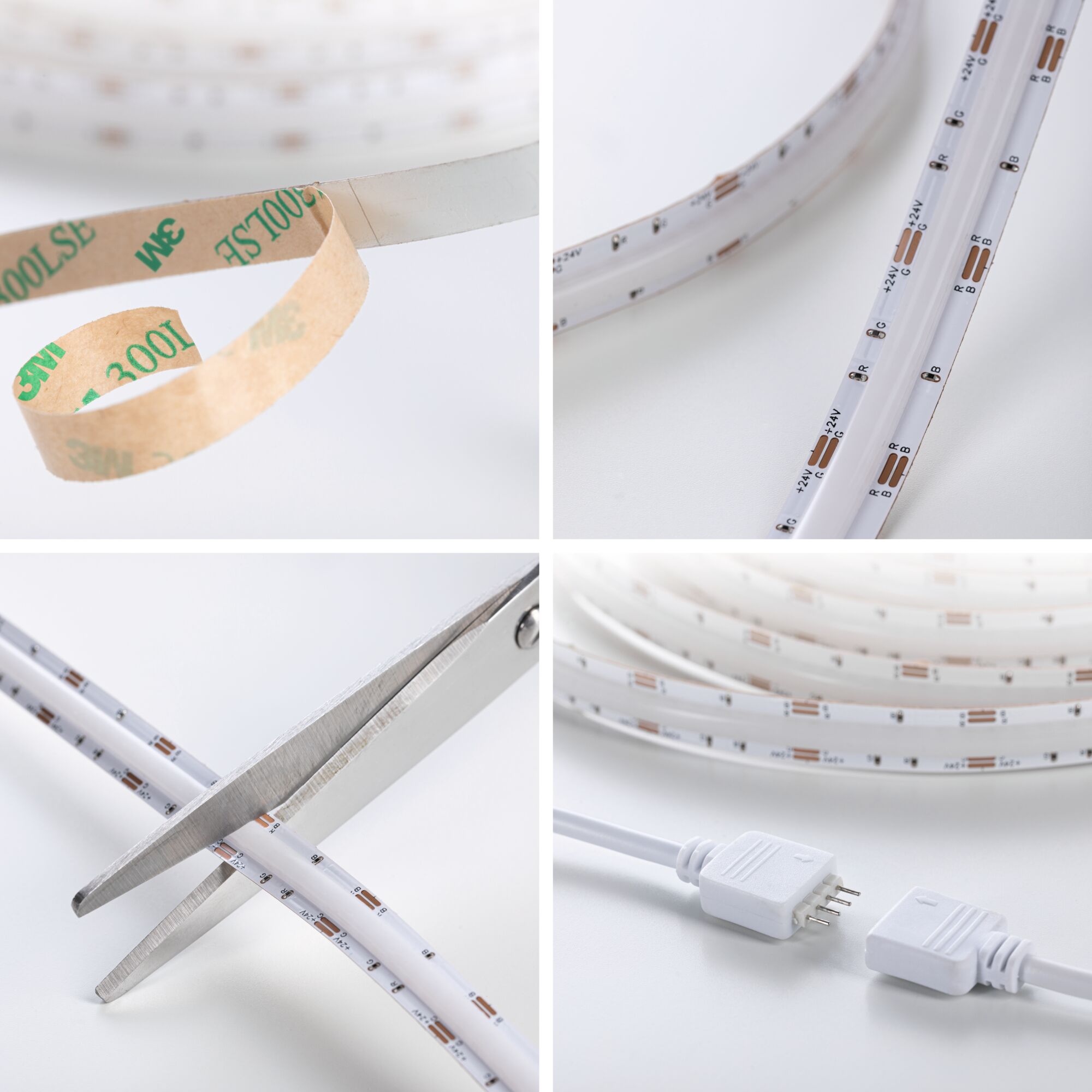

- Rear self-adhesive for simple installation
- Simple plug-in system for easy installation

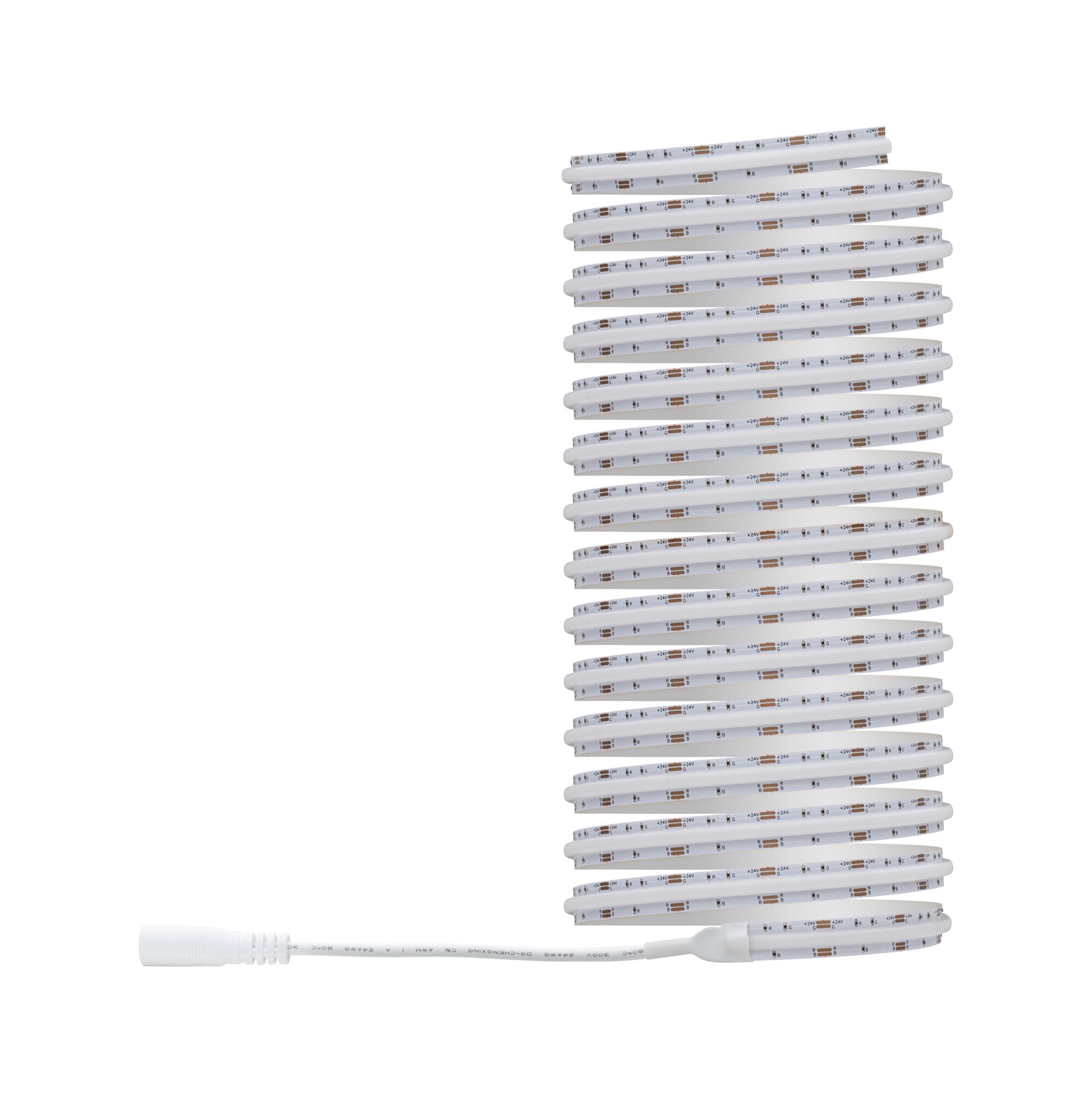

SimpLED LED Strip Full-Line COB Complete Set 5m 14,5W 140lm/m 840 LEDs/m RGB 24VA

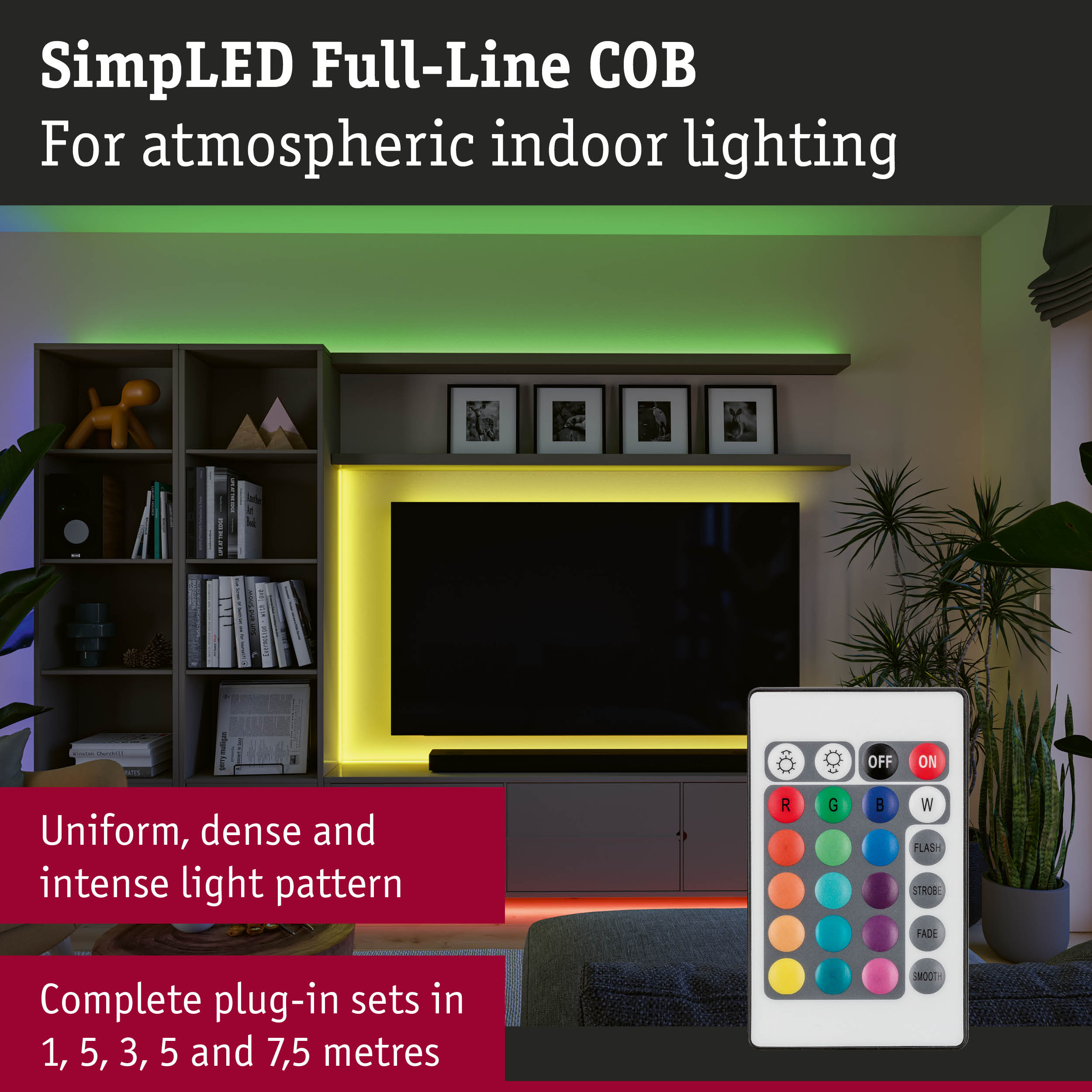

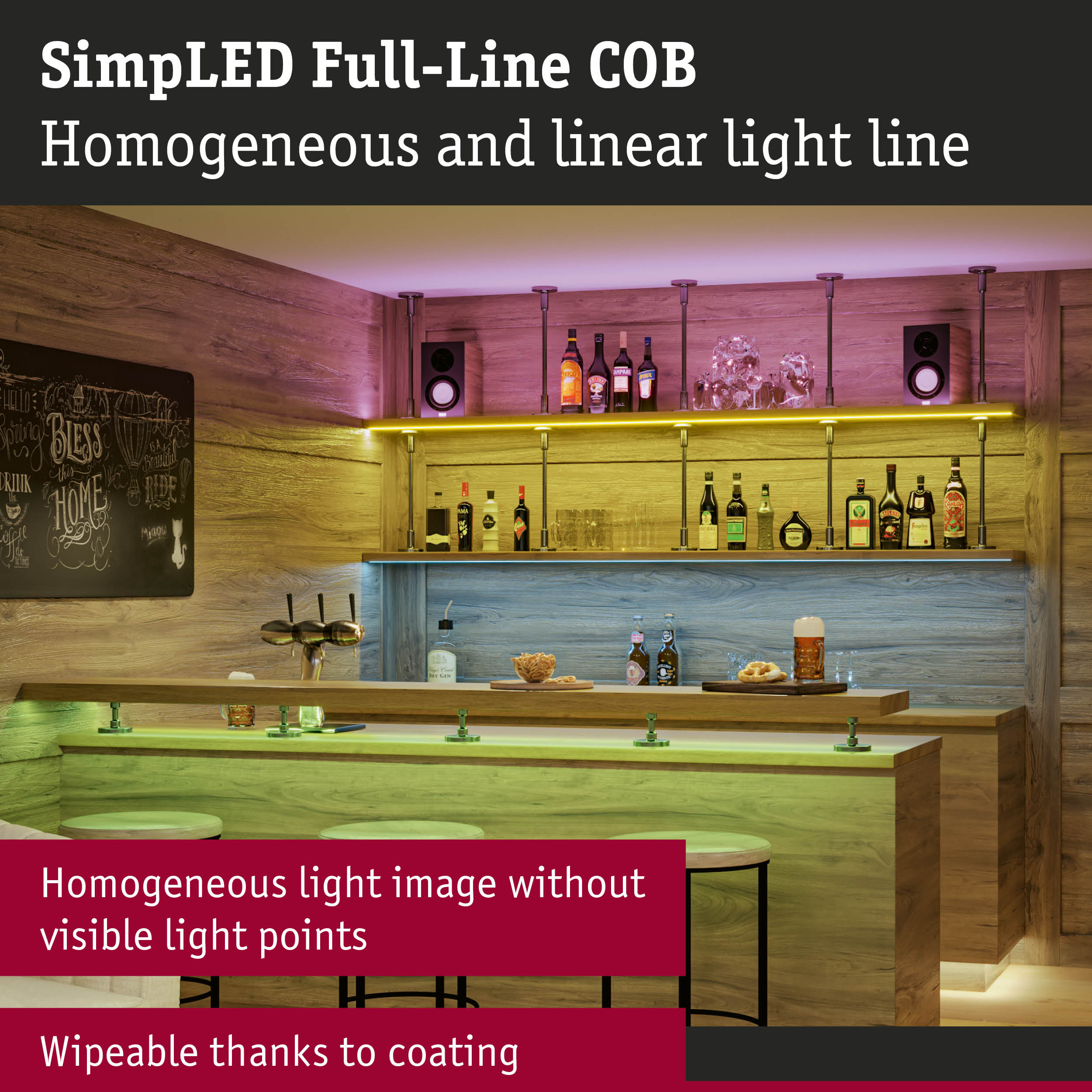

The SimpLED Full-Line COB complete sets RGB contains the strip with a length of 5m, a mains plug and is therefore ready for immediate use. Whether as mood lighting, orientation lighting or for indirect indoor lighting - the strip is suitable for a variety of uses. It produces an absolutely homogeneous light pattern without visible light points. Thanks to the atmospheric color-changing function, it creates an individual living ambience - from continuous monochrome lighting to multicoloured lighting effects, everything is possible. The wide beam angle of 180° distributes the light optimally without creating shadows. The continuous phosphor coating protects against dust and moisture.
- Ready-to-use set including 230/12V power supply with power cable and plug
- Rear self-adhesive for simple installation
- Simple plug-in system for easy installation
- Flexible material for mounting on flat or curved surfaces
- Coating protects against splashing water and dust

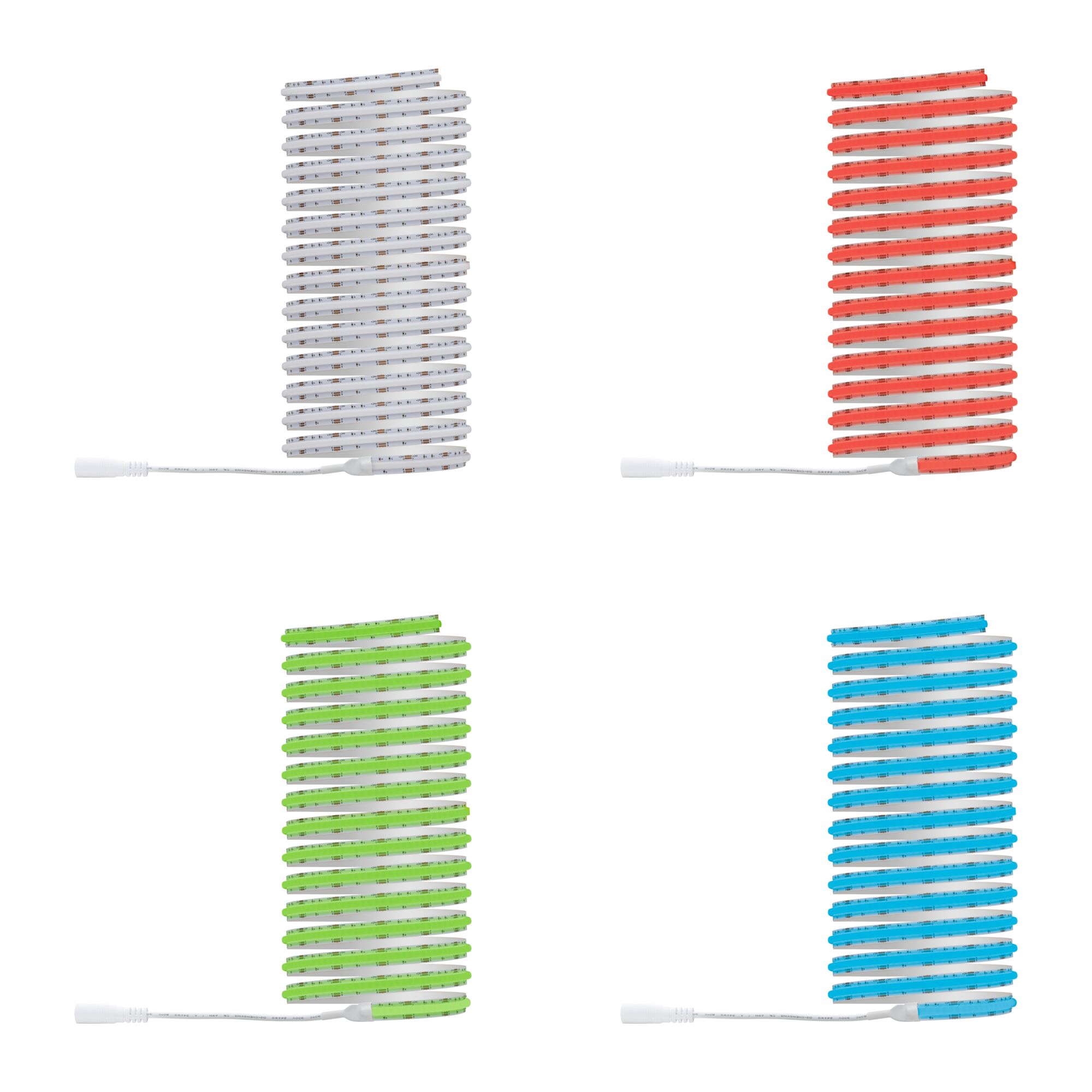

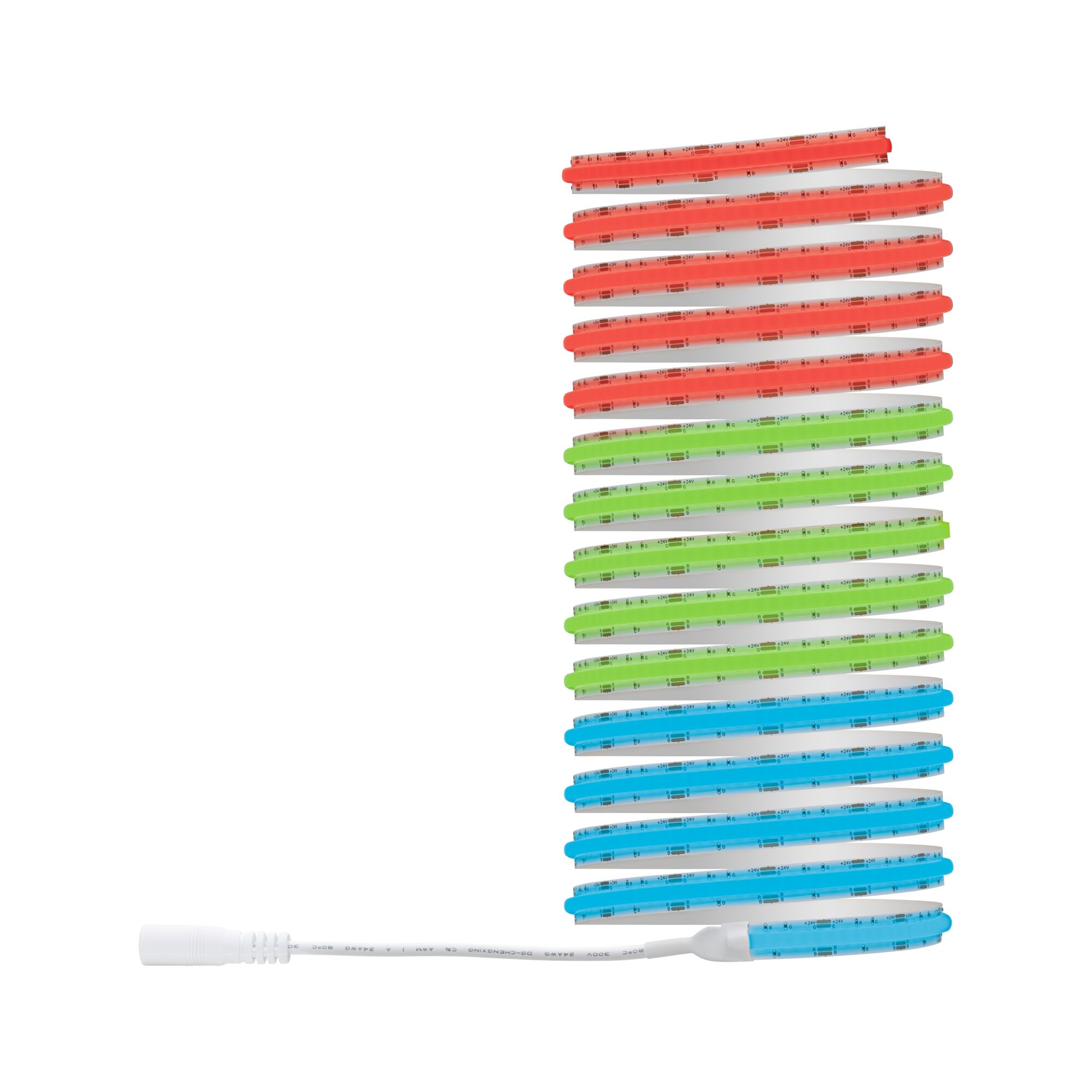

- RGB LEDs for colour changes and effect lighting
- Cannot be combined with YourLED and MaxLED strips
- Cannot be extended
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 x B: 10 mm |
| Length | 5 m |

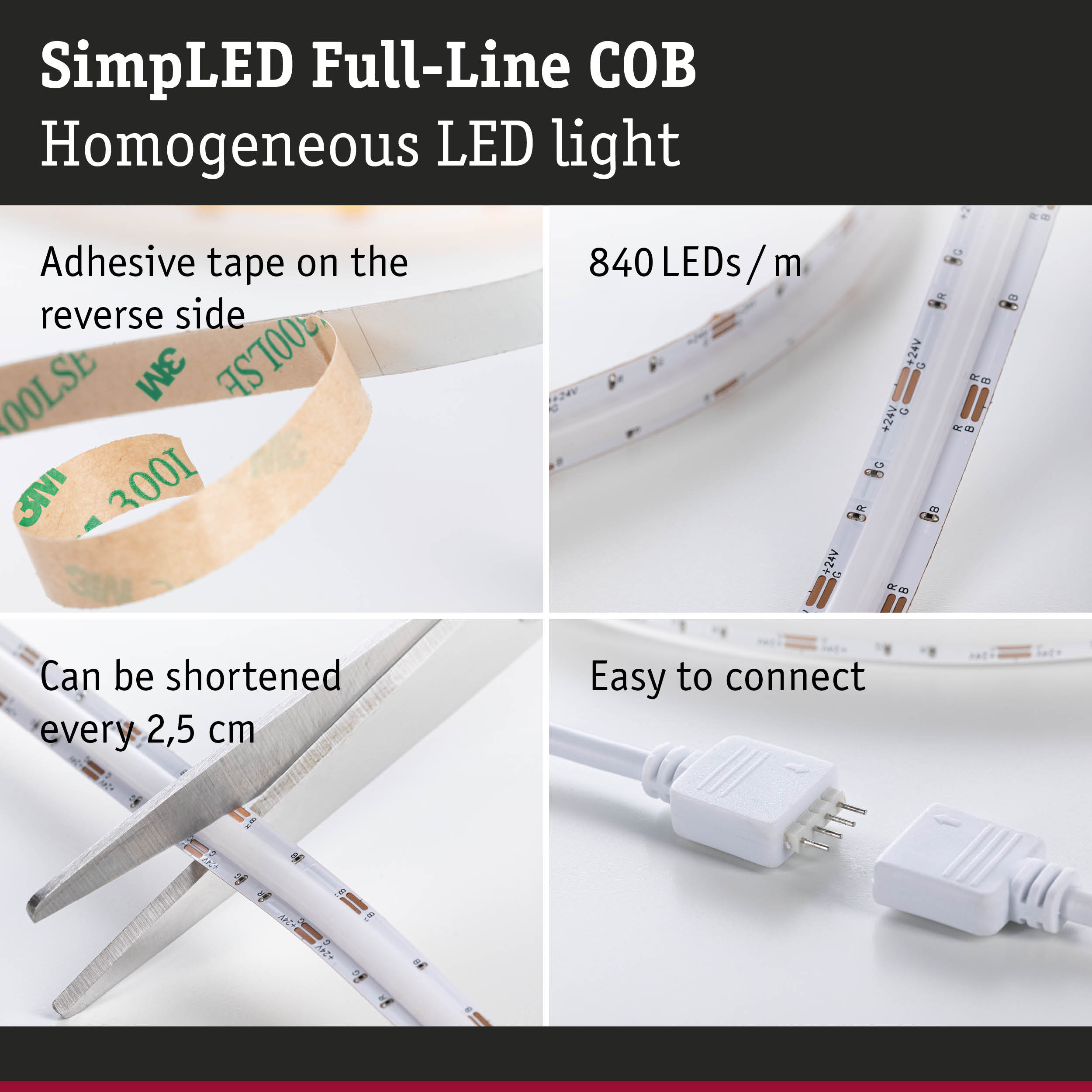

| Shortenability Strips | 25 mm |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Metal, Plastic |
| Recycled material included | no |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 700 lm |
| Luminous flux LED module | 700 lm |
| Colour change | coloured light (RGB) |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with remote control |
| Inclusive lamp | yes |
| light source property | Light source integrated (non-replacable) |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 14,5 W |
| Number of component parts | 1x |
| Number of LED's per meter | 840 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 17 W |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| apparent power | 29 VA |
| Transformer power range | 24 VA |
| Transformer height | 65 mm |
| Transformer width | 40 mm |
| Transformer depth | 66 mm |
| Accessories | |
|---|---|
| Radio control included | yes |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
