Article-No.:
5221

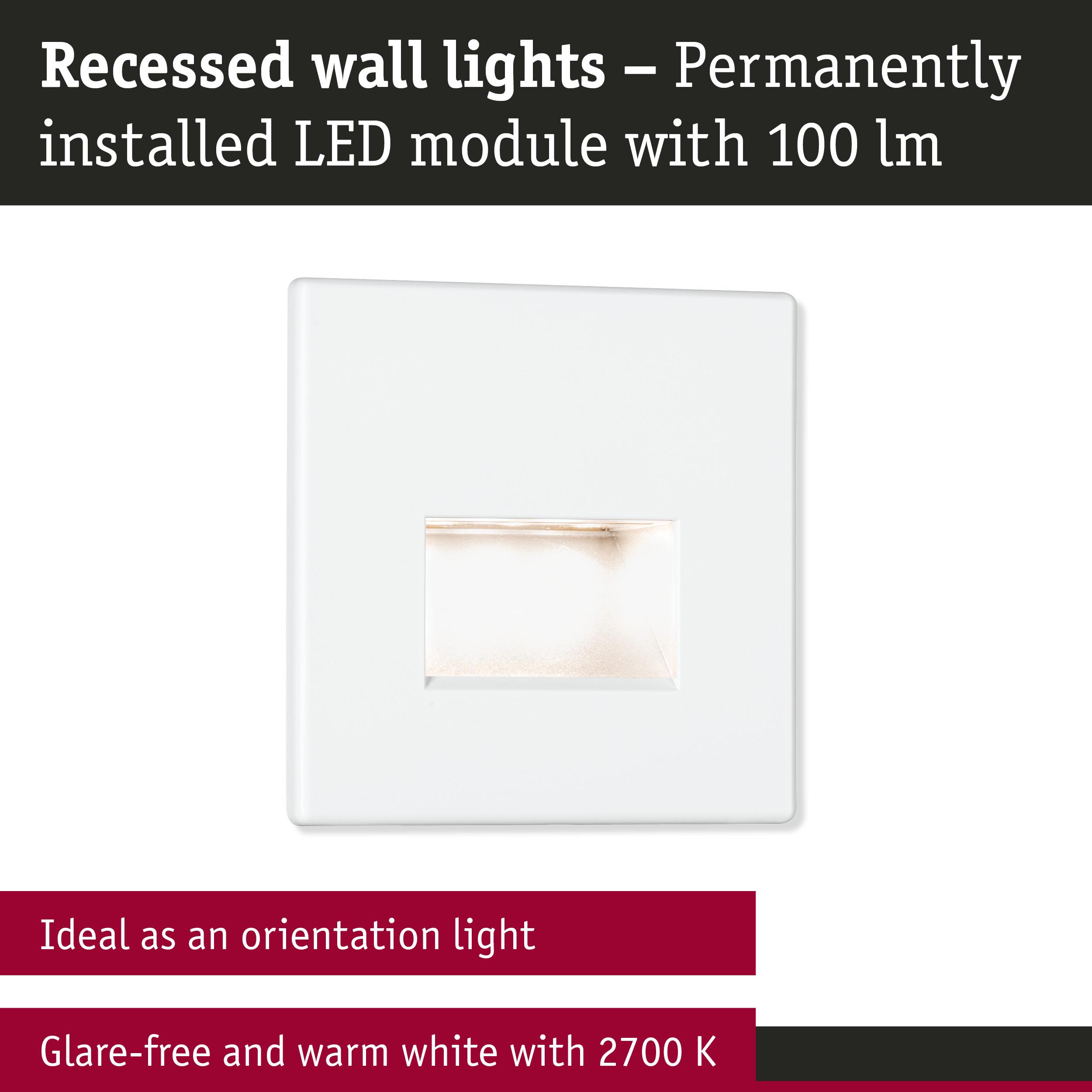

SetLED Recessed wall luminaire

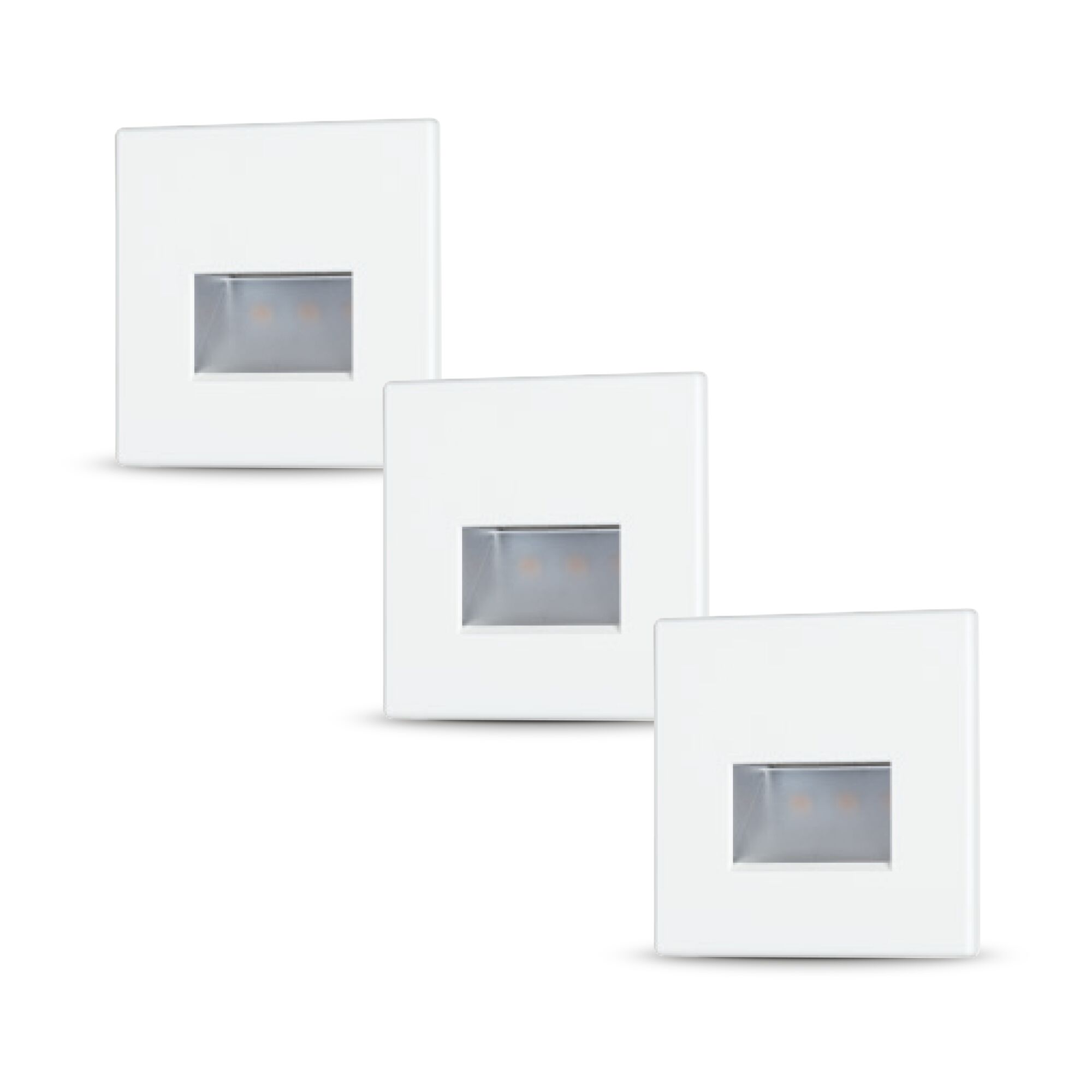

Edge 3-piece set
angular 80x5mm 3x1,2W 3x50lm 230V 2700K Matt white
angular 80x5mm 3x1,2W 3x50lm 230V 2700K Matt white
- Decorative lighting effects highlight the wall
- Efficient LED technology
- LED lamp (fixed) included in scope of delivery
Set LED Recessed wall luminaire Edge 3-piece set angular 80x5mm 3x1,2W 3x50lm 230V 2700K Matt white

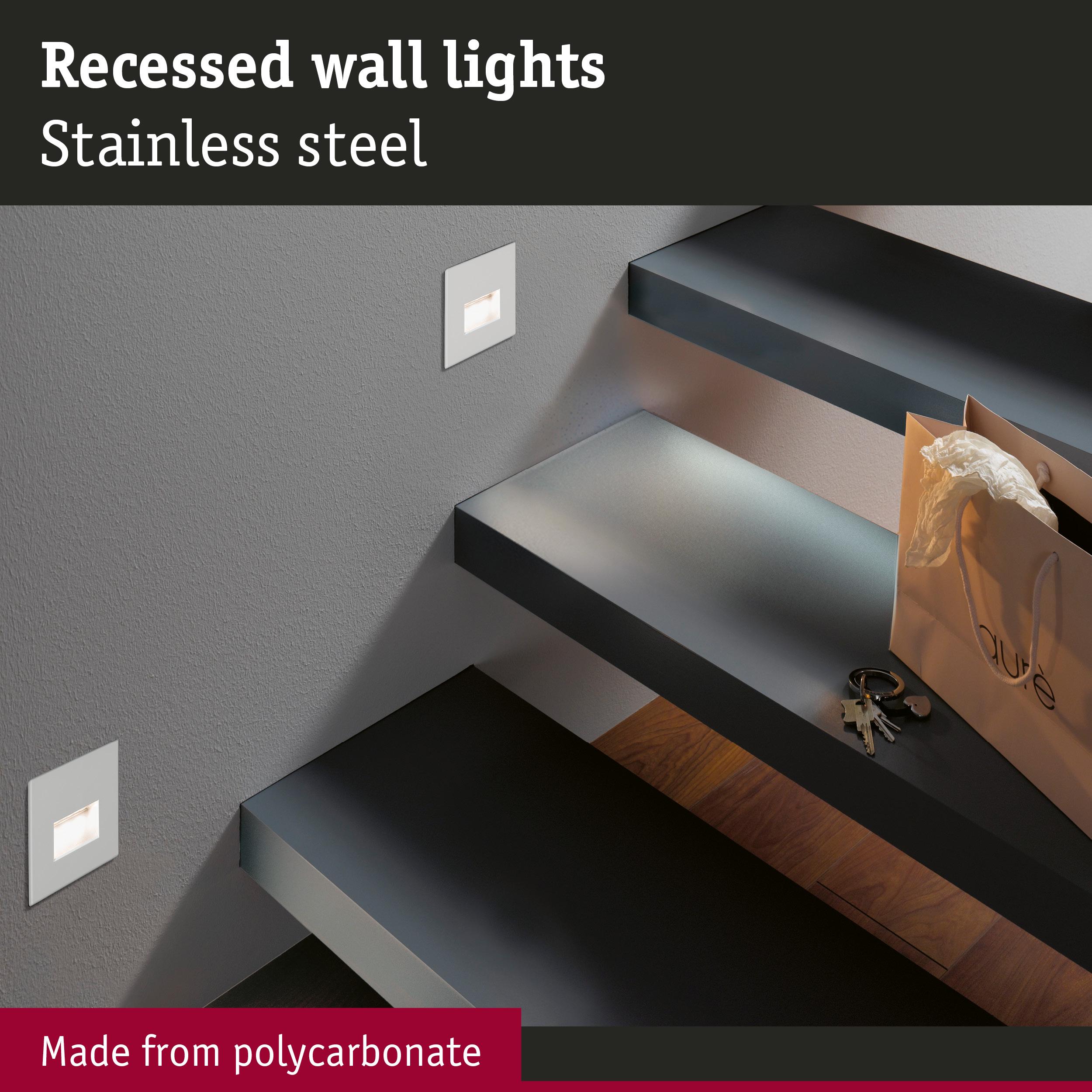

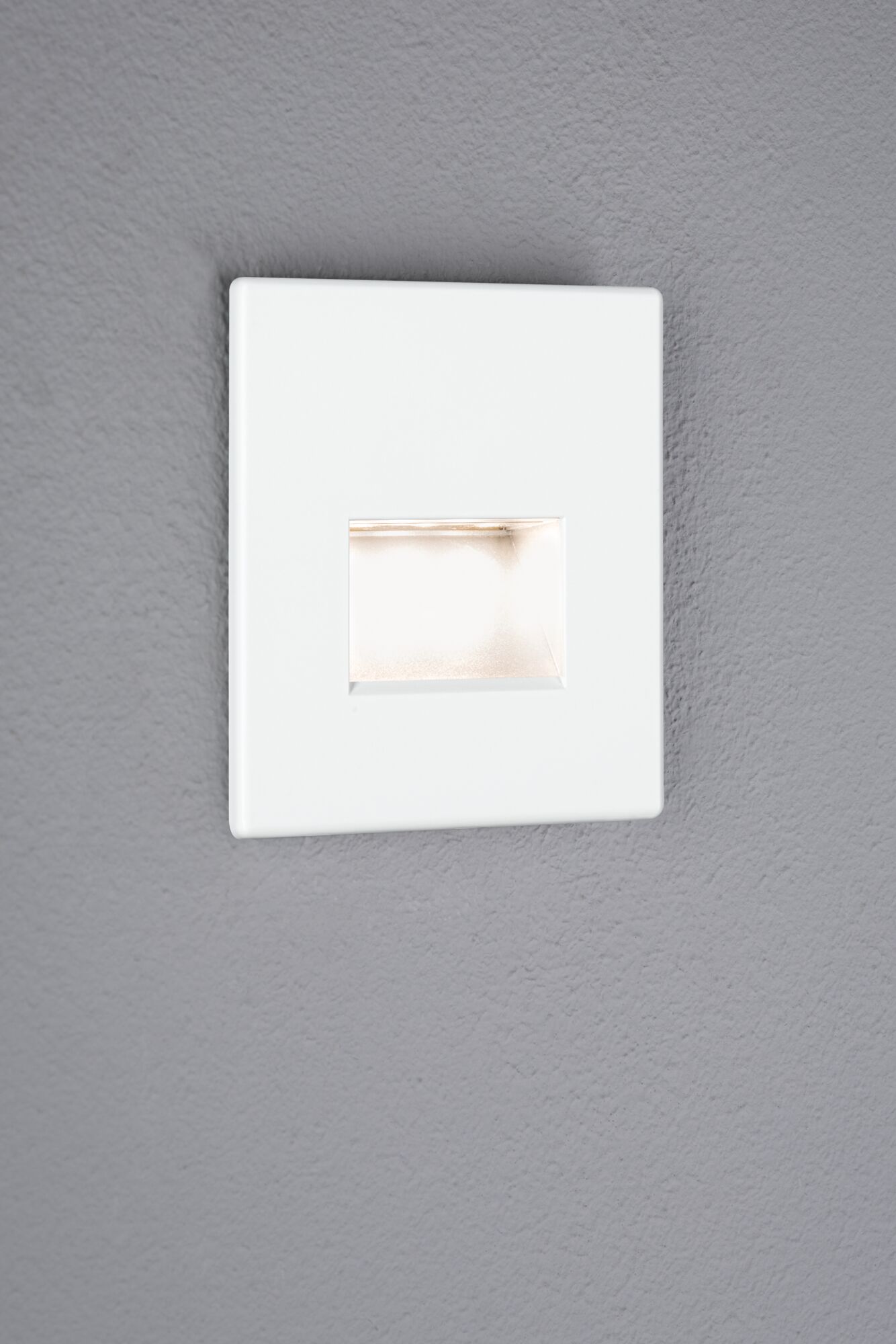

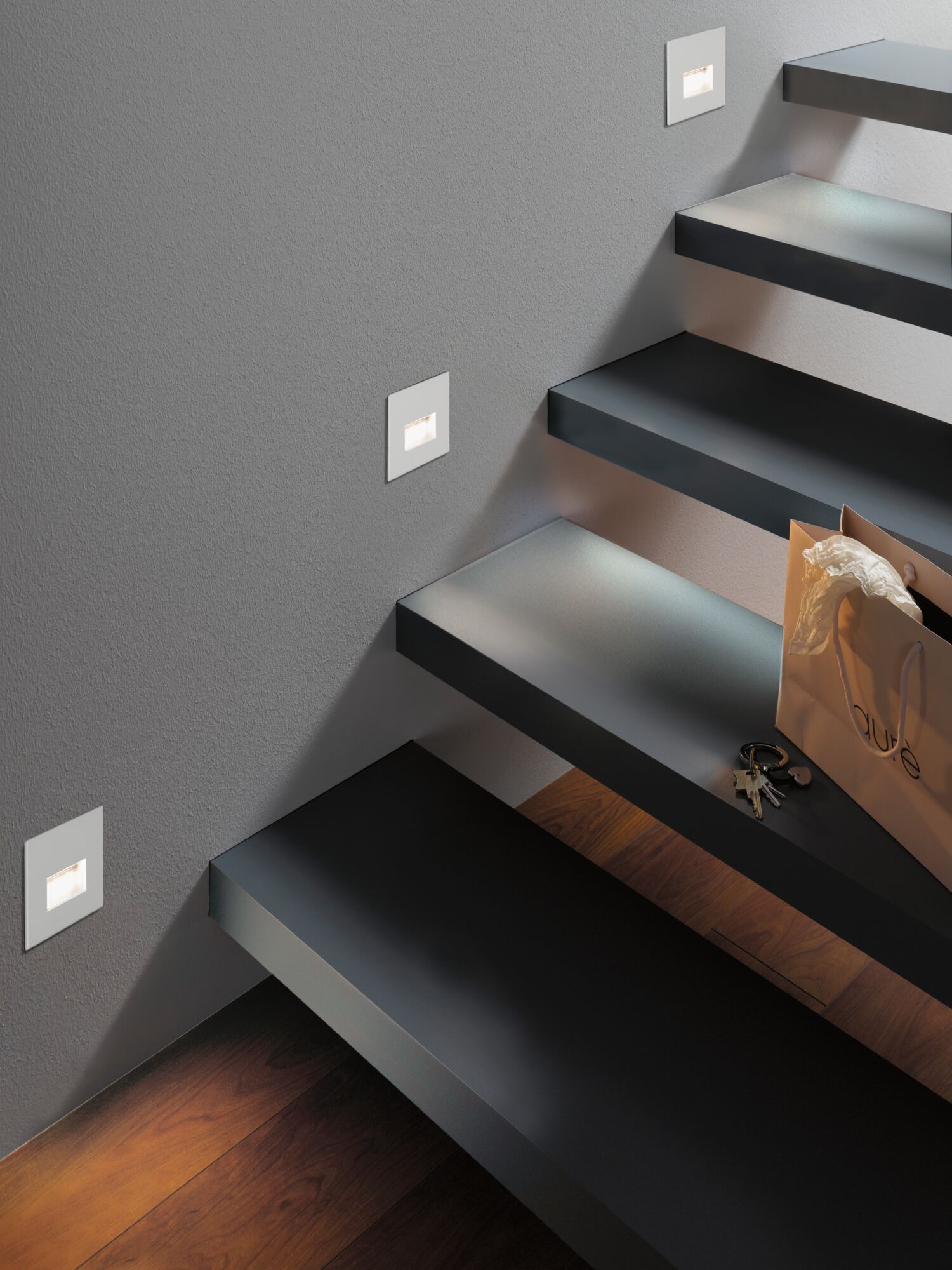

Light need not always come from the ceiling. The set, consisting of three Edge Quadro warm white LED recessed wall luminaires in matt white, is specially designed for in-wall mounting, creating attractive lighting effects and increasing safety in corridors or staircases. The permanently installed LED lamps score with their energy efficiency and long service life.
- Decorative lighting effects highlight the wall
- Efficient LED technology
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 2700K - Warm white

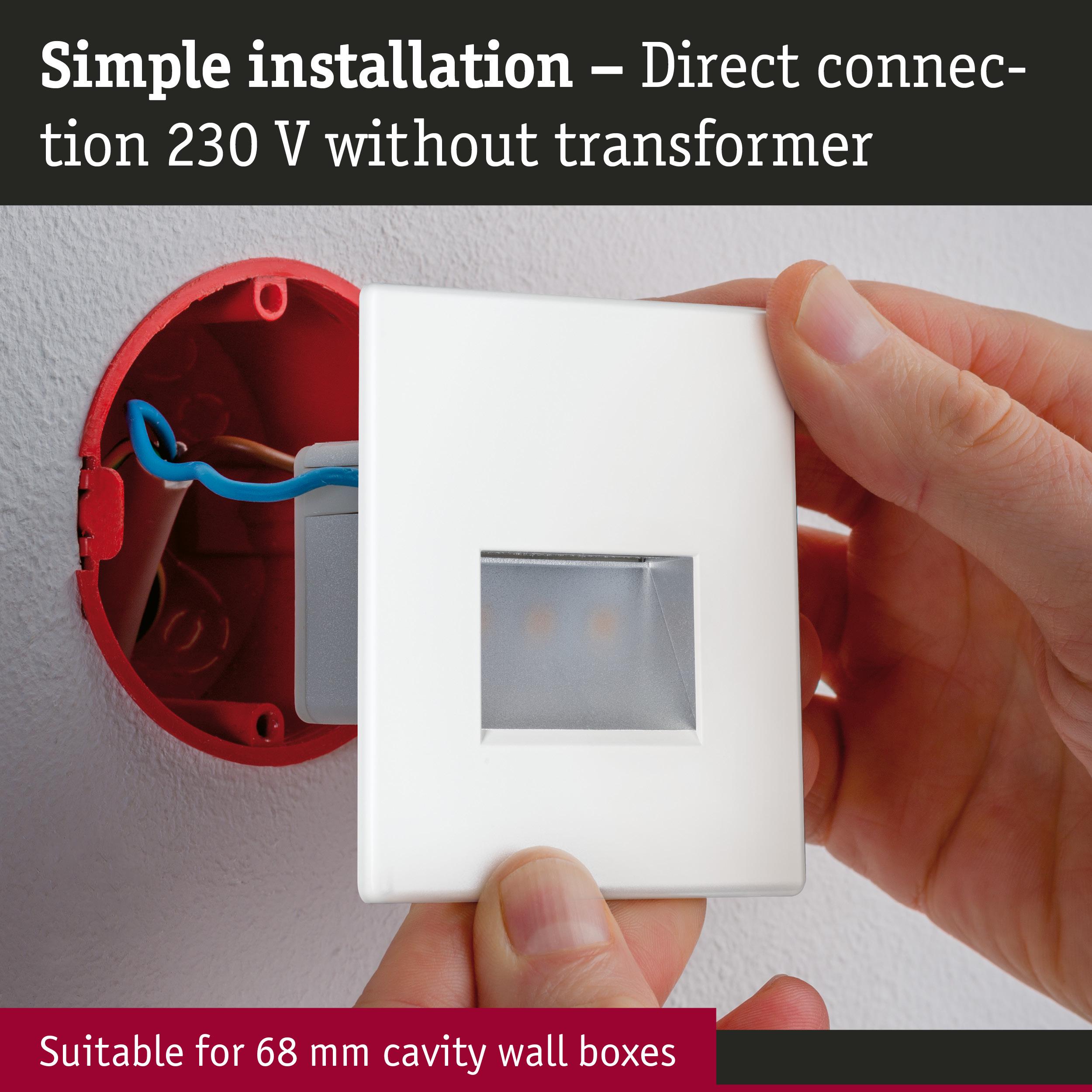

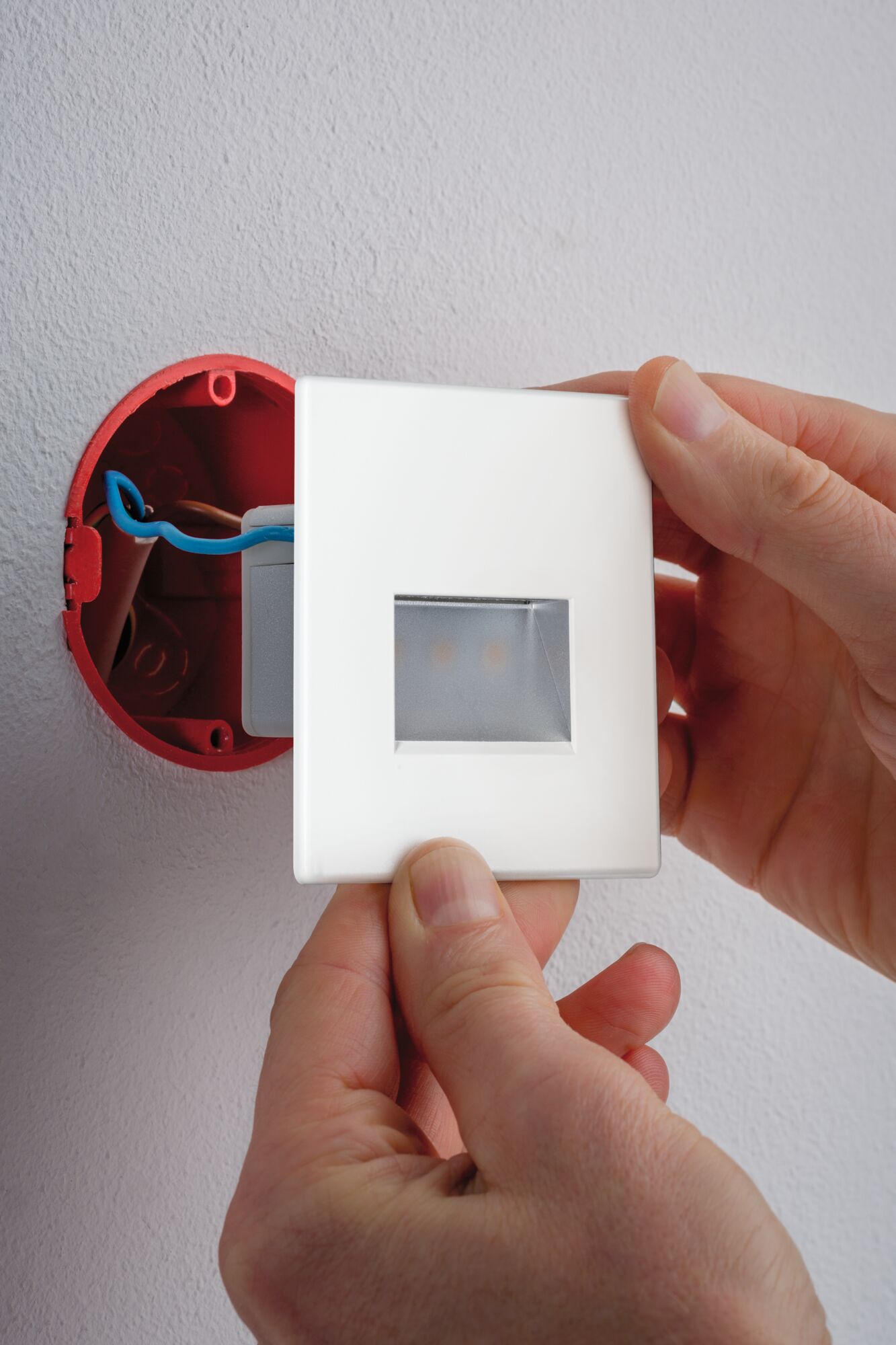

- For standard recessed device sockets with a 68 mm diameter
| Dimension | |
|---|---|
| Total Mounting depth | 30 mm |
| Dimensions (Height x Width x Depth) | H: 80 x B: 80 x T: 5 mm |
| Mounting hole | 55 mm |
| Form | angular |
| Depth of hollow wall | 15 mm, 15 mm |
| Design and Material | |
|---|---|
| Colour | Matt white |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| color temp | 2700 K |
| Farbtemperatur_Text | Warmweiß |
| Beam angle | 100 ° |
| Usable luminous flux | 50 lm |
| Luminous flux LED module | 100 lm |
| Beam angle LED module | 100 ° |
| Lamp Features | |
|---|---|
| Component parts | 1,2 W |
| Technique | LED |
| IP protection | IP20 |
| Inclusive lamp | yes |
| Incandescent Equivalent | 12.8 W |
| Adjustability | fixed |
| Number of component parts | 3x |
| protection class | protection class II |
| Power consumption | 1,4 W |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
Downloads
- LED Recessed wall luminaire
