Article-No.:
5222
SetLED Recessed wall luminaire
Edge 3-piece set
angular 80x5mm 3x1,2W 3x50lm 230V 2700K Chrome matt
angular 80x5mm 3x1,2W 3x50lm 230V 2700K Chrome matt
- Decorative lighting effects highlight the wall
- Efficient LED technology
- LED lamp (fixed) included in scope of delivery

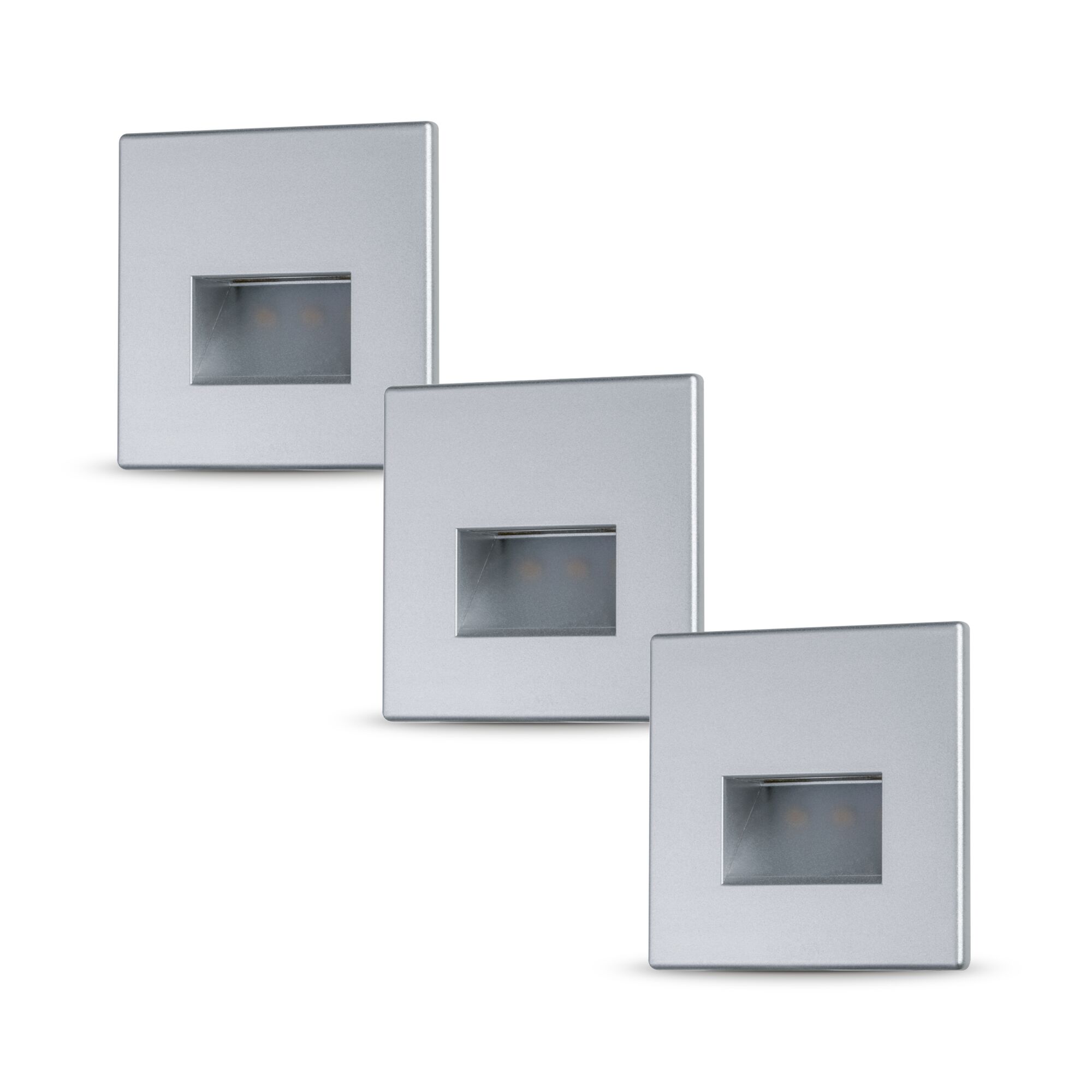

Set LED Recessed wall luminaire Edge 3-piece set angular 80x5mm 3x1,2W 3x50lm 230V 2700K Chrome matt

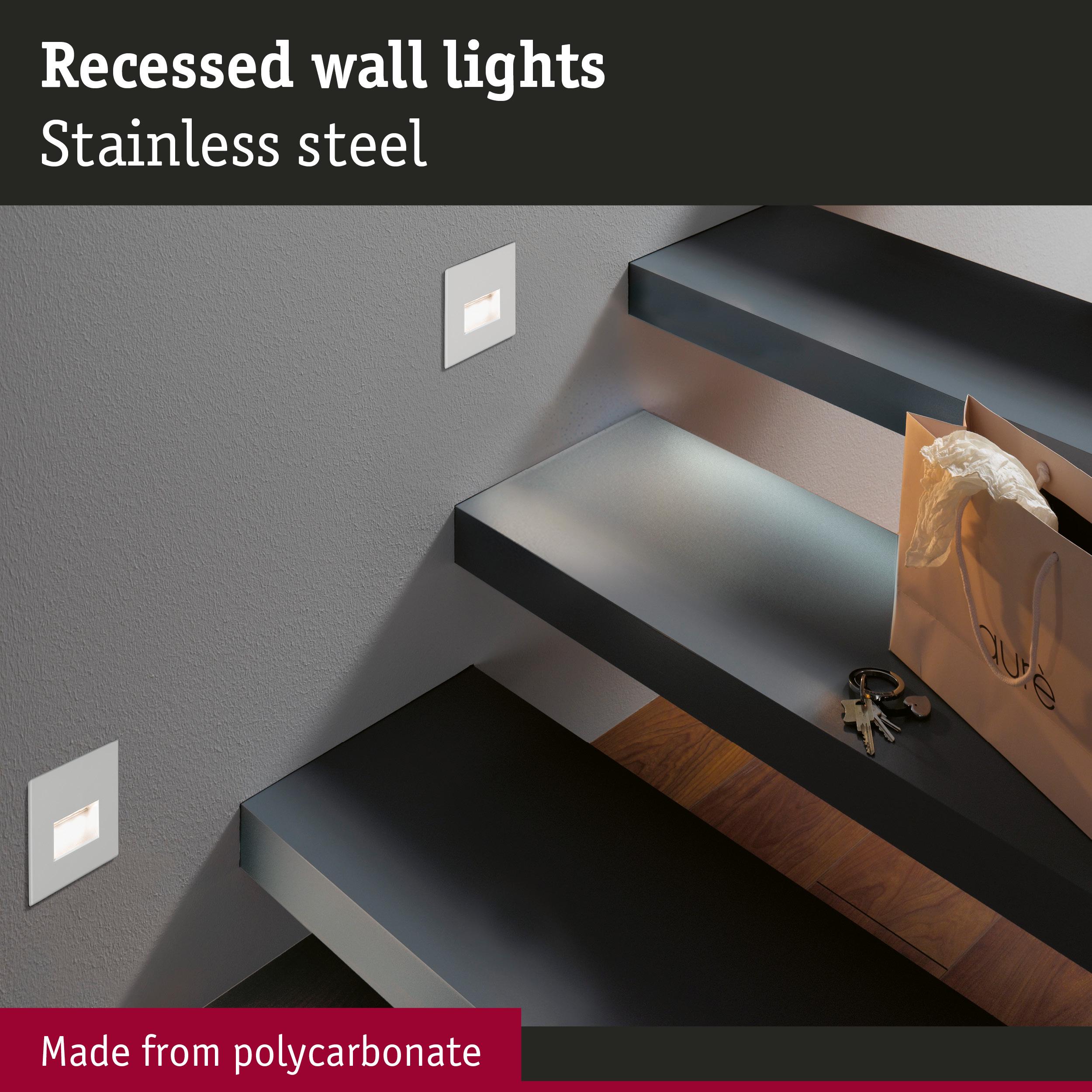

Light need not always come from the ceiling. The set, consisting of three Edge warm white LED recessed wall luminaires in matt chrome, is specially designed for in-wall mounting, creating attractive lighting effects and increasing safety in corridors or staircases. The permanently installed LED lamps score with their energy efficiency and long service life.
- Decorative lighting effects highlight the wall
- Efficient LED technology
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 2700K - Warm white

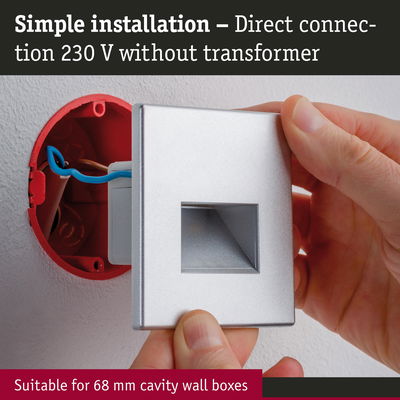

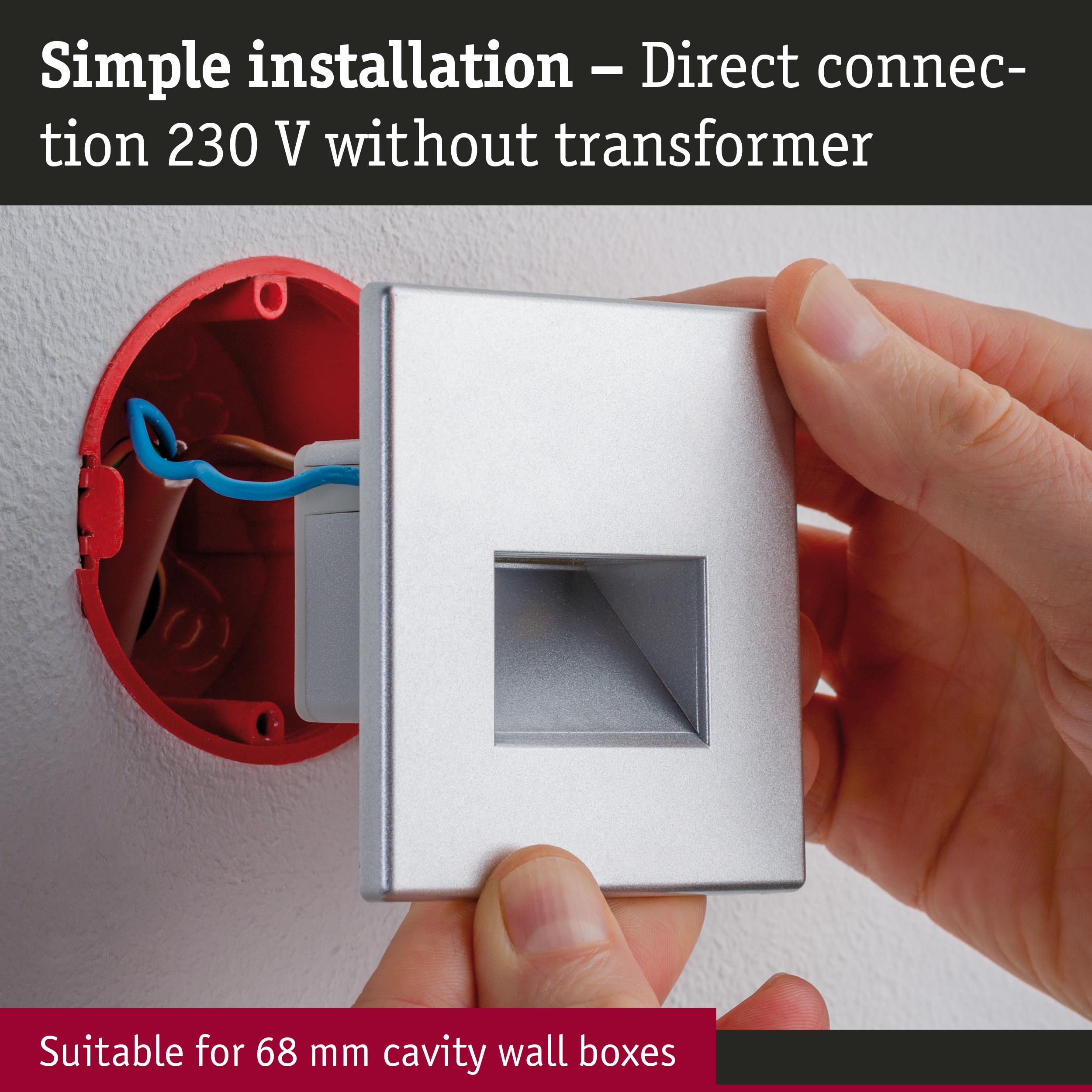

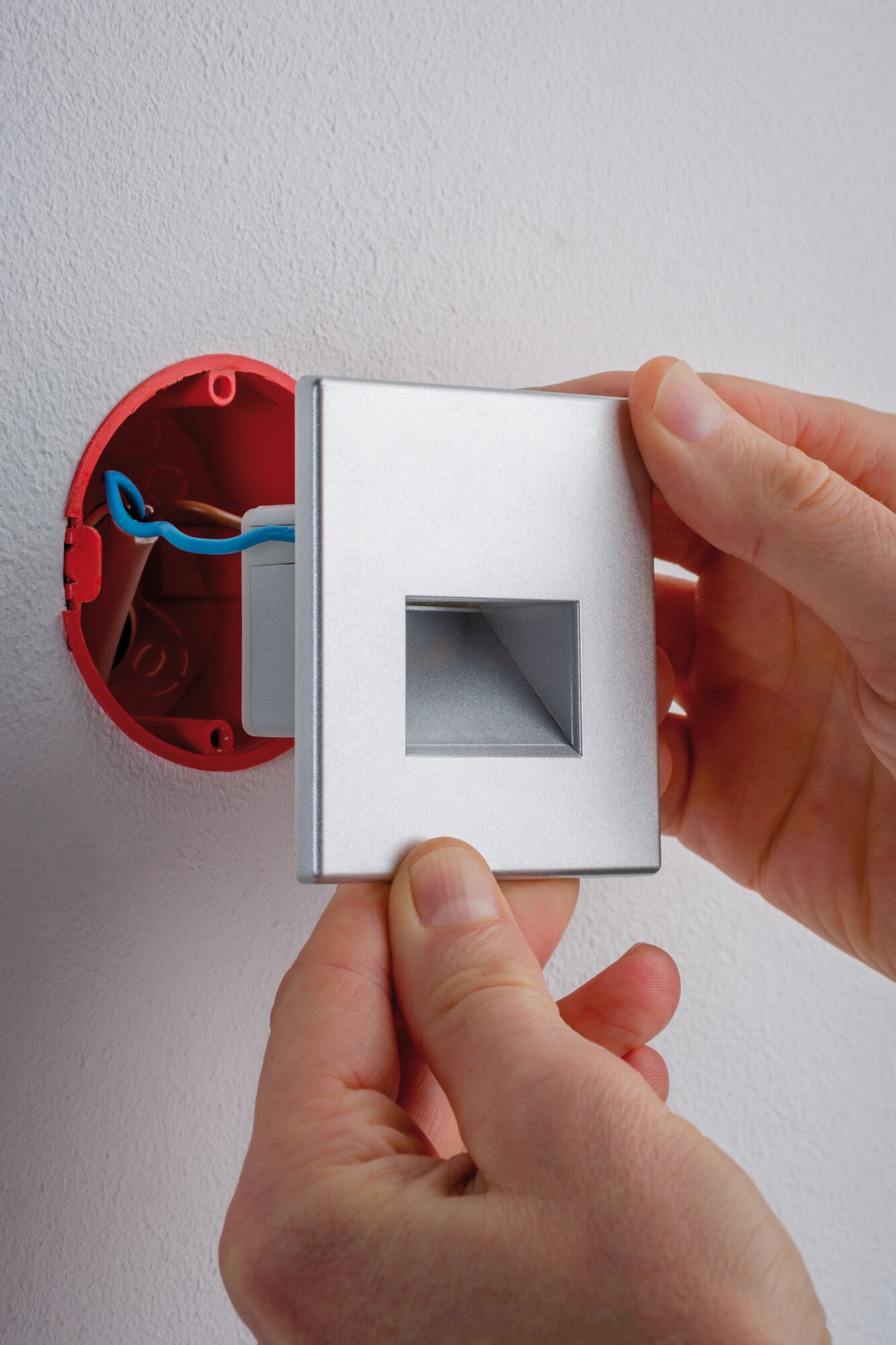

- For standard recessed device sockets with a 68 mm diameter
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 80 x B: 80 x T: 5 mm |
| Built-in diameter | 55 mm |
| Mounting depth | 30 mm |
| Depth of hollow wall | 15 mm |
| Design and Material | |
|---|---|
| Form | angular |
| Colour | Chrome matt |
| Material | Plastic |
| Stainless | stainless polycarbonate |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Light Characteristics | |
|---|---|

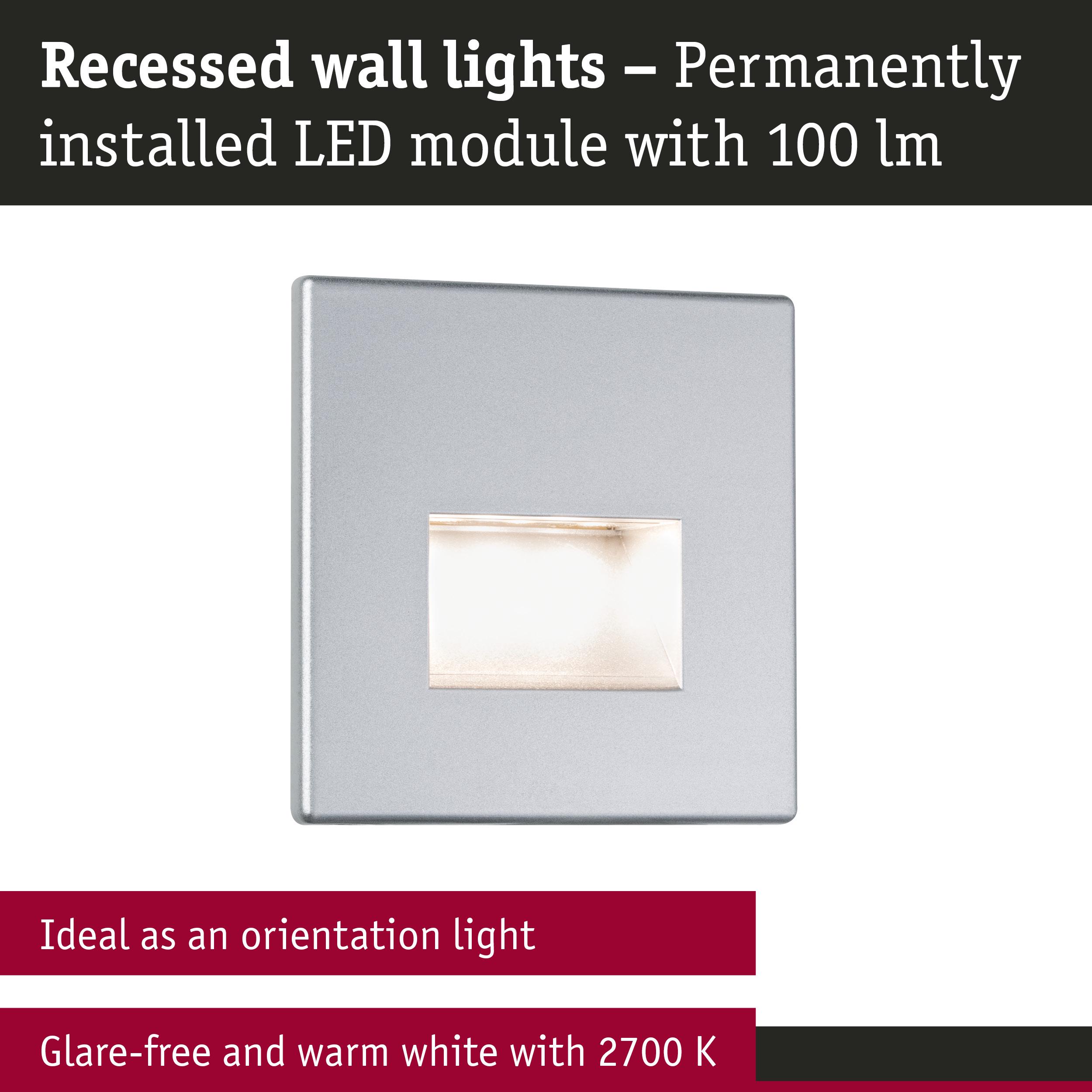

| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 50 lm |
| Luminous flux LED module | 100 lm |
| Beam angle | 100 ° |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 12.8 W |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 1,2 W |
| Number of component parts | 3x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 1,4 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
