Article-No.:
5223
SetLED Recessed wall luminaire
Edge 3-piece set
angular 80x5mm 3x1,2W 3x50lm 230V 2700K Black matt
angular 80x5mm 3x1,2W 3x50lm 230V 2700K Black matt
- Decorative lighting effects highlight the wall
- Efficient LED technology
- LED lamp (fixed) included in scope of delivery

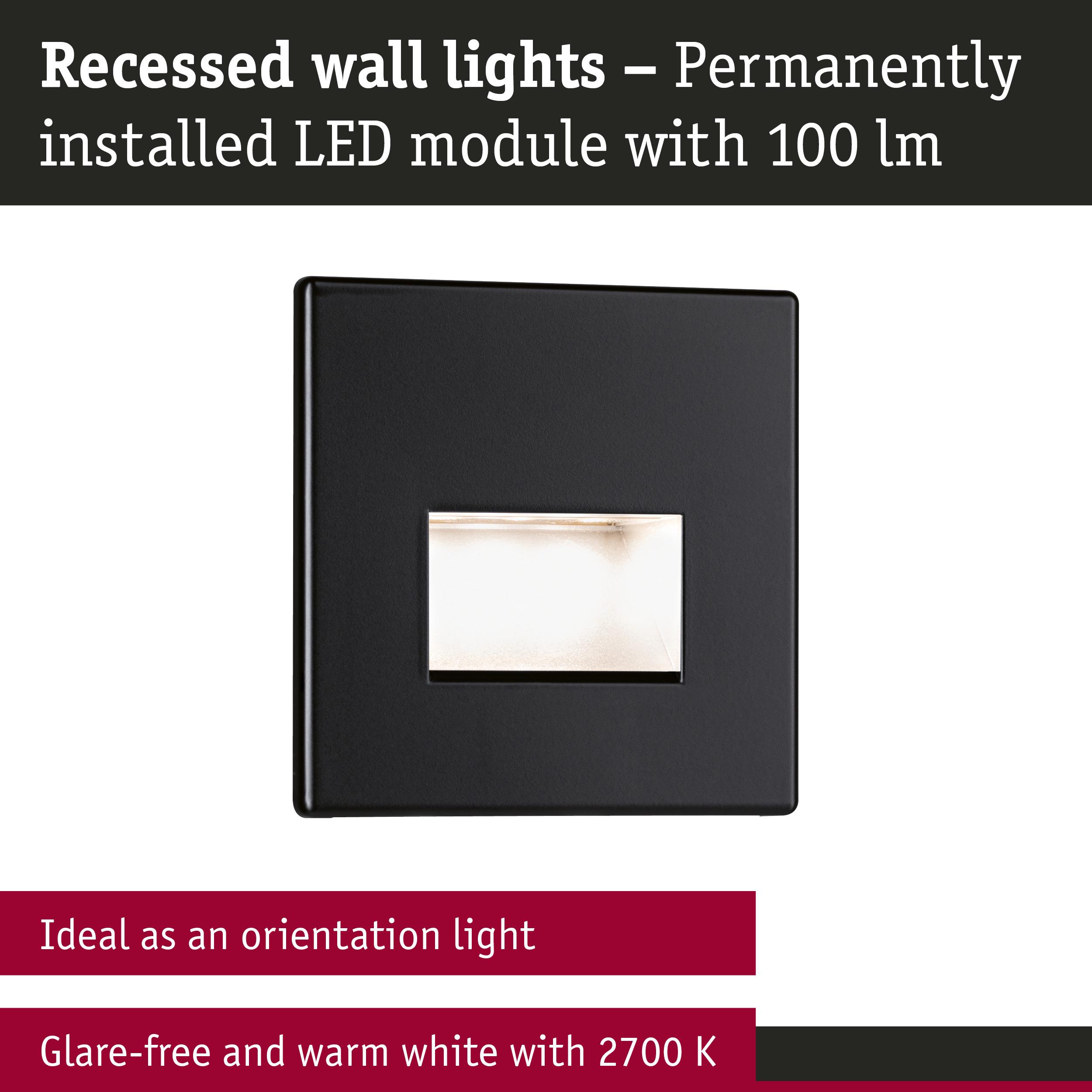

Set LED Recessed wall luminaire Edge 3-piece set angular 80x5mm 3x1,2W 3x50lm 230V 2700K Black matt

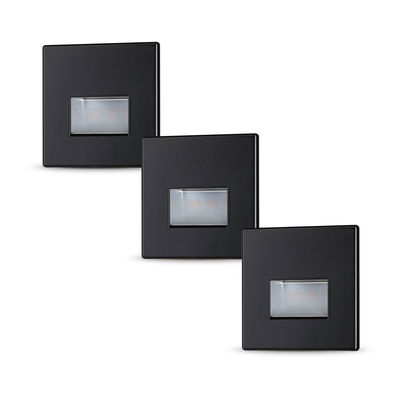

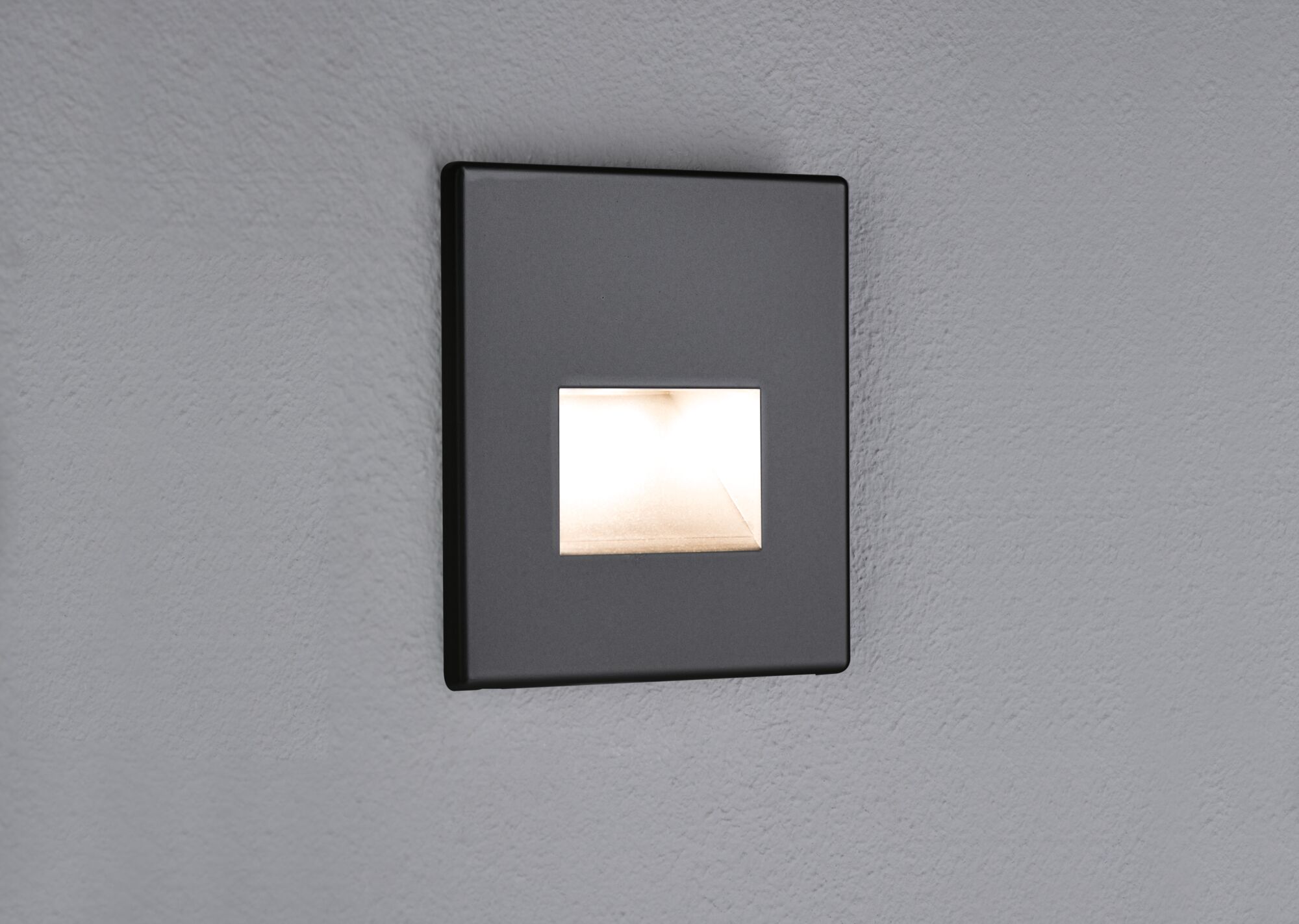

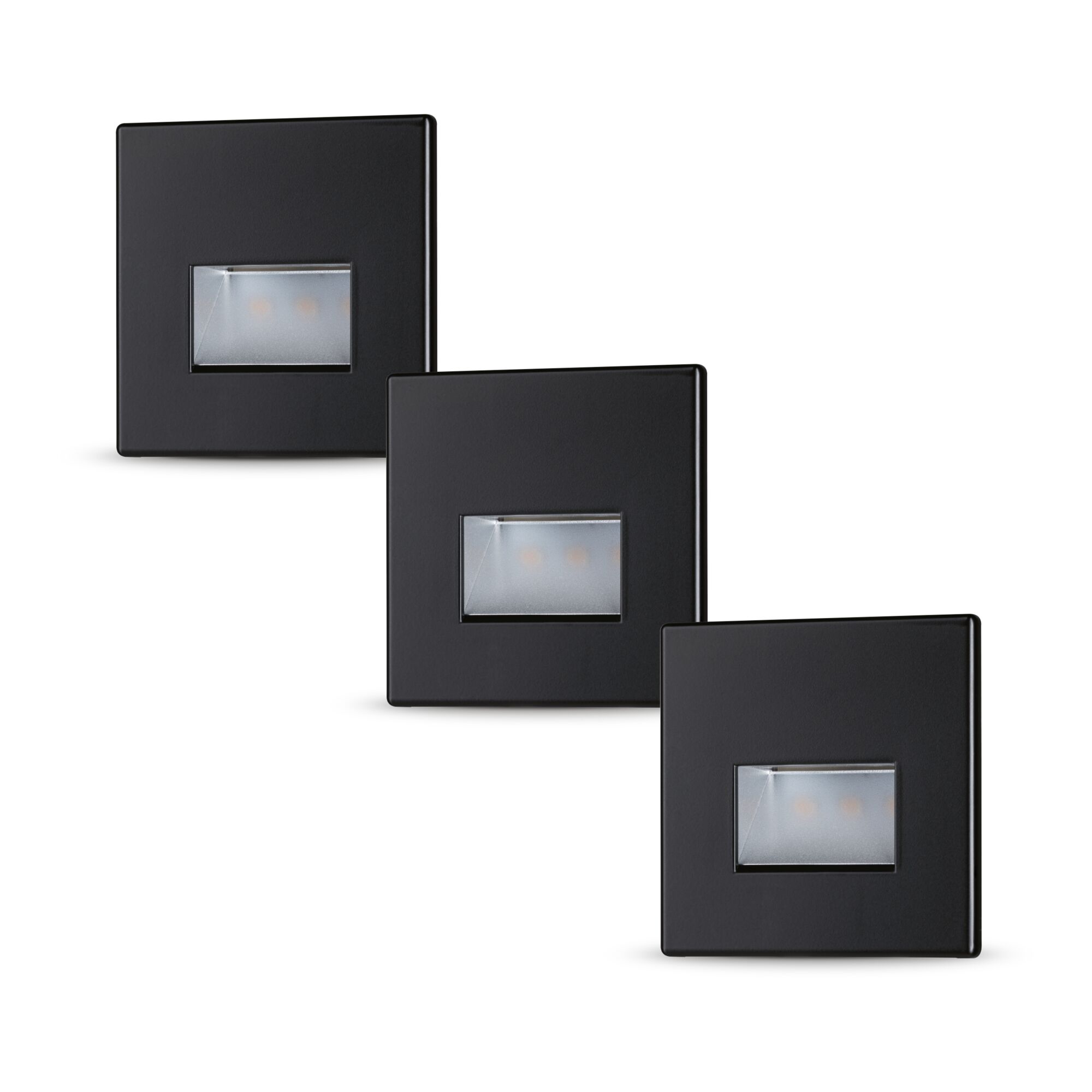

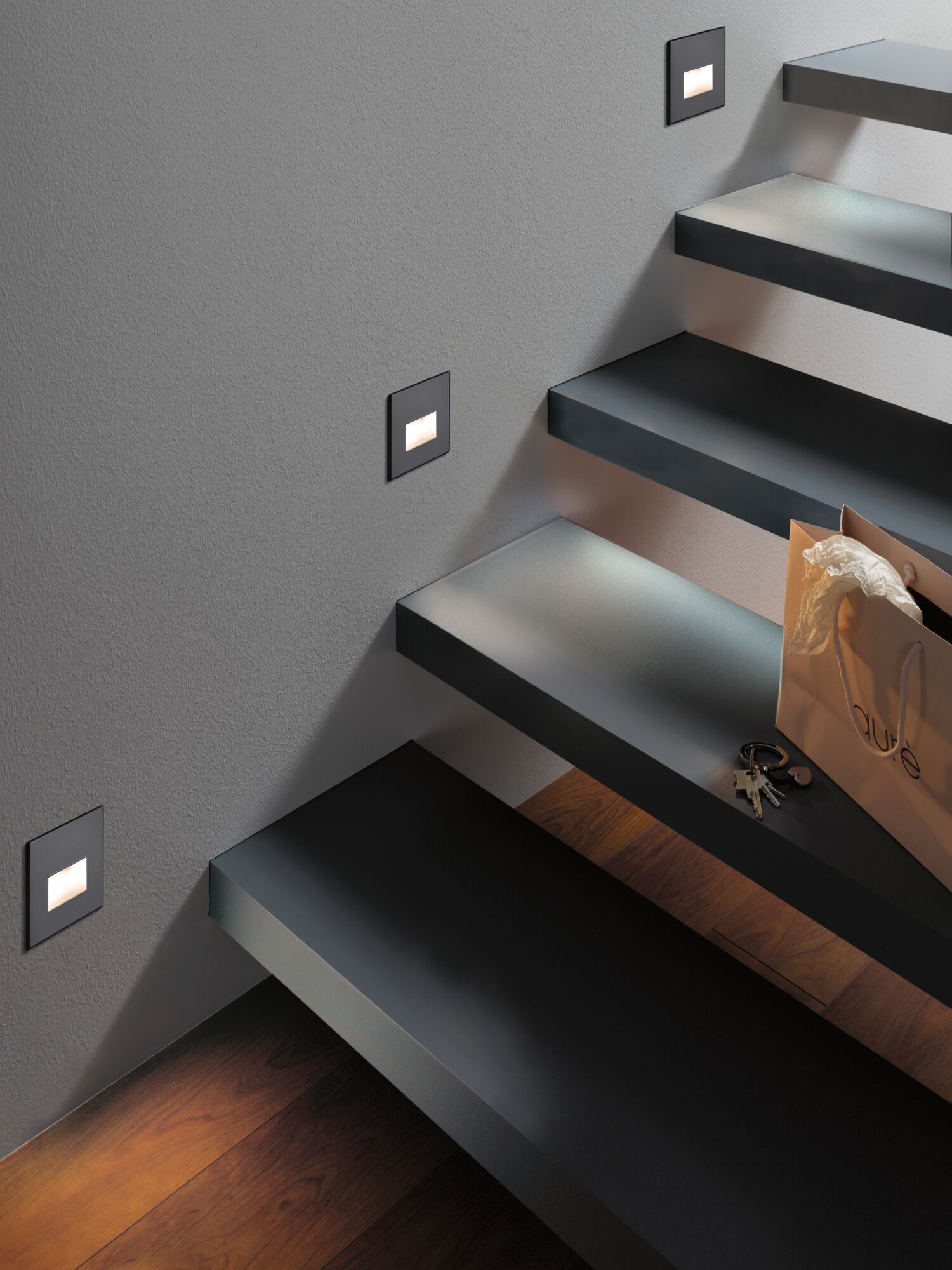

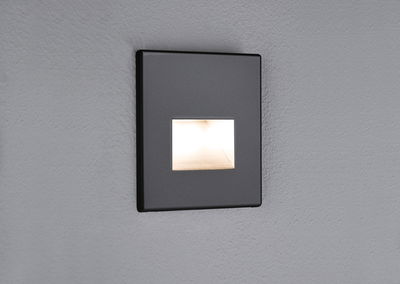

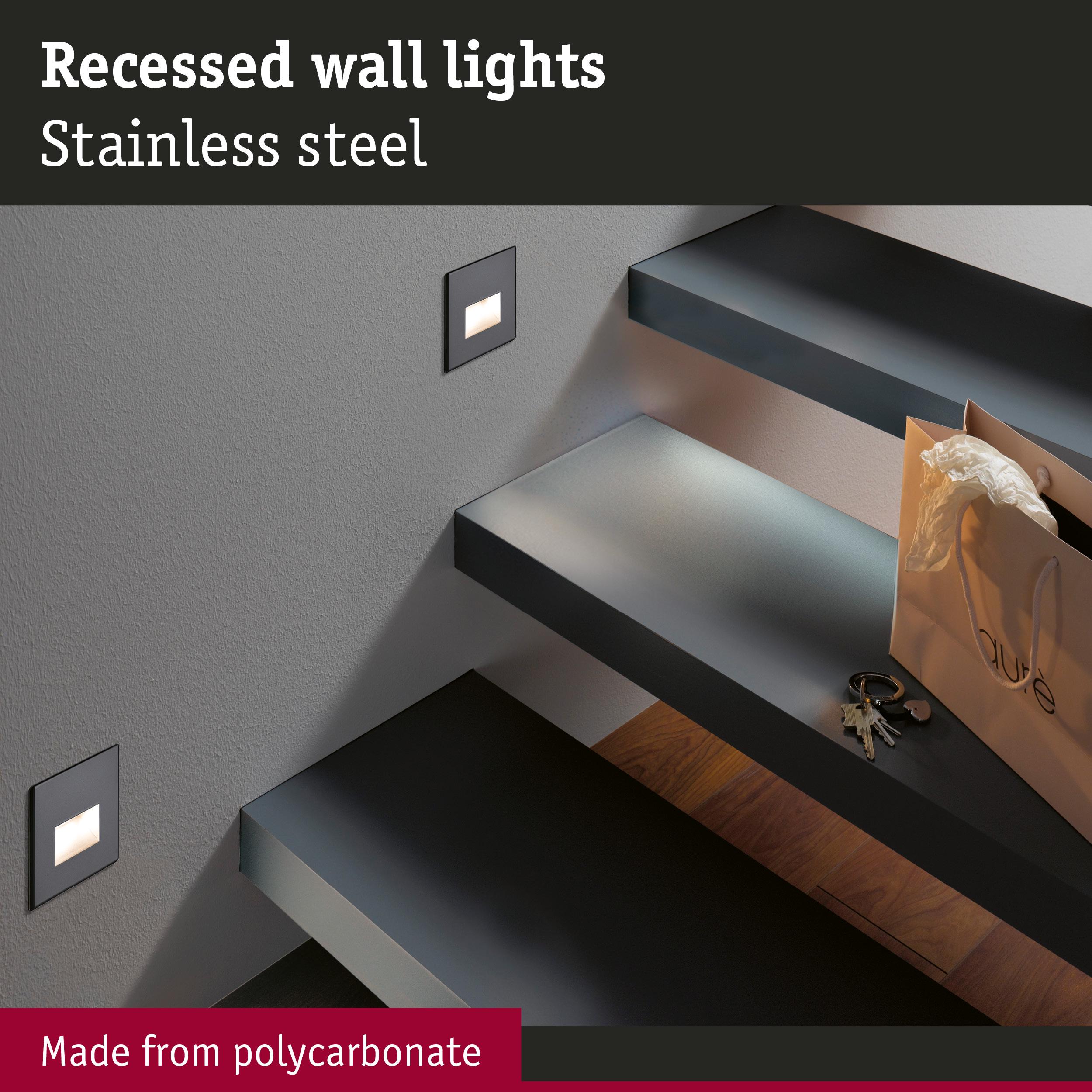

Light need not always come from the ceiling. The set, consisting of three Edge warm white LED recessed wall luminaires in black matt, is specially designed for in-wall mounting, creating attractive lighting effects and increasing safety in corridors or staircases. The permanently installed LED lamps score with their energy efficiency and long service life.
- Decorative lighting effects highlight the wall
- Efficient LED technology
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 2700K - Warm white

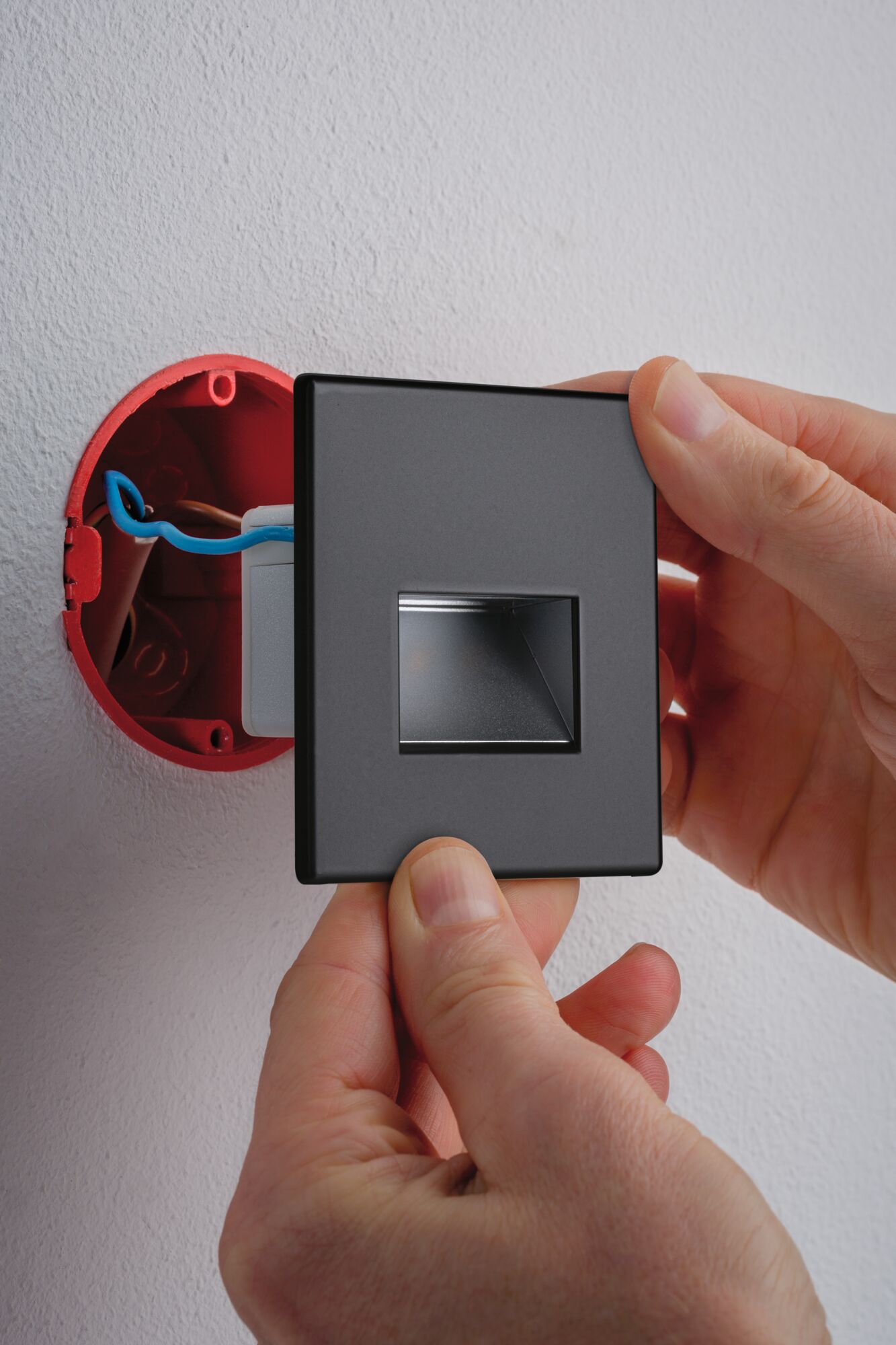

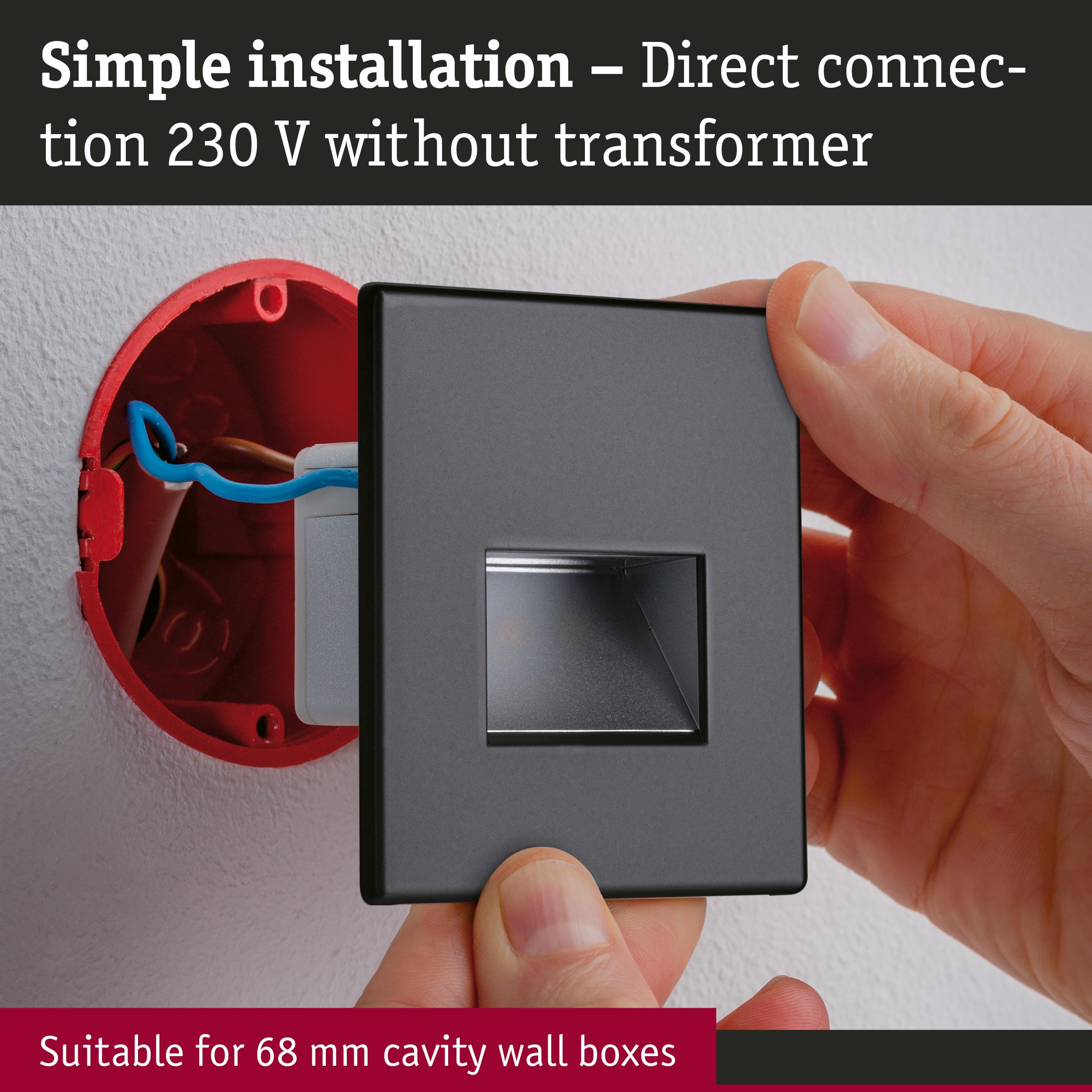

- For standard recessed device sockets with a 68 mm diameter
| Dimension | |
|---|---|
| Total Mounting depth | 30 mm |
| Dimensions (Height x Width x Depth) | H: 80 x B: 80 x T: 5 mm |
| Mounting hole | 55 mm |
| Form | angular |
| Depth of hollow wall | 15 mm, 15 mm |
| Design and Material | |
|---|---|
| Colour | Black matt |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| color temp | 2700 K |
| Farbtemperatur_Text | Warmweiß |
| Beam angle | 100 ° |
| Usable luminous flux | 50 lm |
| Luminous flux LED module | 100 lm |
| Beam angle LED module | 100 ° |
| Lamp Features | |
|---|---|
| Component parts | 1,2 W |
| Technique | LED |
| IP protection | IP20 |
| Inclusive lamp | yes |
| Incandescent Equivalent | 12.8 W |
| Adjustability | fixed |
| Number of component parts | 3x |
| protection class | protection class II |
| Power consumption | 1,4 W |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
