Article-No.:
5230
Set230 V Standard
LED Reflector GU10
3x460lm 3x7W 2700K dimmable Black matt
3x460lm 3x7W 2700K dimmable Black matt

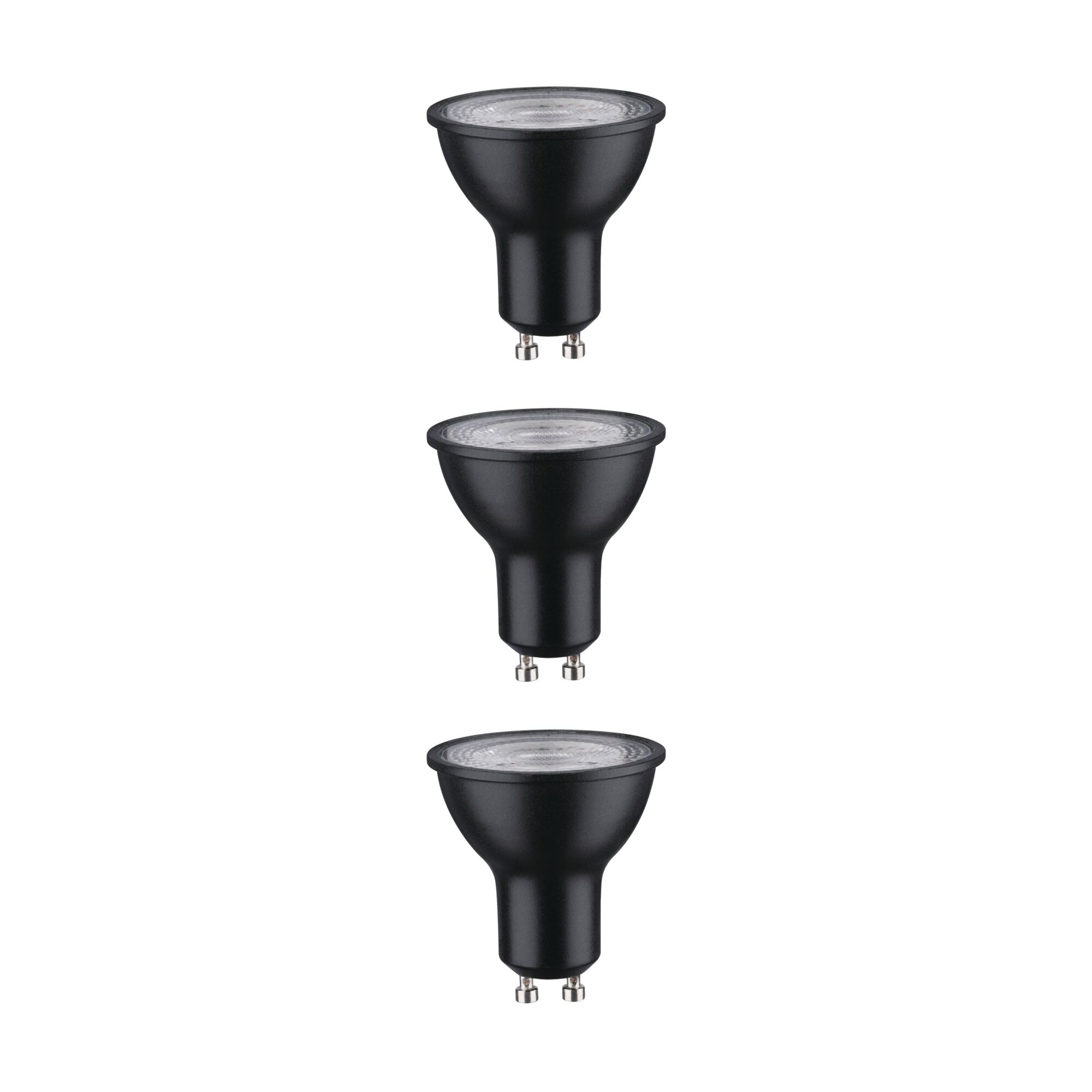

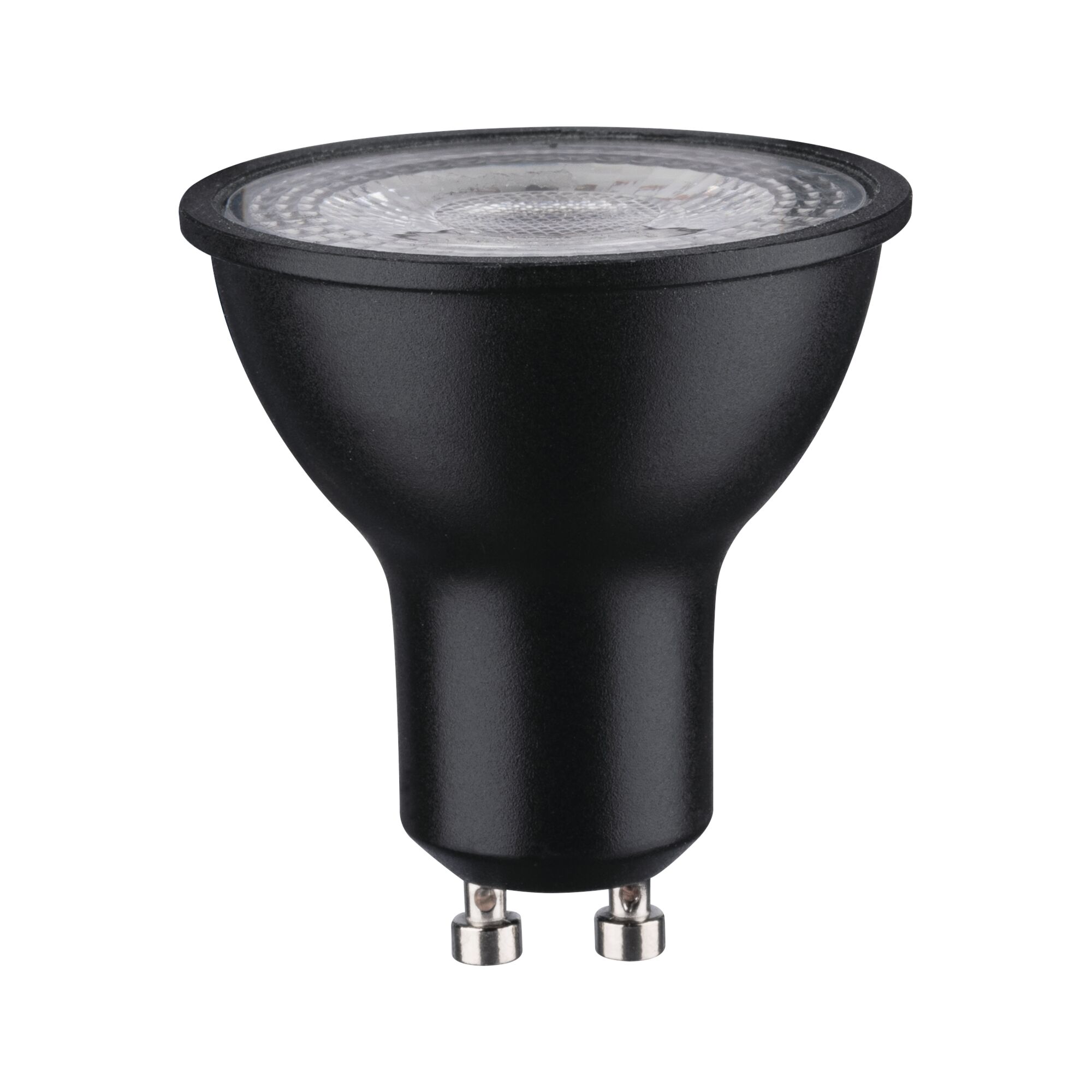

Set 230 V Standard LED Reflector GU10 3-piece set 3x460lm 3x7W 2700K dimmable Black matt

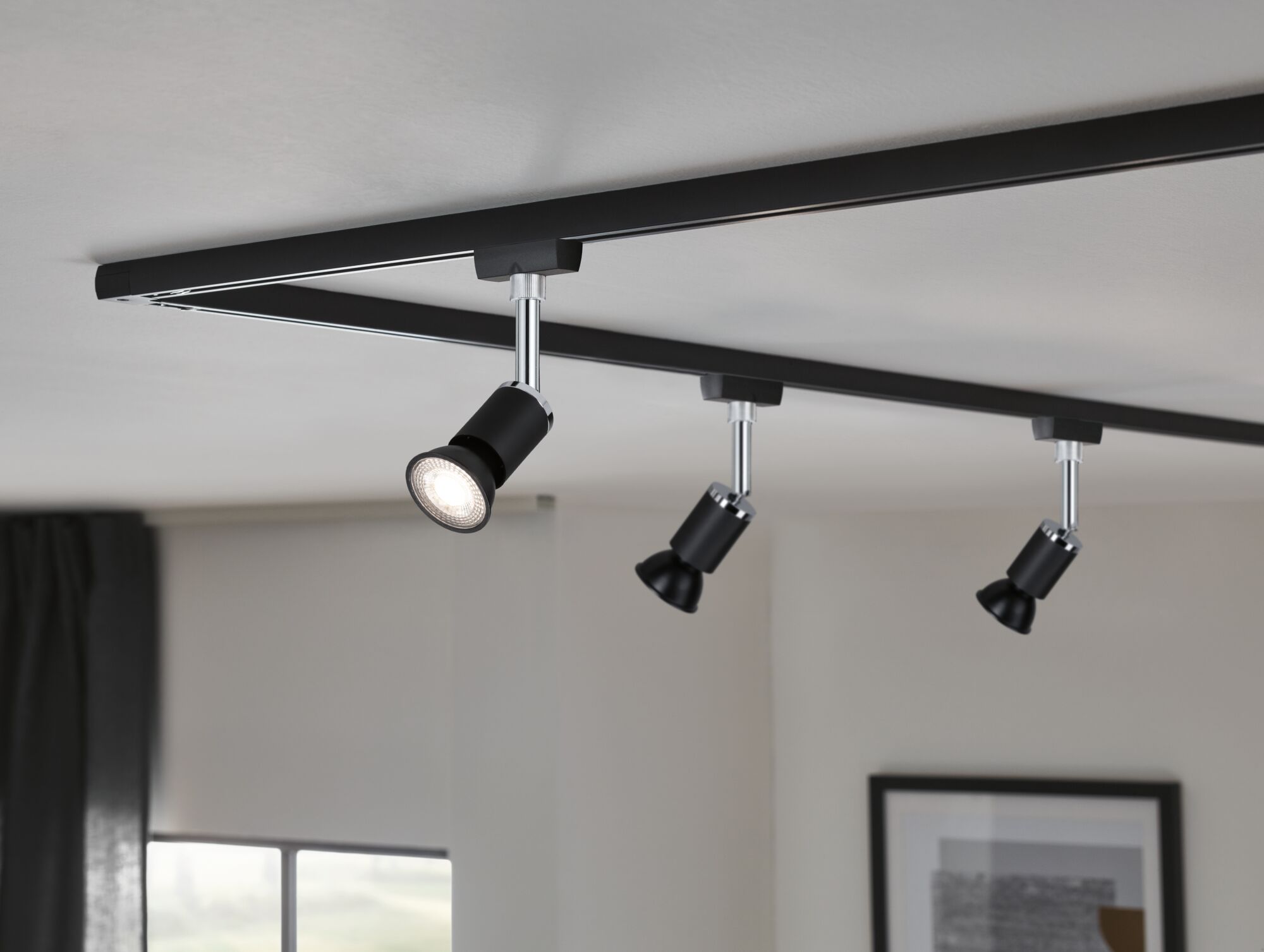

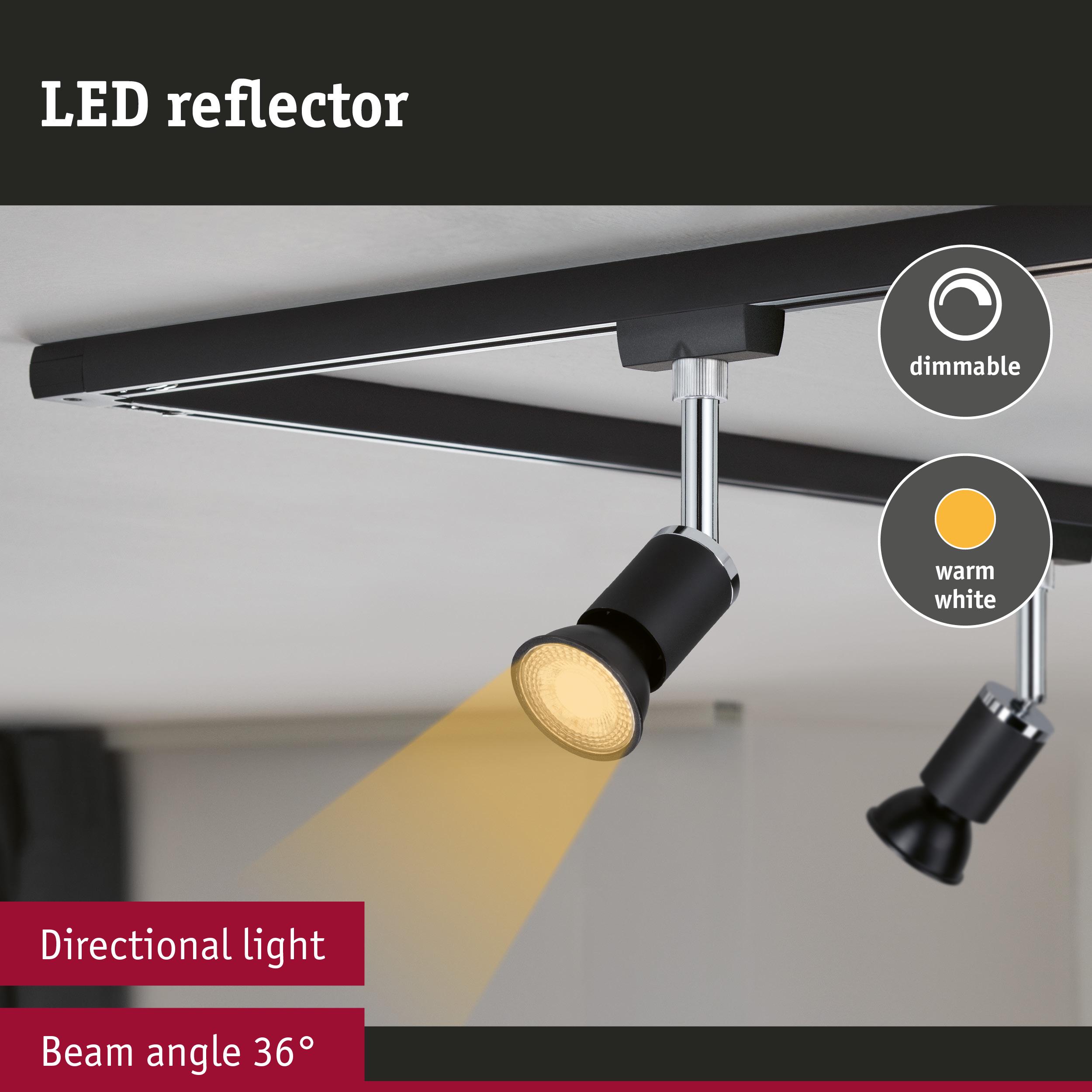

The three dimmable GU10 reflectors in black matt matches the RAL material colours of the URail system. The reflectors emit directed light with a pleasant warm white light colour. The efficient LED technology provides energy-saving illumination. Thanks to the dimming function, the lighting can be individually adjusted.
- Reflector
- Directed light
- Color temperatur: 2700K - Warm white
- Efficient LED technology
- Dimmable
| Dimension | |
|---|---|

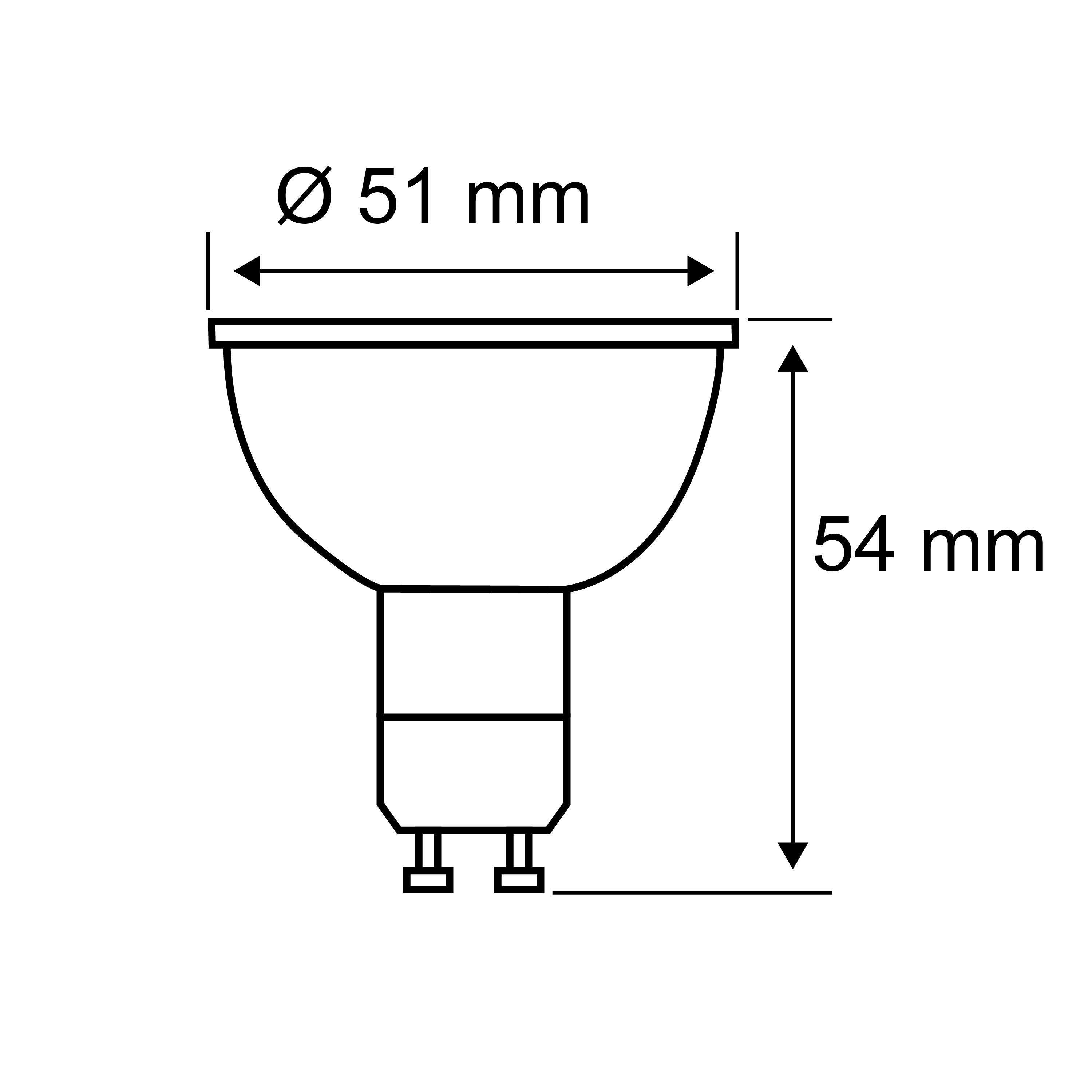

| Dimensions (Height x Width x Depth) | H: 54 mm |
| Ø | 51 mm |
| Design and Material | |
|---|---|
| Colour | Black matt |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | RC REV Ritter 501448551, Paulmann Smart Home BLE 500.20, RC Merten MEG 5136-0000, RLC Müller Paladin 873 030 LED, RC Jung 225 T DE, Paulmann URail 952.94/-95, Paulmann Smart Home BLE 500.18, RC Gira 0307 00/I02, RC Busch-Jäger 6513U-102 |
| Energy consumption | |
|---|---|
| Energy consumption | 7 kWh_1000h |
| Energy efficiency | G |
| Service life | |
|---|---|
| Lamp lumen maintenance factor 6000h | 85 % |
| luminous flux at the end of lamplife | 90 % |
| Number of switching cycles >= | 50000 |
| Lifetime | 15000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| color temp | Warm white |
| Beam angle | 36 ° |
| Usable luminous flux | 460 lm |
| Color rendering index | > 80 Ra |
| Colour consistency (SDCM) | 6 |
| Beam angle LED module | 36 ° |
| Rated peak intensity | 900 cd |
| Luminous intensity | 900 cd |
| Rated luminous flux (Lumen) | 460 lm |
| Lamp Features | |
|---|---|
| Component parts | 7 W |
| Technique | LED |

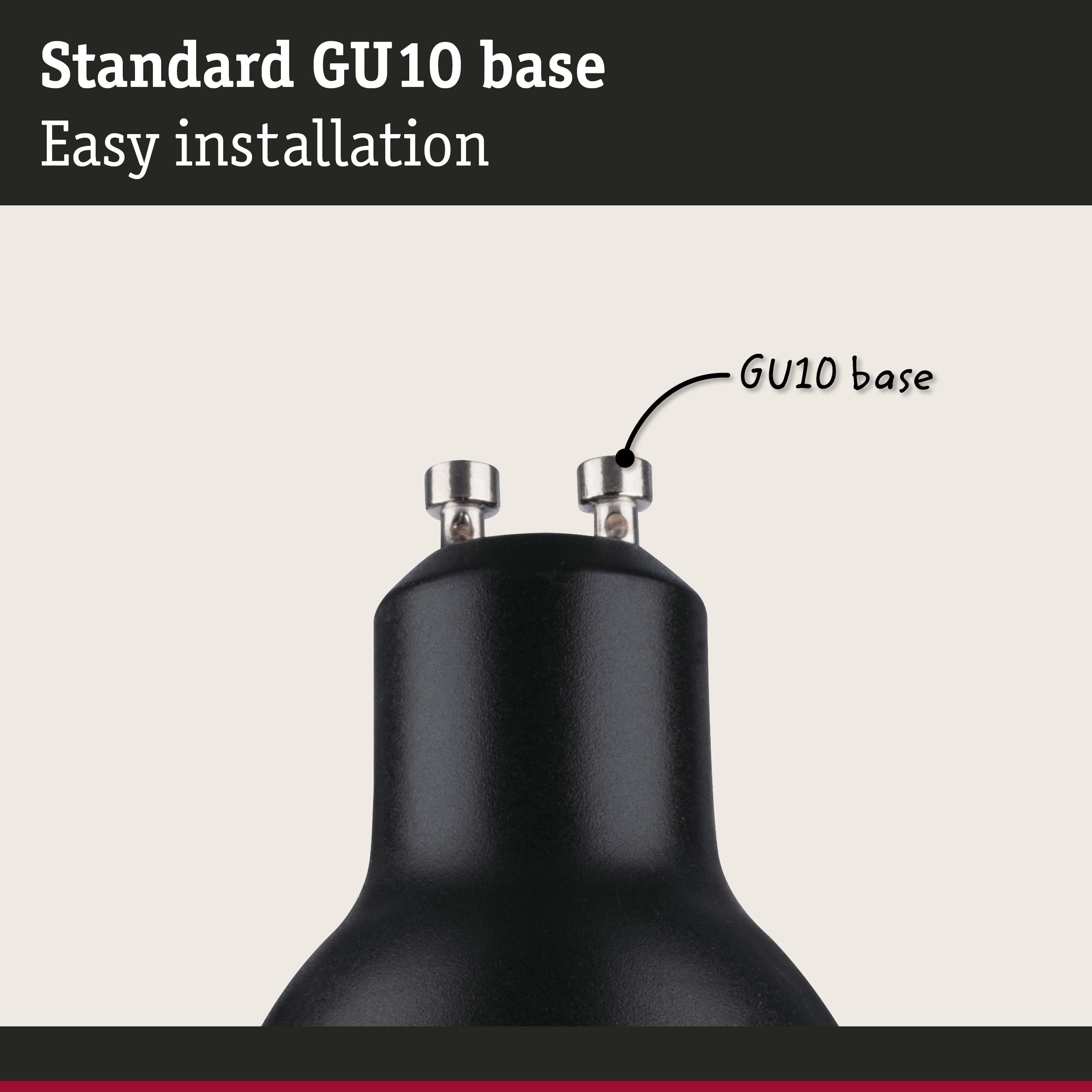

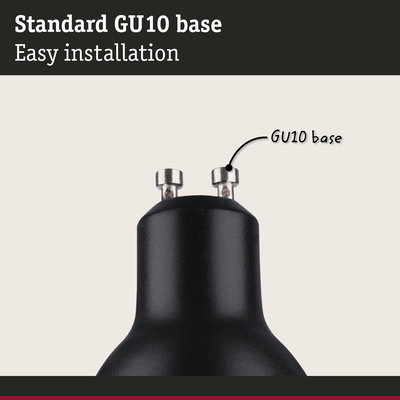

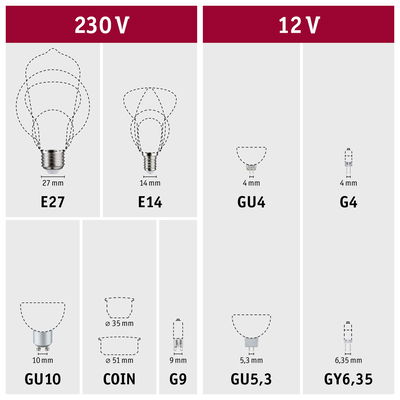

| Socket | GU10 |
| Type | Reflector |
| Inclusive lamp | yes |
| Adjustability | fixed |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Number of component parts | 3x |
| Replacable | 7 not concerned. |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
