Article-No.:
93399
Recessed Luminaire
Base Basic Set Swivelling
round 90mm 20° GU10 max. 10W 230V dimmable Brushed iron
round 90mm 20° GU10 max. 10W 230V dimmable Brushed iron

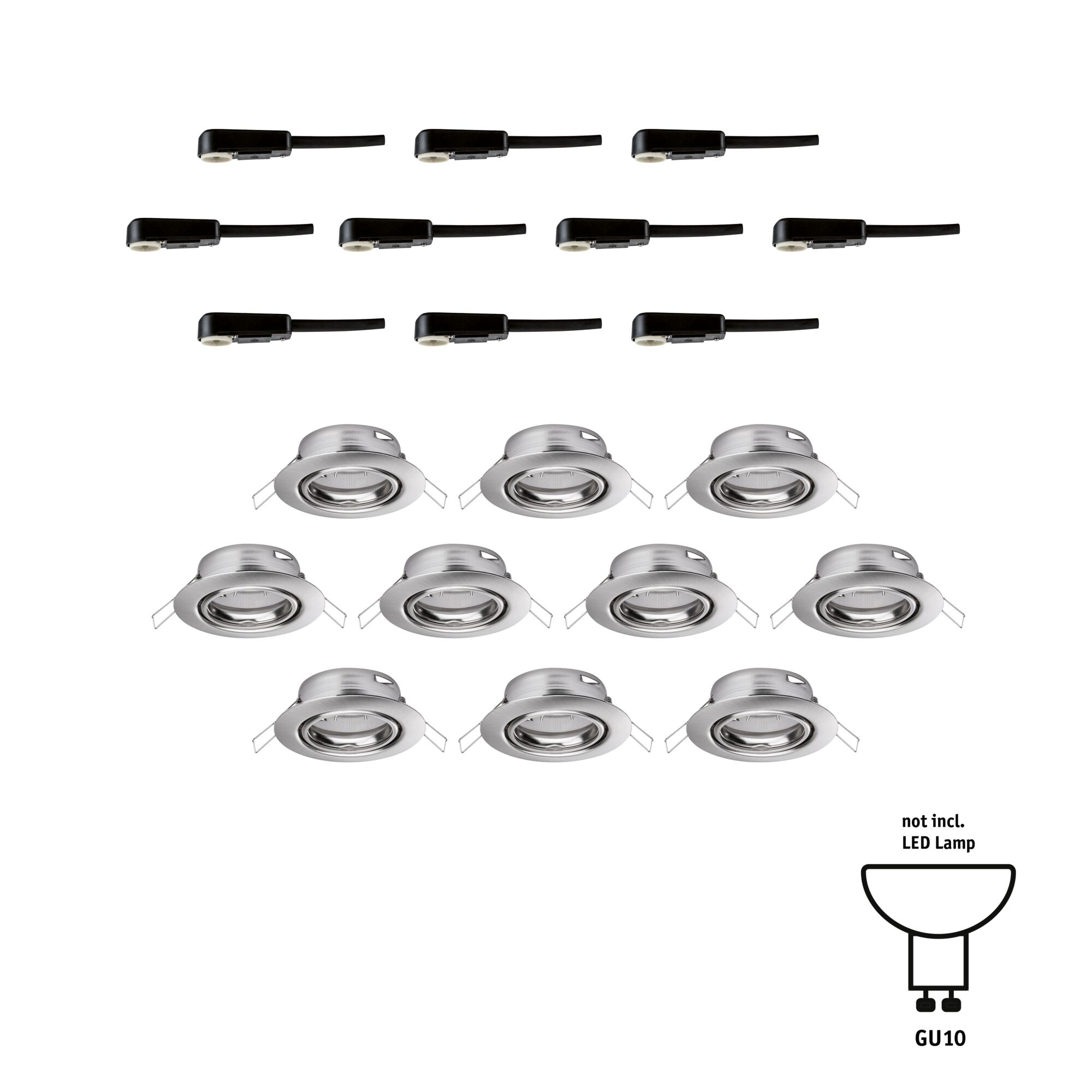

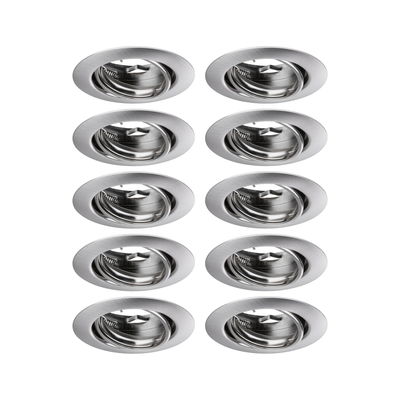

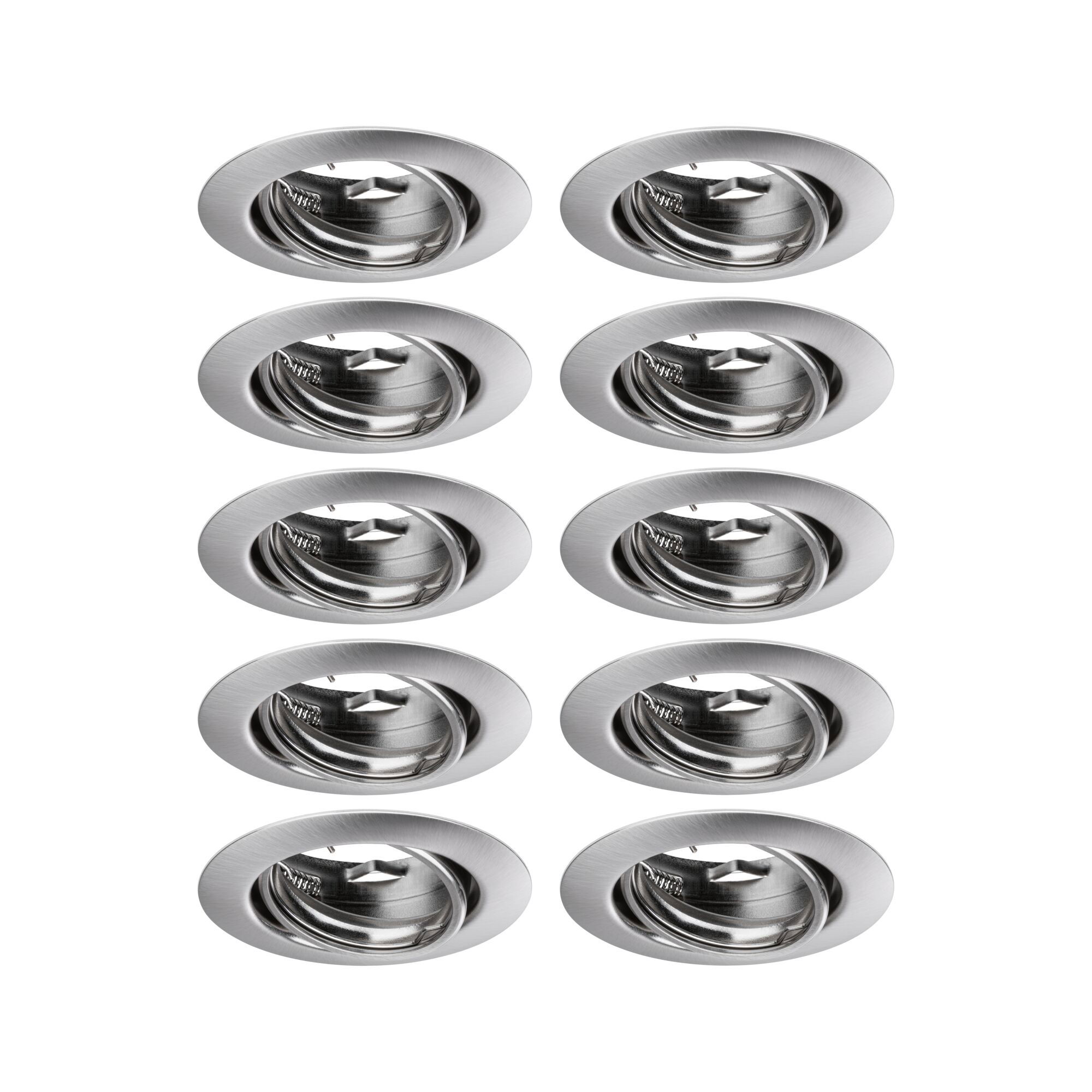

- Set of 10 luminaires
- With swivelling spots for ideal illumination
- For 230 V direct connection

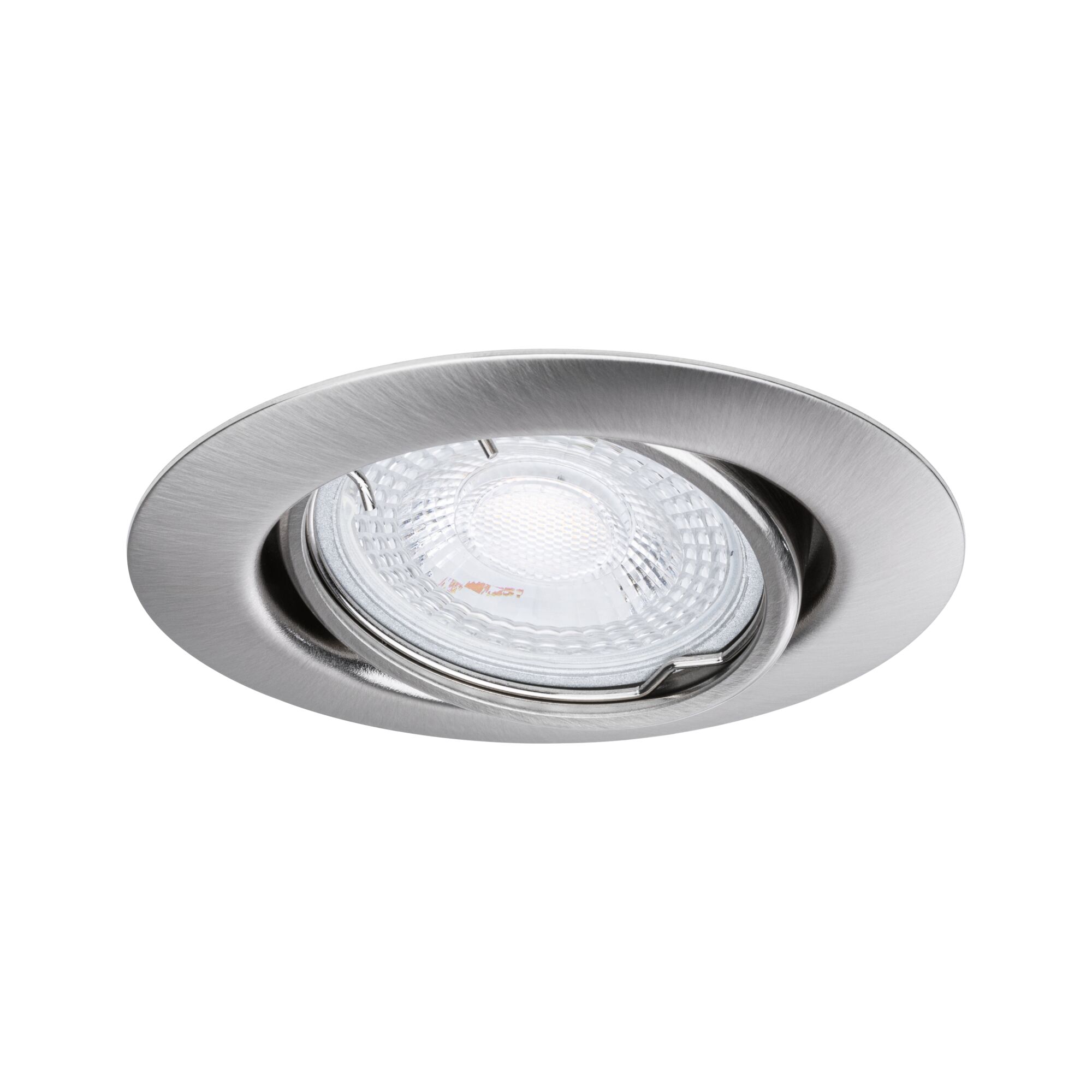

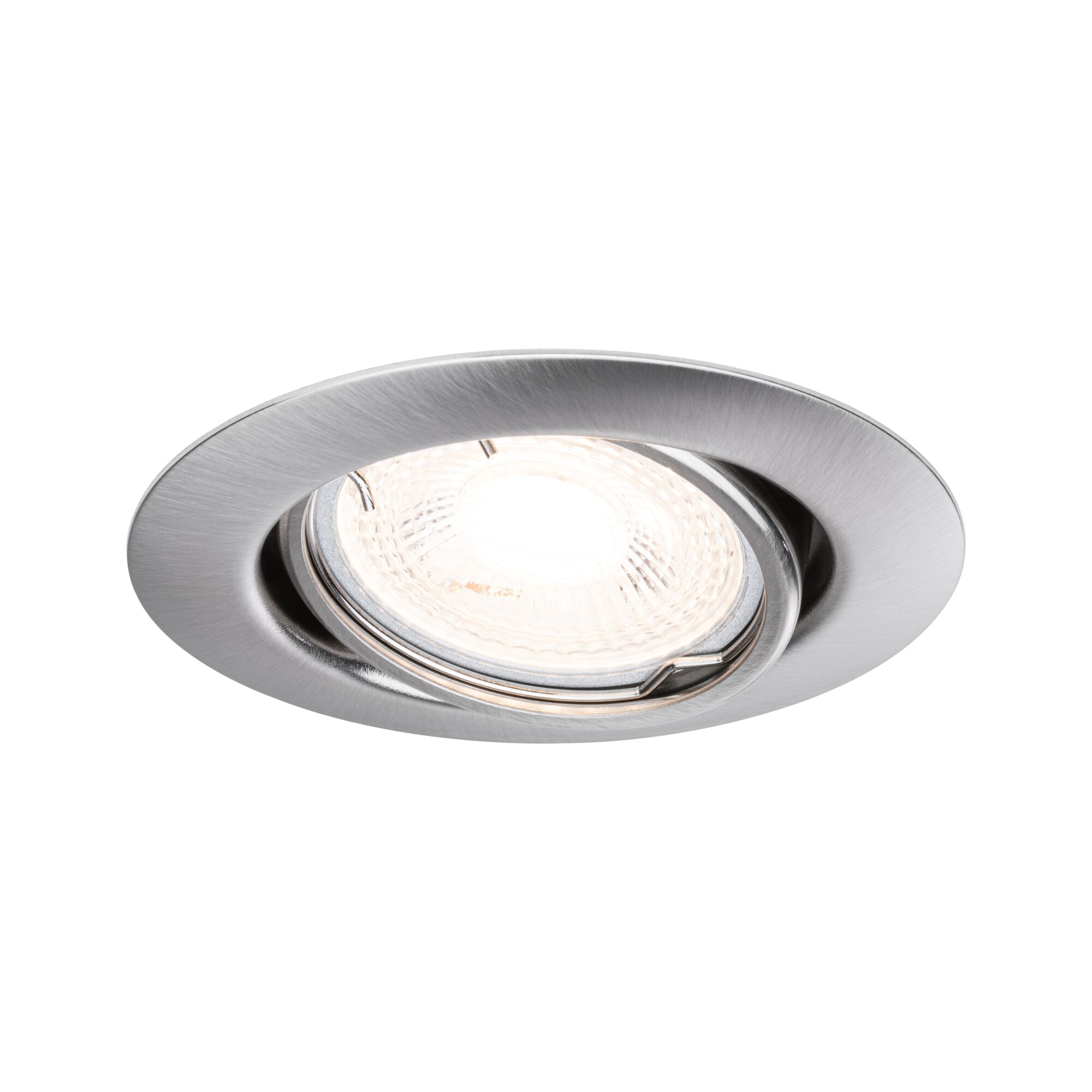

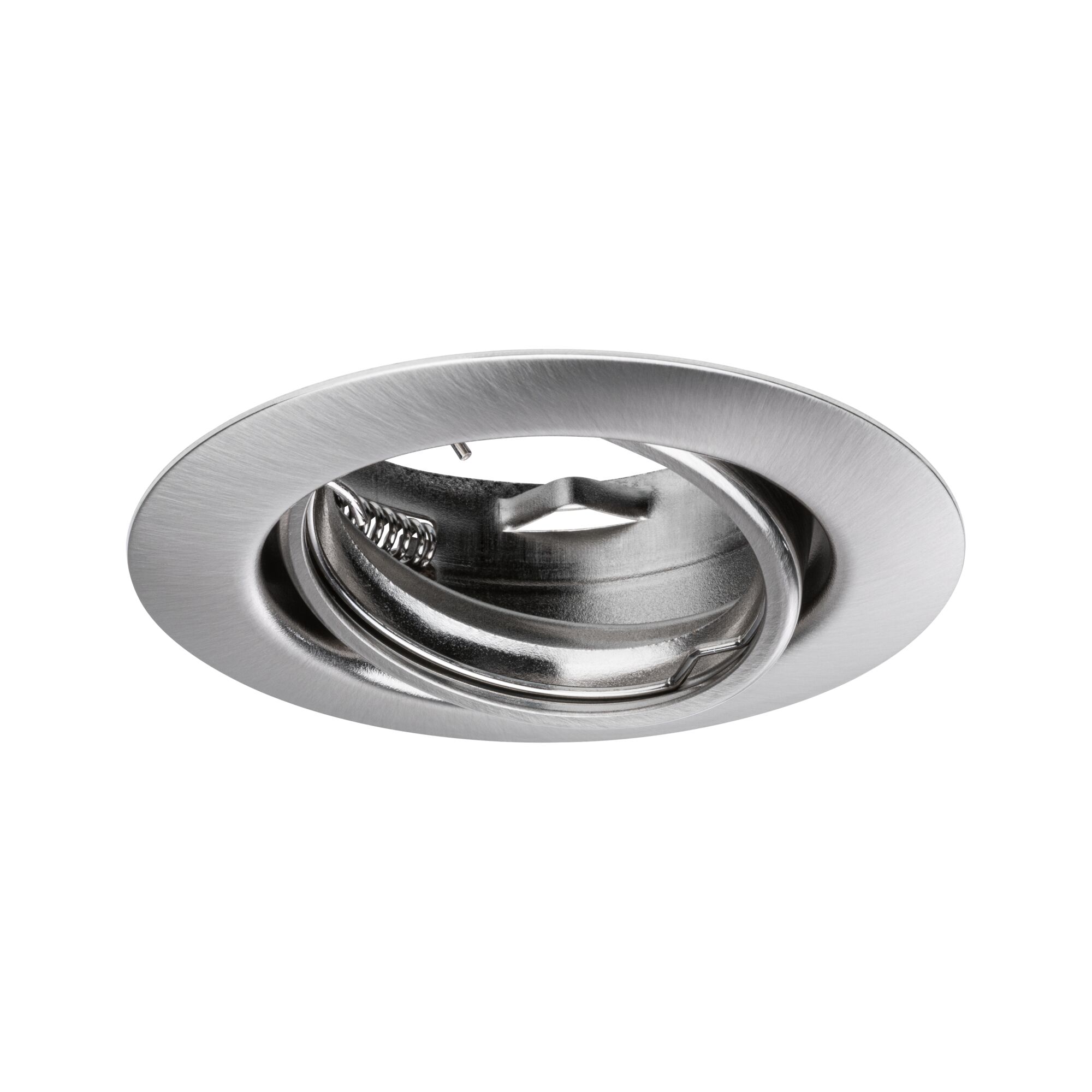

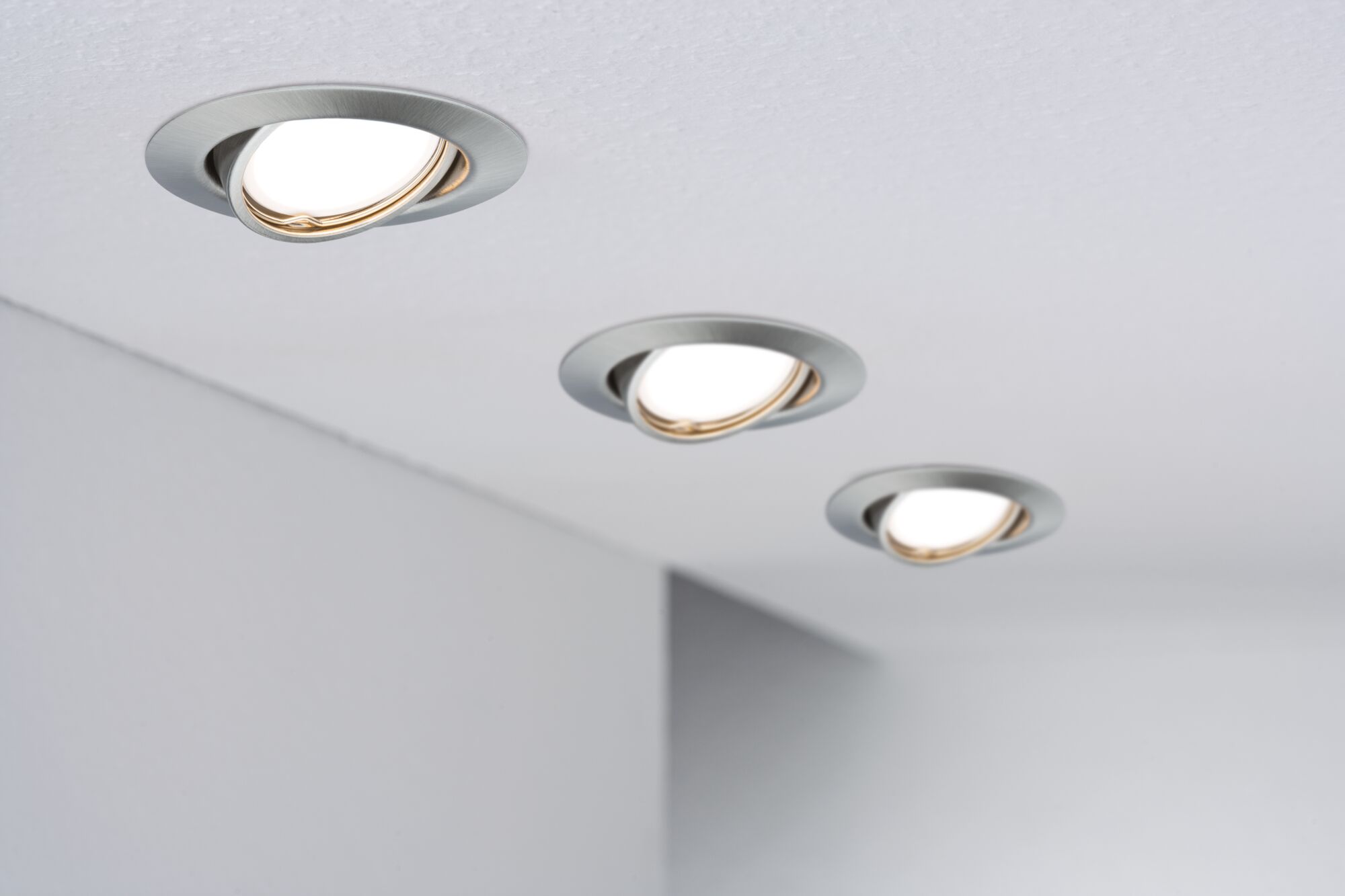

Recessed Luminaire Base Basic Set Swivelling round 90mm 20° GU10 max. 10W 230V dimmable Brushed iron

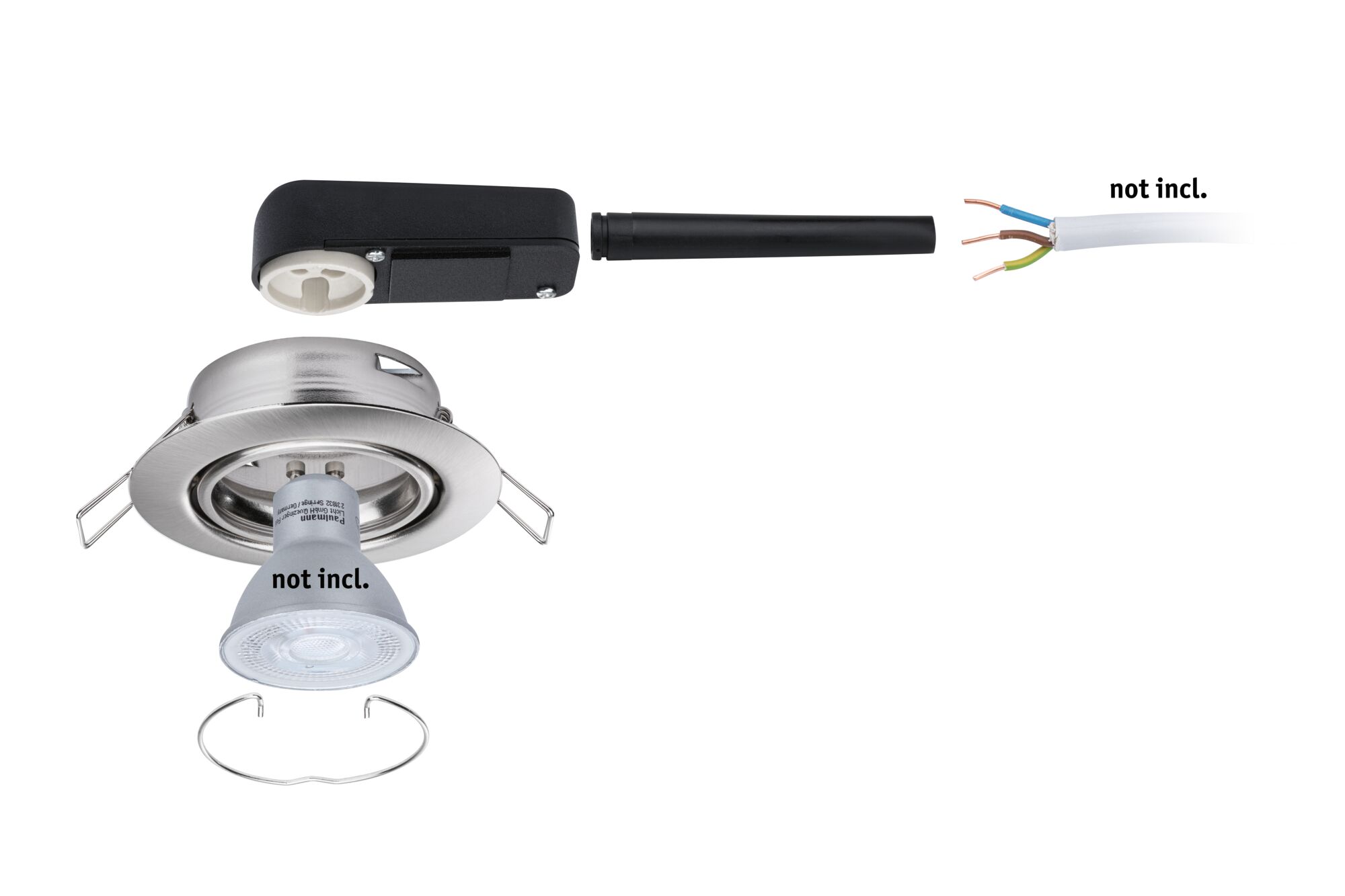

Base recessed spotlights in Brushed iron, are robust and user-friendly recessed spotlights made of Metal, which are suitable for new installations as well as the replacement of existing installations. Thanks to the 230V direct connection, you can easily link an unlimited number of luminaires to one another.
- Set of 10 luminaires
- With swivelling spots for ideal illumination
- For 230 V direct connection
- Don’t forget: Include a suitable lamp in your order!
| Dimension | |
|---|---|
| Diameter | 90 mm |
| Built-in diameter | 68 - 73 mm |
| Mounting depth | 90 mm |
| Depth of hollow wall | 75 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Brushed iron |
| Material | Metal |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Service life | |
|---|---|
| Lifetime | 15000 h |
| Lamp Features | |
|---|---|
| Dimmable | The luminaire is dimmable, and the dimming capability depends on the type of lamp used. |
| Inclusive lamp | no |
| Lamp property | Ohne Leuchtmittel |
| Swivel range | 20 ° |
| Maximum wattage range | max. 10 W |
| IP protection | IP20 |
| Protection class | Protection class II |
| Base/Socket | GU10 |
| Technique | LED |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Adjustability | swivelling/tilting |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
