Article-No.:
91341
ProRail3
LED Rail spot
Zeuz 60°
2860lm 33W 3000K dimmable 230V White
2860lm 33W 3000K dimmable 230V White
- ProRail3 system light incl. installation instructions
- Color temperatur: 3000K - Warm white
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps

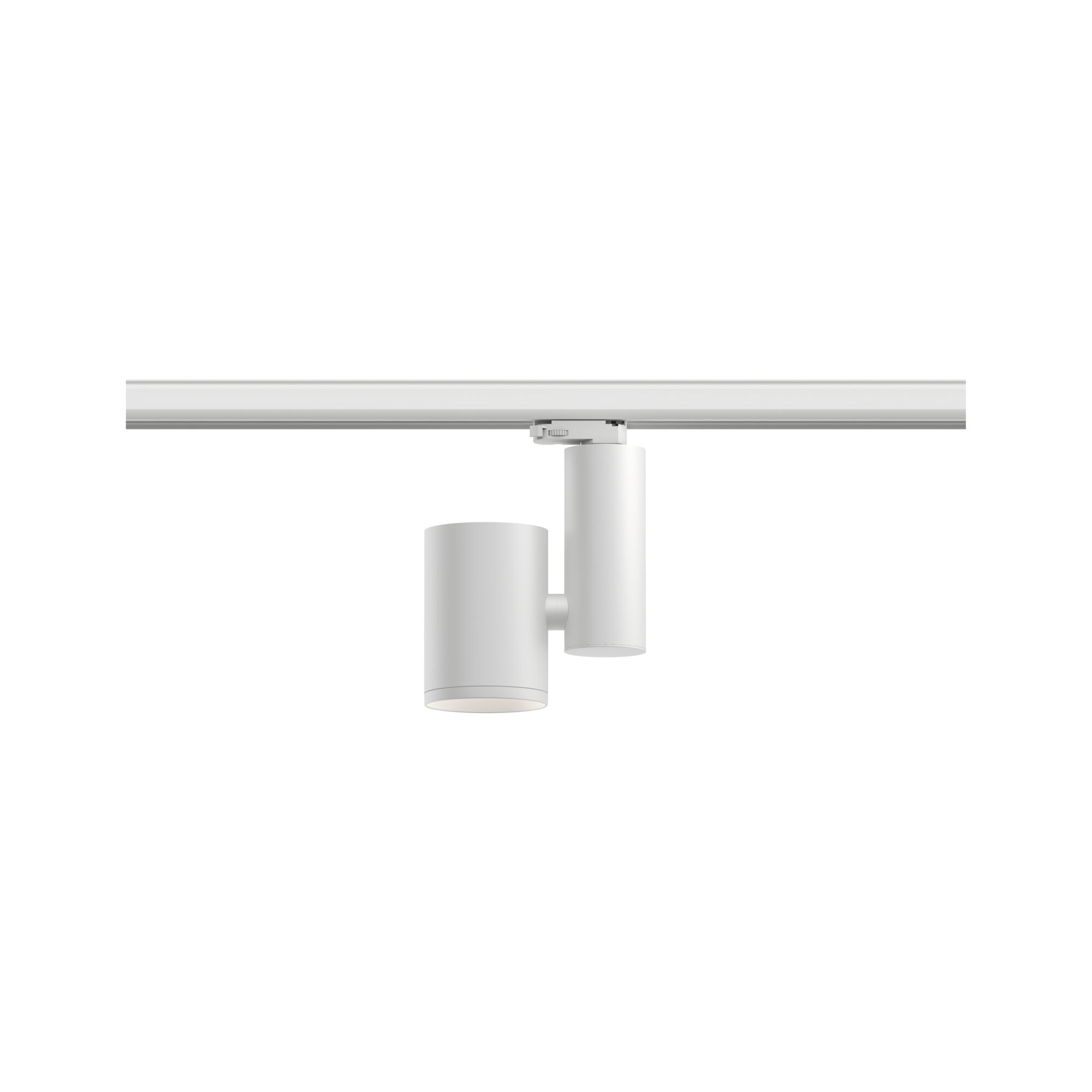

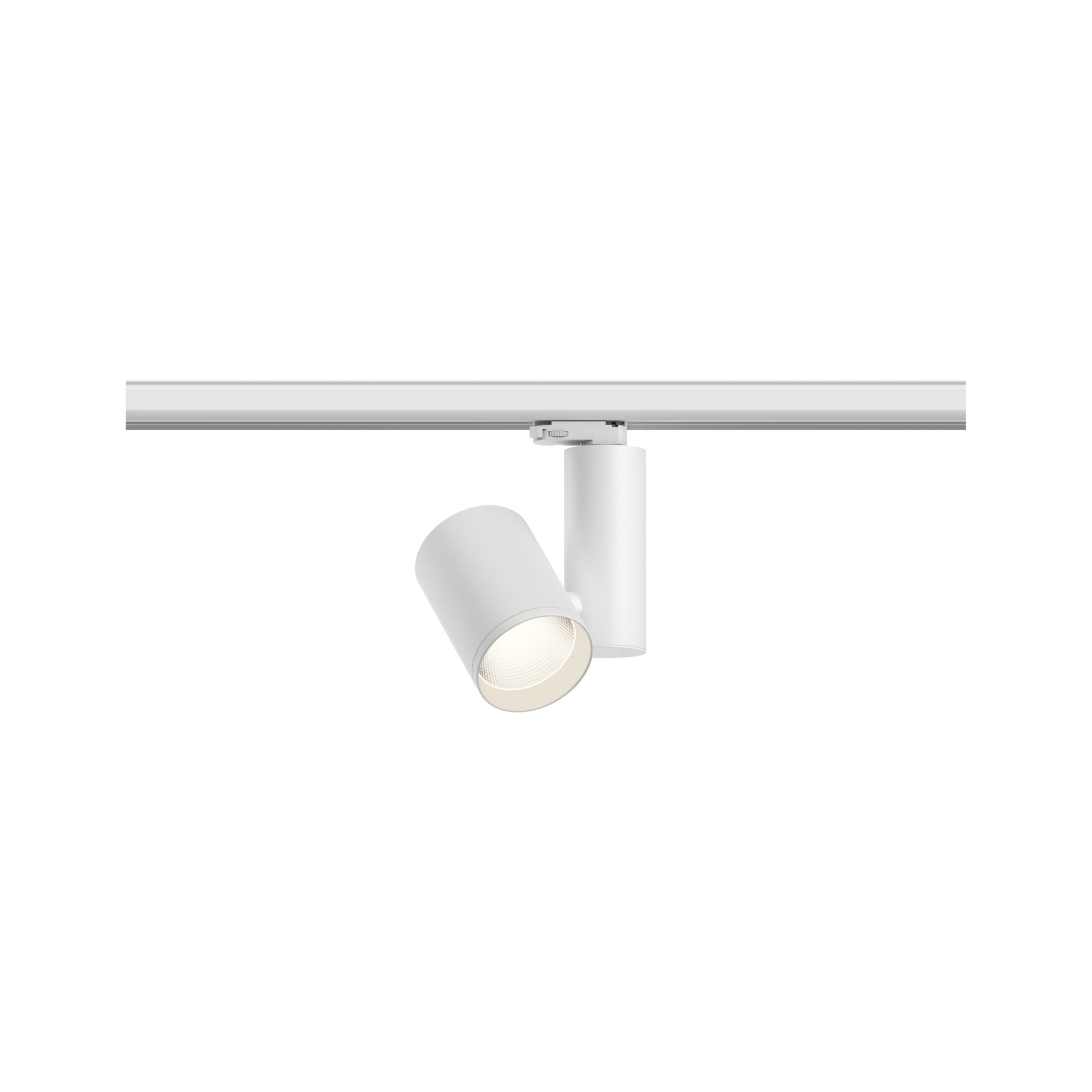

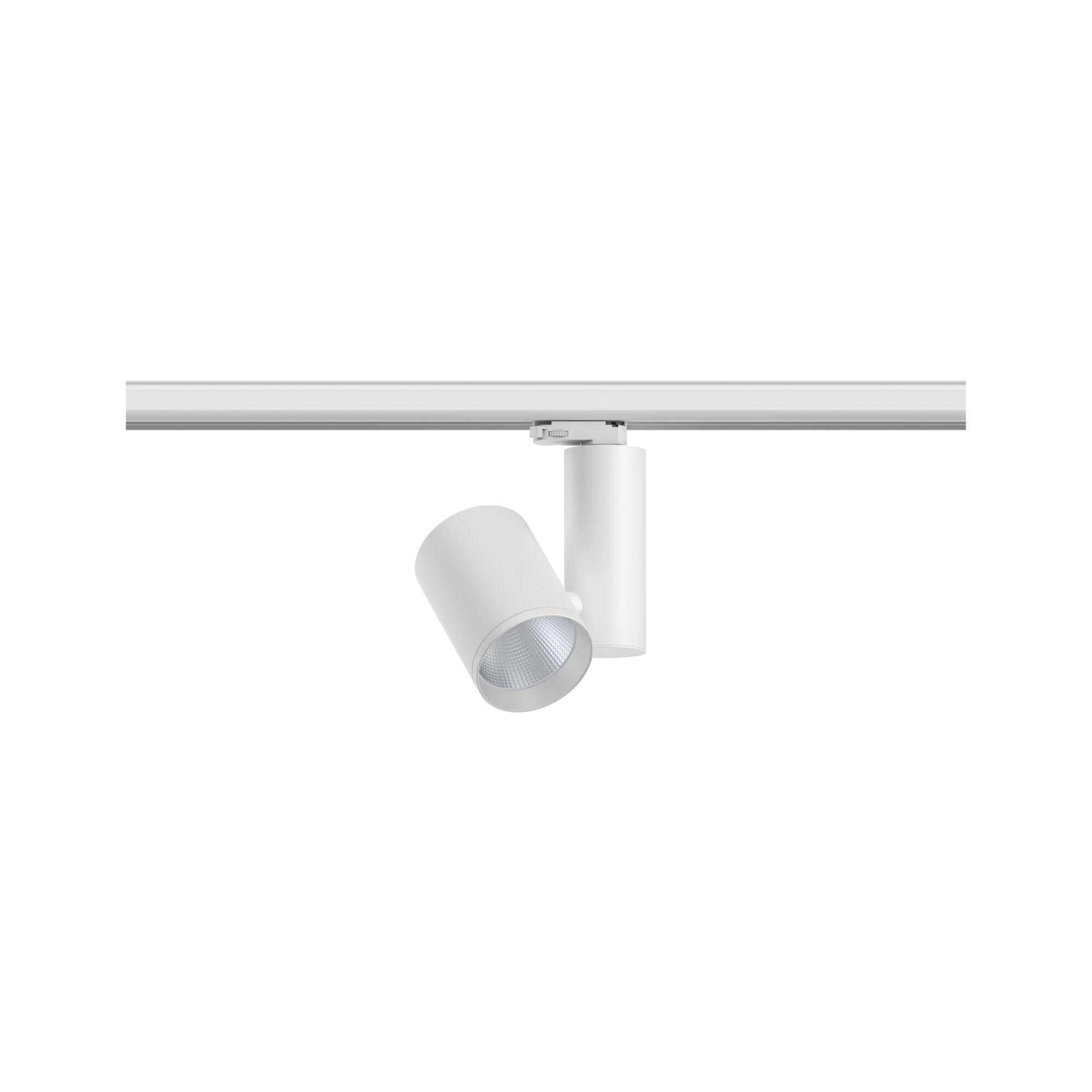

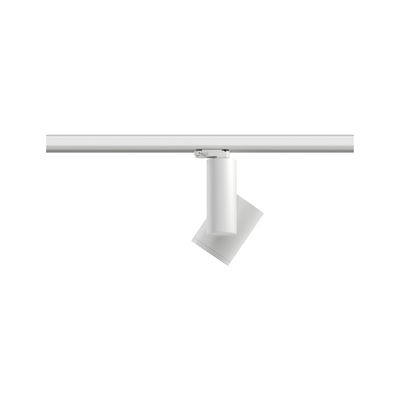

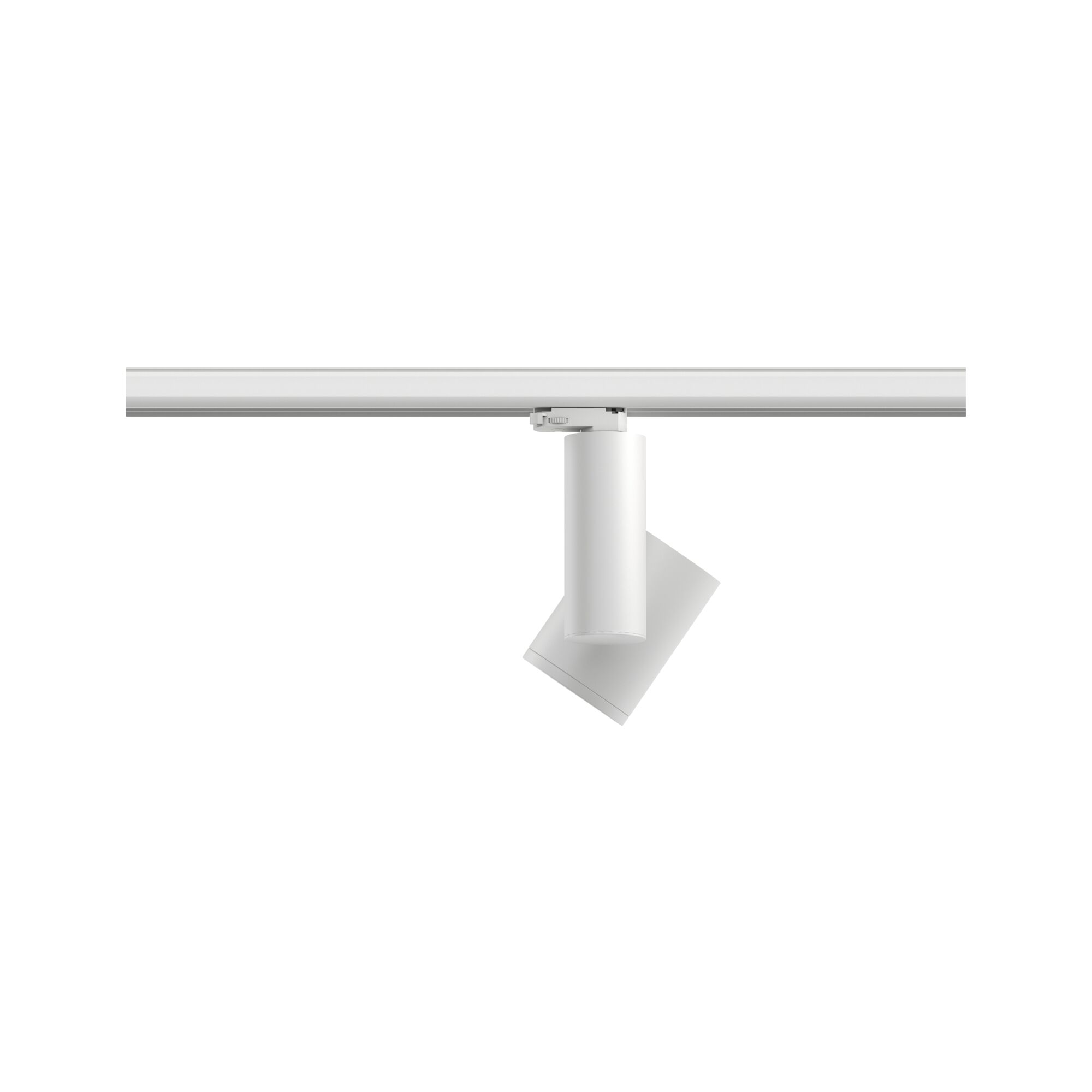

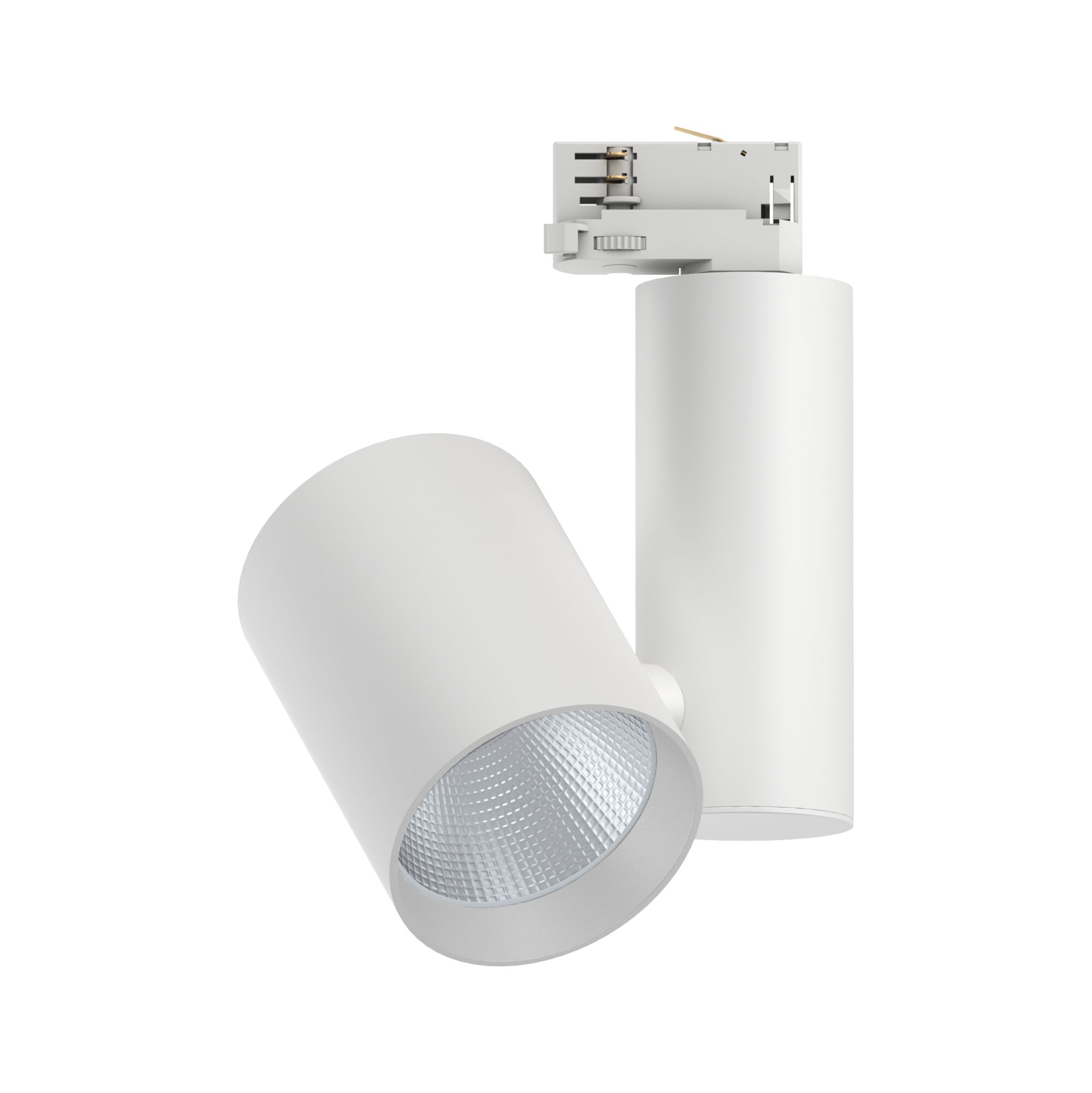

ProRail3 LED Rail spot Zeuz 60° 2860lm 33W 3000K dimmable 230V White

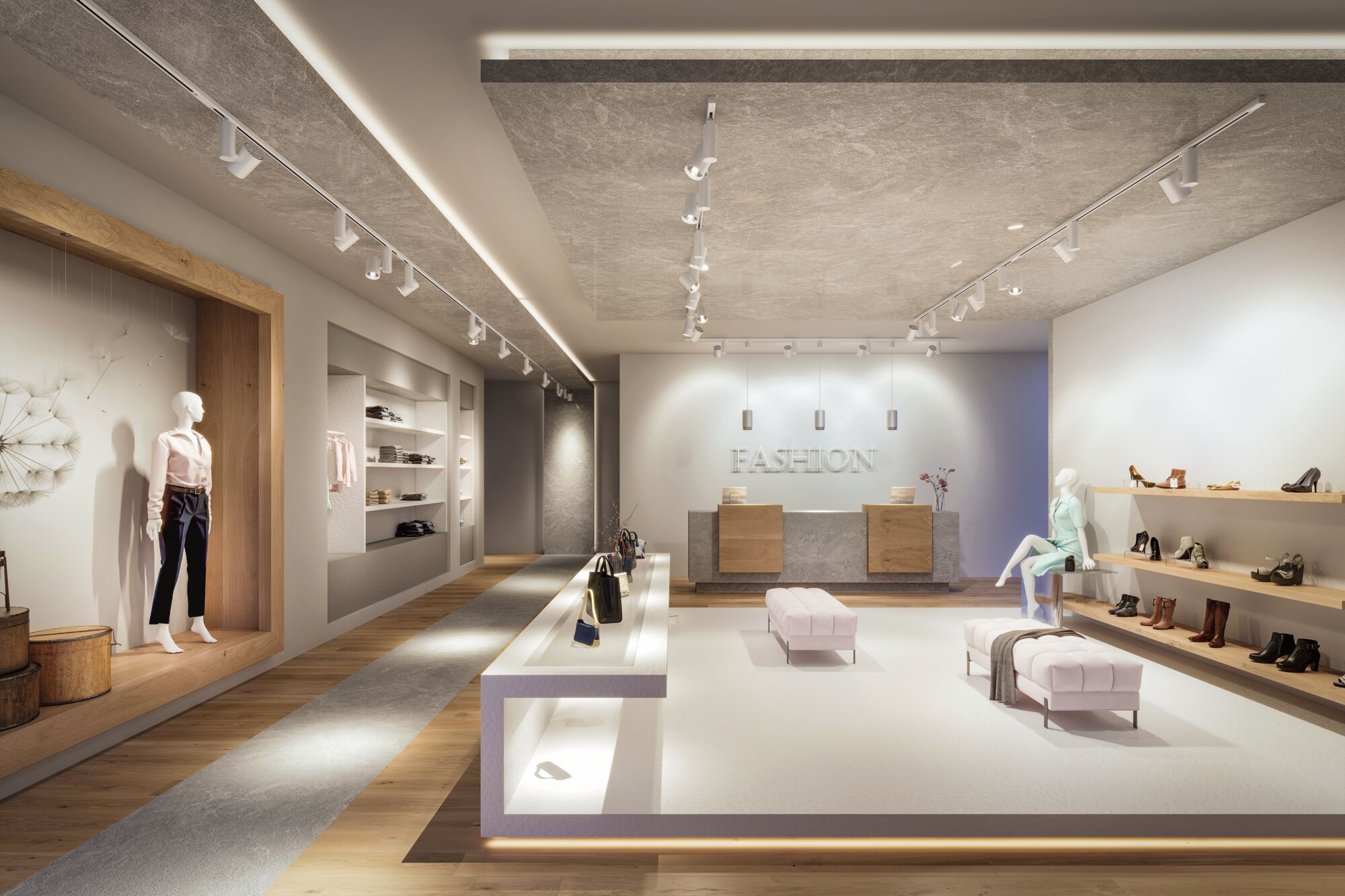

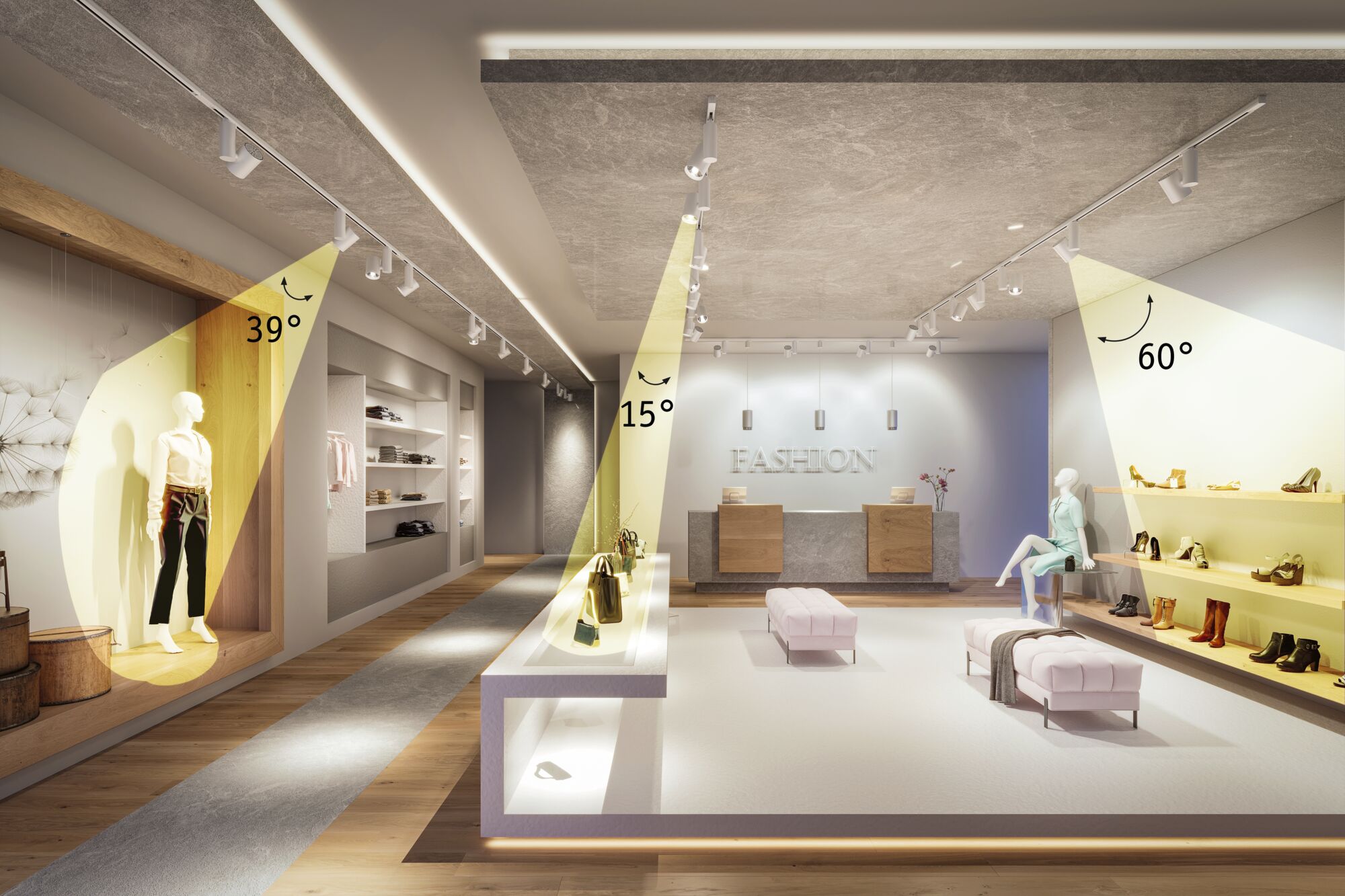

The warm white, dimmable spot Zeuz in the colour White, with a precision lens, has a beam angle of 60°. The light can be directed wherever you need it. The 33-watt spot is extremely versatile and casts every application area in the best light. The spotlight, with a beam angle of 60°, is especially well-suited for lighting signs or information boards in the building. The versatile ProRail3 rail system offers flexible and individual lighting for spaces such as showrooms, doctor’s surgeries or restaurants. With only one power outlet, every corner of the room can be brightly illuminated.
- ProRail3 system light incl. installation instructions
- Color temperatur: 3000K - Warm white
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Not compatible with URail!
- Important: Exclusively designed for commercial applications and professional installation
- Plannable using DIALux (ULD data available)
| Dimension | |
|---|---|

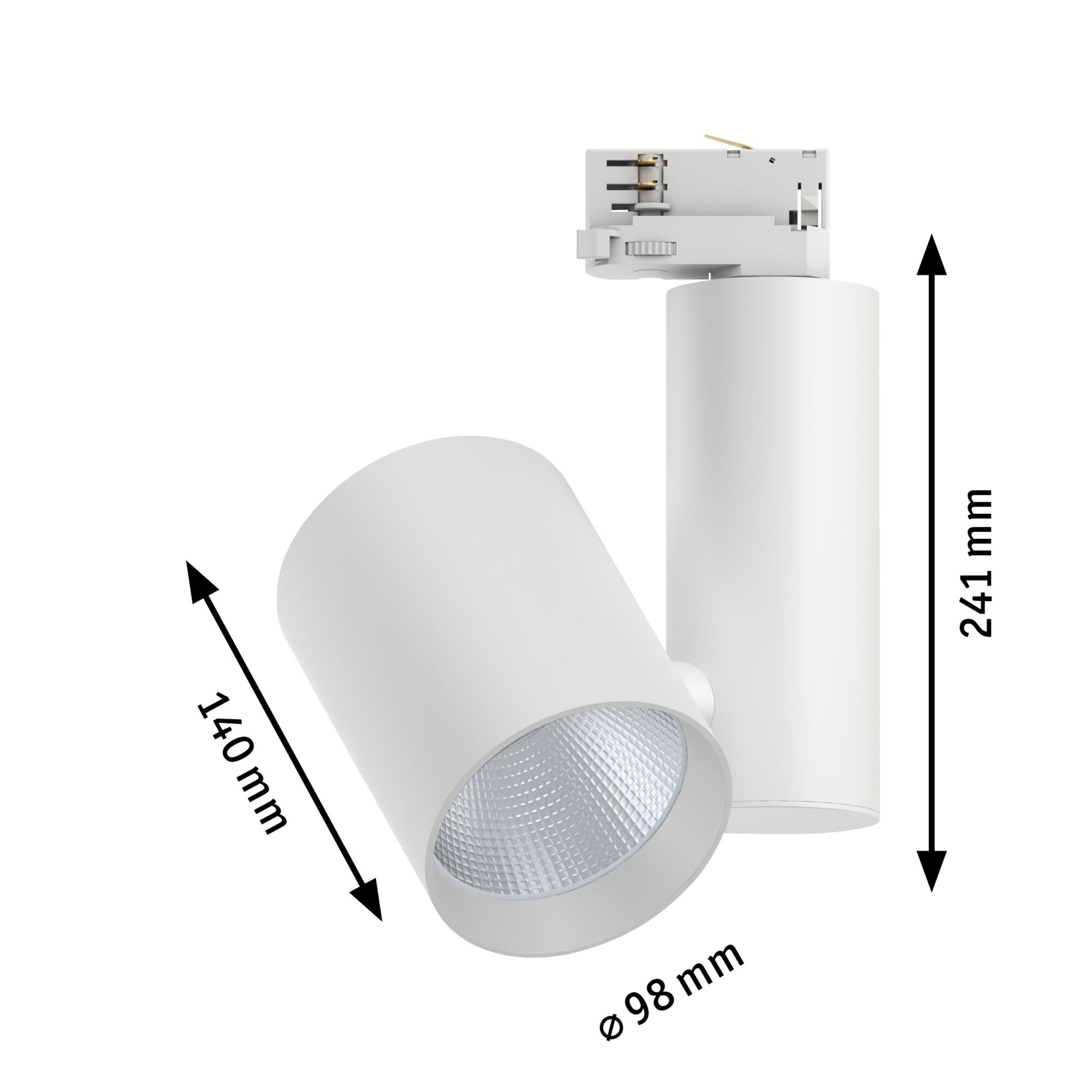

| Dimensions (Height x Width x Depth) | H: 241 x B: 176 x T: 98 mm |
| net weight | 1320 g |
| Design and Material | |
|---|---|
| Form | cylindrical |
| Colour | White |
| Material | Metal, Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 2860 lm |
| Color rendering index | > 90 Ra |
| Beam angle | 60 ° |
| Colour temperature | Warm white, 3000 K |
| Luminous flux LED module | 3680 lm |
| Colour consistency (SDCM) | 3 |
| Lamp Features | |
|---|---|
| Dimming Control | with dimmer |
| Inclusive lamp | yes |
| Component parts | 33 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 210 W |
| Technique | LED |
| Adjustability | rotating and tilting |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Protection class | Protection class I |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 36,5 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
