Article-No.:
91337
ProRail3
LED Rail spot
Zeuz 39°
2860lm 33W 3000K dimmable 230V Silver
2860lm 33W 3000K dimmable 230V Silver
- ProRail3 system luminaire incl. installation instructions
- Color temperatur: 3000K - Warm white
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps

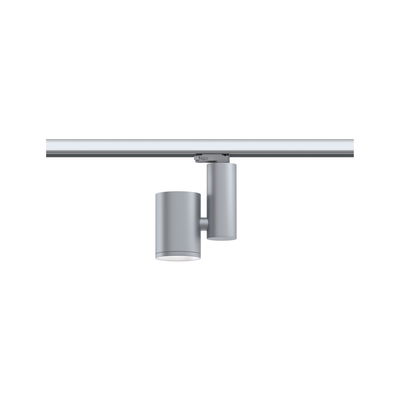

ProRail3 LED Rail spot Zeuz 39° 2860lm 33W 3000K dimmable 230V Silver
The warm white, dimmable spot Zeuz in the colour Silver, with a precision lens, has a beam angle of 40°. The light can be directed wherever you need it. The 33-watt spot is extremely versatile and casts every application area in the best light. The versatile ProRail3 rail system offers flexible and individual lighting for spaces such as showrooms, doctor’s surgeries or restaurants. With only one power outlet, every corner of the room can be brightly illuminated.
- ProRail3 system luminaire incl. installation instructions
- Color temperatur: 3000K - Warm white
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Not compatible with URail!
- Important: Exclusively designed for commercial applications and professional installation
- Plannable using DIALux (ULD data available)
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 241 x B: 176 x T: 98 mm |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Metal, Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Beam angle | 39 ° |
| Usable luminous flux | 2860 lm |
| Luminous flux LED module | 3680 lm |
| color temp | 3000 K |
| colour consistency | SDCM 3 |
| Color rendering index | > 90 Ra |
| Lamp Features | |
|---|---|
| Component parts | 33 W |
| Technique | LED |
| Dim | with dimmer |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | yes |
| Total Width | 176 mm |
| Incandescent Equivalent | 210 W |
| Number of component parts | 1x |
| protection class | protection class I |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 36,5 W |
