Article-No.:
96561
ProRail3
LED Rail spot
Kratos
50° 1000lm 9W 3000K 230V Silver
50° 1000lm 9W 3000K 230V Silver
- Color temperatur: 3000K - Warm white
- ProRail3 system luminaire incl. installation instructions
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps

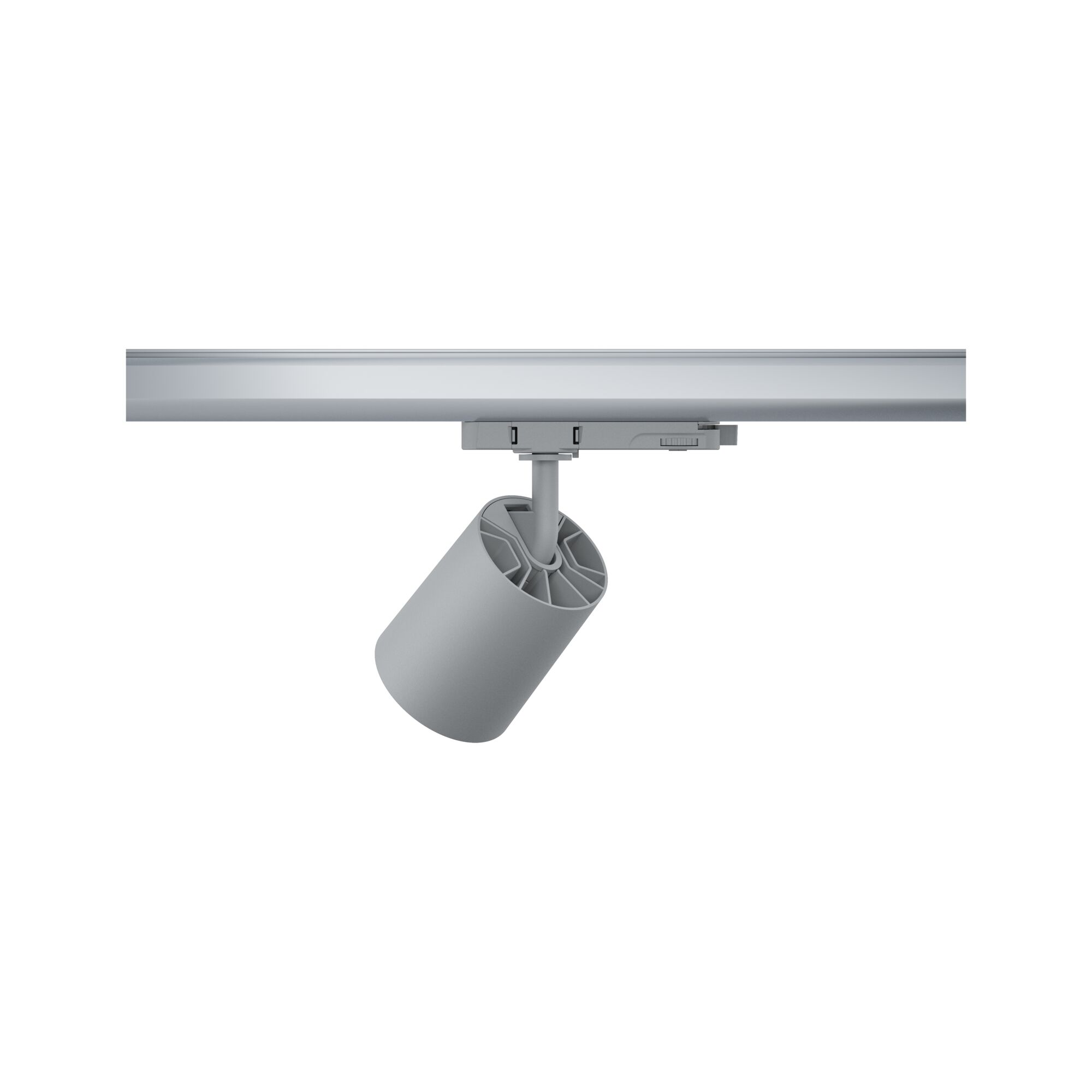

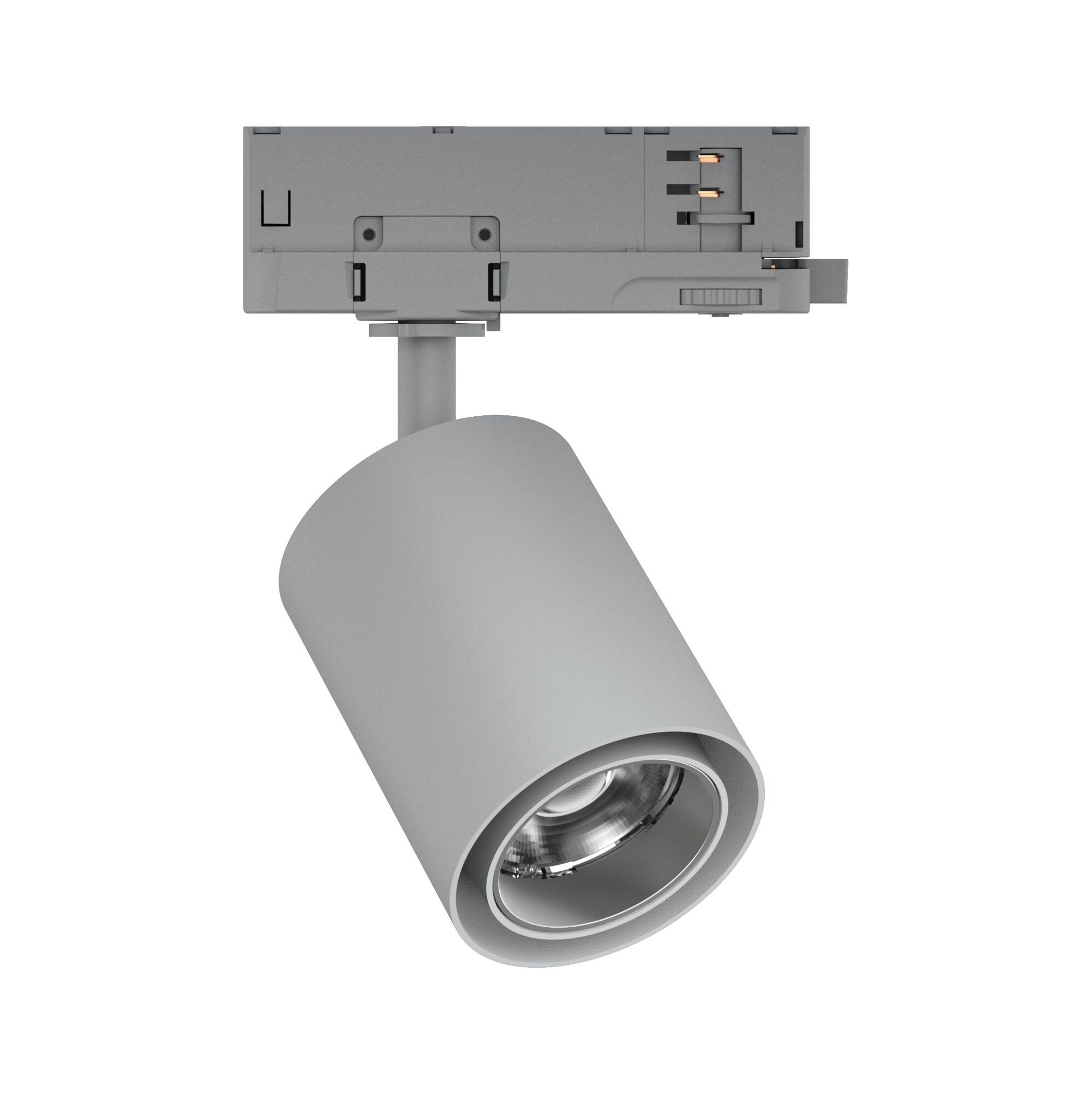

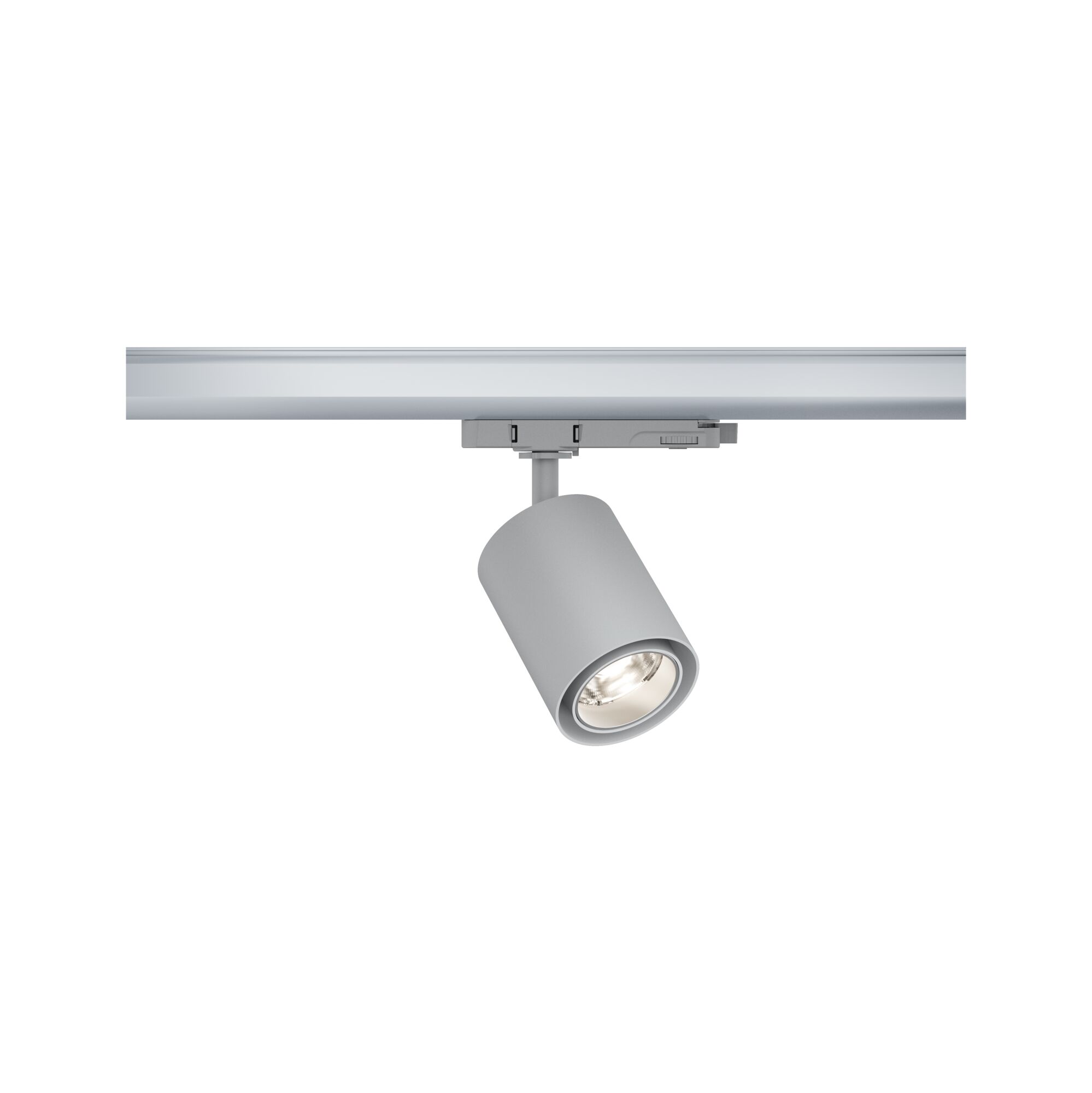

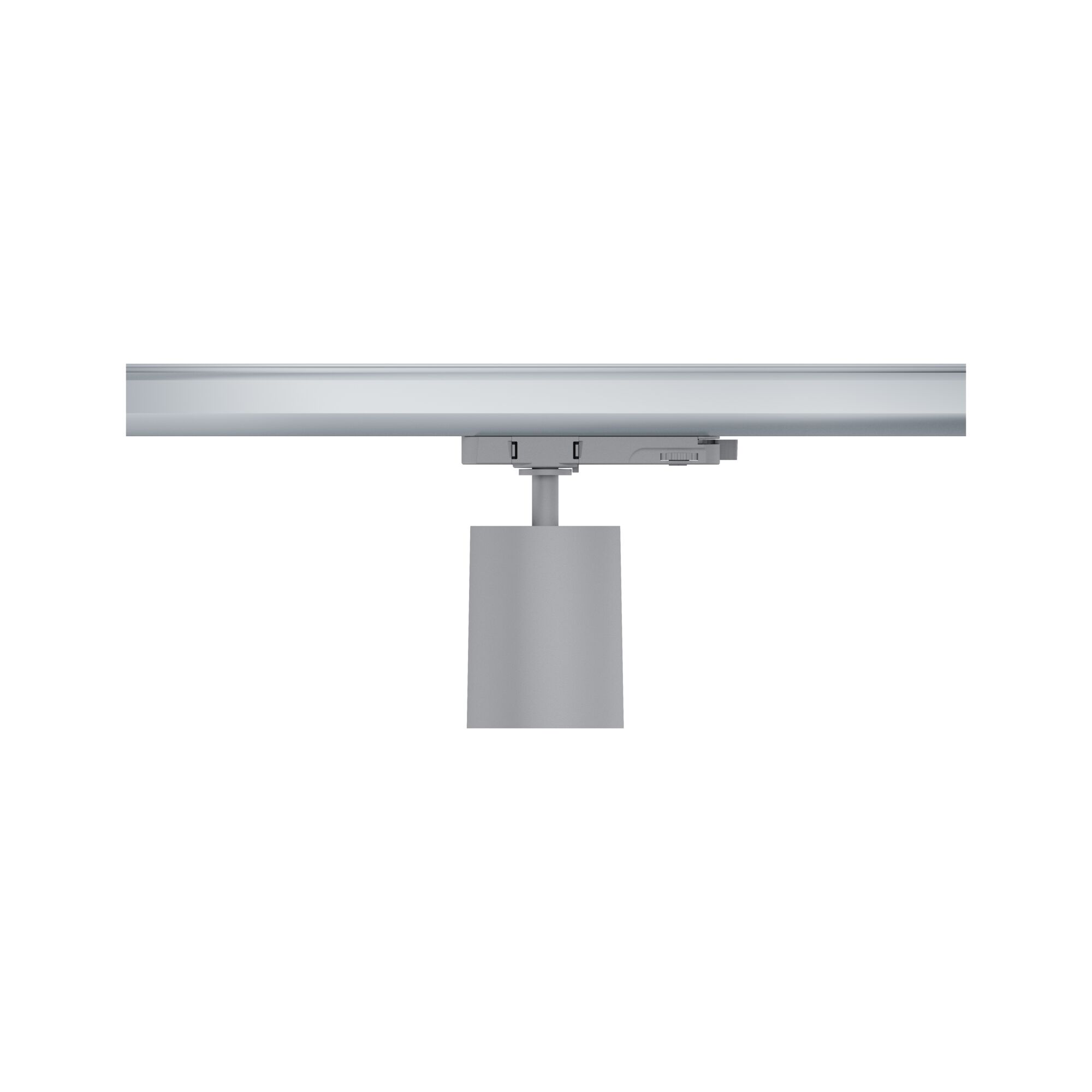

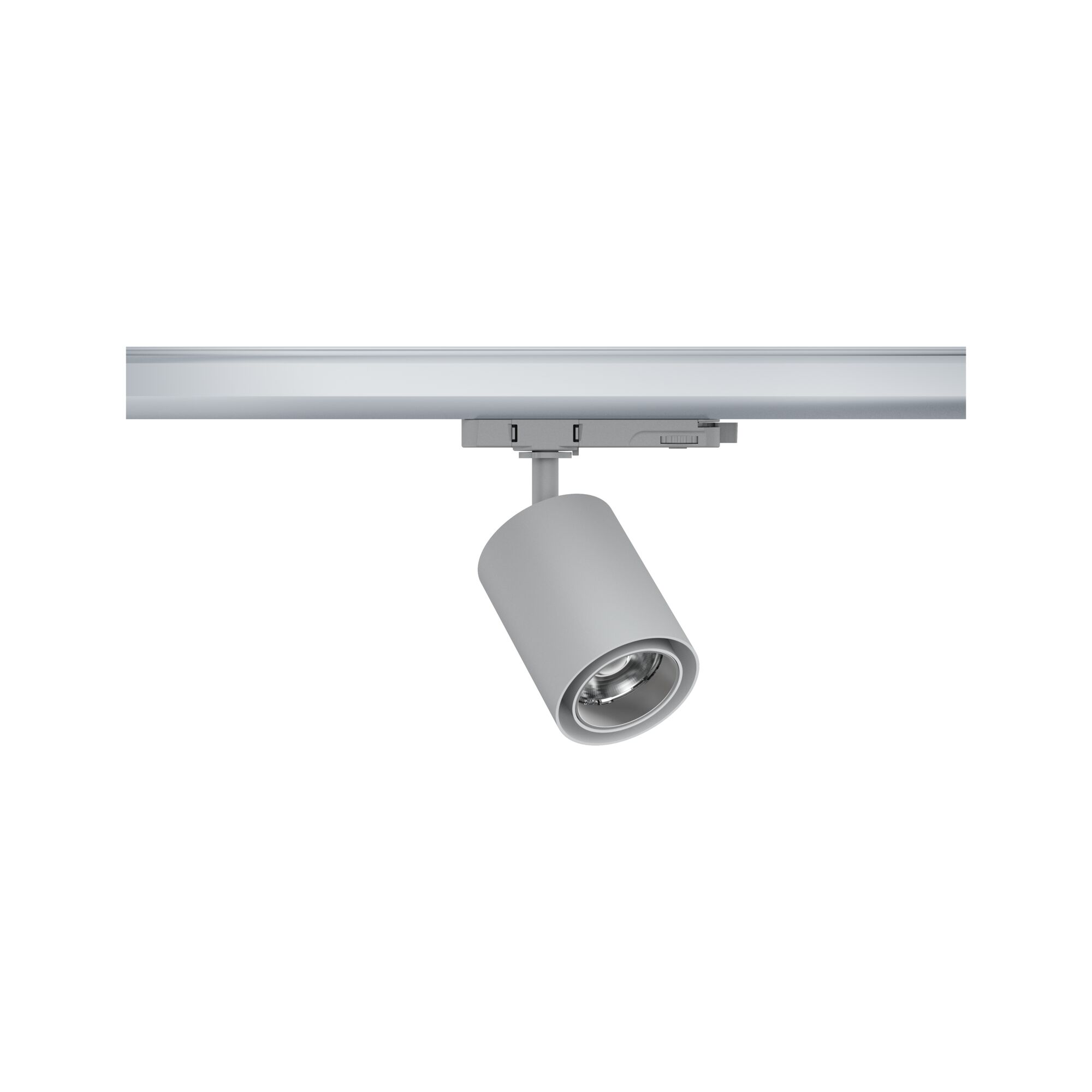

ProRail3 LED Rail spot Kratos 50° 1000lm 9W 3000K 230V Silver
The spot Kratos in silver has a beam angle of 50°. The light can be directed wherever you need it. The 9W spot is extremely versatile and casts every application area in the best light. The spotlight with 3000K is especially well-suited for lighting signs or information boards in the building. The versatile ProRail3 rail system offers flexible and individual lighting for spaces such as showrooms, doctor’s surgeries or restaurants. With only one power outlet, every corner of the room can be brightly illuminated.
- Color temperatur: 3000K - Warm white
- ProRail3 system luminaire incl. installation instructions
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Not compatible with URail!
- Plannable using DIALux (ULD data available)
- Important: Exclusively designed for commercial applications and professional installation
| Dimension | |
|---|---|

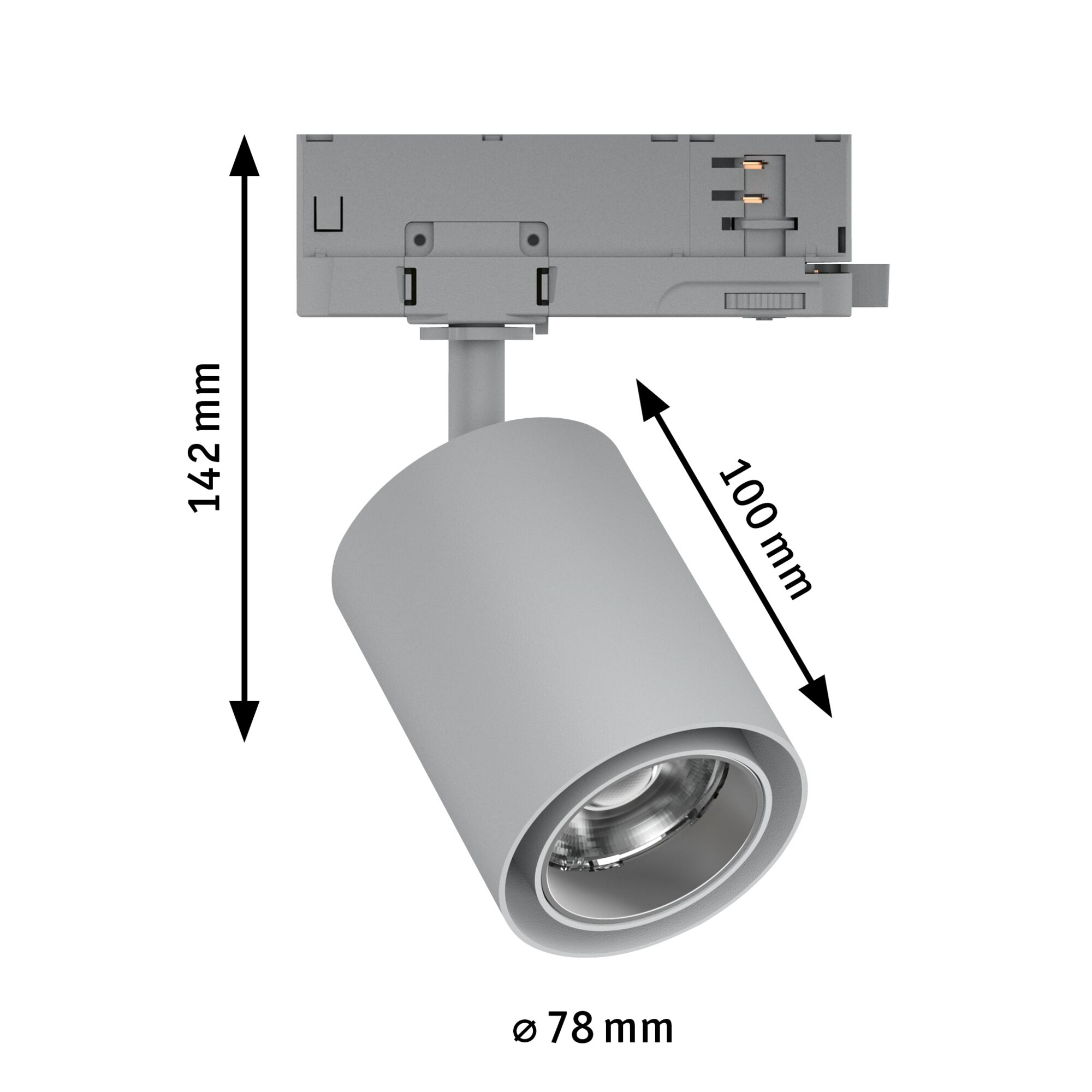

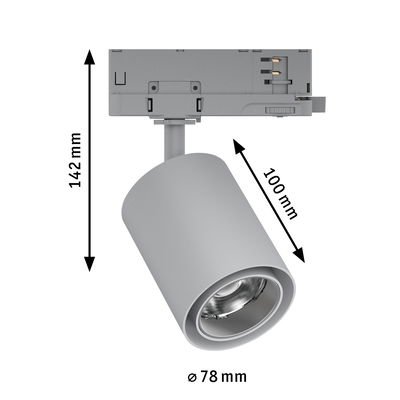

| Dimensions (Height x Width x Depth) | H: 142 x B: 158 x T: 132 mm |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Metal |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | D |
| Service life | |
|---|---|
| Lifetime | 50000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Beam angle | 50 ° |
| Usable luminous flux | 1000 lm |
| Luminous flux LED module | 1400 lm |
| color temp | 3000 K |
| colour consistency | SDCM 3 |
| Color rendering index | > 90 Ra |
| Lamp Features | |
|---|---|
| Component parts | 9 W |
| Swivel range | 90 ° |
| Technique | LED |
| IP protection | IP20 |
| Dimmable | No |
| Inclusive lamp | yes |
| Total Width | 158 mm |
| Incandescent Equivalent | 94 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 10 W |
| Transformer | |
|---|---|
| apparent power | 11 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
