Article-No.:
91368
ProRail3Connector
Line connector
94x24,5mm max. 3680W White
94x24,5mm max. 3680W White
- To bridge short distances between two ProRail3 rails
- Visually, hardly any difference to the rails
- Simple plug-in installation

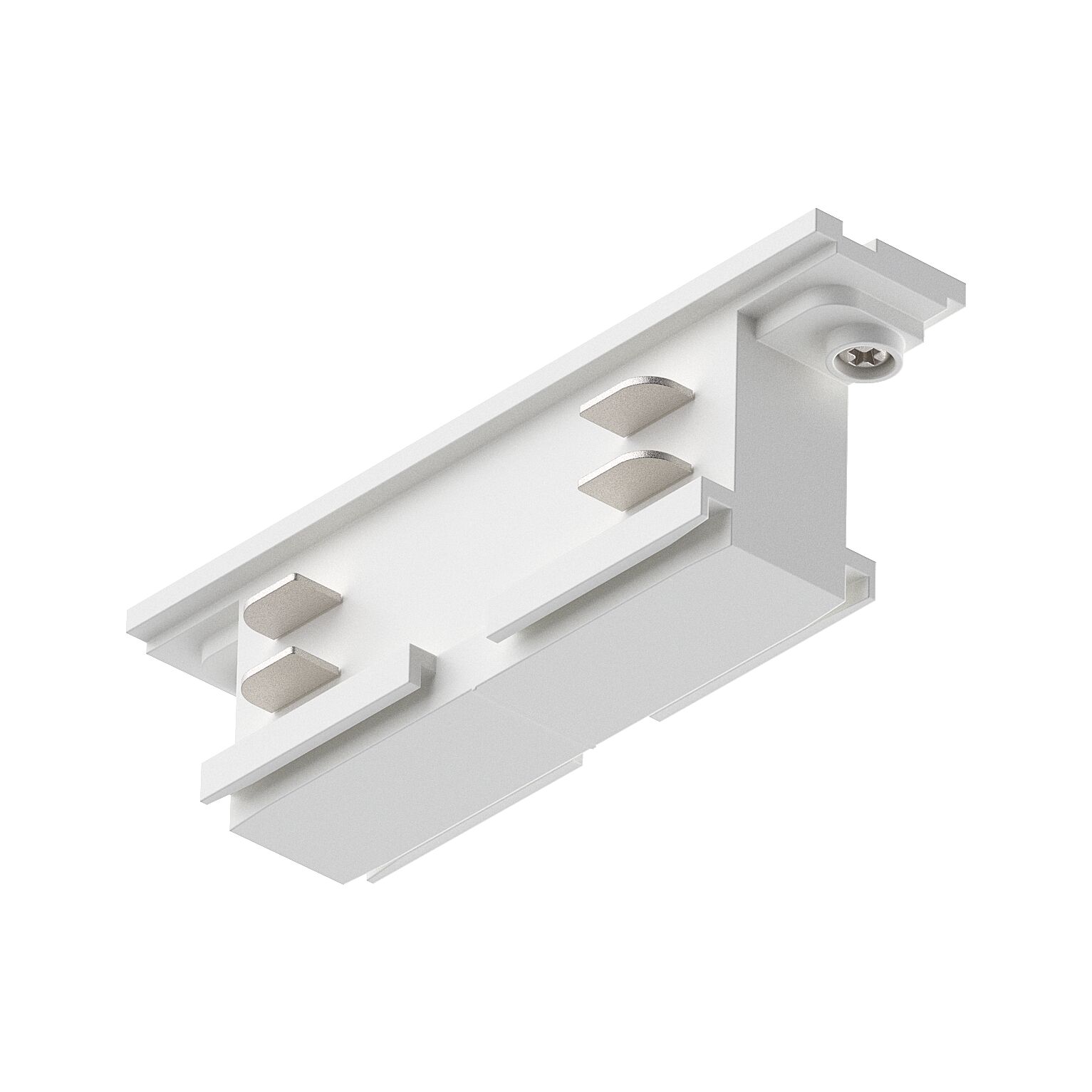

ProRail3 Connector Line connector 94x24,5mm max. 3680W White

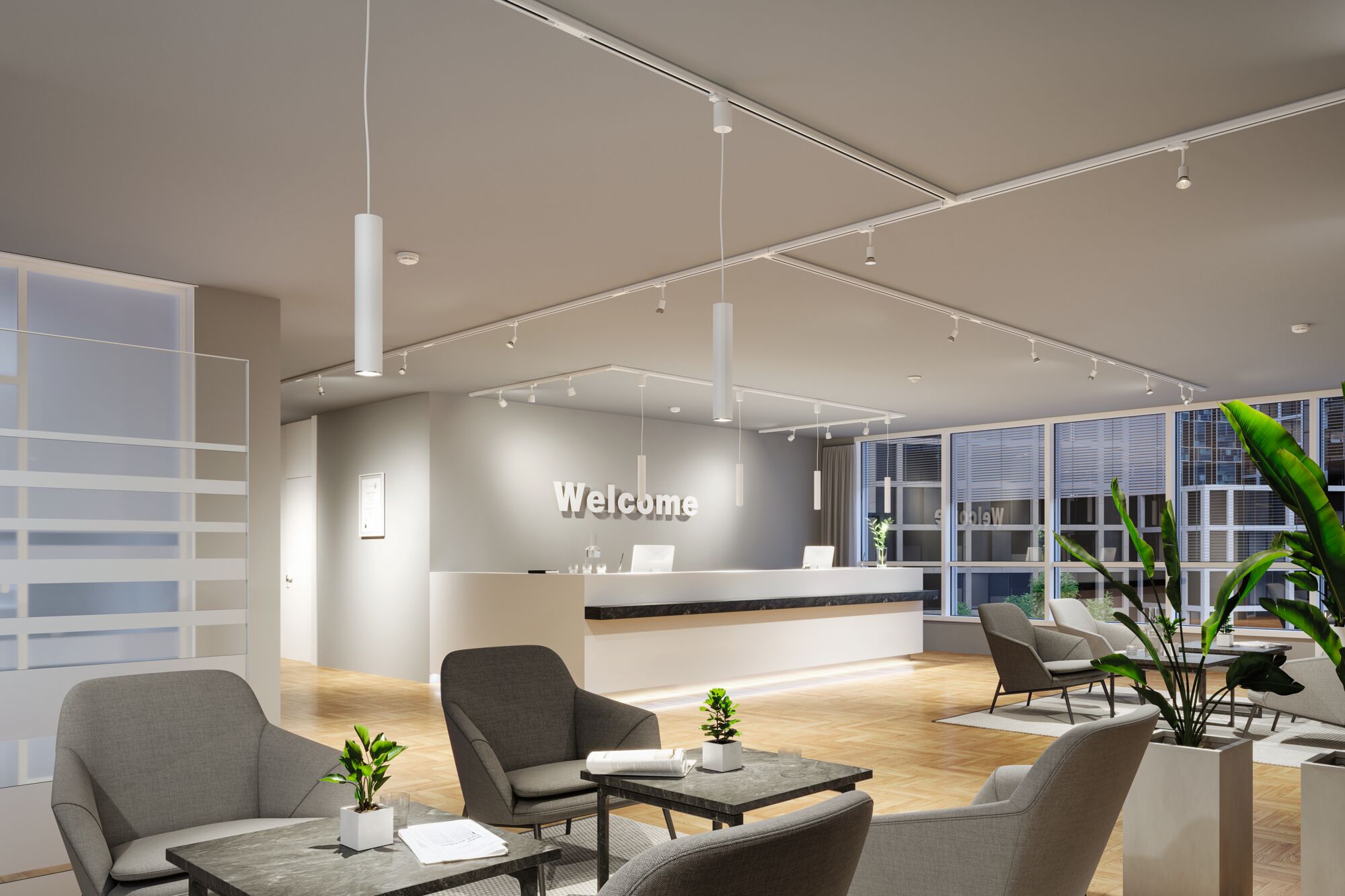

With this line connector in White from the ProRail3 series, you can create your very own three-phase rail system in combination with other components. The connector can be used to connect two rails to each other. The versatile ProRail3 rail system offers flexible and individual lighting for spaces such as showrooms, doctor’s surgeries or restaurants. With only one power outlet, every corner of the room can be brightly illuminated.
- To bridge short distances between two ProRail3 rails
- Visually, hardly any difference to the rails
- Simple plug-in installation
- Easy-to-clean surface
- Not compatible with URail!
- Important: Exclusively designed for commercial applications and professional installation
- Plannable using DIALux (ULD data available)
| Dimension | |
|---|---|

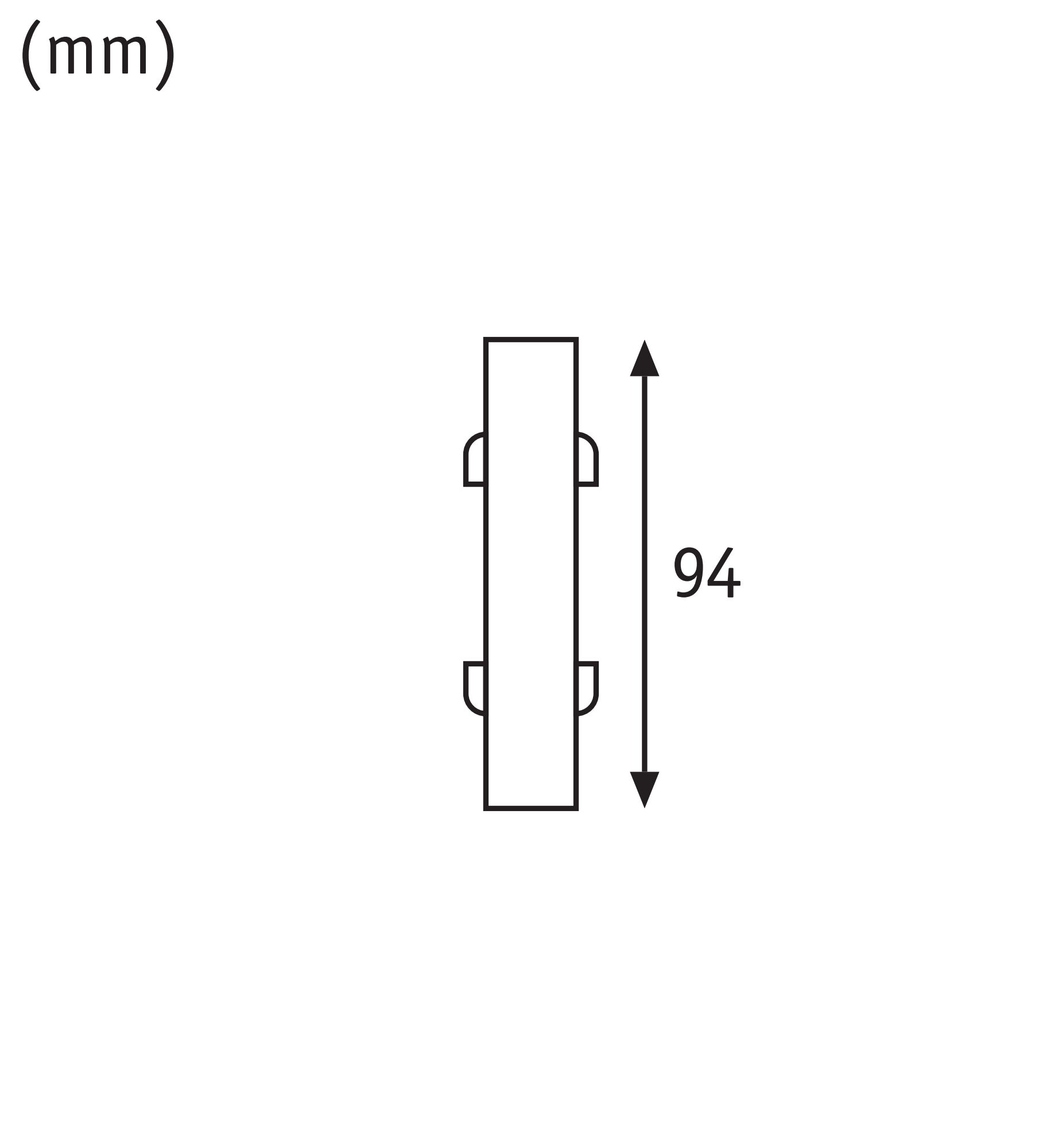

| Dimensions (Height x Width x Depth) | H: 32 x B: 94 x T: 24,5 mm |
| Usable length | 0 mm |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Metal, Plastic |
| Lamp Features | |
|---|---|
| Inclusive lamp | no |
| Lamp property | Ohne Leuchtmittel |
| Maximum wattage range | max. 3680 W |
| Protection class | Protection class I |
| Technique | Accessories without bulbs |
| Replacable | 7 not concerned. |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
