- Direct connector for monochrome strips (2-pole) with a width of 10 mm
- Cut-and-clamp technology on both sides
- Max. current: 6A

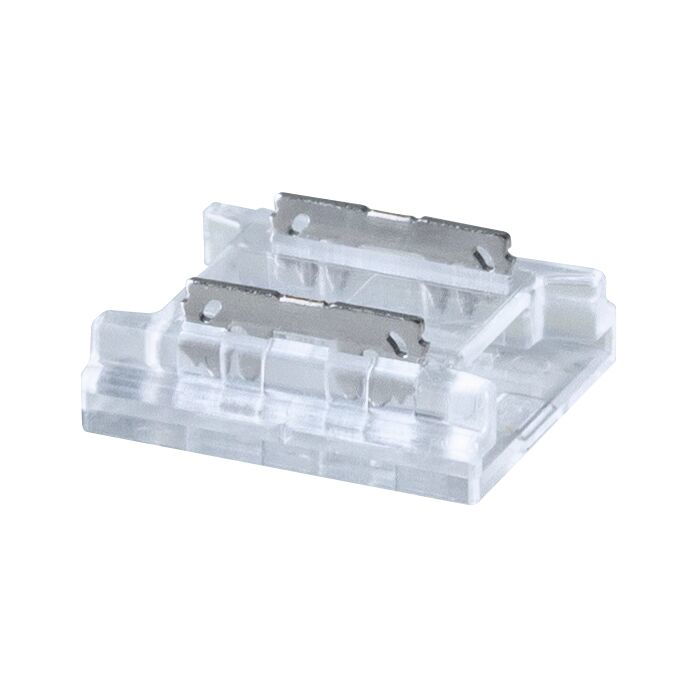

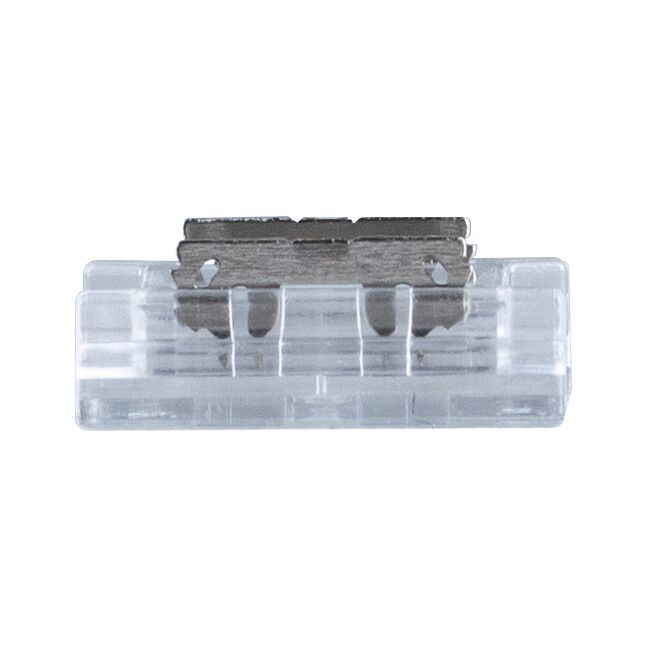

Pro Strip Connector Single Color 11,5x13,5mm max. 144W Transparent
The Pro direct connector Single Color Slim is specially designed for use with professional monochrome 24 V ProStrips Silver and Gold with a width of 10 mm. The connector has two poles and enables a direct connection on both sides using cut-and-clamp technology. It is suitable for monochrome strips and is characterised by its slim structure, which is specially designed for tight installation spaces such as the inside of a profile. Trimmed sections can be directly reconnected to the strip without disturbing the lighting effect using the direct connector.
- Direct connector for monochrome strips (2-pole) with a width of 10 mm
- Cut-and-clamp technology on both sides
- Max. current: 6A
- Slim – Suitable for tight installation spaces, e.g. inside a profile
- Specially for professional 24V Pro Strips Silver and Gold
- Suitable for COB & SMD strips
- No disruption of the lighting effect, thanks to transparent housing
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 5 x B: 11,5 x T: 13,5 mm |
| Design and Material | |
|---|---|
| Colour | Transparent |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Lamp Features | |
|---|---|
| Inclusive lamp | no |
| Lamp property | Ohne Leuchtmittel |
| Maximum wattage range | max. 144 W |
| IP protection | IP20 |
| Protection class | Protection class III |
| Technique | Accessories without bulbs |
| Replacable | 7 not concerned. |
| Adjustability | fixed |
| Voltage | 24 V |
| Voltage type | DC |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
