- Power supply for monochrome strips (2-pole) with a width of 8 mm
- Open cable ends/cut-and-clamp strip
- Max. current: 4A

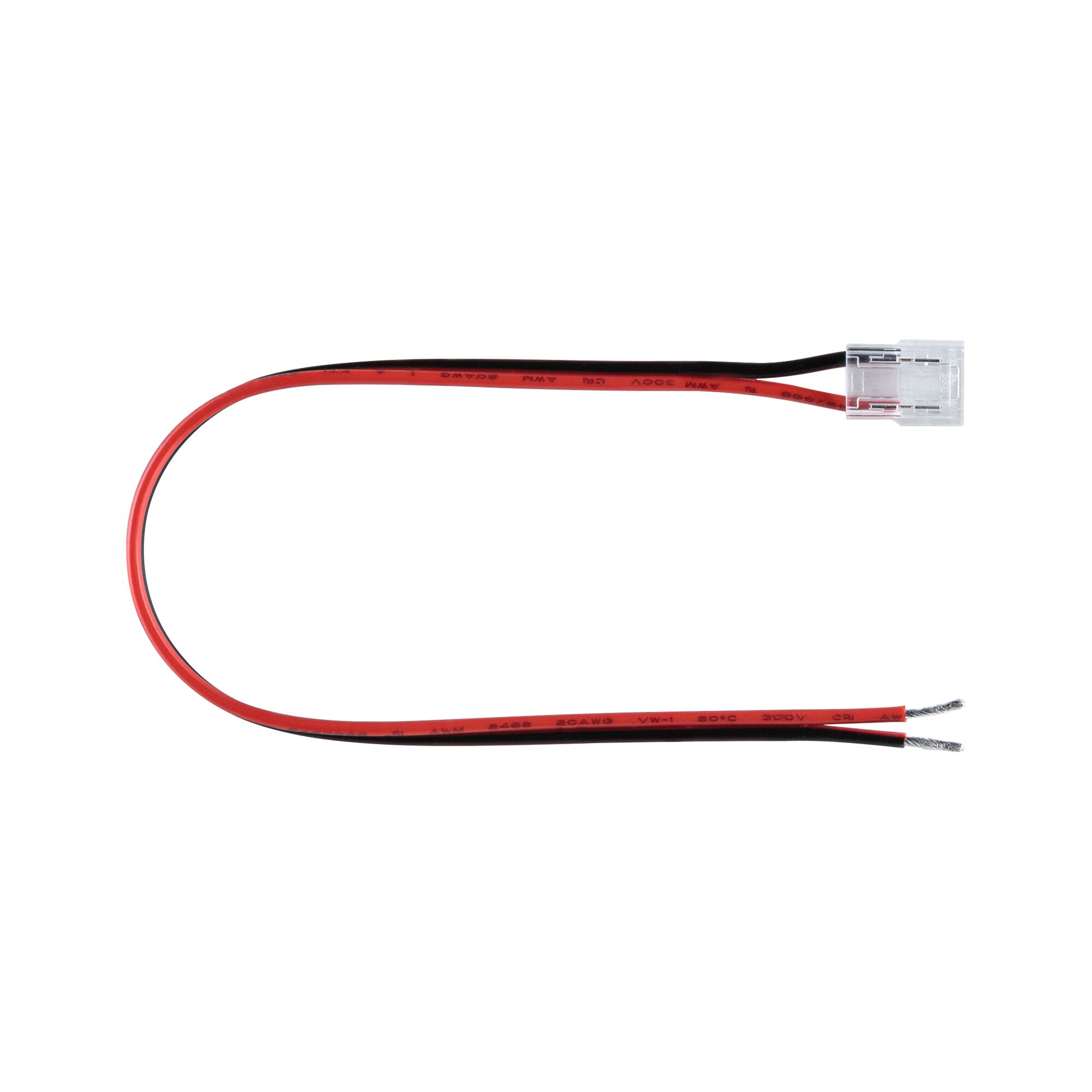

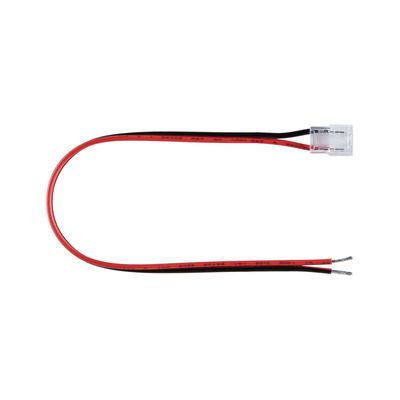

Pro Strip Connector Single Color 0,21m max. 96W Black/Red
The power supply Single Color Slim is specially designed for professional monochrome 24 V ProStrips Silver and Gold with a width of 8 mm, and is particularly suitable for tight installation spaces, e.g. inside a profile. It allows strips with open cable ends to be connected using cut-and-clamp technology. With this power supply (feed), trimmed strips can be safely and easily electrified without a connecting cable. The cable is 20 cm long.
- Power supply for monochrome strips (2-pole) with a width of 8 mm
- Open cable ends/cut-and-clamp strip
- Max. current: 4A
- Slim – Suitable for tight installation spaces, e.g. inside a profile
- Specially for professional 24V Pro Strips Silver and Gold
- Suitable for COB & SMD strips
- No disruption of the lighting effect, thanks to transparent housing
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 5,5 x B: 10 x T: 1 mm |
| Length | 0,215 m |
| Design and Material | |
|---|---|
| Colour | Red, Black |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Lamp Features | |
|---|---|
| Inclusive lamp | no |
| Lamp property | Ohne Leuchtmittel |
| Maximum wattage range | max. 96 W |
| IP protection | IP20 |
| Protection class | Protection class III |
| Technique | Accessories without bulbs |
| Replacable | 7 not concerned. |
| Adjustability | fixed |
| Voltage | 24 V |
| Voltage type | DC |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
