- Direct connector for strips with RGBW colour-change function (5-pole)
- Cut-and-clamp technology on both sides
- Max. current: 6A

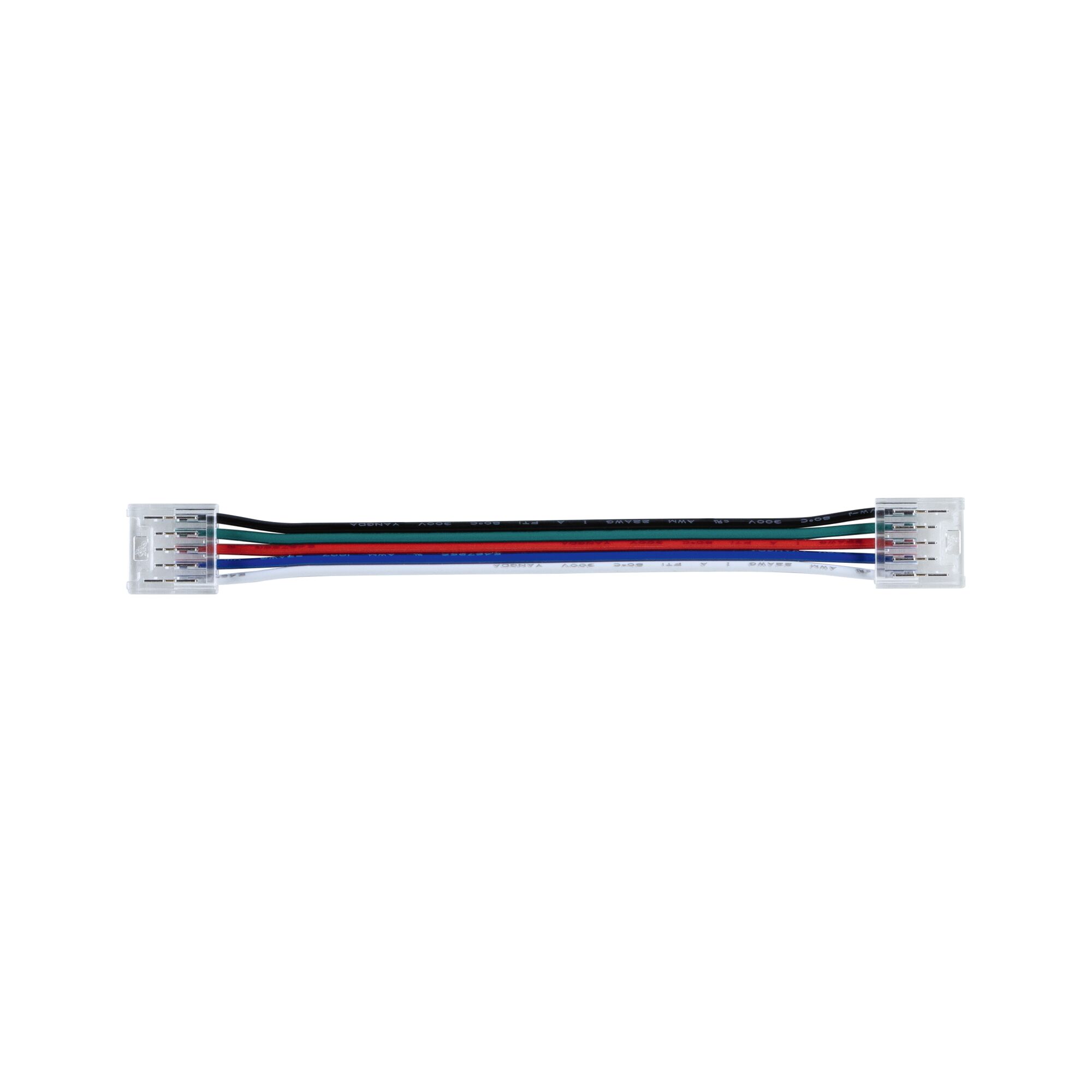

Pro Strip Connector RGBW Slim 0,13m max. 144W multicoloured
The Pro connector RGBW Slim Flex is specially designed for professional 24 V Pro Strips Silver and Gold with RGBW colour-change function, and can be installed in tight installation spaces, e.g. inside a profile. The connector has two poles and can be connected on both sides using cut-and-clamp technology. The connector can be used to connect multiple stripes and bridge distances, e.g. around corners. The cable is 10 cm long.
- Direct connector for strips with RGBW colour-change function (5-pole)
- Cut-and-clamp technology on both sides
- Max. current: 6A
- Slim – Suitable for tight installation spaces, e.g. inside a profile
- Specially for professional 24V Pro Strips Silver and Gold
- No disruption of the lighting effect, thanks to transparent housing
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 5,5 x B: 14 mm |
| Length | 0,126 m |
| net weight | 5 g |
| Design and Material | |
|---|---|
| Colour | multicoloured |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Lamp Features | |
|---|---|
| Inclusive lamp | no |
| light source property | Without light source |
| Technique | Accessories without bulbs |
| Adjustability | fixed |
| Maximum wattage range | max. 144 W |
| IP protection | IP20 |
| Protection class | Protection class III |
| Replacable | 7 not concerned. |
| Voltage | 24 V |
| Voltage type | DC |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
