Article-No.:
99940

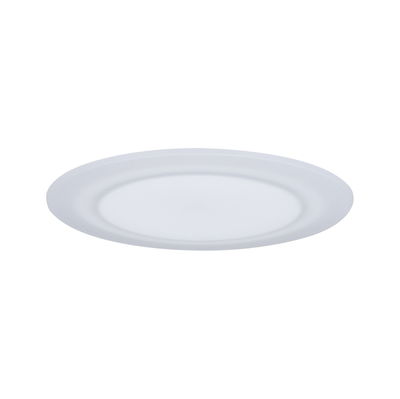

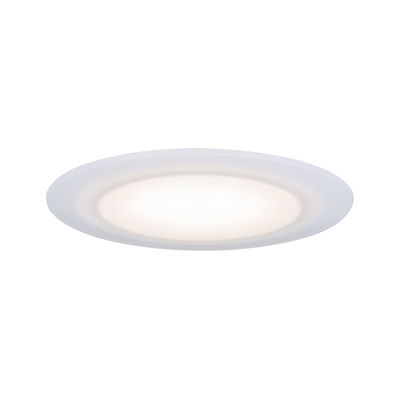

PremiumLED Recessed luminaire
Suon Basic Set
IP44 round 90mm 3x5W 3x450lm 230V dimmable 2700K Satin/White
IP44 round 90mm 3x5W 3x450lm 230V dimmable 2700K Satin/White

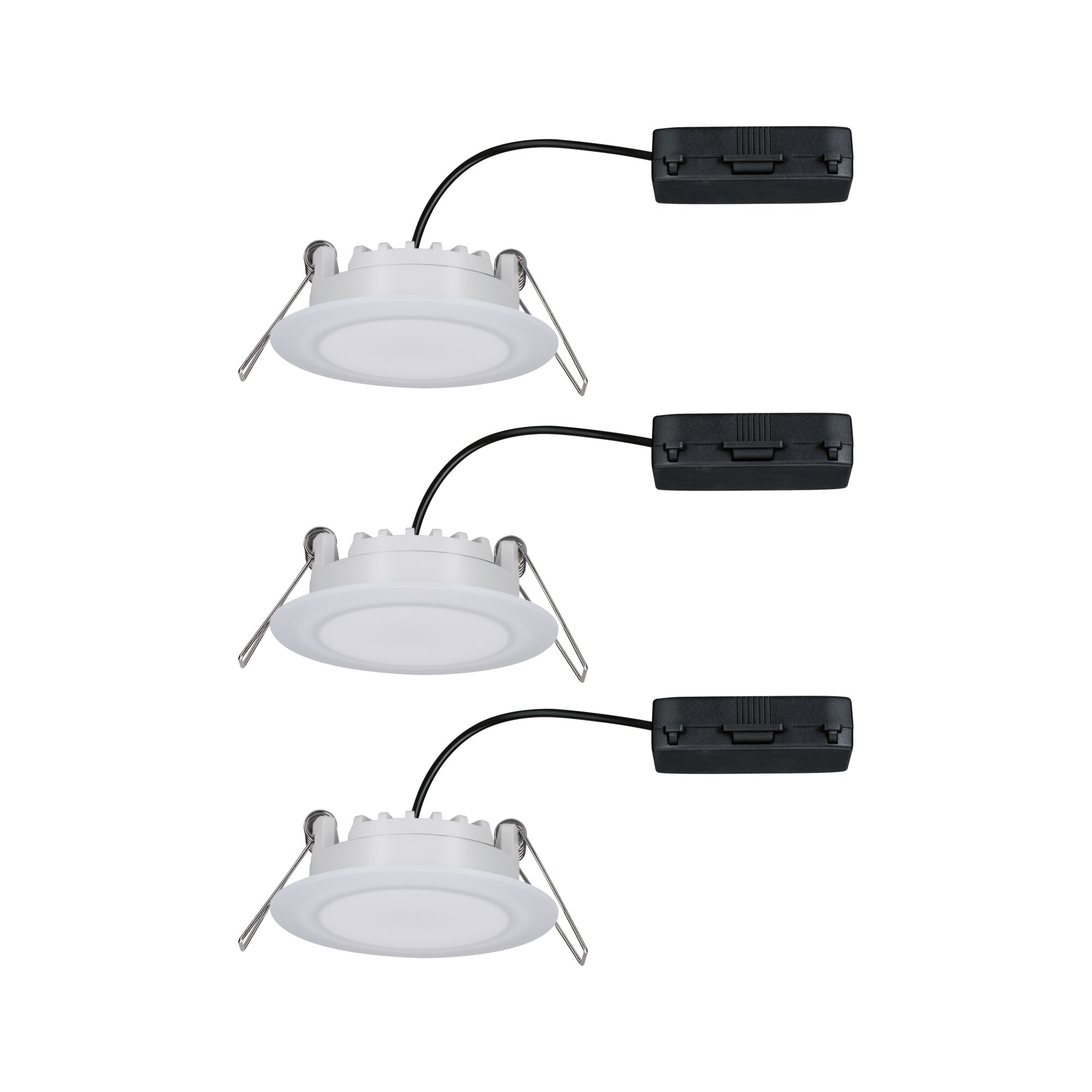

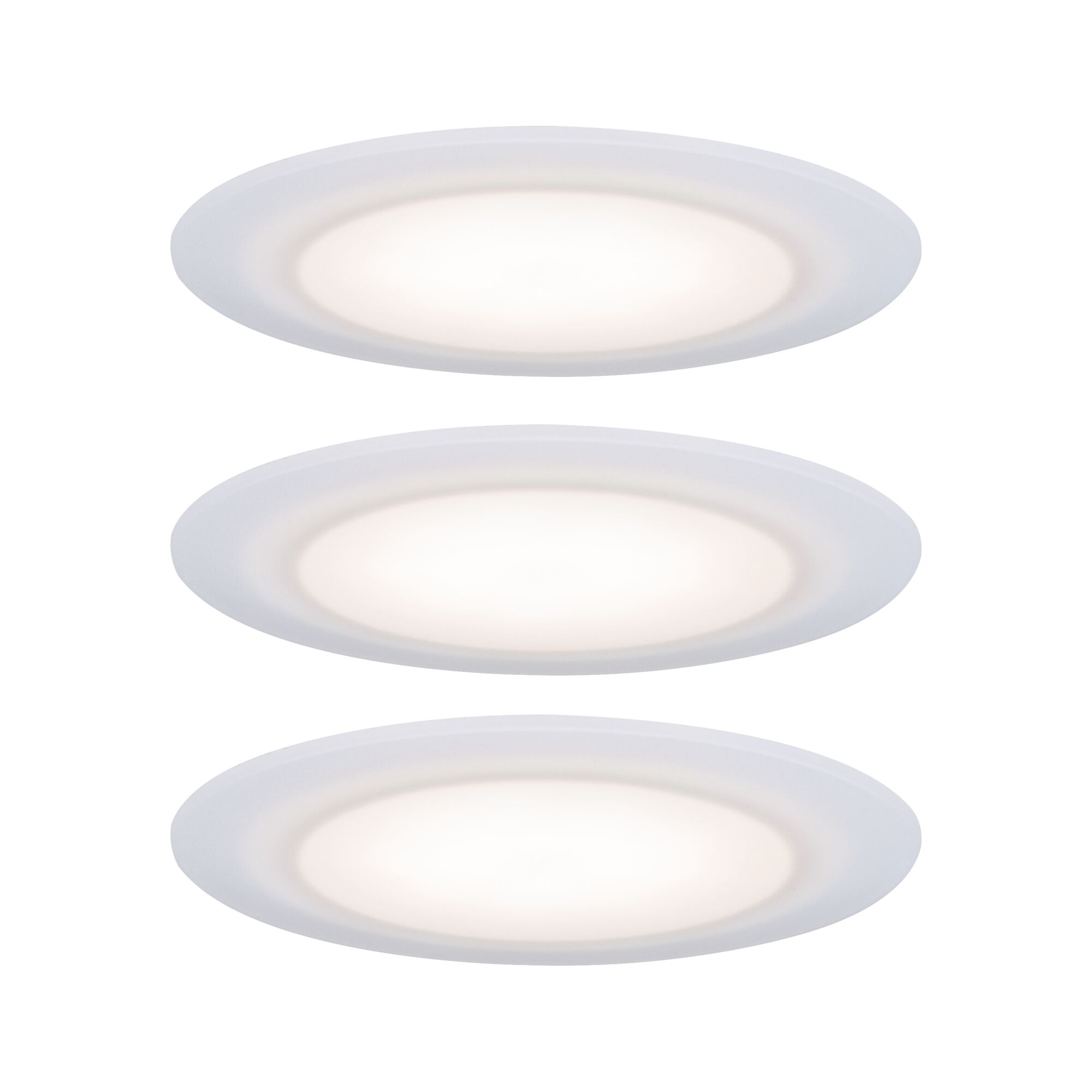

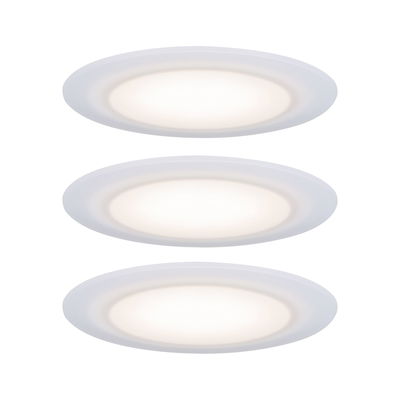

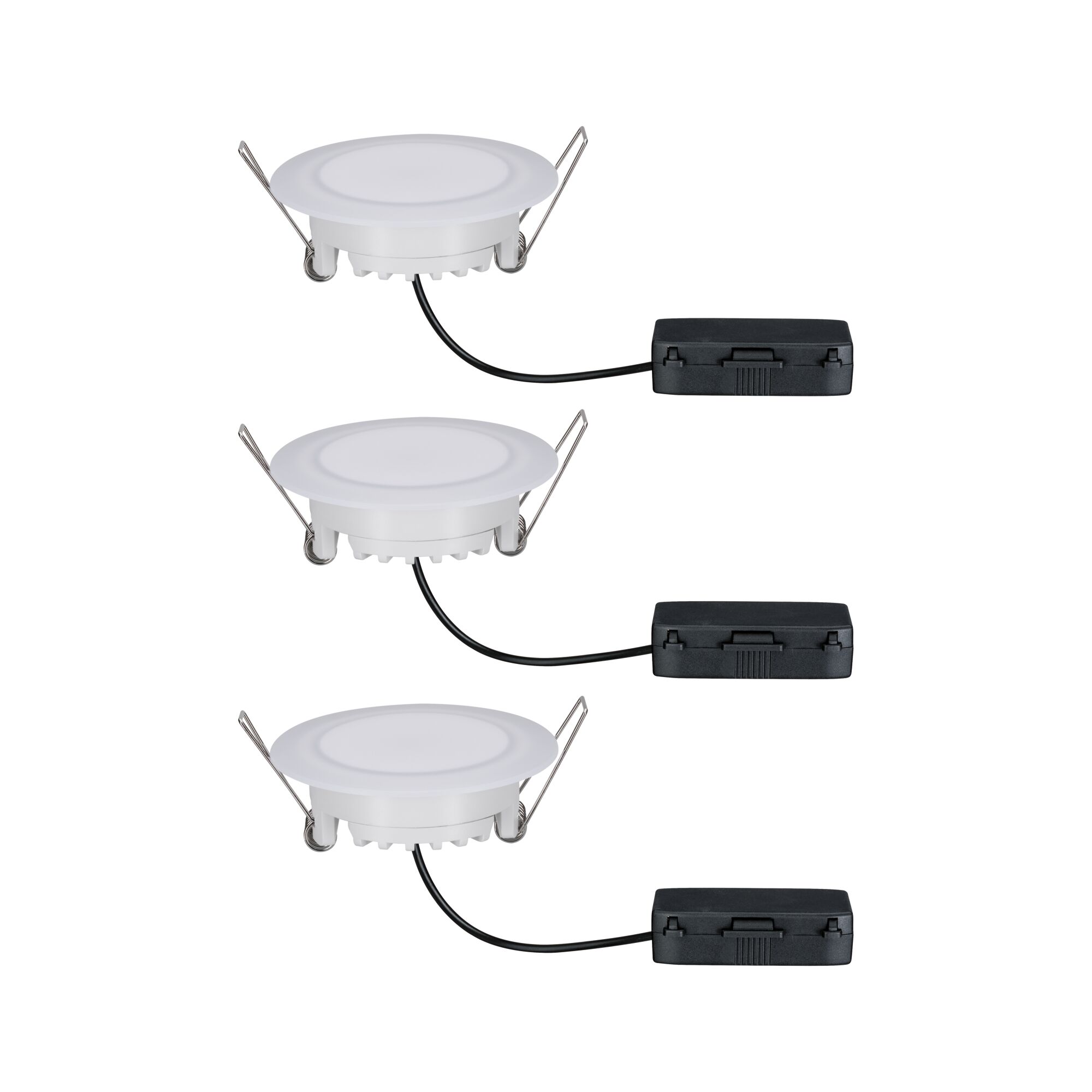

- Set of 3 luminaires incl. LED module
- Dimmable
- Color temperatur: 2700K - Warm white

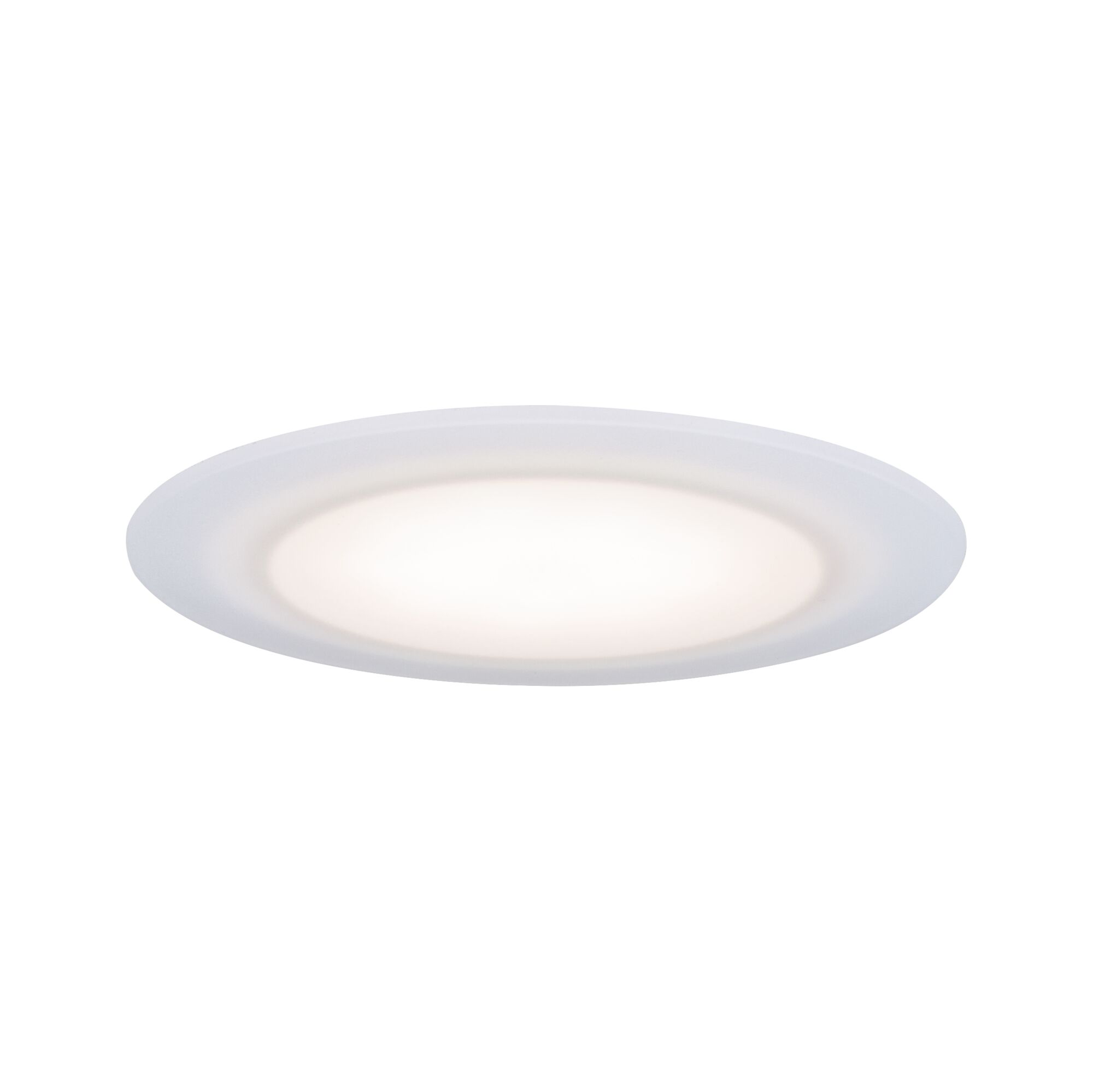

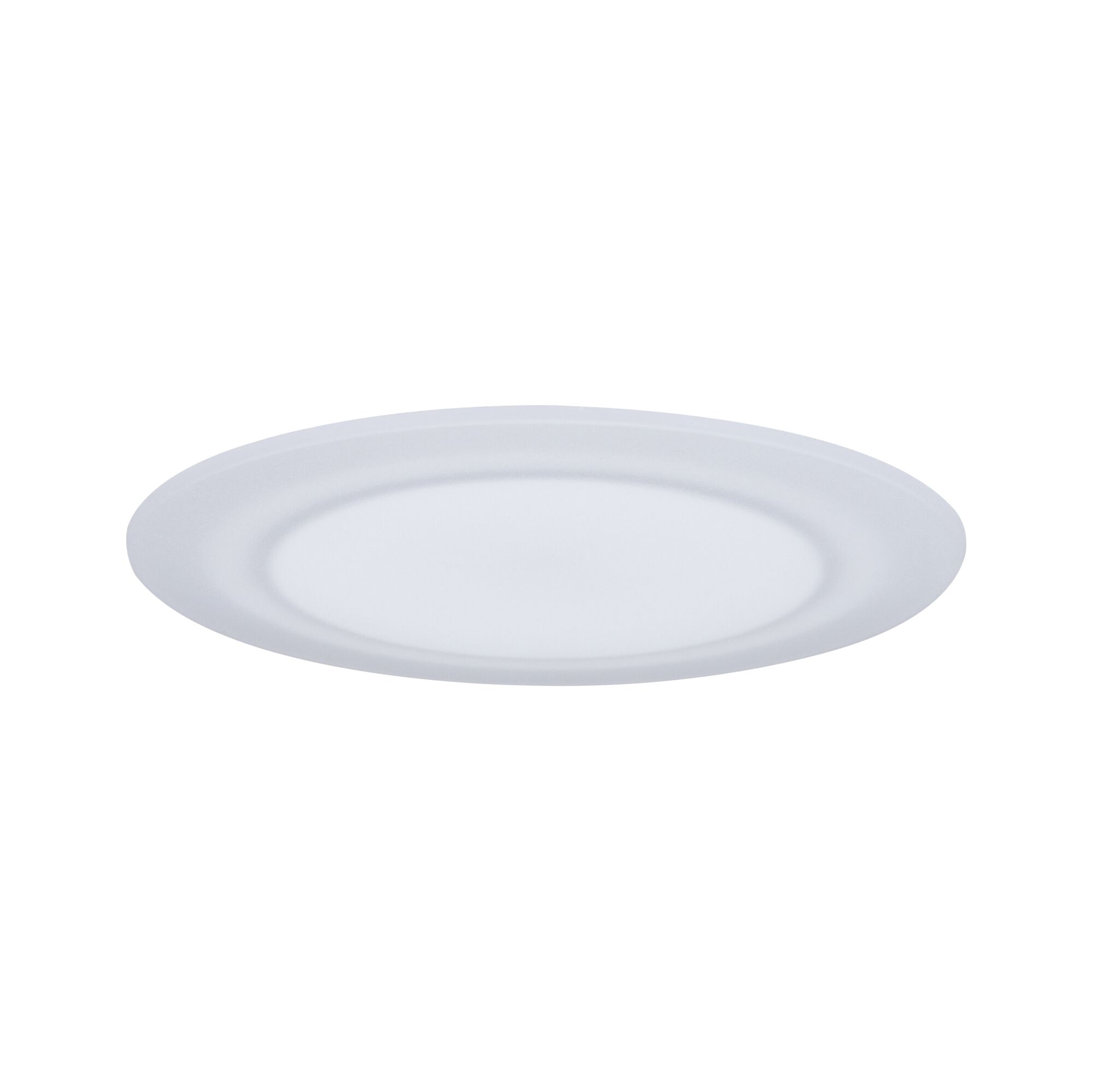

Premium LED Recessed luminaire Suon Basic Set IP44 round 90mm 3x5W 3x450lm 230V dimmable 2700K Satin/White

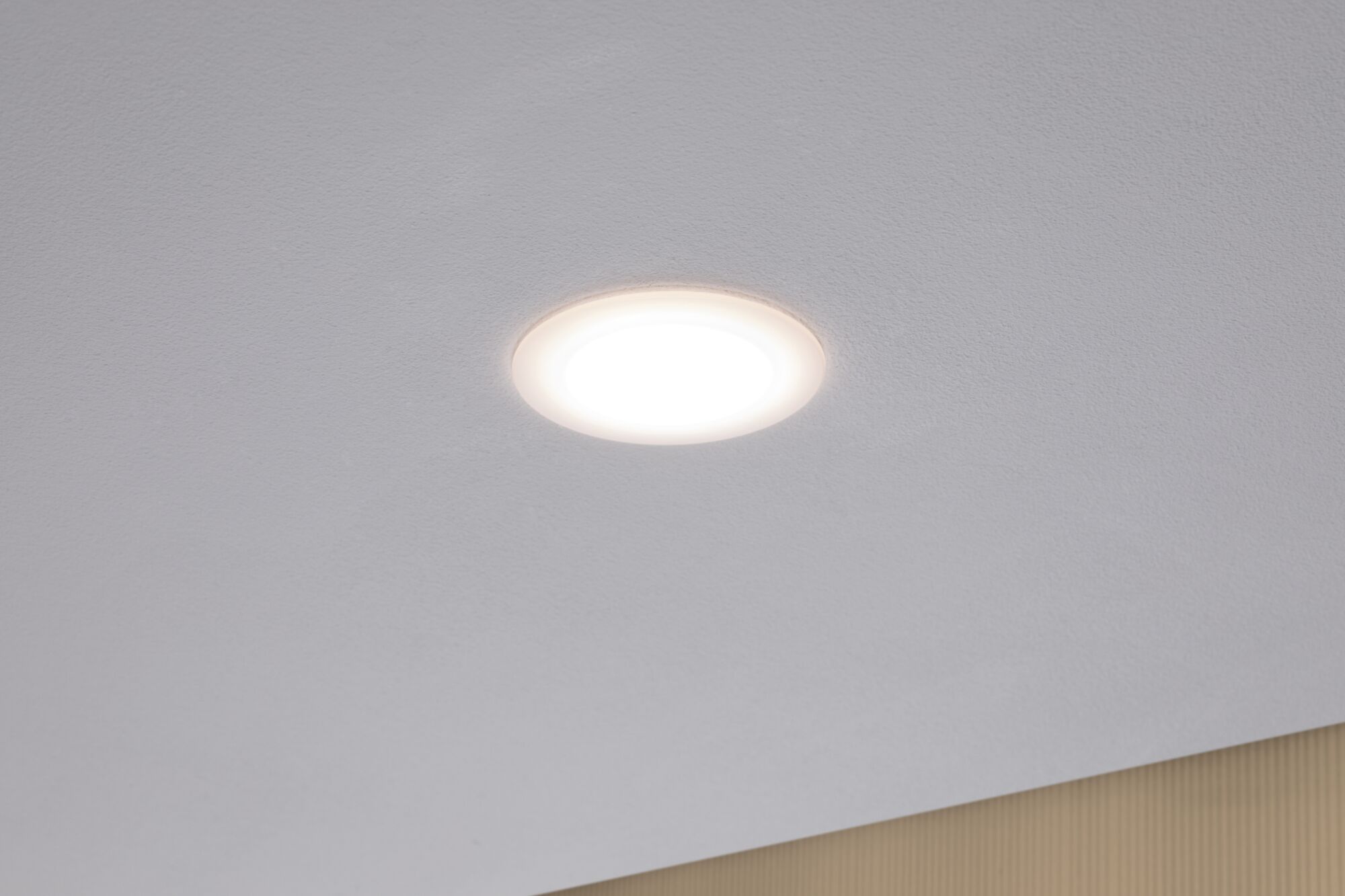

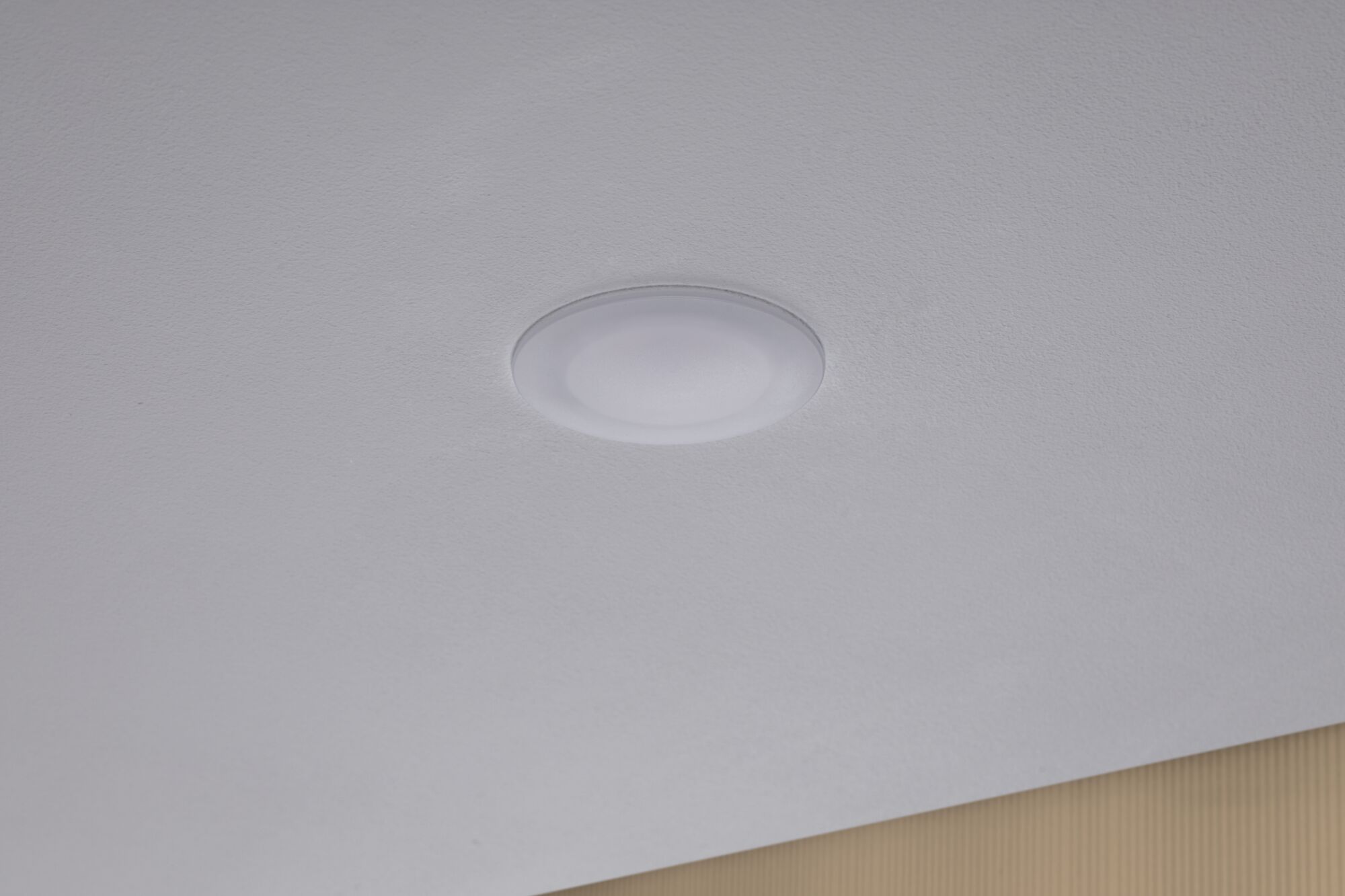

100% minimalist – Courtesy of their transparent materials, Suon premium frameless recessed luminaires are almost invisible while switched off. The entire lighting body forms a single lighting source spread over its entire surface, achieving a uniform light distribution.
- Set of 3 luminaires incl. LED module
- Dimmable
- Color temperatur: 2700K - Warm white
- IP protection: IP44 splash-protected

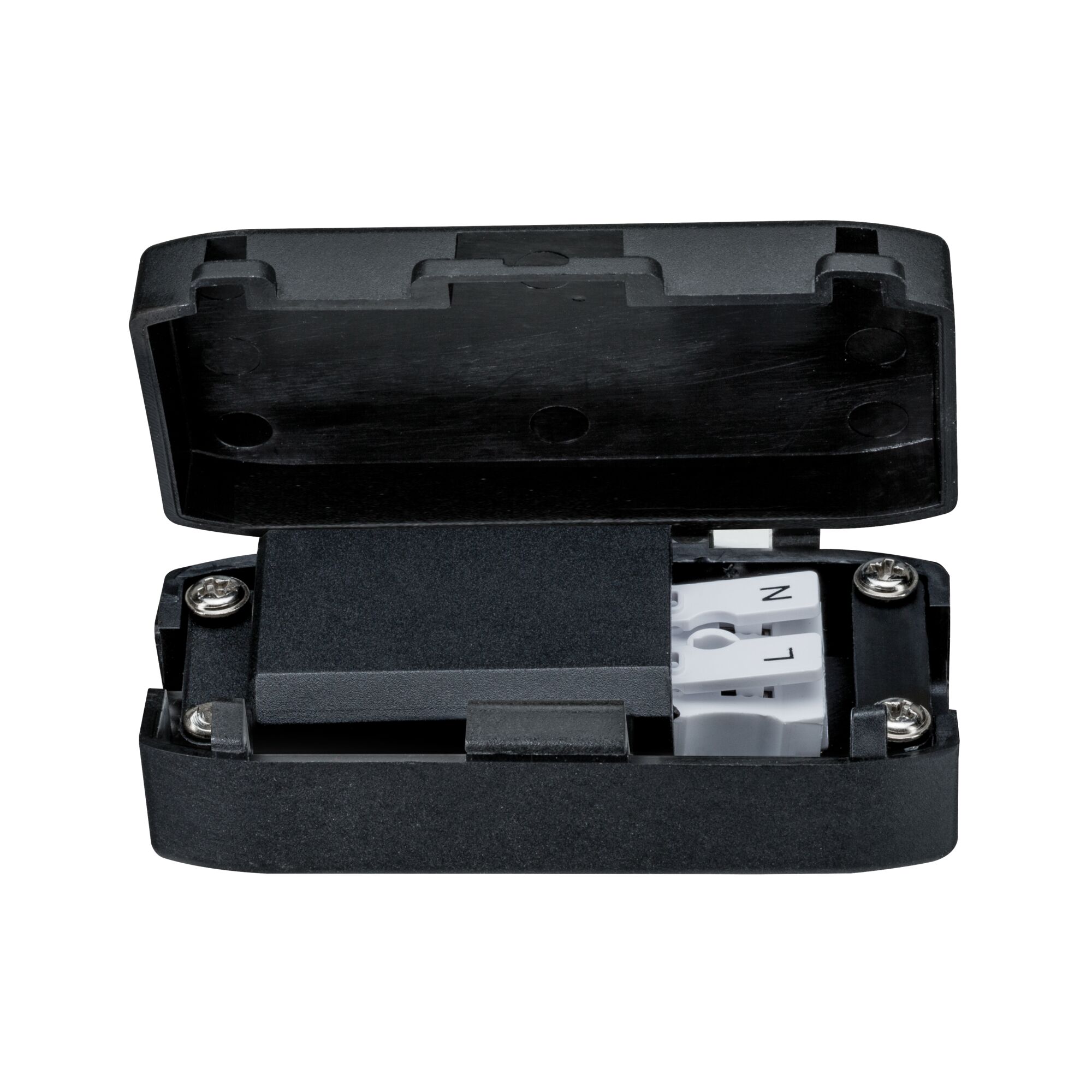

- For 230 V direct connection
| Dimension | |
|---|---|
| Depth of hollow wall | 30 mm, 30 mm |
| Total Mounting depth | 45 mm |
| Dimensions (Height x Width x Depth) | H: 5 mm |
| Ø | 90 mm |
| Mounting hole | 68 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | White, Satin |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | RC Merten MEG 5136-0000, RLC Müller Paladin 873 030 LED |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| color temp | 2700 K |
| Farbtemperatur_Text | Warmweiß |
| Usable luminous flux | 450 lm |
| Luminous flux LED module | 650 lm |
| Lamp Features | |
|---|---|
| Component parts | 5 W |
| Technique | LED |
| IP protection | IP44 ceiling mounting |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | yes |
| Incandescent Equivalent | 48 W |
| Adjustability | fixed |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Transformer | |
|---|---|
| apparent power | 8 VA |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
