Article-No.:
98850
Plug & ShinePower supply
Power supply 230/24V DC
IP67 230/24V 150VA Silver
IP67 230/24V 150VA Silver
- 24 V power supply

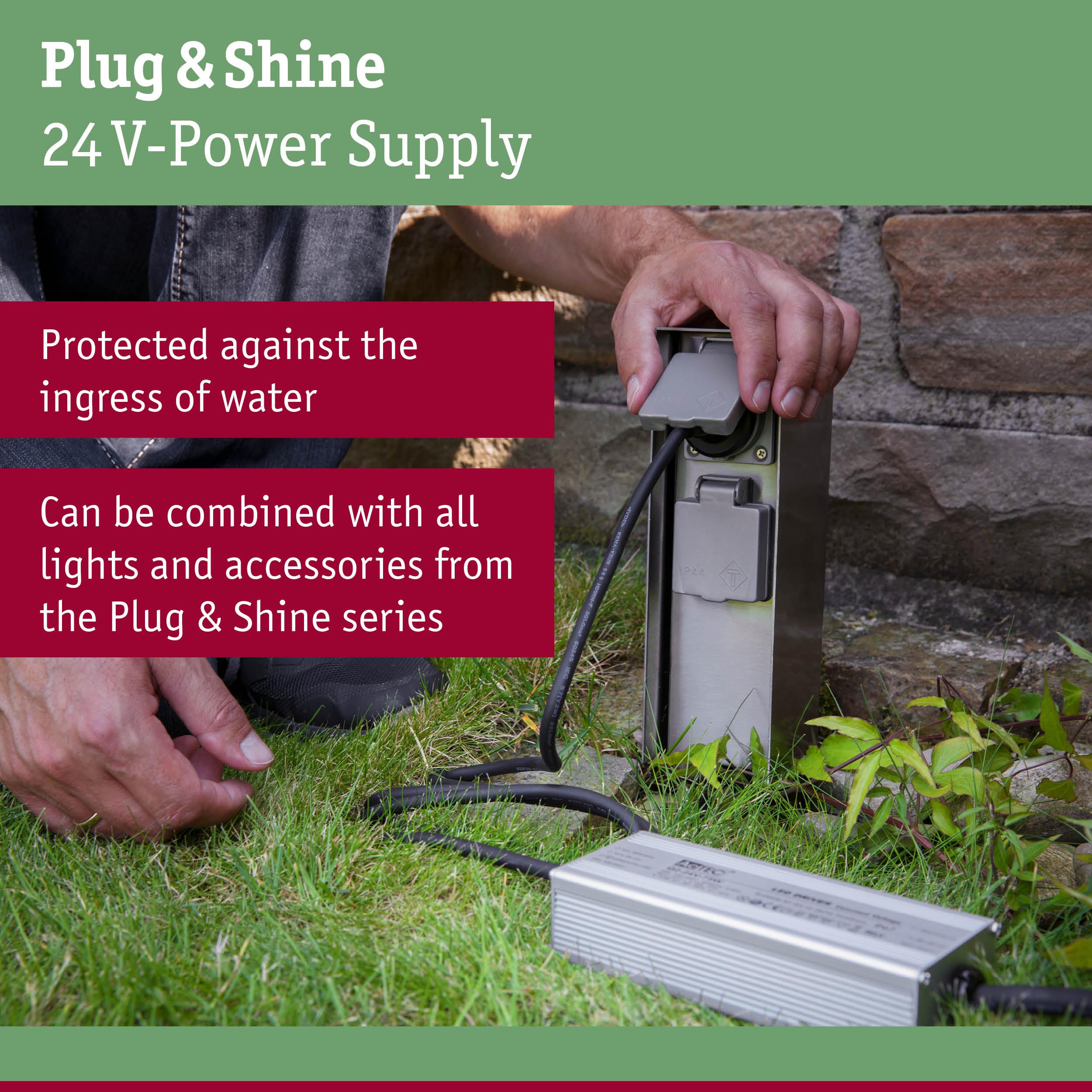

- IP67 protected against immersion, for damp spaces, outdoors or showers and bathtubs
- Compatible with all luminaires and accessories in the Plug & Shine series

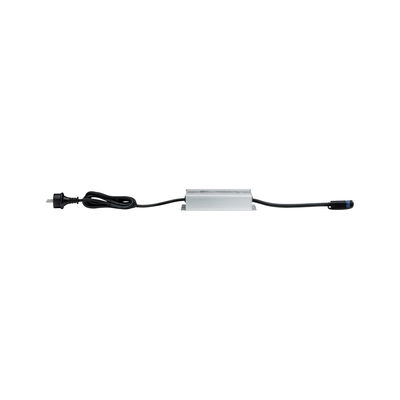

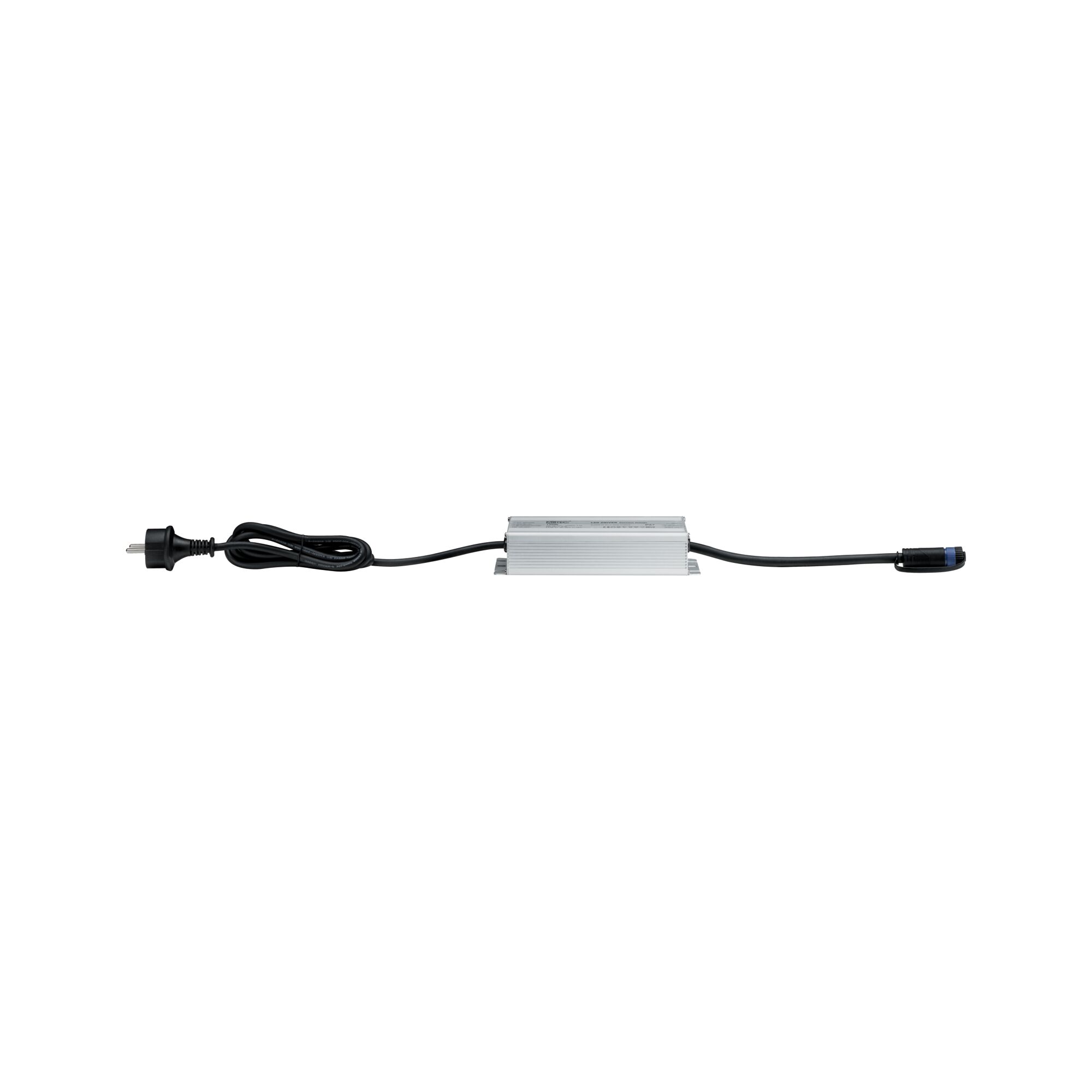

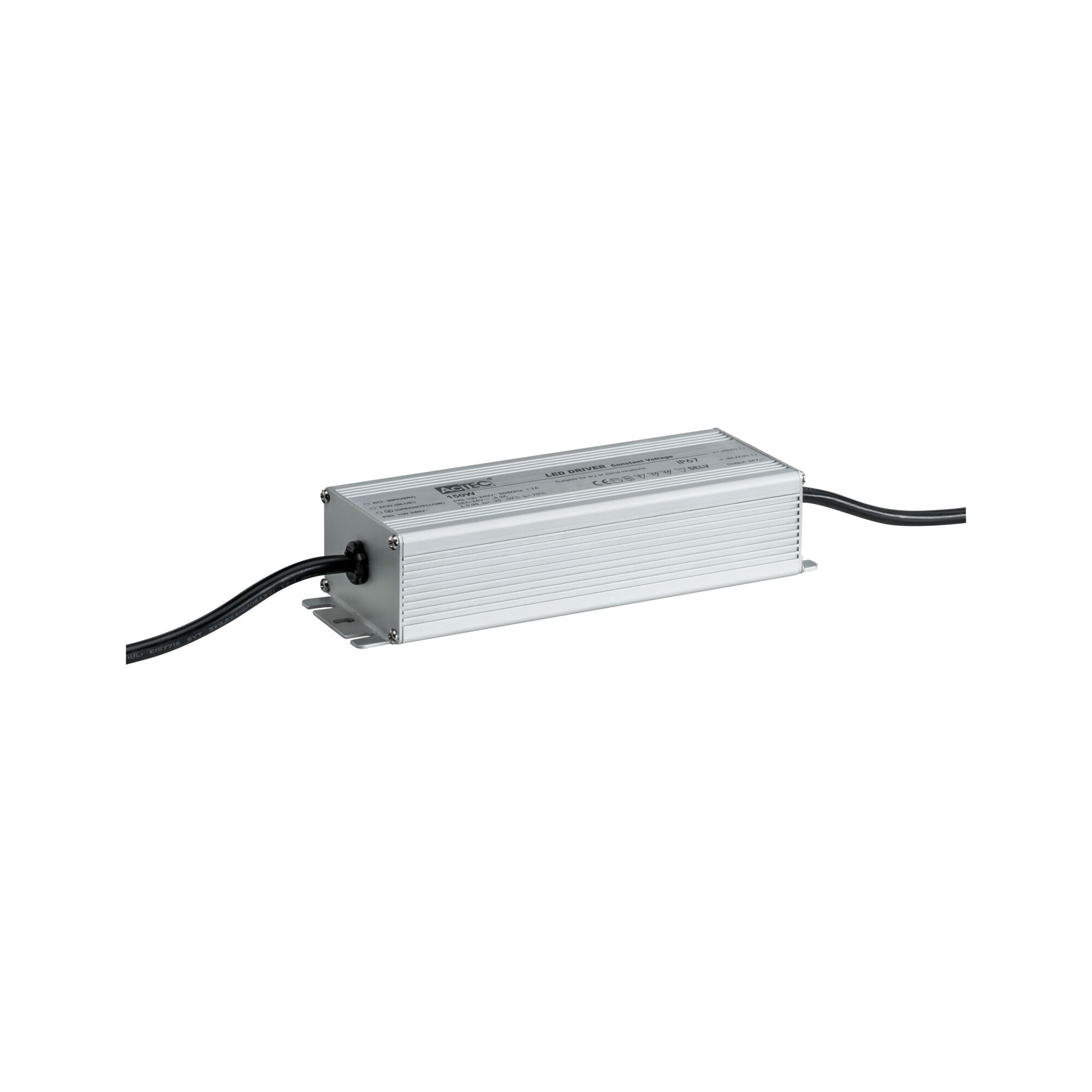

Plug & Shine Power supply 230/24V DC IP67 230/24V 150VA Silver

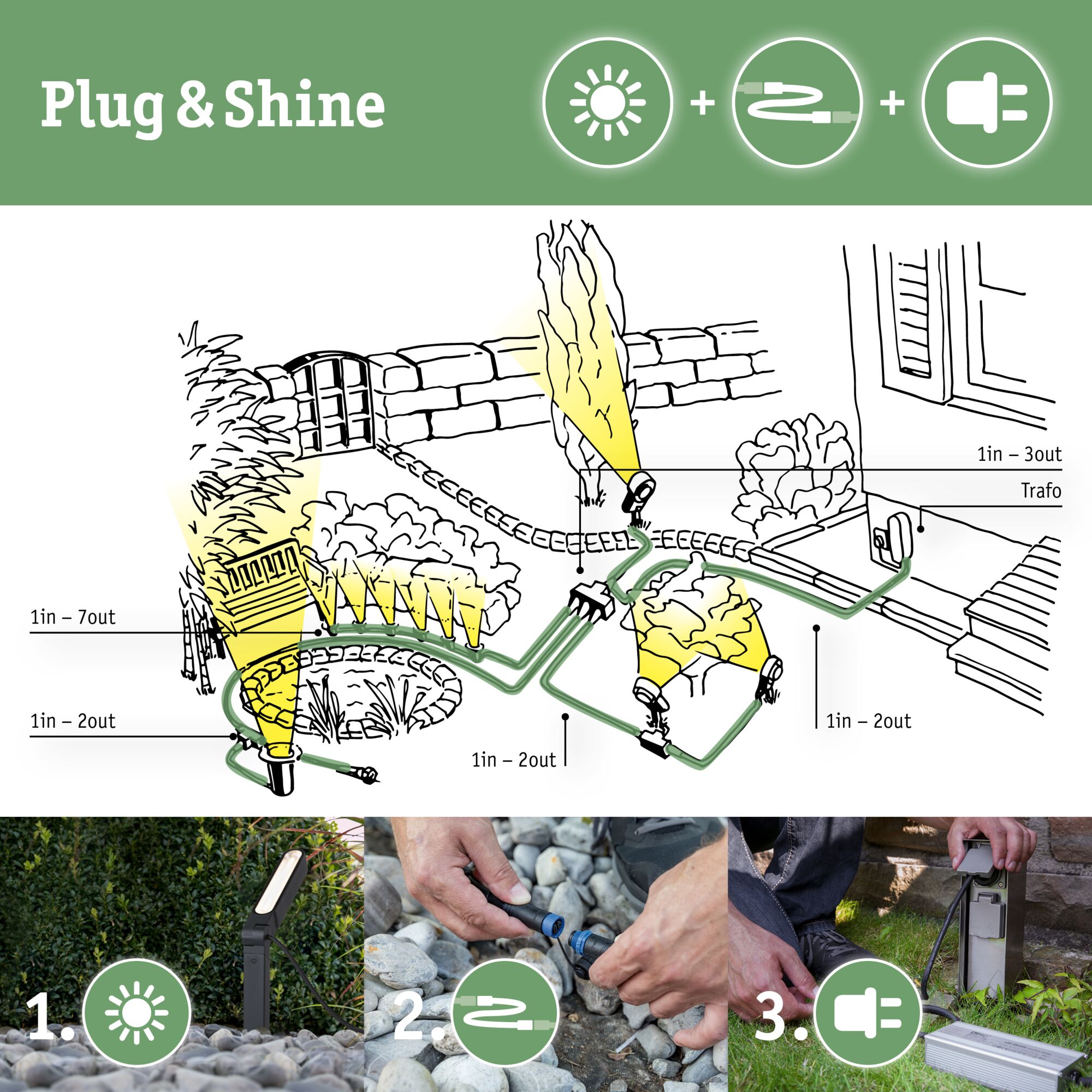

The Plug & Shine transformer with 150 watts is the ideal base for your outdoor lighting installation around the house, patio and garden. Combine different Plug & Shine luminaires and connectors any way you like, up to a maximum system length of 50 metres.
- 24 V power supply
- IP67 protected against immersion, for damp spaces, outdoors or showers and bathtubs
- Compatible with all luminaires and accessories in the Plug & Shine series
| Dimension | |
|---|---|

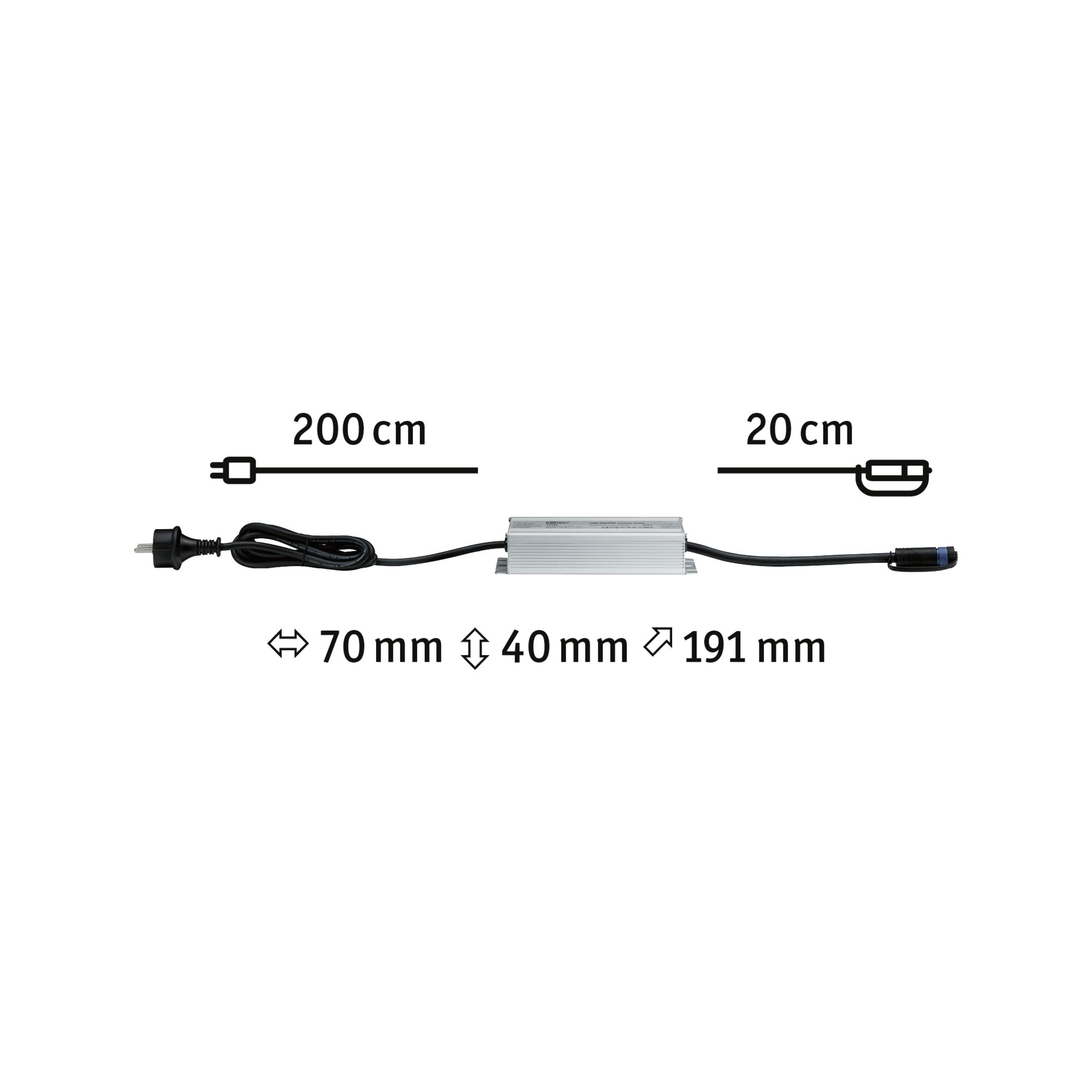

| Dimensions (Height x Width x Depth) | H: 40 x B: 70 x T: 191 mm |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Aluminium |
| Installation | |
|---|---|
| Maximum cable length | 50 m |
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Plug | Safety plug (type EF-CEE 7/7) |
| Features | |
|---|---|
| Integrated temperature monitor and electronic fuse | Integrated temperature monitor and electronic fuse |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Technique | LED |
| IP protection | IP67 |
| Dimmable | No |
| Inclusive lamp | no |
| Maximum wattage range | max. 150 W |
| protection class | protection class I |
| Replacable | 7 not concerned. |
| Transformer | |
|---|---|
| Transformer power | 150 VA |
| Integrated short circuit protection | Integrated short circuit protection |
| integrated overload protection | integrated overload protection |
| Transformer height | 40 mm |
| Transformer width | 70 mm |
| Transformer depth | 191 mm |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
