Article-No.:
94275
Plug & Shine
LED Recessed floor luminaire
Smart Home Zigbee 3.0
RGBW Basic Set
IP65 RGBW+ 3x3,6W Silver
IP65 RGBW+ 3x3,6W Silver
- Can be controlled with the Smart Home Zigbee remote control
- Usable with smart home gateways that have a Zigbee interface

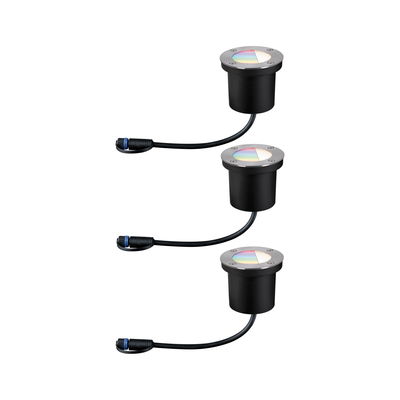

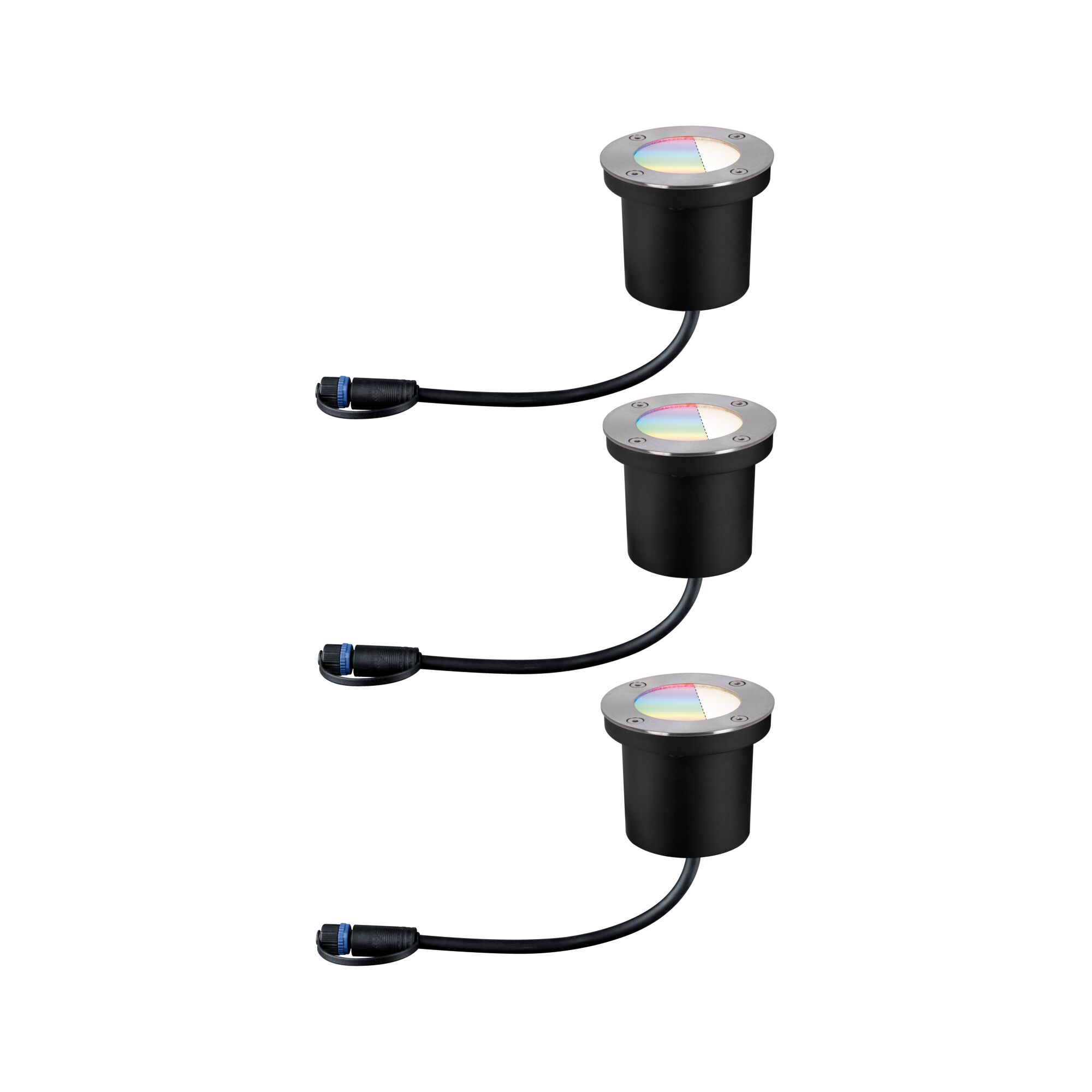

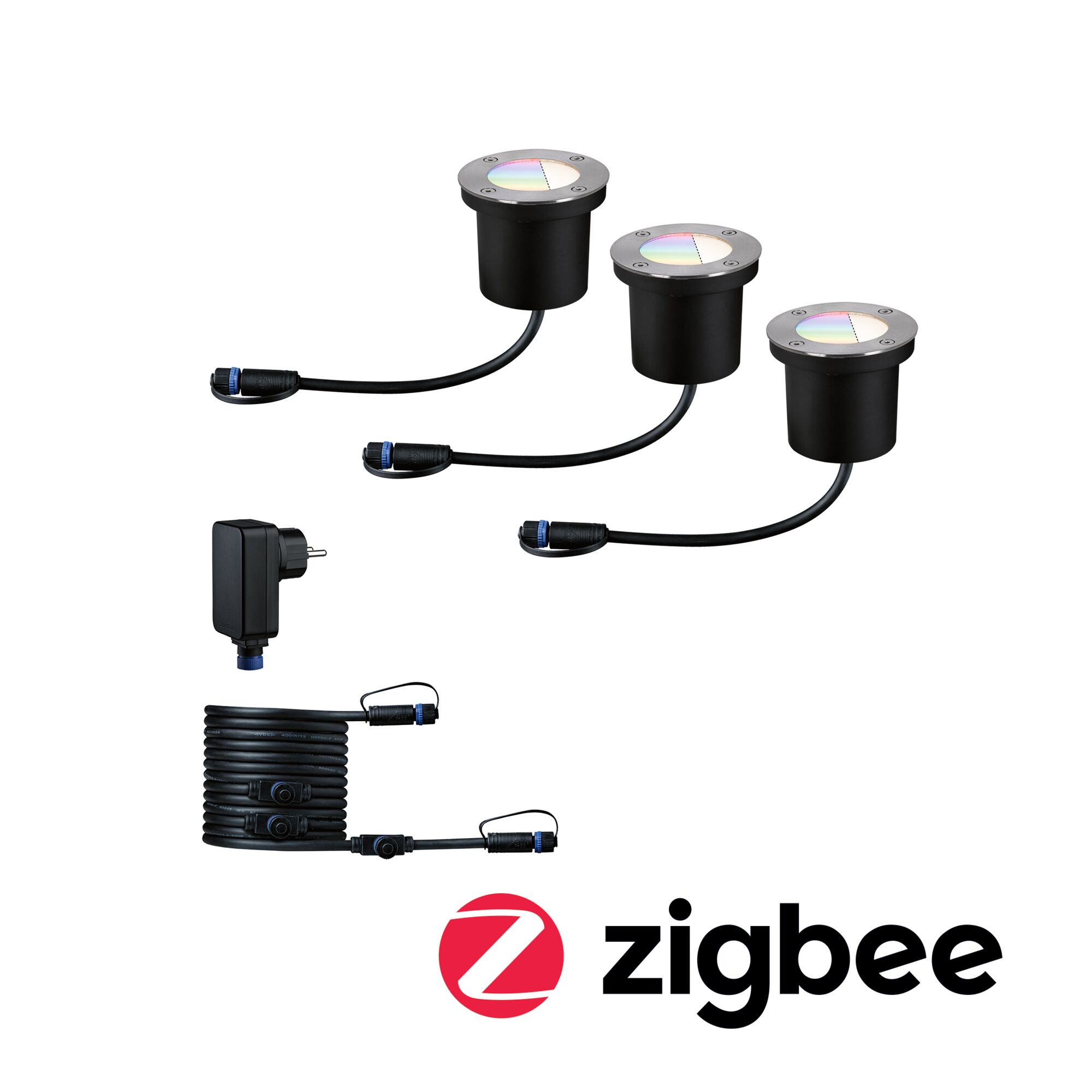

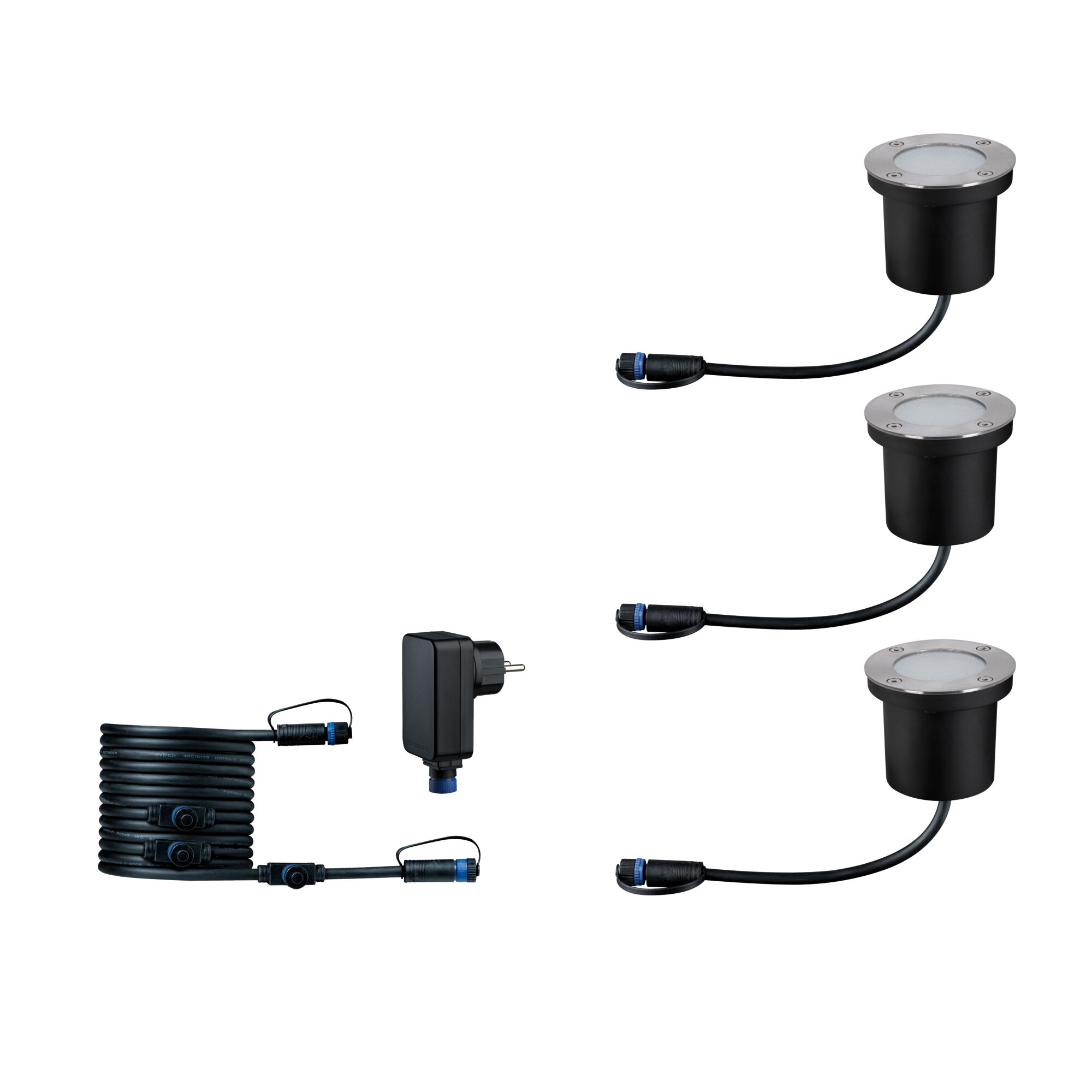

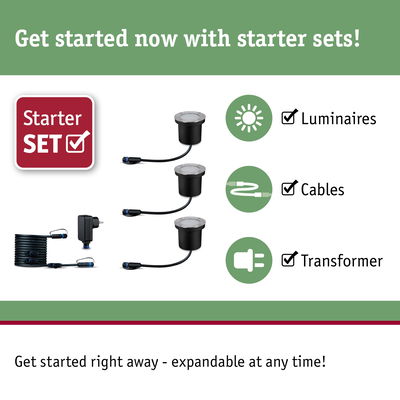

- Plug & Shine basic set consisting of three luminaires, five meters of connecting cable and transformer
Plug & Shine LED Recessed floor luminaire Smart Home Zigbee 3.0 RGBW Basic Set IP65 RGBW+ 3x3,6W Silver

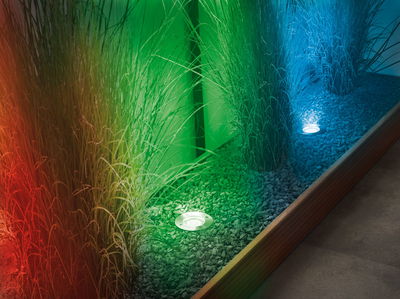

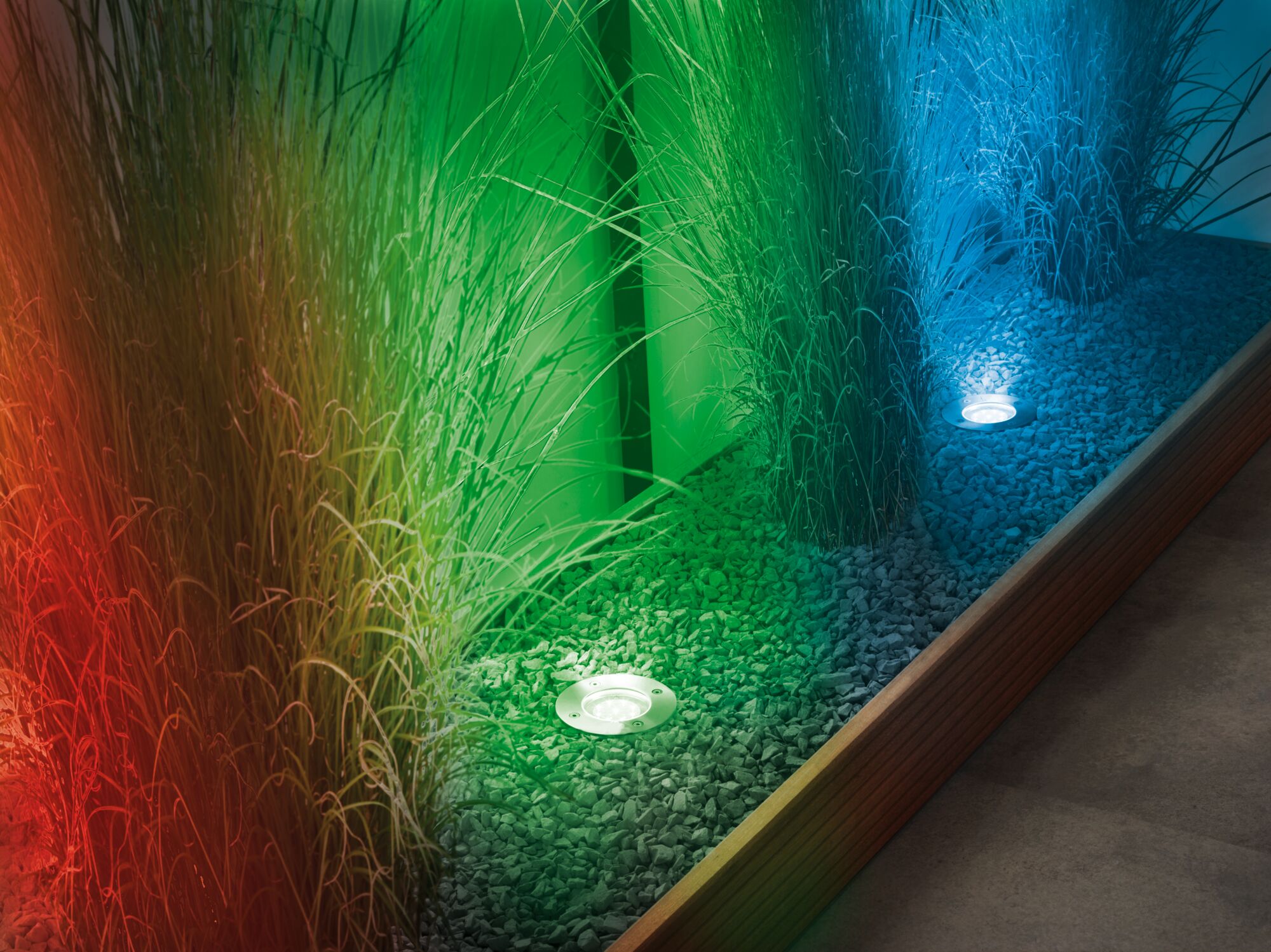

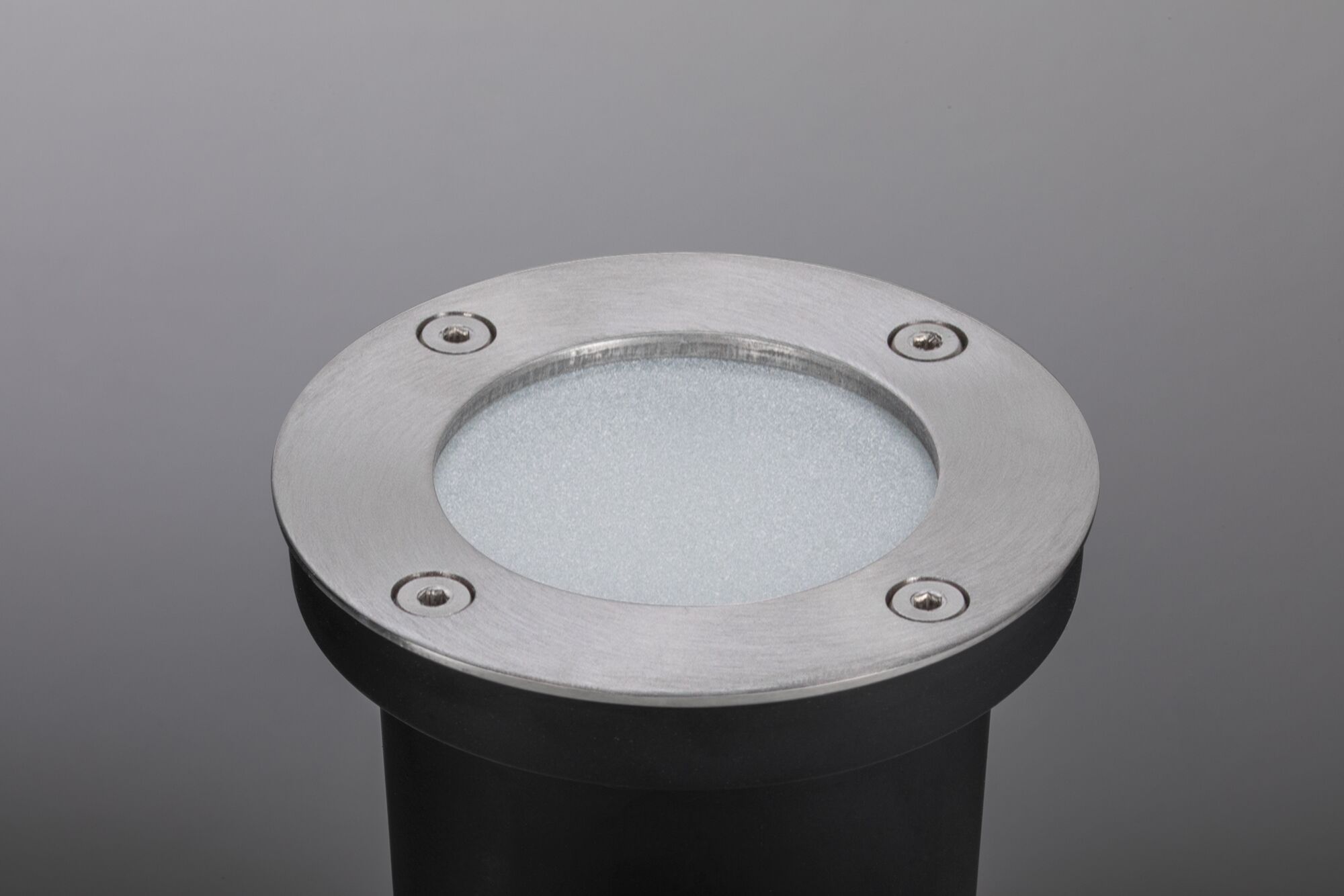

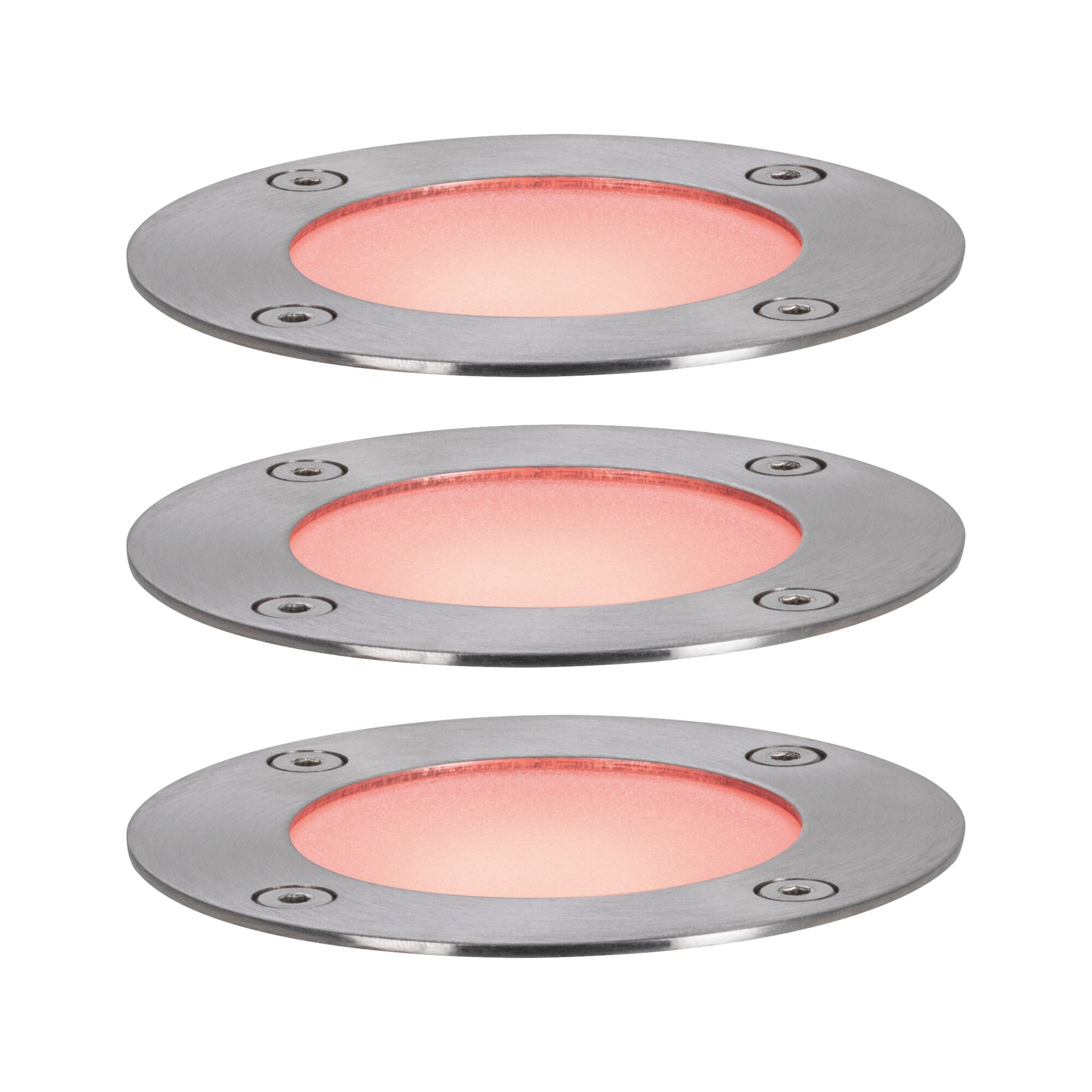

The round Plug & Shine floor recessed spotlights create striking lighting accents and are the perfect addition to your garden lighting system. This starter set contains three luminaires, one plug-in transformer and a connecting cable with sockets. The permanently installed LED modules can emit either coloured or white light. The colour settings can easily be adjusted via Zigbee 3.0. As a result, additional control elements like the Plug & Shine controller are not needed.
- Can be controlled with the Smart Home Zigbee remote control
- Usable with smart home gateways that have a Zigbee interface
- Plug & Shine basic set consisting of three luminaires, five meters of connecting cable and transformer
- Compatible with all accessories in the Plug & Shine series
- IP protection: IP65 – water jet-protected
- LED lamp (fixed) included in scope of delivery

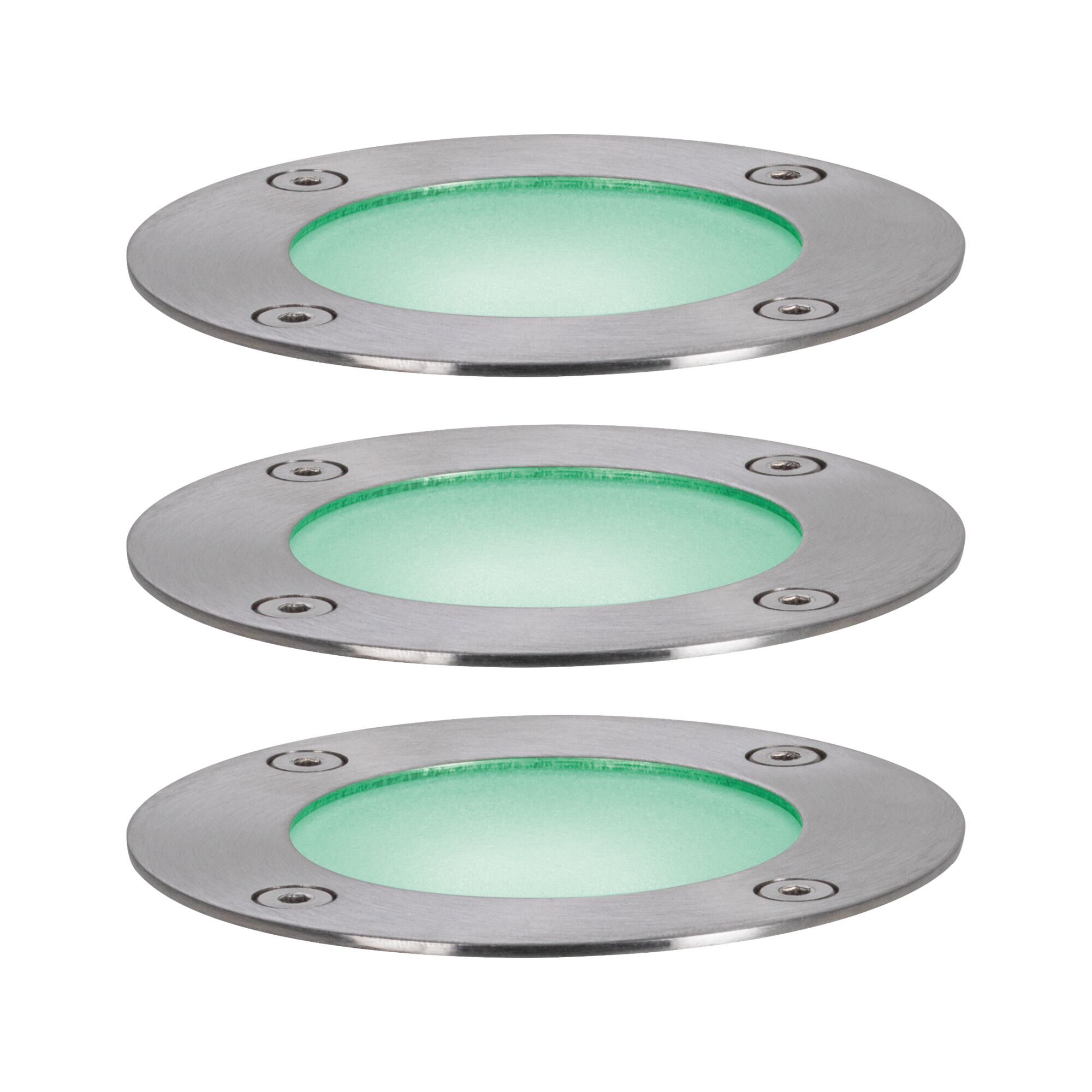

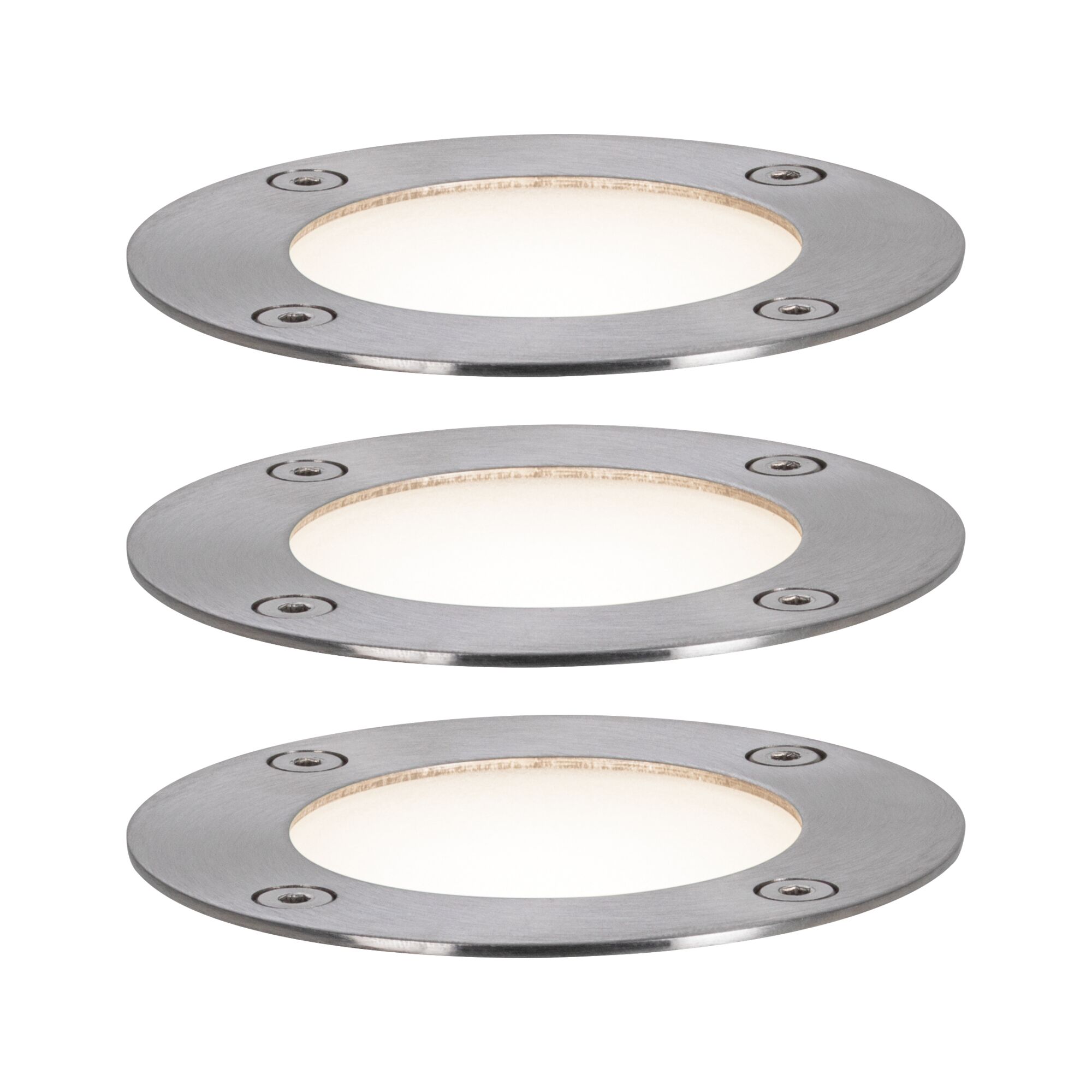

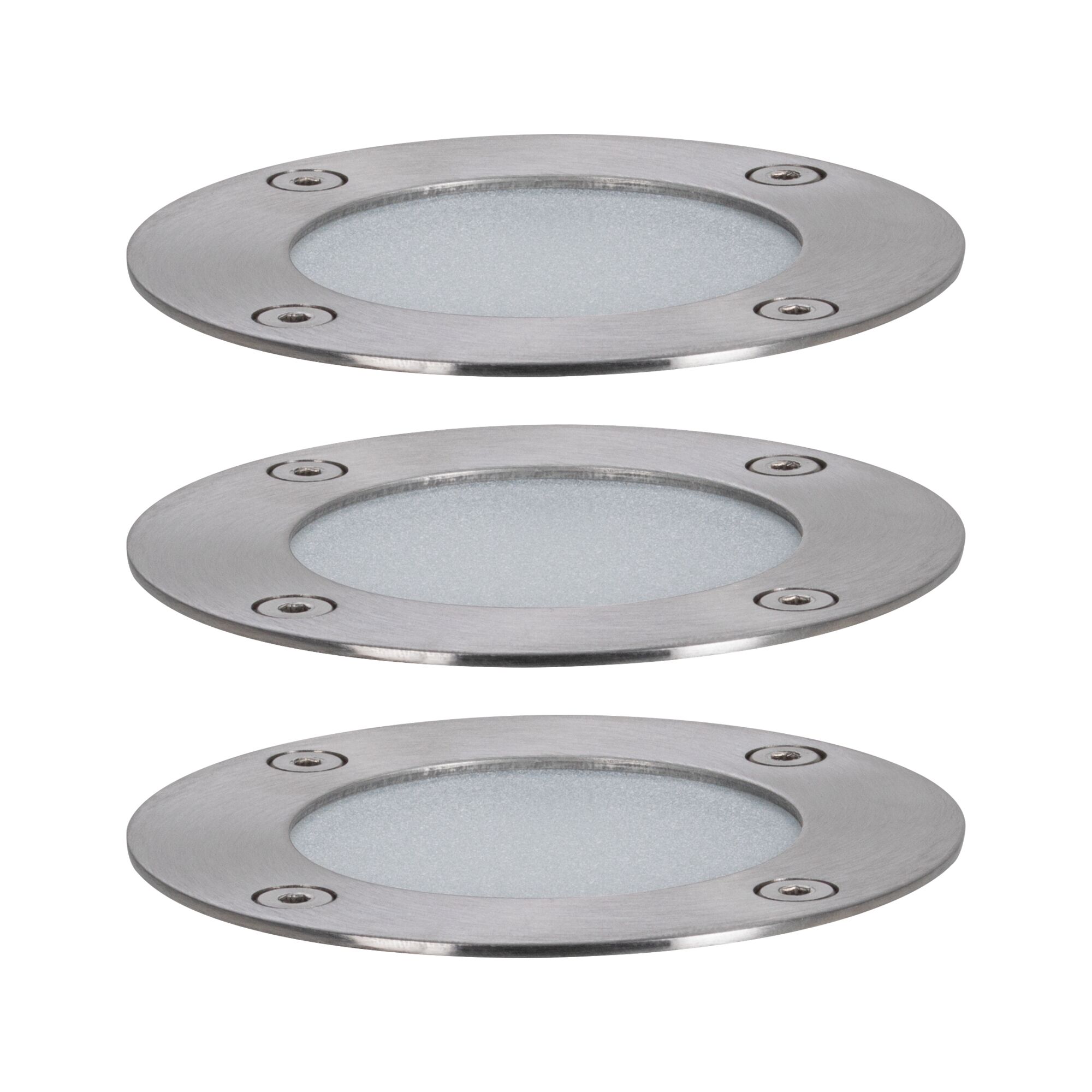

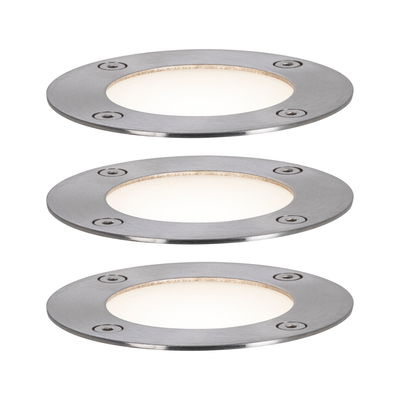

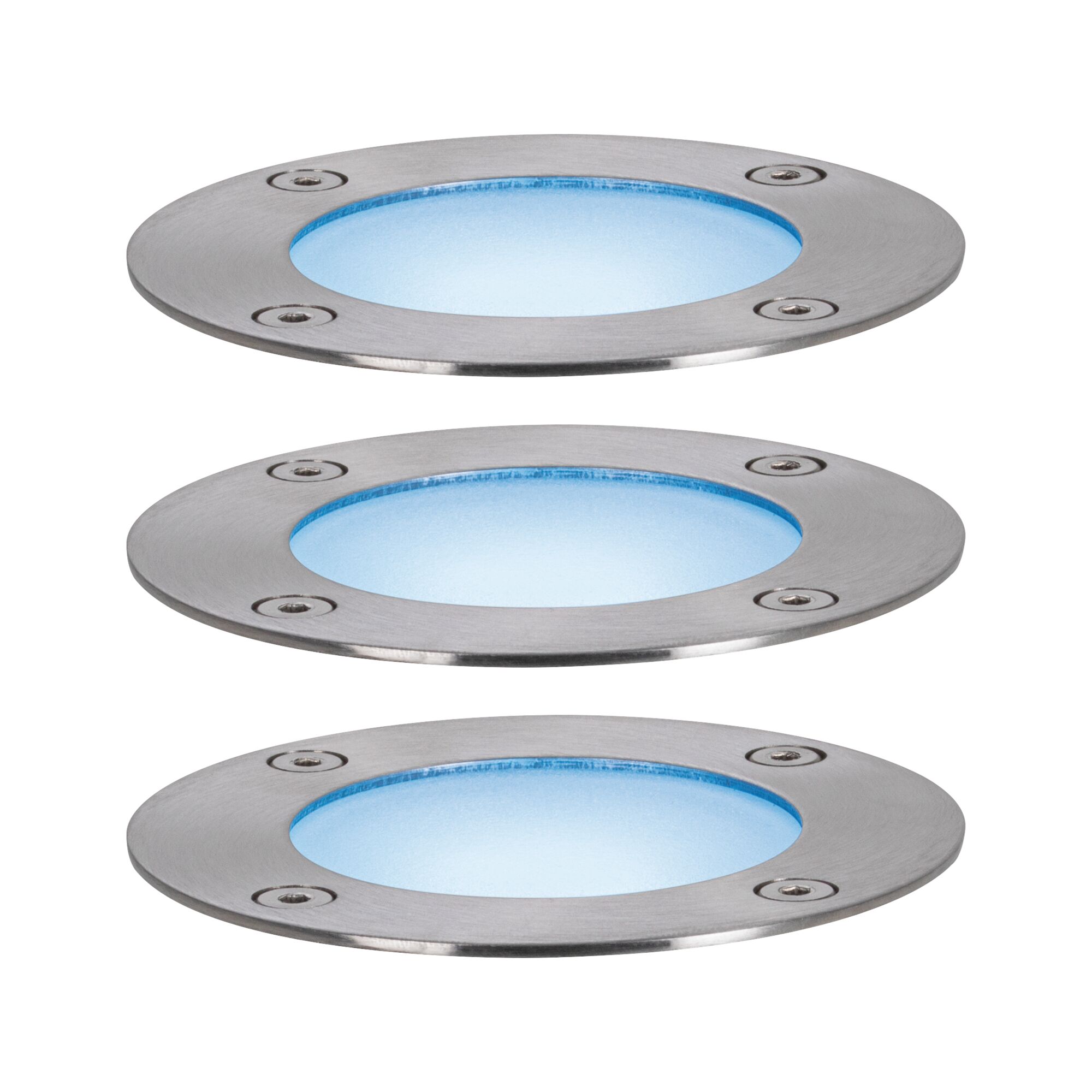

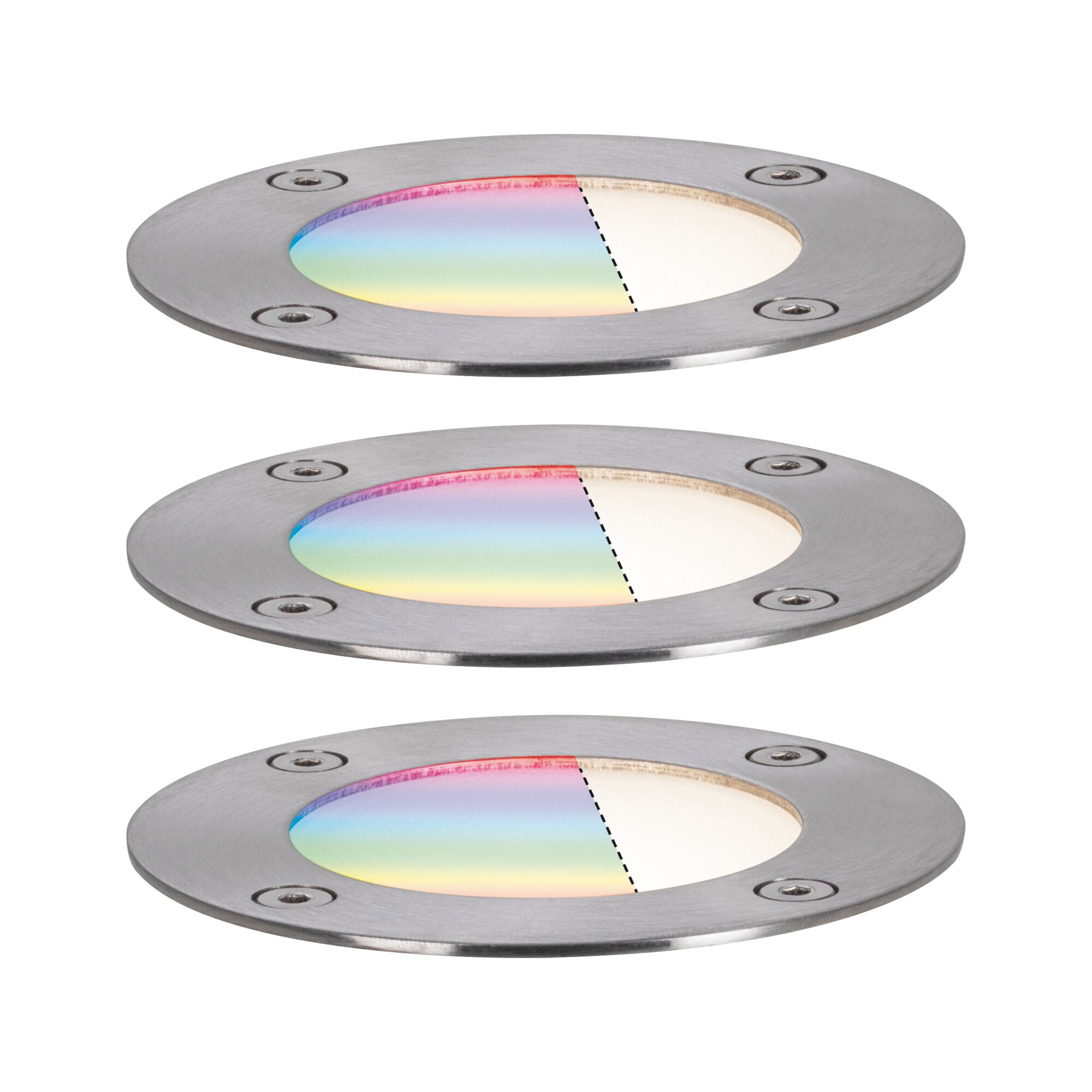

- RGBW multicolour colour change
| Dimension | |
|---|---|
| Total Mounting depth | 105 mm |
| Dimensions (Height x Width x Depth) | H: 92 mm |
| Plug depth | 48 mm |
| Ø | 98 mm |
| Mounting hole | 96 mm |
| Form | round |
| Depth of hollow wall | 90 mm, 90 mm |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Silver |
| Material | Metal |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann 501.34 Smart Switch, Paulmann SmartHome Zigbee Gent2 501.40 |
| Installation site (recommendation) | Floor mounting |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Contour Plug (Typ C-CEE 7/17) |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30.000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Colour change | Color change RGBW, Tunable White |
| Beam angle | 93 ° |
| Usable luminous flux | 190 lm |
| Luminous flux LED module | 374 lm |
| color temp | 3.000 - 6.500 K |
| Lamp Features | |
|---|---|
| Component parts | 3,6 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| IP protection | IP65 |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 30 W |
| Number of component parts | 3x |
| protection class | protection class II |
| Radio frequency | 2,4 GHz |
| Radio range | 10 m |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 15 W |
| Transformer | |
|---|---|
| Transformer height | 103 mm |
| Transformer width | 50 mm |
| Transformer depth | 30 mm |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
