Article-No.:
94722
Plug & ShineLED Recessed floor luminaire
Floor Basic Set Insect-friendly
IP67 2200K 3x2W 21VA Silver
IP67 2200K 3x2W 21VA Silver
- Recessed floor light for large area lighting
- Set of 3 luminaires
- Color temperatur: 2200K - gold light
Plug & Shine LED Recessed floor luminaire Floor Basic Set Insect-friendly IP67 2200K 3x2W 21VA Silver

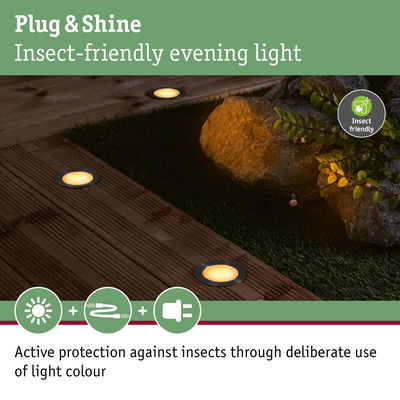

The Plug & Shine Floor recessed spotlights 5m provide decorative warm white light points at path or patio boundaries. The spotlights with a light colour of 2,200K are particularly insect-friendly, because this value is outside the visible range for insects, so they are not attracted by the additional light source. The luminaires actively protect insects without neglecting the benefits for humans. The warm gold light creates a pleasant atmosphere around the house. This starter set contains three luminaires, one plug-in transformer and a connecting cable with three sockets. Outlets that are not required can be closed off with the cover caps supplied. This is the only way to guarantee the IP68 immersion protection of the connector. The system can be expanded with additional Plug & Shine components, if required. It is not suitable for foot or vehicle traffic.
- Recessed floor light for large area lighting
- Set of 3 luminaires
- Color temperatur: 2200K - gold light
- Compatible with all luminaires and accessories in the Plug & Shine series
- IP Protection: IP67 - protected against temporary immersion
- Gold light – active protection of insects & a pleasant lighting atmosphere around the home
- The golden light colour creates a cosy atmosphere like that of candlelight
- For cosy and insect-friendly evening light
- Extremely insect friendly
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 30 mm |
| Diameter | 70 mm |
| Length | 5 m |
| Plug depth | 48 mm |
| Built-in diameter | 63 mm |
| Mounting depth | 50 mm |
| Depth of hollow wall | 35 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Silver |
| Material | Plastic, Stainless steel |
| Stainless | stainless |
| Installation | |
|---|---|
| Installation site (recommendation) | Floor mounting |
| Application | For decorative light points on paths, driveways and patios |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Contour Plug (Typ C-CEE 7/17) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Gold light, 2200 K |
| Nominal luminous flux | 90 lm |
| Luminous flux LED module | 100 lm |
| Beam angle | 90 ° |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with dimmer |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 10 W |
| IP protection | IP67 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 2 W |
| Number of component parts | 3x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 6,5 W |
| Adjustability | fixed |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 21 VA |
| Transformer height | 103 mm |
| Transformer width | 50 mm |
| Transformer depth | 30 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
Downloads
Flyer and Safety instructions
Safety instructions
- Plug & Shine
- Controller
Ready to ship
