Article-No.:
93694
Plug & Shine
LED Recessed floor light
MicroPen II Expansion Set
IP67 3000K 5x0,2W Silver
IP67 3000K 5x0,2W Silver

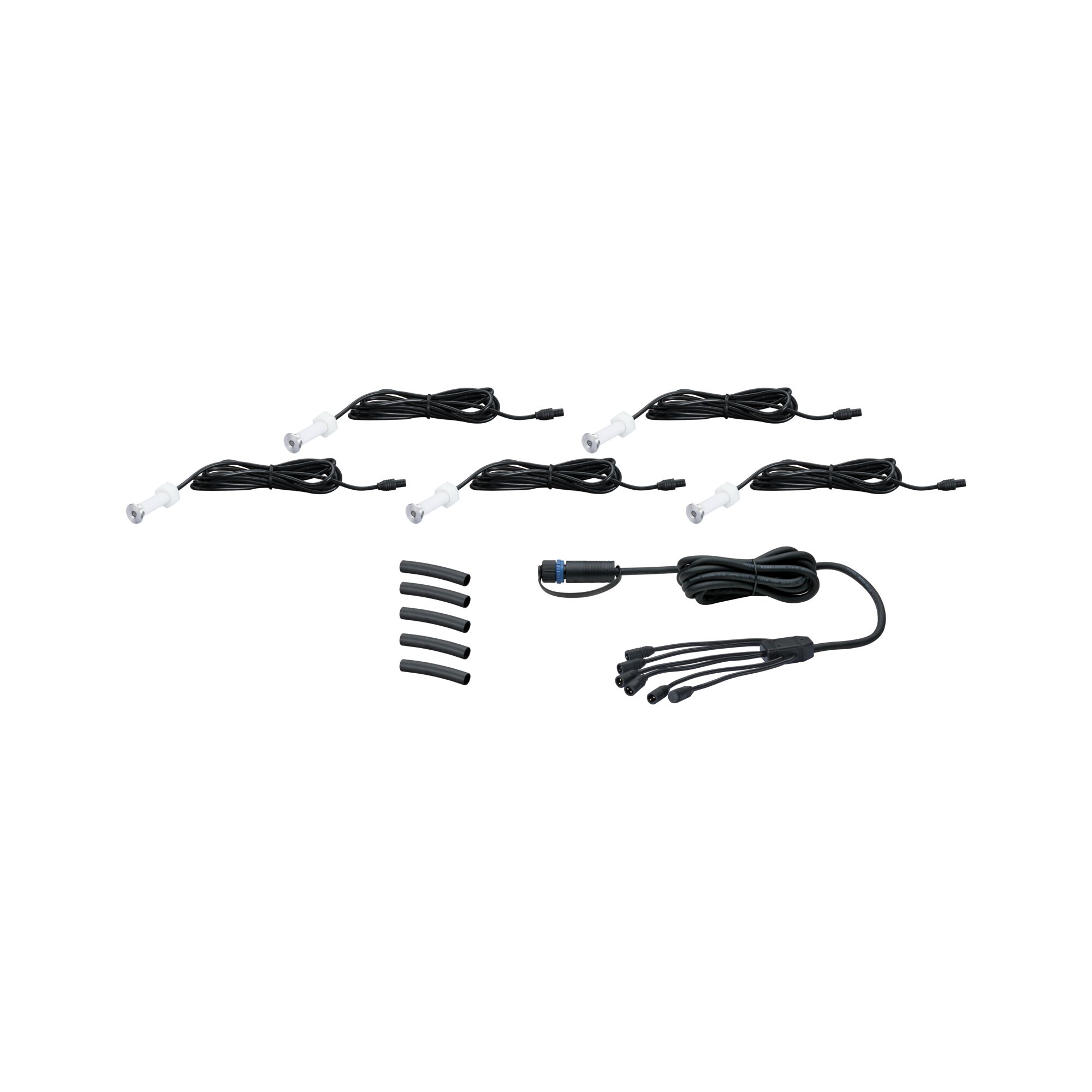

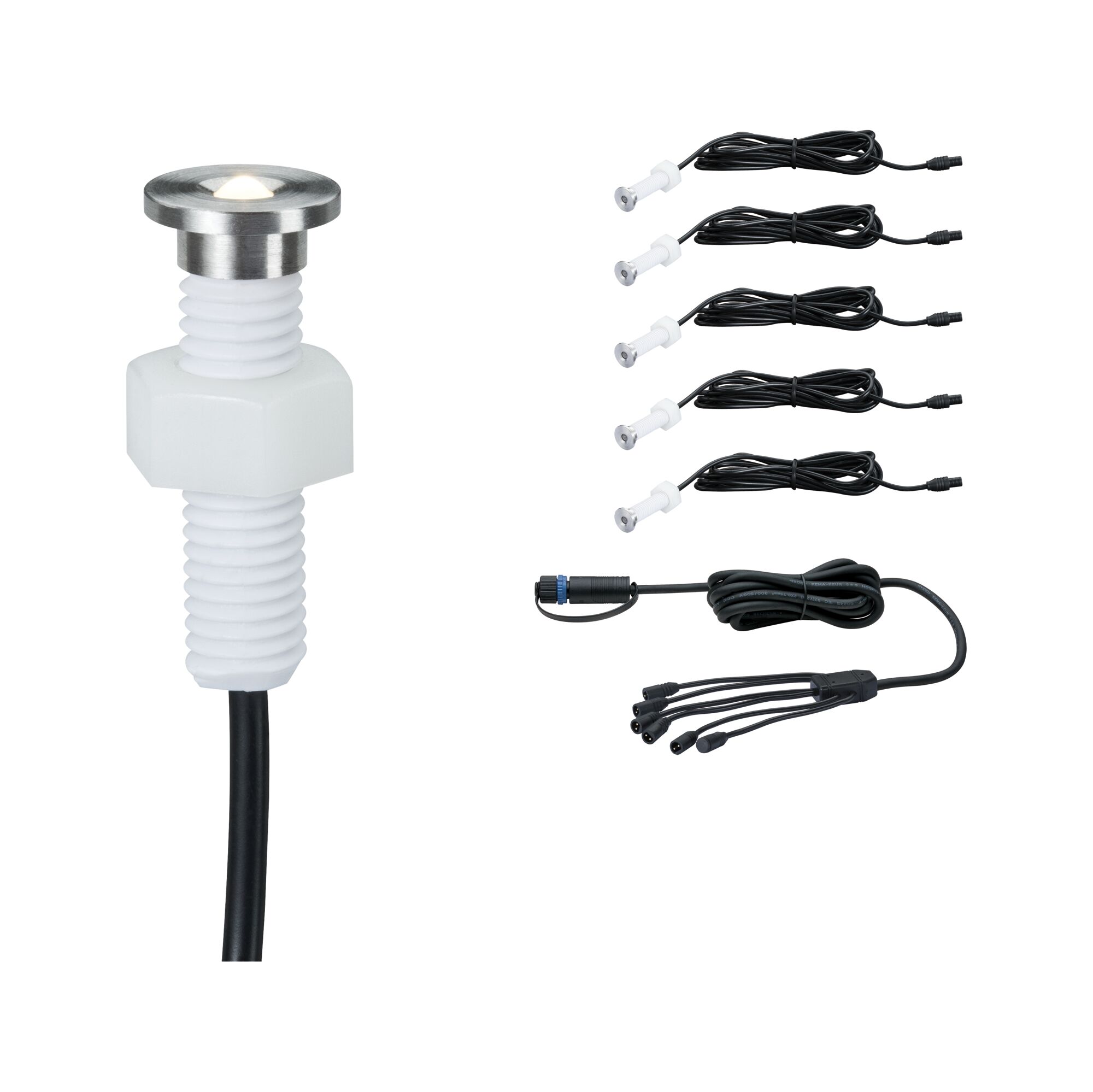

- Plug & Shine extension set consisting of 5 lights and connecting cable
- Compatible with all accessories in the Plug & Shine series
- LED lamp (fixed) included in scope of delivery

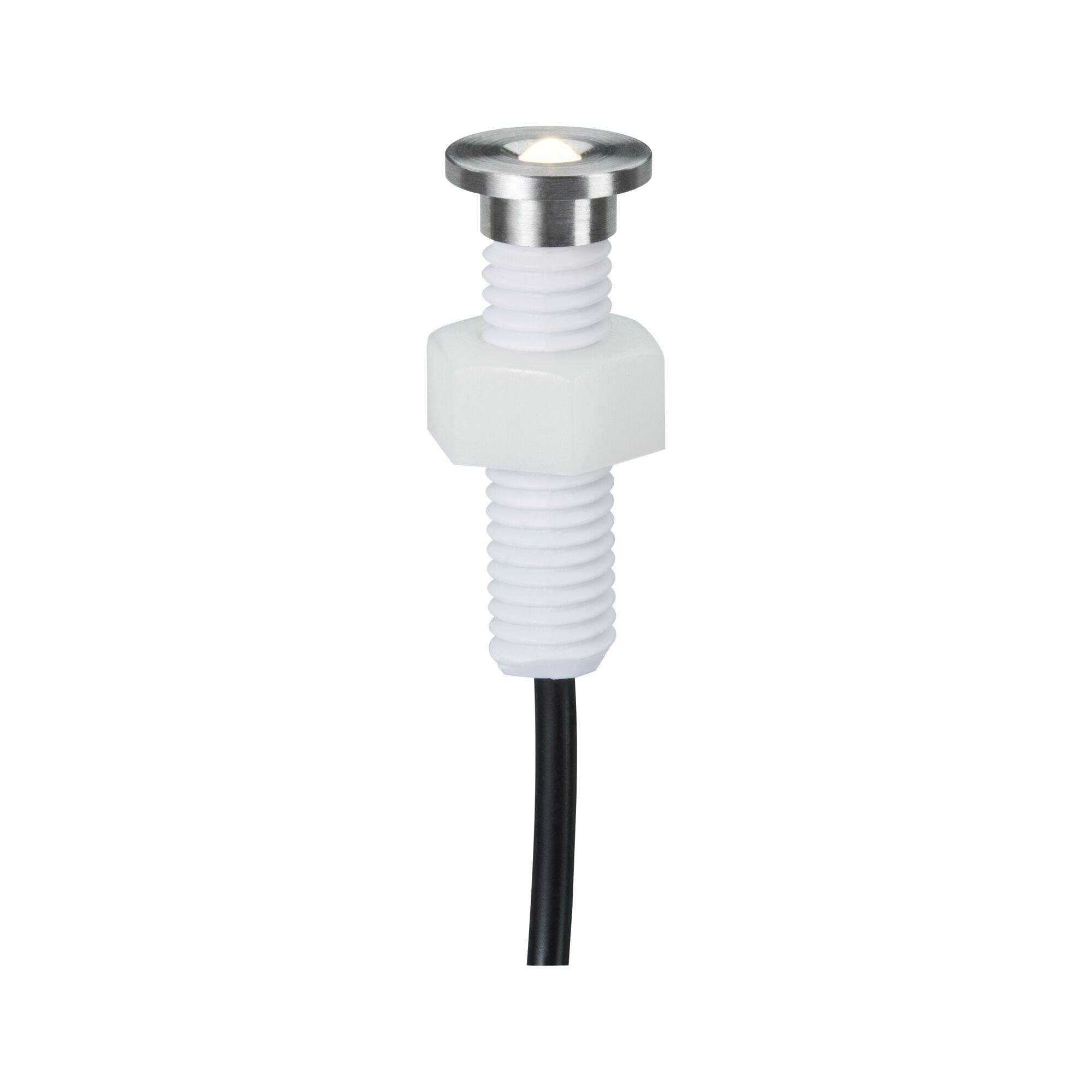

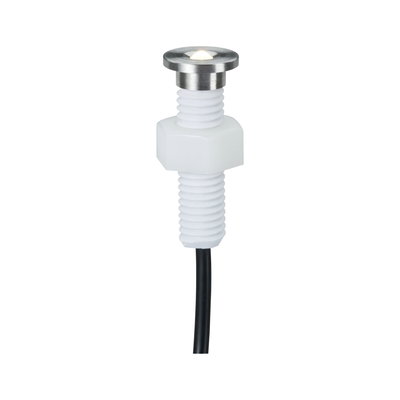

Plug & Shine LED Recessed floor light MicroPen II Expansion Set IP67 3000K 5x0,2W Silver

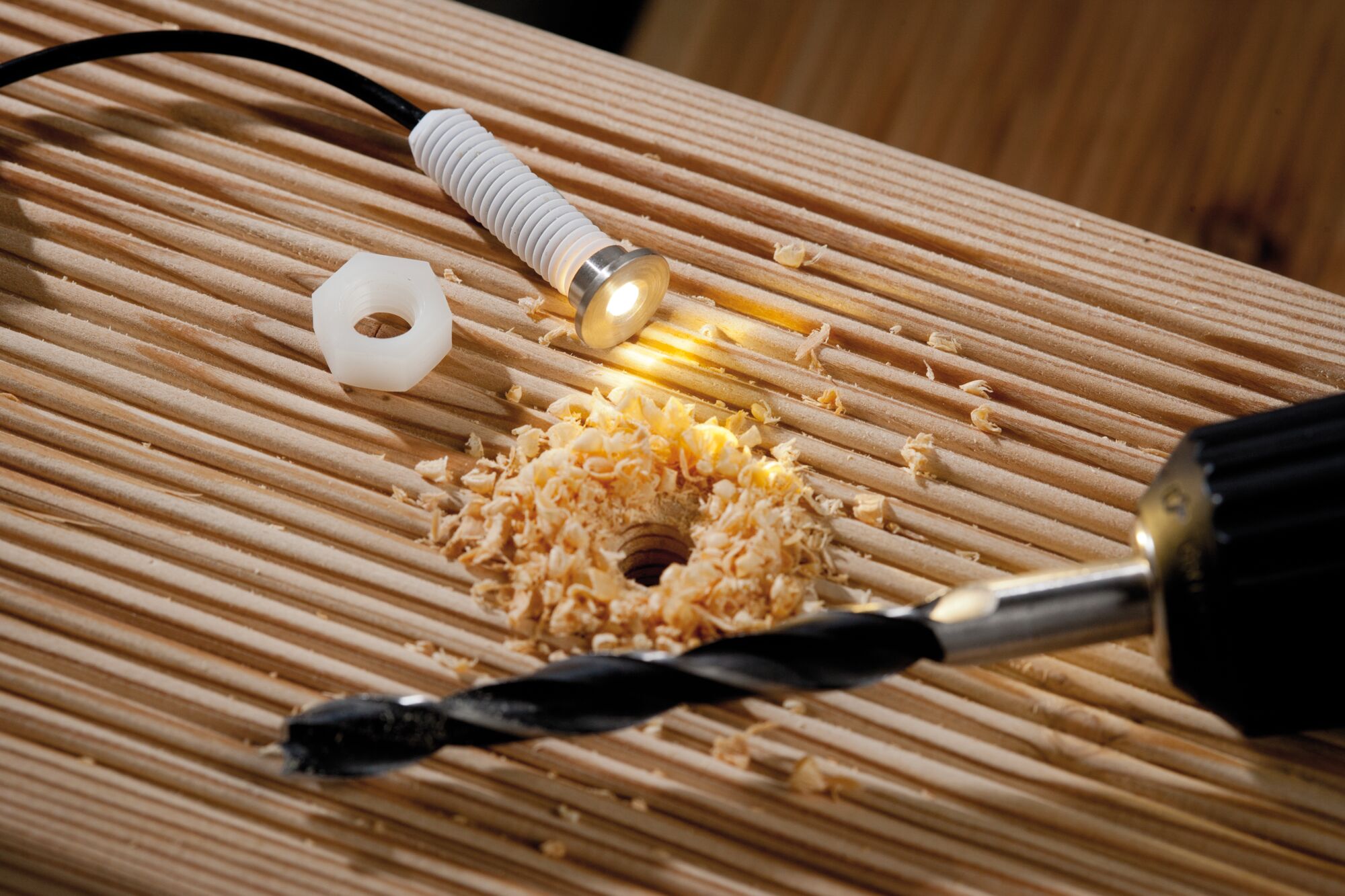

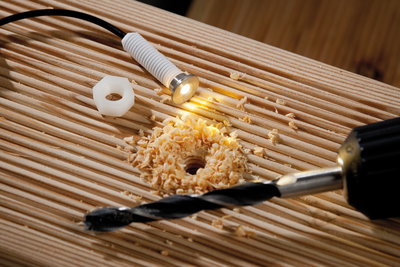

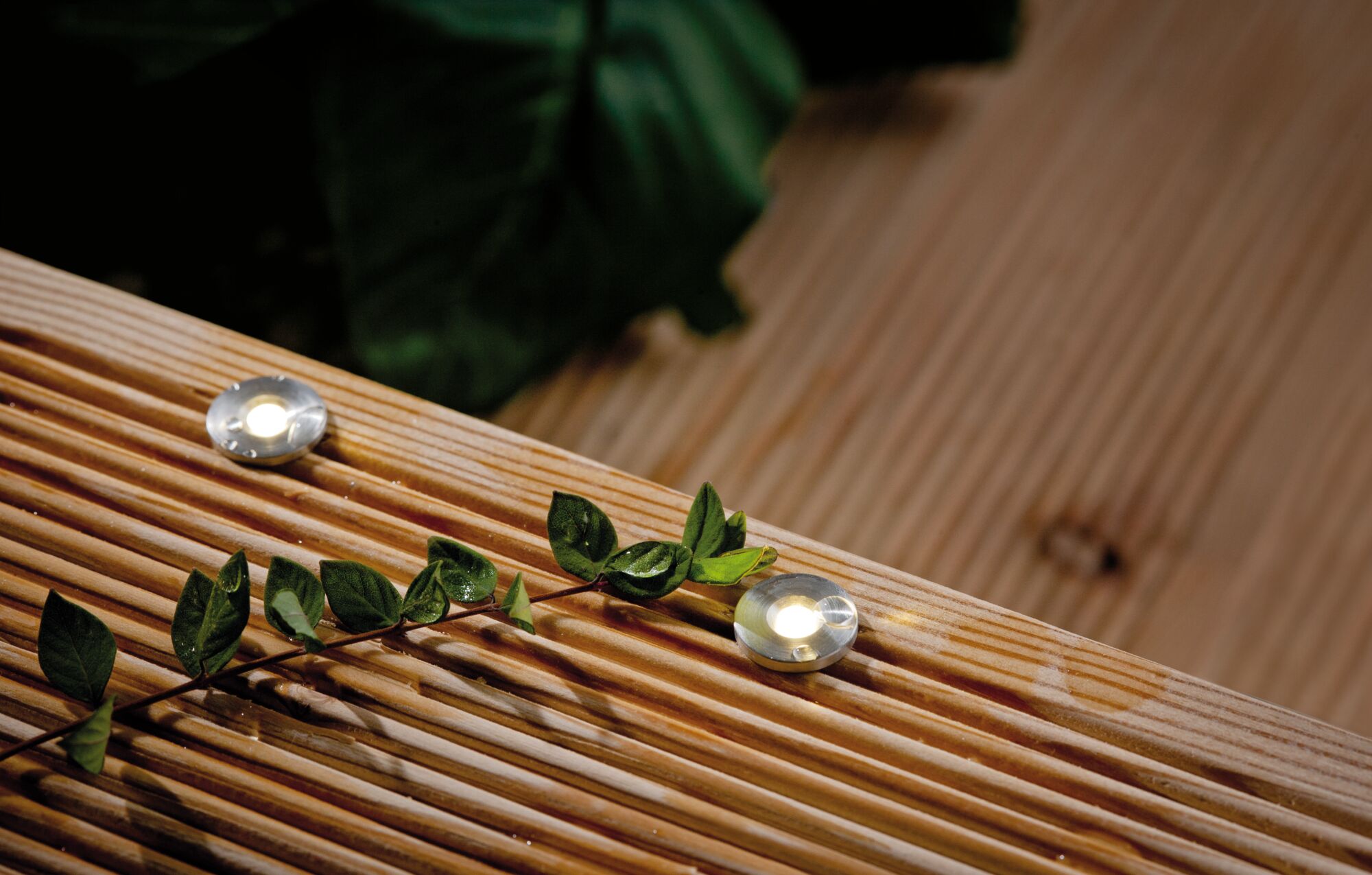

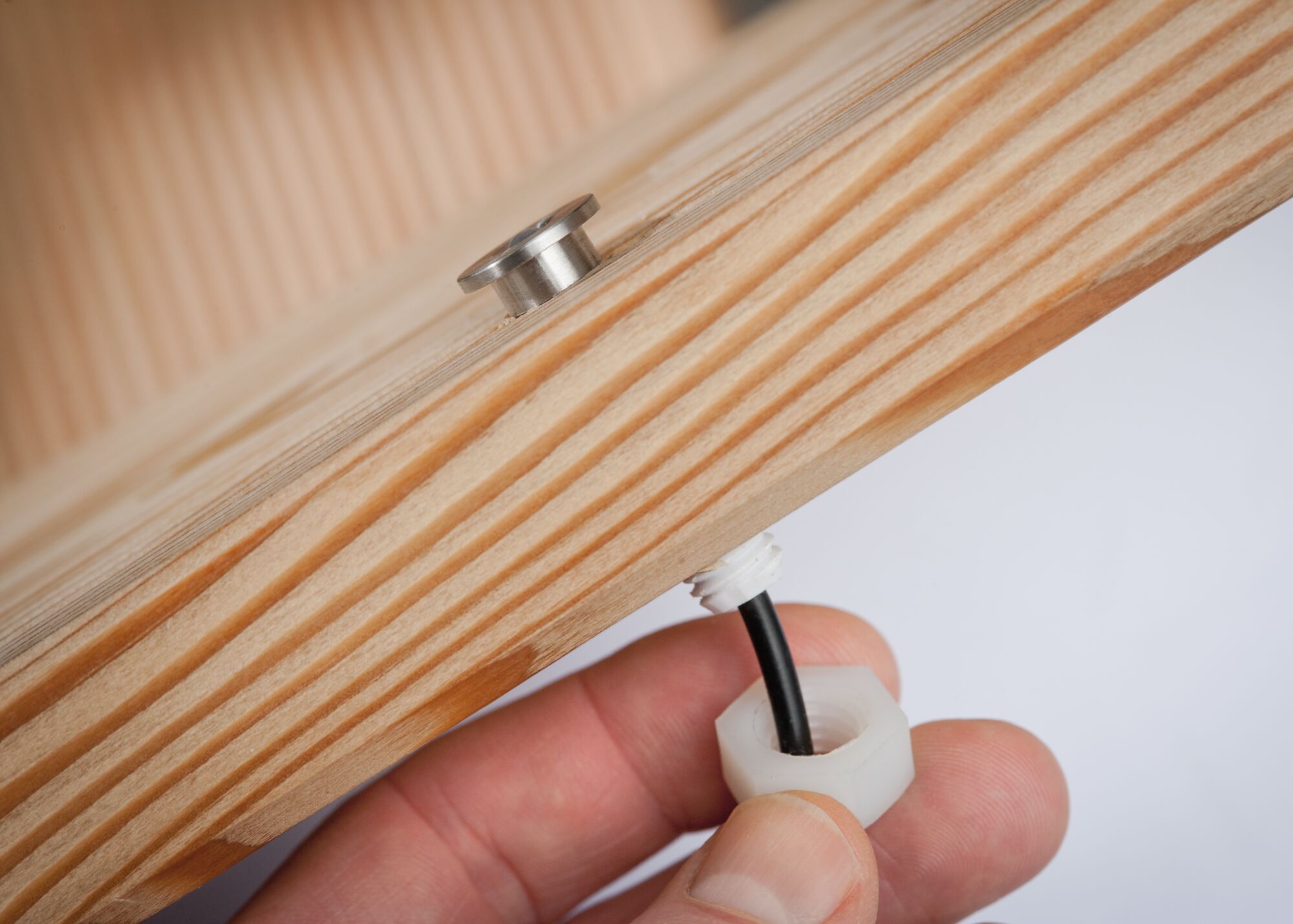

Plug & Shine MicroPen II recessed floor spotlights provide decorative warm white light points on paths, in driveways or on patios. With this extension set, you have the option of connecting up to five additional lights to your existing 24 V lighting installation. A connecting cable with six sockets is included. You can close outlets that you do not need with the supplied cap. It can't be walked on or driven over. Please note: A transformer is required for installation, which is not included in the scope of delivery of the expansion set.
- Plug & Shine extension set consisting of 5 lights and connecting cable
- Compatible with all accessories in the Plug & Shine series
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 3000K - Warm white
- Don't forget: Order compatible transformers as well!

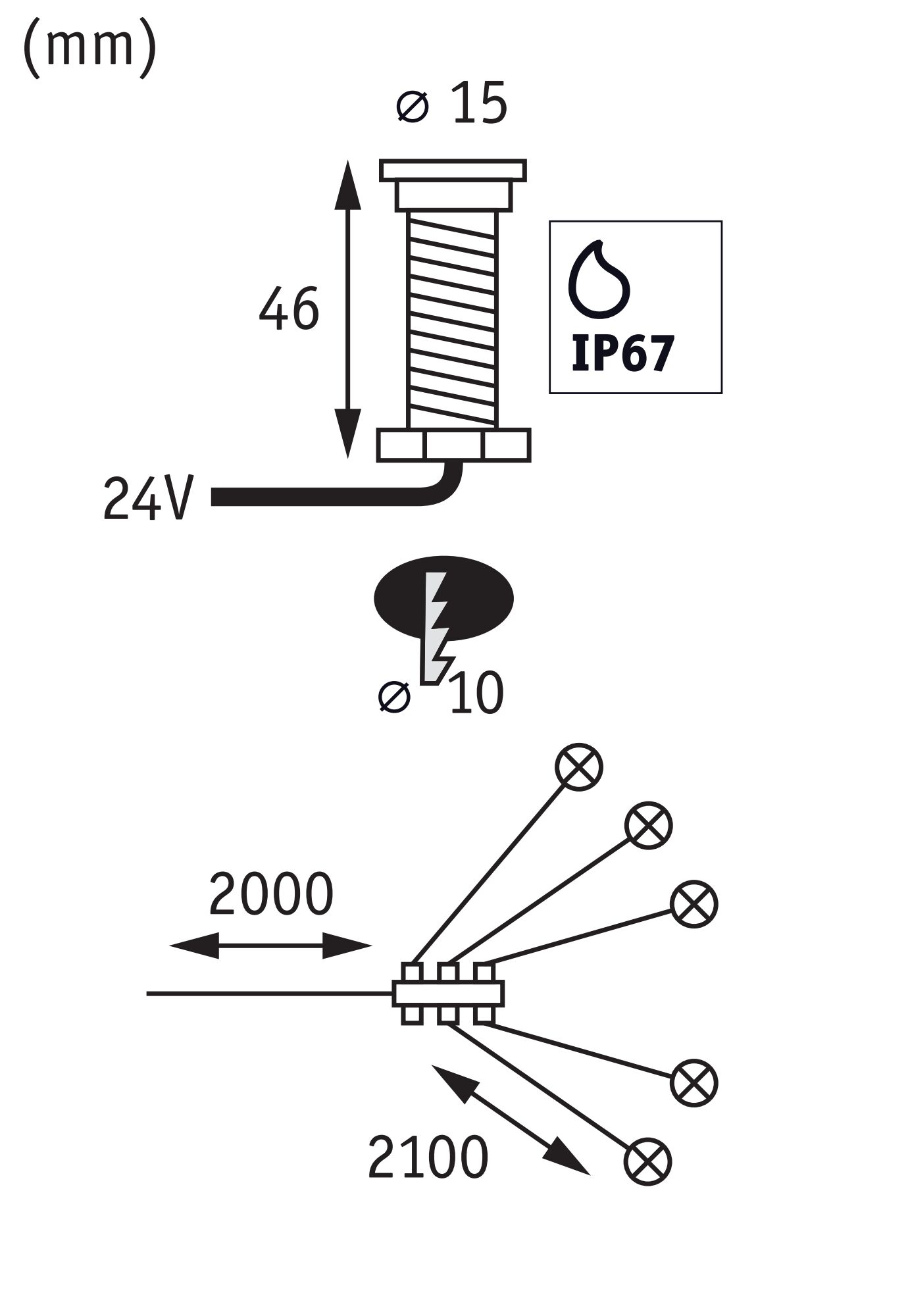

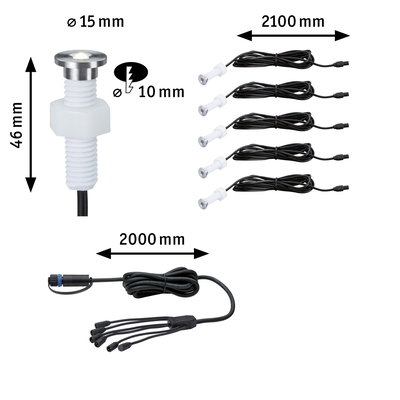

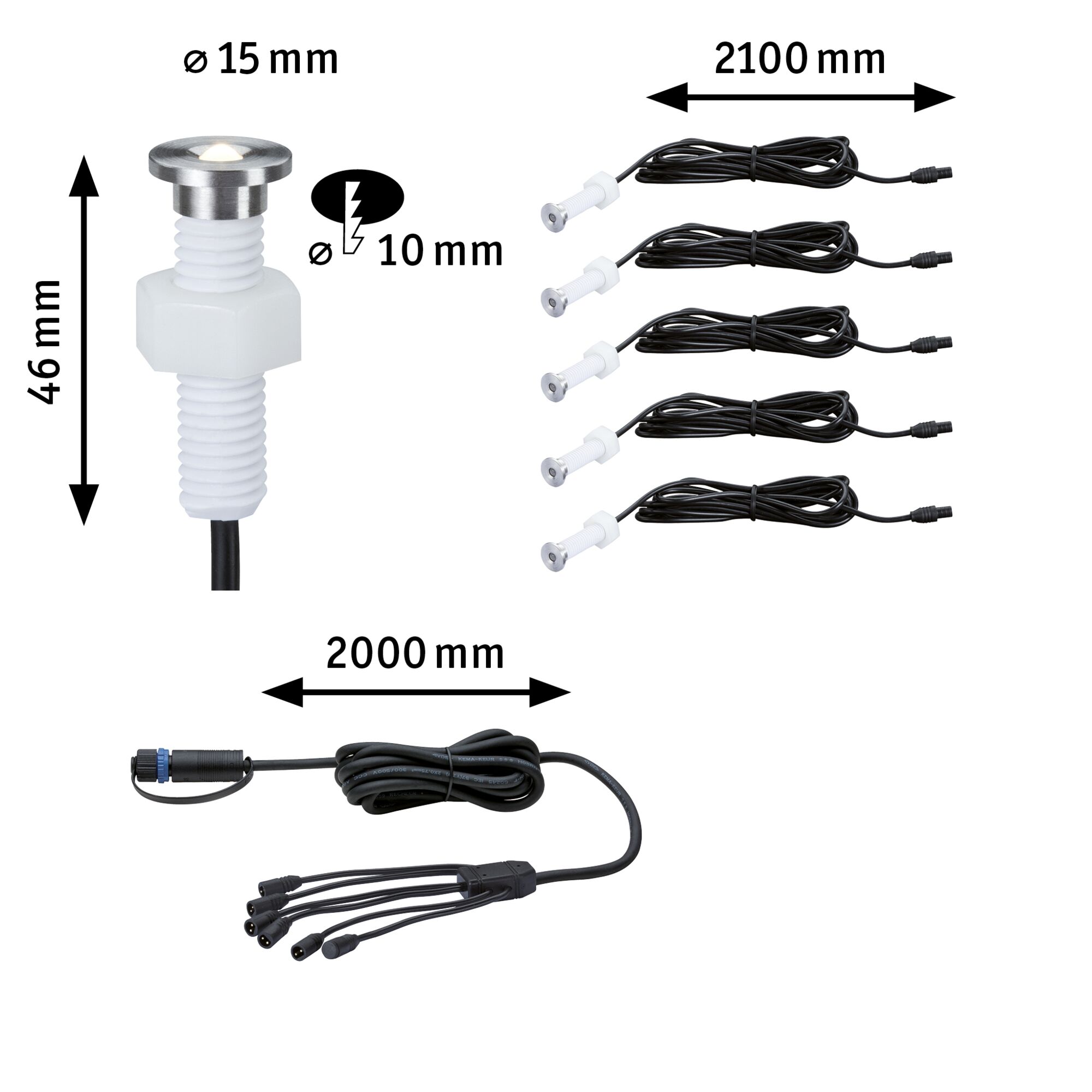

| Dimension | |
|---|---|
| Diameter | 15 mm |
| Plug depth | 48 mm |
| Built-in diameter | 10 mm |
| Mounting depth | 46 mm |
| Depth of hollow wall | 31 mm |
| net weight | 324 g |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Silver |
| Material | Stainless steel |
| Stainless | stainless |
| Installation | |
|---|---|
| Installation site (recommendation) | Floor mounting |
| Application | For decorative light points on paths, driveways and patios |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 1,8 lm |
| Color rendering index | > 80 Ra |
| Beam angle | 22 ° |
| Colour temperature | Warm white, 3000 K |
| Luminous flux LED module | 3 lm |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 0,22 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 2.2 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | No |
| IP protection | IP67 |
| Protection class | Protection class III |
| Number of component parts | 5x |
| Maximum load | 130 kg |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 2,1 W |
| Voltage | 24 V |
| Voltage type | DC |
| Transformer | |
|---|---|
| Transformer height | 103 mm |
| Transformer width | 50 mm |
| Transformer depth | 30 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
