Article-No.:
93949
Plug & Shine
LED Recessed floor light
Floor Mini Expansion Set
IP67 3000K 3x2,5W Silver
IP67 3000K 3x2,5W Silver

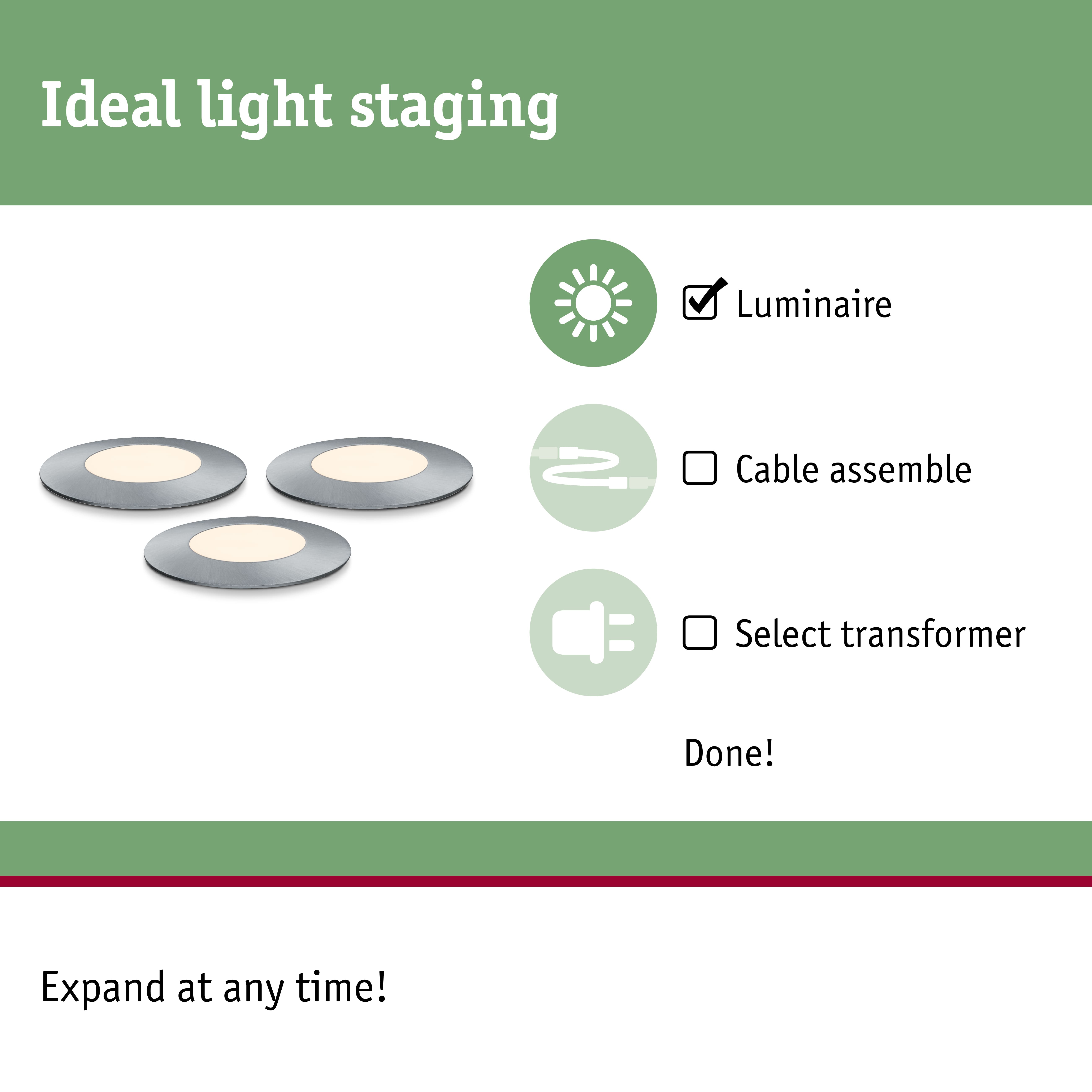

- Plug & Shine extension set consisting of three lights and connecting cable
- Compatible with all accessories in the Plug & Shine series
- IP Protection: IP67 - protected against temporary immersion
Plug & Shine LED Recessed floor light Floor Mini Expansion Set IP67 3000K 3x2,5W Silver

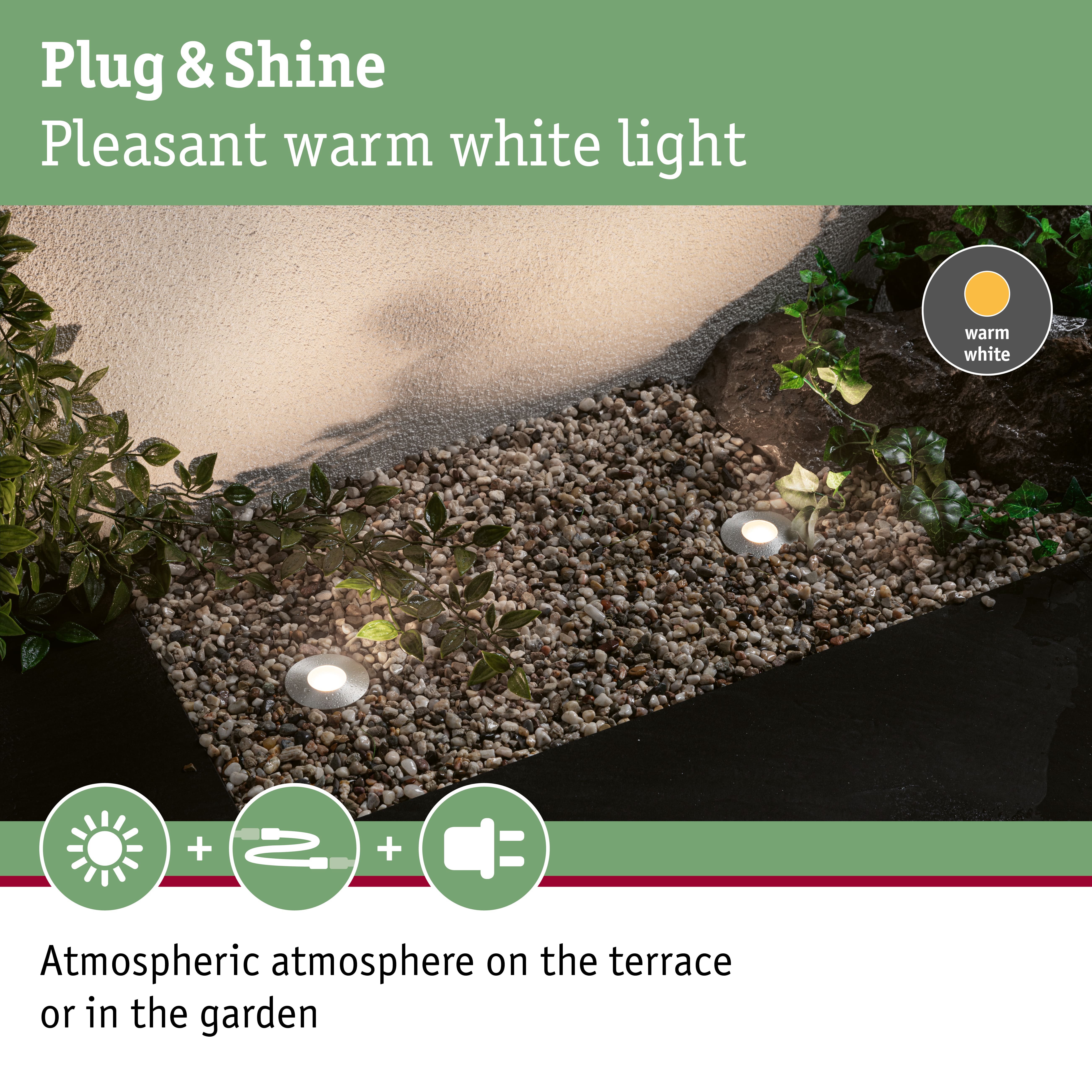

Plug & Shine Floor Mini floor recessed spotlights create decorative light points in warm white on paths, driveways and patios. This extension set gives you the option to connect up to three additional lights to your existing 24 V lighting installation. A connecting cable with three sockets is included in the delivery. Unused connection ports can be sealed with the cover caps provided to guarantee IP67 immersion protection of the connector. It can't be walked on or driven over. Please note: A transformer is required for installation, which is not included in the scope of delivery of the expansion set.
- Plug & Shine extension set consisting of three lights and connecting cable
- Compatible with all accessories in the Plug & Shine series
- IP Protection: IP67 - protected against temporary immersion
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 3000K - Warm white
- Sits flush with the floor; can be run over with a lawnmower
- Can be switched and dimmed via the plug & shine controller (Accessories) using the remote control.
| Dimension | |
|---|---|
| Diameter | 55 mm |
| Dimensions (Height x Width x Depth) | H: 90 mm |
| Length | 5 m |
| Built-in diameter | 40 mm |
| Mounting depth | 55 mm |
| installation depth to | 105 mm |
| Depth of hollow wall | 40-90 mm |
| net weight | 1192 g |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Silver |
| Material | Plastic, Stainless steel |
| Stainless | stainless |
| Installation | |
|---|---|
| Installation site (recommendation) | Floor mounting |
| Application | For decorative light points on paths, driveways and patios |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 50 lm |
| Beam angle | 95 ° |
| Colour temperature | Warm white, 3000 K |
| Luminous flux LED module | 250 lm |
| Lamp Features | |
|---|---|
| Dimming Control | with dimmer |
| Inclusive lamp | yes |
| Component parts | 2,5 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 10 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| IP protection | IP67 |
| Protection class | Protection class III |
| Number of component parts | 3x |
| Maximum load | 500 kg |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 7,5 W |
| Voltage | 24 V |
| Voltage type | DC |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
