Article-No.:
93697
Plug & Shine
LED Recessed floor light
Floor Mini Basic Set
IP67 3000K 3x2,5W 21VA Silver
IP67 3000K 3x2,5W 21VA Silver

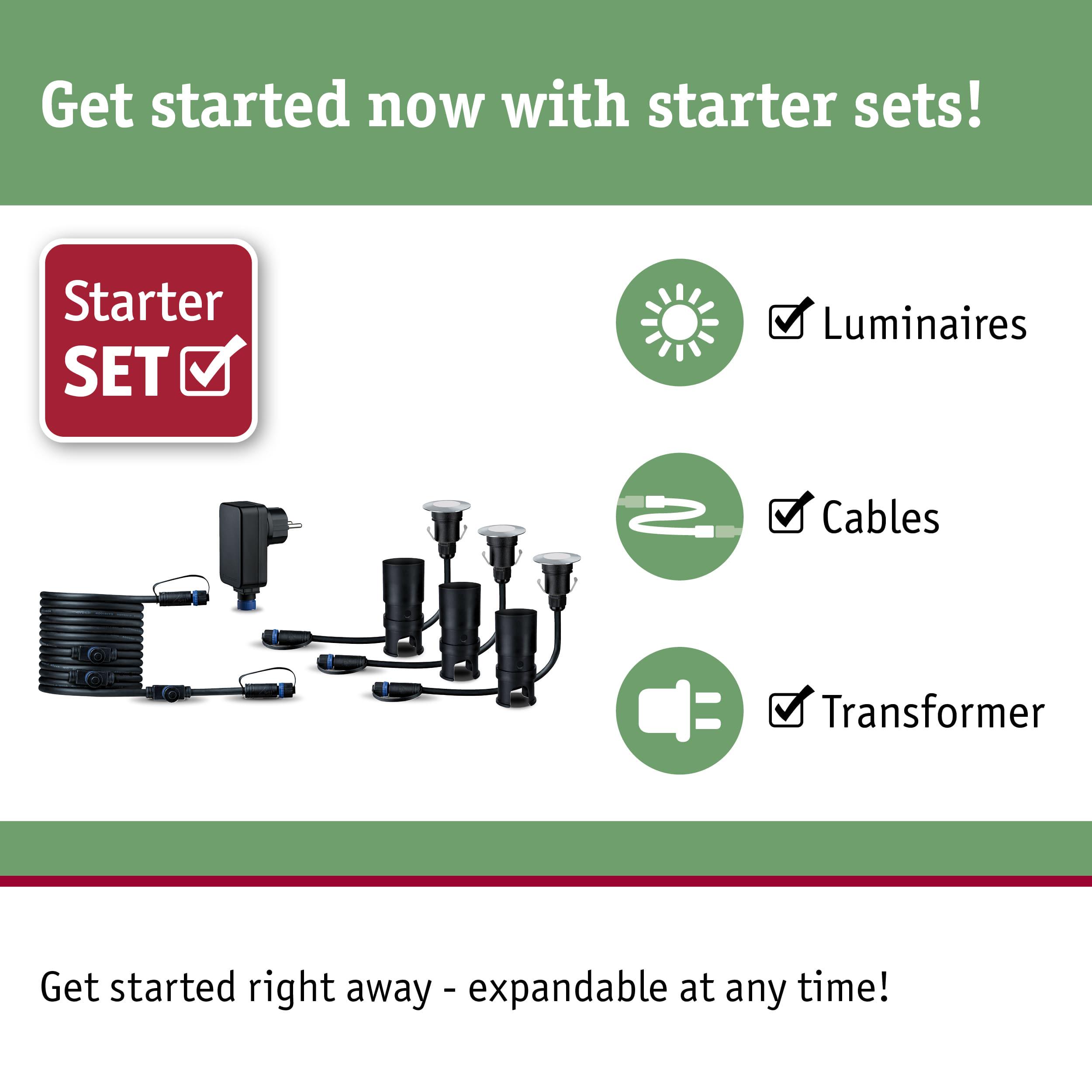

- Plug & Shine basic set consisting of three lights, five meters of connecting cable and transformer
- Can be combined with all lights and accessories from the Plug & Shine series
- Color temperatur: 3000K - Warm white
Plug & Shine LED Recessed floor light Floor Mini Basic Set IP67 3000K 3x2,5W 21VA Silver

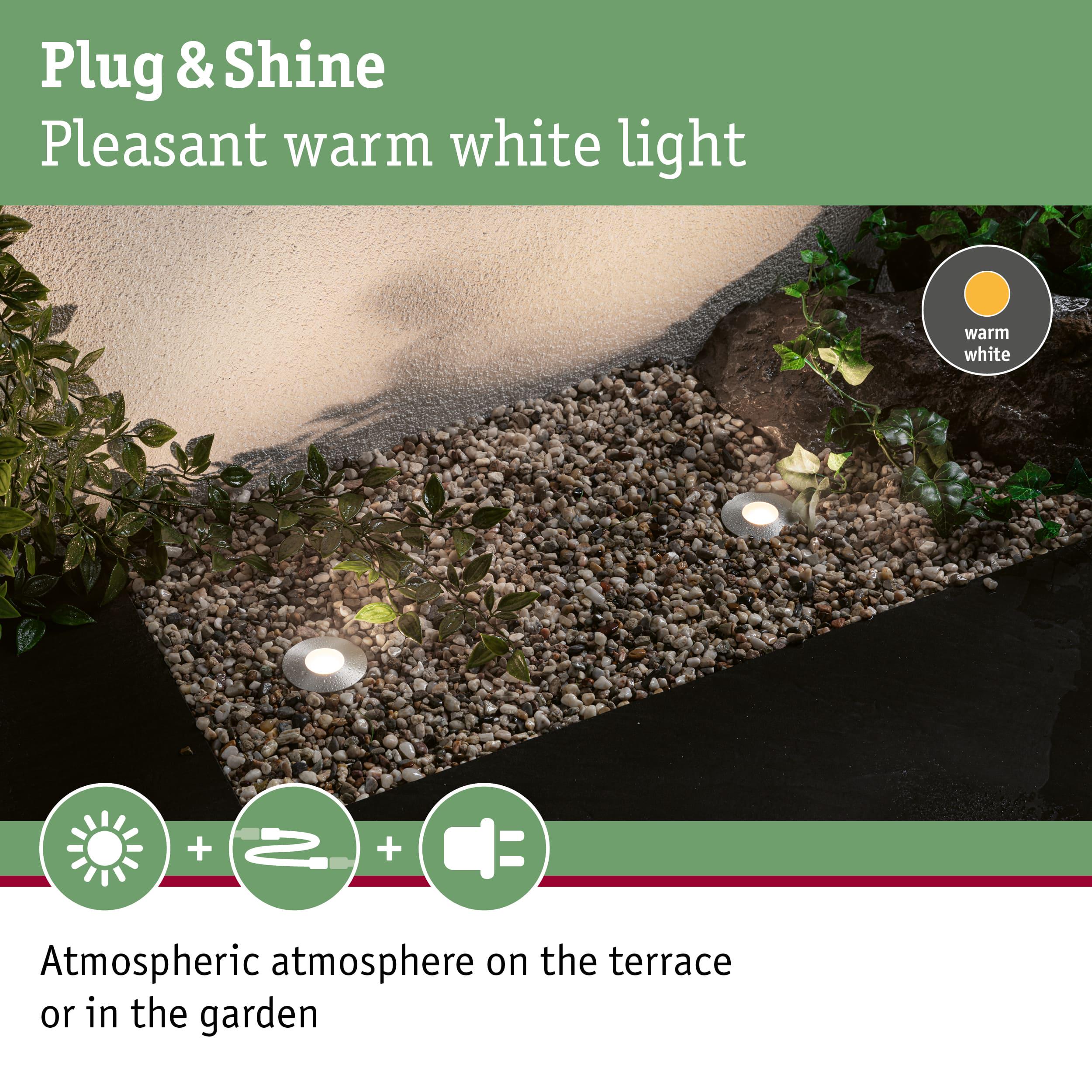

Just unpack, plug in, and illuminate your garden: the Plug & Shine Floor Mini starter set consisting of three warm white floor recessed spotlights, transformer and connecting cable offers you the ideal start into outdoor lighting. The lights create decorative light points on paths, driveways and patios. If required, the system can be expanded with additional Plug & Shine components. It can't be walked on or driven over.
- Plug & Shine basic set consisting of three lights, five meters of connecting cable and transformer
- Can be combined with all lights and accessories from the Plug & Shine series
- Color temperatur: 3000K - Warm white
- Can be switched and dimmed via the plug & shine controller (Accessories) using the remote control.
- IP Protection: IP67 - protected against temporary immersion
| Dimension | |
|---|---|
| Diameter | 55 mm |
| Dimensions (Height x Width x Depth) | H: 90 mm |
| Plug depth | 48 mm |
| Built-in diameter | 40 mm |
| Mounting depth | 55 mm |
| installation depth to | 105 mm |
| Depth of hollow wall | 40-90 mm |
| net weight | 1311 g |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Silver |
| Material | Plastic, Stainless steel |
| Stainless | stainless |
| Installation | |
|---|---|
| Installation site (recommendation) | Floor mounting |
| Application | For decorative light points on paths, driveways and patios |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Contour Plug (Typ C-CEE 7/17) |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 50 lm |
| Beam angle | 95 ° |
| Colour temperature | Warm white, 3000 K |
| Luminous flux LED module | 250 lm |
| Lamp Features | |
|---|---|
| Dimming Control | with dimmer |
| Inclusive lamp | yes |
| Component parts | 2,5 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 10 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| IP protection | IP67 |
| Protection class | Protection class II |
| Number of component parts | 3x |
| Maximum load | 500 kg |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 7,5 W |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 21 VA |
| Transformer height | 103 mm |
| Transformer width | 50 mm |
| Transformer depth | 30 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
