Article-No.:
93692
Plug & Shine

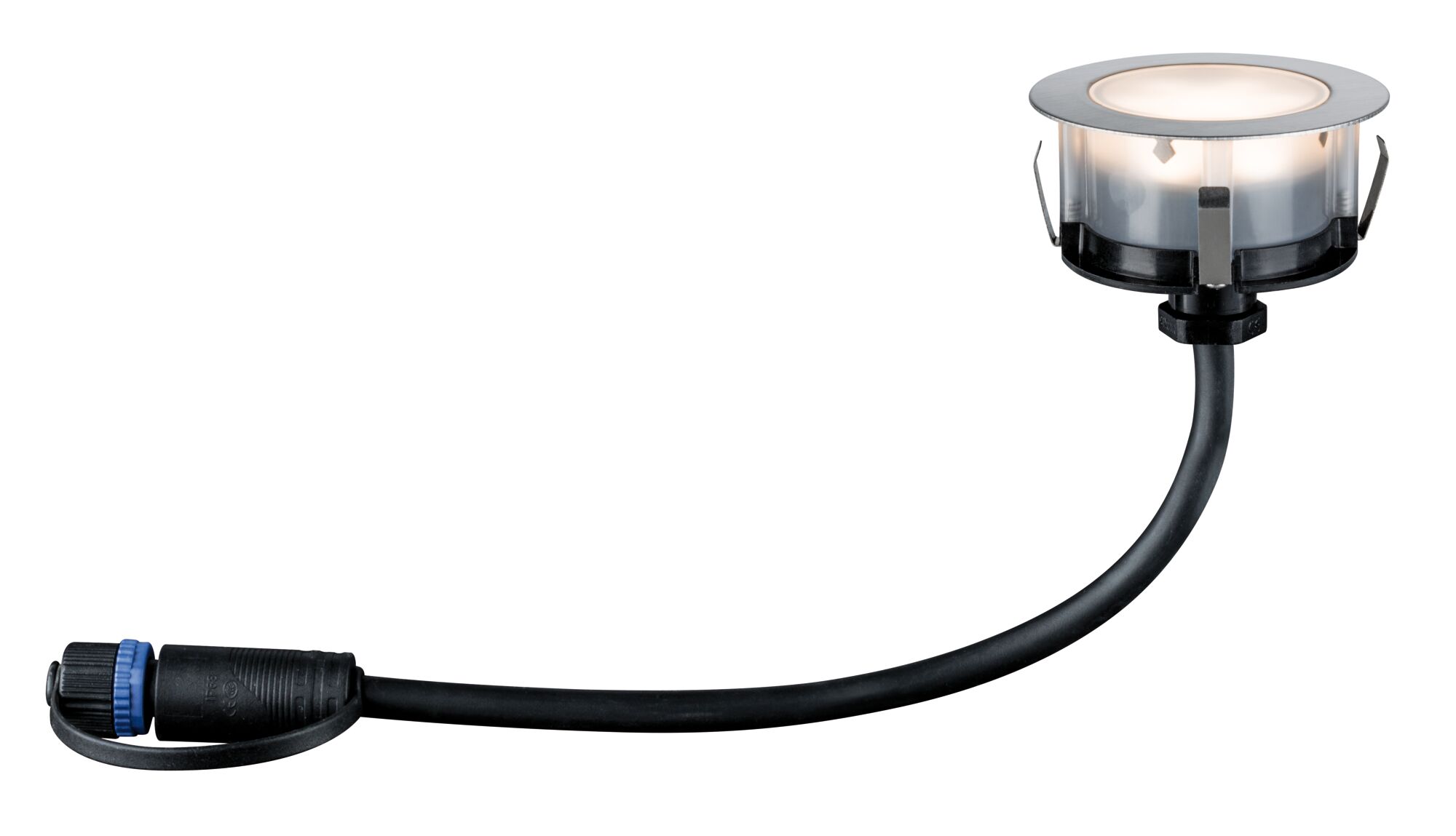

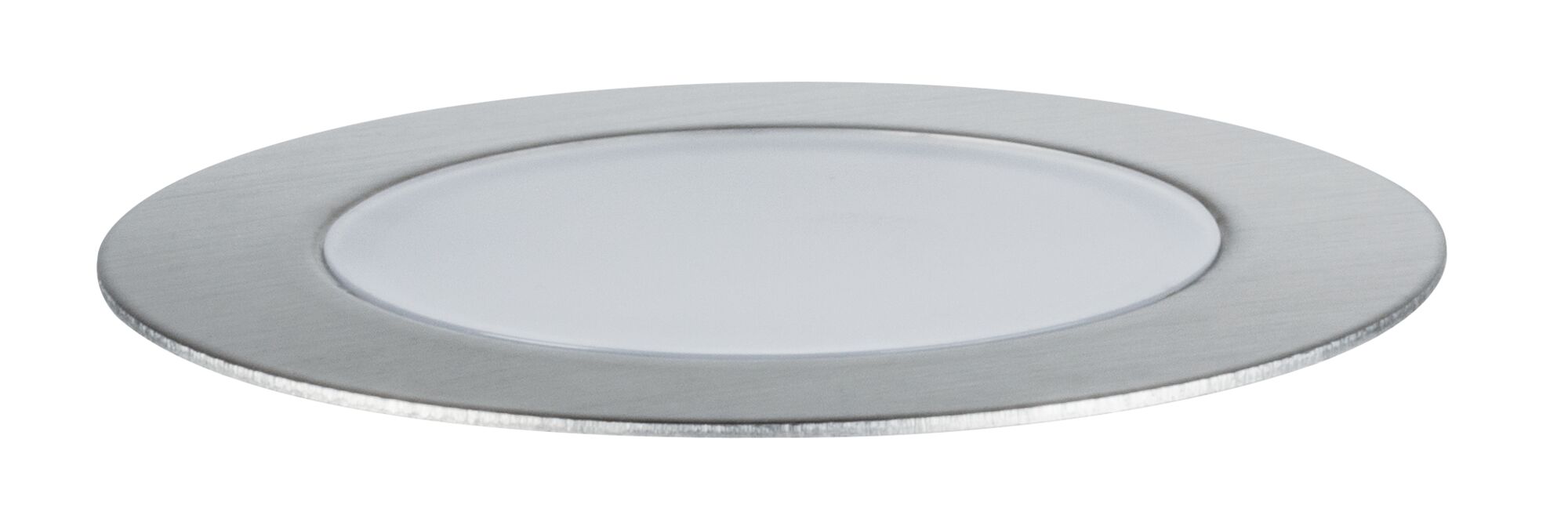

LED Recessed floor light
Floor Eco Basic Set
IP67 3000K 3x2W 21VA Silver
IP67 3000K 3x2W 21VA Silver

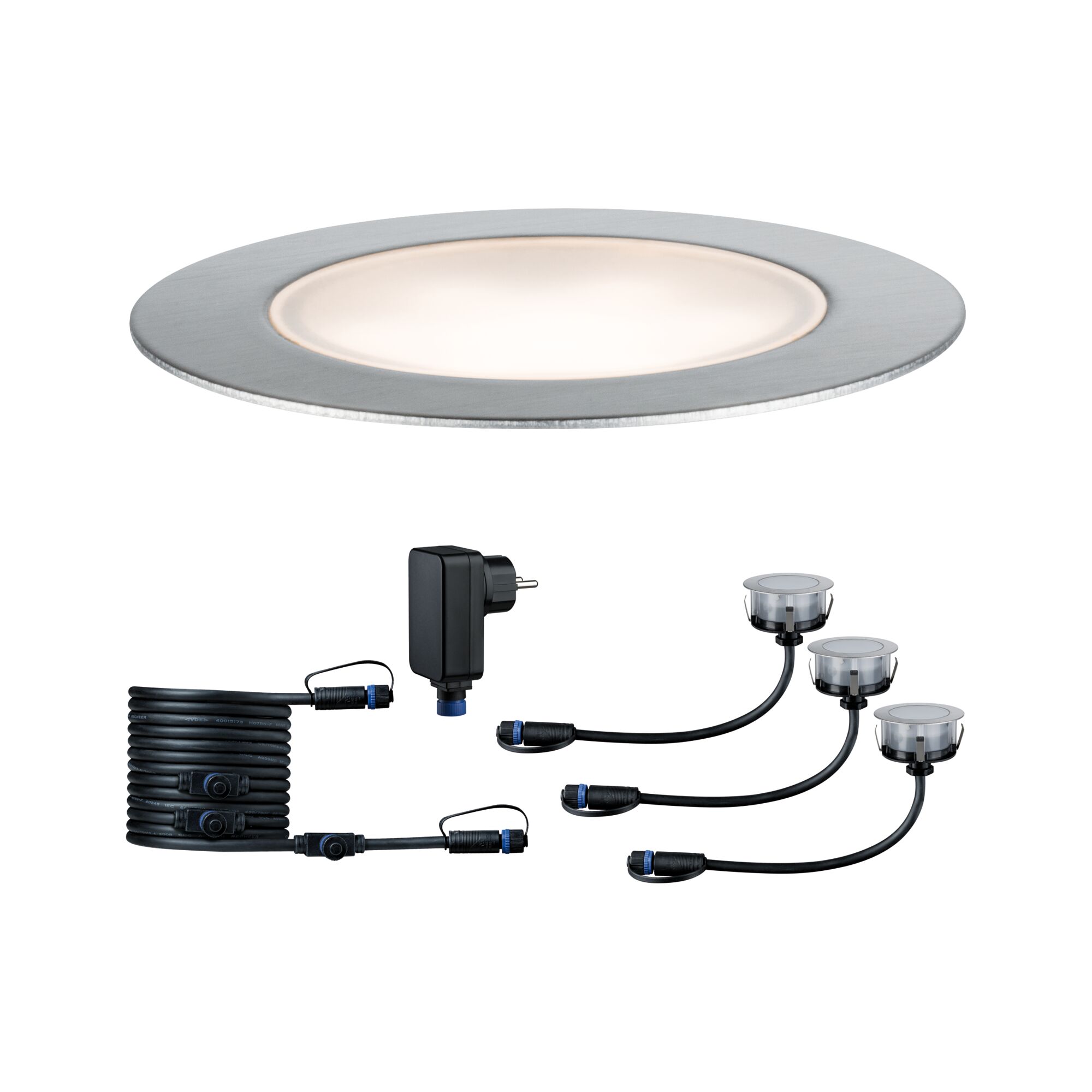

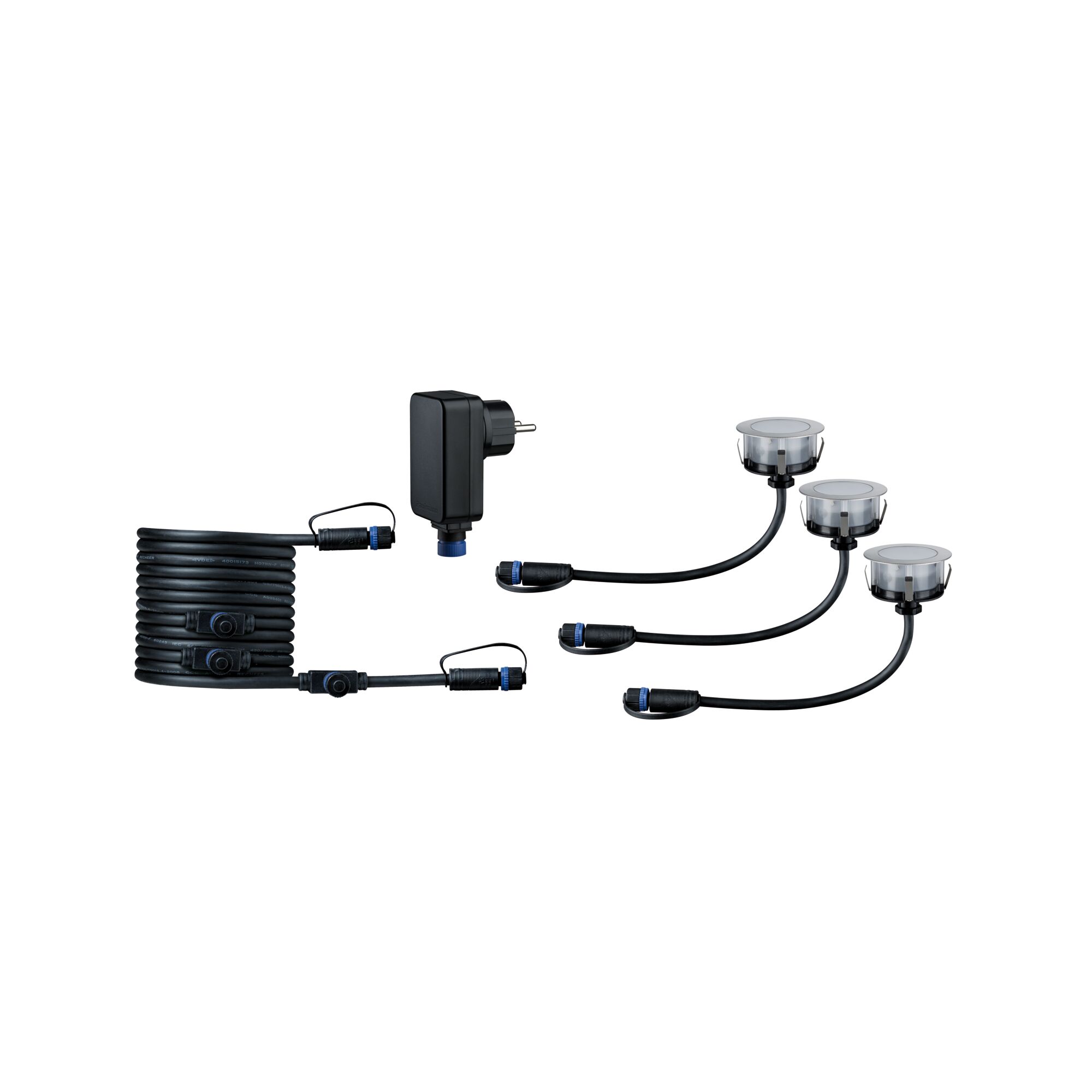

- Plug & Shine basic set consisting of three lights, five meters of connecting cable and transformer
- Compatible with all accessories in the Plug & Shine series

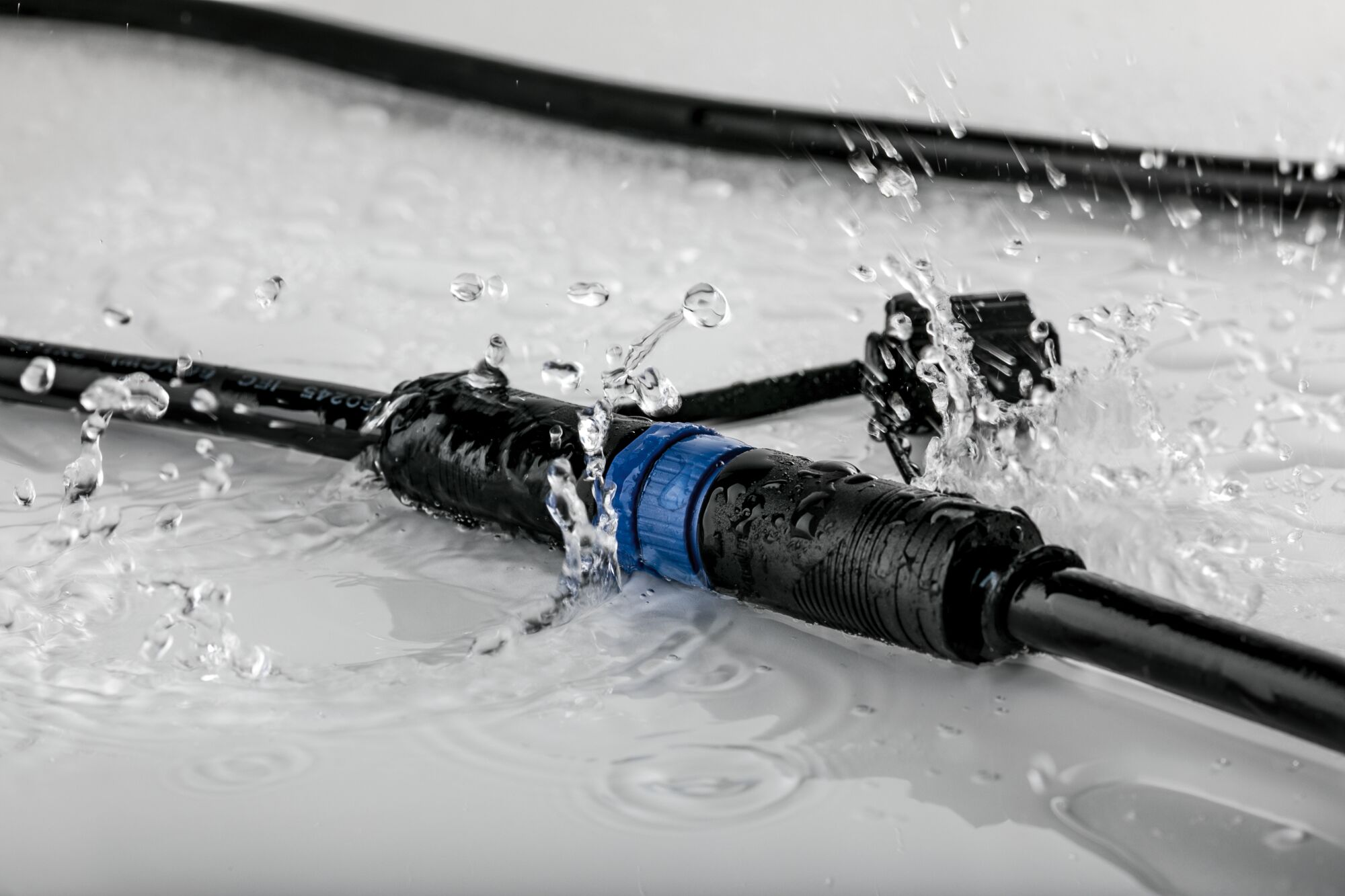

- IP Protection: IP67 - protected against temporary immersion
Plug & Shine LED Recessed floor light Floor Eco Basic Set IP67 3000K 3x2W 21VA Silver

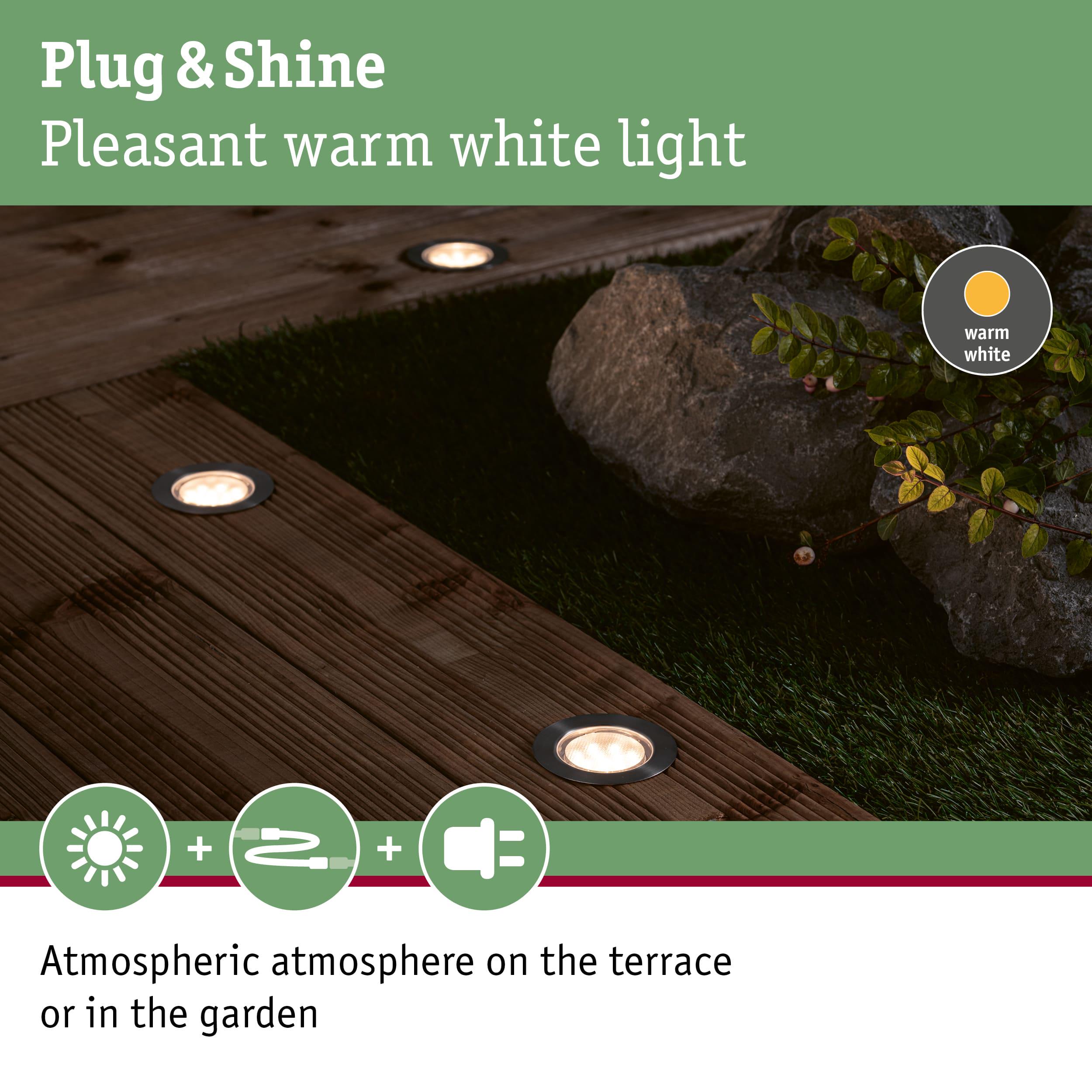

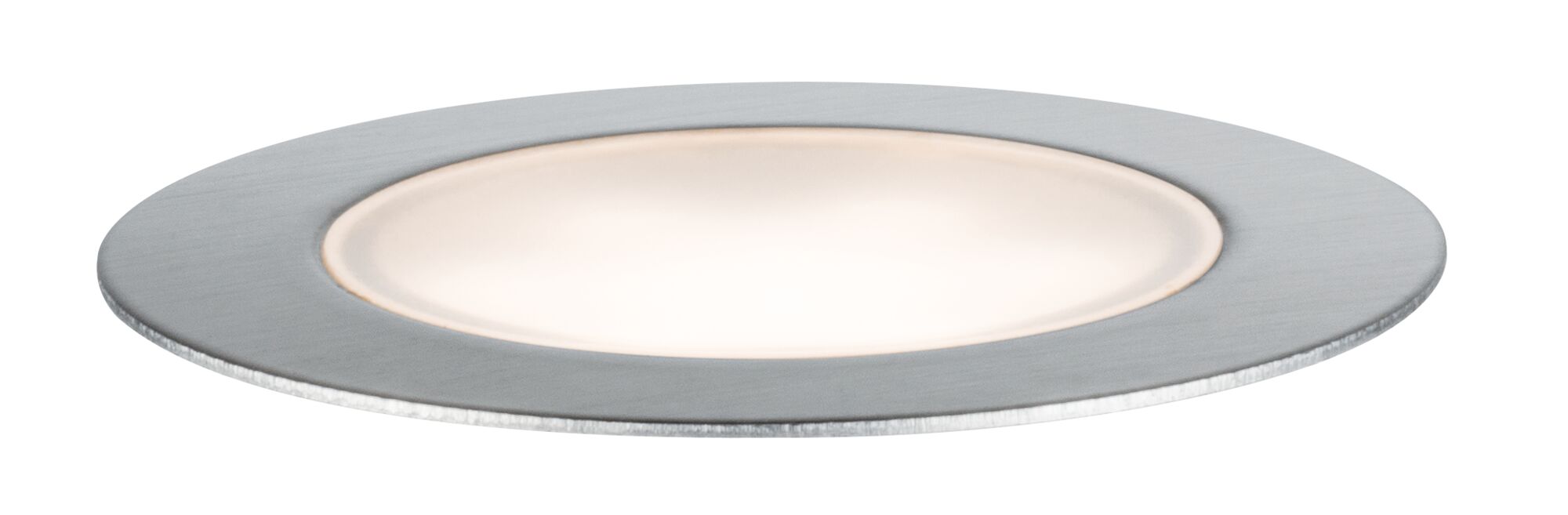

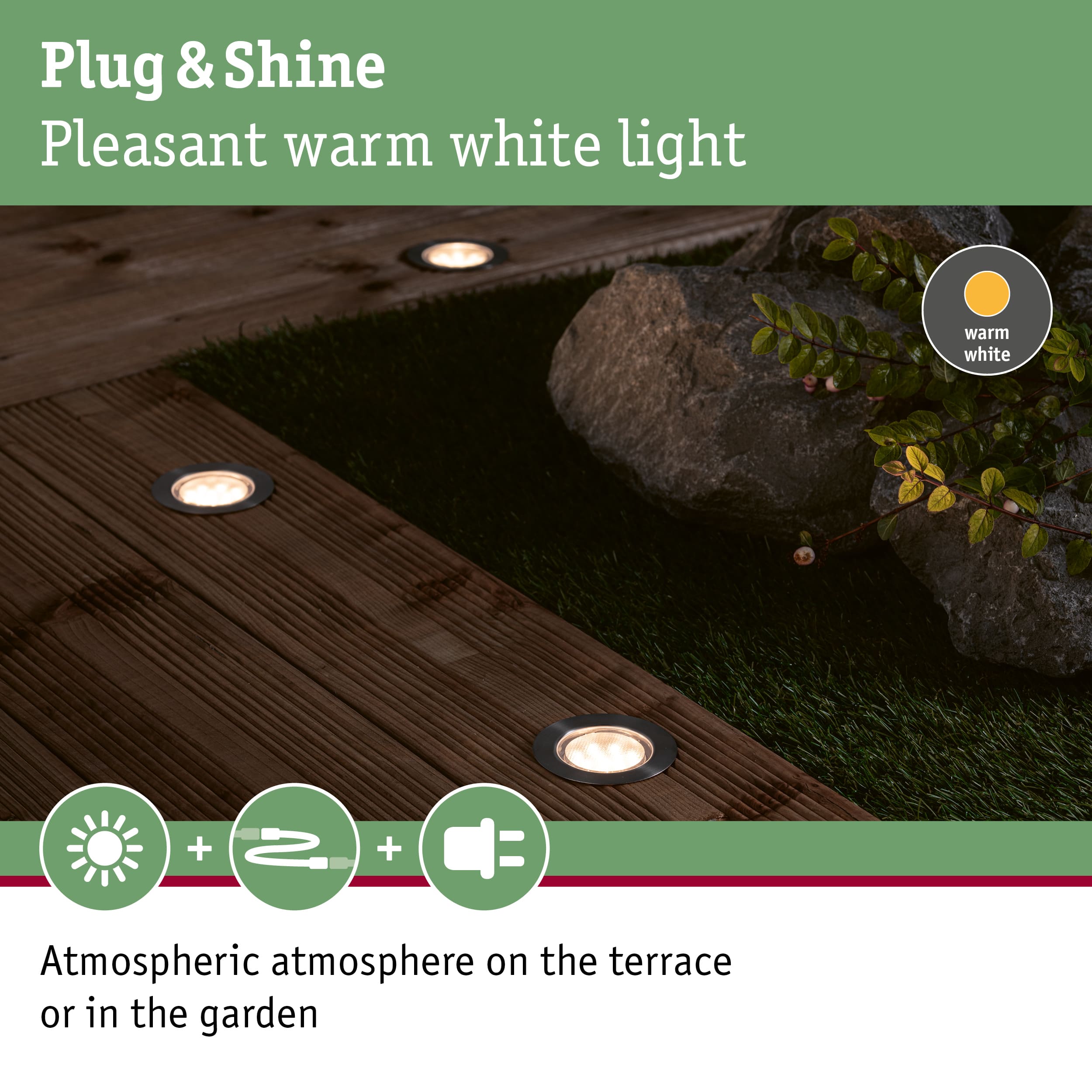

Plug & Shine Floor Eco floor recessed spotlights create decorative light points in warm white on paths, driveways and patios. This starter set contains three lights, one plug-in transformer and a connecting cable with three sockets. Unused connection ports can be sealed with the cover caps. If required, the system can be expanded with additional Plug & Shine components. It can't be walked on or driven over.
- Plug & Shine basic set consisting of three lights, five meters of connecting cable and transformer
- Compatible with all accessories in the Plug & Shine series
- IP Protection: IP67 - protected against temporary immersion
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 3000K - Warm white
- Can be switched and dimmed via the plug & shine controller (Accessories) using the remote control.

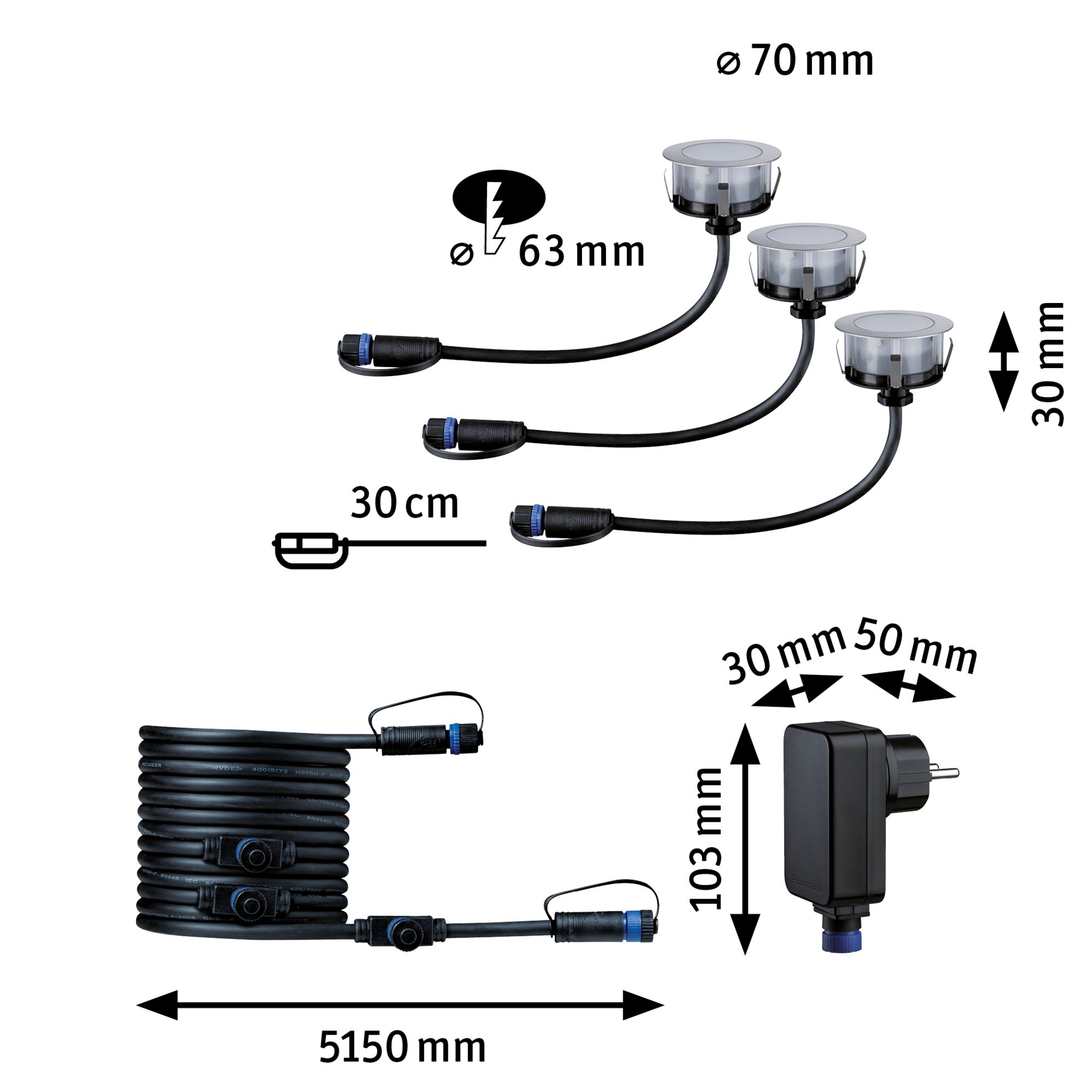

| Dimension | |
|---|---|
| Diameter | 70 mm |
| Dimensions (Height x Width x Depth) | H: 30 mm |
| Length | 5 m |
| Plug depth | 48 mm |
| Built-in diameter | 63 mm |
| Mounting depth | 50 mm |
| Depth of hollow wall | 35 mm |
| net weight | 1378 g |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Silver |
| Material | Plastic, Stainless steel |
| Stainless | stainless |
| Installation | |
|---|---|
| Installation site (recommendation) | Floor mounting |
| Application | For decorative light points on paths, driveways and patios |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Contour Plug (Typ C-CEE 7/17) |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 50 lm |
| Beam angle | 90 ° |
| Colour temperature | Warm white, 3000 K |
| Luminous flux LED module | 100 lm |
| Lamp Features | |
|---|---|
| Dimming Control | with dimmer |
| Inclusive lamp | yes |
| Component parts | 2 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 10 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| IP protection | IP67 |
| Protection class | Protection class II |
| Number of component parts | 3x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 6 W |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 21 VA |
| Transformer height | 103 mm |
| Transformer width | 50 mm |
| Transformer depth | 30 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
