Article-No.:
93689
Plug & Shine
LED Garden spotlight
Sting Expansion Set
IP67 3000K 3x6,4W Anthracite
IP67 3000K 3x6,4W Anthracite

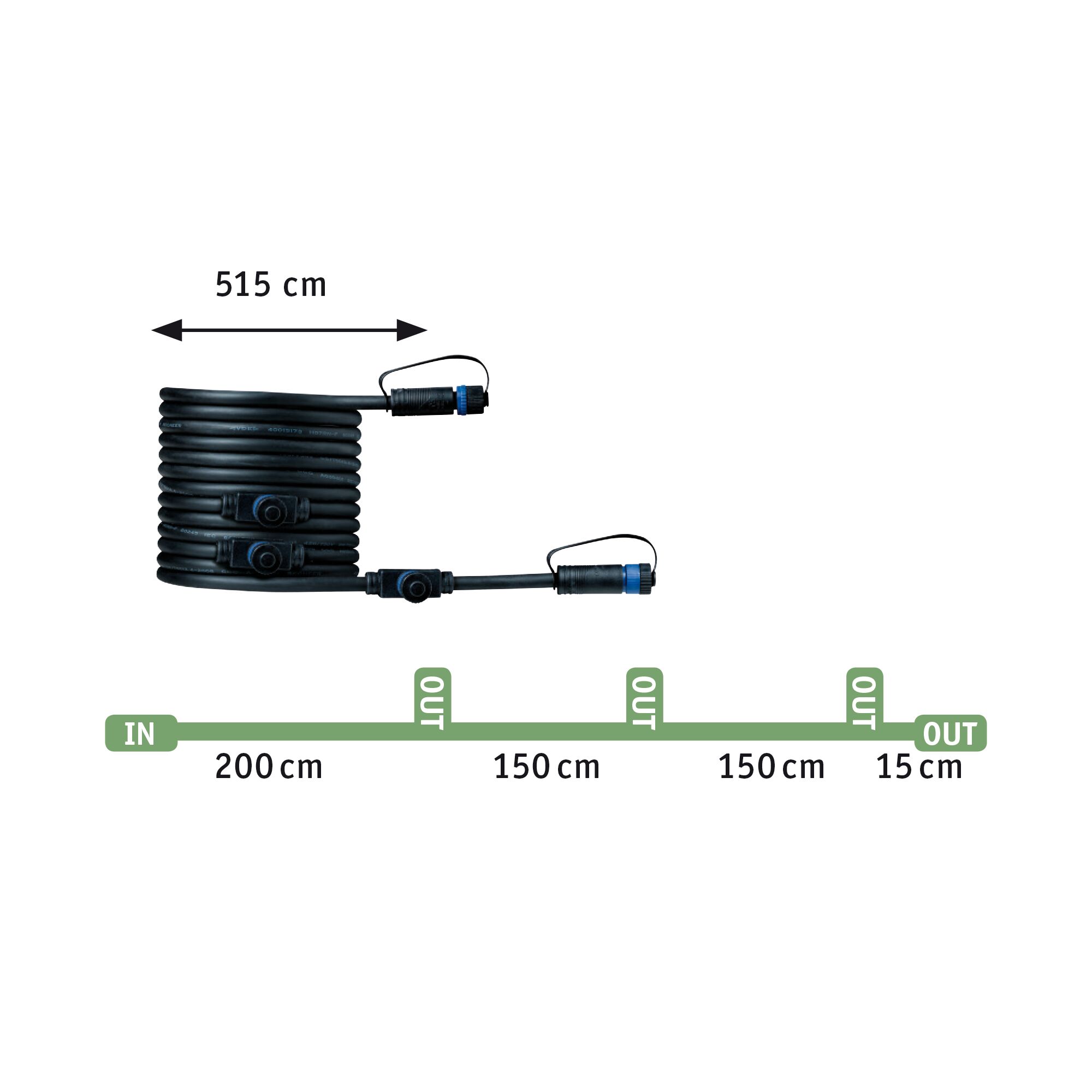

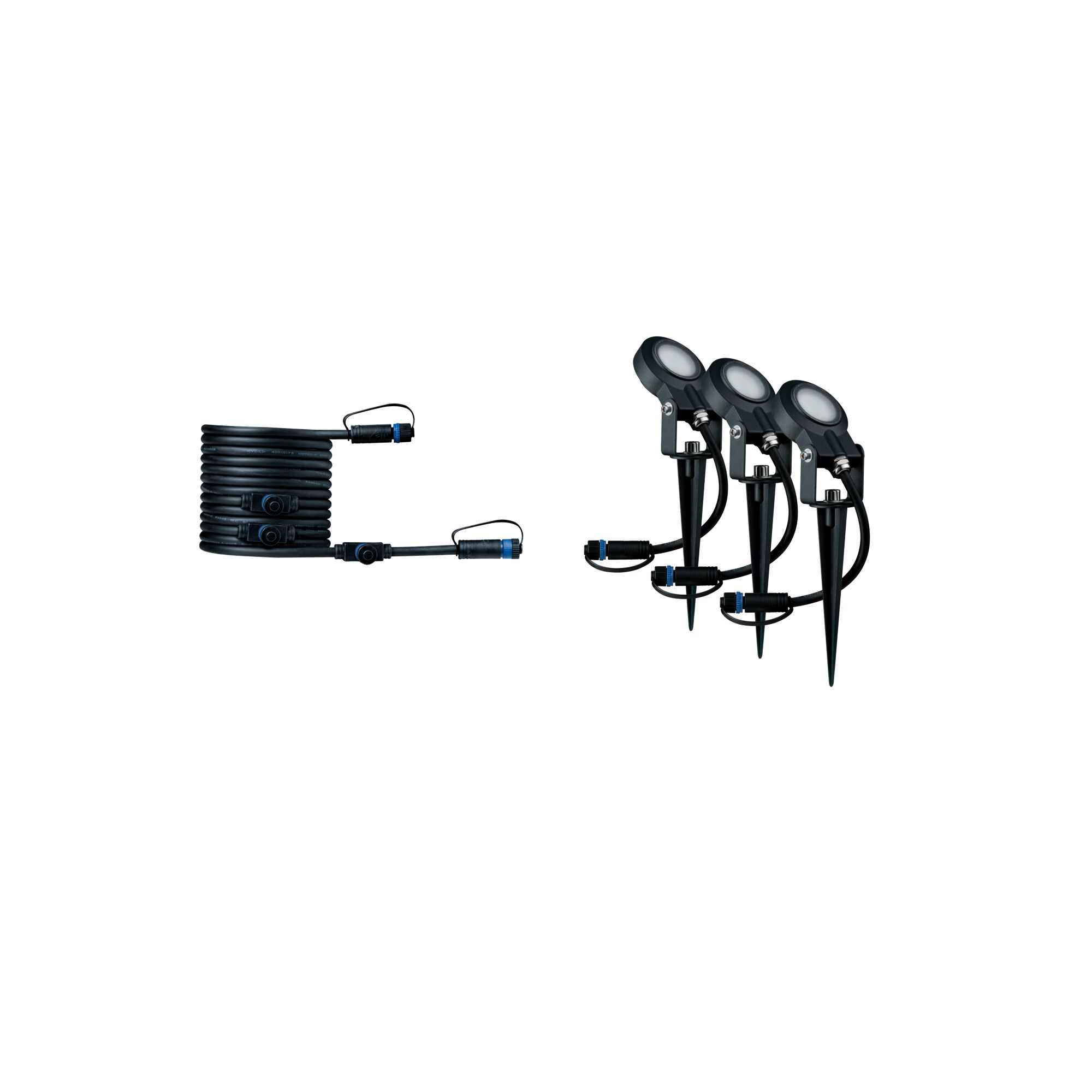

- Plug & Shine extension set consisting of three luminaires and connecting cable
- Compatible with all luminaires and accessories in the Plug & Shine series
- LED lamp (fixed) included in scope of delivery
Plug & Shine LED Garden spotlight Sting Expansion Set IP67 3000K 3x6,4W Anthracite

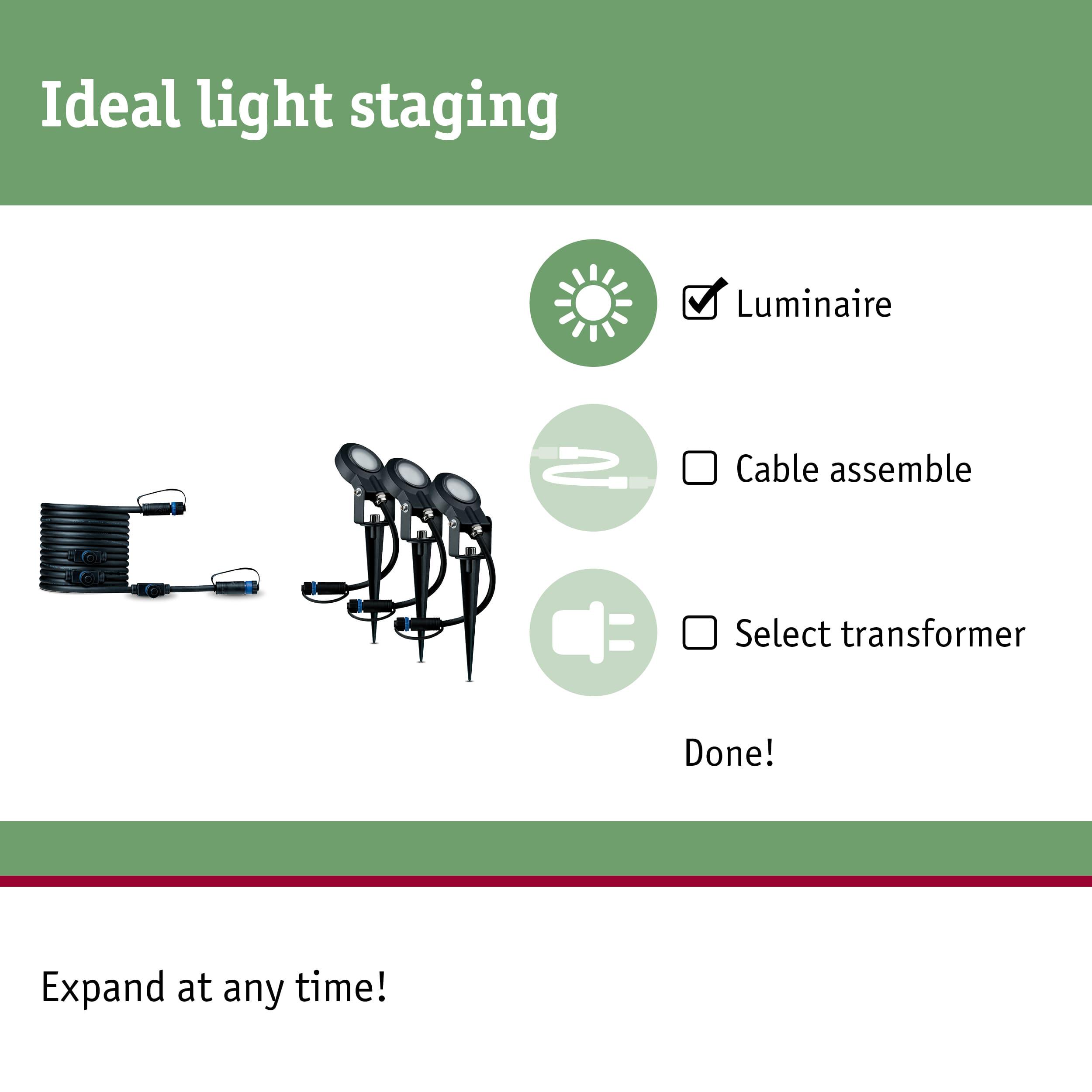

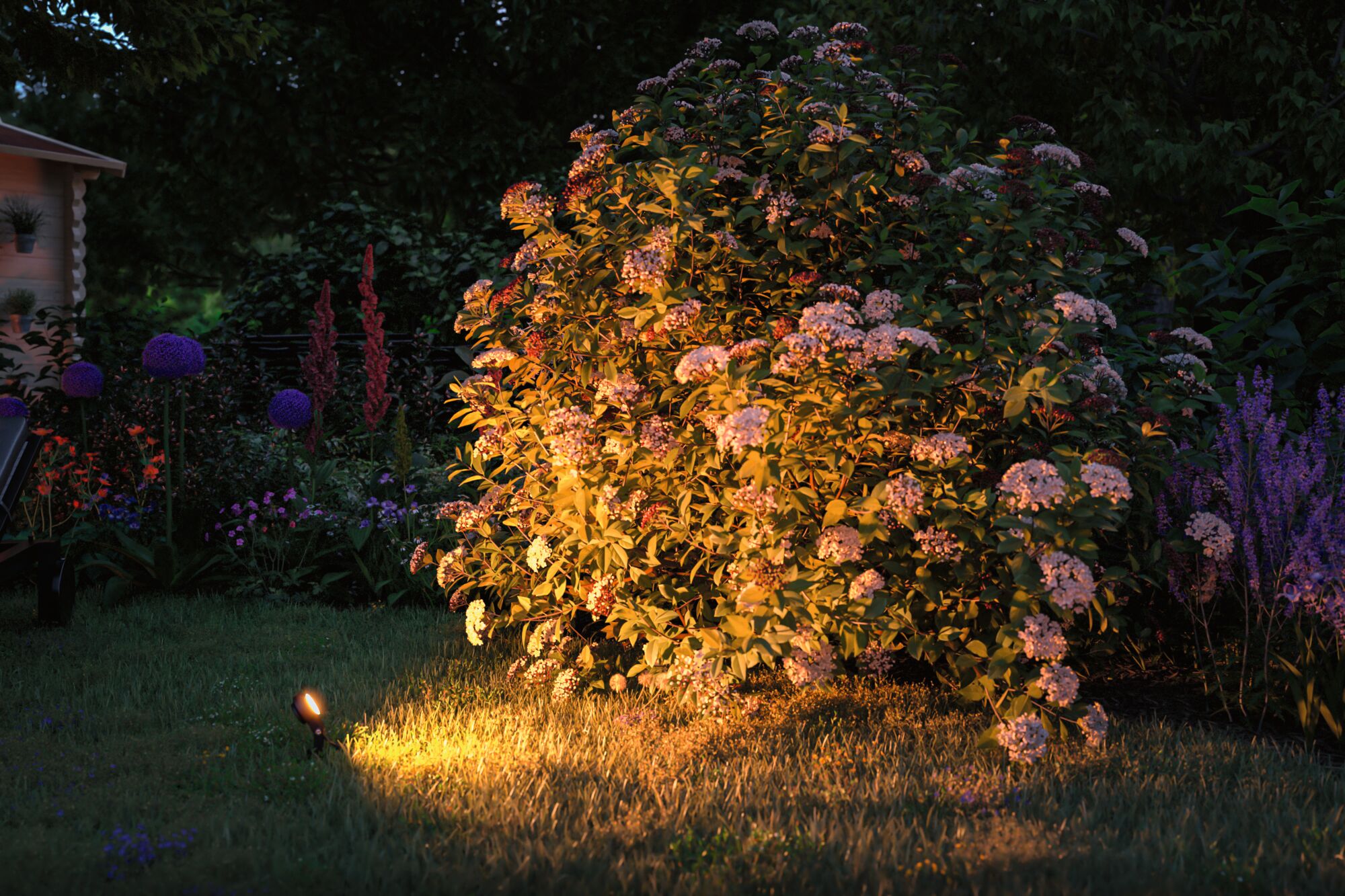

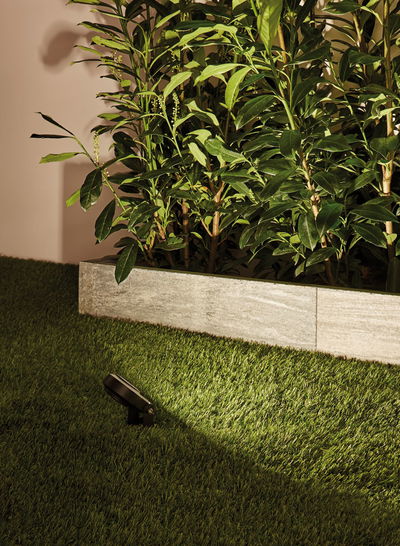

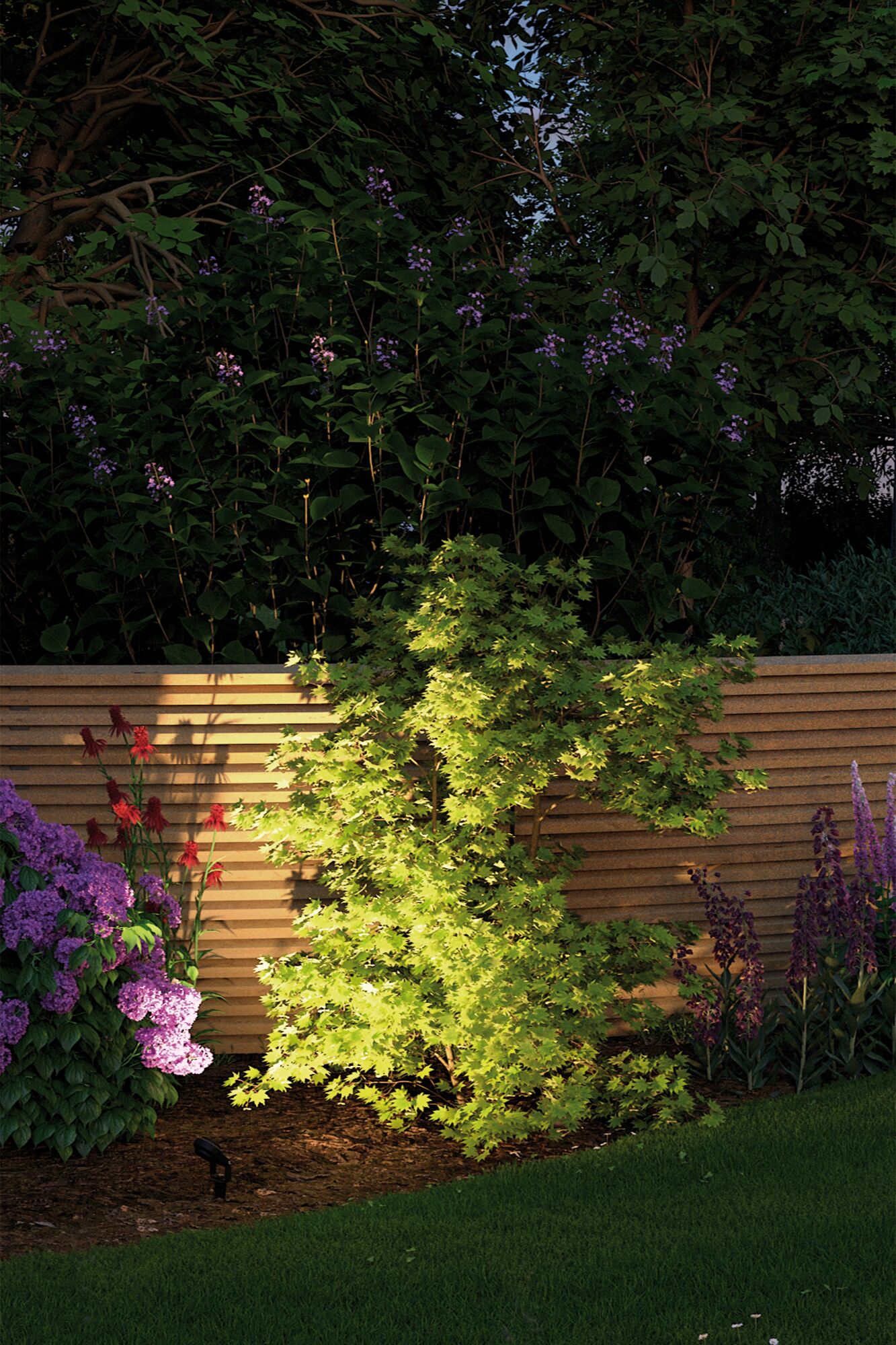

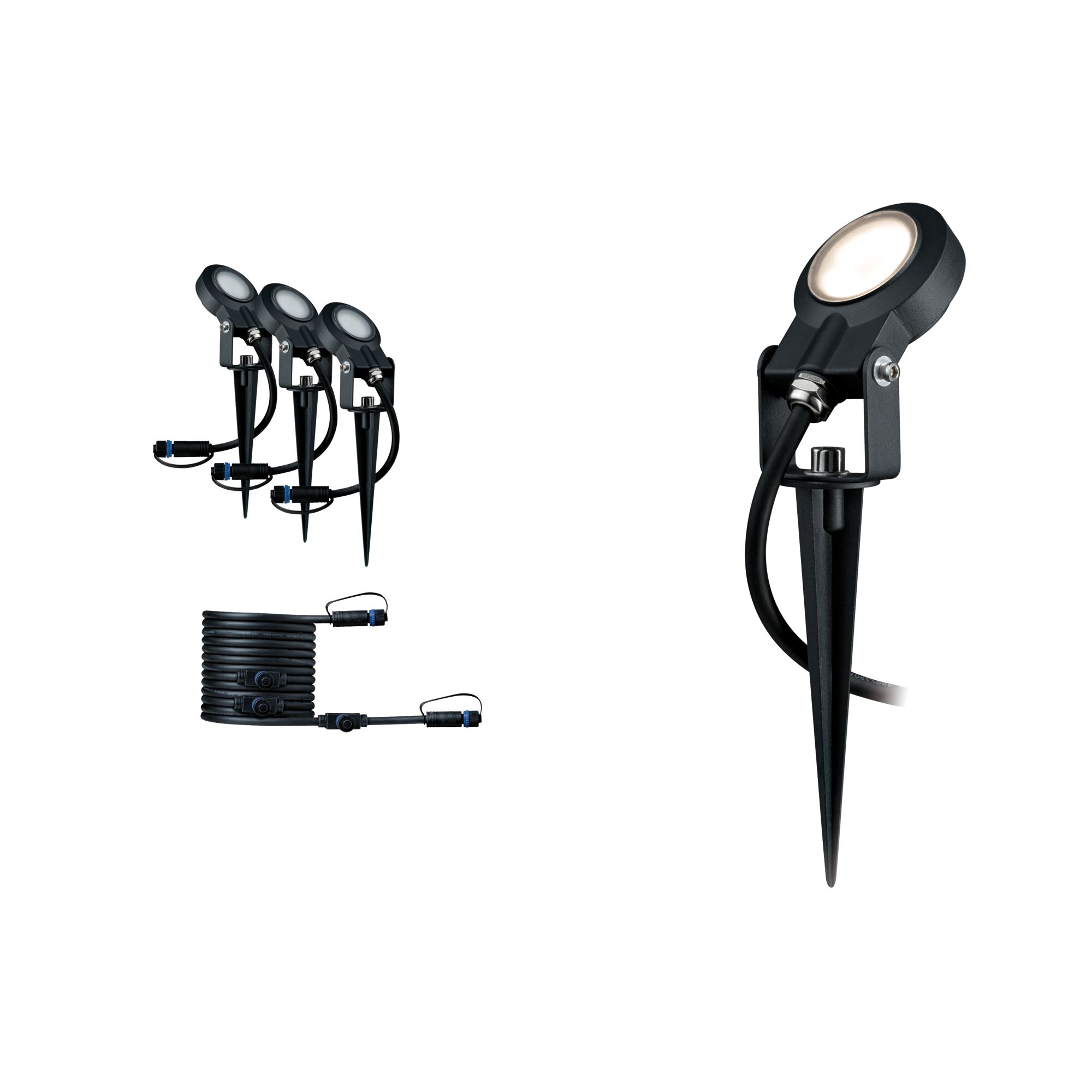

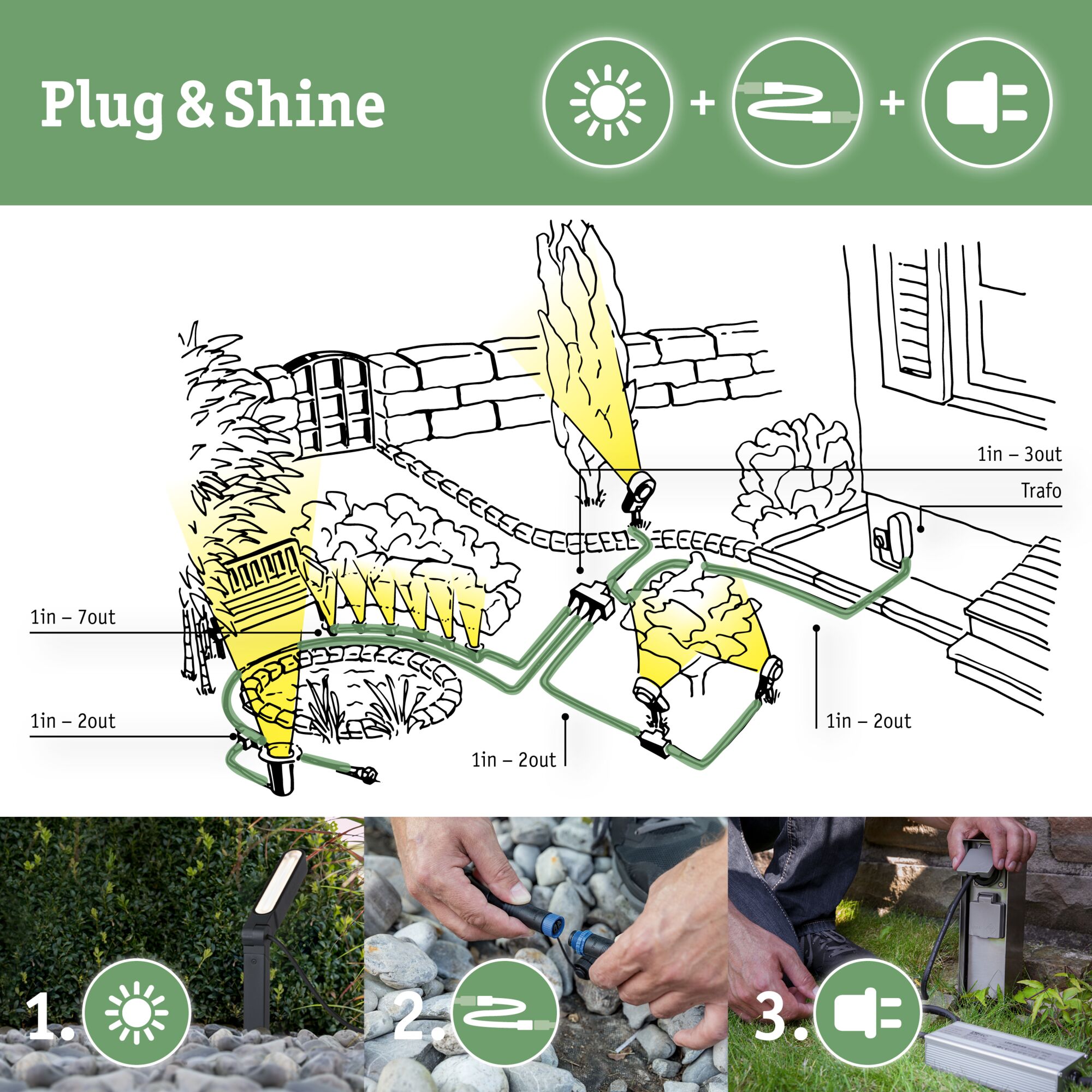

The Plug & Shine Sting extension set enables up to three additional luminaires to be connected to the existing 24V light installation. The spikes are ideal for illuminating plants or other objects, they can be directed individually and are absolutely weather-resistant. The system can be expanded with additional Plug&Shine components, if required.
- Plug & Shine extension set consisting of three luminaires and connecting cable
- Compatible with all luminaires and accessories in the Plug & Shine series
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 3000K - Warm white
- Can be switched and dimmed via the plug & shine controller (Accessories) using the remote control.
| Dimension | |
|---|---|

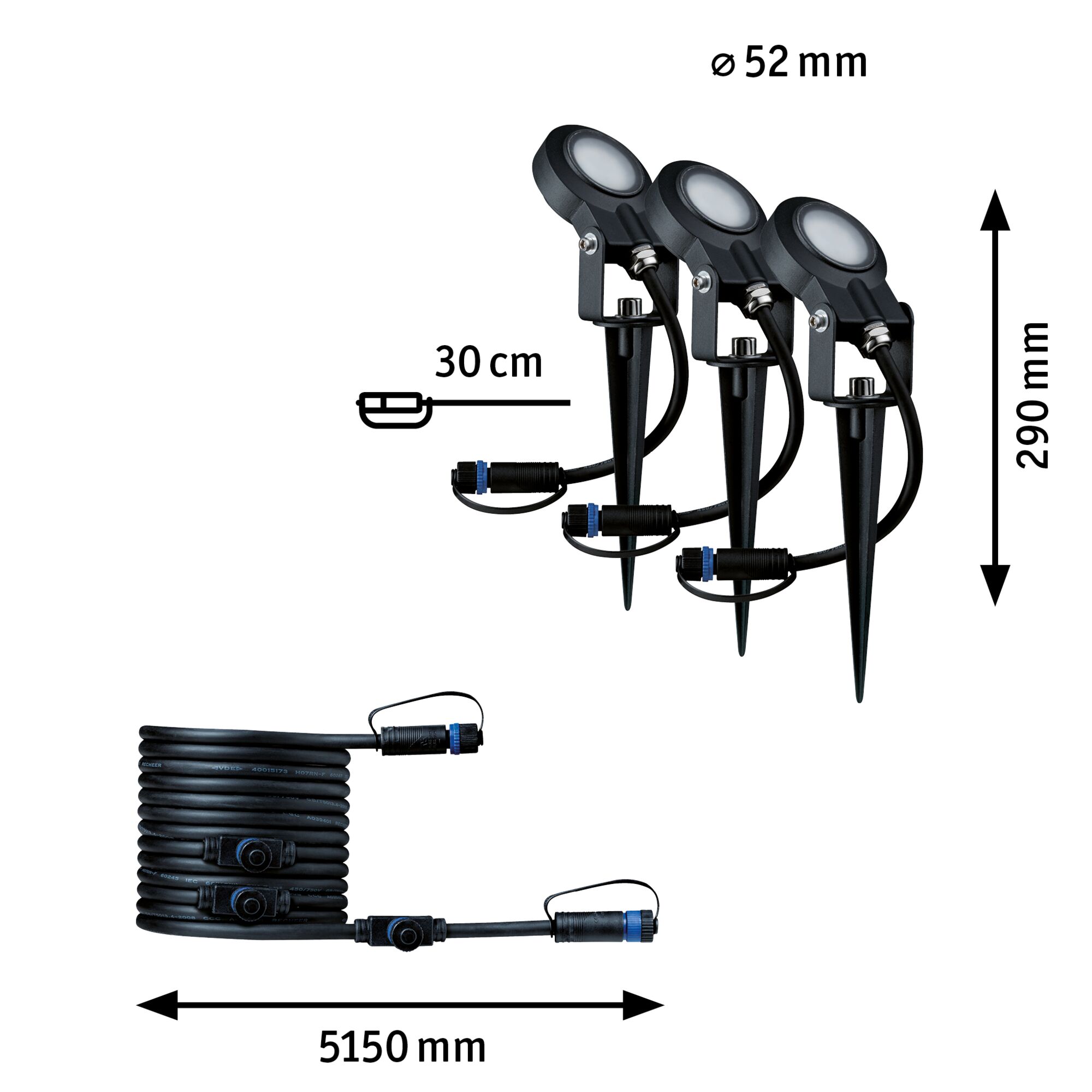

| Dimensions (Height x Width x Depth) | H: 274 T: 87 mm |
| Ø | 71 mm |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Anthracite |
| Material | Aluminium |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann Plug & Shine 180.10/ 180.11, Paulmann Plug & Shine ZigBee Controller 939.99 |
| Installation site (recommendation) | Floor mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Beam angle | 100 ° |
| Usable luminous flux | 270 lm |
| Luminous flux LED module | 655 lm |
| color temp | 3000 K |
| Beam angle LED module | 114 ° |
| Lamp Features | |
|---|---|
| Component parts | 6,4 W |
| Technique | LED |
| IP protection | IP67 |
| Dim | with dimmer |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 43 W |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 18 W |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
