Article-No.:
94242
Plug & ShineLED Garden spotlight
Pike Basic Set
IP65 3000K 3x2,2W 21VA Anthracite
IP65 3000K 3x2,2W 21VA Anthracite

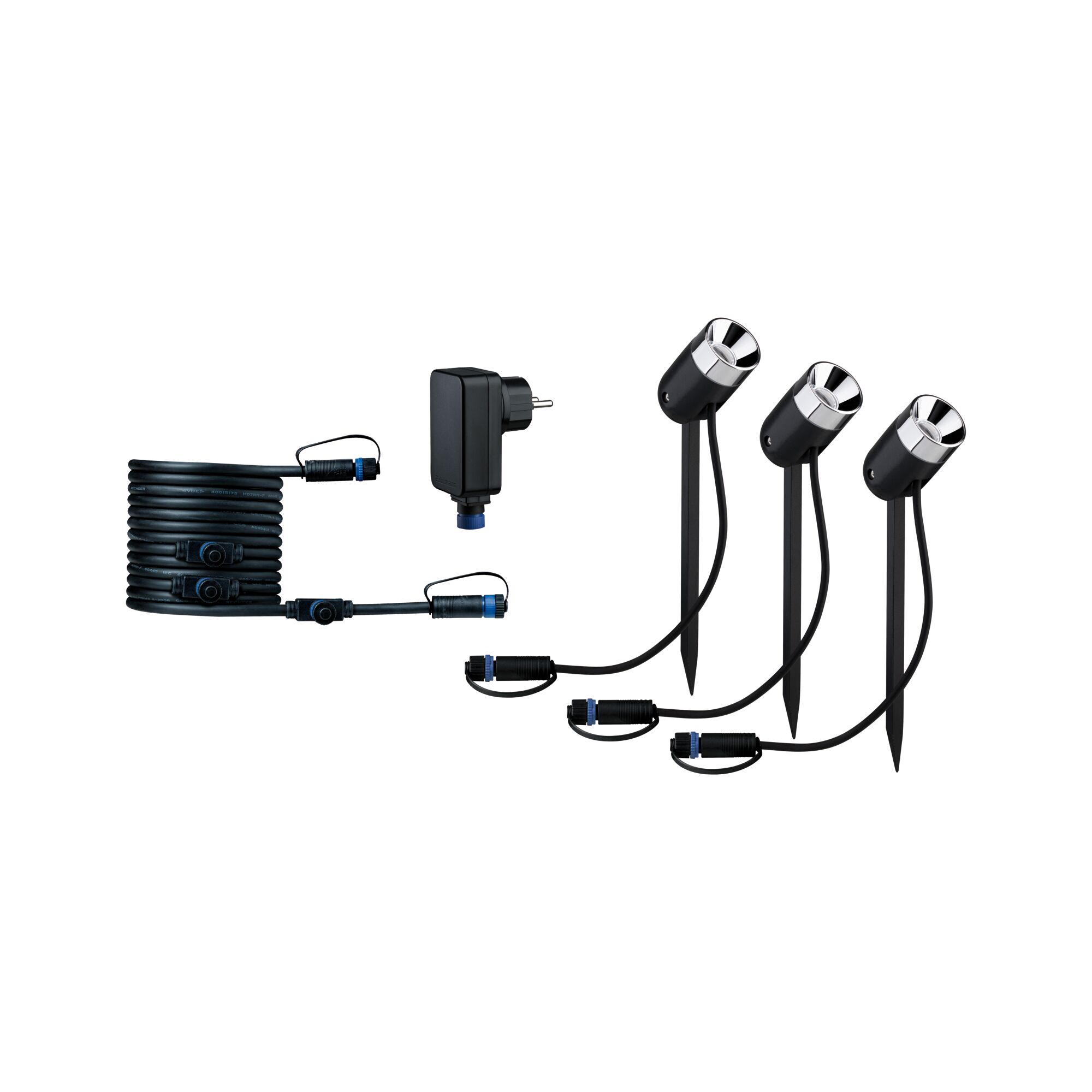

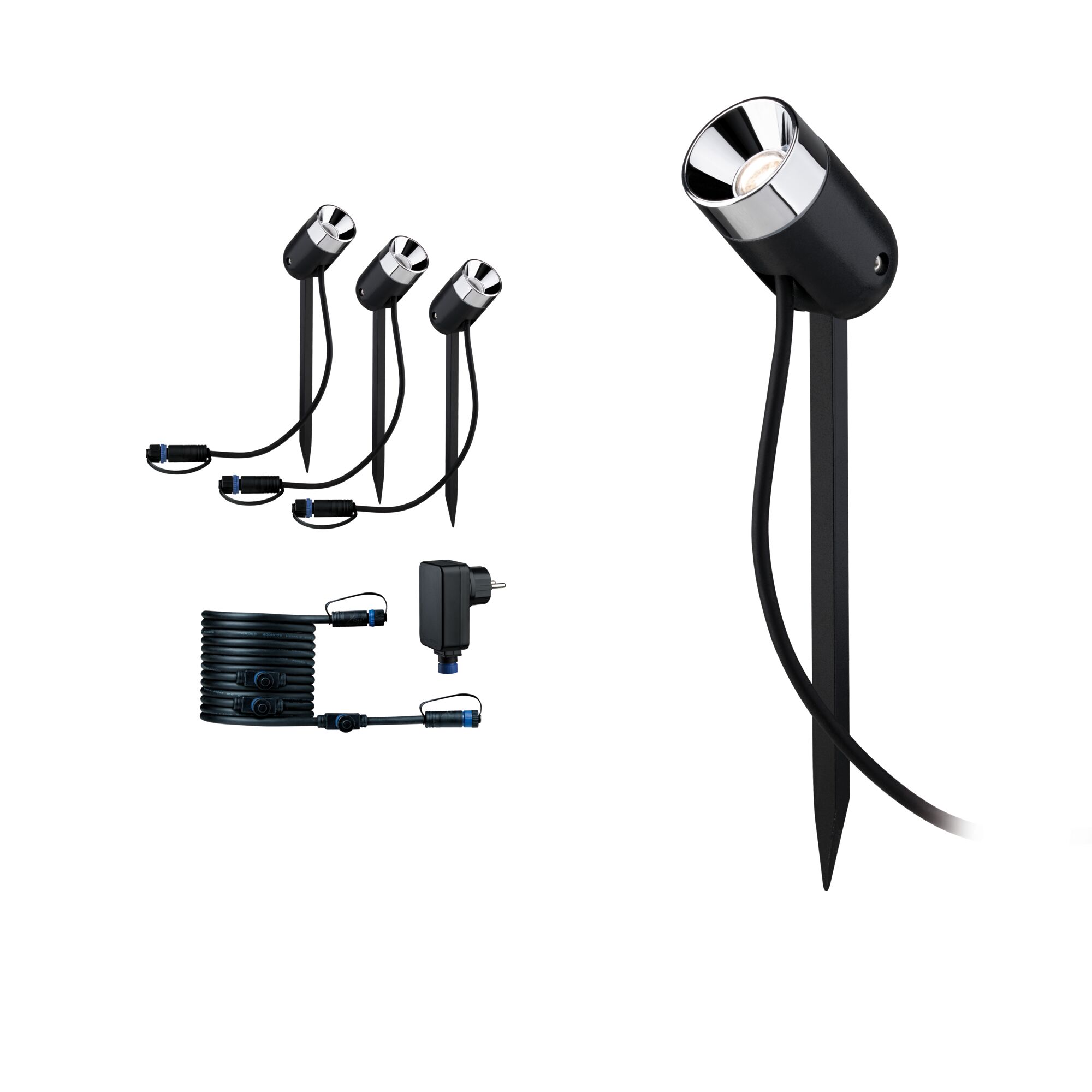

- Plug & Shine basic set consisting of three luminaires, five meters of connecting cable and transformer
- Directed light
- LED lamp (fixed) included in scope of delivery
Plug & Shine LED Garden spotlight Pike Basic Set IP65 3000K 3x2,2W 21VA Anthracite

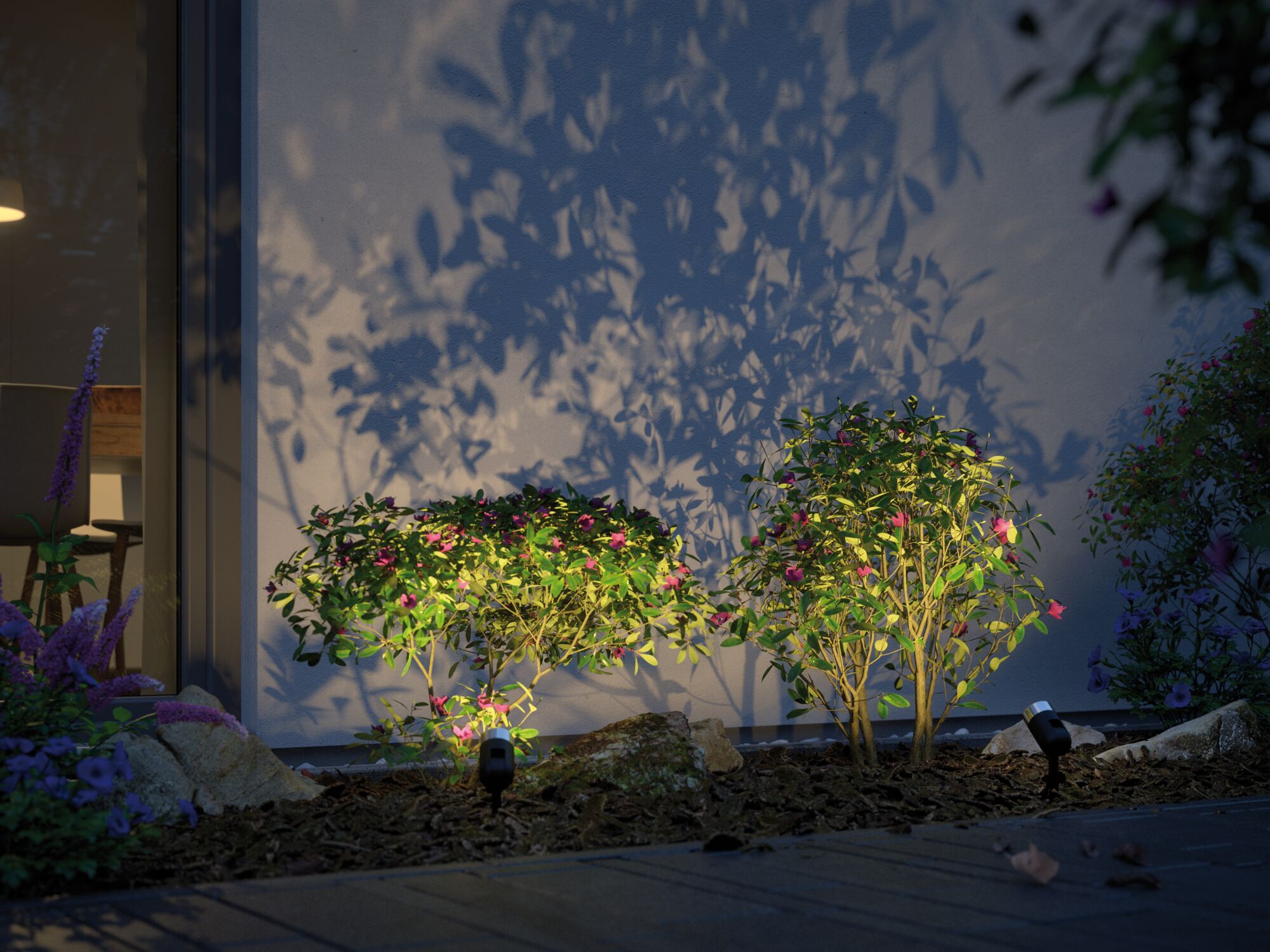

Just unpack, plug in, and illuminate your garden: the Plug & Shine Pike starter set consisting of three warm white ground spikes, transformer and connecting cable offers you the ideal start into outdoor lighting. The spikes are ideal for illuminating plants or other objects, they can be directed individually and are absolutely weather-resistant. If required, you can expand the system with additional Plug & Shine components.
- Plug & Shine basic set consisting of three luminaires, five meters of connecting cable and transformer
- Directed light
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 3000K - Warm white
- Compatible with all accessories in the Plug & Shine series
- Can be switched and dimmed via the plug & shine controller (Accessories) using the remote control.
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 313 x T: 82 mm |
| Plug depth | 48 mm |
| Ø | 50 mm |

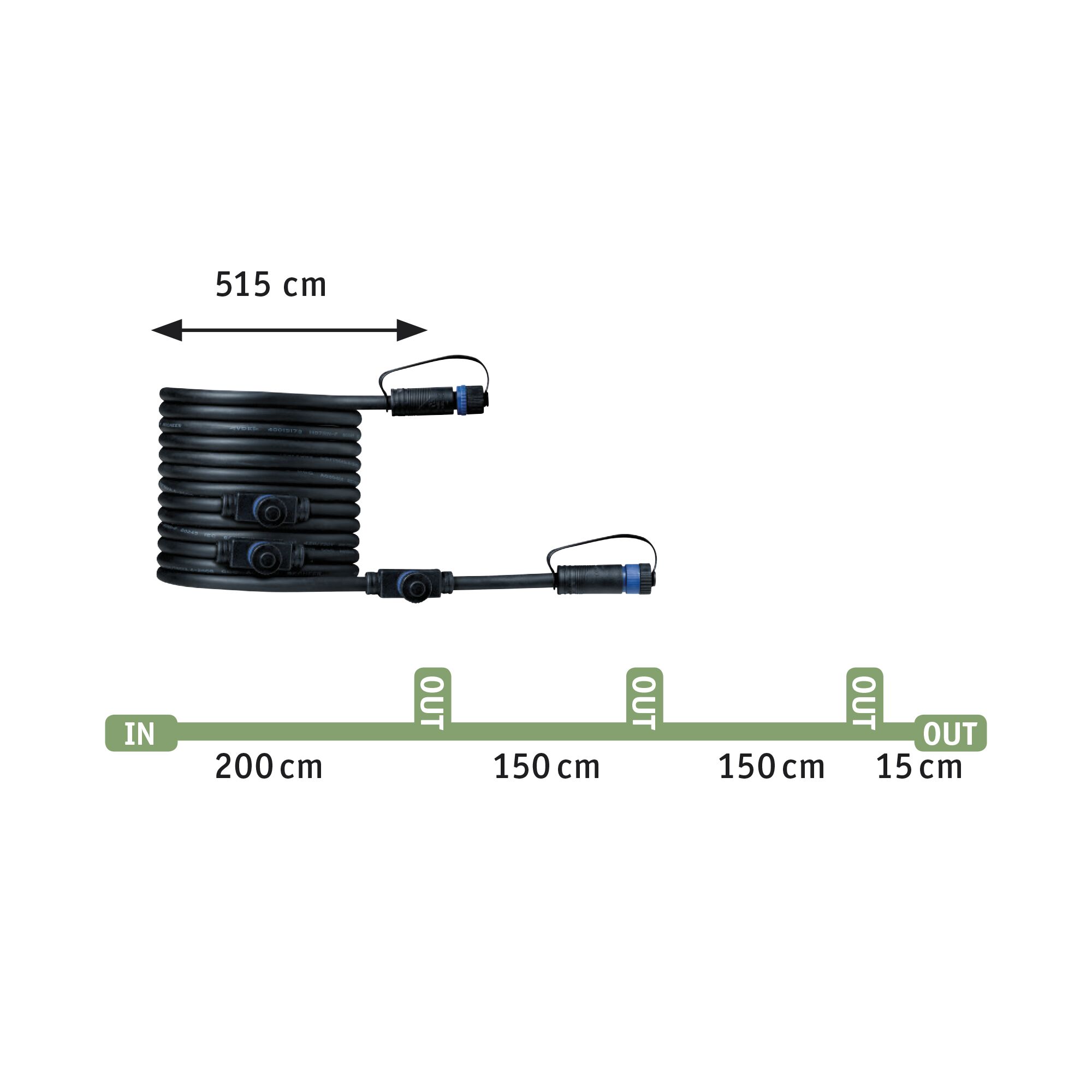

| Length | 5 m |
| Form | cylindrical |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Anthracite |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann Plug & Shine 180.10/ 180.11, Paulmann Plug & Shine ZigBee Controller 939.99 |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |

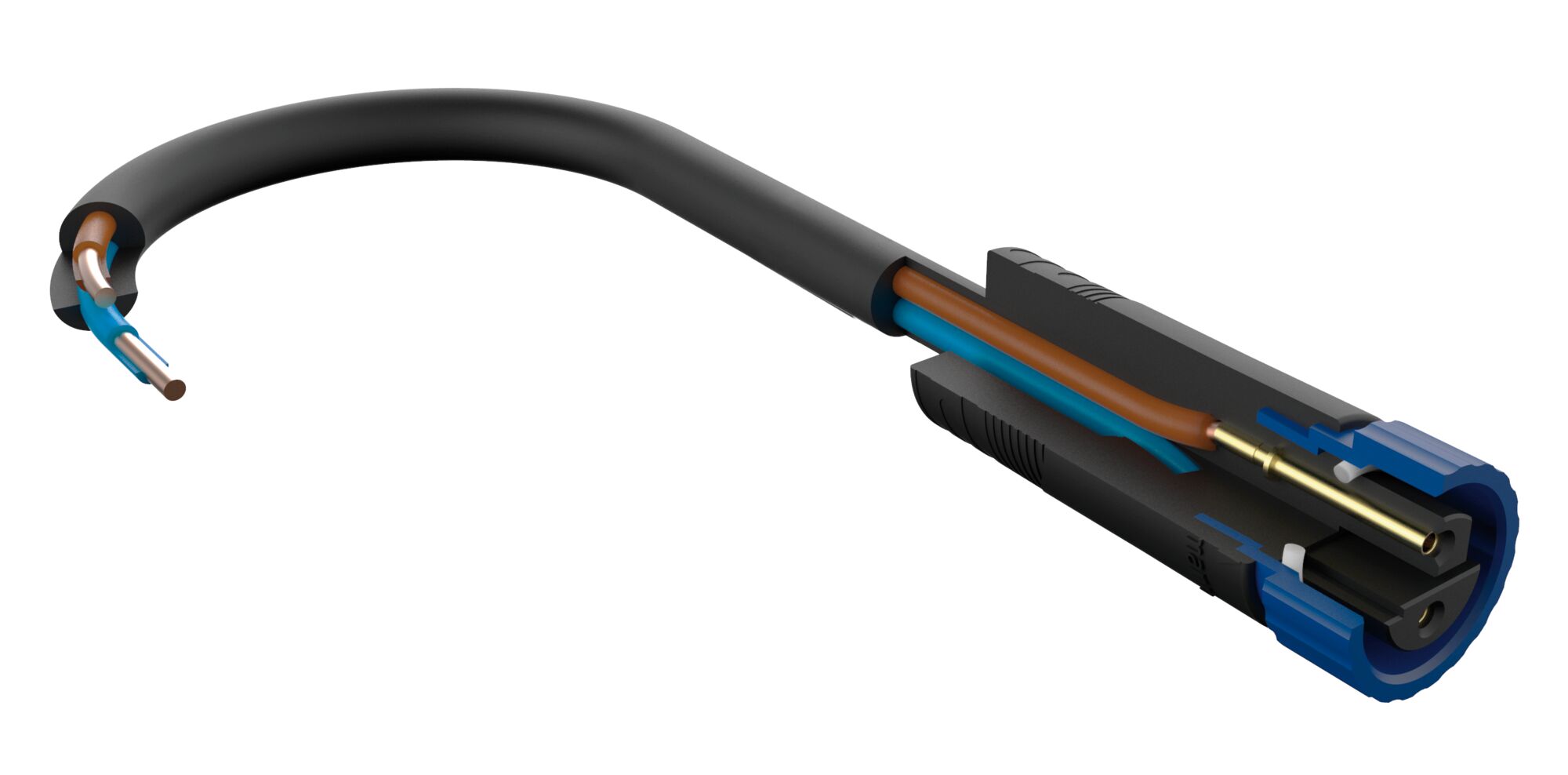

| Plug | Contour Plug (Typ C-CEE 7/17) |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| color temp | 3000 K |
| Farbtemperatur_Text | Warmweiß |
| Beam angle | 45 ° |
| Usable luminous flux | 240 lm |
| Luminous flux LED module | 341 lm |
| Beam angle LED module | 118 ° |
| Lamp Features | |
|---|---|
| Component parts | 2,2 W |
| Technique | LED |
| IP protection | IP65 |
| Dim | with dimmer |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 33 W |
| Adjustability | swivelling/tilting |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 11 W |
| Transformer | |
|---|---|
| Transformer power | 21 VA |
| apparent power | 13 VA |
| Transformer height | 103 mm |
| Transformer width | 50 mm |
| Transformer depth | 30 mm |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
