Article-No.:
70963
MaxLED FlowLED Strip
Basic set warm white
3m coated 38W 1000lm/m 180 LEDs/m 2700K 50VA
3m coated 38W 1000lm/m 180 LEDs/m 2700K 50VA
- Uniform homogeneous lighting strip without irritating individual light points

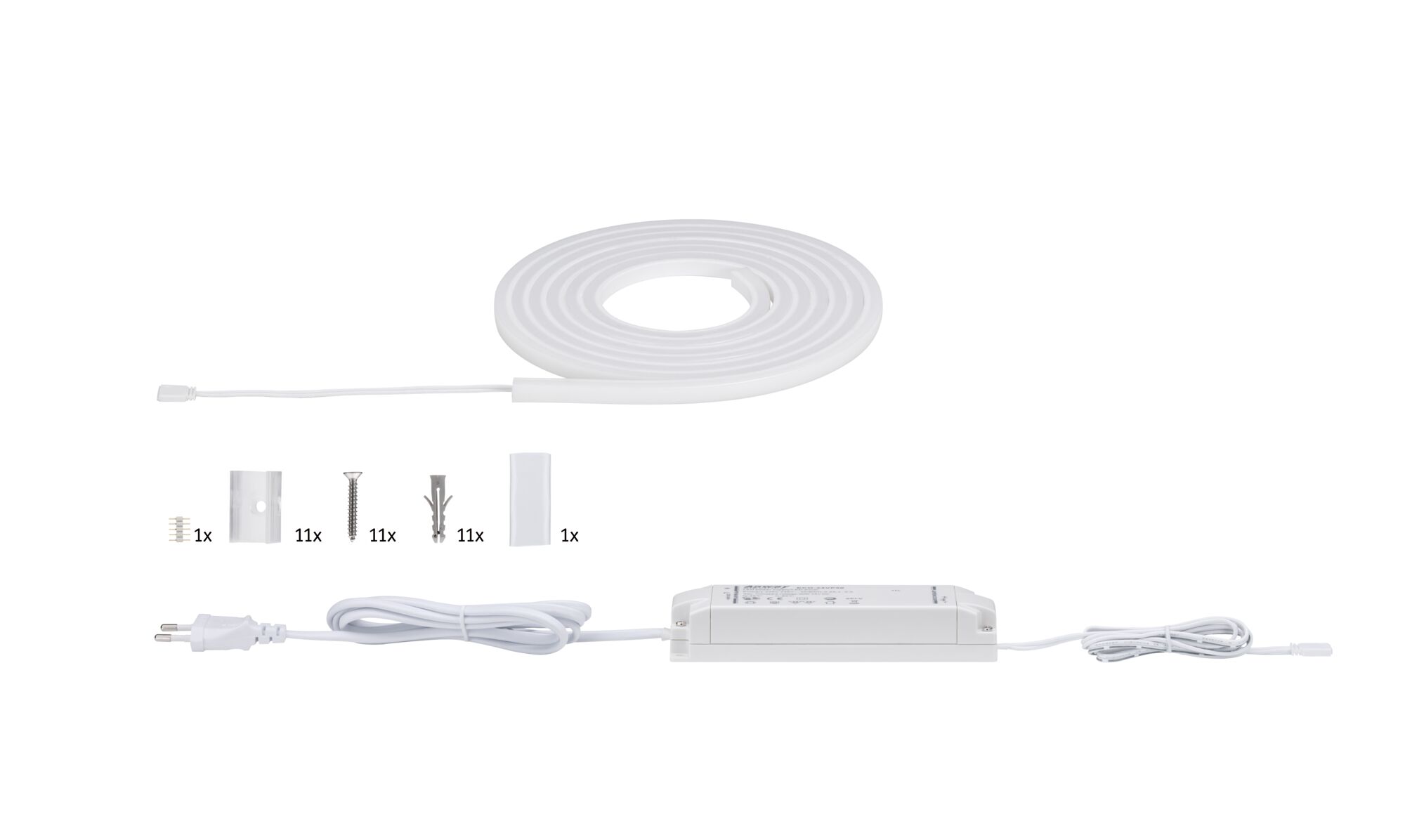

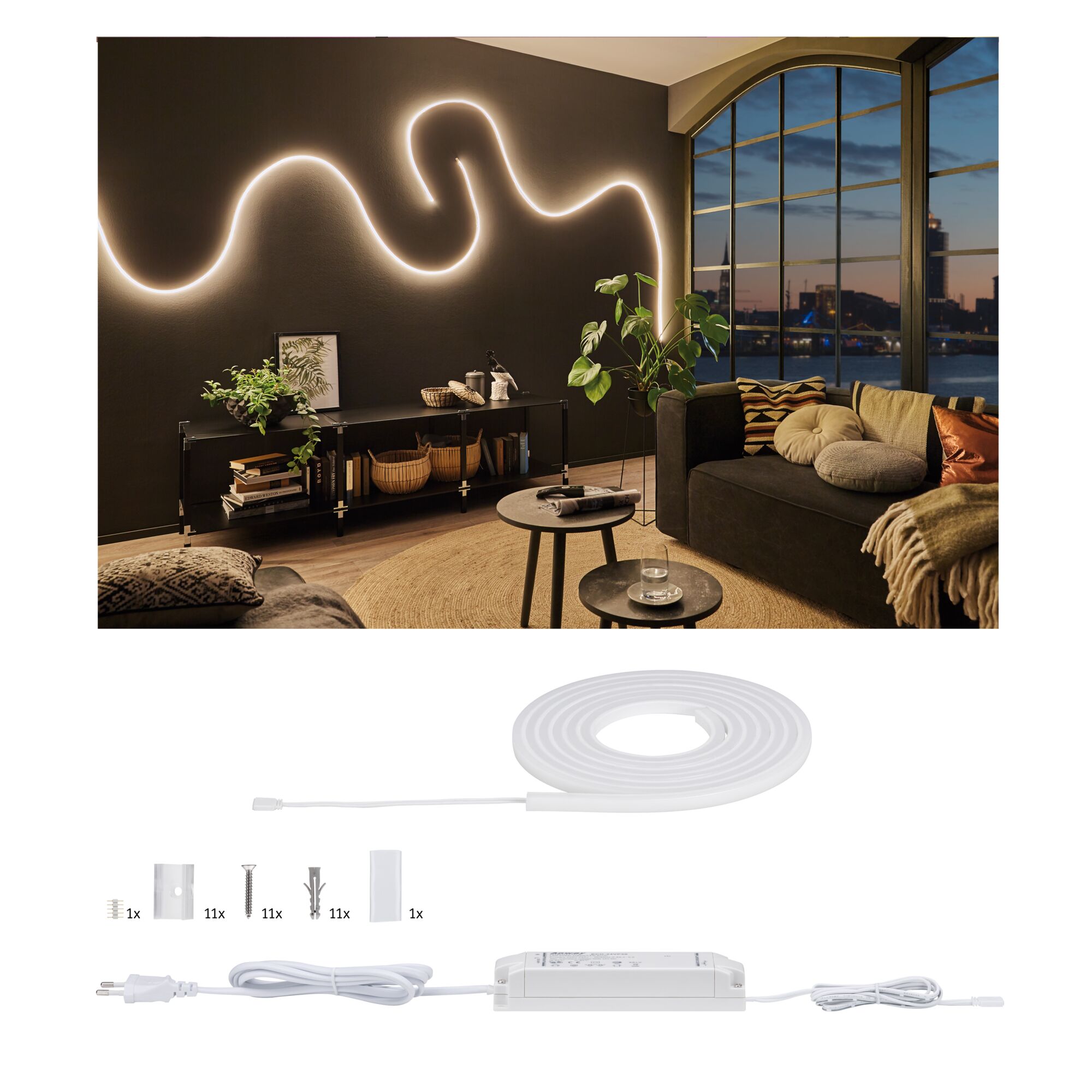

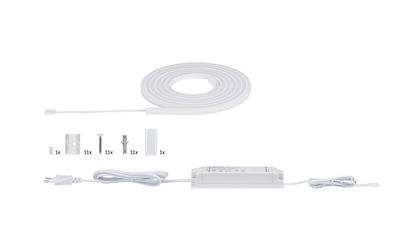

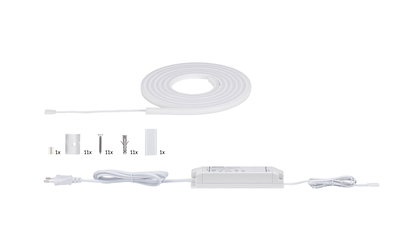

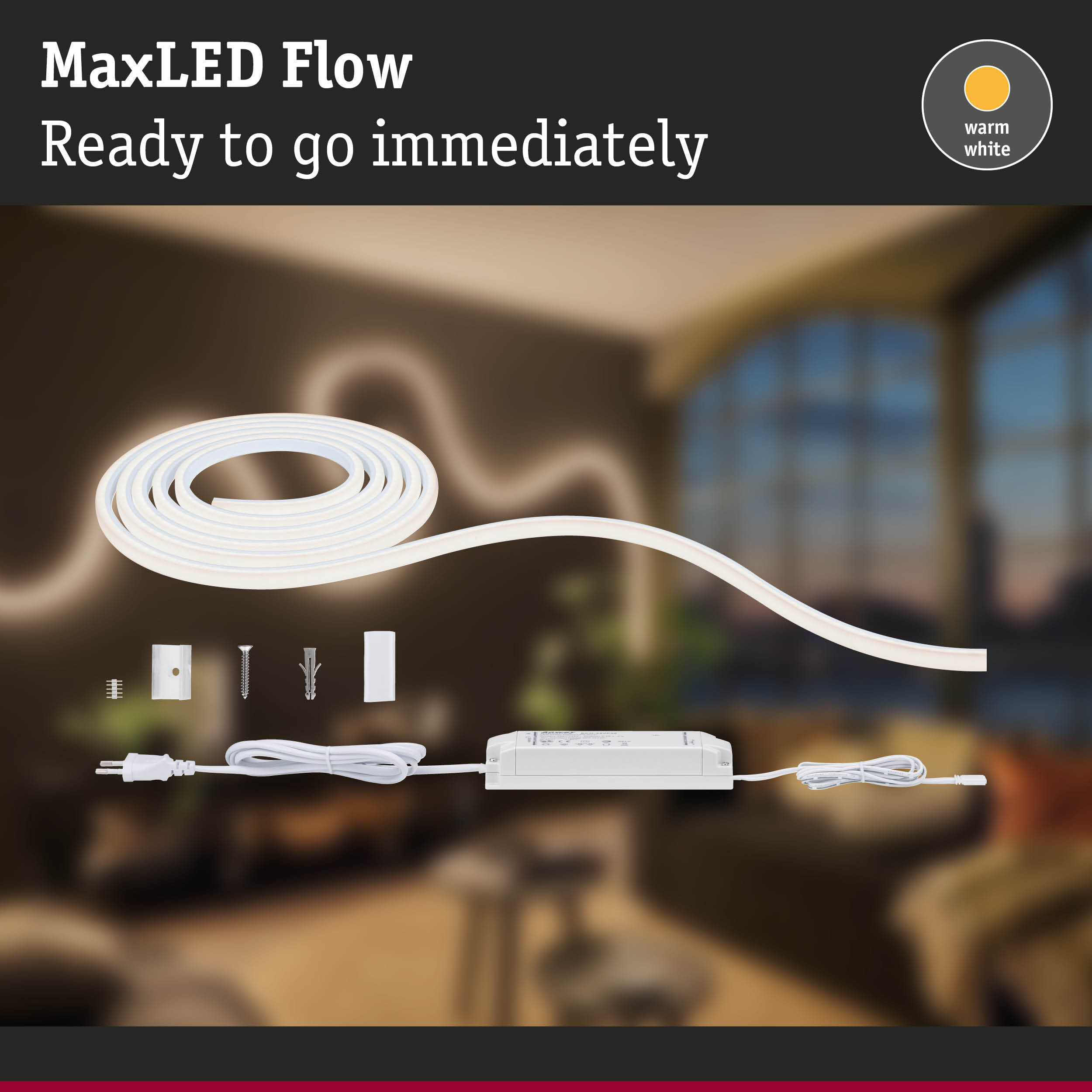

- Complete set incl. strip and power supply
- Set not expandable

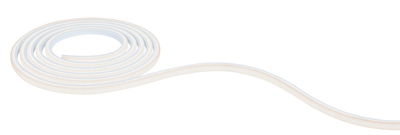

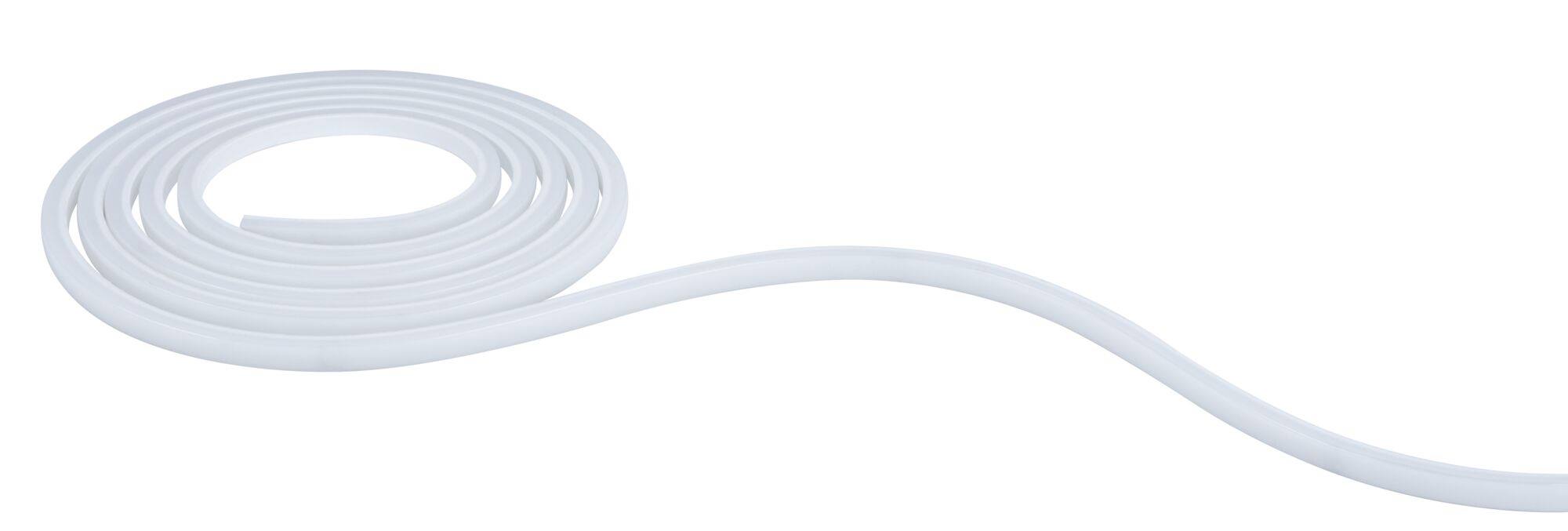

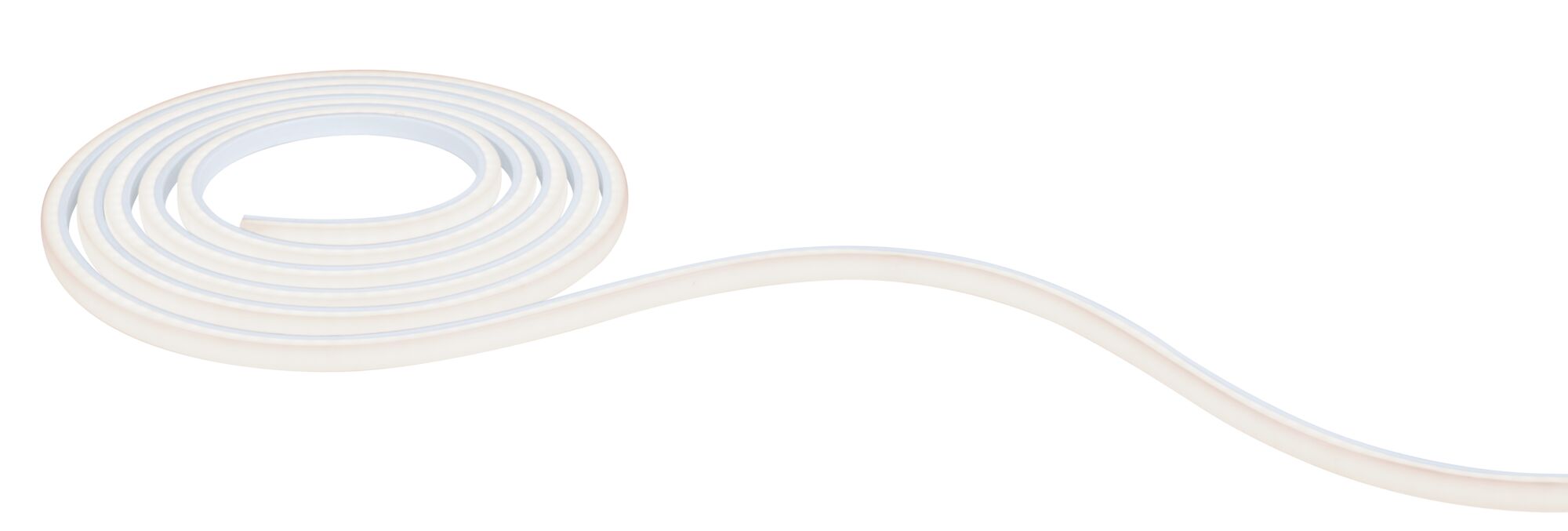

MaxLED Flow LED Strip Basic set warm white 3m coated 38W 1000lm/m 180 LEDs/m 2700K 50VA

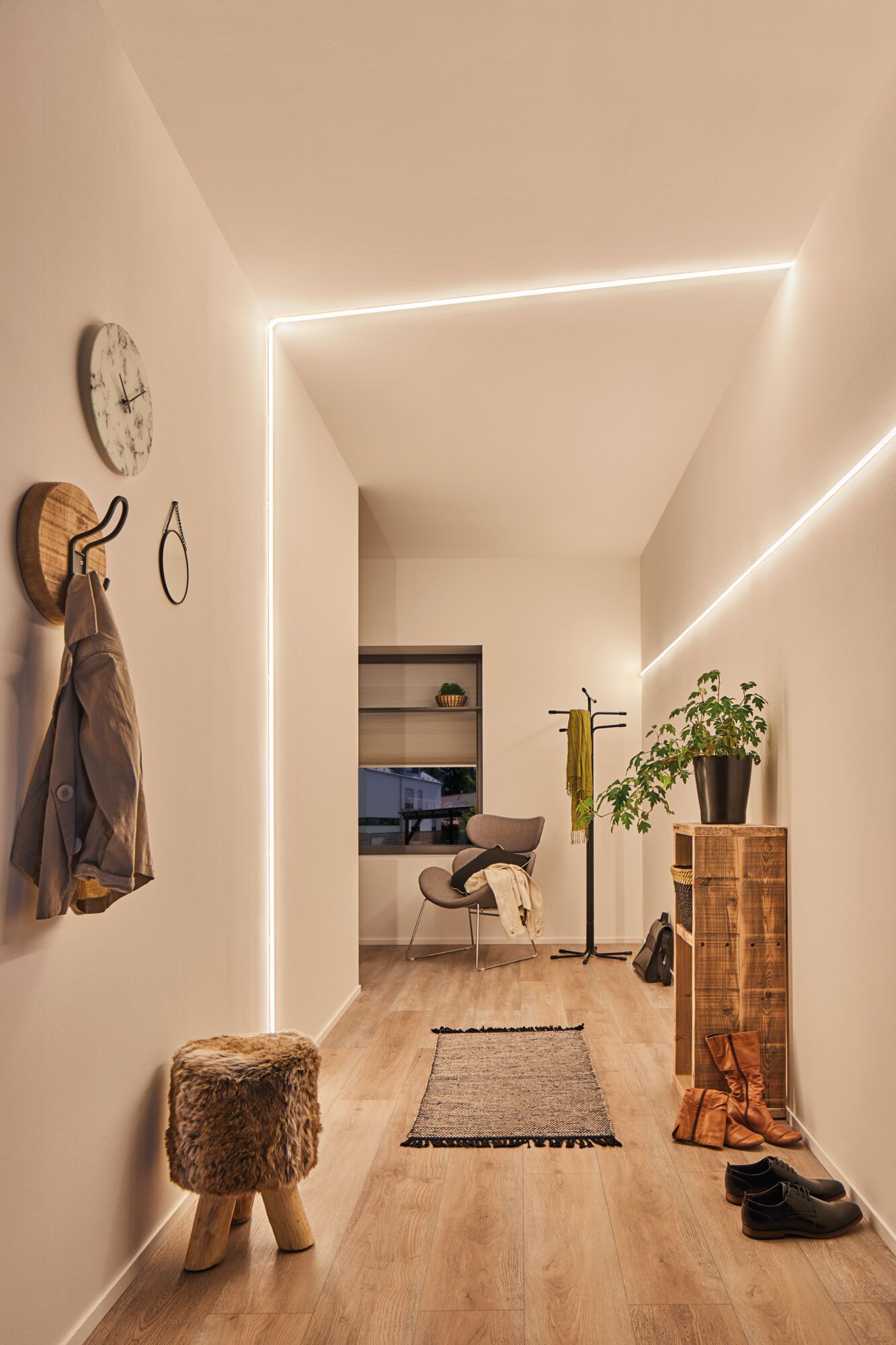

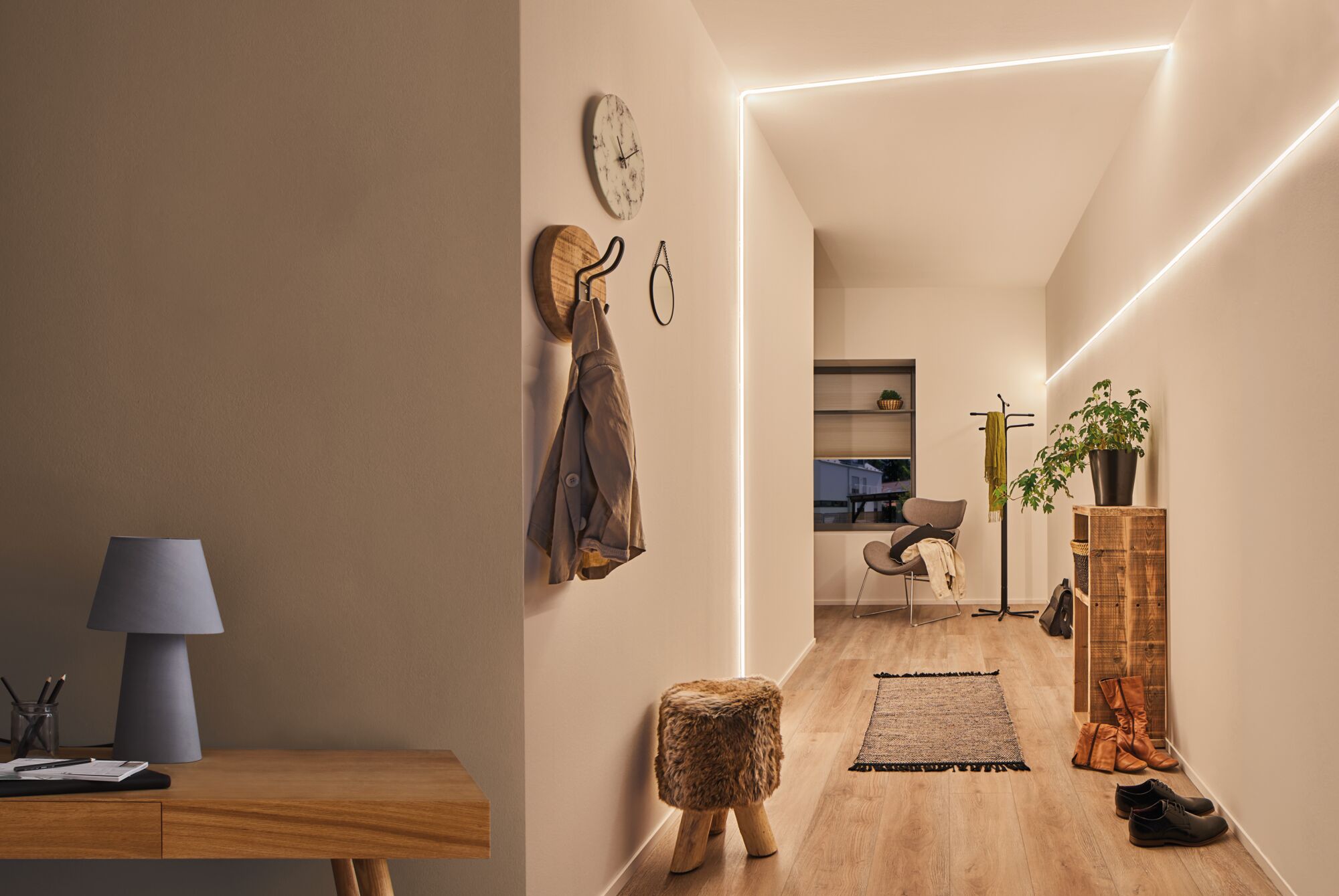

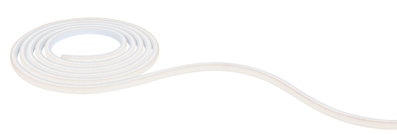

Subtle, uniform & bright! MaxLED Flow with its 37 W output spreads wide coverage, even light without visible LED points. It is cast into a flexible profile with a large, high-effect beam angle and can be routed straight or in curves. Transparent, barely visible attachment clips, screws and wall anchors come with the set. Thanks to IP67 protection, the strip can also be used in wet rooms, e.g. to brighten your wellness spa.
- Uniform homogeneous lighting strip without irritating individual light points
- Complete set incl. strip and power supply
- Set not expandable

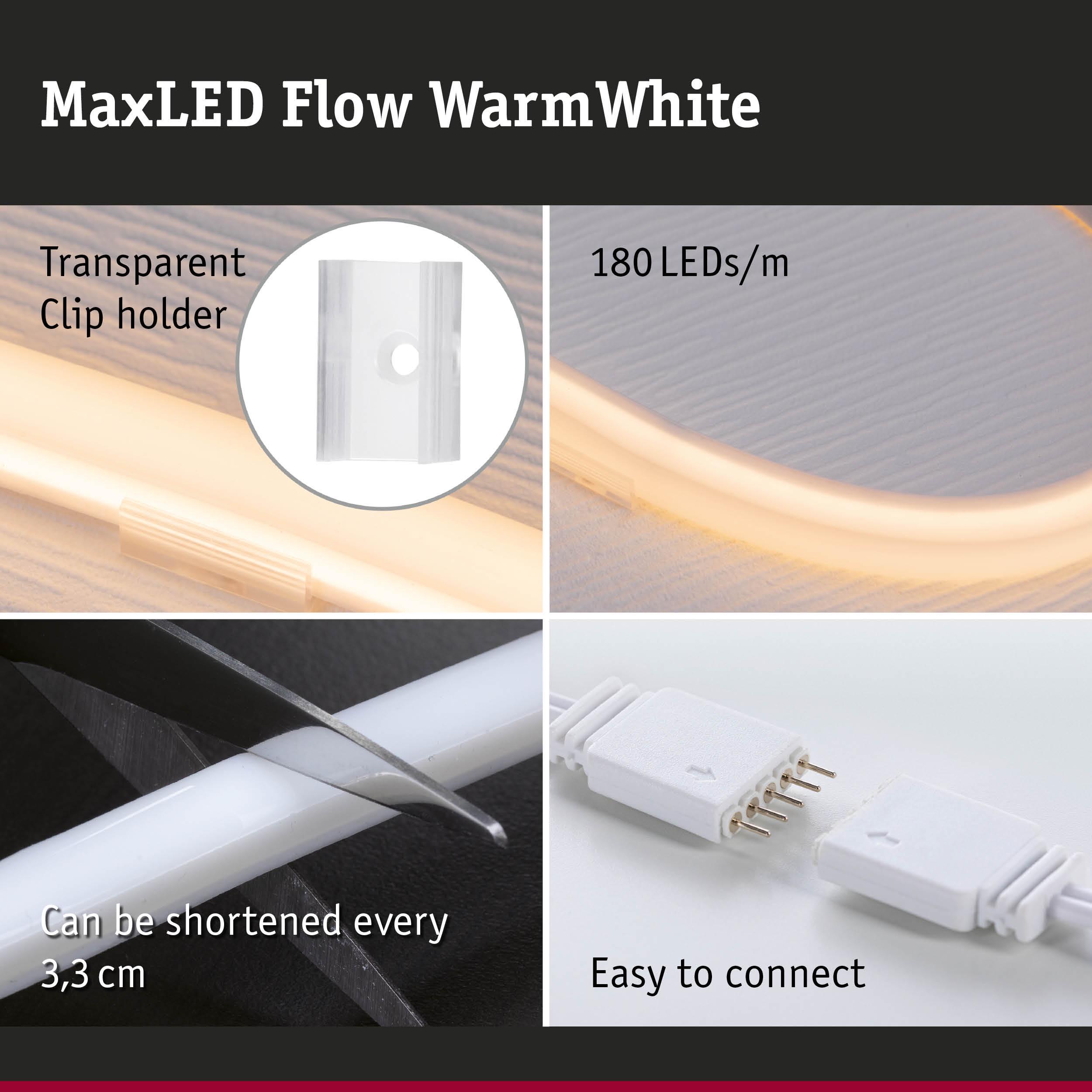

- Incl. retaining clips to hold in place
- Can be shortened as required
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 10 x T: 10 mm |
| Length | 3 m |
| Shortenability Strips | 33 mm |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 2250 lm |
| Luminous flux LED module | 3000 lm |
| Lumens per metre | 1000 lm/m |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 170 W |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 38 W |
| Number of component parts | 1x |
| Number of LED's per meter | 180 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 43 W |
| Adjustability | fixed |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| apparent power | 41.4 VA |
| Transformer power range | 50 VA |
| Transformer height | 32 mm |
| Transformer width | 50 mm |
| Transformer depth | 166 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
