Article-No.:
70962
MaxLED Flow
LED Strip
Basic set warm white
1,5m coated 22,2W 1000lm/m 180 LEDs/m 2700K 24VA
1,5m coated 22,2W 1000lm/m 180 LEDs/m 2700K 24VA
- Uniform homogeneous lighting strip without irritating individual light points
- Complete set incl. strip and power supply
- Set not expandable

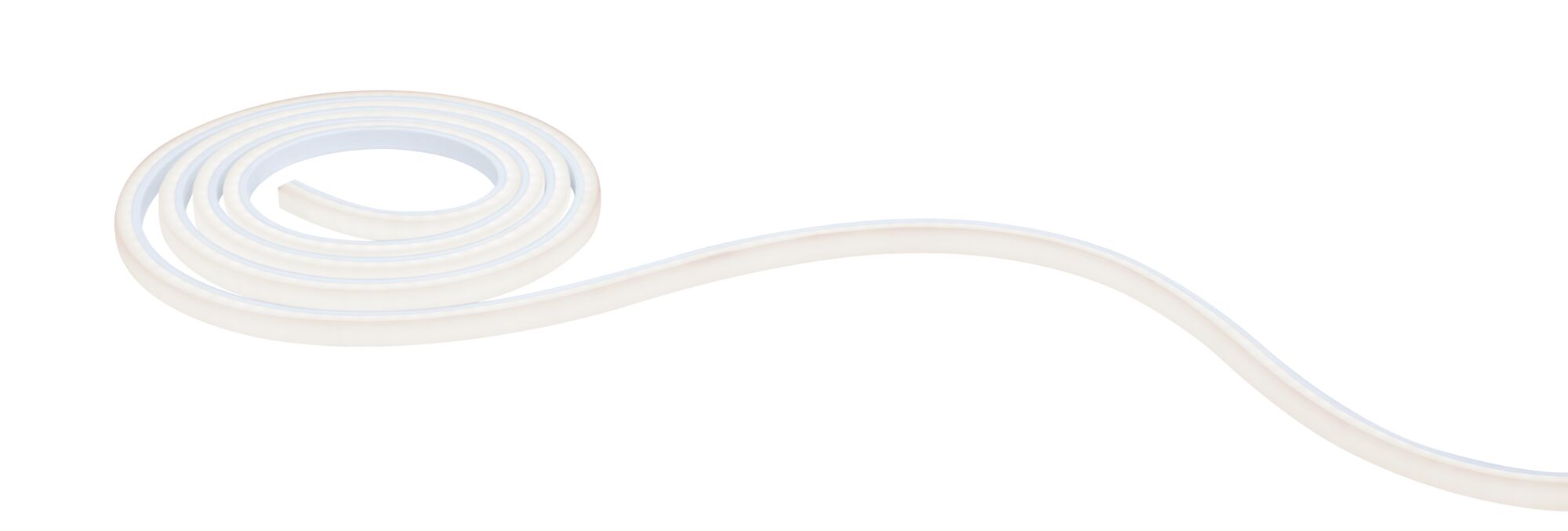

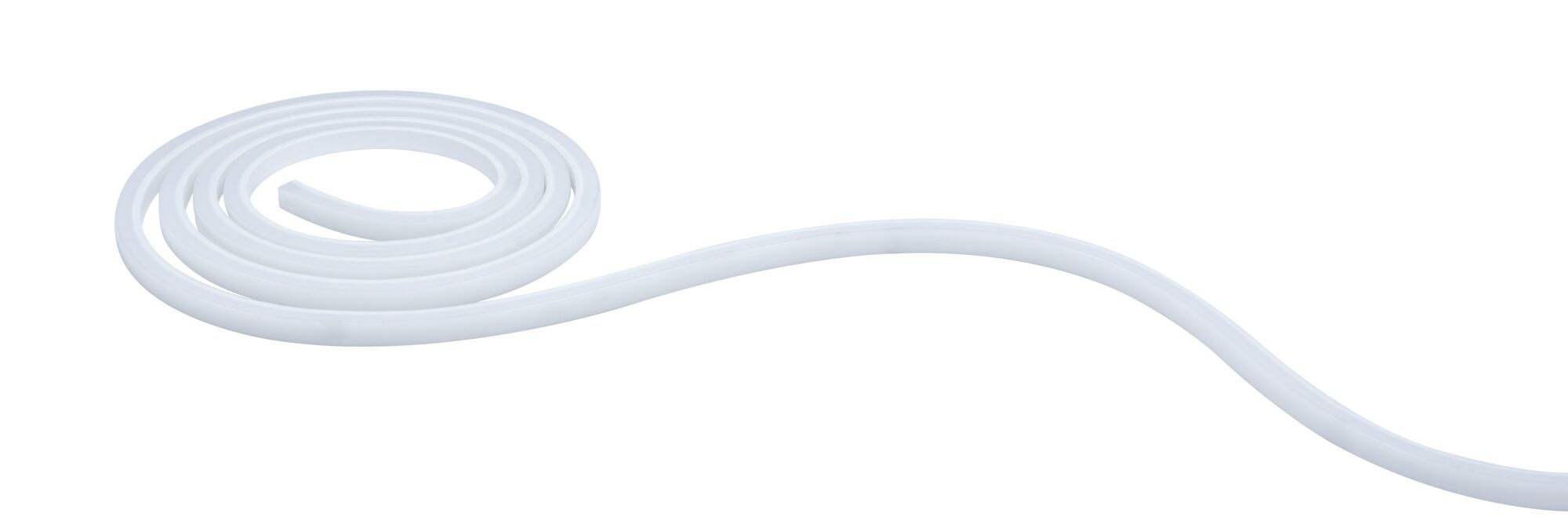

MaxLED Flow LED Strip Basic set warm white 1,5m coated 22,2W 1000lm/m 180 LEDs/m 2700K 24VA

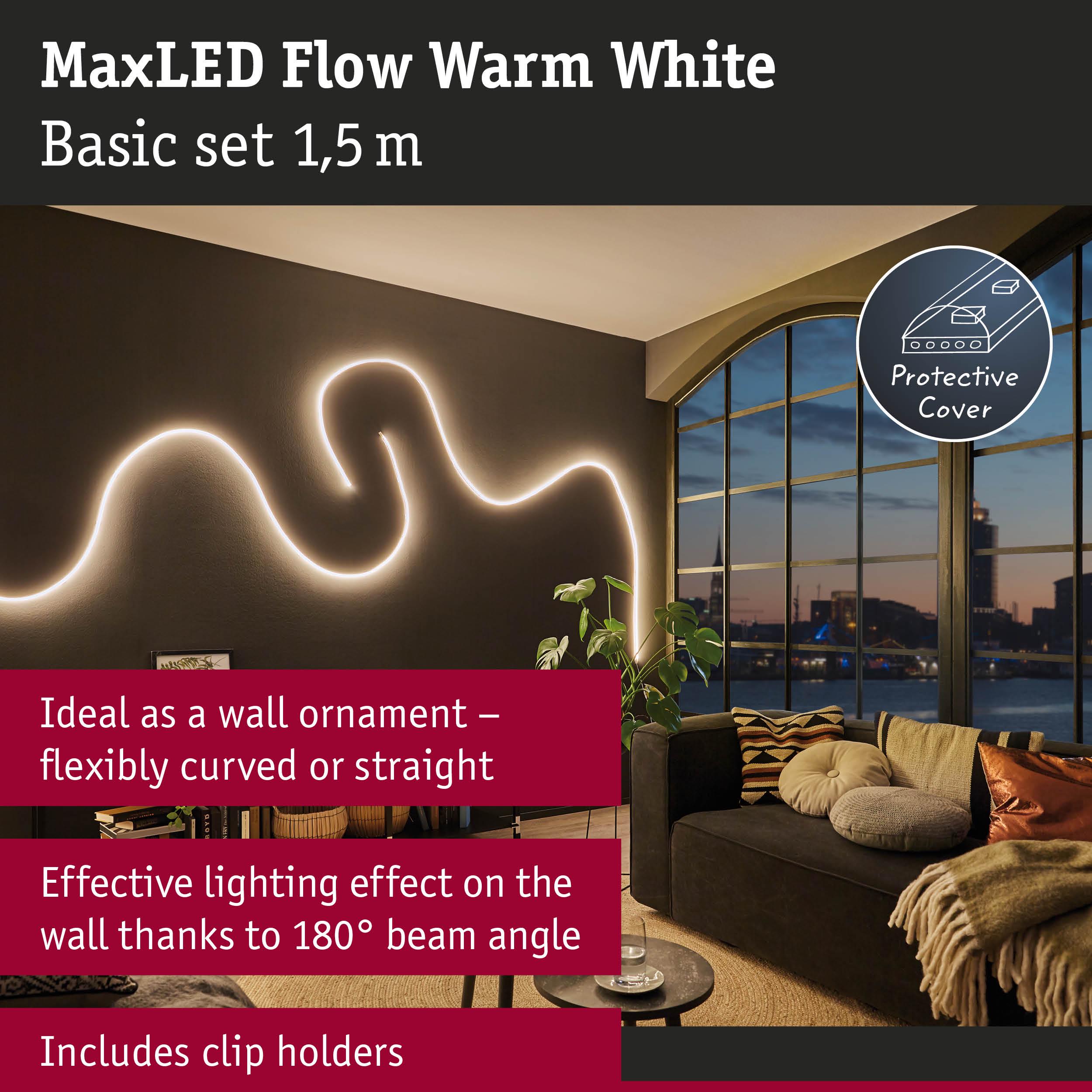

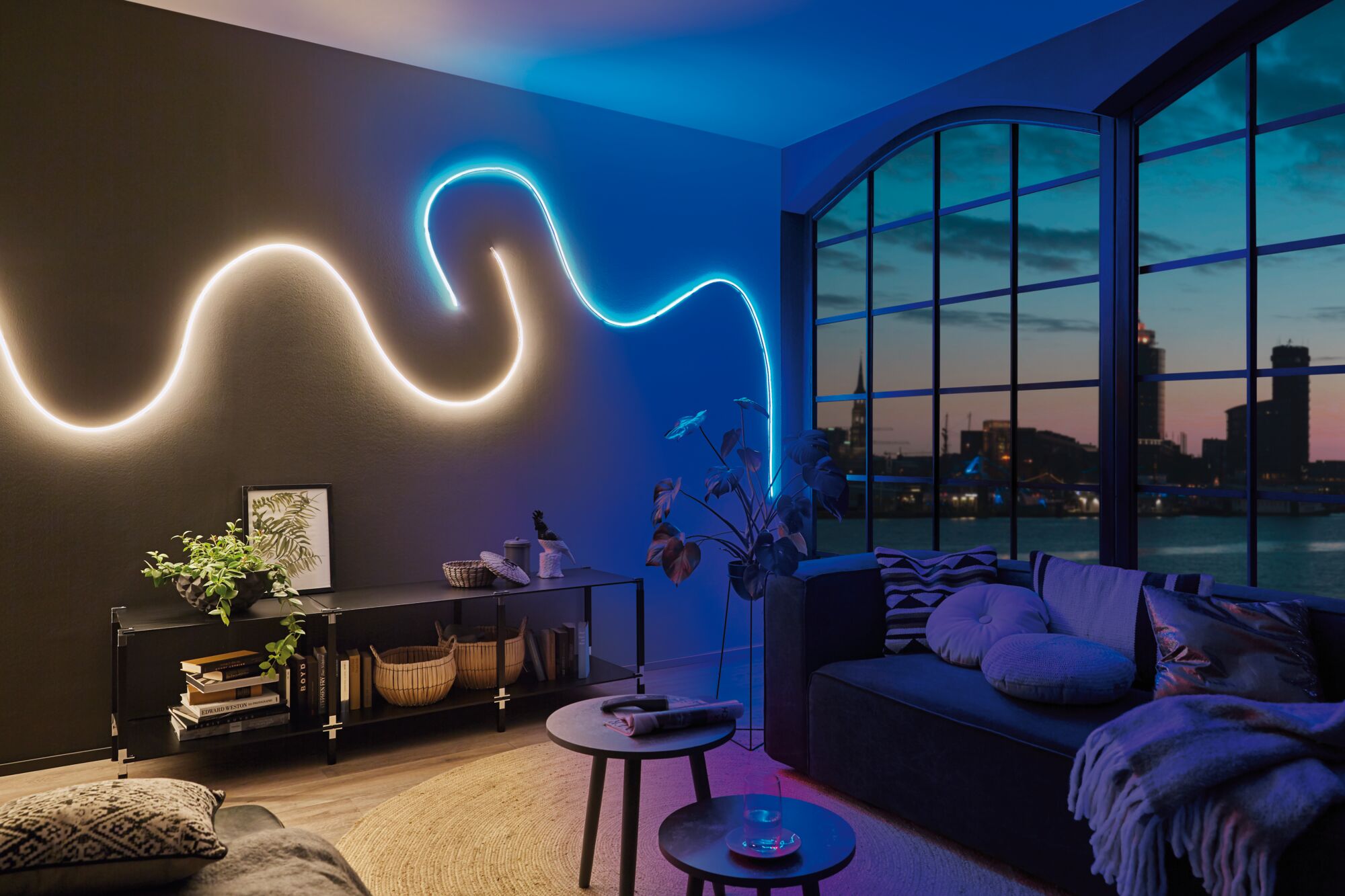

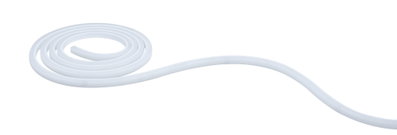

Subtle, uniform & bright! MaxLED Flow with its 21 W output spreads wide coverage, even light without visible LED points. It is cast into a flexible profile with a large, high-effect beam angle and can be routed straight or in curves. Transparent, barely visible attachment clips, screws and wall anchors come with the set. Thanks to IP67 protection, the strip can also be used in wet rooms, e.g. to brighten your wellness spa.
- Uniform homogeneous lighting strip without irritating individual light points

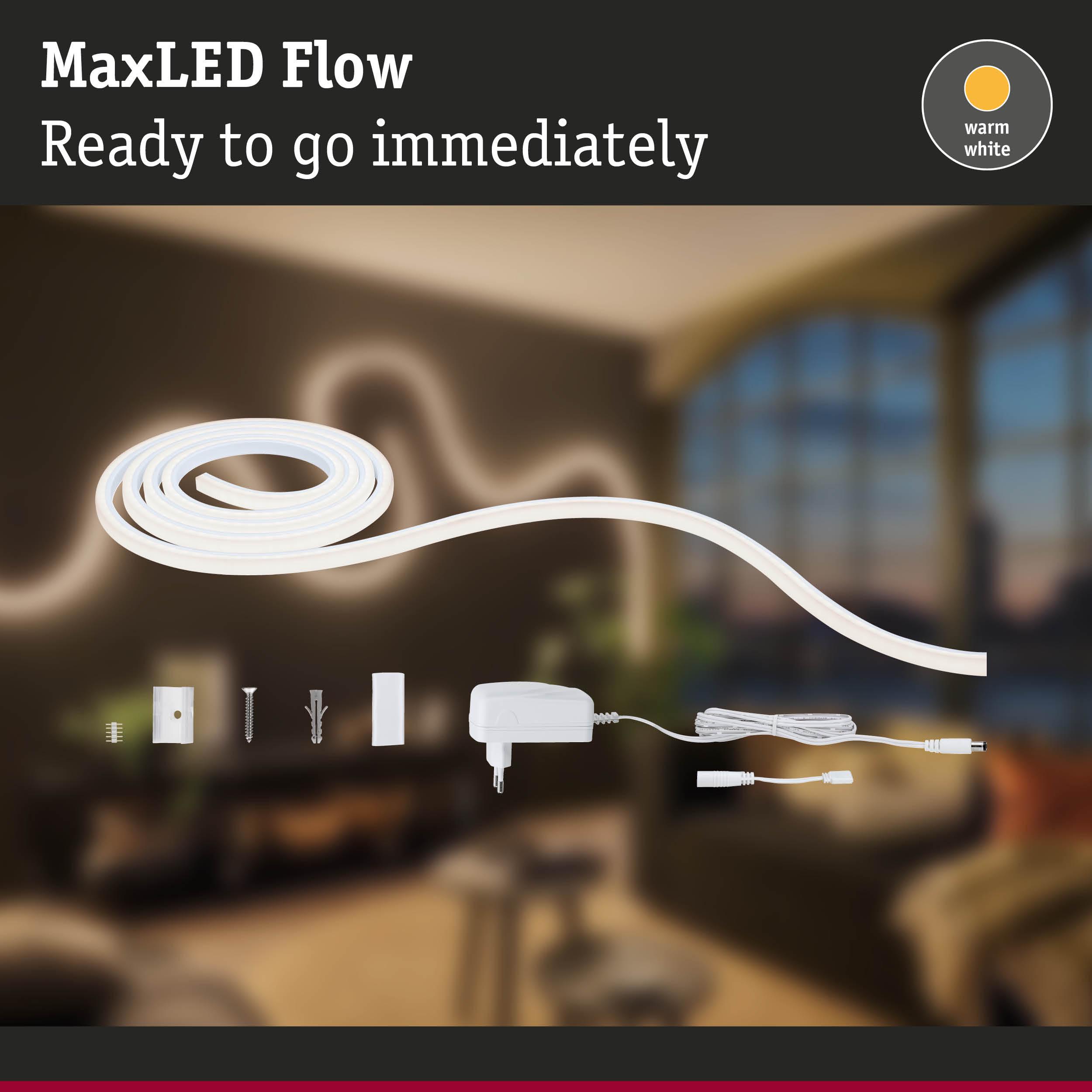

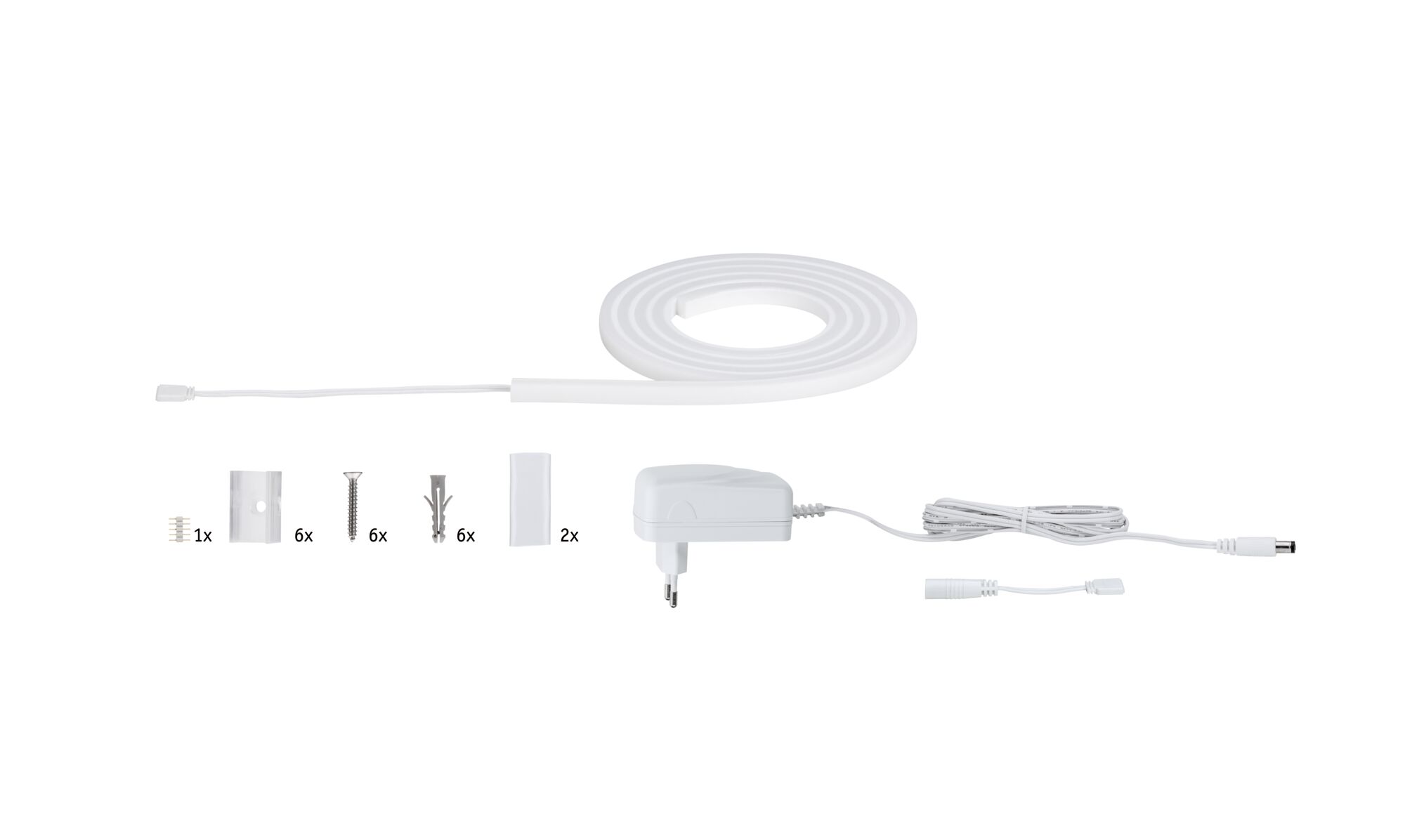

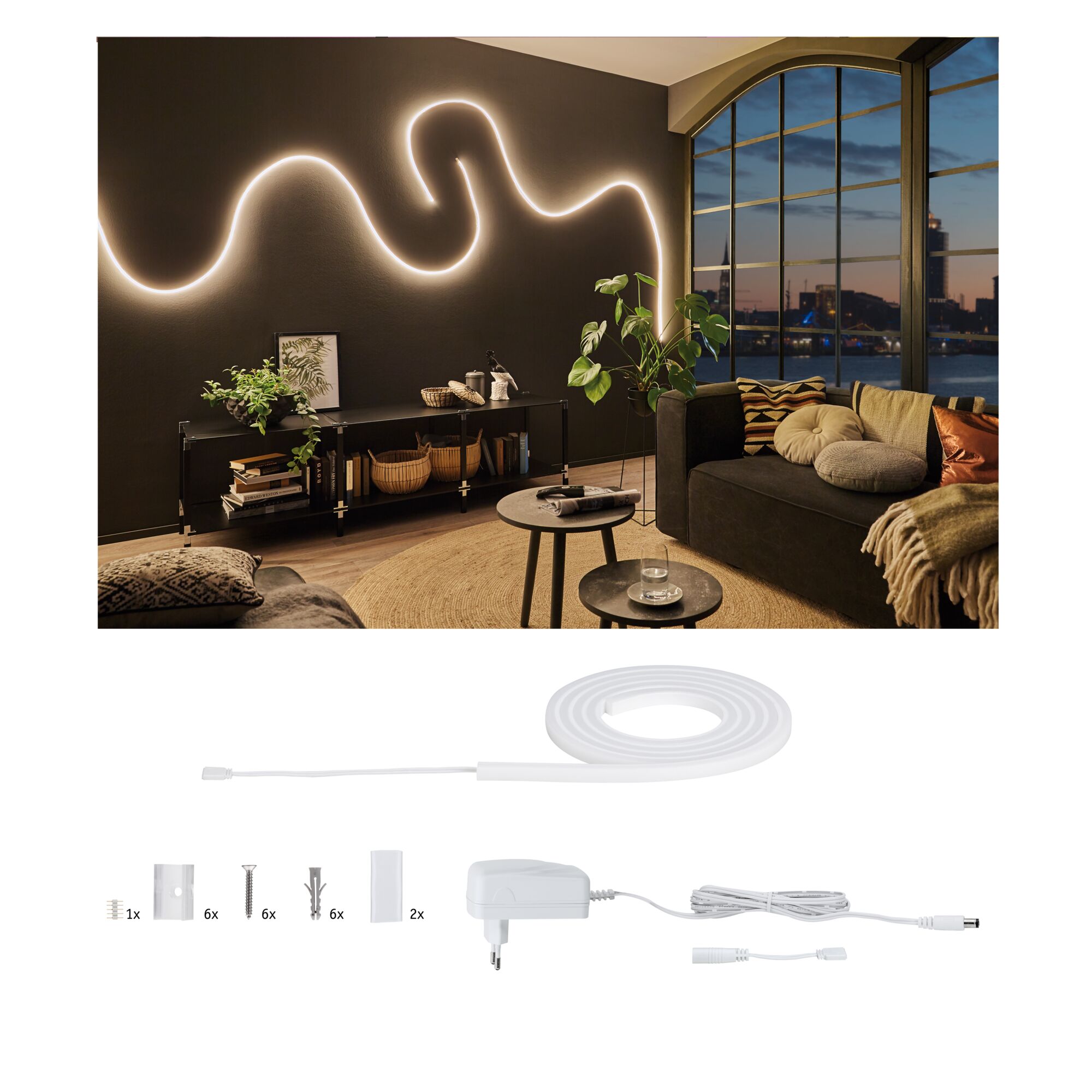

- Complete set incl. strip and power supply
- Set not expandable

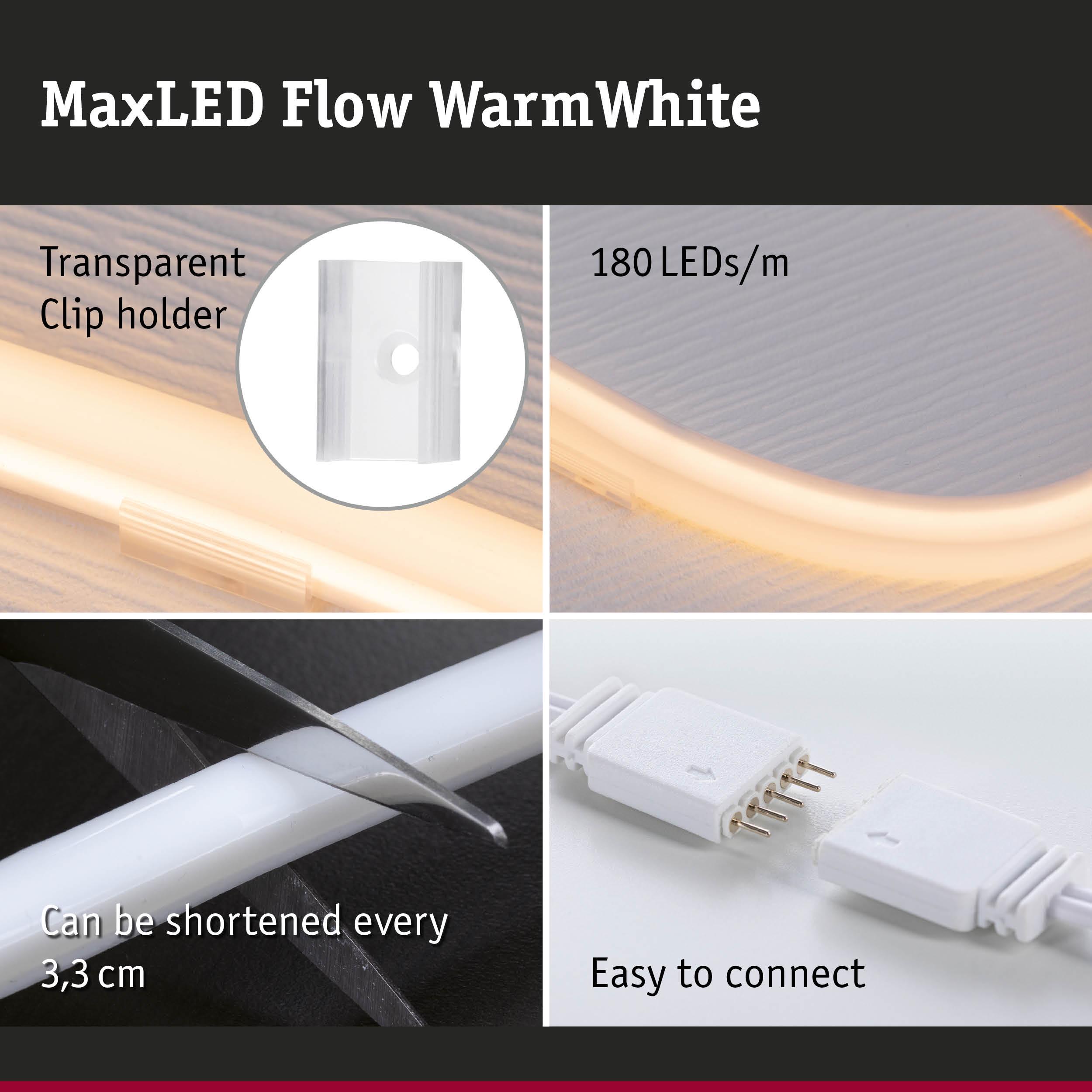

- Incl. retaining clips to hold in place
- Can be shortened as required
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 10 x T: 10 mm |
| Length | 1,5 m |
| Plug depth | 37 mm |
| Shortenability Strips | 33 mm |
| net weight | 334 g |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 1125 lm |
| Lumens per metre | 1000 lm/m |
| Colour temperature | Warm white, 2700 K |
| Luminous flux LED module | 1500 lm |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 22,2 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 99 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Number of LED's per meter | 180 |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 25 W |
| Voltage | 230/24 V |
| Transformer | |
|---|---|
| Transformer power range | 24 VA |
| apparent power | 55.2 VA |
| Transformer height | 75 mm |
| Transformer width | 48 mm |
| Transformer depth | 30 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
