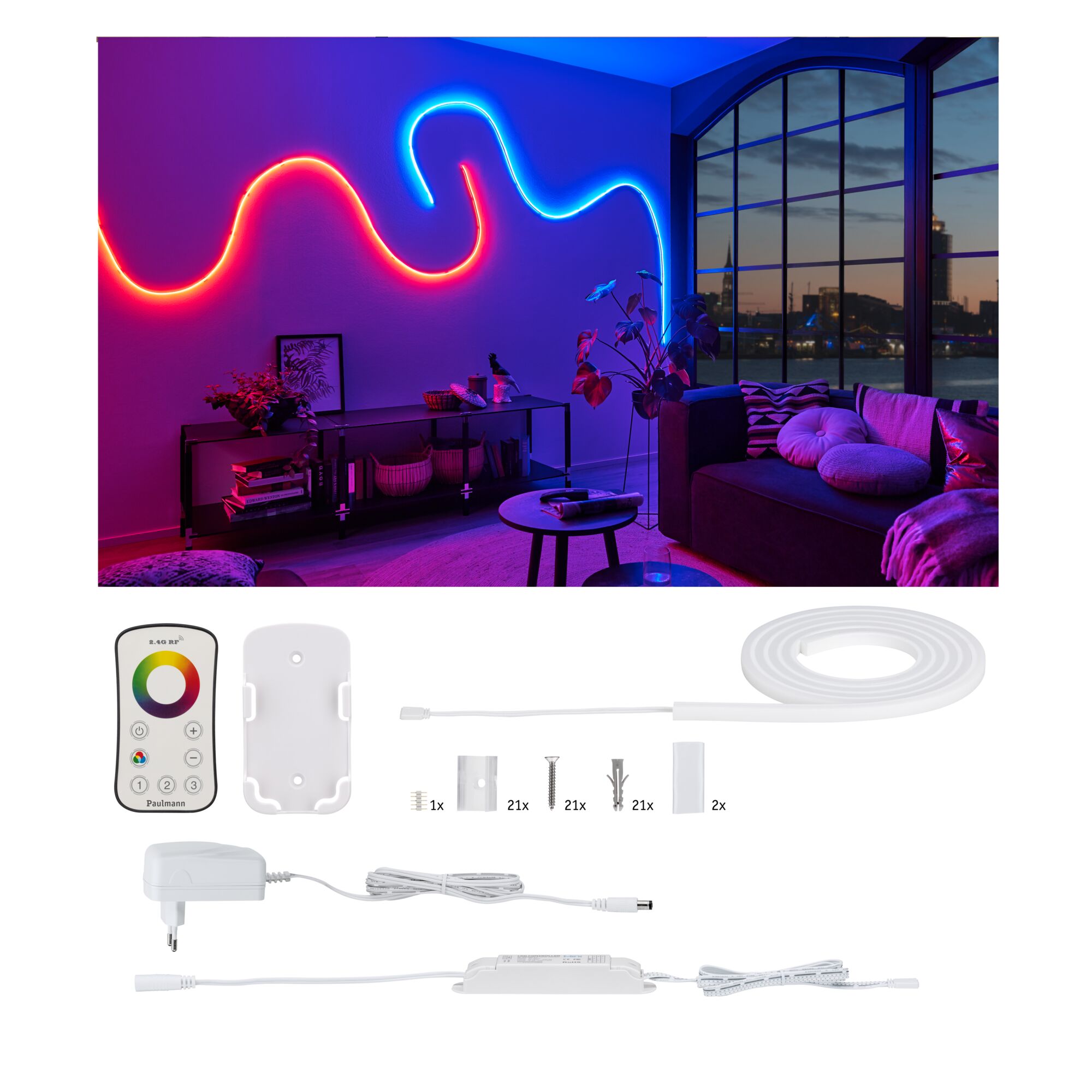

- Complete set incl. strip and power supply
- Set not expandable
MaxLED Flow LED Strip Basic set RGB 1,5m coated 13,5W 400lm/m 120 LEDs/m RGB 24VA

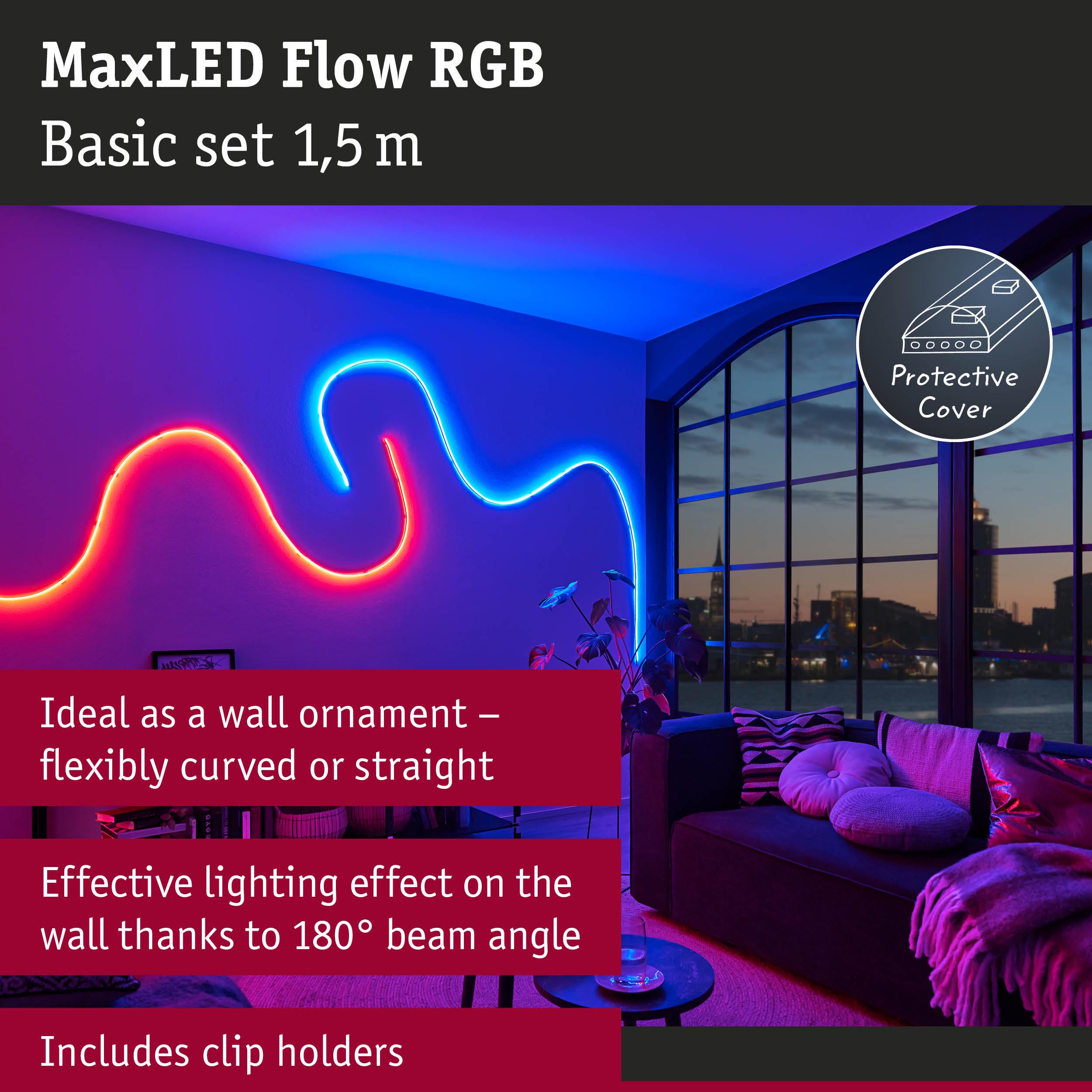

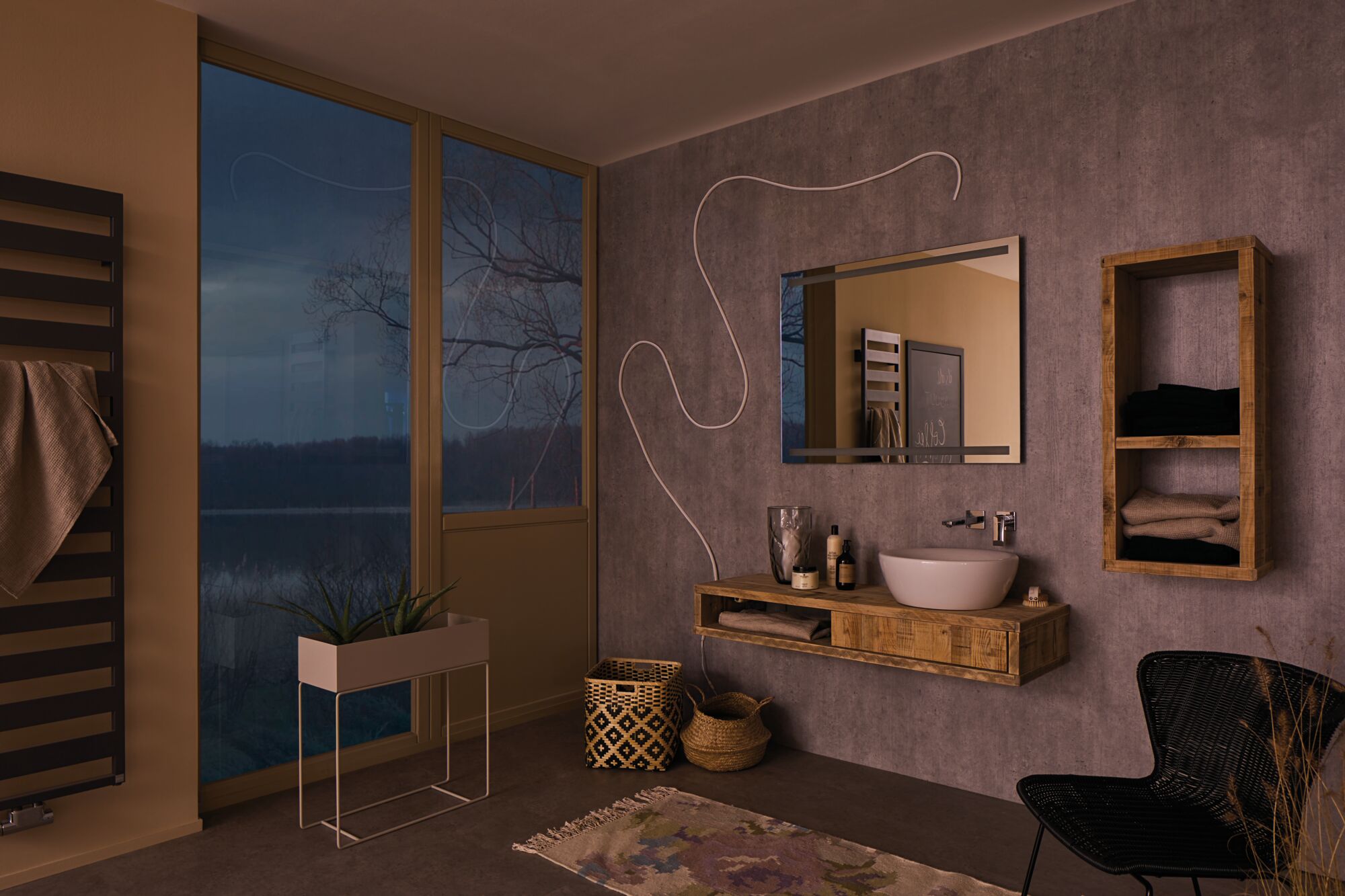

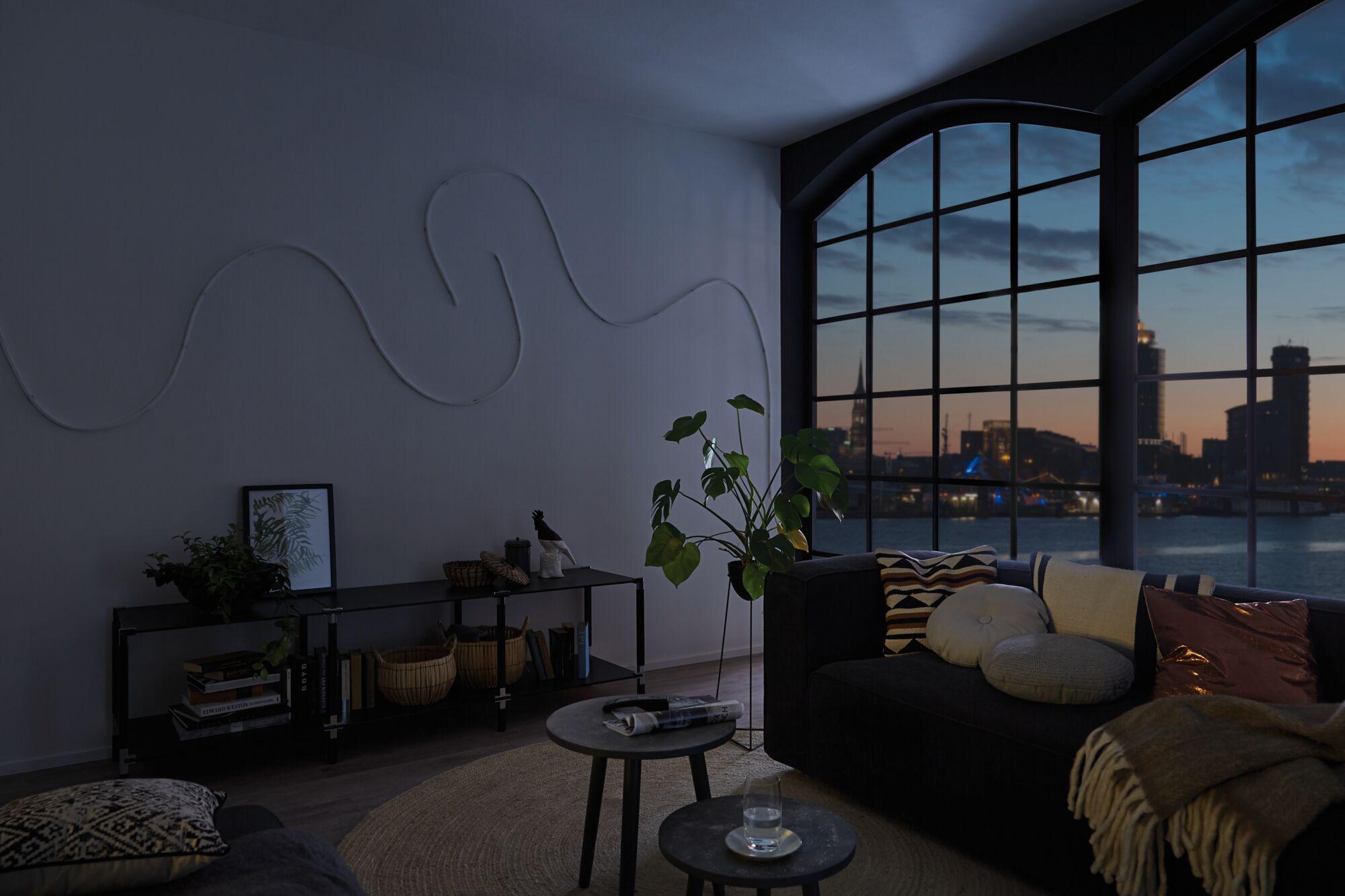

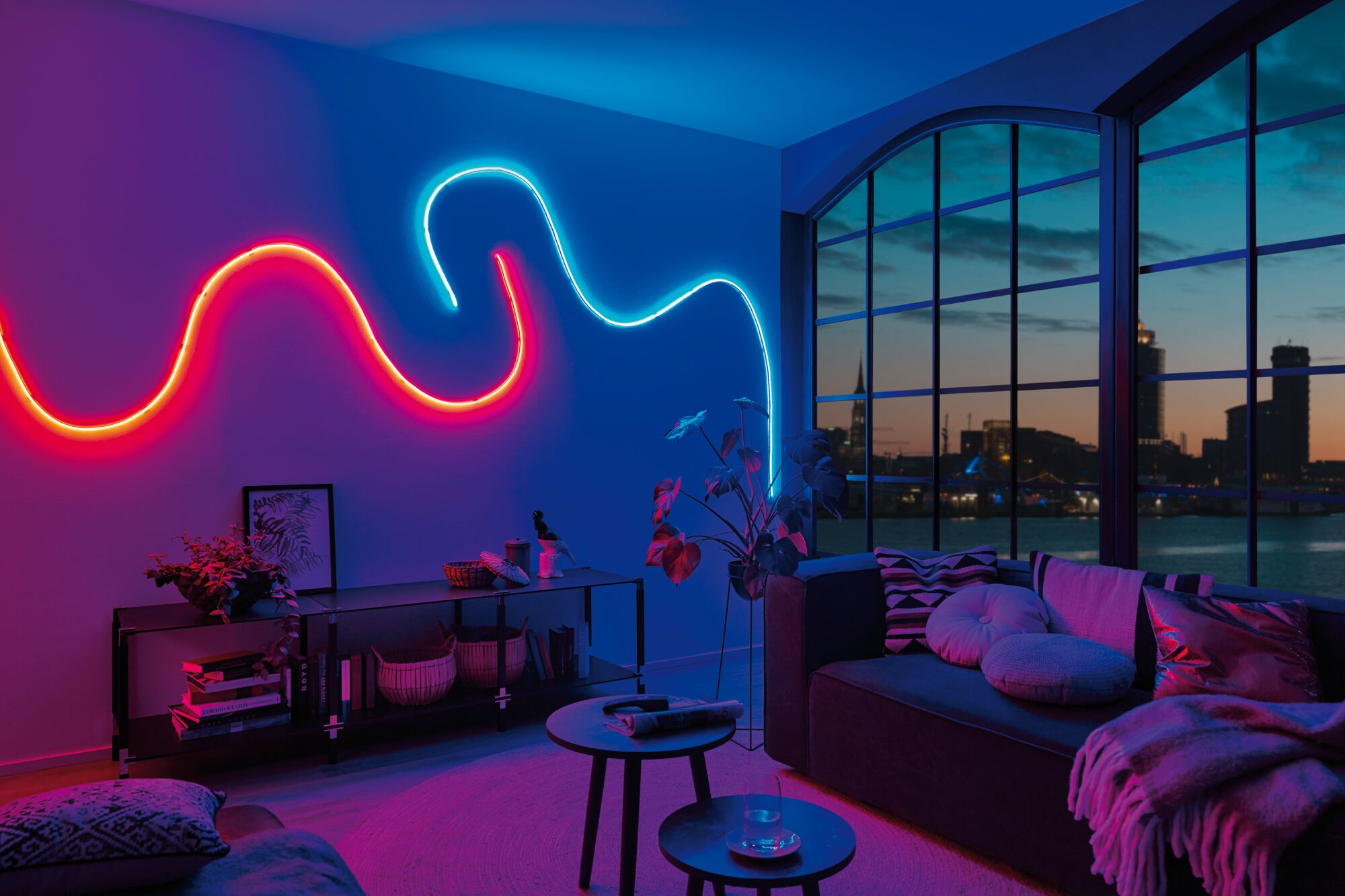

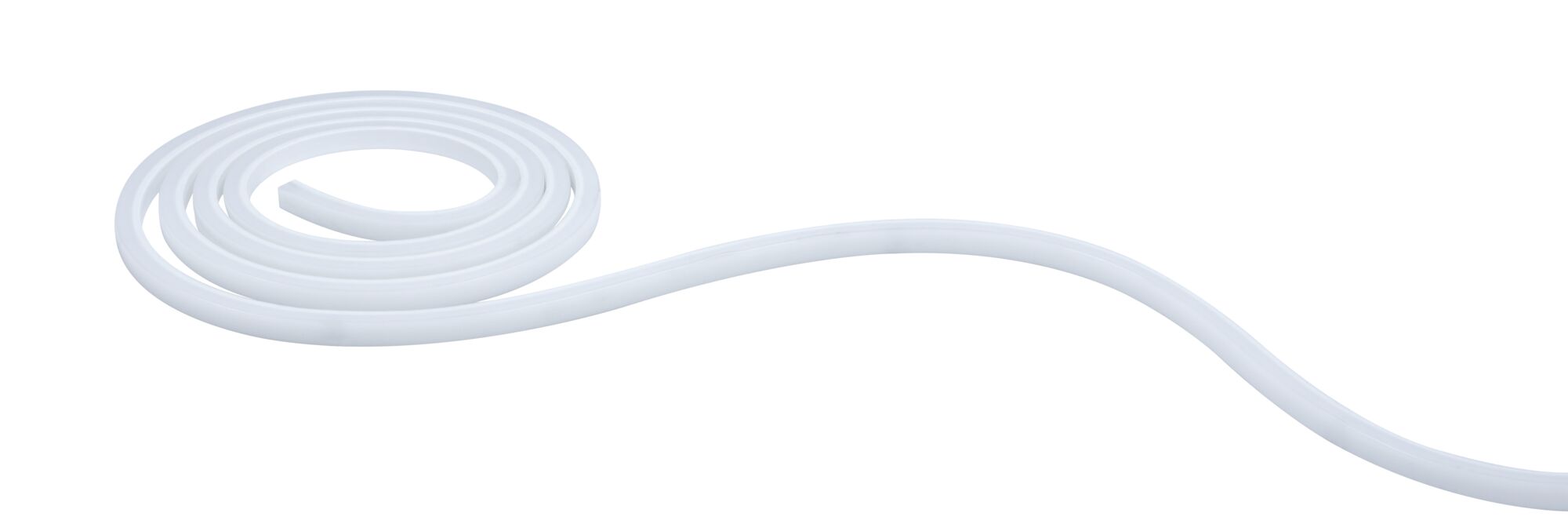

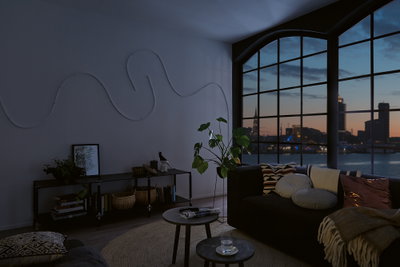

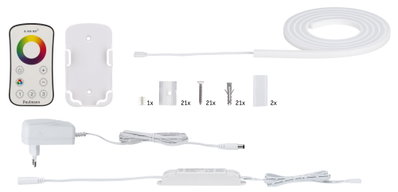

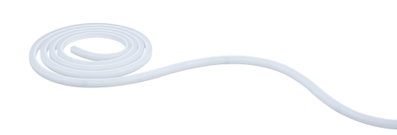

Subtle, uniform & bright! MaxLED Flow RGB with its 13.5 W output spreads wide coverage, even light without visible LED points. It is cast into a flexible profile with a large, high-effect beam angle and can be routed straight or in curves. Transparent, barely visible attachment clips, screws and wall anchors come with the set. Thanks to IP67 protection, the strip can also be used in wet rooms, e.g. to brighten your wellness spa.
- Uniform homogeneous lighting strip without irritating individual light points

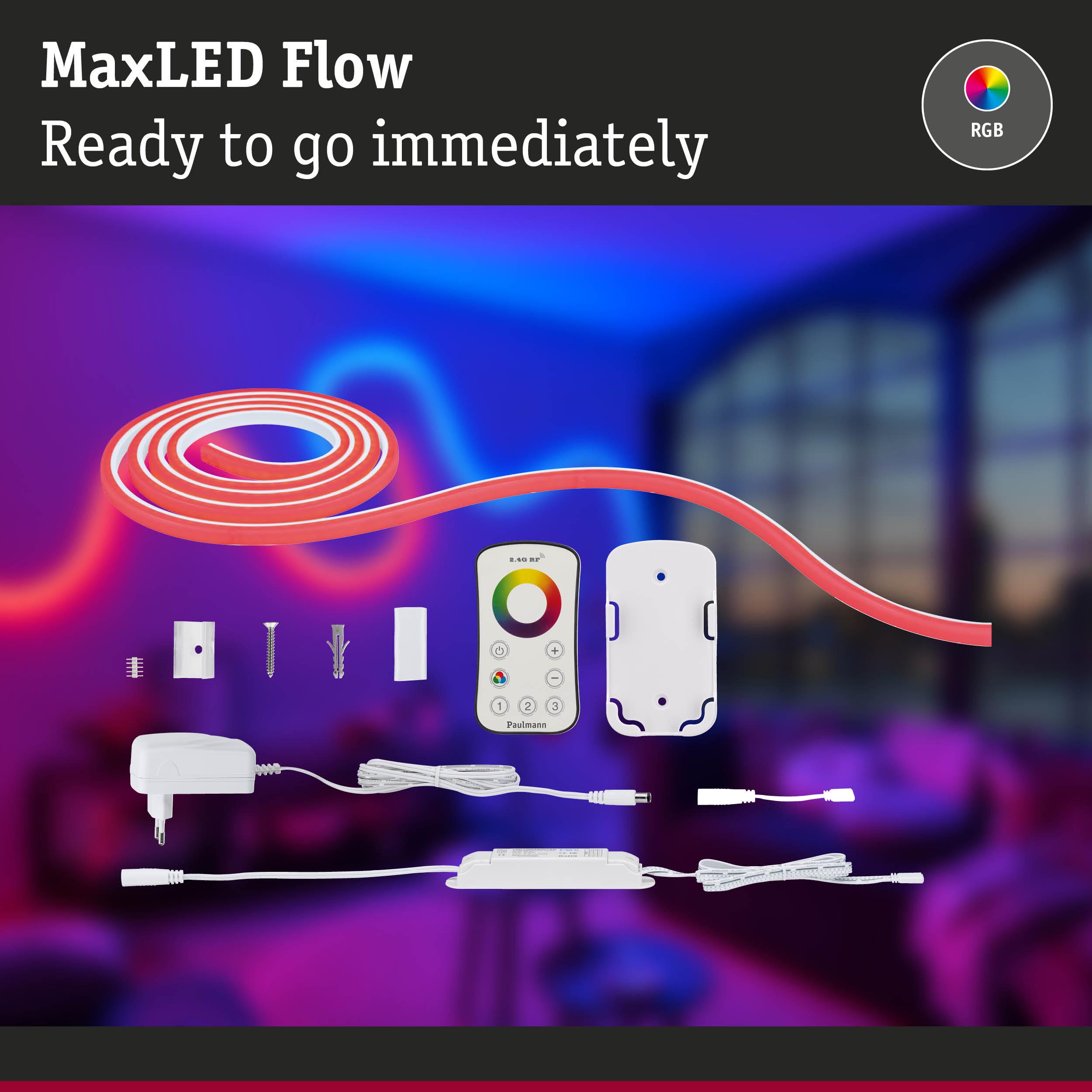

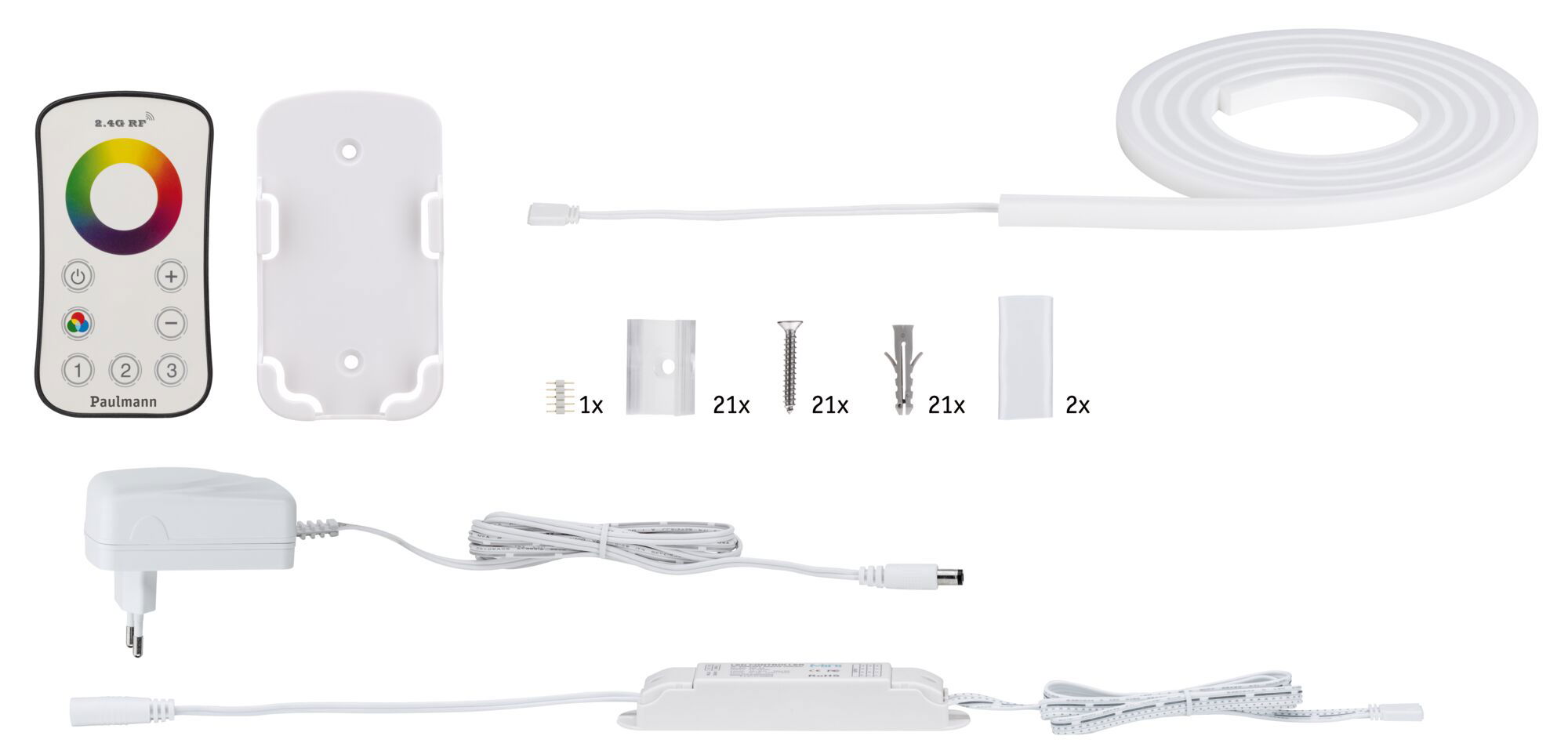

- Complete set incl. strip and power supply
- Set not expandable

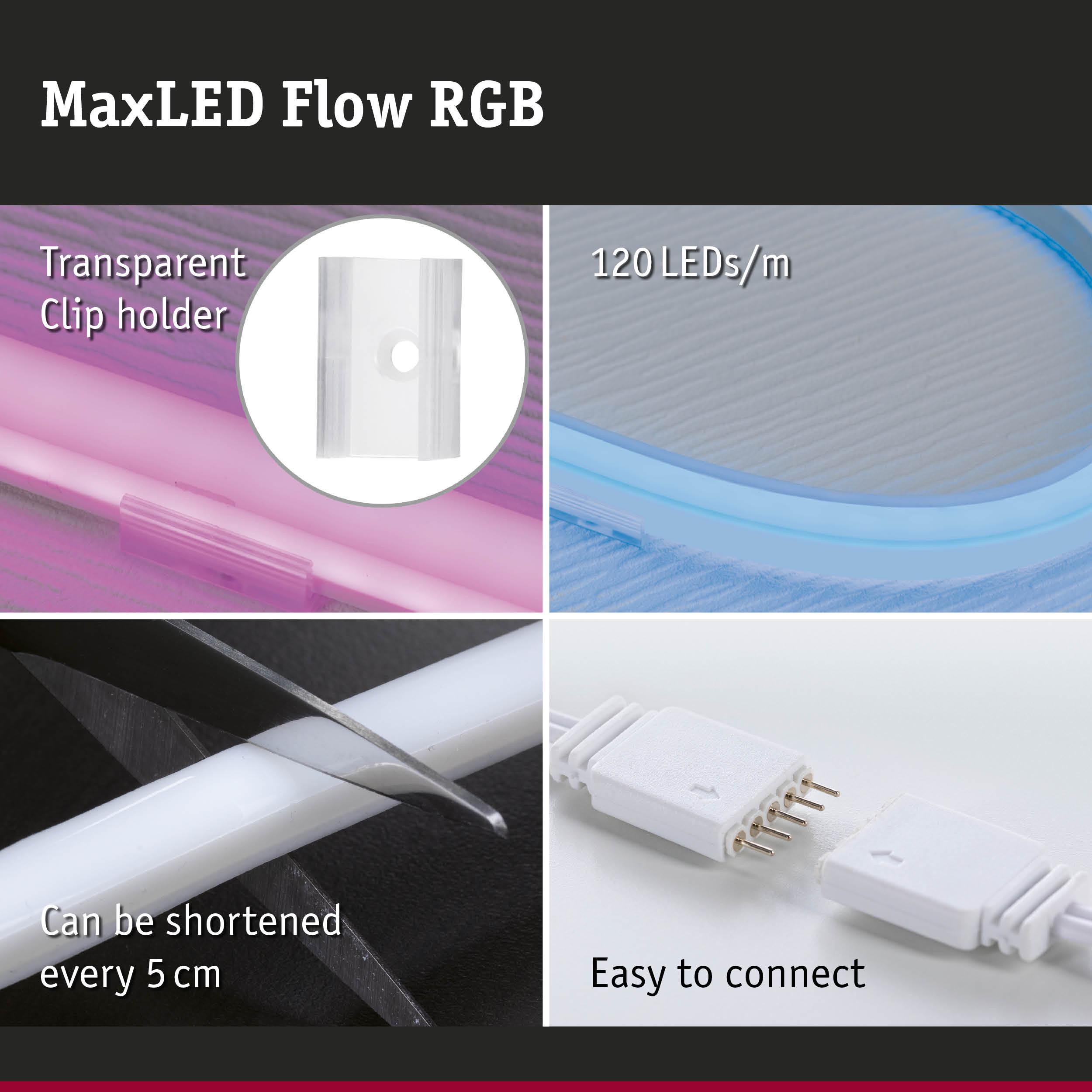

- Incl. retaining clips to hold in place
- Can be shortened as required

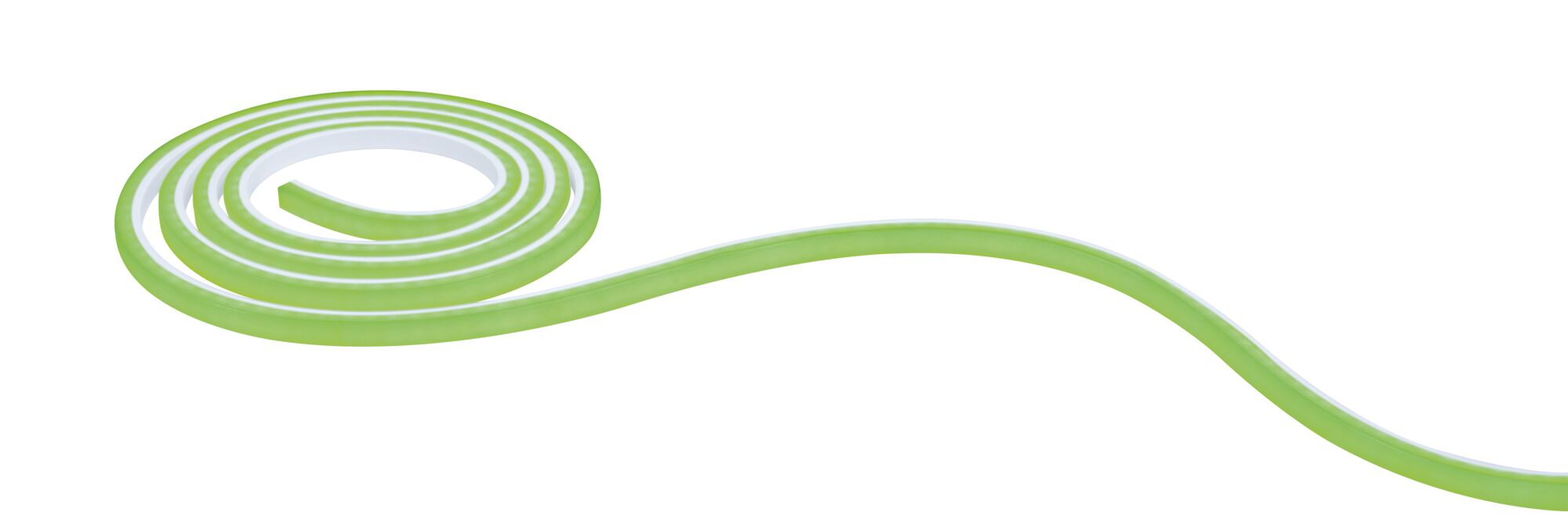

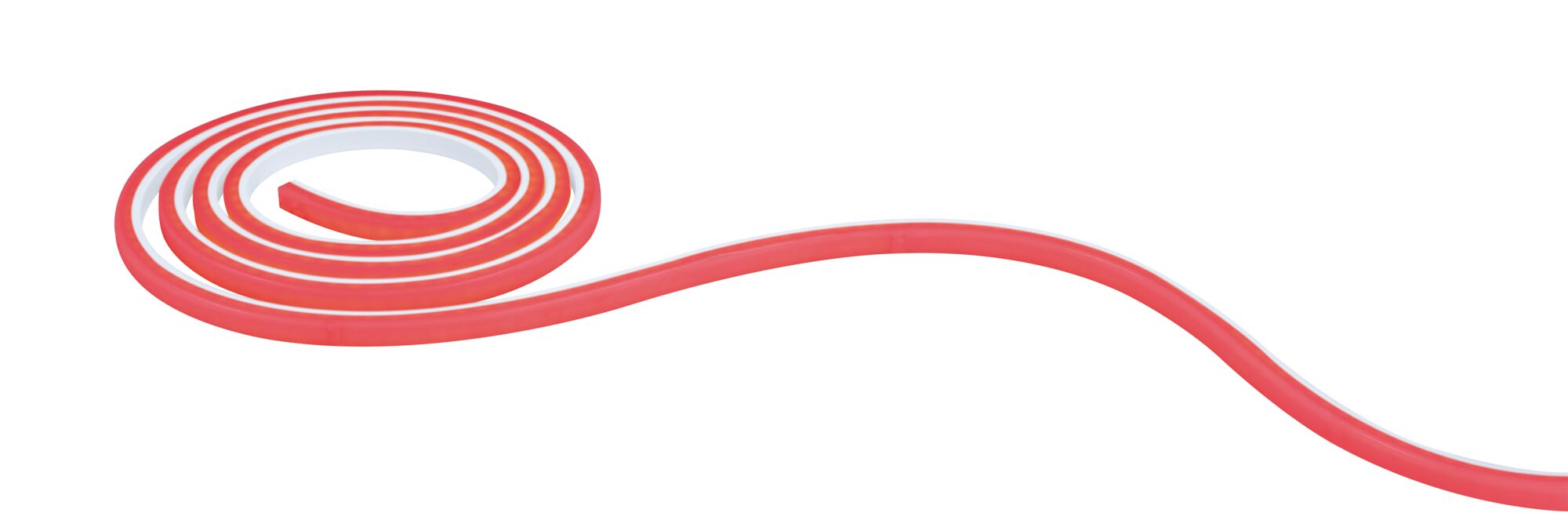

- RGB LEDs for colour changes and effect lighting
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 10 x T: 10 mm |
| Length | 1,5 m |
| Plug depth | 37 mm |
| Shortenability Strips | 50 mm |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 405 lm |
| Luminous flux LED module | 600 lm |
| Colour change | coloured light (RGB) |
| Lumens per metre | 400 lm/m |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with remote control |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 48 W |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 13,5 W |
| Number of component parts | 1x |
| Number of LED's per meter | 120 |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 16 W |
| Adjustability | fixed |
| Voltage | 230/24 V |
| Transformer | |
|---|---|
| apparent power | 28 VA |
| Transformer power range | 24 VA |
| Transformer height | 75 mm |
| Transformer width | 48 mm |
| Transformer depth | 30 mm |
| Accessories | |
|---|---|
| Radio control included | yes |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Radio frequency | 2,4 GHz |
