Article-No.:
70619
MaxLED
Controller
Dimm/Switch
DC 24V max. 144W White
DC 24V max. 144W White
- No line of sight between remote control and receiver necessary
- Easy plug-in system for hassle-free assembly

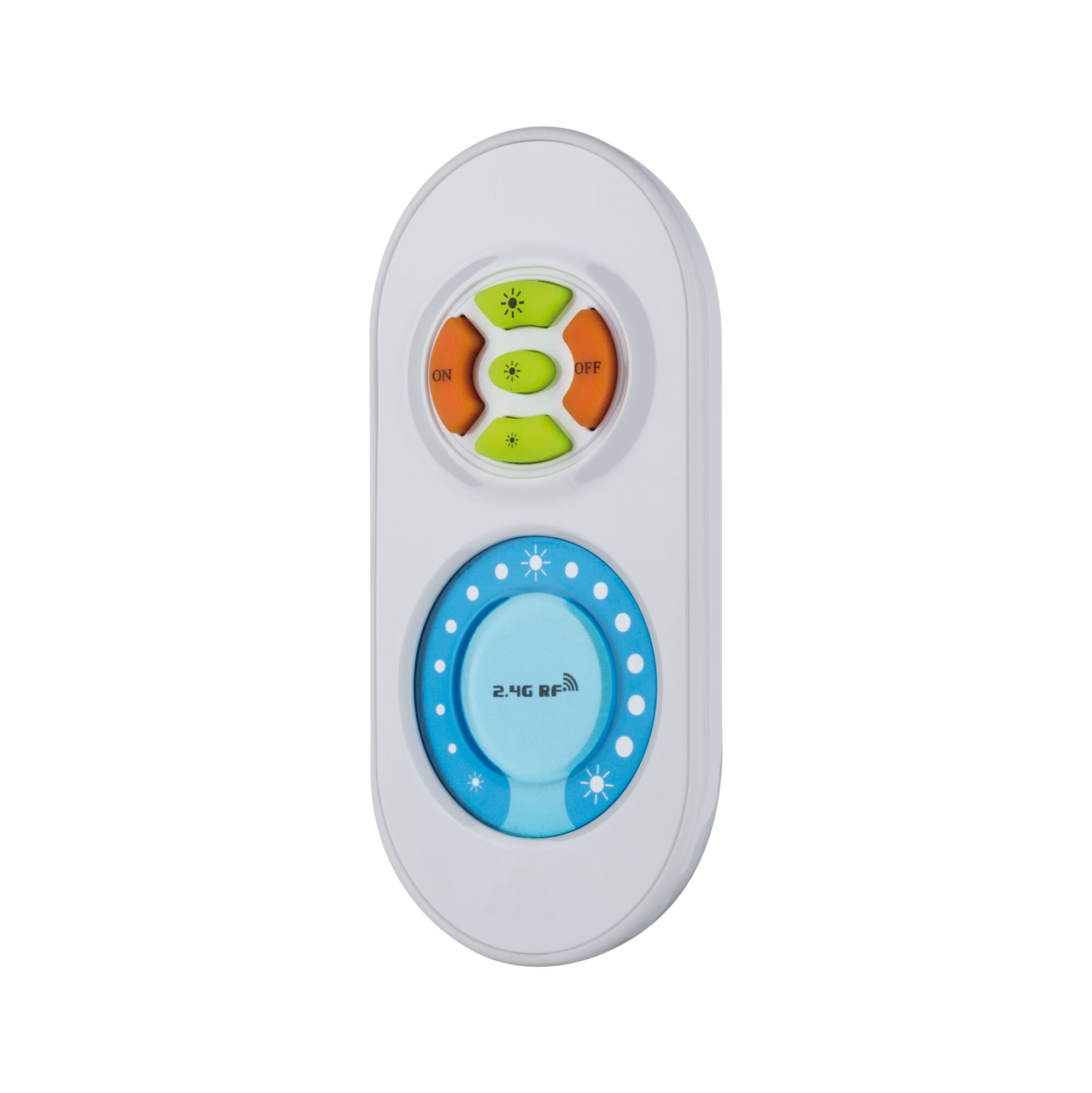

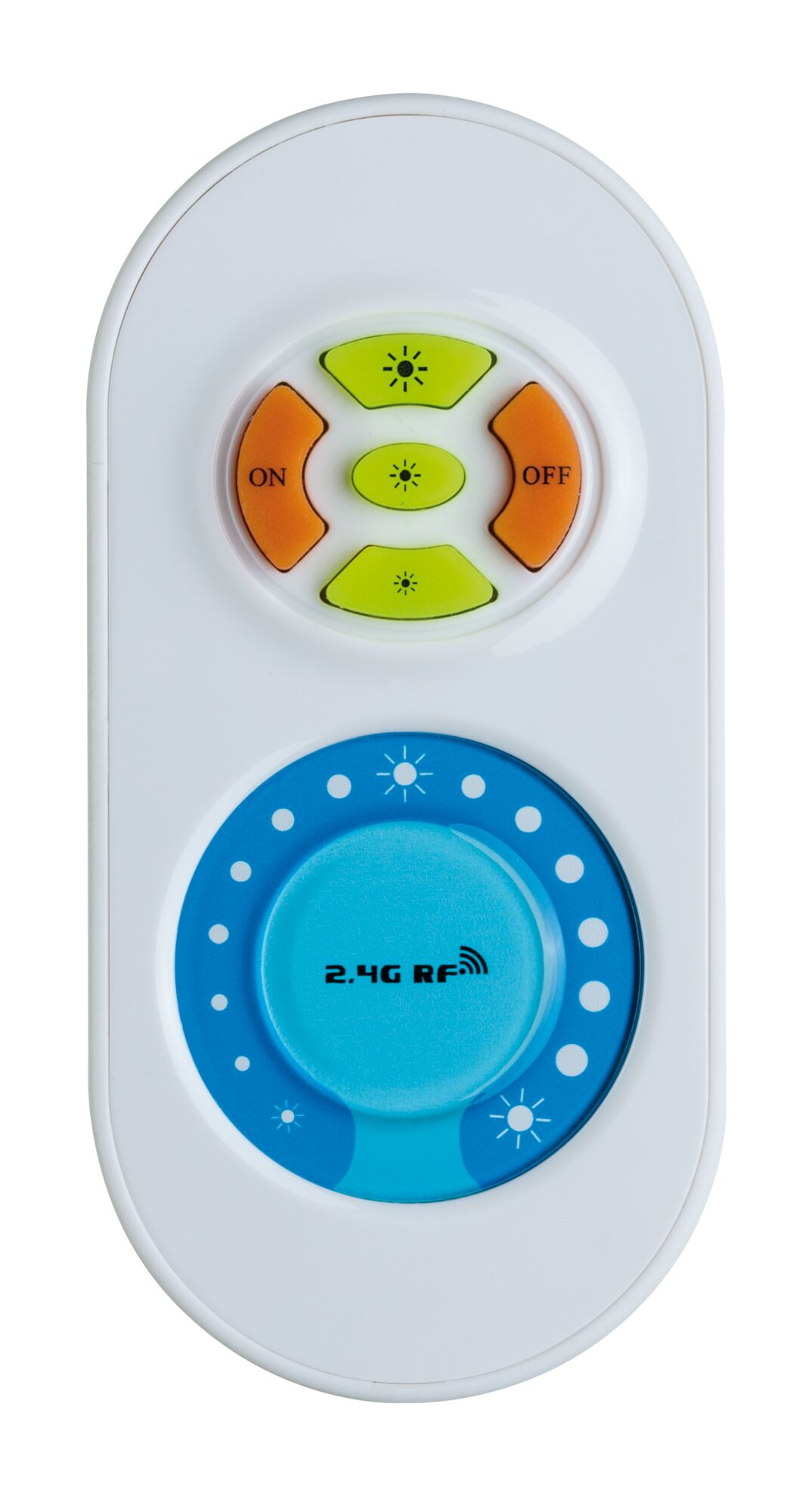

- Incl. remote control for switching, dimming, controlling and programming
MaxLED Controller Dimm/Switch DC 24V max. 144W White

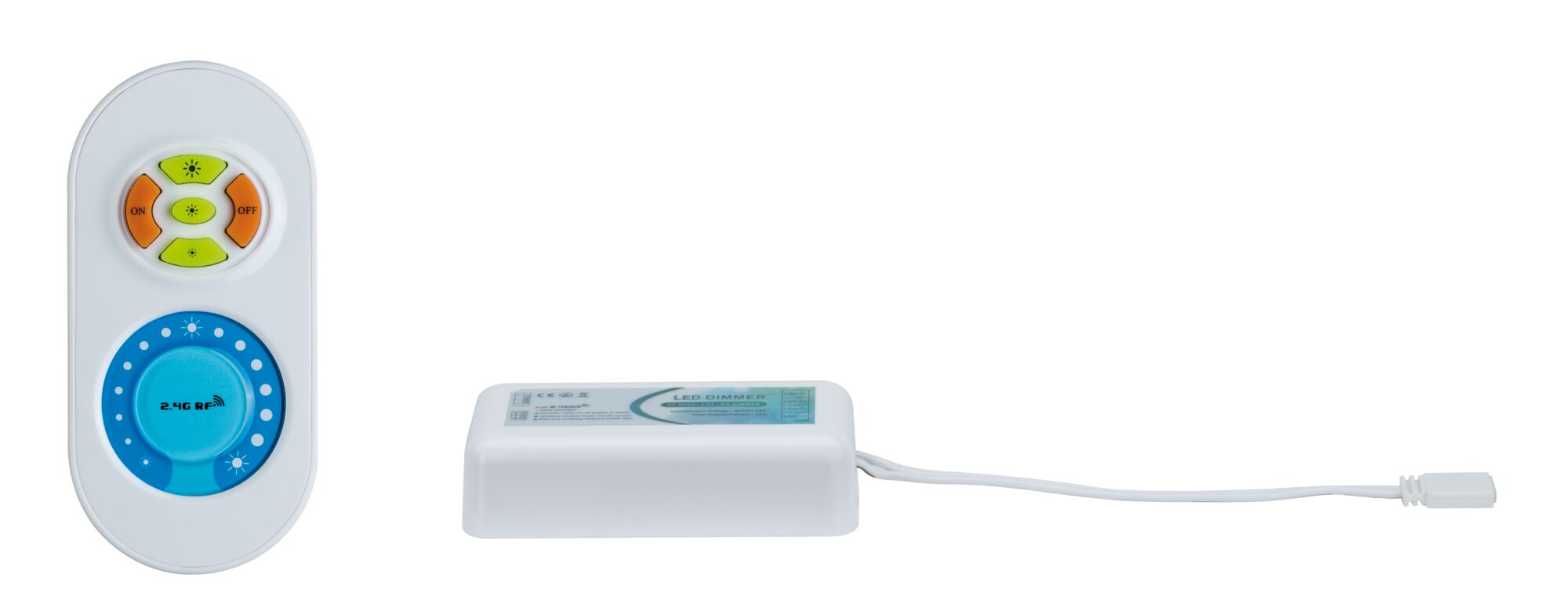

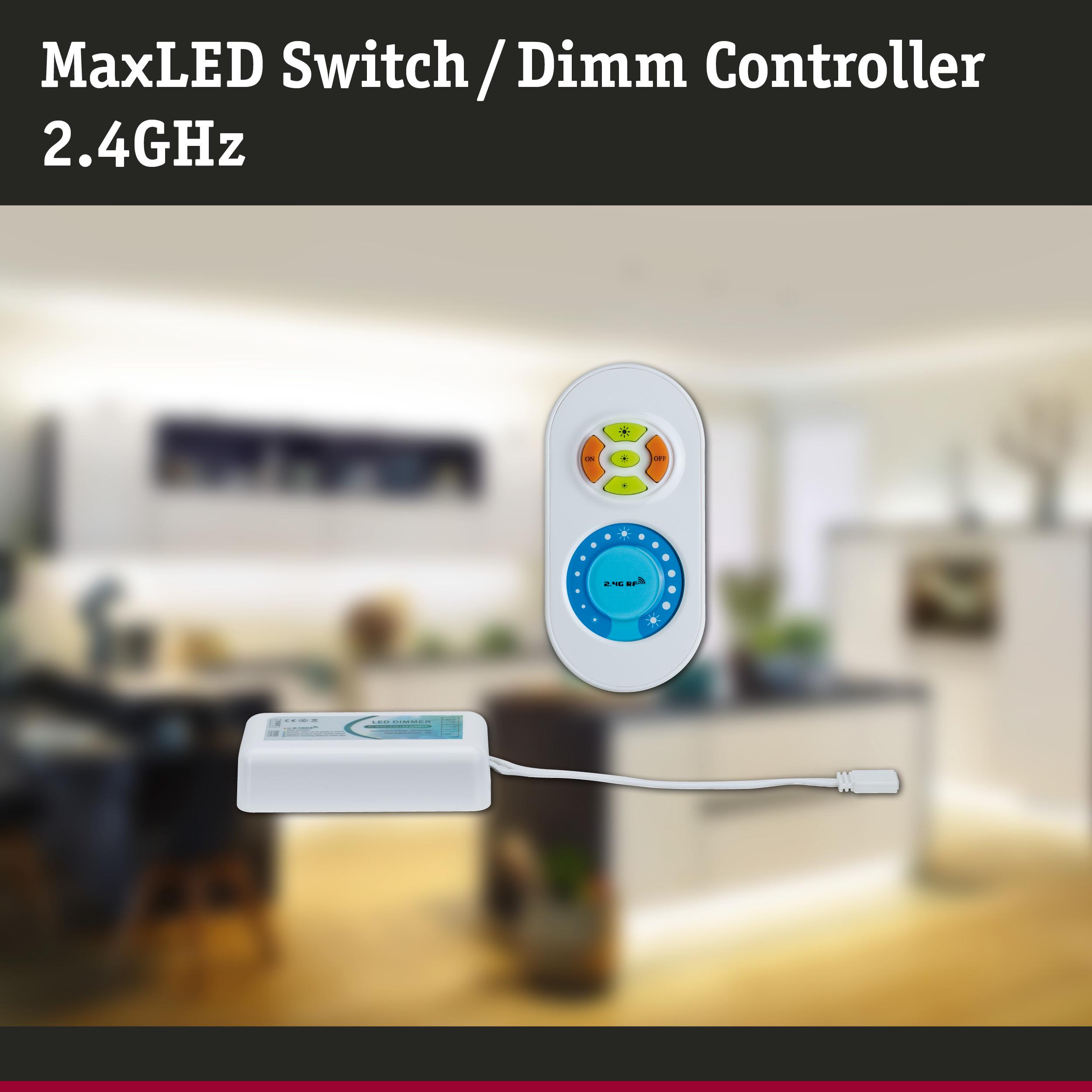

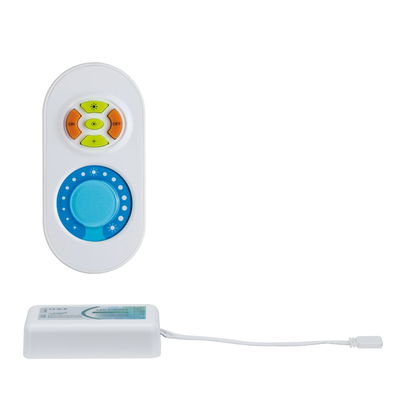

With the MaxLED Dim/Switch Controller and the supplied wireless remote control, the uni-coloured MaxLED strips can be switched and dimmed. No line of sight is required between remote control and receiver for this purpose. Larger ranges up to 30Â metres can be bridged without any problem.
- No line of sight between remote control and receiver necessary
- Easy plug-in system for hassle-free assembly
- Incl. remote control for switching, dimming, controlling and programming
- Remote control range up to 30Â m
- Including linking line
- Incl. 5-pin plug for easy connection of the strips
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 22,5 x B: 85 x T: 45 mm |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Lamp Features | |
|---|---|
| Technique | Accessories without bulbs |
| Dim | with remote control |
| Dimmable | Yes |
| Inclusive lamp | no |
| Total Width | 85 mm |
| Maximum wattage range | max. 144 W |
| protection class | protection class III |
| Replacable | 7 not concerned. |
| Accessories | |
|---|---|
| Radio control included | Radio control |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
