Article-No.:
79831
MaxLED accessoires
Power Supply
40VA White
230/24V 40VA White
230/24V 40VA White
- Energy-efficient electronic ballast with long lifetime
- Incl. 5-pin plug for easy connection of the strips
- Includes power cable with Europlug
MaxLED accessoires Power Supply 40VA White 230/24V 40VA White
With the ready-to-plug MaxLED power supply, you can create your own MaxLED system with a maximum total output of 40 watts, or you can extend existing installations. Plug-in connections are already prepared for the direct connection of MaxLED strips or a wide range of accessories.
- Energy-efficient electronic ballast with long lifetime
- Incl. 5-pin plug for easy connection of the strips
- Includes power cable with Europlug
| Dimension | |
|---|---|

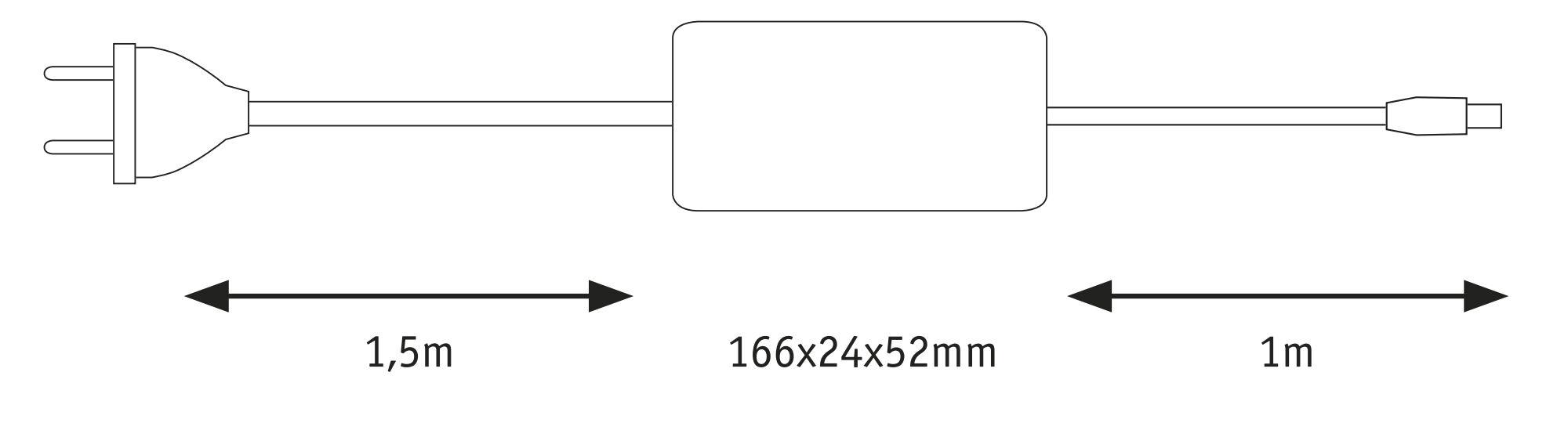

| Dimensions (Height x Width x Depth) | H: 24 x B: 52 x T: 166 mm |
| net weight | 321 g |
| Design and Material | |
|---|---|
| Form | angular |
| Colour | White |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Features | |
|---|---|
| Integrated temperature monitor and electronic fuse | Integrated temperature monitor and electronic fuse |
| Lamp Features | |
|---|---|
| Inclusive lamp | no |
| light source property | Without light source |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | No |
| Maximum wattage range | max. 40 W |
| Protection class | Protection class II |
| Replacable | 7 not concerned. |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 40 VA |
| Integrated short circuit protection | Integrated short circuit protection |
| integrated overload protection | integrated overload protection |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
