Article-No.:
79840
MaxLED accessoiresControl

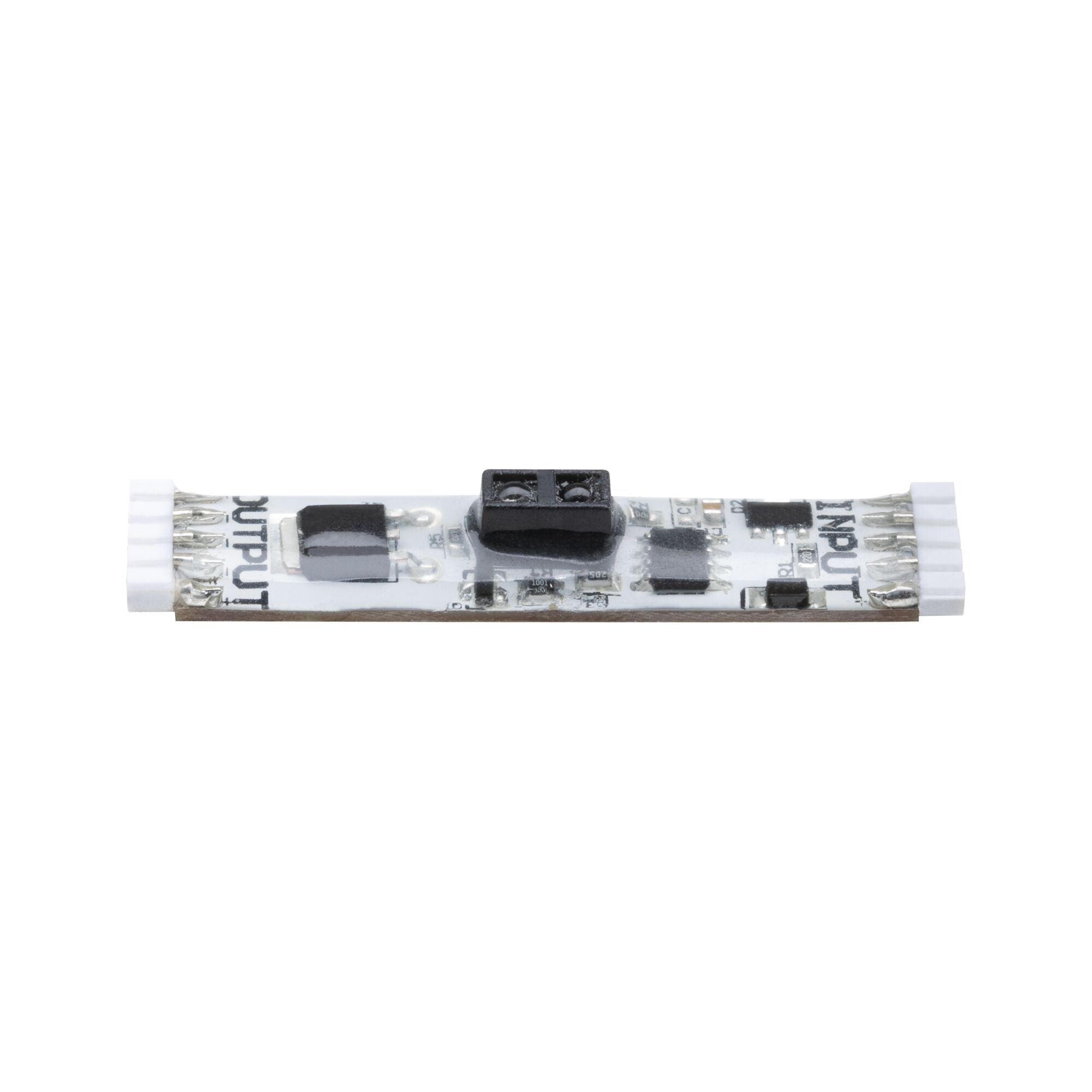

Sensor dim switch Touchless
24V max. 144W White
24V max. 144W White
- Proximity sensor switches on and off when approached to within 3 cm

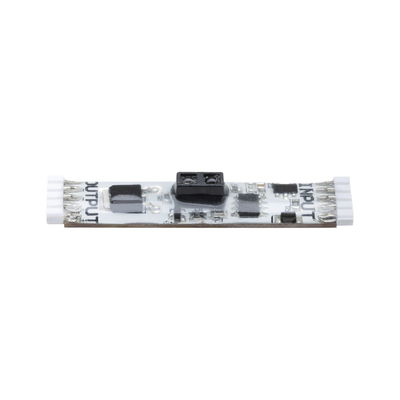

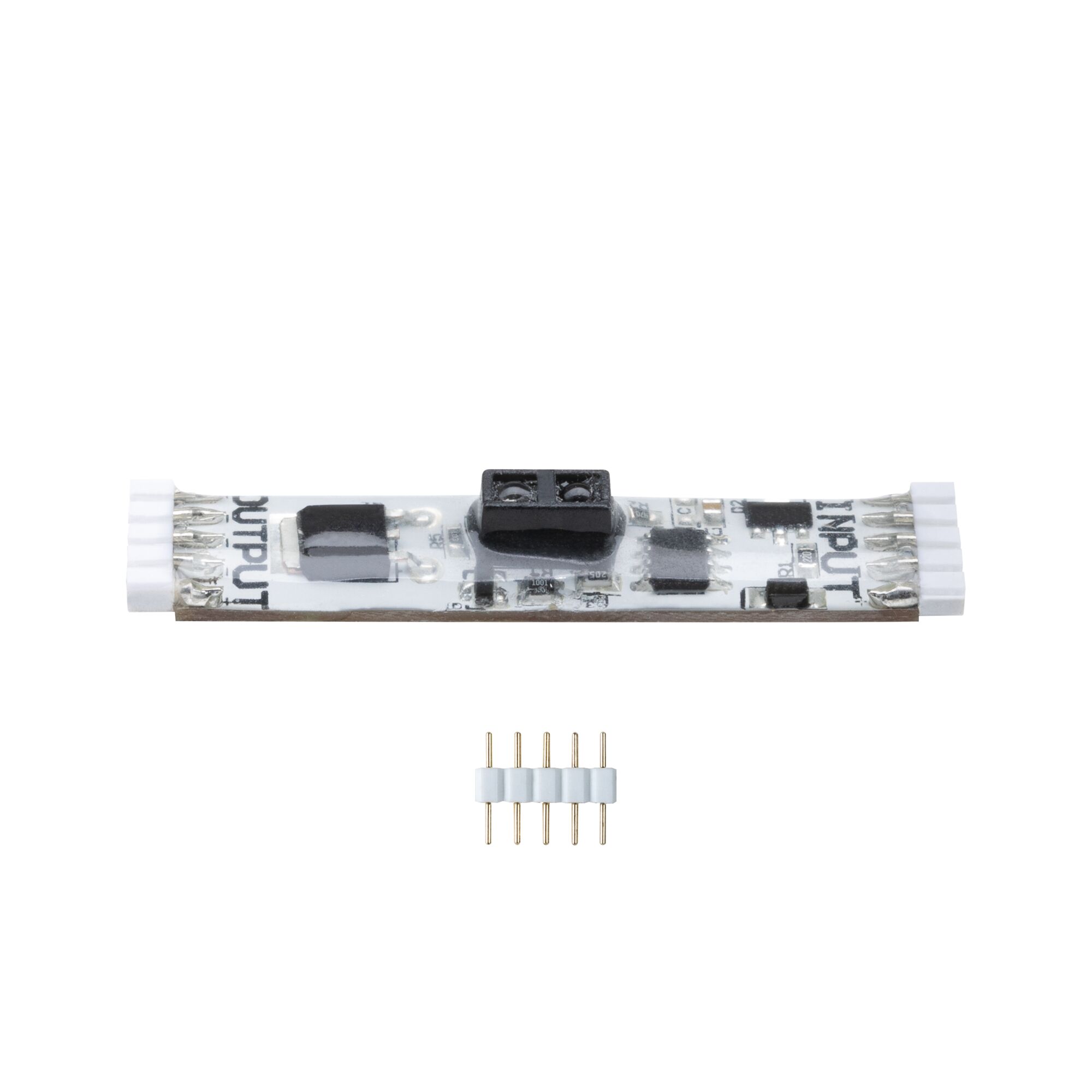

- Incl. 5-pin plug for easy connection of the strips
MaxLED accessoires Control Sensor dim switch Touchless 24V max. 144W White

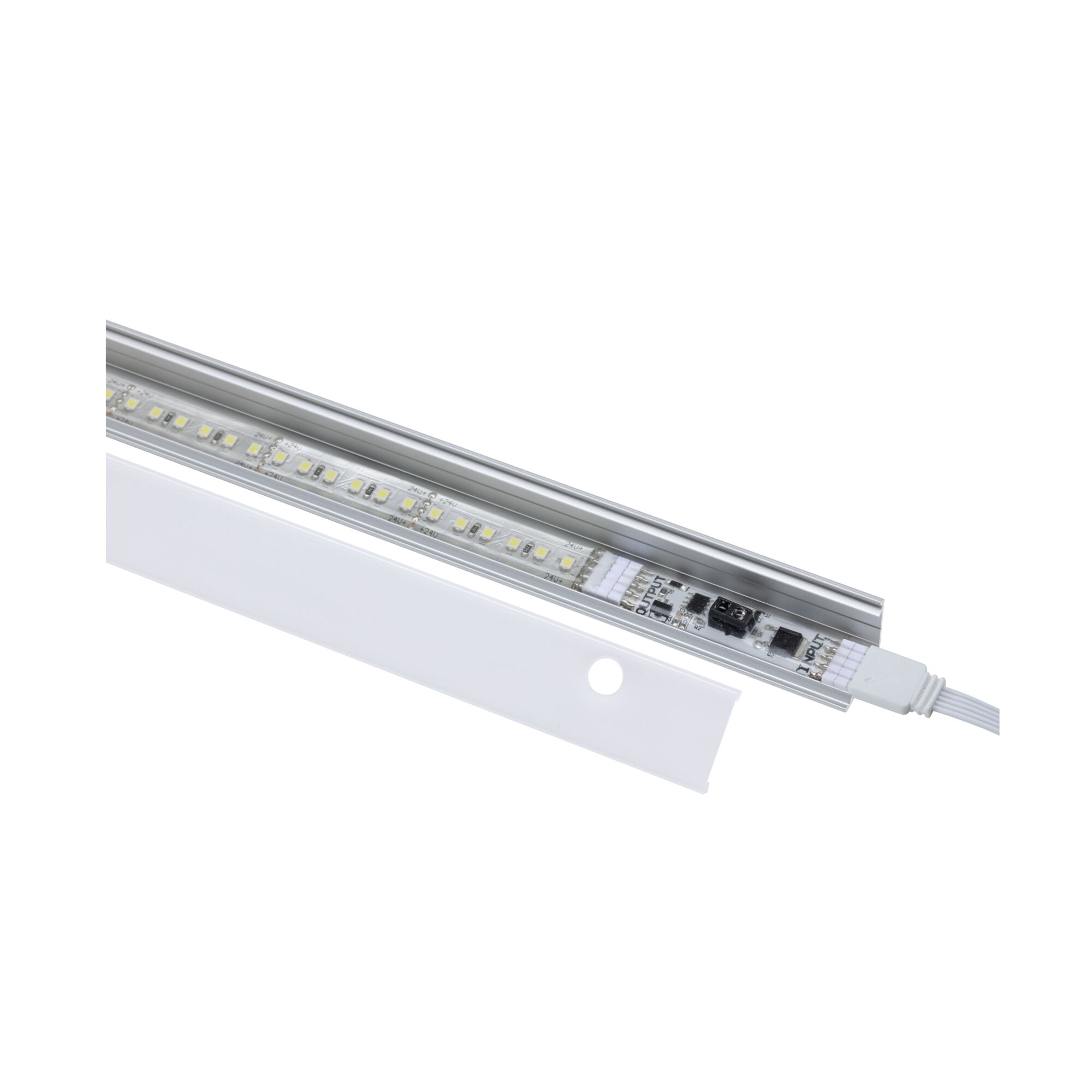

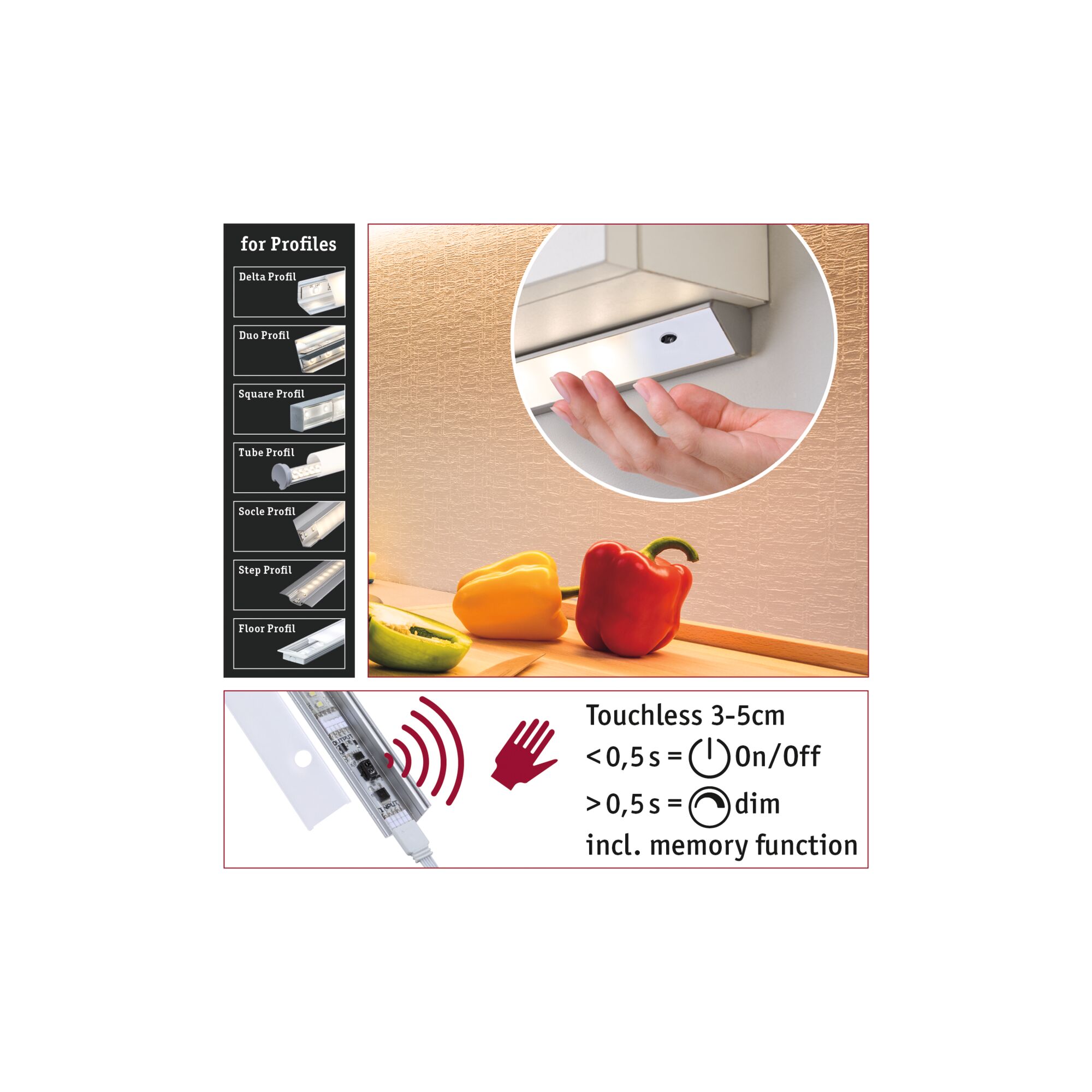

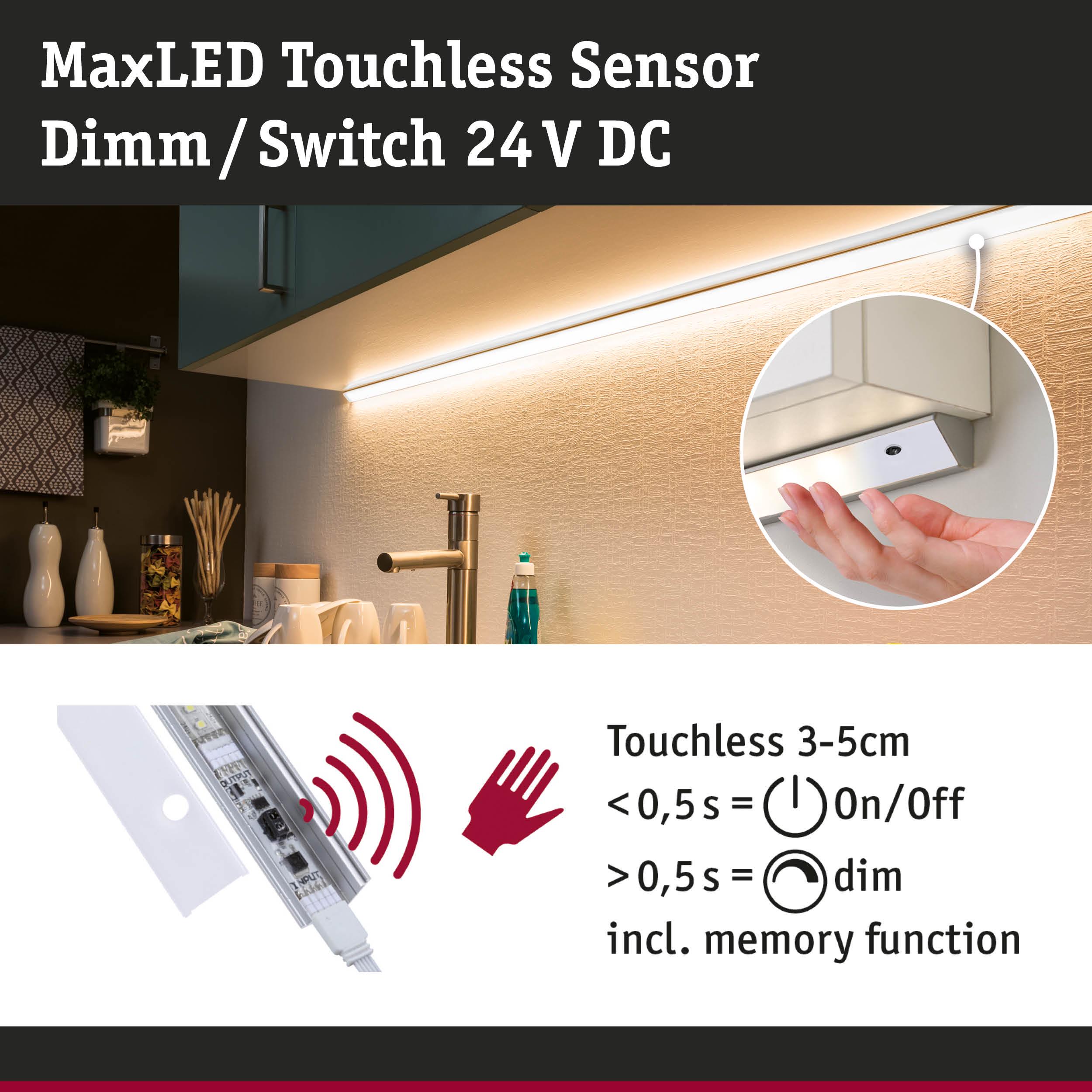

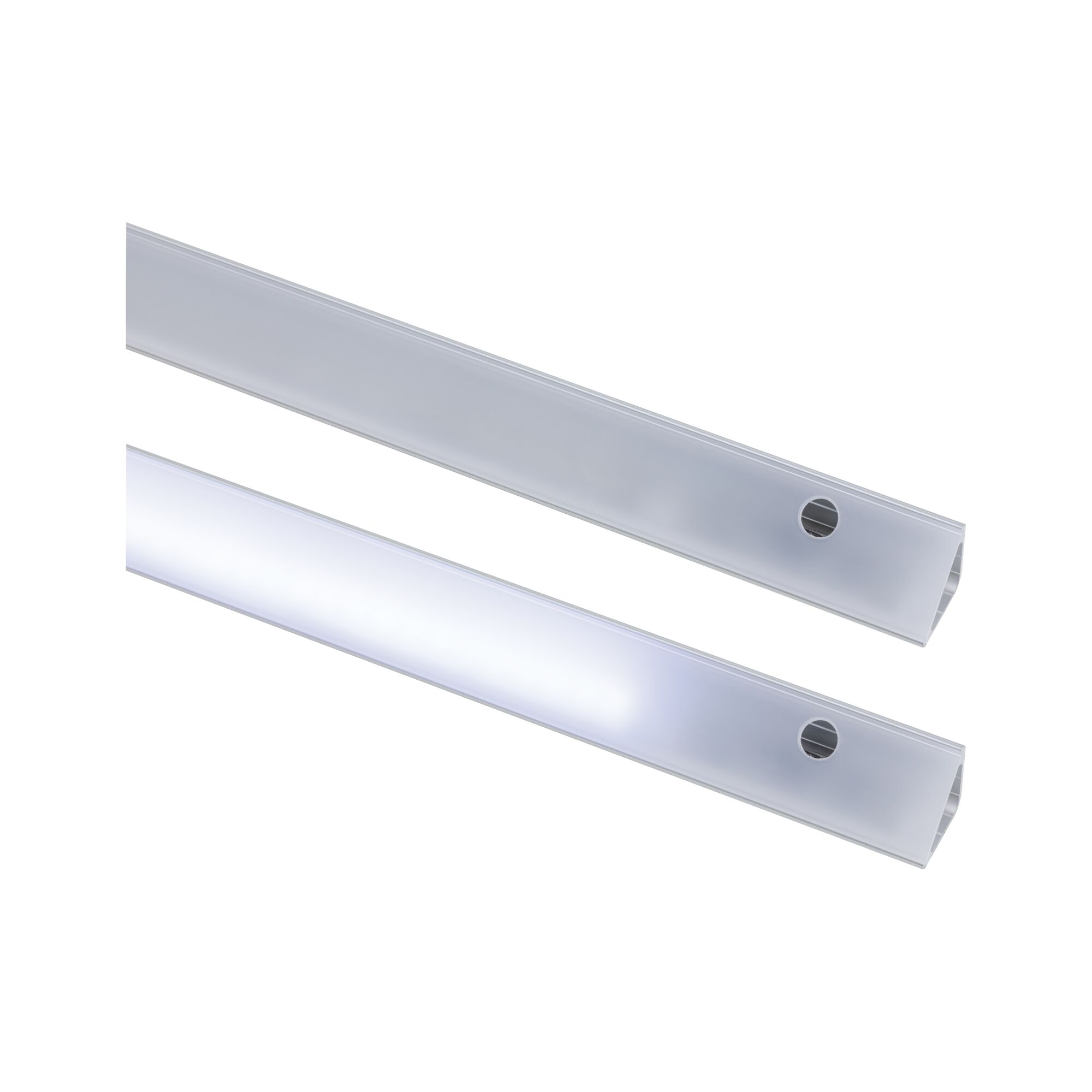

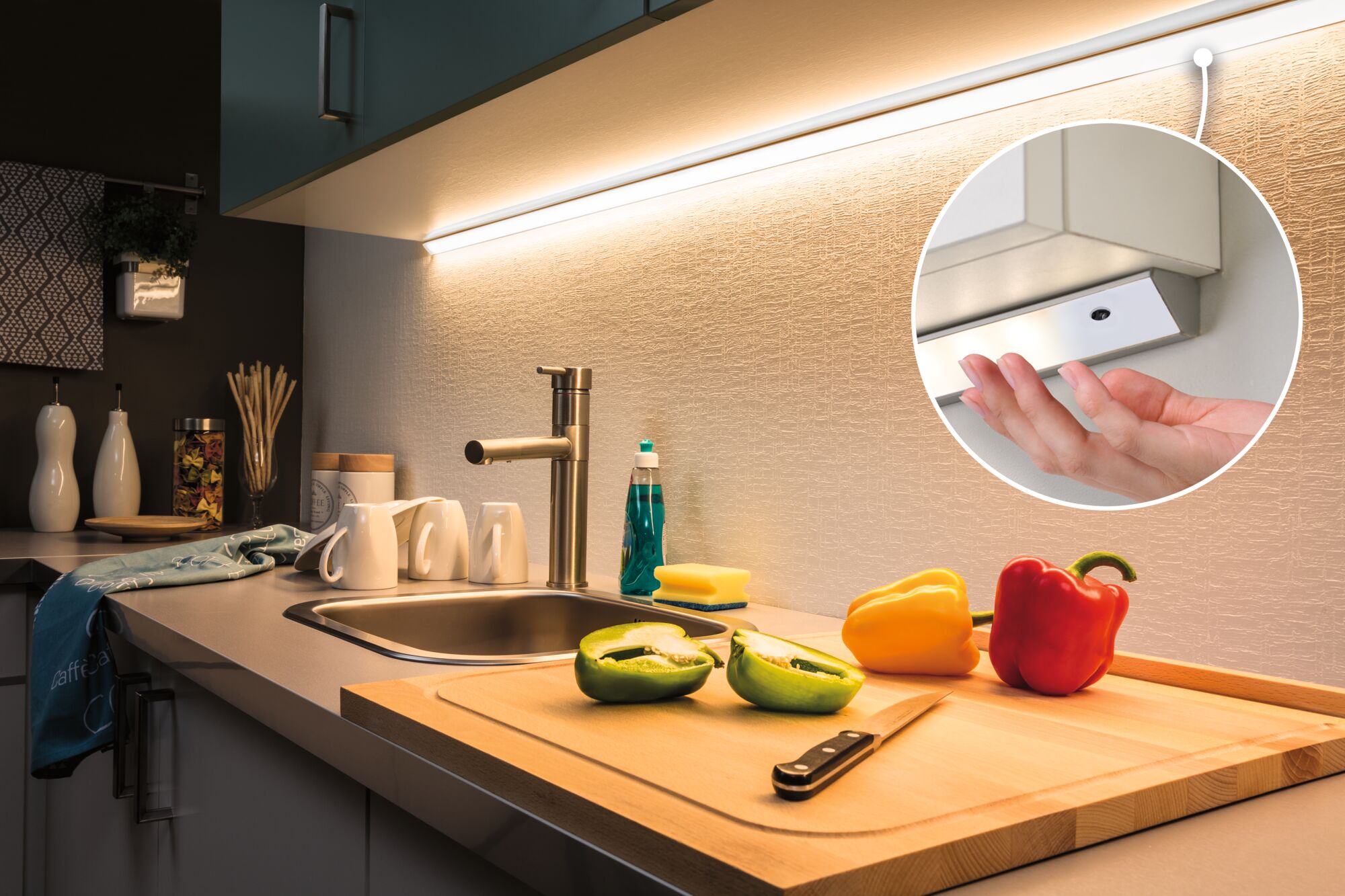

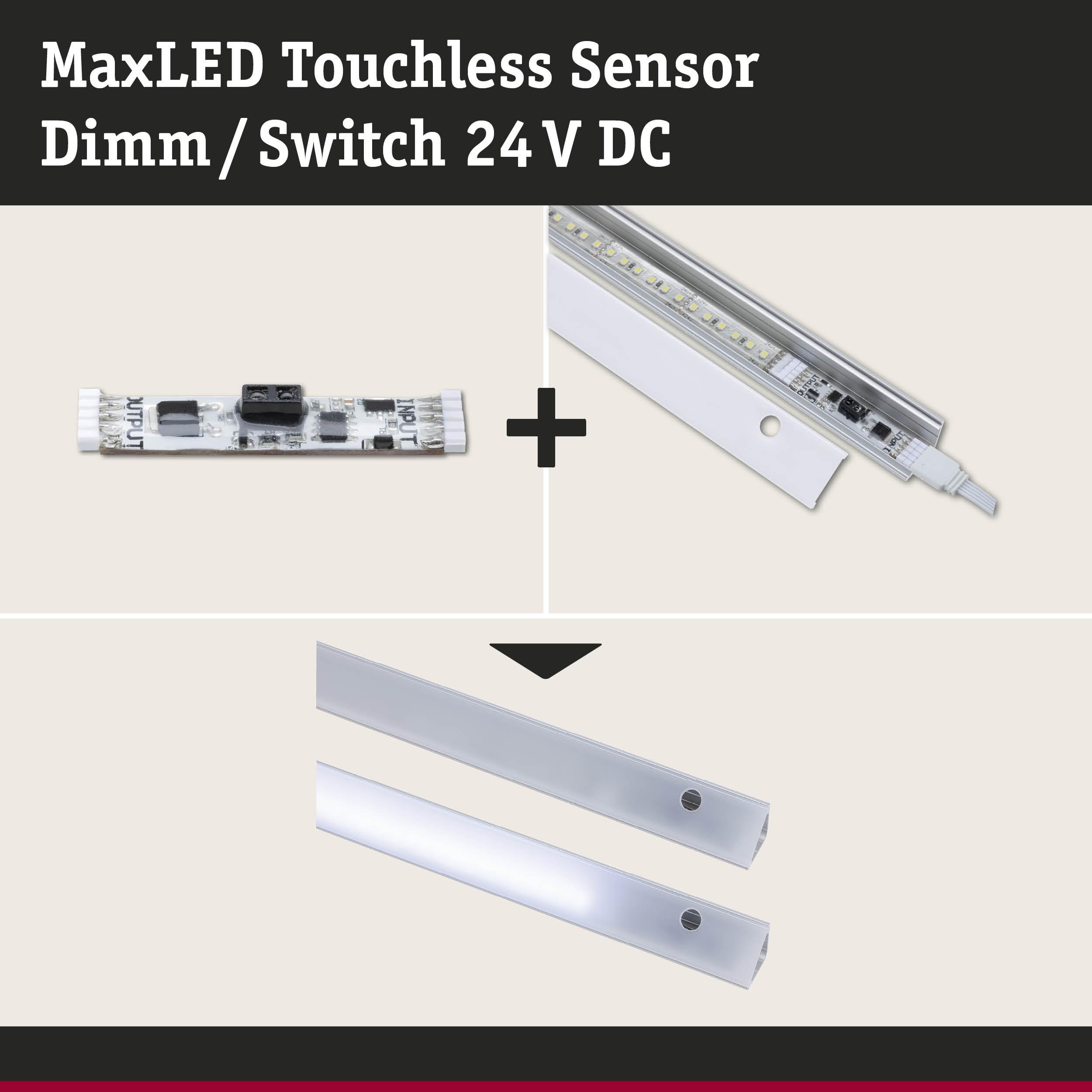

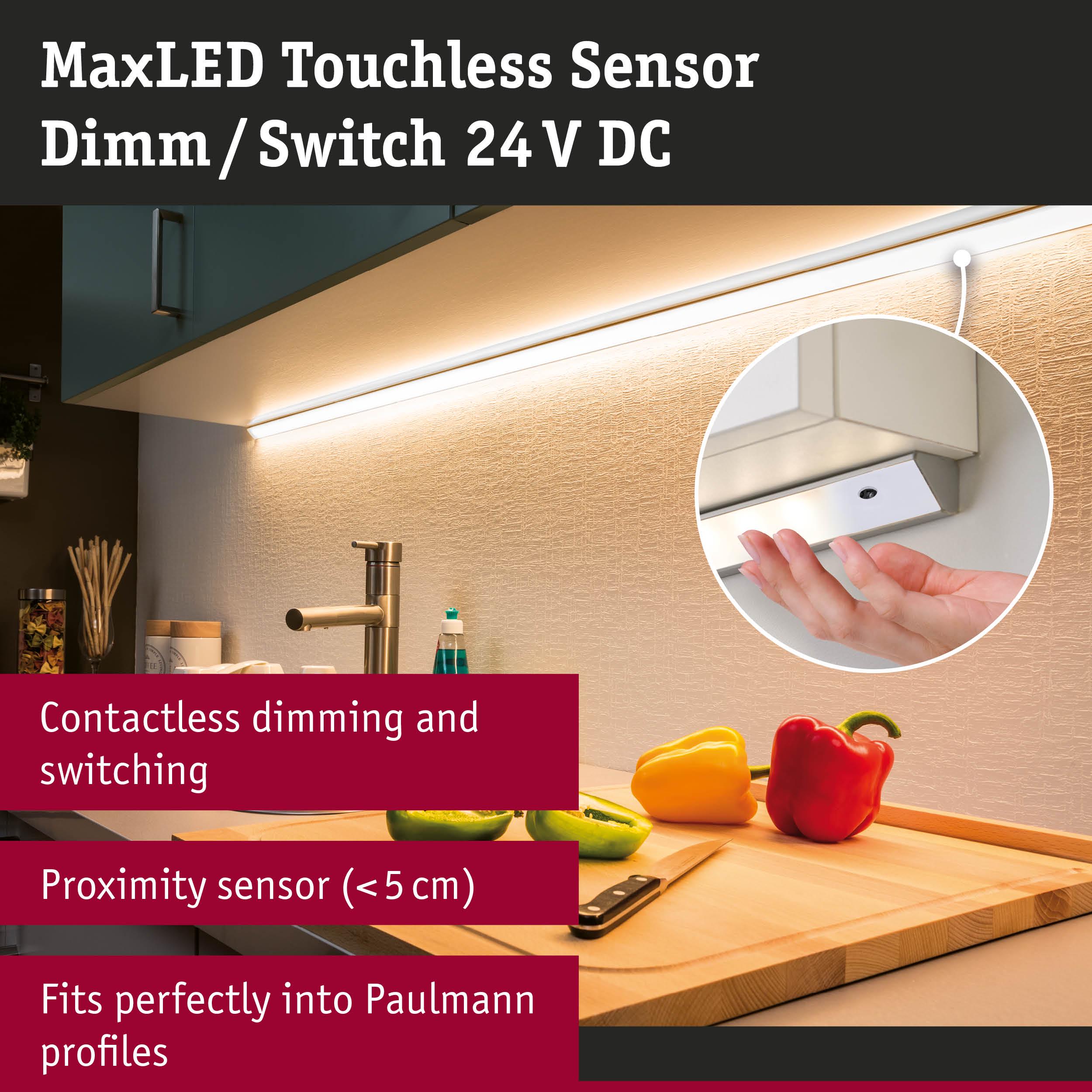

The MaxLED Touchless sensor enables contactless switching and dimming of lighting. A swiping motion within a range of 5 cm switches the lighting on or off, while a prolonged presence controls the brightness. The compact sensor is as narrow as an LED strip, meaning it fits perfectly into profiles*. *Delta, Duo, Square, Tube, Socle, Step & Floor
- Proximity sensor switches on and off when approached to within 3 cm
- Incl. 5-pin plug for easy connection of the strips
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 7 x B: 56,5 x T: 12,5 mm |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Recycled material included | no |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Features | |
|---|---|
| Sensors | Proximity switch |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Inclusive lamp | no |
| Lamp property | Ohne Leuchtmittel |
| Maximum wattage range | max. 144 W |
| Protection class | Protection class III |
| Technique | Accessories without bulbs |
| Replacable | 7 not concerned. |
| Adjustability | fixed |
| Voltage | 24 V |
| Voltage type | DC |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
