Article-No.:
71058
MaxLED accessoires
Connector Set RGBW
White/Transparent
White/Transparent
- Seamlessly connects COB strips
- Preserves the linear lighting effect
- The set contains various connectors to flexibly connect the COB strips
MaxLED accessoires Connector Set COB RGBW White/Transparent

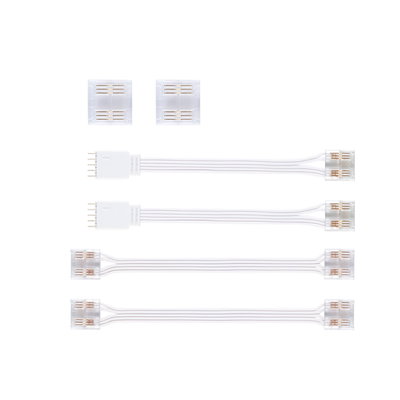

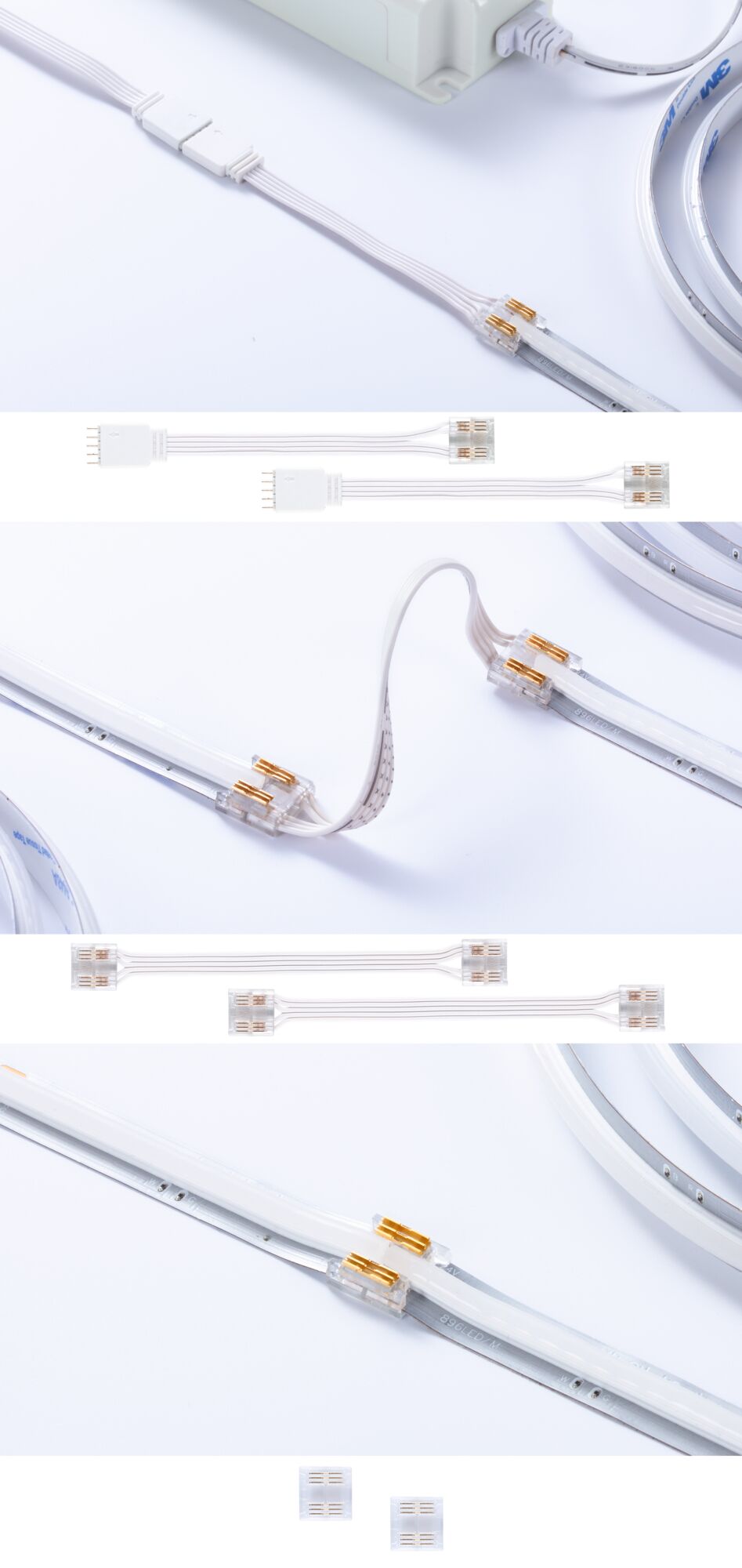

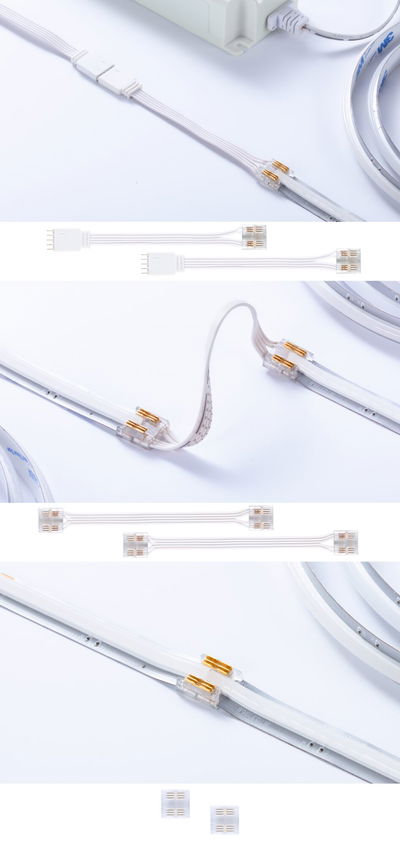

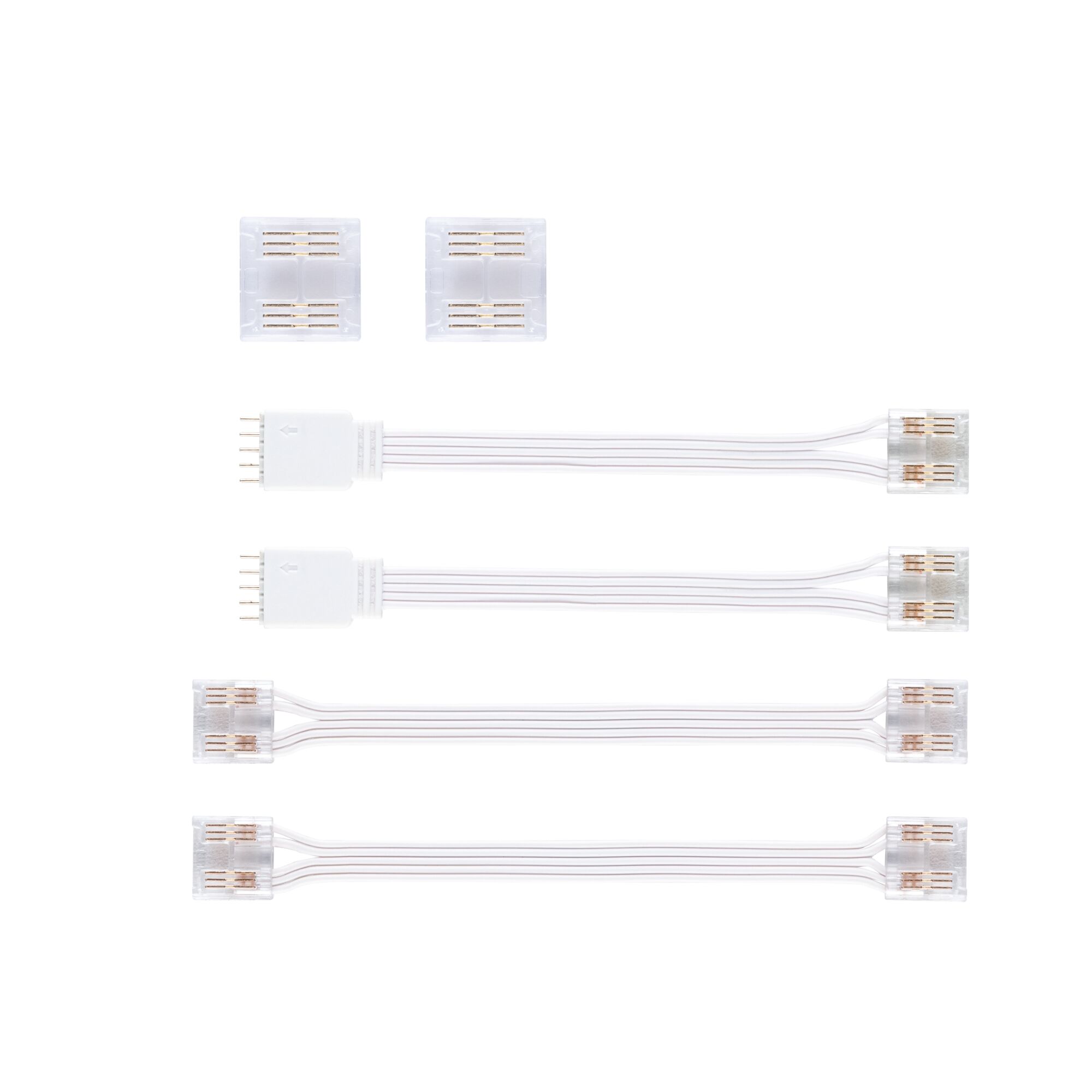

The MaxLED Full-Line COB Connector Set for strips with RGBW function comes with 2x COB light connector (direct connection between COBs), 2x COB-to-COB cable connector, and 2x COB-to-5-Pin cable connector. The light connector reconnects previously shortened strips seamlessly and without visible interruption of the linear lighting effect. The COB-to-COB cable connector links 2 COB strips, e.g. when routed around a corner. The COB-to-5-pin cable connector is compatible with all MaxLED components like cables, connectors, controllers, or sensors.
- Seamlessly connects COB strips
- Preserves the linear lighting effect
- The set contains various connectors to flexibly connect the COB strips
- Enables simple integration in the existing MaxLED system
- Reconnects shortened stripes
- Note: Not compatible with MaxLED COB Tunable White Stripe
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 4/4 x B: 127/117,5 x T: 14/14 mm |
| Design and Material | |
|---|---|
| Colour | White, Transparent |
| Material | Plastic |
| Recycled material included | no |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Lamp Features | |
|---|---|
| Inclusive lamp | no |
| Lamp property | Ohne Leuchtmittel |
| Maximum wattage range | max. 144 W |
| IP protection | IP20 |
| Protection class | Protection class III |
| Technique | Accessories without bulbs |
| Replacable | 7 not concerned. |
| Voltage | 24 V |
| Voltage type | DC |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
