Article-No.:
5058
MaxLED 500Set
Kitchen Comfort wall unit
1,5m 9W 550lm/m 2700K 20VA
1,5m 9W 550lm/m 2700K 20VA

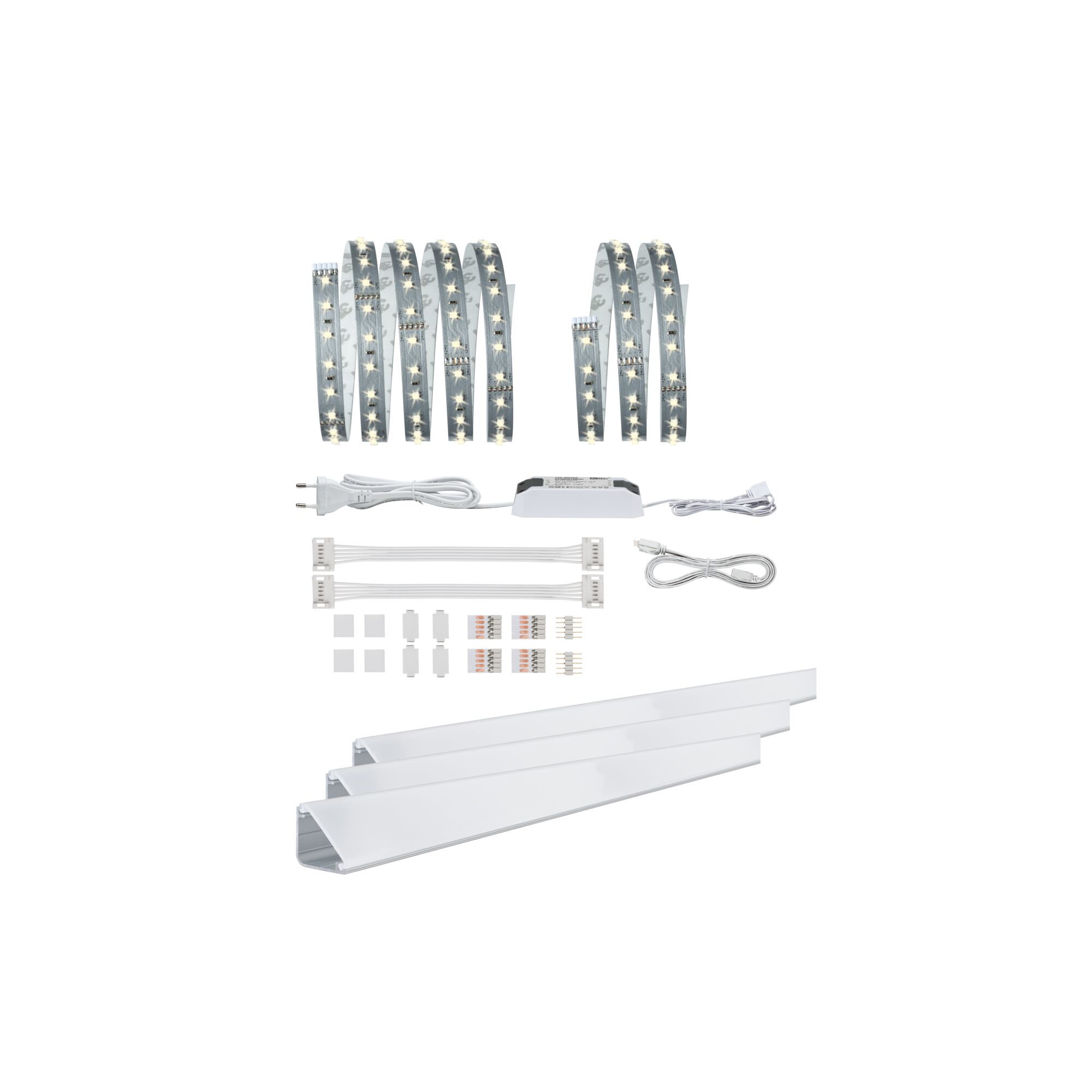

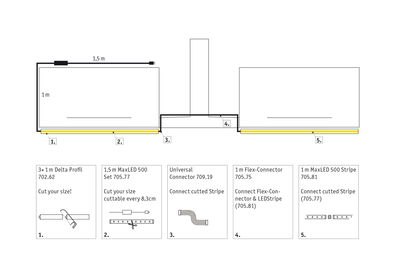

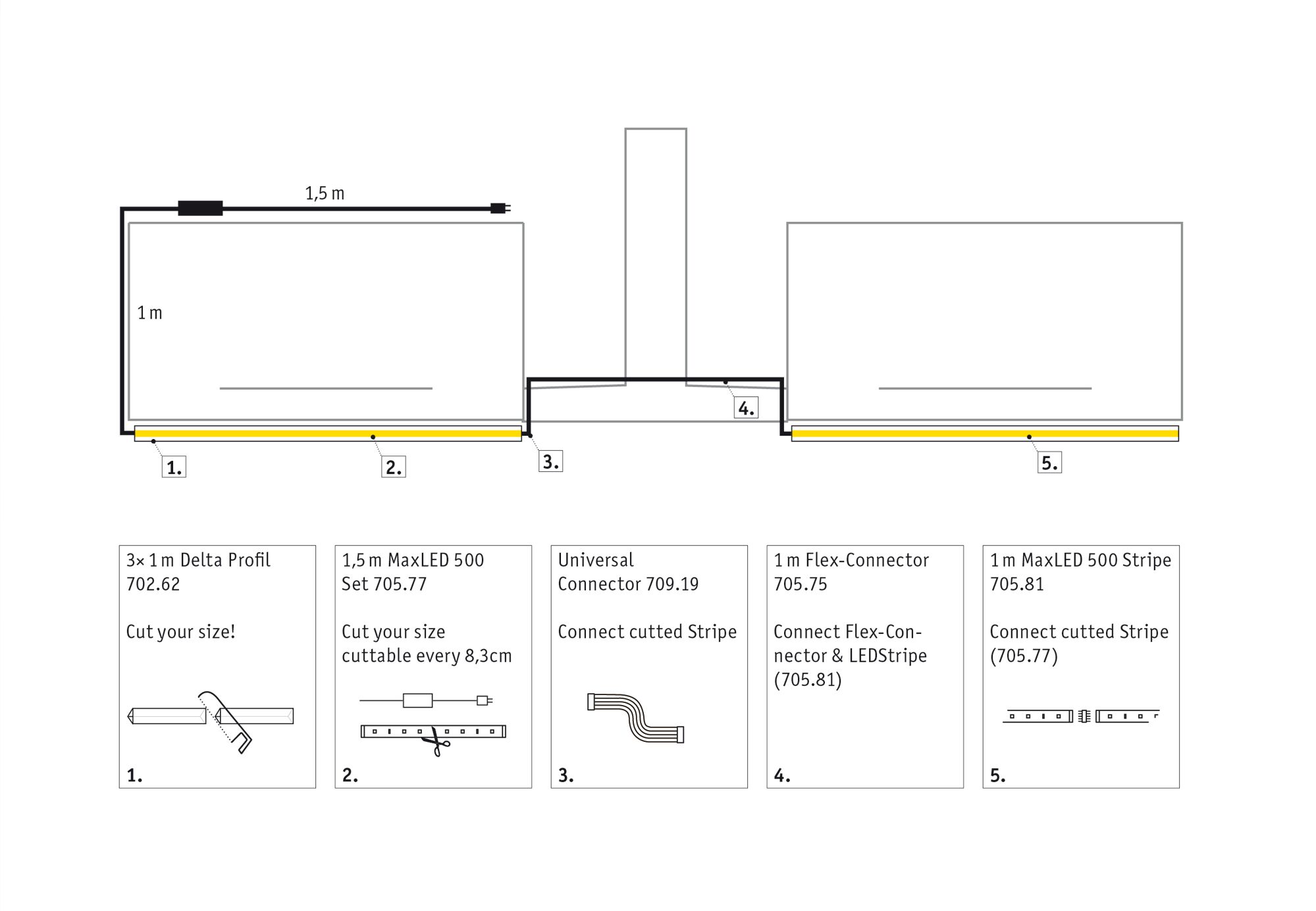

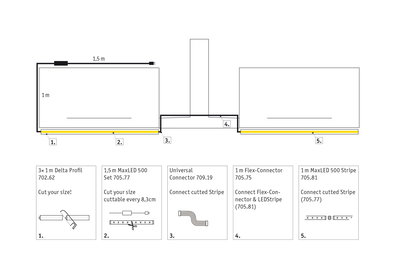

- Set includes 1x 70262, 1x 70575, 1x 70577, 1x 70581 and 1x 70919
- Complete set incl. strip and power supply
- Color temperatur: 2700K - Warm white
MaxLED 500 Set Kitchen Comfort wall unit 1,5m 9W 550lm/m 2700K 20VA

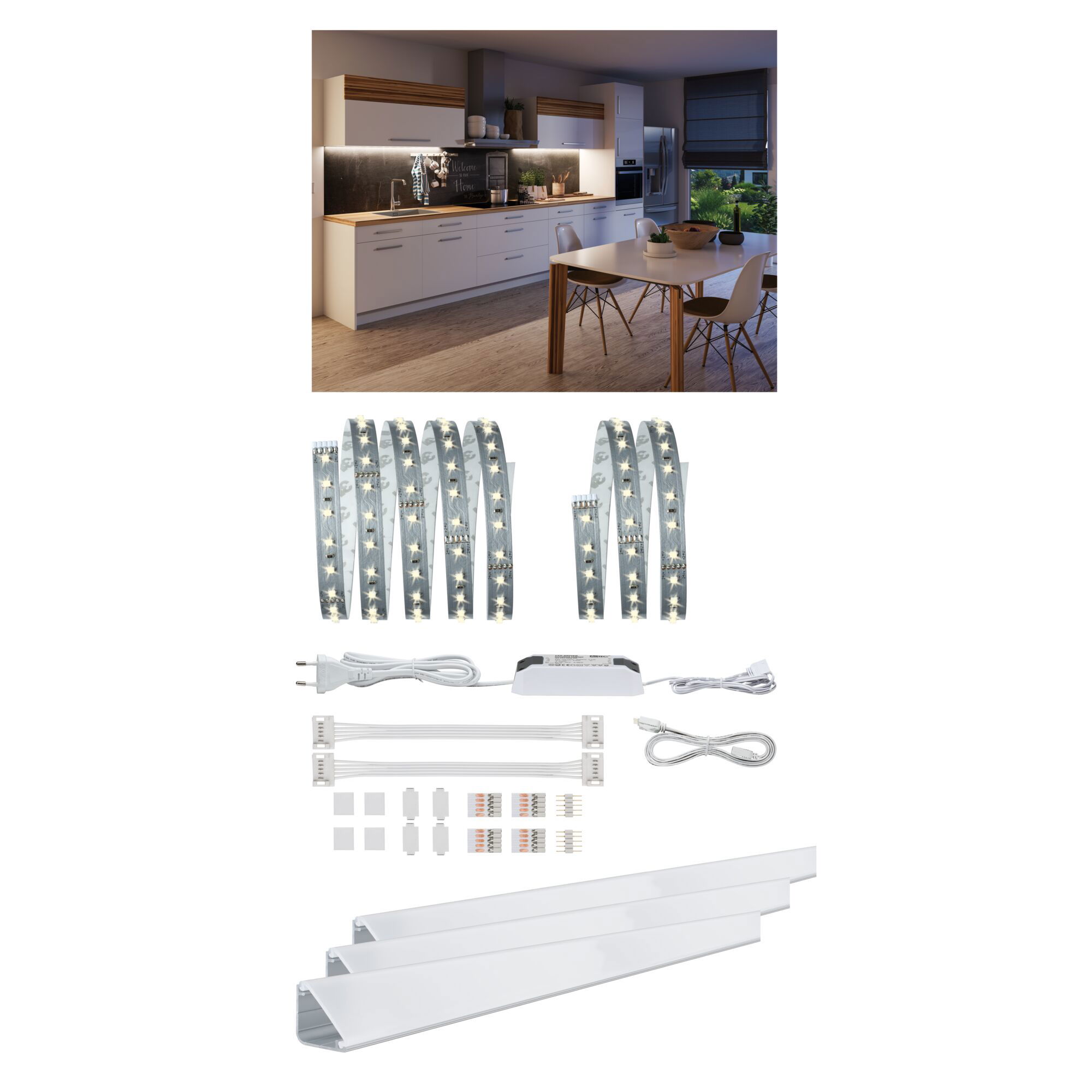

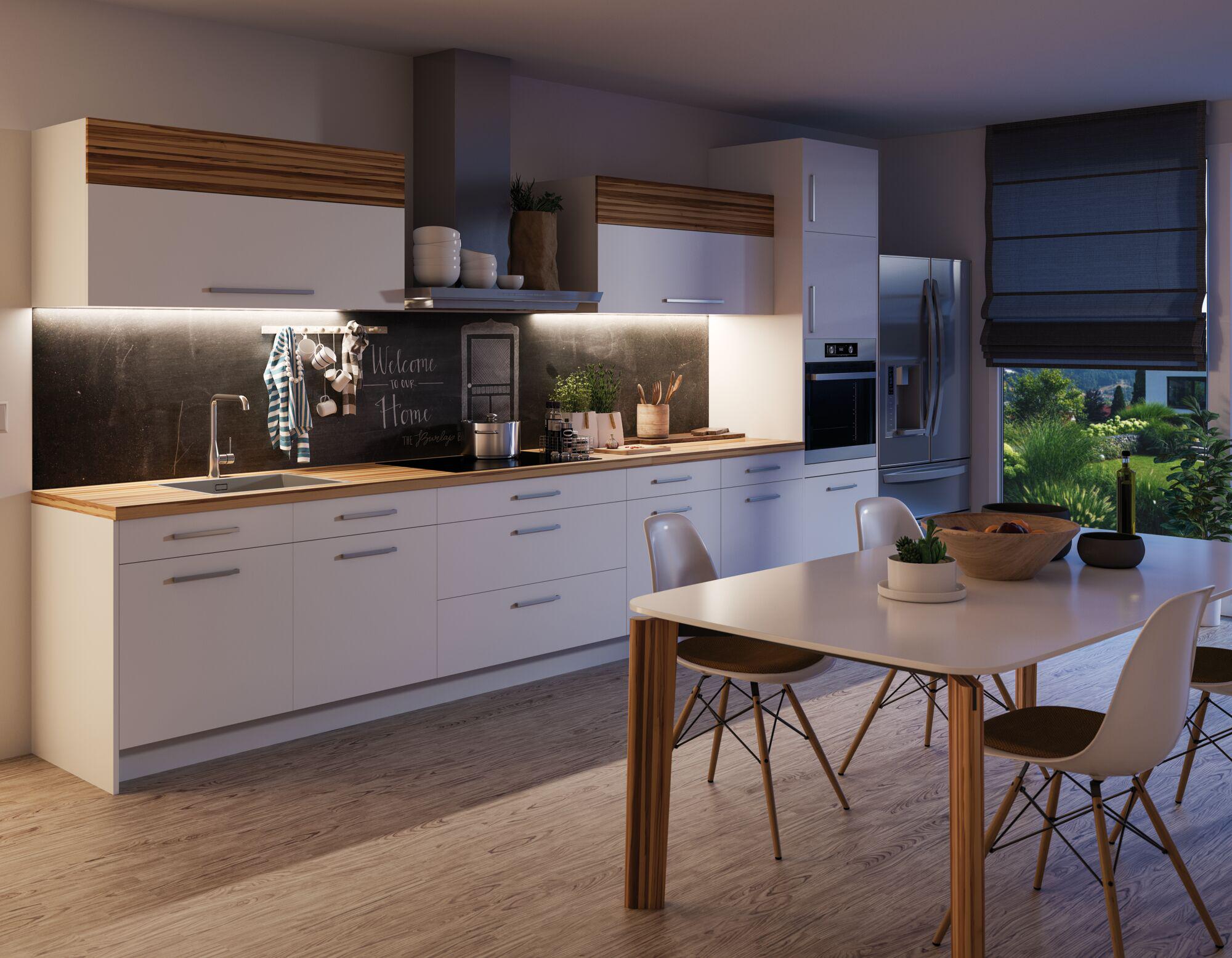

The MaxLED 500 Comfort Set Kitchen set includes a warm white MaxLED 500 LED strip basic set with a length of 1.5 m, a warm white MaxLED 500 individual strip 1 m, a MaxLED Flex connector, a MaxLED universal connector as well as an LED strip profile Delta. The set is suitable for the kitchen wall unit, it sets the room in the right atmosphere. The Delta Profile is equipped with the strips and enables decorative effects for closing edges. The strips are so powerful that they can be easily used for room lighting. The warm white light provides a cosy and relaxing atmosphere for living areas. With the MaxLED connecting cable, distances can be extended or bridged.
- Set includes 1x 70262, 1x 70575, 1x 70577, 1x 70581 and 1x 70919
- Complete set incl. strip and power supply
- Color temperatur: 2700K - Warm white
- Incl. 5-pin plug for easy connection of the strips
- Simple plug-in system for easy installation
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 x T: 12,5 mm |
| Length | 1,5 m |
| Shortenability Strips | 83 mm |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Metal |
| Recycled material included | no |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Length max. | 3 m |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) | G |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 825 lm |
| Luminous flux LED module | 550 lm |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Inclusive lamp | yes |
| light source property | Light source integrated (non-replacable) |
| Technique | LED |
| Component parts | 9 W |
| Number of component parts | 1x |
| Number of LED's per meter | 72 |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 11 W |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 20 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
