Article-No.:
5059
MaxLED 500
Set
Kitchen Comfort Plinth
5m 30W 550lm/m 2700K 60VA
5m 30W 550lm/m 2700K 60VA
- Set includes 1x 70604 and 1x 70683

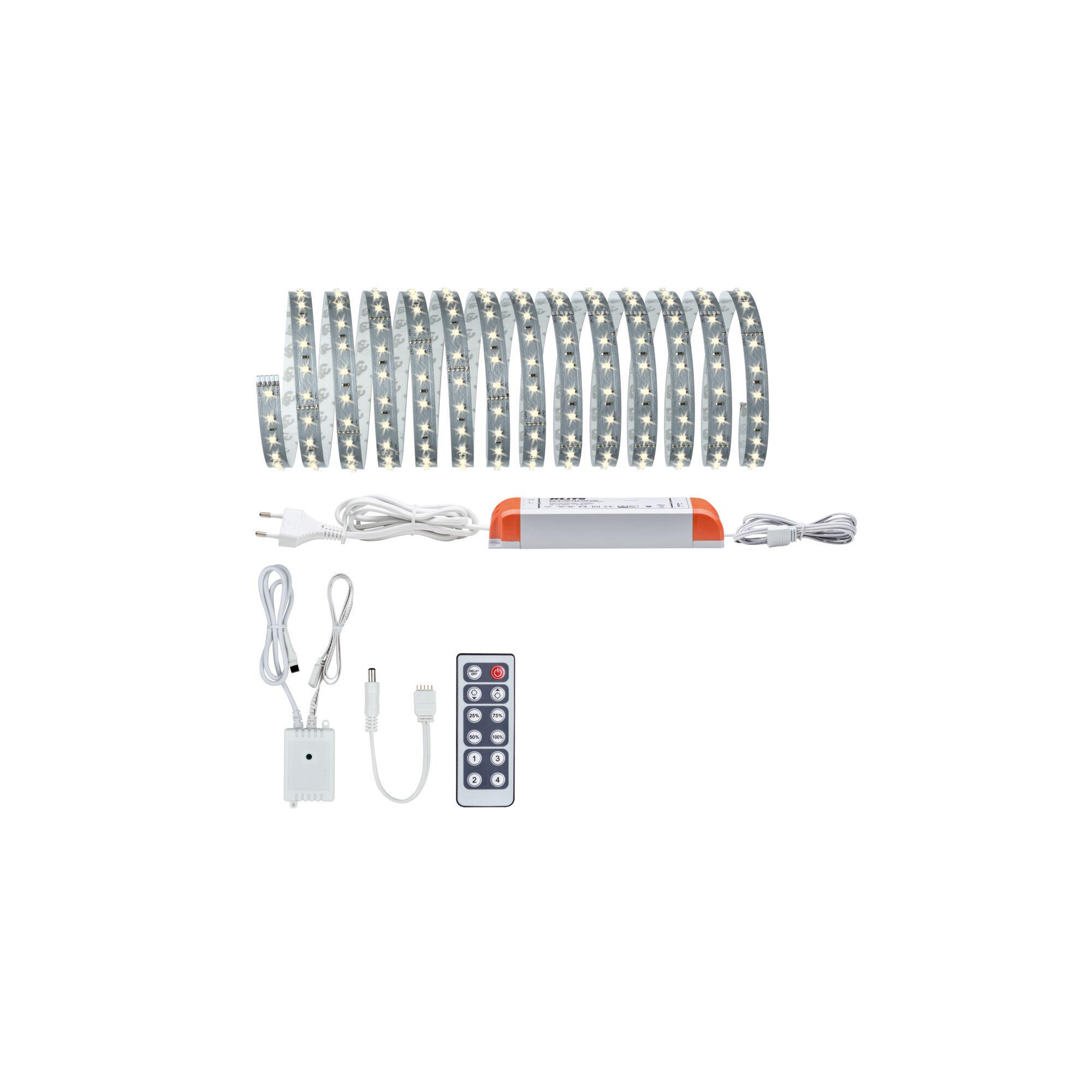

- Complete set incl. strip and power supply
- Can be shortened as required
MaxLED 500 Set Kitchen Comfort Plinth 5m 30W 550lm/m 2700K 60VA
The MaxLED 500 Comfort Set Kitchen set is suitable for the base, it sets the room in the right atmosphere. The set comprises the warm white MaxLED 500 LED strip basic set 5 m and the MaxLED dim/switch controller. The strips are so powerful that they can be easily used for room lighting. The warm white light provides a cosy and relaxing atmosphere for living areas. With the MaxLED dim/switch controller and the supplied infra-red remote control, the monochrome strip can be switched and dimmed. A line of sight is required between remote control and receiver for this purpose. The four memory spaces enable the programming of individual requirements.
- Set includes 1x 70604 and 1x 70683
- Complete set incl. strip and power supply
- Can be shortened as required
- Rear self-adhesive for simple installation
- Color temperatur: 2700K - Warm white
- Simple plug-in system for easy installation
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 x T: 12,5 mm |
| Length | 5 m |
| Shortenability Strips | 83 mm |
| net weight | 564 g |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Metal |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Length max. | 12,5 m |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) | G |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 2750 lm |
| Colour temperature | Warm white, 2700 K |
| Lamp Features | |
|---|---|
| Dimming Control | with remote control |
| Inclusive lamp | yes |
| Component parts | 30 W |
| light source property | Light source integrated (non-replacable) |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| Number of component parts | 1x |
| Number of LED's per meter | 72 |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 34 W |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 60 VA |
| Accessories | |
|---|---|
| Radio control included | yes |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
