Article-No.:
70829

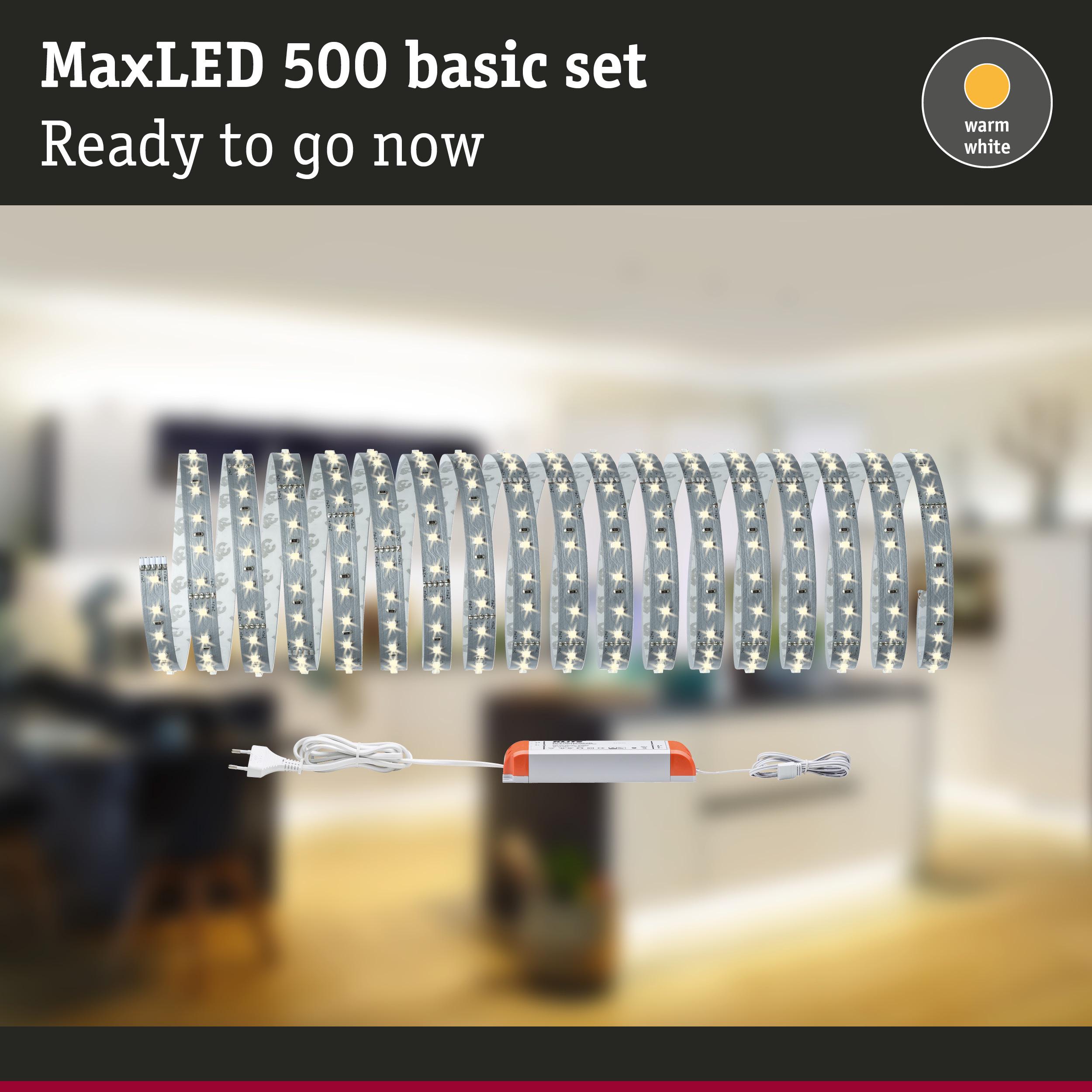

MaxLED 500LED Strip
Warm white Basic Set
10m 50W 550lm/m 72 LEDs/m 2700K 75VA
10m 50W 550lm/m 72 LEDs/m 2700K 75VA

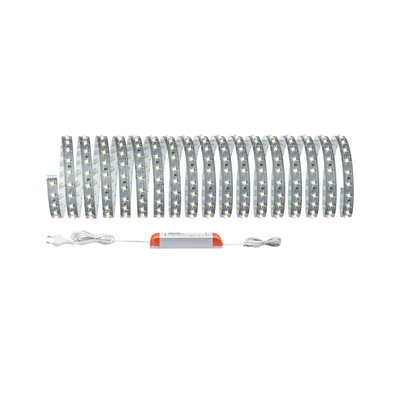

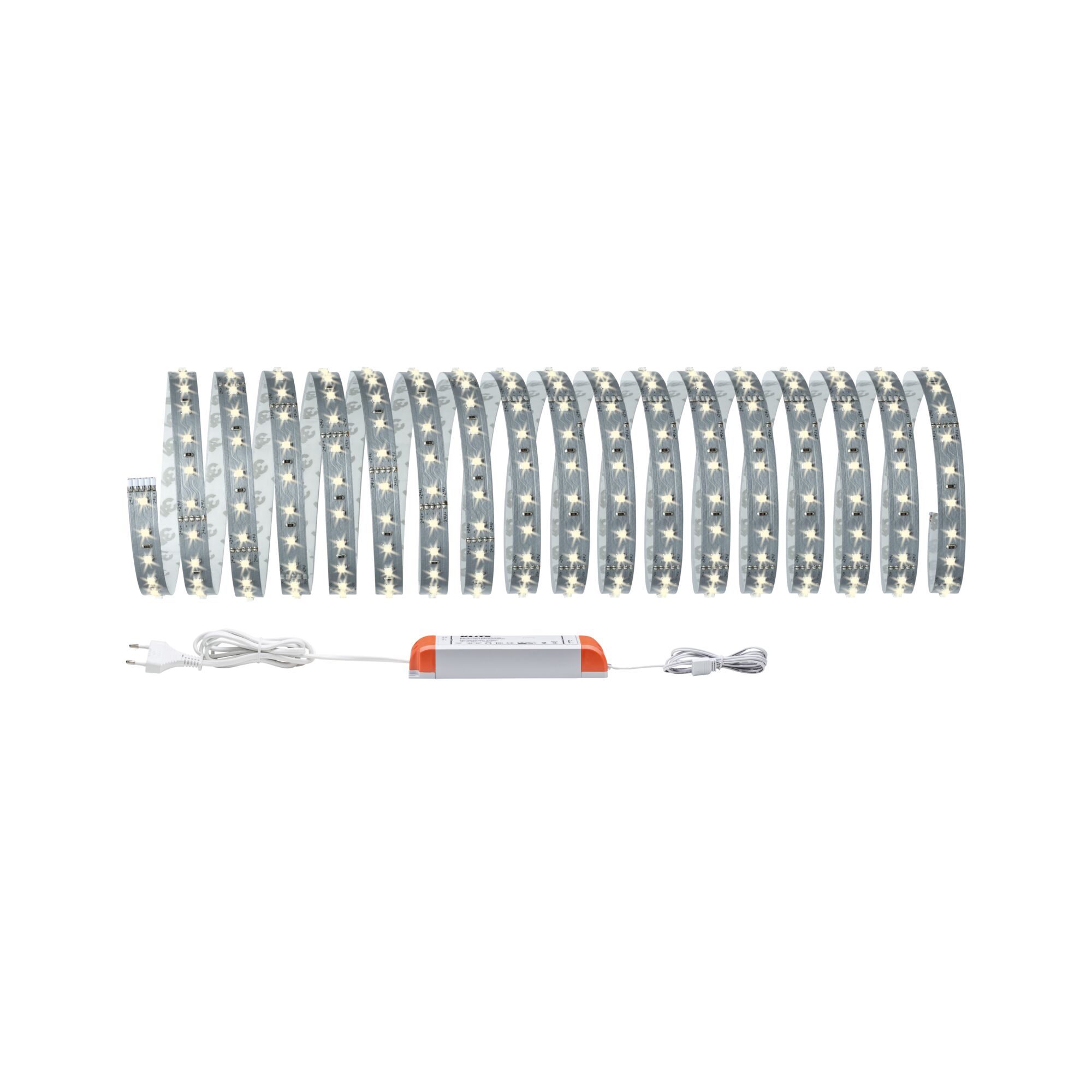

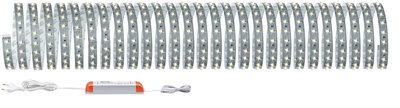

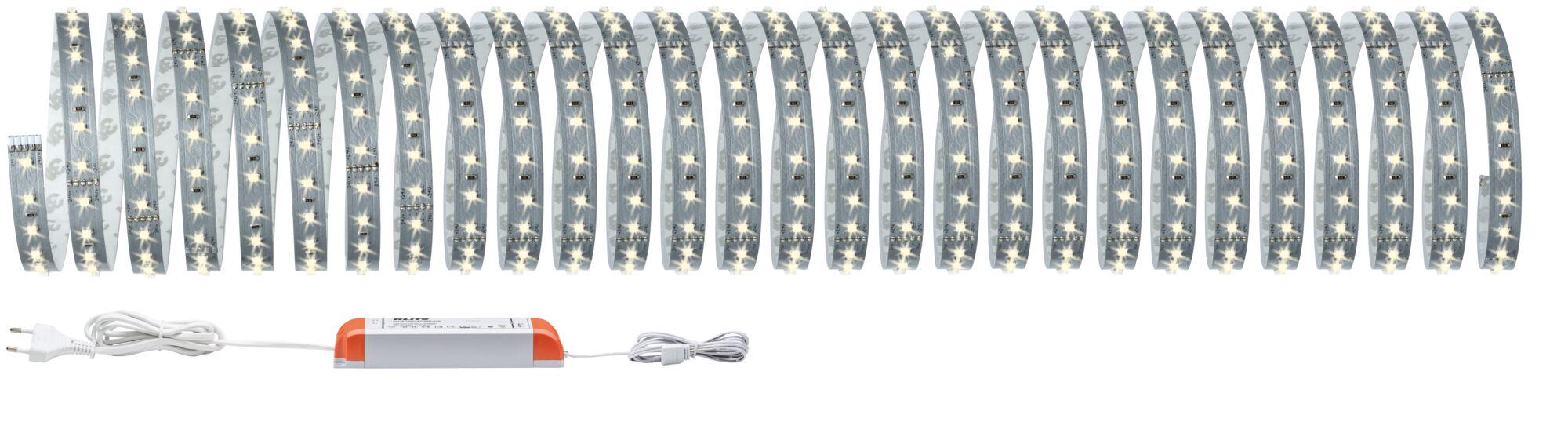

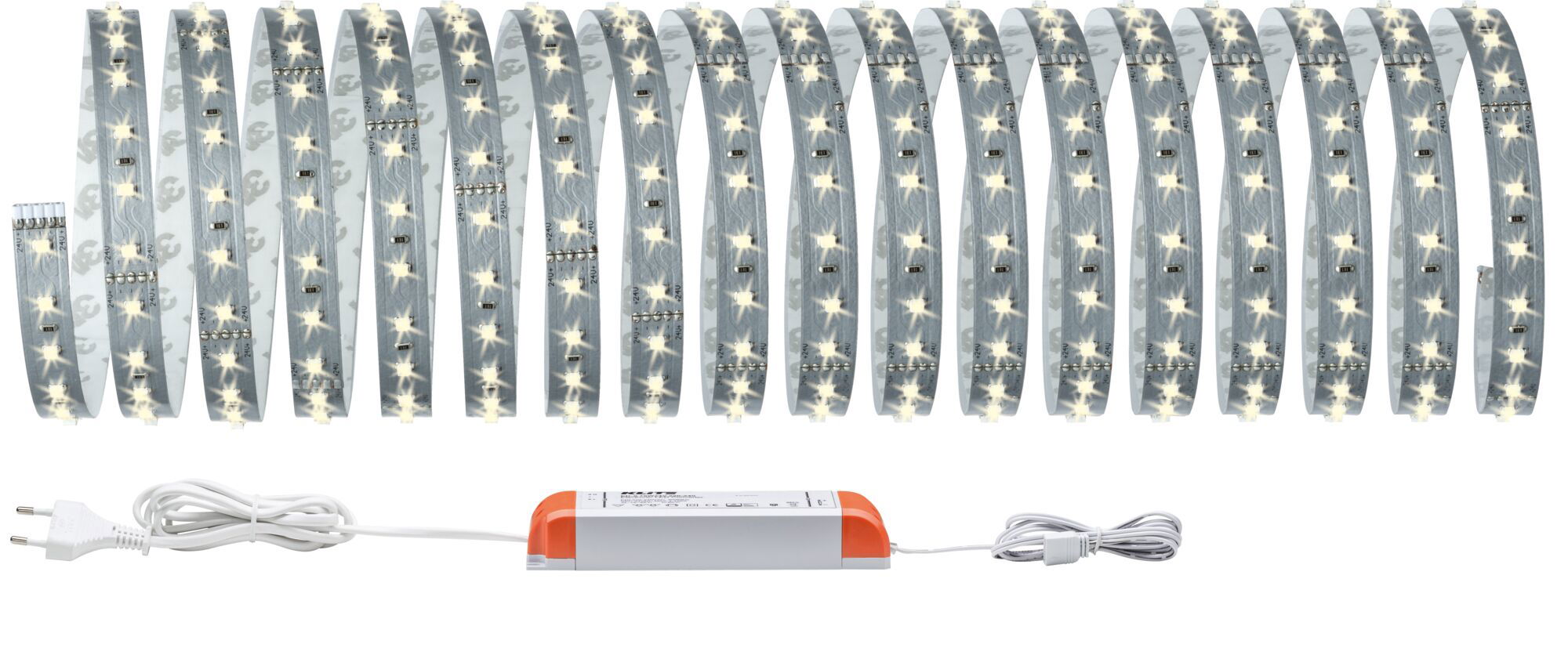

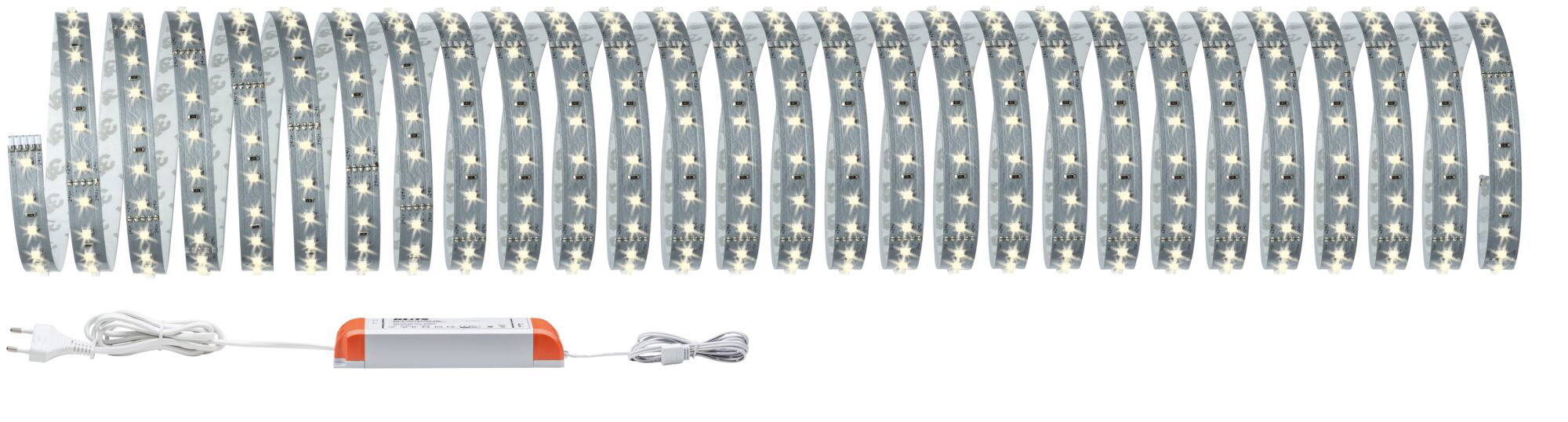

- Complete set incl. strip and power supply

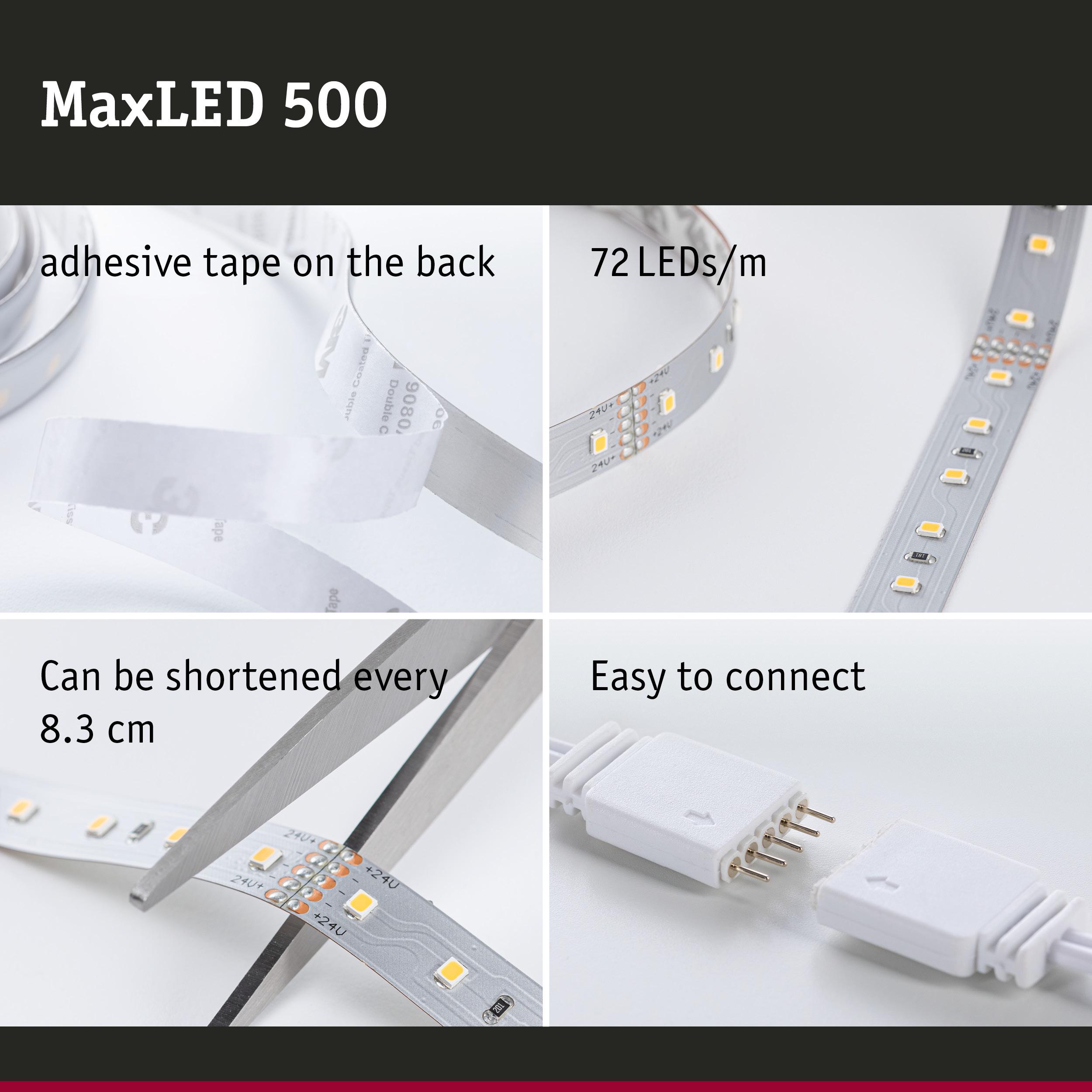

- Can be shortened as required
- Simple plug-in system for easy installation
MaxLED 500 LED Strip Warm white Basic Set 10m 50W 550lm/m 72 LEDs/m 2700K 75VA

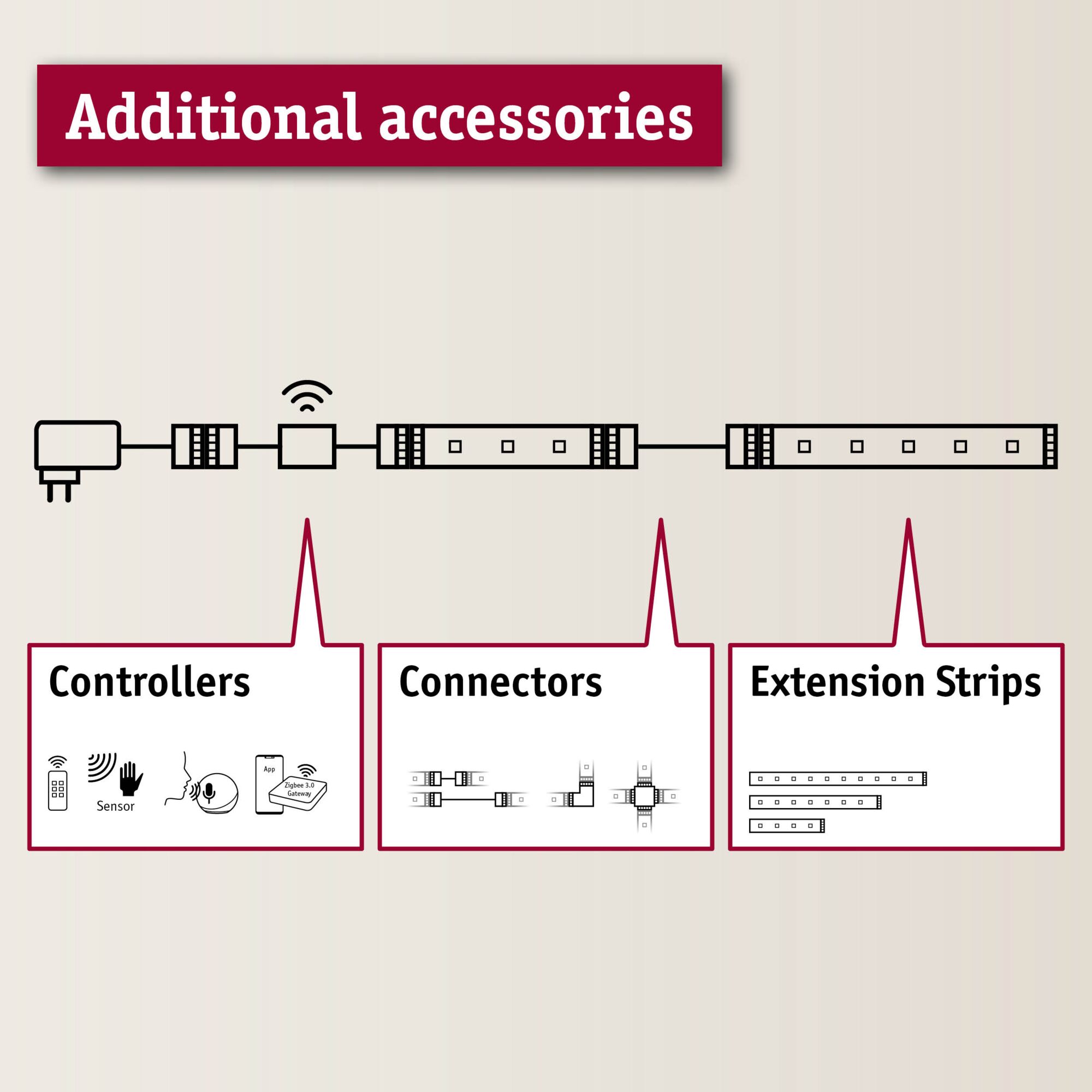

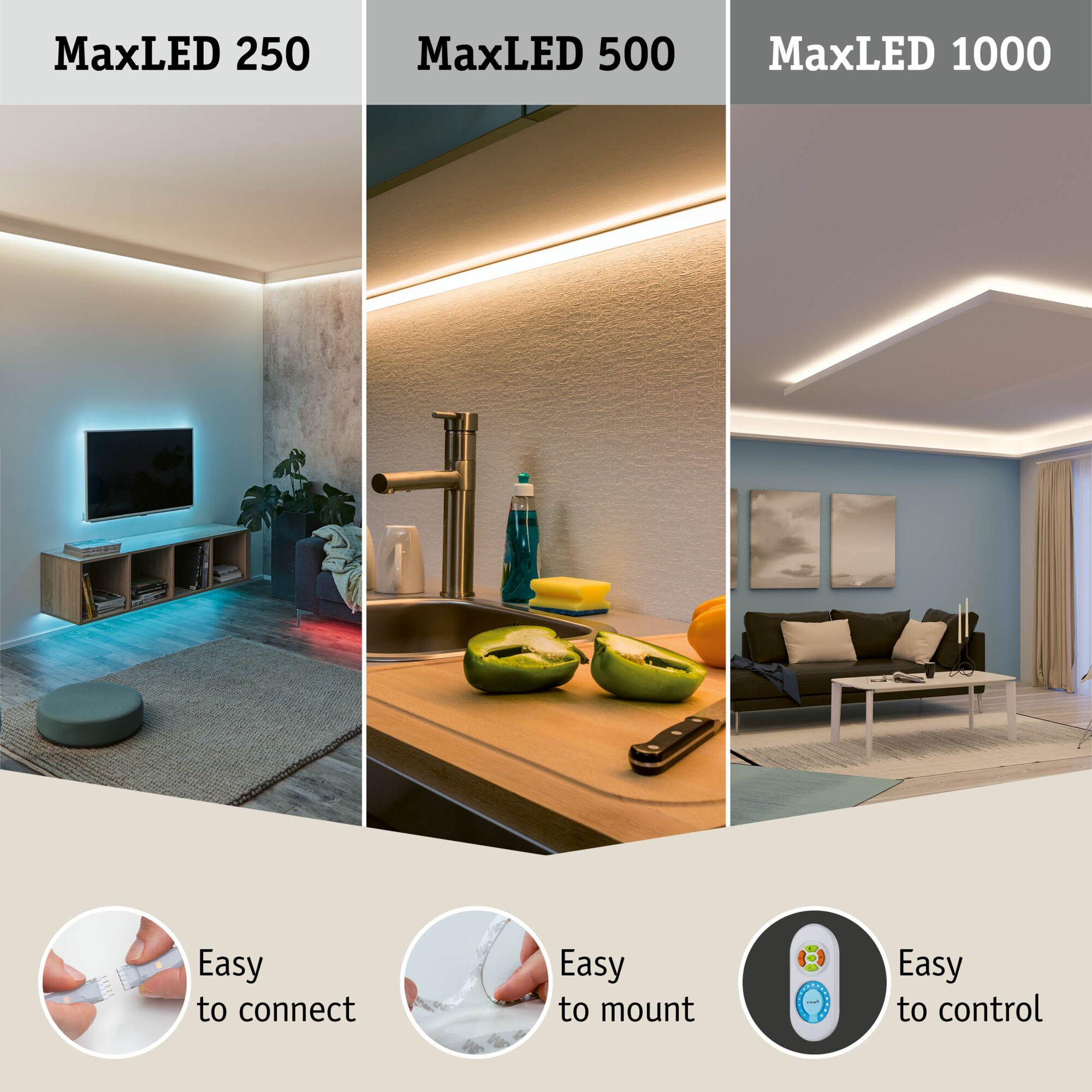

MaxLED strips are so powerful that they can be easily used for room lighting. They are real highlights especially in profiles. Warm white strips provide comfortable and relaxing room and workplace light. The basic set contains not only the strip but also a suitable ballast. If required it can be extended by a control unit with remote control.
- Complete set incl. strip and power supply
- Can be shortened as required
- Simple plug-in system for easy installation
- Rear self-adhesive for simple installation
- Flexible material for installation on flat or arched base surfaces
- Color temperatur: 2700K - Warm white
- Energy-saving LED technology (conserves up to 80% in comparison to conventional light bulbs)
- Dimmable with MaxLED dim/switch controller

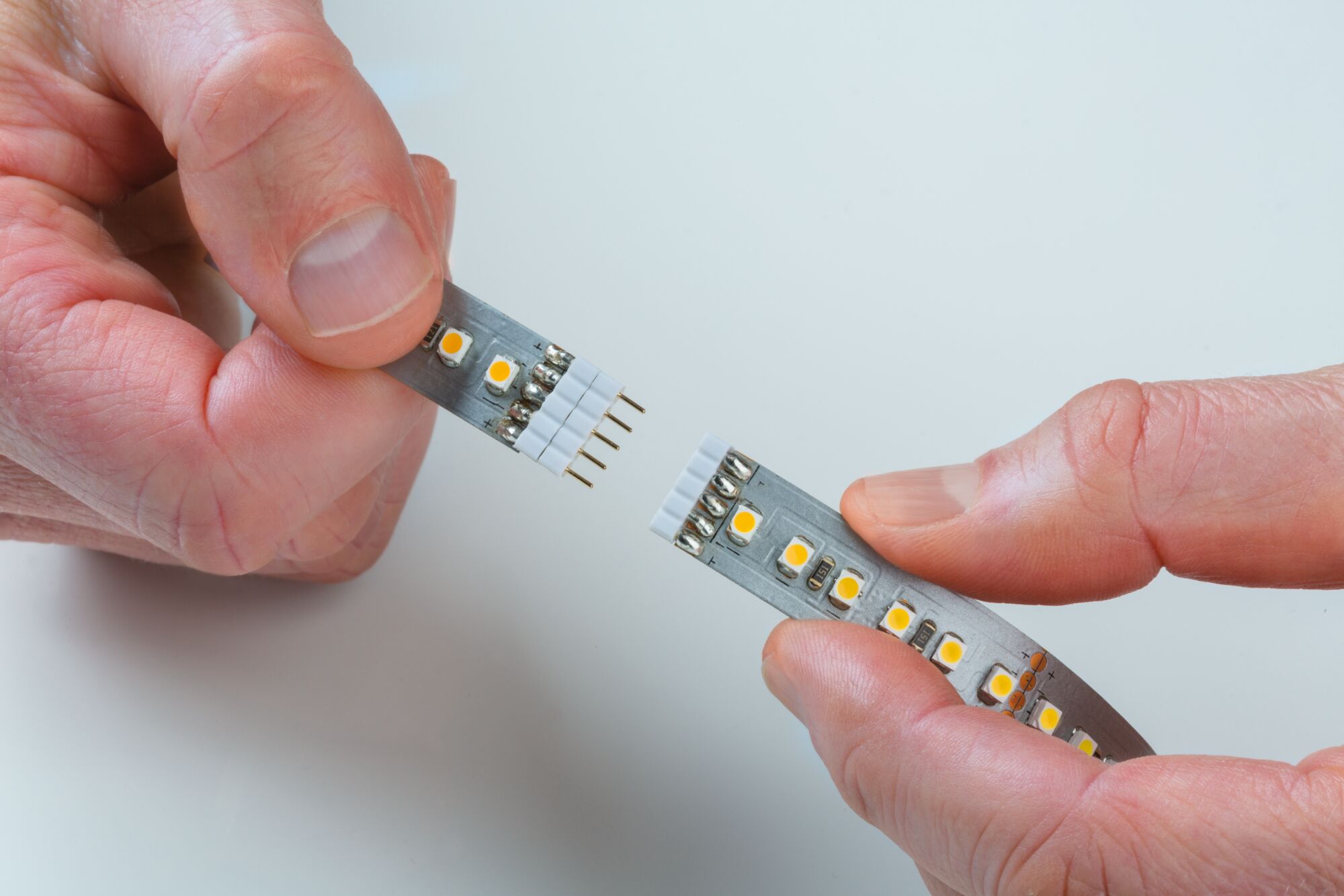

- Incl. 5-pin plug for easy connection of the strips
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 T: 12,5 mm |
| Length | 10 m |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Installation | |
|---|---|
| Length max. | 20 m |
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Usable luminous flux | 5500 lm |
| Lumens per metre | 550 lm/m |
| color temp | 2700 K |
| Color rendering index | > 80 Ra |
| Rated luminous flux (Lumen) | 5500 lm |
| Lamp Features | |
|---|---|
| Component parts | 50 W |
| Technique | LED |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Number of component parts | 1x |
| protection class | protection class II |
| Number of LED's per meter | 72 |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 55 W |

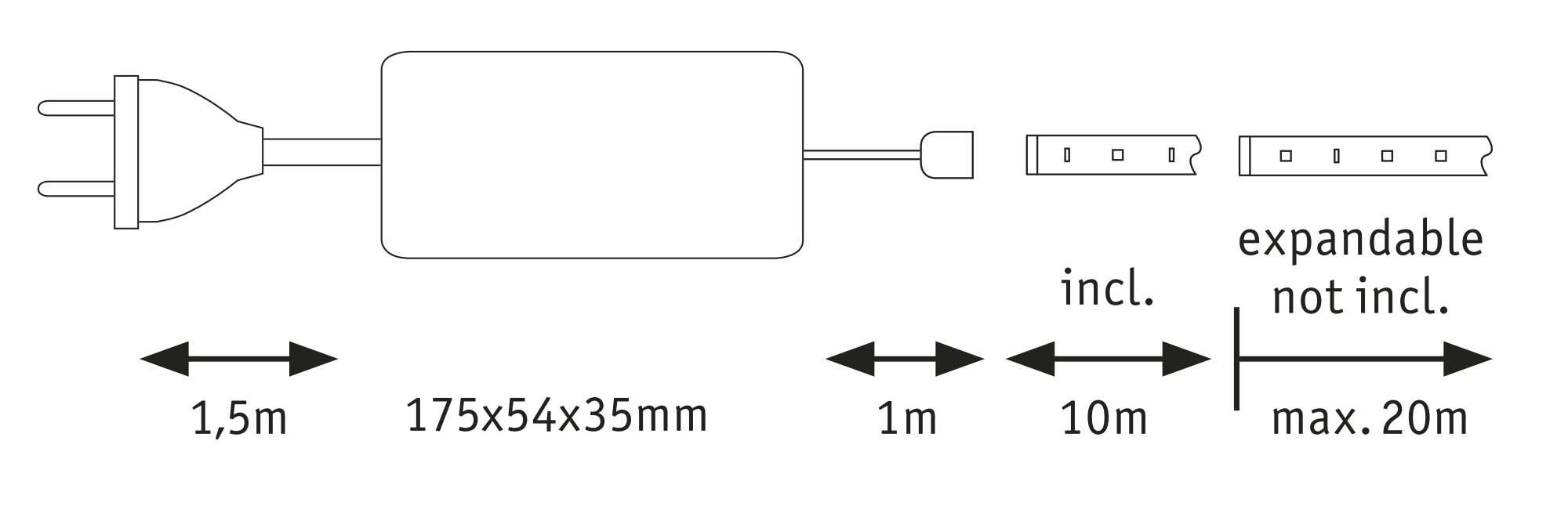

| Transformer | |
|---|---|
| Transformer power | 75 VA |
| Transformer height | 33 mm |
| Transformer width | 60 mm |
| Transformer depth | 190 mm |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
