Article-No.:
78872
MaxLED 500
LED Strip
Smart Home Zigbee 3.0
Tunable White Coated Basic Set
3m IP44 17W 510lm/m 60LEDs/m Tunable White 36VA
3m IP44 17W 510lm/m 60LEDs/m Tunable White 36VA
- Can be shortened as required
- White light control from warm white to daylight white
- Coating protects against splashing water and dust
MaxLED 500 LED Strip Smart Home Zigbee 3.0 Tunable White Coated Basic Set 3m IP44 17W 510lm/m 60LEDs/m Tunable White 36VA

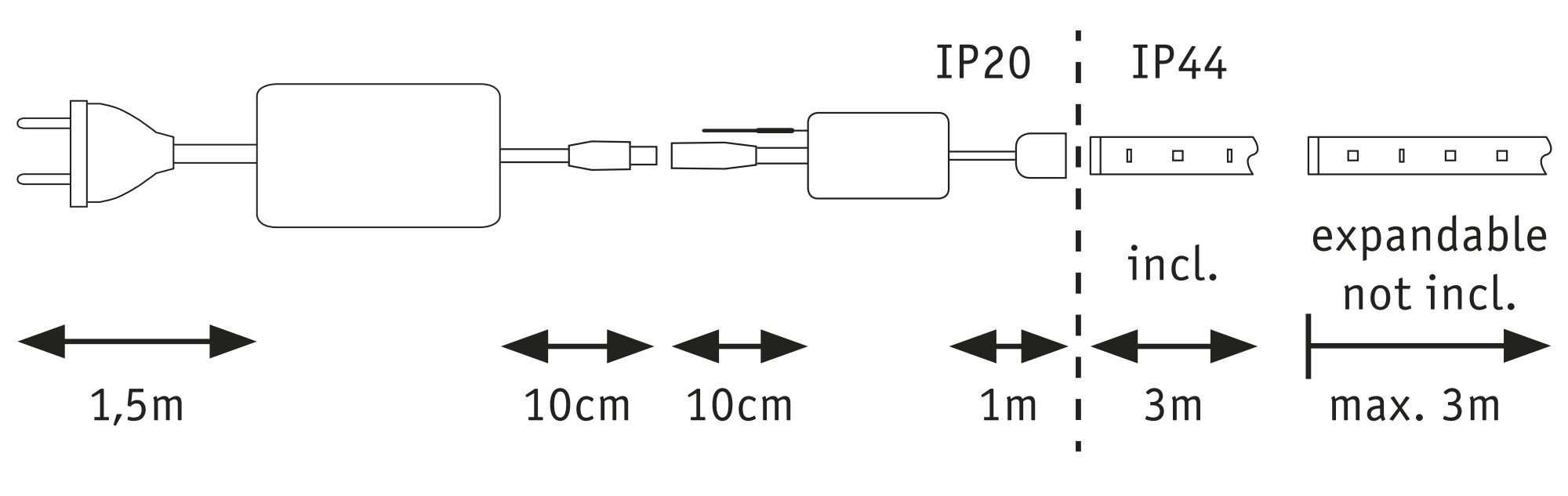

With 17W, MaxLED 500 strips are so powerful that they can easily be used to illuminate rooms and are suitable for smart control thanks to the integrated Zigbee 3.0 function. Thanks to the intelligent Tunable White light control, the light colour of the strips can be varied individually – ranging from daylight white functional light to warm white relaxation light. The basic set includes the strip incl. coating (Protect Cover) with a length of 3 m, a suitable ballast and a Zigbee 3.0 controller, which can be used for smart control. Zigbee 3.0 is a radio transmission protocol that interlinks devices from different manufacturers. The ballast contains an additional power buffer, allowing it to be expanded with additional strips as required without the need for tools. MaxLED Strips are a real highlight, especially in profiles. Paulmann also offers an extensive range of recessed and surface-mounted profiles to match the MaxLED Strips.
- Can be shortened as required
- White light control from warm white to daylight white
- Coating protects against splashing water and dust
- Incl. 5-pin plug for easy connection of the strips
- Simple plug-in system for easy installation
- Rear self-adhesive for simple installation
- Flexible material for mounting on flat or curved surfaces
- Can be controlled with the Smart Home Zigbee remote control
- Usable with smart home gateways that have a Zigbee interface
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 x B: 12,5 x mm |
| Length | 3 m |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Installation | |
|---|---|
| Length max. | 6 m |
| can be used with the following dimmers | Paulmann SmartHome Zigbee Gent2 501.40 |
| Connections | |
|---|---|
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30.000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Colour change | Tunable White |
| Usable luminous flux | 1.530 lm |
| Luminous flux LED module | 1530 lm |
| color temp | 2.700 - 6.500 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 17 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| IP protection | IP44 |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Total Width | 12,5 mm |
| Number of component parts | 1x |
| protection class | protection class II |
| Radio frequency | 2,4 GHz |
| Radio range | 20 m |
| Number of LED's per meter | 60 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 20 W |
| Transformer | |
|---|---|
| Transformer power | 36 VA |
| apparent power | 20 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
