Article-No.:
70827
MaxLED 500
LED Strip
Single strip 2,5m warmwhite
15W 550lm/m 2700K
15W 550lm/m 2700K
- Individual strips
- To extend the MaxLED basic set
- Can be shortened as required

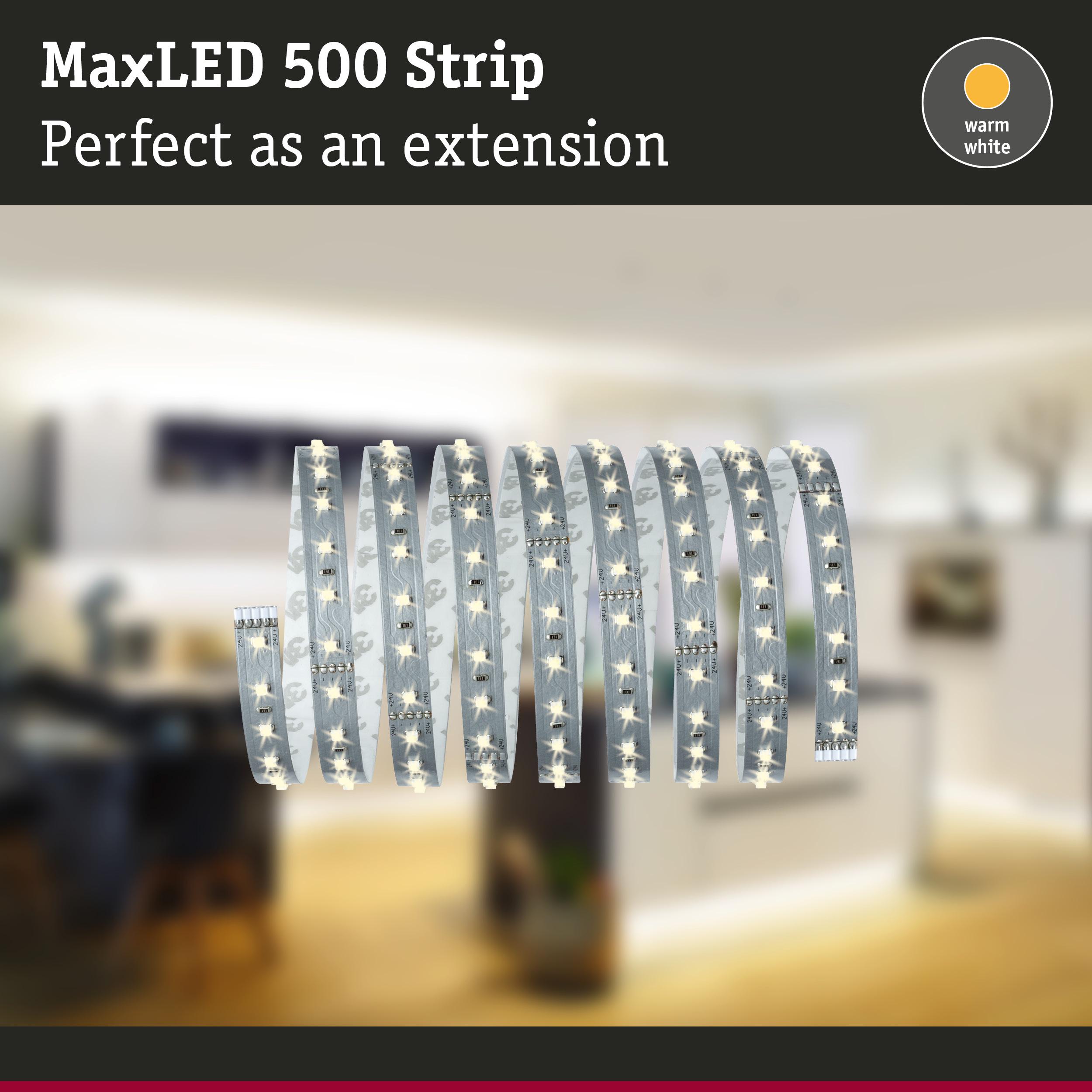

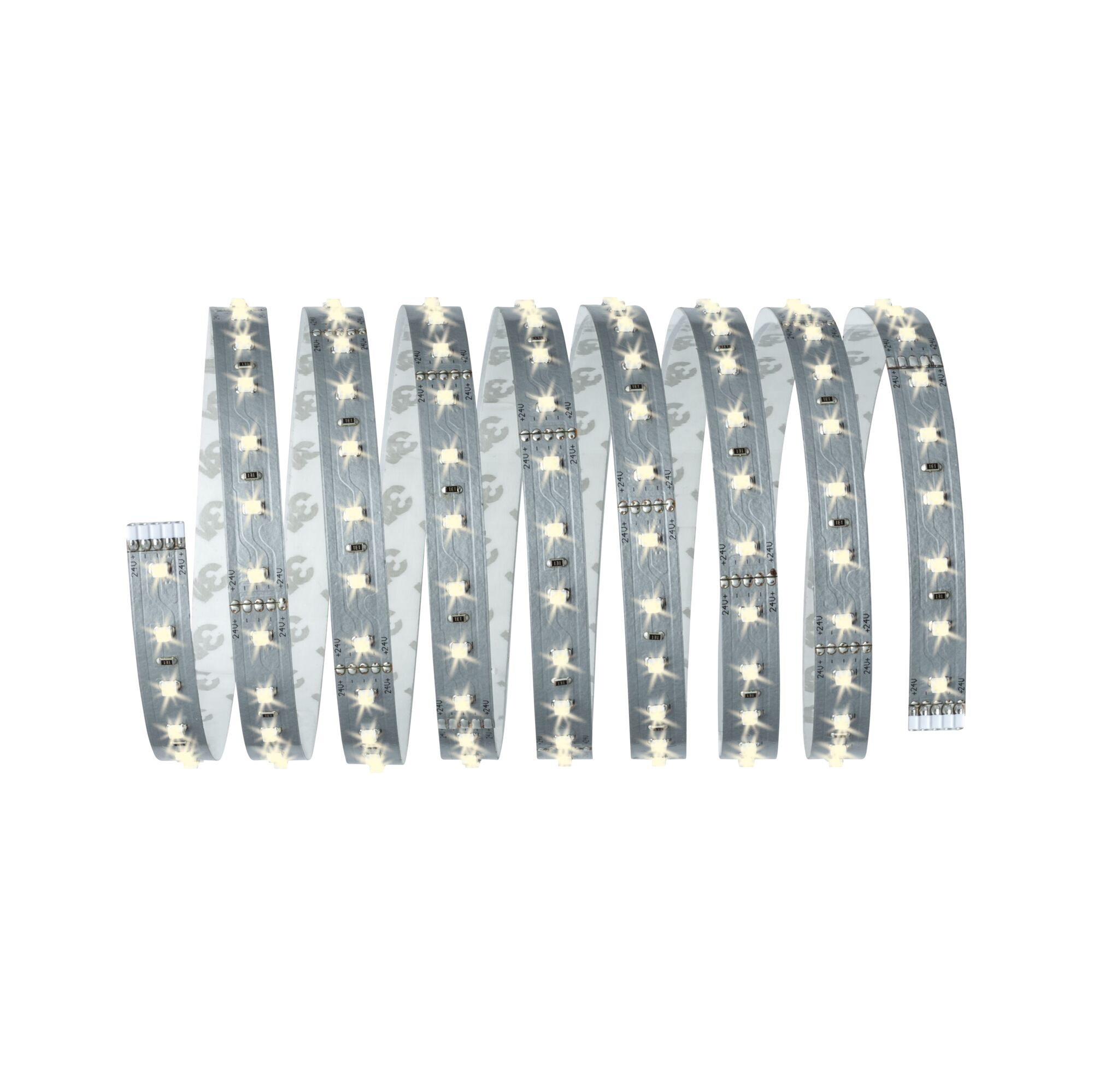

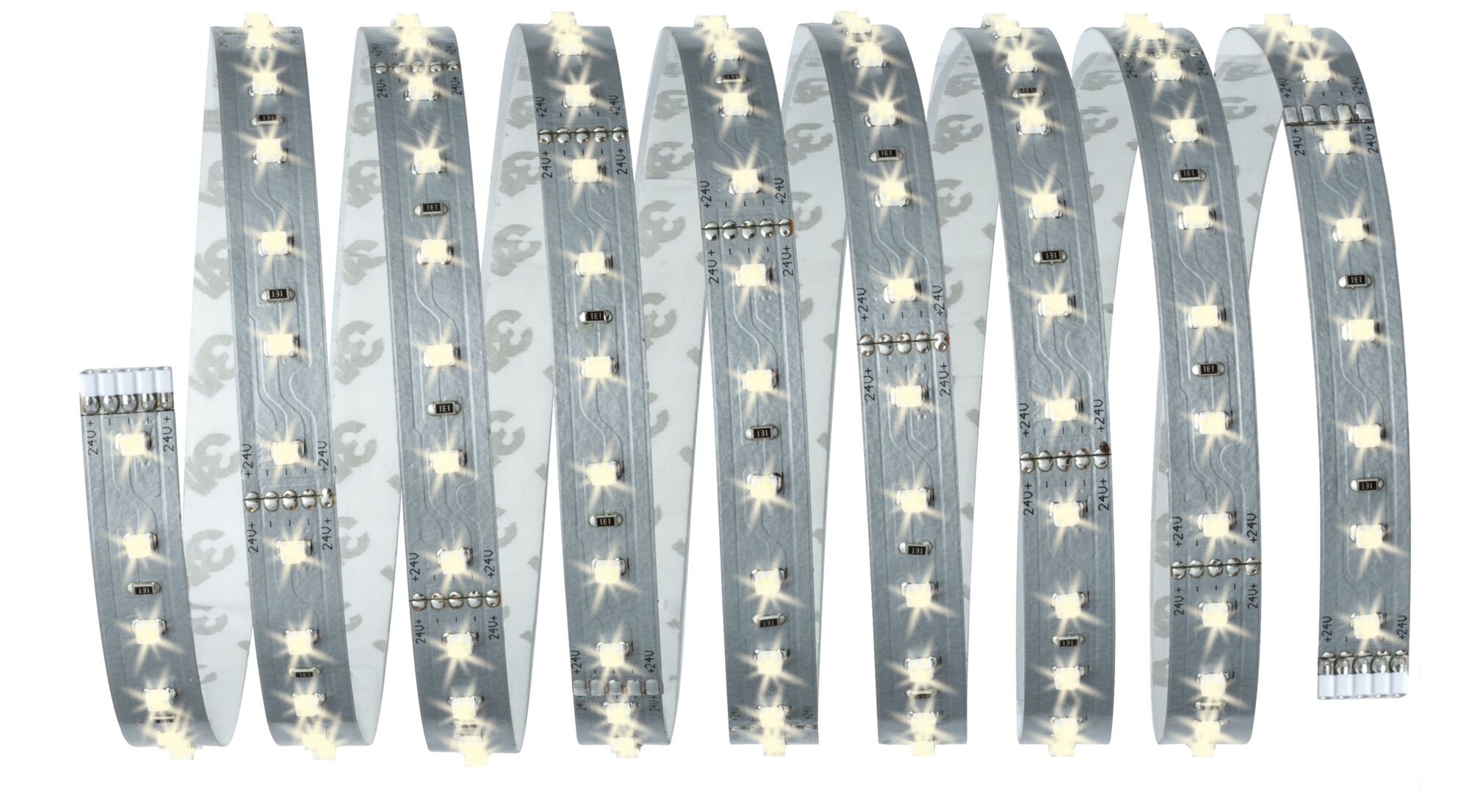

MaxLED 500 LED Strip Single strip 2,5m warmwhite 15W 550lm/m 2700K

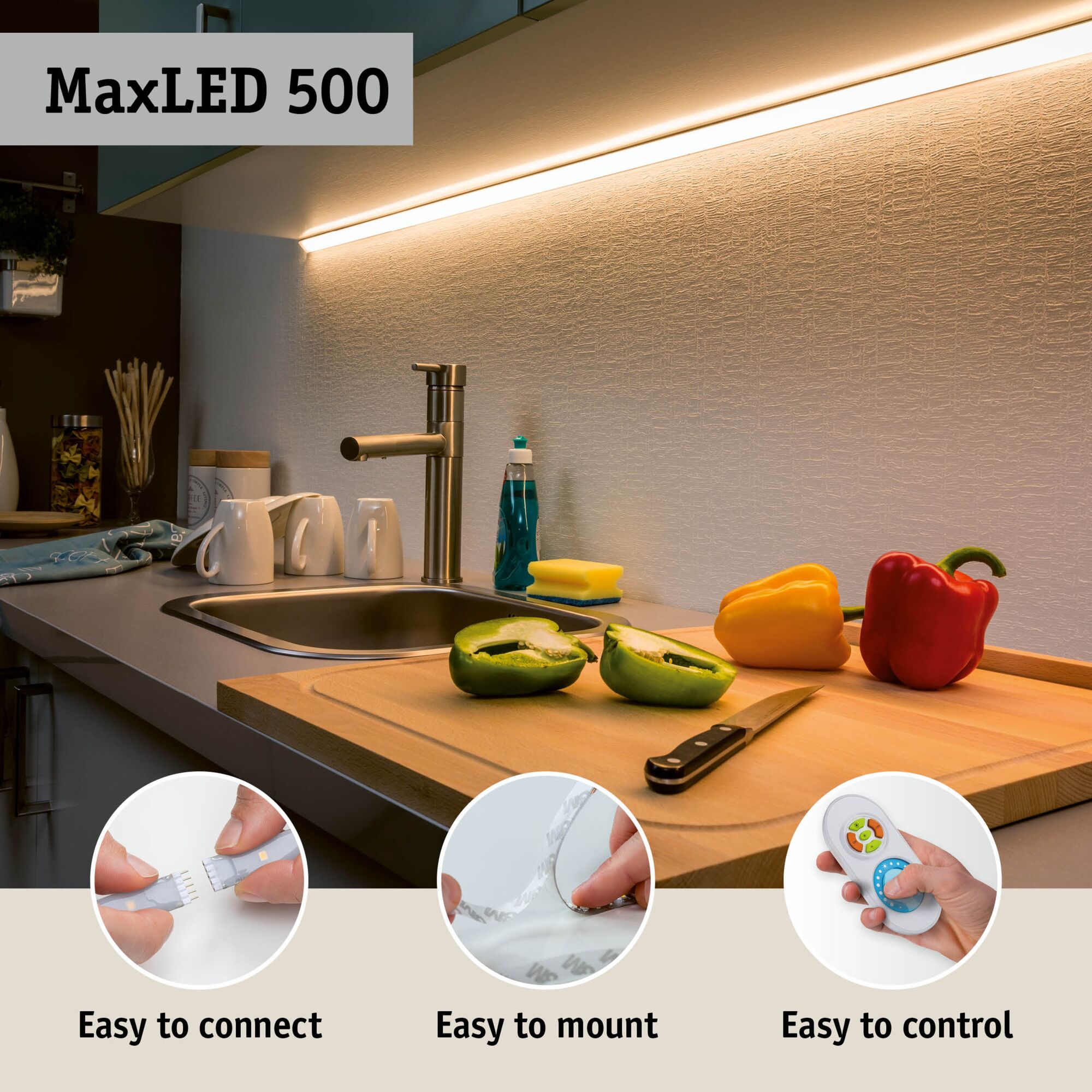

MaxLED strips are so powerful that they can easily be used as room lighting. They are real highlights especially in profiles. Warm white strips provide a cosy and relaxed room and workplace light. Where required, you can extend your basic set using single strips. Please note in your planning the maximum length specified for the basic set, which must not be exceeded.

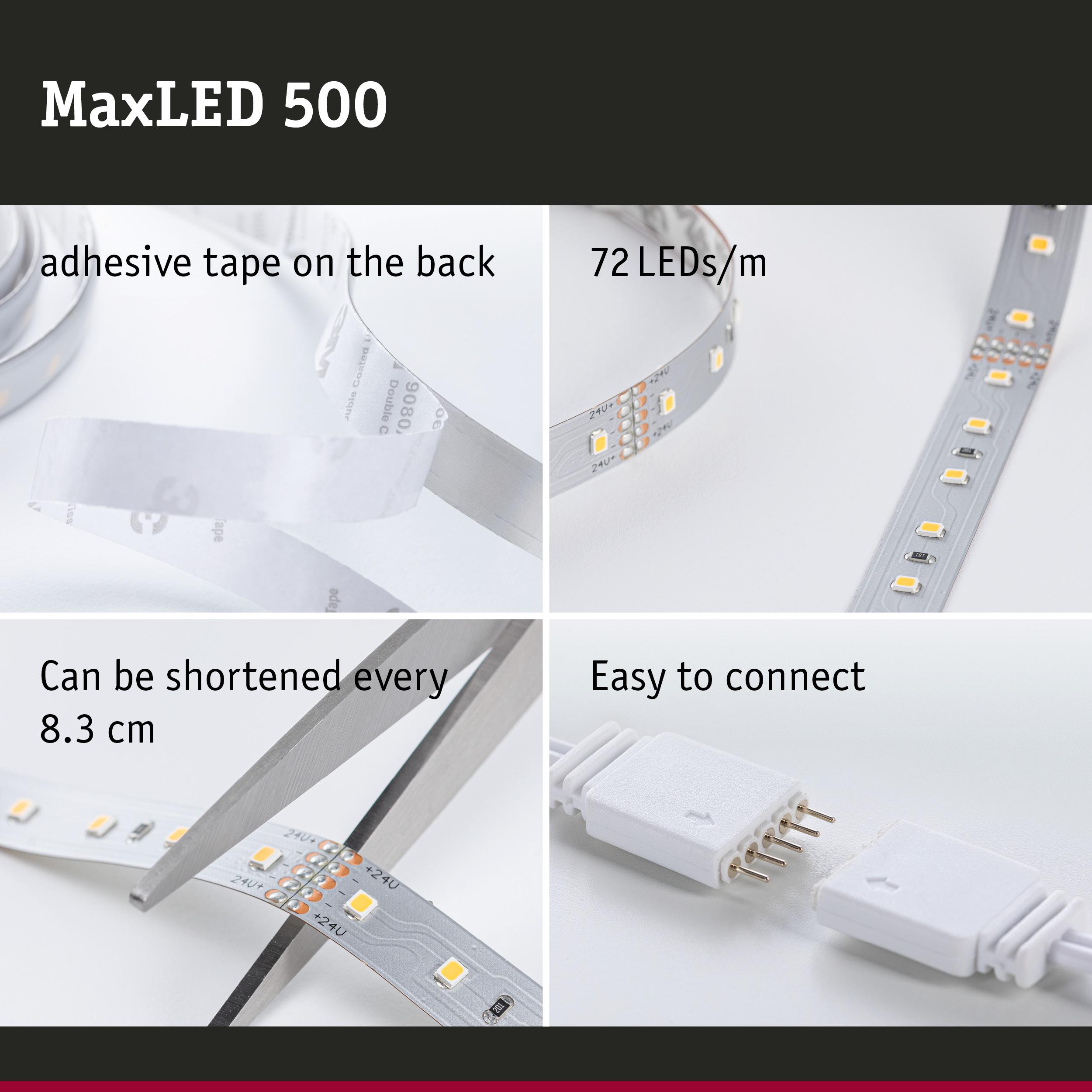

- Individual strips
- To extend the MaxLED basic set
- Can be shortened as required
- Rear self-adhesive for simple installation
- Flexible material for installation on flat or arched base surfaces
- Color temperatur: 2700K - Warm white
- Energy-saving LED technology (conserves up to 80% in comparison to conventional light bulbs)
- Dimmable with MaxLED dim/switch controller

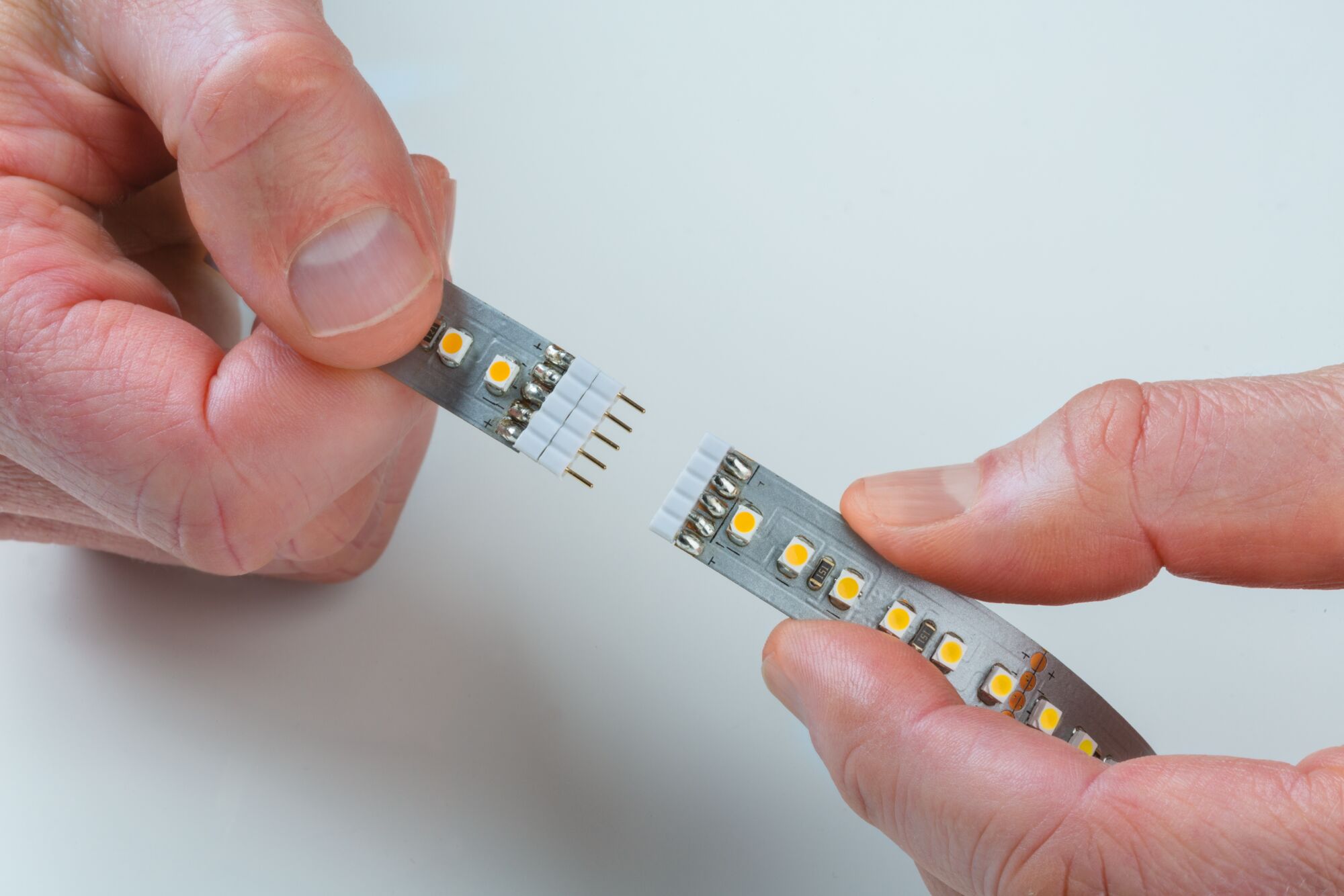

- Incl. 5-pin plug for easy connection of the strips
- Simple plug-in system for easy installation
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 x B: 12,5 mm |
| Length | 2,5 m |
| Shortenability Strips | 83 mm |
| net weight | 51 g |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 1375 lm |
| Color rendering index | > 80 Ra |
| Lumens per metre | 550 lm/m |
| Colour temperature | Warm white, 2700 K |
| Luminous flux LED module | 1375 lm |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 15 W |
| light source property | Light source integrated (non-replacable) |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| IP protection | IP20 |
| Protection class | Protection class III |
| Number of component parts | 1x |
| Number of LED's per meter | 72 |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 15 W |
| Voltage | 24 V |
| Voltage type | DC |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
