Article-No.:
70550
MaxLED 500
LED Strip
Extension 2,5m Tunable White
coated 16W 550lm/m Tunable White
coated 16W 550lm/m Tunable White
- Individual strips
- To extend the MaxLED basic set
- Coating protects against splashing water and dust
MaxLED 500 LED Strip Extension 2,5m Tunable White coated 16W 550lm/m Tunable White

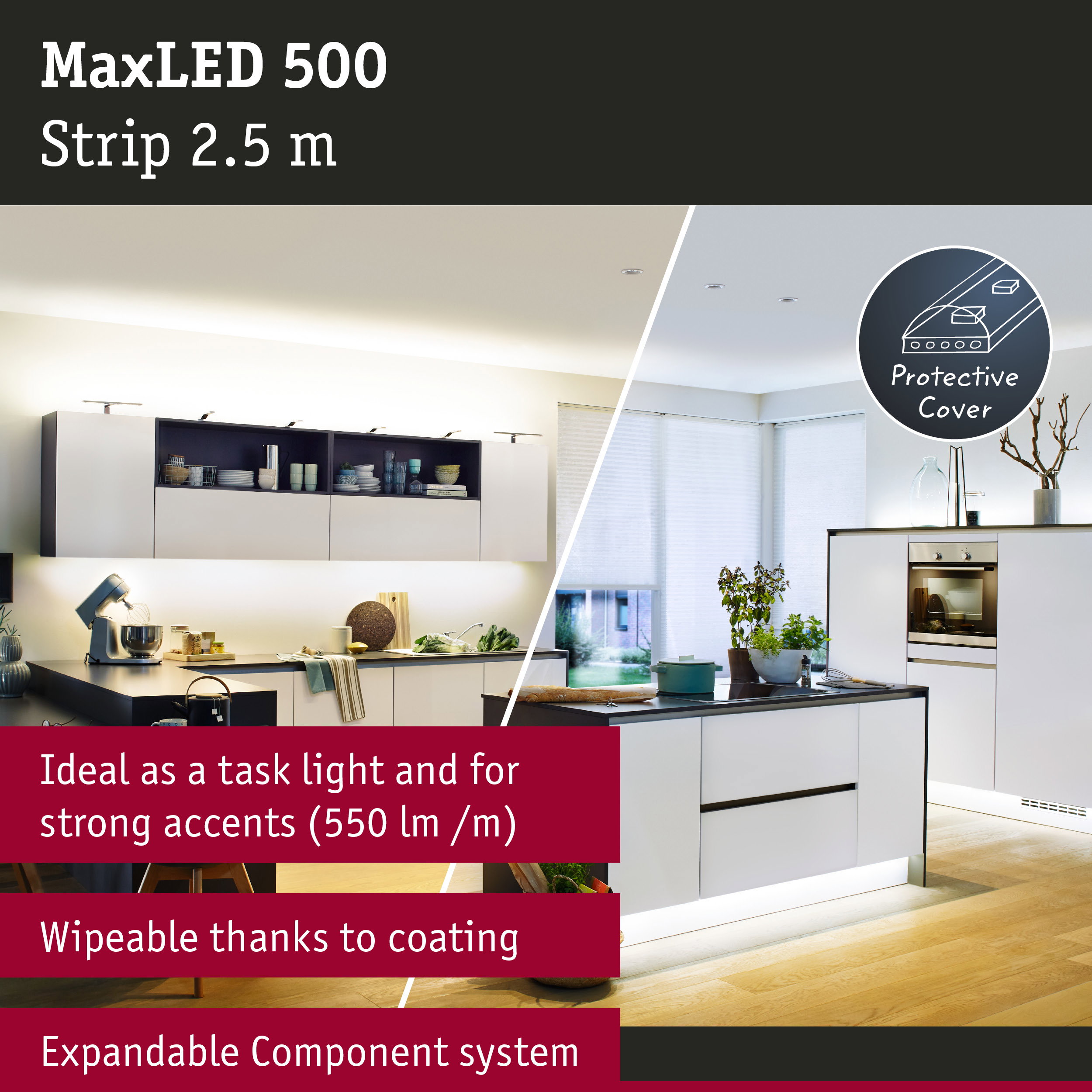

This MaxLED 500 strip, measuring 2.5 m in length, is so powerful that it can easily be used for general room lighting. They are real highlights, particularly when used in profiles. Thanks to the intelligent ‘Tunable White’ white light control, the light colour of the strips can be individually adjusted – everything is possible, from daylight-white task lighting to warm white relaxation lighting. Individual strips can be used to extend a basic set as required. When planning, the specified maximum length must not be exceeded.
- Individual strips
- To extend the MaxLED basic set
- Coating protects against splashing water and dust
- In conjunction with a shrink-on sleeve, can also be used in wet rooms

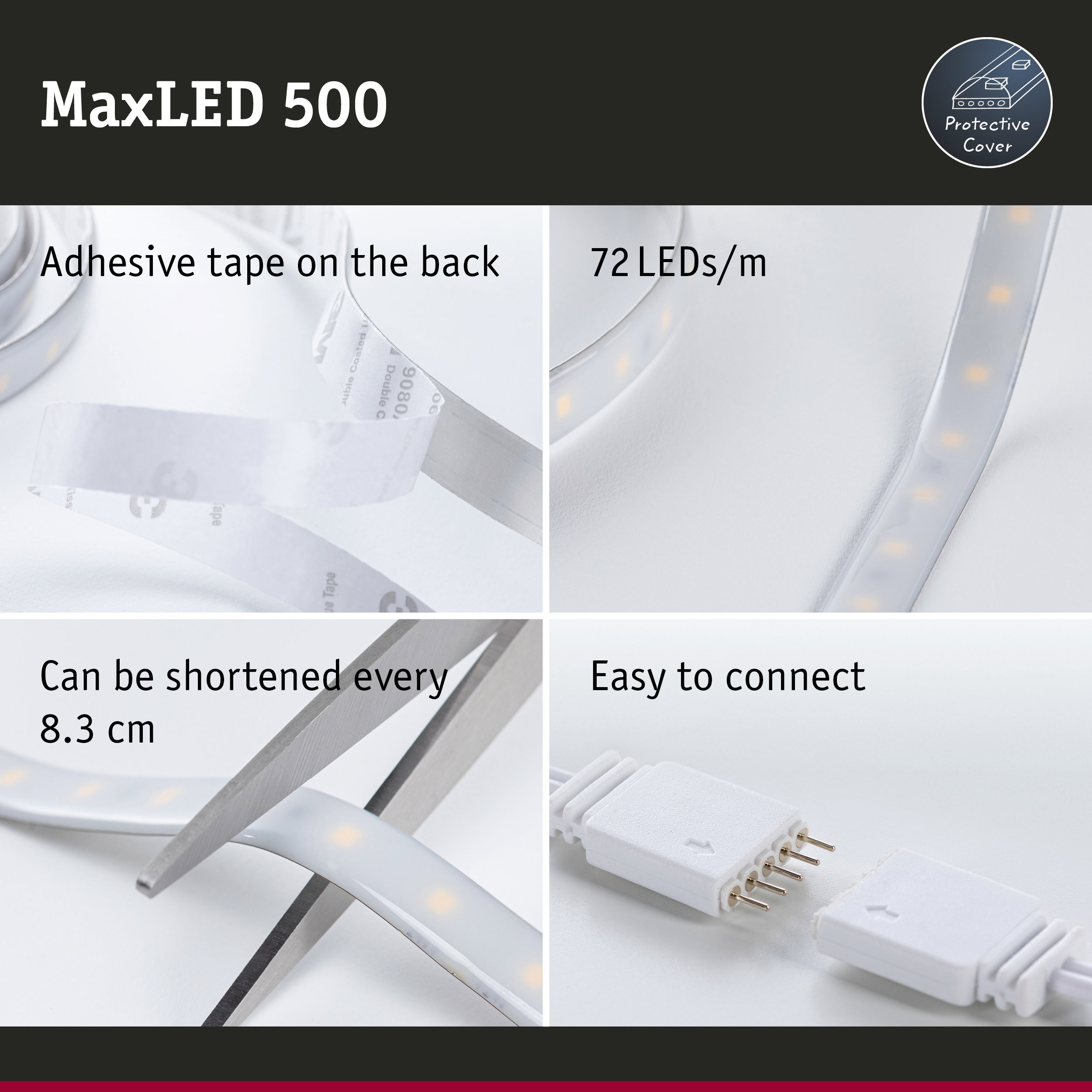

- Can be shortened as required
- Rear self-adhesive for simple installation
- Colour temperature: 3000 K - Warm white up to 6500 K - Daylight white
- LED light sources use less electricity than incandescent or halogen light bulbs whilst providing a comparable level of light output
- Incl. 5-pin plug for easy connection of the strips
- Simple plug-in system for easy installation
- Flexible material for mounting on flat or curved surfaces

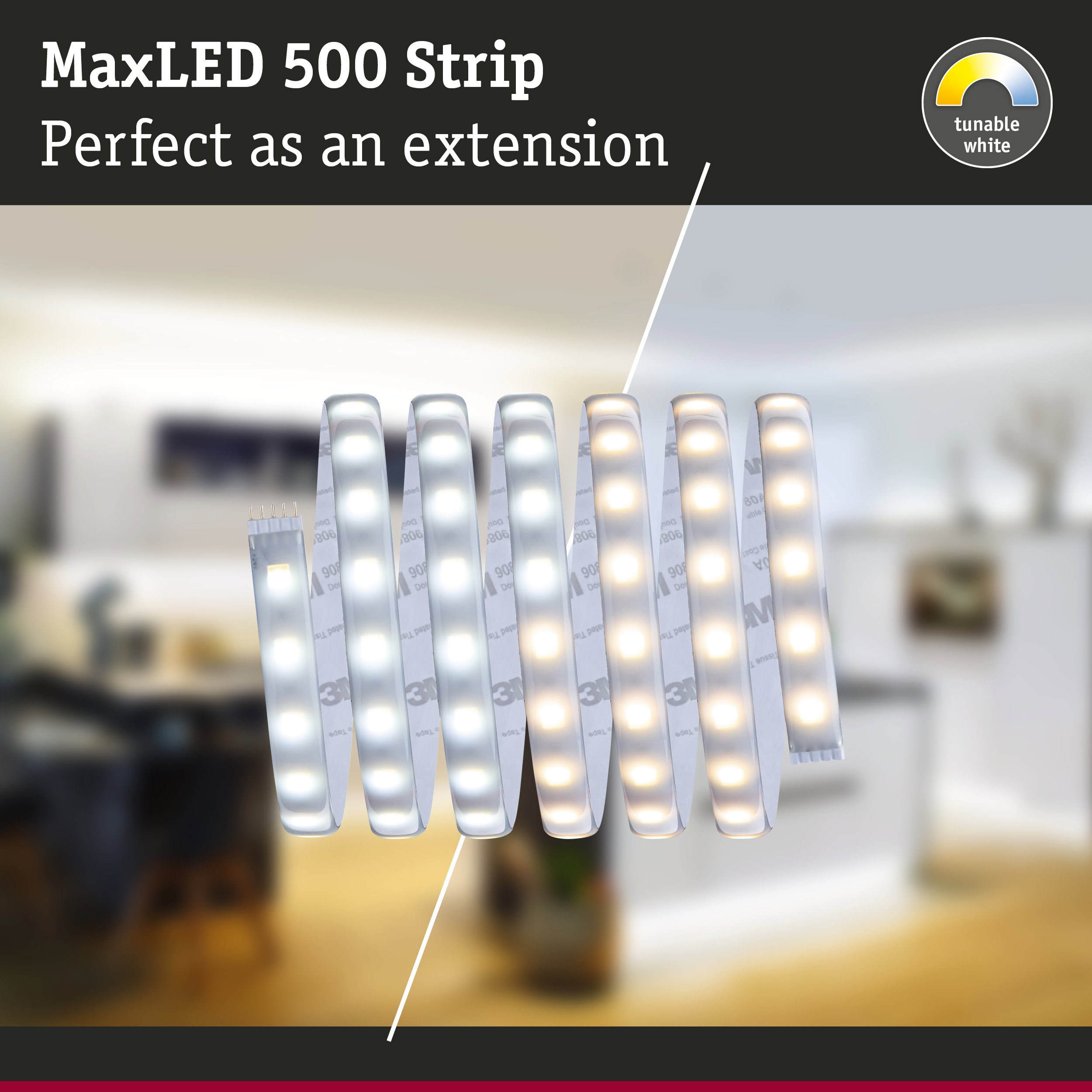

- With white-light control (Tunable White)
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 x B: 12,5 mm |
| Length | 2,5 m |
| Shortenability Strips | 100 mm |
| Net weight | 122 g |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Installation | |
|---|---|
| Mounting location | universal |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 16 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 92 W |
| IP Protection | IP44 |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| Protection class | Protection class III |
| Number of component parts | 1x |
| Number of LED's per meter | 60 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 16 W |
| Voltage | 24 V |
| Voltage type | DC |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 1175 lm |
| Colour change | Tunable White |
| Color rendering index | > 80 Ra |
| Lumens per metre | 550 lm/m |
| Colour temperature to | 6500 K |
| Colour temperature | Warm white to Daylight white, 2700 K |
| Luminous flux LED module | 1375 lm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
