Article-No.:
71111
MaxLED 500LED Strip
Basic set 3m Tunable White
15W 600lm/m Tunable White 36VA
15W 600lm/m Tunable White 36VA
- Tunable white offers an infinitely adjustable selection from warm white to daylight white

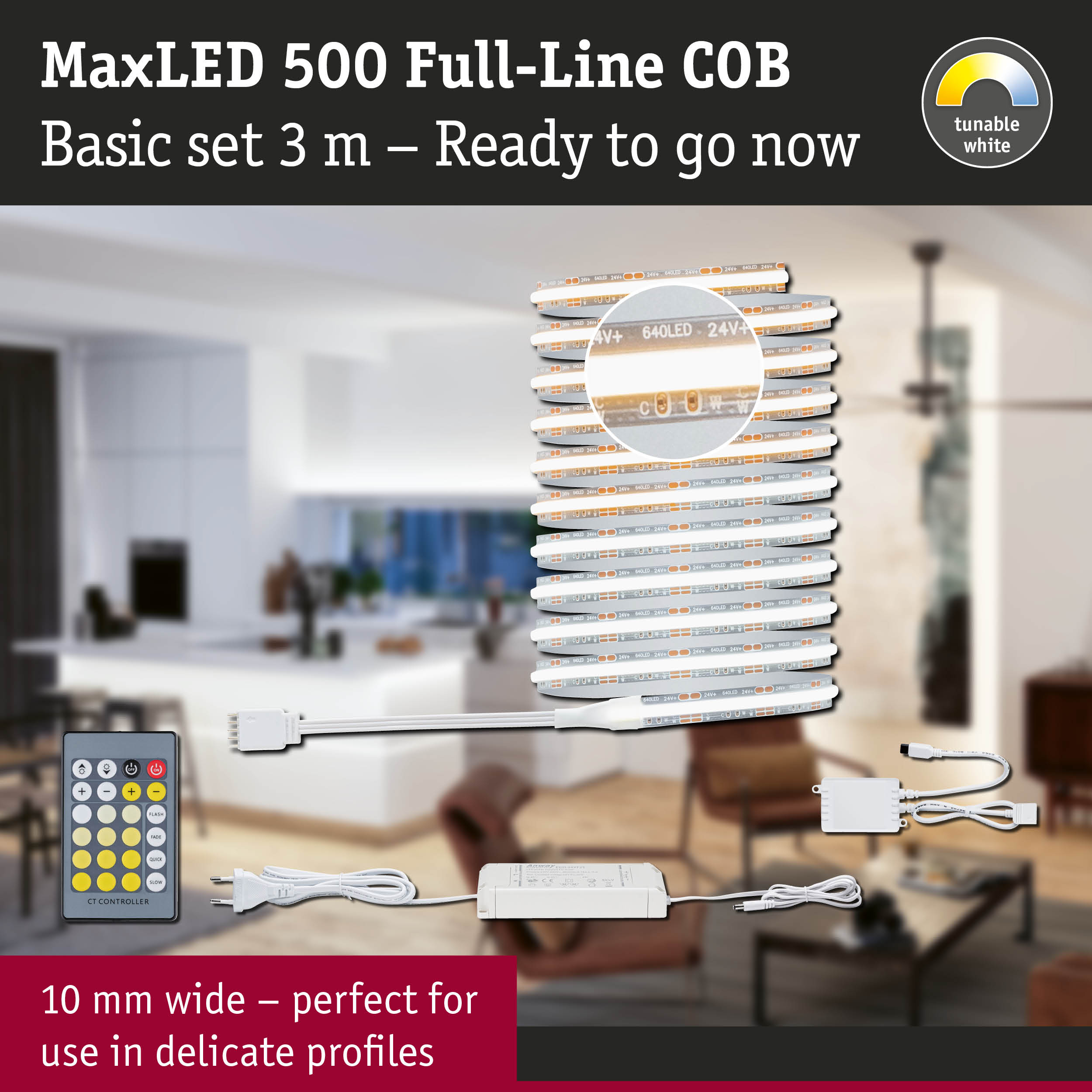

- Complete set incl. strip, power supply and remote control
- Simple plug-in system for easy installation
MaxLED 500 LED Strip Basic set COB 3m Tunable White 15W 600lm/m Tunable White 36VA

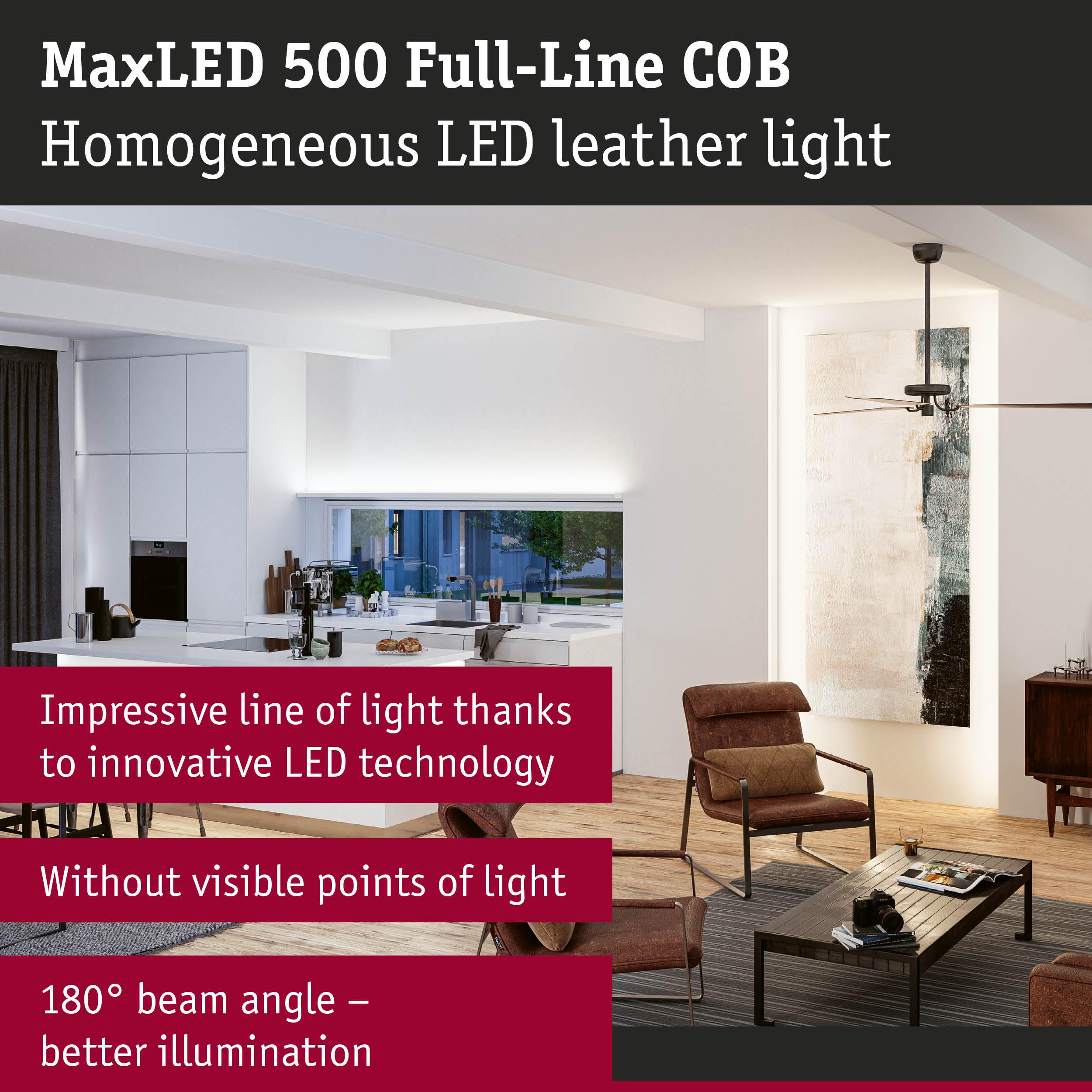

The MaxLED 500 Full-Line COB Strips emit perfect, glare-free working light for the worktop in the kitchen or garage, or any other work area. The MaxLED 500 COB basic set with 15W, a length of 3 m and 640 LED/m generates a completely uniform light image without visible light points. The light connector continues the linear light seamlessly and without interruption. Thanks to the intelligent Tunable White light control, the light colour of the strips can be varied individually – ranging from daylight white functional light to warm white relaxation light. At 10 mm, the strip is extra narrow to fit into the most slimline LED profiles. The wide, 180° beam angle optimally distributes the light without shadow formation. A phosphor layer throughout protects the LEDs against dust and moisture, and the contact points have an IP20 protection. The basic set can be easily extended with suitable individual strips.
- Tunable white offers an infinitely adjustable selection from warm white to daylight white
- Complete set incl. strip, power supply and remote control
- Simple plug-in system for easy installation

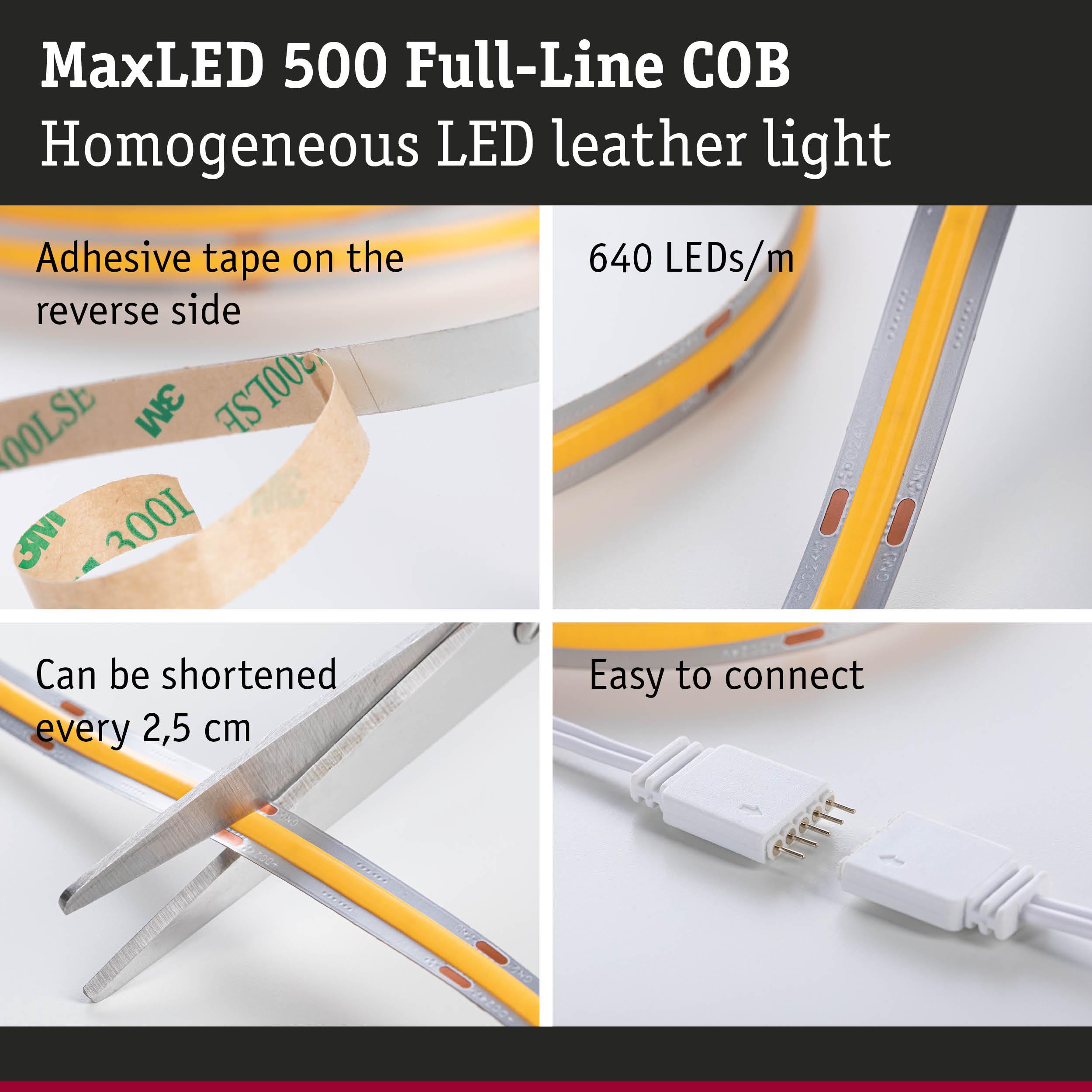

- Rear self-adhesive for simple installation
- Flexible material for installation on flat or arched base surfaces
- Color temperatur: 2700K - Warm white - 6500K -Daylight white
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Can be shortened as required
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 2,3 x B: 10 mm |
| Length | 3 m |
| Shortenability Strips | 25 mm |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Length max. | 5,5 m |
| Connections | |
|---|---|
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Light Characteristics | |
|---|---|
| Colour temperature to | 6500 K |
| Colour temperature | Warm white to Daylight white, 2700 K |
| Nominal luminous flux | 1800 lm |
| Luminous flux LED module | 1800 lm |
| Color rendering index | > 80 Ra |
| Colour change | Tunable White |
| Lumens per metre | 600 lm/m |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with remote control |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 15 W |
| Number of component parts | 1x |
| Number of LED's per meter | 640 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 20 W |
| Adjustability | fixed |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| apparent power | 20 VA |
| Transformer power range | 36 VA |
| Transformer height | 138 mm |
| Transformer width | 43 mm |
| Transformer depth | 29 mm |
| Accessories | |
|---|---|
| Radio control included | yes |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
