Article-No.:
71124
MaxLED 500LED Strip
Basic set 3m 6500K
19W 600lm/m 6500K 36VA
19W 600lm/m 6500K 36VA
- Color temperatur: 6500K - Daylight white

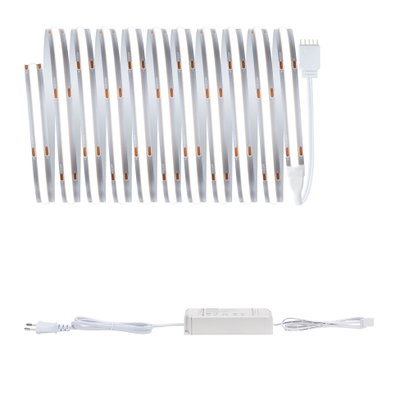

- Complete set incl. strip and power supply
- Can be shortened as required

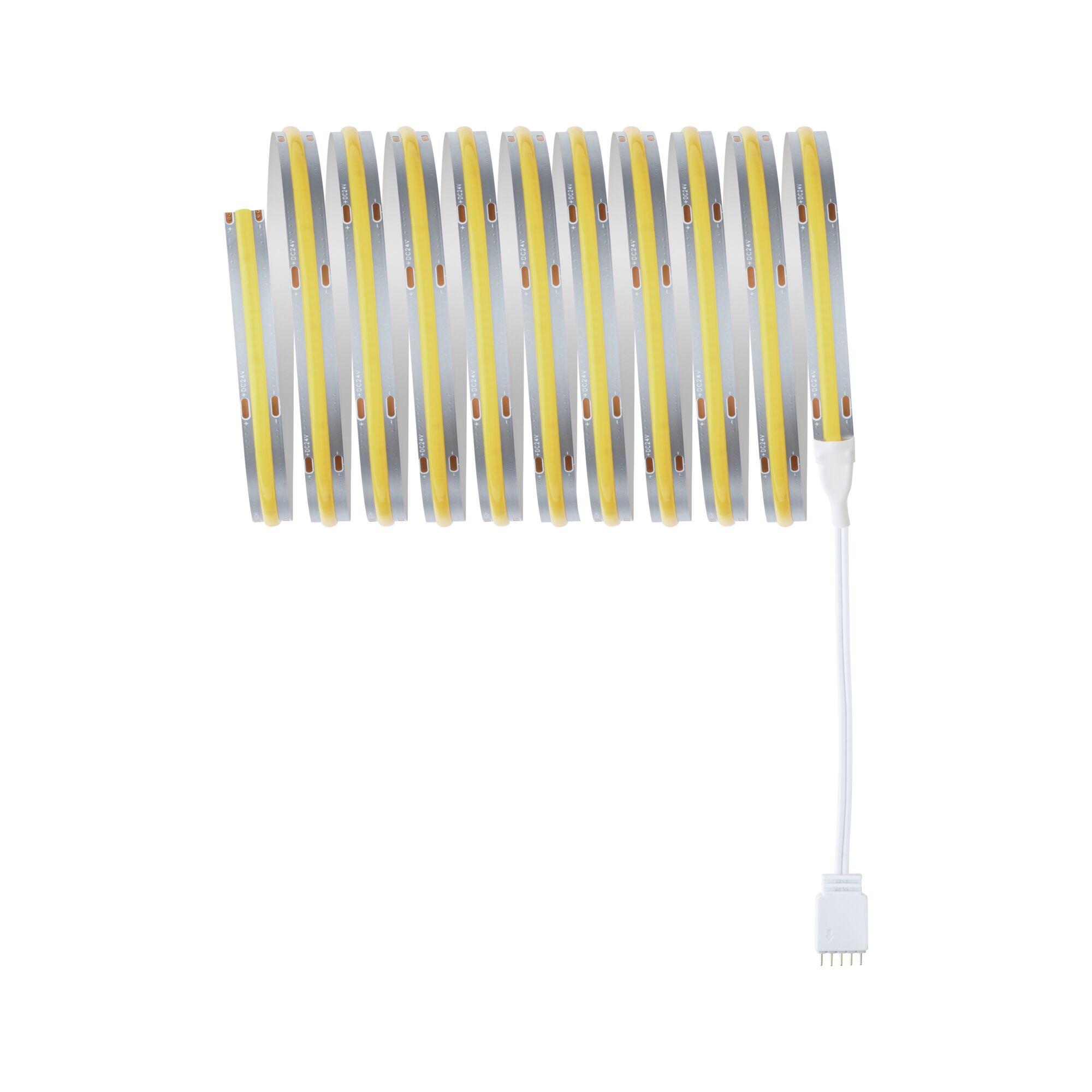

MaxLED 500 LED Strip Basic set COB 3m 6500K 19W 600lm/m 6500K 36VA

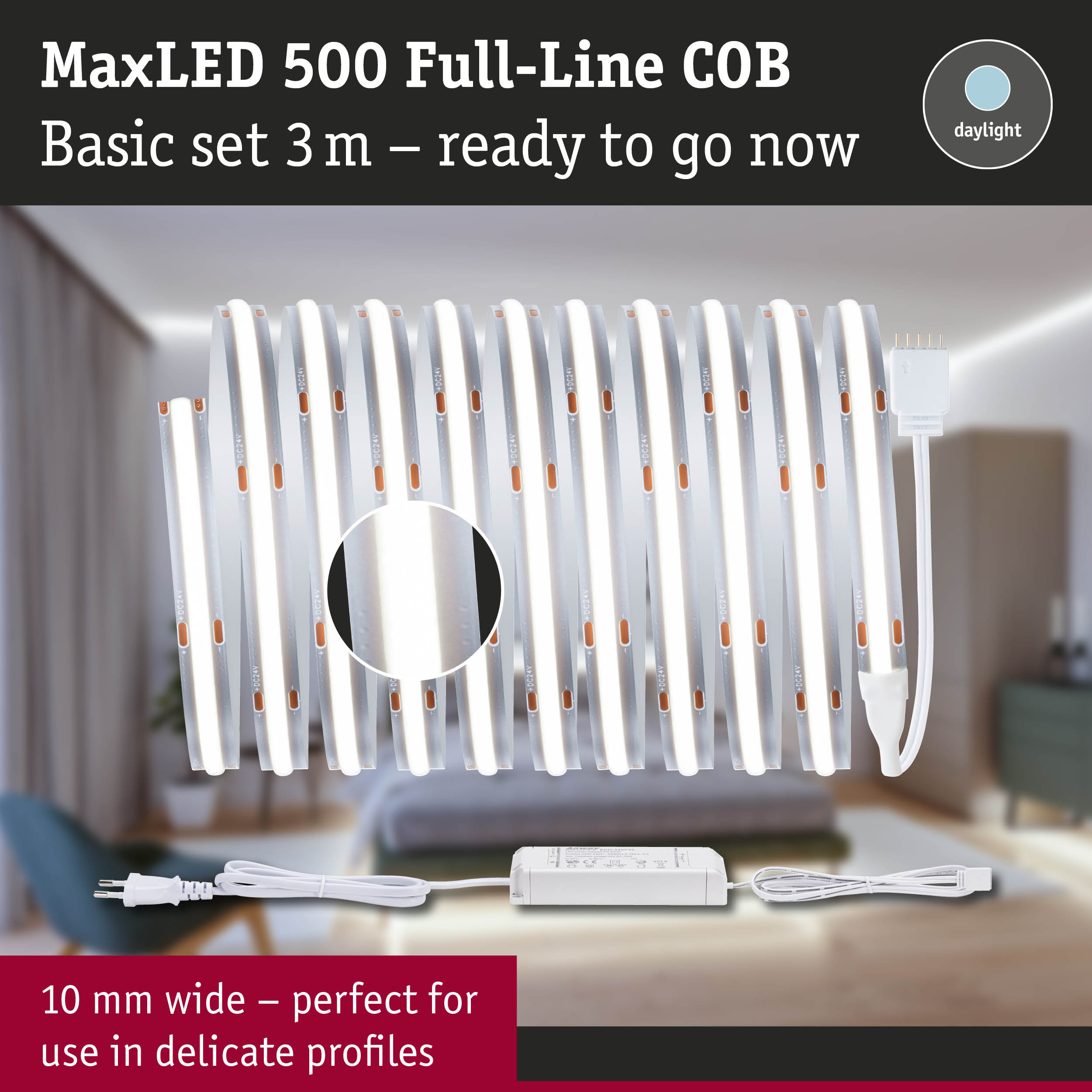

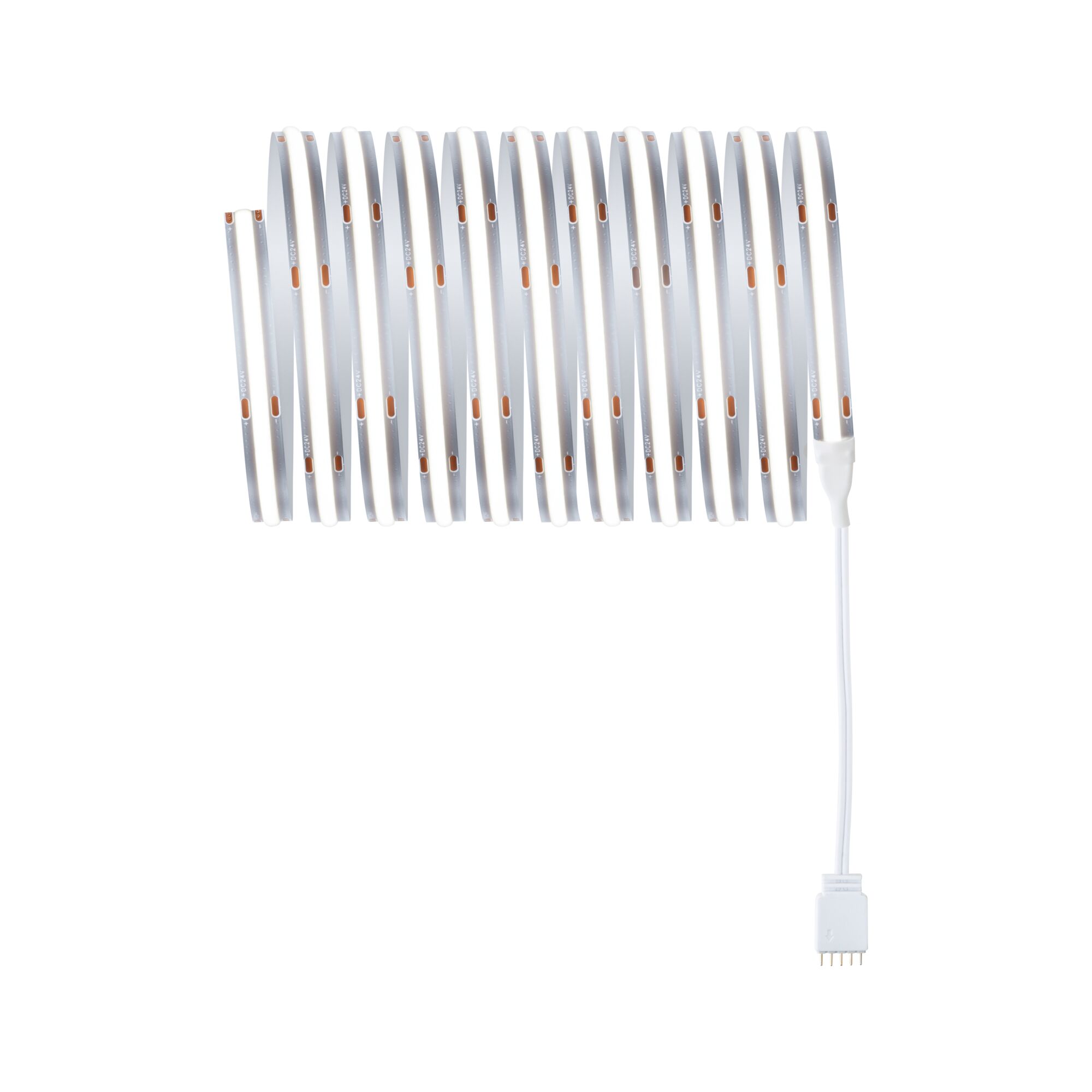

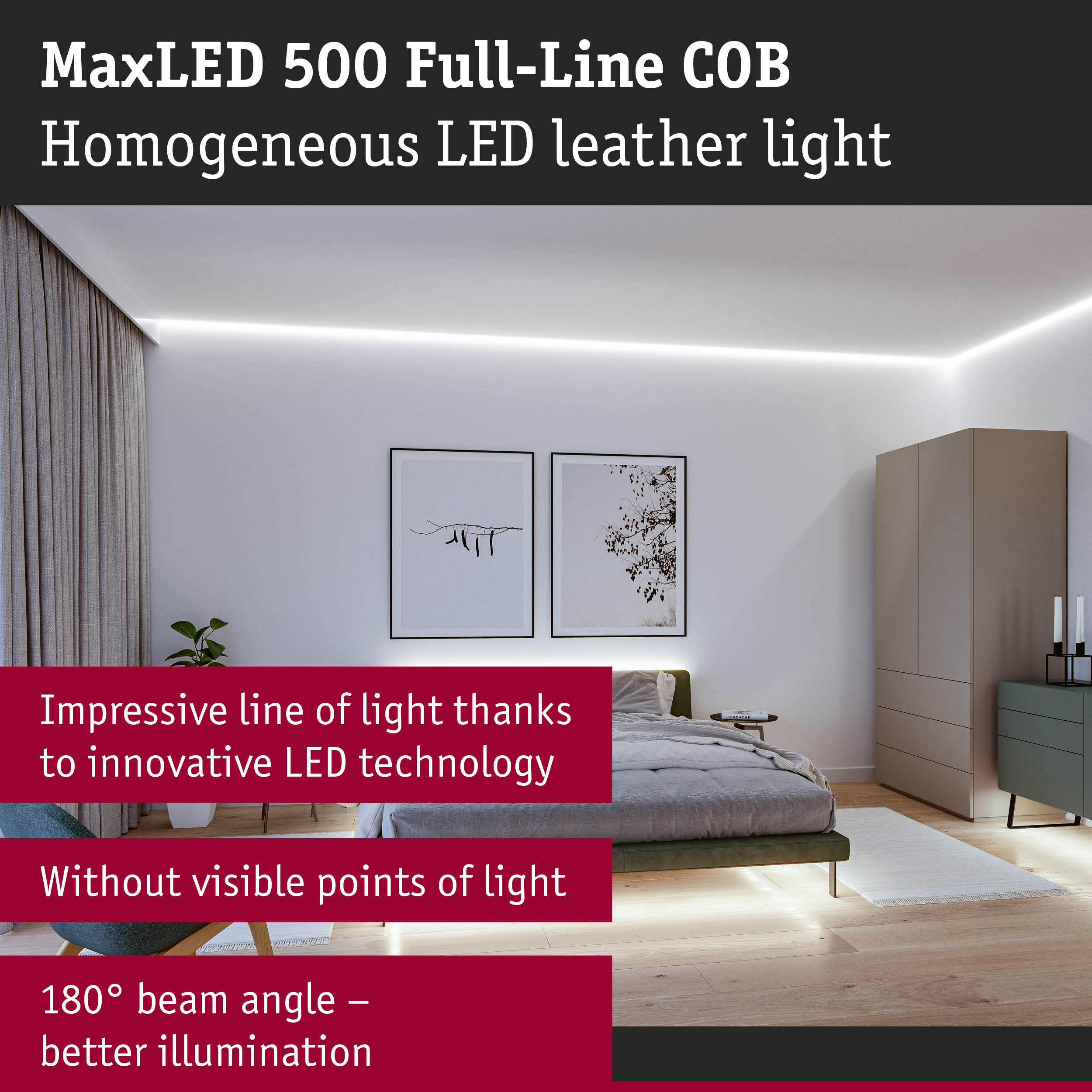

The MaxLED 500 Full-Line COB Strips emit perfect, glare-free working light for the worktop in the kitchen or garage, or any other work area. The MaxLED 500 COB basic set with 19 W, a length of 3 m and 480 LED/m generates a completely uniform light image without visible light points. The light connector continues the linear light seamlessly and without interruption. At 10 mm, the strip is extra narrow to fit into the most slimline LED profiles. The wide, 180° beam angle optimally distributes the light without shadow formation. A coating throughout protects the LEDs against dust and moisture, and the contact points have an IP20 protection. The daylight white basic set can be easily extended with suitable individual strips.
- Color temperatur: 6500K - Daylight white
- Complete set incl. strip and power supply
- Can be shortened as required
- Coating protects against splashing water and dust
- Simple plug-in system for easy installation

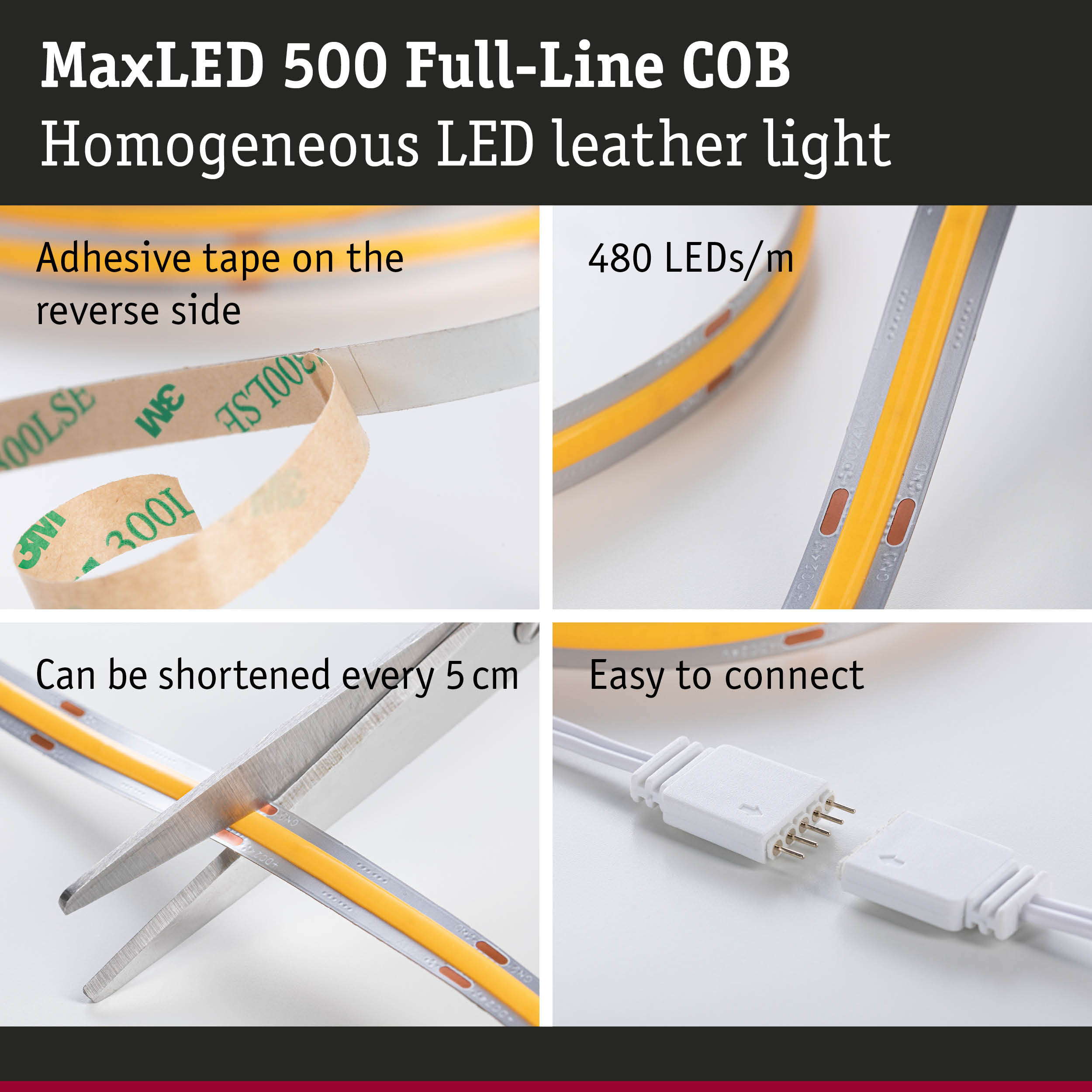

- Rear self-adhesive for simple installation
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 1,6 x B: 10 mm |
| Length | 3 m |
| Shortenability Strips | 50 mm |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Length max. | 5,5 m |
| Connections | |
|---|---|
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Daylight white, 6500 K |
| Nominal luminous flux | 1800 lm |
| Luminous flux LED module | 1800 lm |
| Color rendering index | > 80 Ra |
| Lumens per metre | 600 lm/m |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with Smart Home |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 19 W |
| Number of component parts | 1x |
| Number of LED's per meter | 480 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 21 W |
| Adjustability | fixed |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 36 VA |
| Transformer height | 30 mm |
| Transformer width | 43 mm |
| Transformer depth | 137 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
